Omega ORC93XA Installation guide

Instructions for the Use and Care and Installation of
ORC93XA
ORC94XBA
Wall Canopy Rangehoods

2
CONTENTS
1 Warning
2 Features
3 Installation
4 Notice of installation
5 Safety Warning
6 Use Instructions
7 Maintenance
8 Troubleshooting
9 Specification
It is important that you retain these instructions, proof of purchase as
well as other important documents about this product for future
reference.
Due to continual product development, Omega reserves the rightto
alter specifications or appearances without notice.
Dispose of packaging responsibly – recycle where facilities are
available.

3
(1) Warning
• Young children should be supervised to ensure that they do not play
with the appliance.
• The appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervised
or instructionconcerning use of the appliance by a responsible person
for their safely.
• Your cooker hood is for domestic use only, not suitable for barbecue,
fast - food shops, and other commercial use.
• Any installation work must be carried out by a qualified
electrician or competent person.
• The cooker hood and its filter mesh should be cleaned regularly in
order to keep in good working order.
• Before cleaning, always ensure that you have switched your cooker hood
off.
• Do not flambé under the range hood.
• Clean the cooker hood according to the instruction manual, and
keep the cooker hood away from the danger of flames.
• If there is any fault with your cooker hood, please call the customer
service number in the Warranty Card.
• Please keep the room adequately ventilated when your cooker hood and
gas hob are working.
• Do not exhaust the gas from cooker hood through the same
heated flue which is for the gas from gas hob and other kitchen
appliances.
• Before installation and usage, read all the instructions and make sure
that the voltage (V) and the frequency (Hz) indicated on your cooker
hood are exactly the same as the voltage (V) and the frequency (Hz) in
your home. To ensure that you get the best Warranty experience for
your cooker hood, please provide copies of the Warranty Card and
purchase receipt, when booking warranty work with the Customer
Service department

4
(2) FEATURES
1. The cooker hood uses high quality materials, and is made with a
streamlined design.
2. Equipped with a high power electric motor and centrifugal fan, it
produces strong suction with low noise, and features a non-stick
grease filter which is easy to clean.
3. The isolated low voltage (12 volt) circuit board control, means the
halogen lights are brighter and safer than incandescent alternatives.
4. Due to the special wind tunnel construction and filter design, any
odours and dust will be absorbed quickly.

5
(3) INSTALLATION

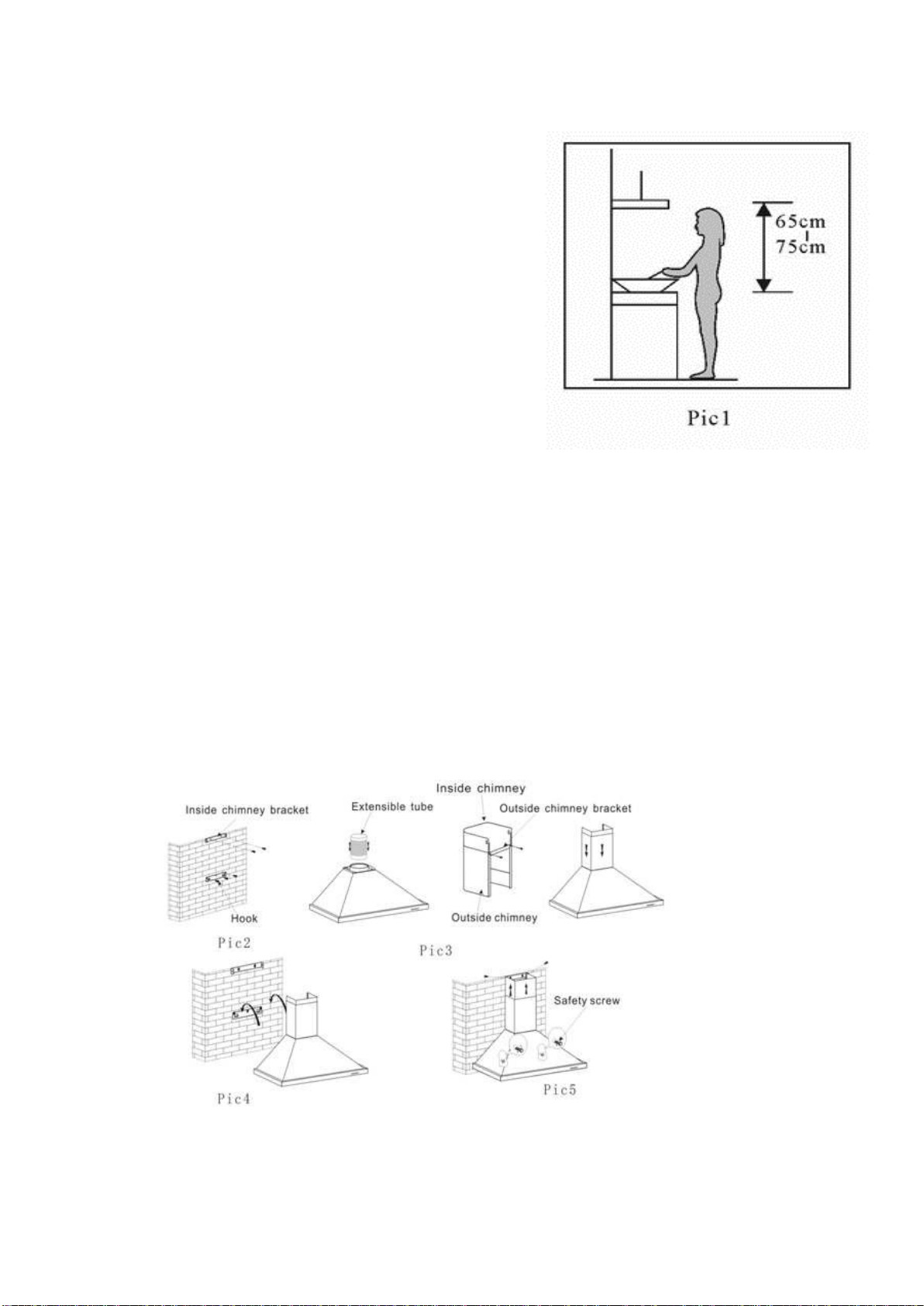

3.1 The cooker hood should be
placed at a distance of 65-75cm
(26-30inch) from the cooking surface
for the best effect. See Pic 1.
3.2 Install the hook in a suitable place
once the installation height is fixed,
and keep it vertically aligned. The
fixed position of the inside chimney
bracket determines the location of
the chimney.
3.3 Fix the outside chimney bracket
on the outside chimney, and be sure
that the inside chimney can be
adjusted in height
freely, as well as being able to fix the exhaust pipe (Not included
in the rangehood) . Afterwards, install the exhaust pipe and
chimney on the cooker hood. See Pic 3.
3.4 Lift the cooker hood onto the hook. See Pic 4.
3.5 Adjust the height of the inside chimney to the position of the
inside chimney bracket, and fix by screw. After adjusting the
position, fix the body with safety screws. See Pic 5.
Note: The two safety screw holes are positioned on the back
casing, with diameter of 6m.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards

6
(4) NOTICE OF INSTALLATION
1. Before installation, please ensure the area is clean, to avoid
suction of the remaining bits of broken wood and dust.
2. The canopy hood cannot share the same air ventilation ducting as
other appliances, such as gas and electric heaters.
3. The bending of the ventilation ducting should be ≥ 120°, parallel or
above the exit vent, and should be connected through the external
wall.

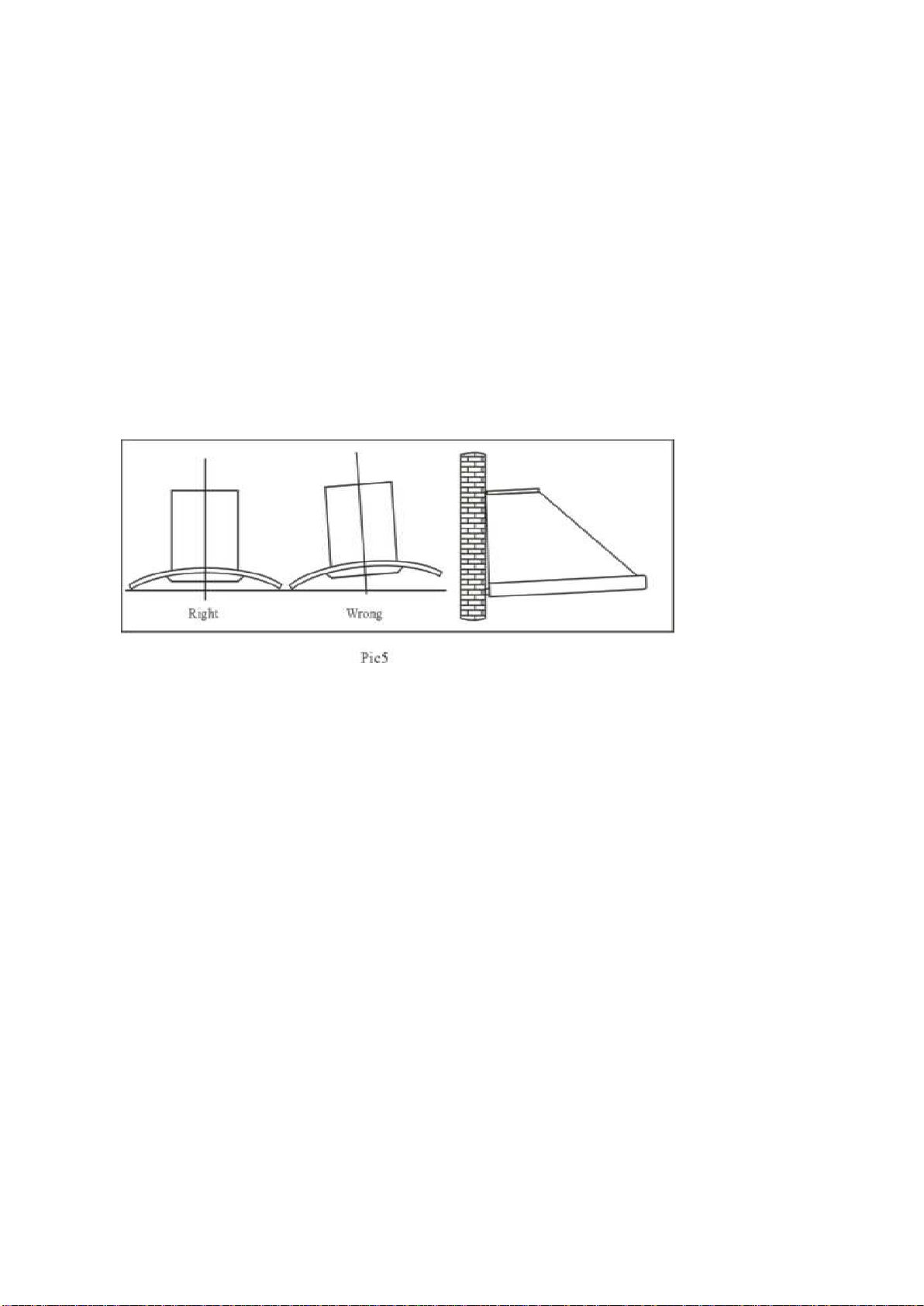

4. After installation, make sure that the extractor is level to avoid
grease collection at one end.
NOTE: Remove all protective plastic coatings from the stainless steel
surfaces before use.

7
(6) USE INSTRUCTIONS

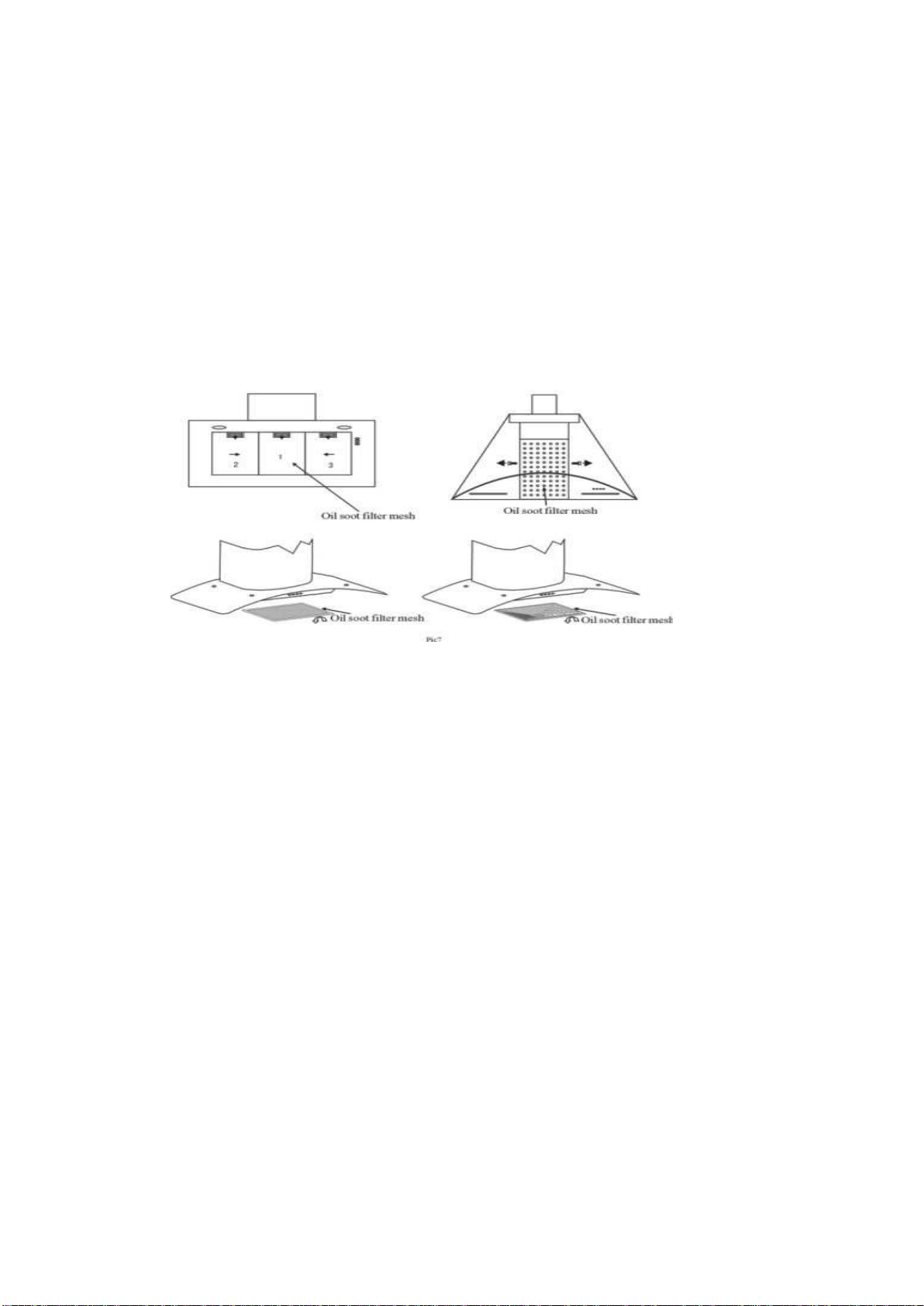

The re-usable aluminium grease filters supplied with this rangehood should
be cleaned every month or so to avoid grease build-up.
To remove the grease filter, release the locking mechanism at the front of
the filter, and lower the filter slightly to unhook it at the back.
Whilst the filter is removed, clean off any residual grease from the housing
to avoid fire risk.
When replacing the grease filters, ensure that the locking mechanism is
facing down.
ORC93XA
The range hood has indication diagrams to allow you to easily select the
fan operating speed required.
Push the low button, indicated by a fan with 3 blades, and the motor will
run at a low speed.
Push the medium button, indicated by a fan with 4 blades and the
motor will run at a medium speed.
Push the high button, indicated by a fan with 5 blades and the motor will
run at a high speed.
Push stop button, indicated by an (O) and the motor will stop.
Push the light button, indicated by a lit globe and the two lights will
come on. Push it again and the light will turn off.

8
ORC94XBA
The ORC94XBA has a touch control panel.
When the power is connected and switched on you will hear a beep
and the display screen will be backlit for 30 seconds and the
rangehood will go into standby mode.
SETTING THE TIME (24 hour time)
In standby mode hold down the Timer button (2-3 seconds) until the
Hour symbol on the display screen starts to flash.
Touch the Add/ON ( ) or Dec/OFF (-) buttons to adjust the hour.
Touch the Timer button once the hours have been set this will allow
you to adjust the minutes by touching the Add/ON ( ) or Dec/OFF (-)
buttons.
ADJUSTING THE MOTOR SPEED
Touch the Add/ON button ( ) and the motor will run at low speed and
the display screen will show .
Touch the Add/ON button ( ) again and the motor will run at medium
speed and the display screen will show .
Touch the Add/ON button ( ) a third time and the motor will run at high
speed and the display screen will show .
You are able to decrease the motor speed by touching the Dec/OFF
button (
-
). Keep touching the Dec/OFF (
-
) button until all the bars
disappear and the motor will stop and the rangehood will go into
standby mode.

9
LIGHT
The lights work independently of the other functions. Push the light
button and the two lighting lamps will come on the display screen
will also show a light symbol. Push it again and the lamps will turn off.

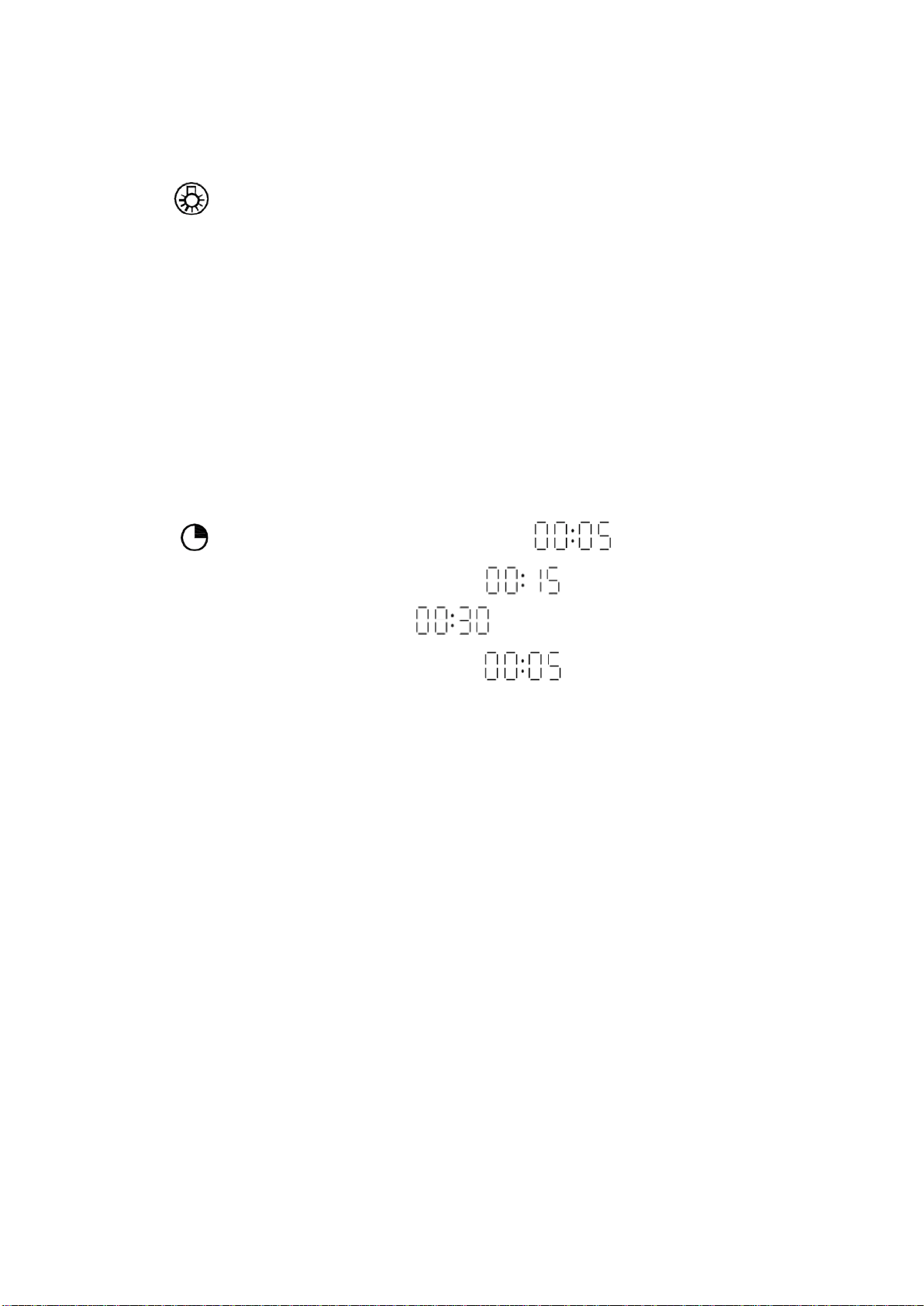

TIMER
The timer can be used to turn off the rangehood automatically after a
period of time (5, 15 and 30 minutes).
Note: The timer does not affect the lamps.
While the rangehood motor is running in any speed press the Timer
button and the display screen will show , press the Timer
button again and the display will show , press the Timer button
again and the display will show . If the Timer button is pressed
again the display will go back to show .

10
(7) MAINTENANCE
7.1 Cleaning the grease filter mesh
The filter mesh is made of high-density stainless steel. Please do not use
corrosive detergent on it. Keeping this filter clean will keep the appliance
running correctly. Please strictly follow the guidelines below.
Method 1: Place the mesh in 40 - 50℃ clean water, add in a small
amount of detergent, and soak for 2 - 3 minutes. Wear gloves, and
clean with a soft brush. Do not apply too much pressure, as the mesh is
delicate and will damage easily.
Method 2: The grease filters can be put into a dishwasher. To do so,set
the temperature at around 60℃.
7.2 Notice of cleaning cooker hood
A. To protect the main body from corrosion over a long period of
time, the cooker hood should be cleaned with hot water plus
non-corrosive detergent every two months.
B. Please do not use abrasive detergent for it will damage the
body.
C. Keep the motor and other spare parts free from water, as this
will cause damage to the appliance.
D. Before cleaning the appliance please remember to turn off
power
E. If fitted with active charcoal filters, the charcoal filter should not
be exposed to heat.
F. Please do not tear open the fixed bar around the active charcoal
filter.
G. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.

11
(8) TROUBLESHOOTING
Fault
Cause
Solution
Light on, but motor
does not work
The fan is blocked
Remove the source of
the blockage
The capacitor is damaged
Contact Omega
Service
The motor jammed and bearing
damaged
Contact Omega
Service
A smell coming from the motor
Contact Omega
Service
Light does not work,
motor does not work
Beside the above mentioned, check the following:
Light damaged/No lights
Replace lights
Power cord loose
Contact Omega Service
Oil leakage
One way valve and the air
ventilation entrance are not
tightly sealed
Take down the one way
valve and seal with
silicone rubber.
Leakage from the
connection of U-shaped
section and cover
Take U-shaped section
down and seal with
silicon or paint
Shake of the body
The fan is damaged and
causes shaking
Replace the fan
The motor is not tightly
mounted
Lock the motor mounts
tightly
The body is not tightly hung
on wall
Fix the body tightly
Insufficient suction
The distance between the
body and the gas top too
long
Readjust the distance
Too much ventilation or
breeze from open doors or
windows
Choose a better location
and re-assemble the
machine
The machine inclines
The fixing screw not tight
enough
Tighten the hanging
screw and make it
horizontal
The hanging screw not tight
enough
Tighten the hanging
screw and make it
horizontal

12
(9) SPECIFICATION
Model
ORC93XA
Rated Input
220V-240V, 50Hz
Rated Power
305W
Lighting Power
20W X 2 (halogen capsule
lamp)
Motor Power
265W
Air tube diameter
150MM
Air output
729m3/h
Model
ORC94XBA
Rated Input
220V-240V, 50Hz
Rated Power
305W
Lighting Power
20W X 2 (halogen capsule
lamp)
Motor Power
265W
Air tube diameter
150MM
Air output
729m3/h
ORC94XBA ORC93XA
