INSTALLATION INSTRUCTIONS
USER GUIDE
HI90BLX1
ISLAND RANGEHOOD, BOX CHIMNEY
NZ AU

1
CONTENTS
Safety and warnings
Installation instructions
Operating instructions
Cleaning and maintenance
Parts and accessories
Manufacturer’s Warranty
Customer Care
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com
5
3
15
16
19
20
22

3
SAFETY AND WARNINGS
!WARNING!
27kg
( )
Weight Hazard
The rangehood is heavy. Please ensure adequate care is taken when
installing the rangehood to prevent personal injury. The rangehood
must be installed onto a solid wall, stud, beam or truss. Weight of the
2si 7kg.
!WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs. Alterations to the domestic
wiring system must be made by a qualified electrician.
Failure to follow this advice may result in electric shock or death.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
●Please read the entire set of instructions before installing or using this appliance.
●Please make this information available to the person installing the appliance – doing
so could reduce your installation costs.
●Always switch the power off prior to installation, servicing or cleaning of the rangehood.
●This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations. Failure to
install the appliance correctly could invalidate any warranty or liability claims.
●To comply with electrical safety regulations, the rangehood must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the rangehood from the power for
the purpose of internal cleaning or maintenance.
●
●If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
●Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.
●Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
●Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.
HI90BLX1
HI90
A power outlet should be within the range that does not affect installation and use of the motor
assembly and can either be the chimney or in the ceiling.
A power outlet should be within the range that does not affect installation and use of the motor
assembly and can either be the chimney or in the ceiling.
A power outlet should be within the range that does not affect installation and use of the motor
assembly and can either be the chimney or in the ceiling.
A power outlet should be within the range that does not affect installation and use of the motor
assembly and can either be the chimney or in the ceiling.

4
SAFETY AND WARNINGS
●The minimum distance between the supporting surface for cooking vessels on the
cooktop and the lowest part of the rangehood shall be 600 mm or 650 mm if installed
over a gas cooktop.
●Stainless steel is very easily damaged during installation if abraded or knocked by
tools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.
●To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.
●This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance
by a person responsible for their safety.
●Children should be supervised to ensure they do not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
●You must read the details concerning the method and frequency of cleaning.
●There is a fire risk if cleaning is not carried out in accordance with the instructions.
●Never leave frying food unattended since grease can overheat and catch fire. The risk
of fire is even greater in the case of used oil.
●Do not flambé under the rangehood.
●Never use the rangehood without the filters in place.
●During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.
●CAUTION: accessible parts may become hot when used with cooking appliances.
●Remove all packaging, including protective wrappings, before use.
Exhaus t air must not be dischar ged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels. Range hoods and other cooking
fume extractors may adversely affect the safe operation of appliances burning gas or
other fuels (including those in other rooms) due to back flow of combustion gases. These
gases can potentially result in carbon monoxide poisoning. After installation of a range
hood or other cooking fume extractor, the operation of flued gas appliances should
be tested by a competent person to ensure that back flow of combustion gases does
occur.
●
not

5

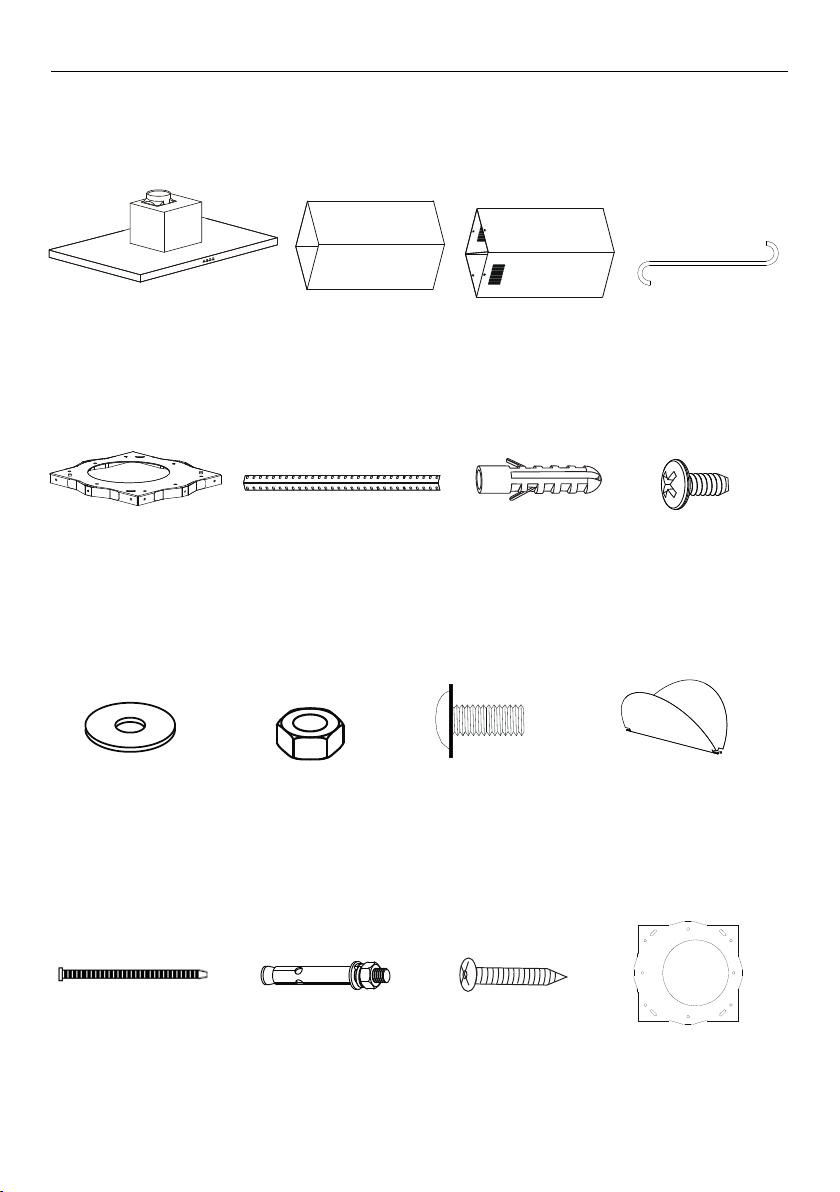

Cooker Hood (1) Outside chimney (1) Inside chimney (1) Hook (1)
V-flap (150) (1 pair)
Cable tie (1)
Hanging board
(1)
Angle iron (8) Wall plug (12)
(
S crew
ST4 ×8mm) (4)
(
Washer
4*12*1mm) (26)
M4 screw nut (26)
(
Screw
4×10mm) (42)
M
Screw
( 6*60mm) (8)
Screw
(ST6*40mm) (12)
Hanging board
picture (1)
INSTALLATION INSTRUCTIONS
ø
ø
Contents of packaging

(1)
Screw ST4*30mm (2) Wall plug (2) Screw ST3*12mm (2)
Screw ST4*8mm
(4) Bracket 1 (1) Bracket 2
(1)
6
T-shaped plastic outlet
Carbon filter
(1)
Recirculation Carbon filters
Not Included – available separately
See arts and Accessories section for ordering details
T-shape Recirculation Outlet Kit
INSTALLATION INSTRUCTIONS
Optional Recirculation Accessories
(when ducting externally not possible)
P

INSTALLATIONINSTRUCTIONS
Product dimensions
PRODUCT DIMENSIONS mm
AOverall height of product
B
Overall width of product
COverall depth of product
D
Height of product
E
Width of chimney
F
Depth of chimney
G
Distance from centre of ducting outlet to back of product
H
Distance from centre of ducting outlet to side of chimney
I
Diameter of ducting outlet
JDistance between centre of lights
KDistance between centre of lights to back of product
IMPORTANT!
Actual product dimensions may vary by 2 mm.
Please read the entire instructions before installing the rangehood.
J
K
g
H
I
Ø
A
F
A
d
be
c
77
7
HI90BLX1
600
37
282
295
281
141
150
530
INSTALLATION INSTRUCTIONS
±
min
6
- max 11
000
5
898

Height of rangehood
INSTALLATION DIMENSIONS mm
LInstallation height
Ducted
Recirculation
MHeight top of cooktop to base of product
Electric cooktop
L
M
Rangehood installation height above the cooktop is the user’s preference.
Lower installation heights will improve the efficiency of capturing cooking odours,
grease, andsmoke. This rangehood must be installed between the minimum and
maximum dimensions indicated in the table above.
8
Gas cooktop min. 650 – max. 750
min. 600 – max. 750
Minimum installation height may be greater if required by the cooktop, refer to your
cooktop installation instructions.
INSTALLATION INSTRUCTIONS
min
6
- max 11
000
5
min
6
- max 11
000
5

Venting options
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
The rangehood can be installed to operate with the exhaust air ducted externally from
the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.
Ducted
For ducted installation it is recommended that 150 mm diameter, rigid or semi-rigid
ducting is used. This will require a 160 mm (min) round hole in the ceiling or wall.
Care should be taken to position the hole correctly.
For optimal efficiency use the shortest and straightest duct route possible and use rigid
or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting
should only be used as a last resort (ie in difficult installations) and if used ensure that it
is straight and smooth and extended as much as possible.
Recirculating
To enable the product to operate with the air recirculating, please purchase a
recirculation diverter and carbon filters (refer to the ‘Parts and accessories’ section).
The recirculation diverter is required to channel the air out the side vents at the top
of the chimney and the carbon filters are required to remove odours.
Note: a ducting hole is not required in the wall or ceiling if the rangehood is installed
to operate with exhaust air recirculating.
9
INSTALLATION INSTRUCTIONS

WARNING!
 This product is heavy and requires two persons for installation.
 Installation work and electrical wiring must be done by qualified person(s)
inaccordance with all applicable codes and standards.
 Failure to install the screws or fixing device in accordance with these instructions
mayresult in electrical hazards
IMPORTANT!
Wear gloves to protect against sharp edges.
The manufacturer is not liable for any damage caused by not following theseinstructions.
Installation
Preparing for installation:
Before installing your rangehood:
 Please read the instructions carefully.
 Unpack the rangehood.
 Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.
 Check that all functions are working.
 Check that the area behind the installation surface to be drilled is clear of any
electrical cables or pipes, etc.
 The rangehood surfaces can be damaged during installation if grazed or knocked
by tools. Please take care to protect the surfaces during installation.
 Protect the cooktop surface with cardboard, or the like, to prevent damage occurring
whilst the rangehood is being installed above.

10
INSTALLATION INSTRUCTIONS

11
Pic 1
INSTALLATION (VENT OUTSIDE)

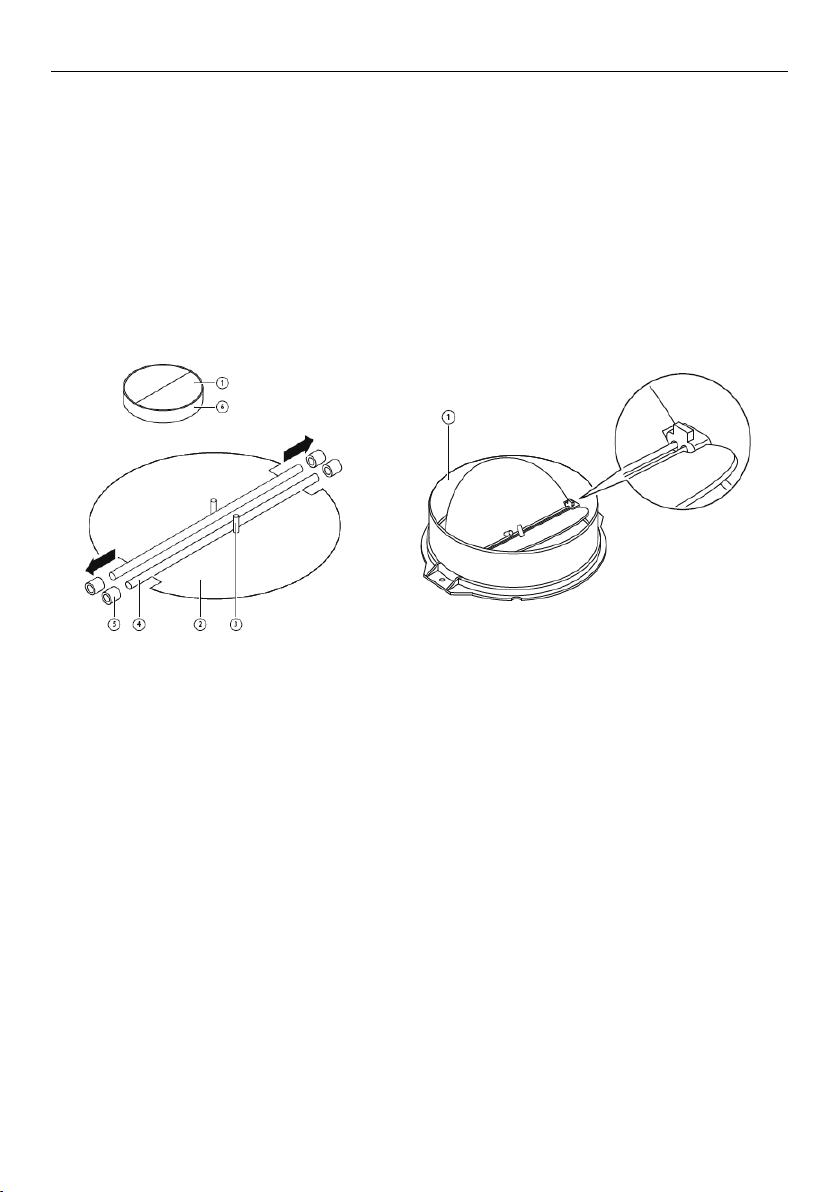

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount
segamiehT.ydobstiotstrap-flaheht only show an example of how to mount
the V-flap, because the outlet may vary according to different models and
configurations.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part

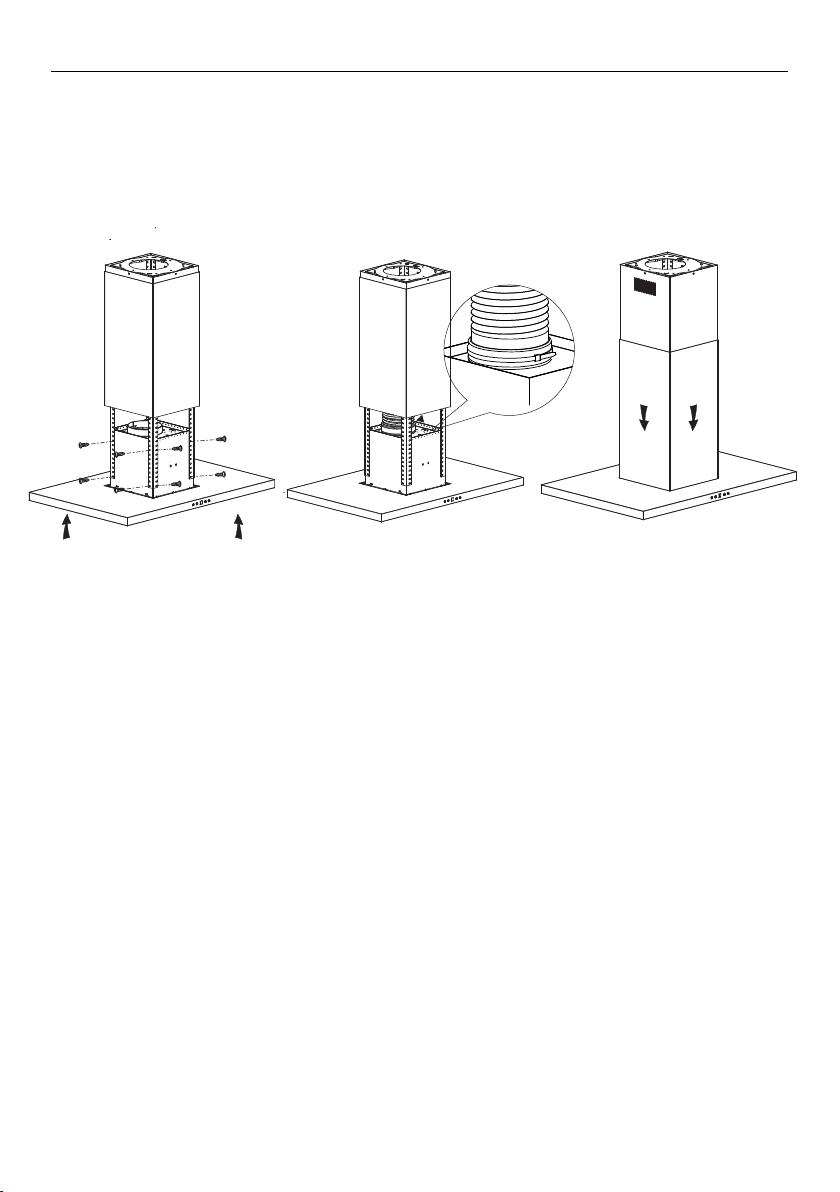

INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as
below picture by means of an extraction duct.
1. Ensure that there is a power socket in an accessible location in the celling.
2. The ceiling must bear at least 120kg weight, and the thickness of the
ceiling must be ≧30MM.
3. Fasten the paper template to the ceiling centered over the cooktop .
4. Drill 1*170mm round hole in the ceiling in the location shown by the
template.
5. Drill 12 holes in the ceiling and fasten the hanging board, see pic 2. Use the
12pcs of ST6*40mm screws OR the other supplied fastener depending on
the ceiling.
6. Calculate the required length of the angle iron. Use 16pcs M4*10 screws
and M4 nuts with washers to connect the angle iron together. The overlap
of the angle iron can not be less than 100mm.
7. Use 8pcs of M4*10 screws and M4 nuts with washers to connect the angle
iron to the hanging board, see pic 3
8. Install the ducting through the 170mm hole in the ceiling.
INSTALLATION INSTRUCTIONS
s

hanging board
Ducting
12
inside chimney
outside chimney
9. Use 4pcs ST4*8 screws to connect the inside chimney onto the hanging
board .
10. Slide the outside chimney over the inside chimney and secure it in a
raised location with the supplied hook, see pic 5. Install the v-flap to
the outlet. See 6.
11. While holding the hood in place, use 16pcs M4*10 screws to connect .
the hood body to the angle iron, see pic 7.
Pic 5
Pic 2
Pic 6
Pic 3 Pic 4
INSTALLATION INSTRUCTIONS
pic

13
Pic 7 Pic 8 Pic 9
12. Fix the expansion pipe to the outlet with a cable tie See 8. Connect
the power supply.
13. Check that hood is secure. Lift the outside chimney off the hook and slide it
down over the hood. See pic 9.
Recirculation Installation only‐‐
Install the recirculation T-shaped plastic outlet
1. As shown in ic 10, drill two 8mm holes, 45mm apart centered on the hanging
board. Use 2x ST4*30mm screws to attach bracket 2 onto the ceiling. Use the
wall plugs if required.
2. As shown in 12, use 2 pcs ST4*8mm screws to fix bracket 1 to the T-shaped
plastic outlet.
3. Adjust the width of the T-shaped outlet to the width of the chimney. Secure this
position with 2pcs ST3*12mm screws.
4. As shown in pic 13 and 14, fix the T-shaped plastic outlet to the ceiling with 2 pcs
ST4*8mm screws.
5. Complete the rest of the installation as per vented installation. As shown in pic 15
and 16, use 4pcs ST4*8mm screws to fix the inside chimney to the hanging board .
INSTALLATION INSTRUCTIONS
p
pic
pic
(Accessory available)

bracket1
bracket2
adiusted pipe
Pic 12
Pic 13
Pic 14
Pic 15 Pic 16
14
INSTALLATION
INSTRUCTIONS
Pic 10 Pic 11
INSTALLATION INSTRUCTIONS
45

OPERATING INSTRUCTIONS
8







15
Start Using Your Cooker Hood
Push button
1) Push the “0” button, and the motor will stop.
2) Push the “1” button, and the motor will run at low speed.
3) Push the “2” button, and the motor will run at mid speed.
4) Push the “3” button, and the motor will run at high speed.
5) Push the light button and the two lights will illuminate. Push it again and
the light will turn off.

CLEANINGAND MAINTENANCE
WARNING!
Unplug or disconnect the appliance from the power supply before servicing
or cleaning.
IMPORTANT!
●Never use abrasive or oil based cleaners.
●Wear gloves to protect against sharp edges.
Maintenance
The rangehood should be cleaned regularly using a mild, liquid detergent and a clean
soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals,
abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are
corrosive which can cause damage to your rangehood.
Note: in areas of high humidity or coastal environments, cleaning should be carried out
more frequently.
GREASEMESHFILTERS
  
 
 
16
INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps:
Angle the filter into the slots at the back of the hood.
Push the button on the handle of the filter.
Release the handle once the filter fits into a resting position.
Repeat to install all filters.
1.
2.
3.
4.
As needed the aluminium grease filters should be removed and cleaned with h ot soapy water
or washed separately in a dishwasher.
If washed in a dishwasher, the filter should be placed inanupright position.
After rinsing and drying, replace the filters.
Note: Discolouration of the filters may occur.
1
2

CLEANINGAND MAINTENANCE
Carbon filters – for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and odours from
cooking vapours before the air is channelled back into the kitchen. The active carbon
filters must be replaced periodically to work properly, at least every three months,
depending on the frequency with which the rangehood is used.
Note: fully saturated carbon filters can become a barrier to air movement therefore
limiting rangehood performance. In the event of fire, grease laden filters could
be flammable and therefore regular replacement is recommended.
CARBON FILTER-not suppiled
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed every 3 to 6 months accord ing to your cooking habits. The installation
procedure of activated carbon filter is as below:
●
●Insert the carbon filter in the rectangular hole,fitting it over the motor.
●After inserting the front edge of the carbon filter into the slot on the cooker hood.
Lower the back edge of the carbon filter, until it clicks into place at the rear of the
rectangular hole. Raise the two fixing bars, until they are horizontal over the carbon
filter.
●
●Apply reverse procedure to uninstall the carbon filter.
17
Replace the Mesh filter back to position.
Remove the mesh filter.
Replacing the LED light
Note: to replace the LED lights please refer to your nearest Fisher &Payket
trained and supported service technician, Customer Care, or contact us
through our website:
www.fisherpaykel.com

PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
LED
Recirculation carbon filter
T-shape recirculation outlet kit
Aluminium filter
light
18
H0530061789
H0530061771
H0530062211
H0530061772
+
Chimney Extension 900mm
