Omron Sonic style 456 User manual

OMRON Sonic style 456
Sonic Electric Toothbrush
• Instruction Manual 1
• Mode d’emploi 11
• Gebrauchsanweisung 21
• Manuale di istruzioni 31
• Manual de instrucciones 41
• Gebruiksaanwijzing 51
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ 61
HT-B456-E-02-12/09
5325290-1B
EN
FR
DE
IT
ES
NL
RU
AR
HT-B456-E_A_M05_090421.pdf
HT-B456-E_A_M.book Page 1 Friday, November 27, 2009 11:30 AM

1
EN
Contents
1. Notes on Safety .......................................... 1 6. After Use ............................................... 5
2. Know Your Unit........................................... 2 7. Cleaning, Storage and Disposal............ 5
3. Charging ..................................................... 2 8. Troubleshooting .................................... 7
4. Attachment of Brush Head ......................... 3 9. Technical Data ...................................... 8
5. How to Use ................................................. 3
OMRON Sonic style 456
Sonic Electric Toothbrush
Thank you for purchasing this OMRON Sonic style 456. Please read the instructions carefully
before use, and keep this manual for future references. Do not use this unit for purposes other
than described in this manual.
1. Notes on Safety
Warning:
• Please consult your dentist if you recently had oral or periodontal surgery, or if you are under
treatment with other oral symptoms (tooth is being treated, loose false tooth).
• Consult your dentist if there is continuous or serious bleeding of the gums after using the
toothbrush.
• Children should be supervised to ensure correct usage of the product.
• Do not share the brush with others.
• Do not rinse the battery charger with water.
• Do not leave the main unit or battery charger in shower room or other wet places.
• Do not mishandle the electric cable, such as:
- Damage or break the cable - Machining or modifying the cable
- Forcibly stretch or bend the cable - Twist the cable
- Bundle the power cables - Place heavy weights on the power cable
- Clamp or clip the cable
• Do not use when the power cable or power plug is damaged, or the power jack is loose.
• Do not connect or remove the power plug with wet hands.
• Be sure to use the device at the specified mains voltage.
• Except for waste disposal, do not disassemble the main unit.
Caution:
• When disposing the main unit, affix scotch tape or label to the electrodes of the battery.
• Do not use battery charger other than the one dedicated to this product.
• Do not press the toothbrush with excessive force against the teeth or gum, or touch them with
the plastic parts other than the front end of the bristle. Also, avoid brushing the same area for
too long.
• Approved for human use only.
• Do not step on or drop the main unit or battery charger, or subject them to strong shock.
• Do not throw the rechargeable battery in fire.
• For energy saving purposes, please charge the main unit only when the battery level is too low.
When not charging it, we recommend the power plug to be removed from the socket.
• Do not leave the unit unattended with persons who cannot express their consent.
General Advice:
• It is widely accepted that the abrasive used in toothpaste to remove cigarette stains or whiten
the teeth may bring serious wear if it is used too long. Please consult your dentist before using
abrasive types of toothpastes as it may damage the teeth or gum.
• You may experience a light tickling or tingling sensation when you use the toothbrush for the
first time. This is caused by the sonic oscillation unique to the sonic electric toothbrush.
HT-B456-E_A_M.book Page 1 Friday, November 27, 2009 11:30 AM

2

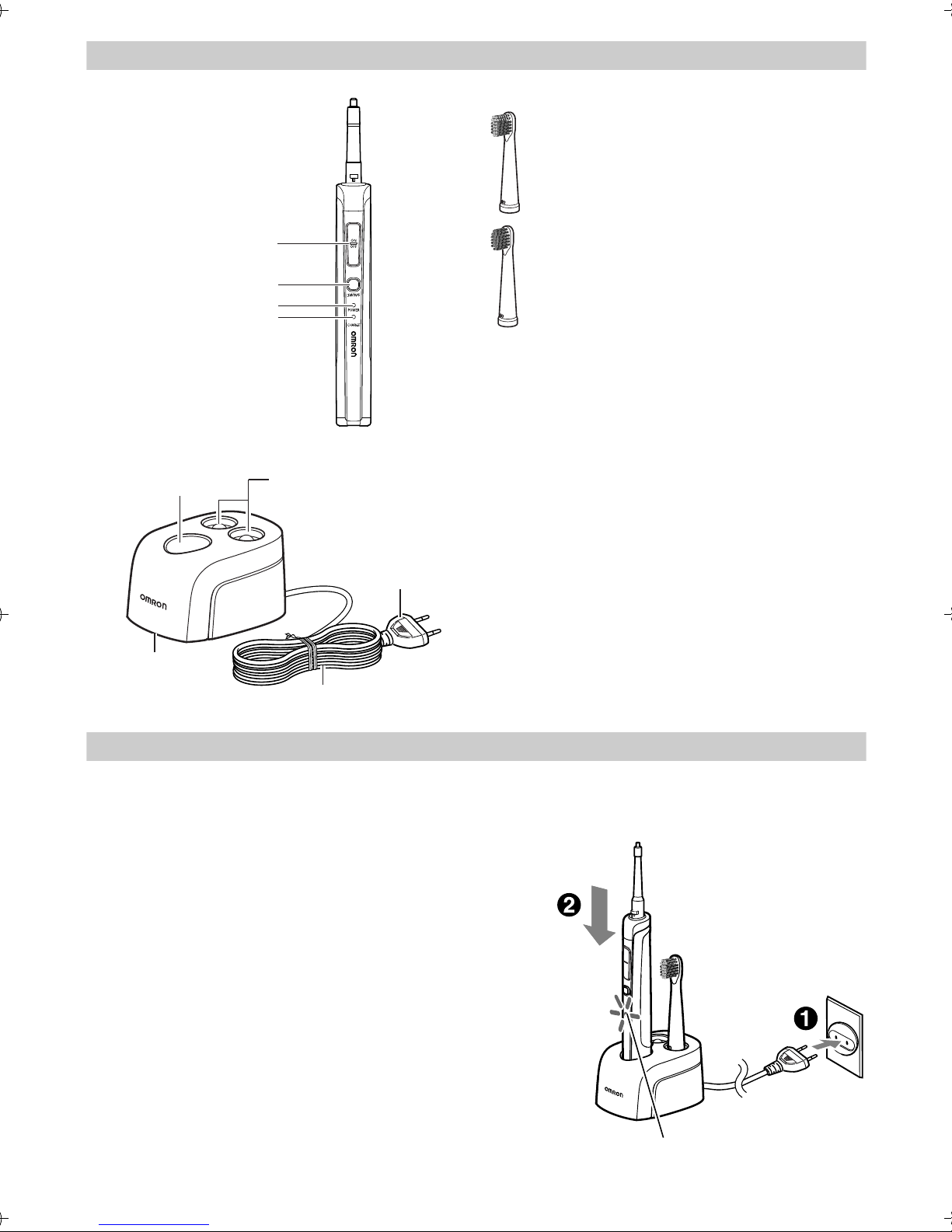

2. Know Your Unit
3. Charging
Before first usage, charge for at least 16 hours (non-stop) to ensure full battery.
Notes:
• The main unit and charger may slightly heat up during charging.
• You cannot turn on the power of the main unit during
charging.
1.Plug the power plug into a power outlet.
2.Insert the main unit into the charger.
The charger indicator (red) lights up, and the
charging begins.
■ Charger indicator
The charger indicator lights up continuously when the
main unit is in the charger.
Note: If the toothbrush shuts off shortly after being
turned on, immediately charge again for at least
16 hours (non-stop).
■ Toothbrush main unit
■ Battery charger
■ Brush heads
Triple Cleaning Head
With three kinds of bristles on the
head, it can apply uniform force to
effectively remove dental plaque.
Super-Fine Soft Bristle Head
It can effectively remove dental plaque
with gentle and smooth action, e.g. for
sensitive gums.
Brush head jack
Power plug
Power cable
Main unit jack
Charger cover
Power switch
Swing mode switch
Power indicator
Charger indicator
Charger indicator lights up
HT-B456-E_A_M.book Page 2 Friday, November 27, 2009 11:30 AM

3
EN
4. Attachment of Brush Head
1.Attach the brush head to the toothbrush main unit.
Align the groove on the brush head with the locking tab on the main unit and then attach the
brush head.
Note: The head cannot be mounted if the groove and the locking tab do not fit together.
2.Secure the brush head and the main unit.
Gently turn the brush head in the direction shown by the arrow, to align the mark on the
brush head with the mark on the toothbrush. The brush head will be secured once the
mark aligned with the mark.
Notes:
• Do not over-tighten and go beyond the position of the mark on the main unit. Otherwise the
product may be damaged.
• When disassembling the product, turn in the opposite direction of the arrow and remove the brush
head.
• Exchange brush heads at least every three months or as soon as worn out.
5. How to Use
1.Preparation to brush your teeth.
Notes:
• Wet the bristle with water for better result.
• Extrude some toothpaste onto the brush head.
• Place the brush head in your mouth.
• To prevent spilling of toothpaste turn on and off the toothbrush while the brush head is in your
mouth.
2.Press the power switch (on/off button).
The power indicator (green) lights up and the brush head starts
oscillating.
Note: You may feel strong vibration when you use the toothbrush for the first
time. This is caused by the sonic oscillation, which is unique to sonic
electric toothbrushes and allows for effective plaque removal. You will get used to it after using
the toothbrush regularly.
Locking Tab
Place the front end of the bristle
at a slight downward angle. Groove on brush head
mark on brush
head mark on
main unit
Power
switch
HT-B456-E_A_M.book Page 3 Friday, November 27, 2009 11:30 AM

4
■ Select one of the three different cleaning modes with the Swing mode switch
Press the switch “swing” to change the cleaning mode.
When switched on, the toothbrush will select the mode last used.
Cleaning mode of brush head
The wide swing mode and point swing mode are recommended to effectively remove dental
plaque, as the oscillation of the bristle end is more refined with these two modes. Choose the
mode according to brushing position and personal preference.
- Wide swing mode
- Point swing mode
3.After you have finished brushing your teeth and when the brush head is still in your
mouth, press the power switch to turn off the power.
The power will be automatically switched off 3 minutes after it is turned on. If the power is
turned on again, you can brush your teeth for another 3 minutes in the selected mode.
Standard swing mode
(Indicator off)
Wide swing mode
(Orange)
Point swing mode
(Blue)
Description in ( ) shows the color of indicator
when the mode is changed.
Swing
mode
switch
Mode on: orange indicator lights up
Under the wide swing mode, the bristle moves two
times wider in a horizontal way compared to the
standard swing mode. It is recommended for gently
cleaning the gap between teeth and gums.
Mode on: blue indicator lights up
Under the point swing mode, the bristle moves
approx. 1.5 times in vertical way compared to the
standard swing mode.
It is recommended for cleaning the inner side of
front teeth, back teeth and area that is difficult to
clean thoroughly due to poorly-aligned teeth.
Note: The actual oscillation condition of the brush head cannot be visibly determined.
HT-B456-E_A_M.book Page 4 Friday, November 27, 2009 11:30 AM

5
EN
■ Ideal way to brush your teeth
Strength applied on the brush head: Touch the teeth or gum gently with the front end of the bristle.
How to move the brush head: Move the brush head horizontally to brush your teeth.
6. After Use
1.Remove the brush head from the main unit.
Gently turn the brush head in the direction shown by
the arrow, and remove it from the main unit.
2.Wash the brush head and main unit with water.
Gently shake off the excess water.
3.Wipe off the water on the main unit with a soft, dry
cloth before inserting it into the charger.
4.Insert the brush head and main unit into the charger.
7. Cleaning, Storage and Disposal
■ How to clean
Please keep the main unit/charger clean.
Remove stains with soft, dry cloth.
For heavy stains, wet the cloth with water or mild detergent, wring the cloth out and wipe the
stains off; or rinse with water before wiping with the cloth.
• The charger cover can be cleaned with water.
Pull out the charger cover of the charger main unit as
shown.
Attention during cleaning
• Remove the power plug from the power outlet before
cleaning the charger.
• Do not let water into the main unit.
• Do not immerse the brush head or main unit in alcohol, or
sanitize with hot water (>40°C ).
• Do not wipe with cloth soaked with antiseptic.
• Do not use petrol, thinners, or similar solvents to remove the stains.
Tooth facing and
occlusal surface
Place the brush head on
the teeth, and keep it in a
90° angle to the teeth.
Place the bristle on gum
groove, and keep it in a
45° angle to the groove.
Press the brush head vertically
against the teeth, and clean
them one by one, following the
alignment angles of the teeth.
Border between teeth
and gum
Backside of incisor
teeth or area with
poorly-aligned teeth
HT-B456-E_A_M.book Page 5 Friday, November 27, 2009 11:30 AM

6
■ Storage
Do not store at the following places.
• Place that can easily get wet.
• Place that can be easily exposed to environmental factors such as high temperature,
moisture, direct sunlight, dust and salt.
• Place that is exposed to strong shocks or vibrations (for example, where possible to fall to
the floor easily).
Store in places out of the reach of children.
■ Disposal
When disposing the product, remove the rechargeable battery if necessary and please follow
local regulations on environmental protection.
The rechargeable battery on the product cannot be replaced.
Removing the Rechargeable Battery
1.Check that the brush does not operate, then remove the brush head from the main unit.
(Refer to Section 6.)
2.Remove the bottom cover of the main unit.
1) Use a flat head screwdriver to remove the cover
and the filter.
2) Use a cross head screwdriver to remove the screw
at the bottom of the main unit, and remove the
bottom cover.
3.Lift out the inner case.
Lift the inner case out while pressing one of the two
inner case hooks with a flat head screwdriver.
4.Remove the rechargeable battery.
Remove the tape, pull out the battery and cut the
cables at each end of the battery.
Notes:
• To prevent the removed battery from short-circuiting,
place sticky tape, sticky labels or similar material over its
+ and - terminals.
• Take care to avoid burns caused by leaking battery liquid
or a hot battery.
• Take care to avoid cuts from sharp edges.
• Dispose of the old batteries, main unit, brush head and
battery charger according to applicable local regulations.
This is not a repair procedure.
Once the unit is disassembled, it cannot be repaired.
Screw
Cover
Filter
Bottom cover
Inner case hooks
HT-B456-E_A_M.book Page 6 Friday, November 27, 2009 11:30 AM

7
EN
8. Troubleshooting
Problem Cause Correction
The oscillation of the
brush head is
unstable.
The brush head has not
been properly mounted to
the main unit.
Properly mount the brush head onto the
main unit. (Refer to Section 4.)
The product does not
run or the oscillation
of the brush head is
too slow.
The battery level is too low. Charge with the battery charger.
(Refer to Section 3.)
The main unit and
charger heat up.
They may heat up slightly
during charging.
This is not unusual, and does not affect
the service life of the product.
When the toothbrush
is placed into the
charger, the charger
indicator does not
light up.
The power plug is not
connected with the power
outlet.
Confirm that it is correctly connected.
(Refer to Section 3.)
The product can only
last for a short period
even after it has been
charged; the
oscillation of the
brush head is too
slow.
When you start using the toothbrush (just purchased or not used for
extended period), or when the brush head stops oscillating during
operation, please continuously charge for at least 16 hours.
(Refer to Section 3.)
The product can only
last for a short period
even after it has been
continuously charged
for at least 16 hours;
the oscillation of the
brush head is too
slow.
Verify if the charger still works. The rechargeable battery within the brush
cannot be replaced. Please follow local regulations on environmental
protection when disposing the battery.
HT-B456-E_A_M.book Page 7 Friday, November 27, 2009 11:30 AM

8
9. Technical Data
Note: Subject to technical modification without prior notice.
This device fulfills the previsions of the EMC directive 2004/108/EC and Low Voltage Directive
2006/95/EC.
OMRON HEALTHCARE EUROPE B.V. guarantees this product for 2 years after date of purchase.
The guarantee does not cover battery, brushes, packaging and/or damages of any kind due to
misusage (such as dropping or physical misuse) caused by the user. Claimed products will only be
replaced when returned together with the original invoice / cash ticket.
■ Parts sold separately
Product Name OMRON Sonic style 456
Type HT-B456-E
Supply Voltage AC220-240V 50/60Hz
Power Consumption Approx. 2.5W (during charging)
Charging Method Electromagnetic induction
Battery Two Ni-MH batteries built in (Ni-MH 2.4V)
Charging Time Approx. 16 hours (at AC240V, 50/60Hz, 23°C)
Time of Continuous Usage Under the standard swing mode: Approximately
20 minutes (at 23°C)
Automatic stop after three minutes.
• The battery cannot be replaced. When the battery has
reached the end of its service life, dispose of it together
with the product.
Operating Temperature/ Humidity +10°C to +40°C, 30 to 85% RH
Storage Temperature/ Humidity -20°C to +60°C, 10 to 95% RH
Weight Main unit: Approx. 62g (including brush head)
Charger: Approx. 210g
Dimensions Main unit: Approx. 225mm (length), Approx. 20 x 23mm
(diameter)
Charger: Approx. 61 (W) x 47 (H) x 83 (L) mm
Length of Power Cable Approx. 120cm
Package Content Toothbrush main unit, Triple Cleaning Head, Super-Fine
Soft Bristle Head, charger, instruction manual.
Triple Cleaning Head Super-Fine Soft Bristle Head
It can effectively remove dental
plaque with gentle and smooth
action, e.g. for sensitive gums.
Point Brush
Effective interdental brush to
clean areas that are difficult to
reach.
SB-070 (2 pieces)
SB-080 (2 pieces)
SB-090 (2 pieces)
HT-B456-E_A_M.book Page 8 Friday, November 27, 2009 11:30 AM

9
EN
Made in China
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not be
disposed of, with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
This product does not contain any hazardous substances.
Disposal of used batteries should be carried out in accordance with the national regulations
for the disposal of batteries.
Manufacturer
OMRON HEALTHCARE CO., LTD.
24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto,
615-0084, Japan
EU-representative
OMRON HEALTHCARE EUROPE B.V.
Kruisweg 577, 2132 NA Hoofddorp, The Netherlands
www.omron-healthcare.com
Subsidiary
OMRON HEALTHCARE UK LTD.
Opal Drive
Fox Milne, Milton Keynes MK15 0DG, United Kingdom
OMRON Medizintechnik Handelsgesellschaft mbH
John-Deere-Str. 81a, 68163 Mannheim, Germany
www.omron-medizintechnik.de
OMRON SANTÉ FRANCE SAS
14, rue de Lisbonne, 93561 Rosny-sous-Bois Cedex, France
HT-B456-E_A_M.book Page 9 Friday, November 27, 2009 11:30 AM
