One Remote 30012601 User manual

BeoLink Compatible
OneRemote iPod Dock
Type 30012601
(for most iPods, including Touch and iPhone)
Beo4 and Beolink 1000 are remote control terminals from Bang & Olufsen. OneRemote supplies interface modules that allow third party equipment to be operated via a Bang & Olufsen remote control system.
Made in Denmark by www.oneremote.dk

2
Control with Beo4 or Beo5
oo Select
oA Menu
oS Menu fw
A/S Rew/ FF*1
D/FUp/ down
E/R Menu –select *2
qPlay/ pause
oPlay/ pause
(Press for 2 secs)*3
O7 Volume down
O8 Volume up
By selecting the correct source on the Bang &
Olufsen remotecontrol terminal, the OneRemote
iPod Dock is automatically turned on.
Note !
When your iPod is inserted into the dock,
it is operable after exchanging data with
the dock within 10-15 secs.
*1
Prev./next track when playing music.
*2
The coloured button functionality is always available
in the Direct Mode, but not in the CableLink Mode in
all Bang & Olufsen equipment.
*3
This functionality is only available with Beo4 with
SW 3.0 or higher.
Control with Beolink1000
pp Select
pZ Menu
pX Menu fw
Z/X Rew/ FF*1
C/V Up/ down
qPlay/ pause
p7 Volume down
p8 Volume up

3
List of Contents
Getting Started .......................................................................... page 4
Direct Mode or CableLink Mode .............................................. page 4
Factory Settings ........................................................................ page 4
Installation ................................................................................ page 5
Examples of Bang & Olufsen Set Ups ..................................... page 5
Setting Up the iPod Dock ......................................................... page 6
Option Programming ................................................................ page 6
Source and Option Selection .................................................... page 7
Setting Up the iPod Dock ......................................................... page 12
Setting Up for Video Output .................................................... page 12
Connecting as an AV Source .................................................... page 13
Specifications ........................................................................... page 13

4
Getting Started
This OneRemote iPod Dock has been re-designed for operation in a Bang & Olufsen
remote control system allowing full control with a Bang & Olufsen remote control
terminal either directly or via connection to Bang & Olufsen equipment.
Thus the dock is BeoLink compatible.
With an iPod or iPhone inserted in the dock it can be operated and charged at the same
time. When the dock is connected to a Bang & Olufsen audio- or videosystem the dock’s
iPod and the audio-videosystem may be controlled with the same remote control, Beolink
1000, Beo4 or Beo5.
If the Bang & Olufsen system comprises one or more linkrooms in a BeoLink System
sound may be distributed to these rooms, and in some cases –see below –the docked
device might even be controlled from there.
Connect the OneRemote iPod Dock to a Bang & Olufsen audio- or videosystem as any
vacant audio- or AV input source. Setting up Bang & Olufsen systems may vary, and this
user guide describes how.
Direct Mode or CableLink Mode
The OneRemote iPod Dock is always connected to Bang & Olufsen equipment with the 7-
pin DIN-cable, but through option programming it may be controlled as follows:
1. Via the dock’s built in IR-receiver,”Direct Mode”
Direct Mode is used when connection to an input with control data is not
possible.
2. Via the cable connected Bang & Olufsen equipment,”CableLink Mode”
CableLink Mode is used when connection to an input with control data is
possible.
Factory Settings
The factory setting is for control is “Direct Mode”.
The factory setting for input socket and selected source is:
Beo4 og Beo5 N.MUSIC, A.MEM2 or.TAPE2
Beolink 1000 SHIFT A.TAPE
If the OneRemote iPod Dock is connected to a different input, the option should be
programmed accordingly. See page 6 for Option Programming

5
Installation
________________________________________________________________________
Select option and complete option programming, if required
Connect the OneRemote iPod Dock to the correct input socket
Connect power supply to the dock
Select the source on the remote control terminal
By selecting the correct source on the Bang & Olufsen remote
control terminal, the OneRemote iPod Dock is automatically turned on.
Examples of Bang & Olufsen Set Ups
Set Up for Direct Control
The Bang & Olufsen remote terminal controls both the
OneRemote iPod Dock and the Bang & Olufsen audio
equipment.
When selecting the dock connected source with the Bang
& Olufsen remote the corresponding input socket is
opened, and the dock is turned on simultaneously.
The docked iPod may be listened to in any connected
linkroom, but not controlled from there.
Set Up for CableLink Control.
The Bang & Olufsen remote terminal controls the OneRemote
iPod Dock via the Bang & Olufsen audio equipment that is
transmitting control data via the 7-pin DIN connection cable.
When selecting the dock connected source with the Bang &
Olufsen remote terminal the corresponding input socket is
opened, control data transmitted via the connection cable and
the dock is turned on.
Control data is only available via some input sockets in
various Bang & Olufsen audio equipment.
A OneRemote iPod Dock connected via CableLink may be
controlled from any connected linkroom.
Set Up for CableLink Control

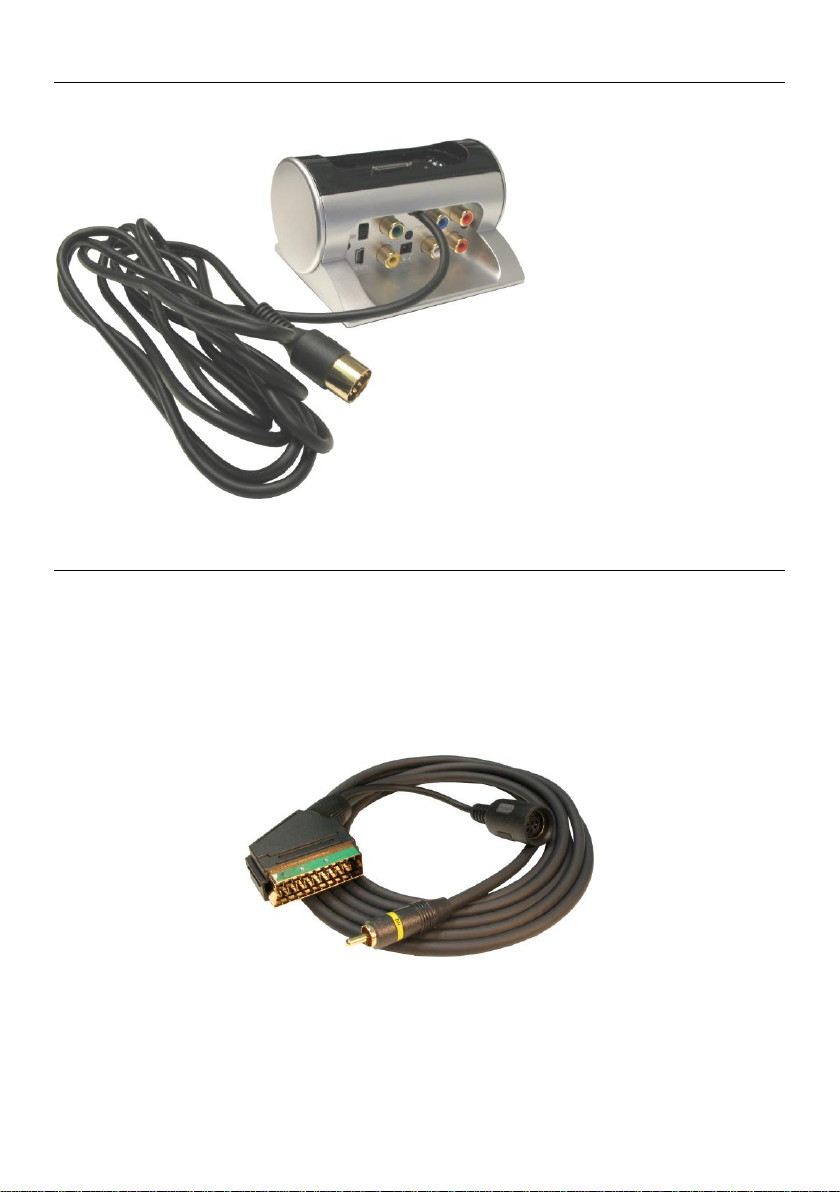

The OneRemote iPod Dock is connected as an AV source
to an AV input in a Bang & Olufsen TV.
When selecting the dock connected source with the Bang
& Olufsen remote terminal the corresponding AV input
socket is opened, control data transmitted via the
connection cable and the dock is turned on.
A OneRemote iPod Dock connected via CableLink may be
controlled from any connected linkroom.
Set Up for Direct Control
A OneRemote iPod Dock may be connected to any TV, and
with a dock in each room individual program selection is
possible- and every docked iPod is always fully charged.

6
Setting up the OneRemote iPod Dock for the Direct Mode
- using a Bang & Olufsen Remote Control
In the Direct Mode the Bang & Olufsen
remote control signal controls both the
OneRemote iPod Dock and the Bang &
Olufsen equipment at the same time.
Thus the dock must be programmed to
respond to the correct signals.
In the Direct Mode the docked iPod may be listened
to from any linkroom, but can not be controlled from
there.
The Direct Mode will work in any setup, but the dock’s IR-receiver is NOT plasma-safe. If there is a plasma
panel in the room, an external plasma-safe IR-receiver has to be used.
Option Programming
Option programming is required only when installing dock. The programming is
performed with a Bang & Olufsen remote control terminal by pressing a 5 button
sequence within 4 seconds after powering up the dock.
When powering up the dock the red control lights up for 4 seconds, and the programming
has to take place before the control turns blue. If not successful the operation may be
repeated.
Programming starts by pressing LIGHT and ends by pressing STANDBY. All options
have 3 digits to be entered in between.
Option 106 is entered like this:
LIGHT –1 –0 –6 –STANDBY
Note:
Ipod docks manufactured before aug. 2011 was programmed with a software version earlier than 8.
These docks must be option programmed using STOP –1 –0 –6 –Record.
Year of production 2012:
Week of production 17:
Firmware 2601:
Softwareversion 8:

7
Source & Option Selection
The following tables show the available input sockets in various Bang & Olufsen audio
and video products, how to select them using a remote control terminal and what the
corresponding option program of the One Remote iPod Dock should be.
The OneRemote iPod Dock has to be programmed with the right option to operate
correctly. See page 5 and 6.
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoCenter 2
AUX-IN
A.AUX
SHIFT RADIO
100
-
*2
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoSound 4
AUX
A.AUX
SHIFT RADIO
100
-
*2
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoSound 1
AUX
A.AUX
SHIFT RADIO
100
-
*3
AUX
A.MEM,
ATAPE
102
-
*3
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoSound Century
AUX
N.MUSIC
A.MEM2
SHIFT ATAPE
103
-
*3
AUX
N.RADIO
PHONO
106
-
*3
AUX
A.AUX
SHIFT RADIO
100
-
*3
*1 Input with control data via cable
*2 RCA in/ out
*3 DIN in/ out
*4 No numeric data via cable. The Direct Mode option is recommended as an alternative.

8
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoSound 9000
AUX
A.AUX
SHIFT RADIO
100
-
*3
AUX
A.MEM
ATAPE
102
-
*3
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoSound 3000
BeoSound 3200
AUX
A.AUX
SHIFT RADIO
100
-
*3
AUX
A.MEM
ATAPE
102
-
*3
AUX
N.MUSIC
A.MEM2
SHIFT ATAPE
103
-
*3
AUX
N.RADIO
PHONO
106
-
*3
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoSound Ouverture
AUX
N.MUSIC
A.MEM2
SHIFT ATAPE
103
302
*1 *4
AUX
N.RADIO
PHONO
106
206
*1 *4
AUX
A.AUX
SHIFT RADIO
100
-
*1 *4
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoSystem 2500
AUX
A.AUX
SHIFT RADIO
100
-
*1 *4
AUX
N.MUSIC
A.MEM2
SHIFT ATAPE
103
302
*1 *4
AUX
N.RADIO
PHONO
106
206
*1 *4
*1 Input with control data via cable
*2 RCA in/ out
*3 DIN in/ out
*4 No numeric data via cable. The Direct Mode option is recommended as an alternative.

9
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoCenter 2300
AUX
A.AUX
SHIFT RADIO
100
-
*1 *4
AUX
A.MEM
ATAPE
102
302
*1 *4
AUX
N.MUSIC
A.MEM2
SHIFT ATAPE
103
302
*1 *4
AUX
N.RADIO
PHONO
106
206
*1 *4
AUX
V.TAPE
V.MEM
110
-
*5
AUX
DTV –SAT
116
-
*5
AUX
DVD
114
-
*5
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoMaster 3500
BeoMaster 4500
BeoMaster 6500
BeoMaster 7000
TP1
A.MEM
ATAPE
102
302
*1
CD
CD
104
204
*1
TP2
N.MUSIC
A.MEM2
SHIFT ATAPE
103
302
*1
PHONO
N.RADIO
PHONO
106
206
*1
AUX
A.AUX
100
-
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoMaster 3300
BeoMaster 5500
TP
A.MEM
A.TAPE
102
302
*1 *4
CD
CD
104
204
*1 *4
*1 Input with control data via cable
*2 RCA in/ out
*3 DIN in/ out
*4 No numeric data via cable. The Direct Mode option is recommended as an alternative.
*5 Audiomaster in option2

10
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoCenter 8000
TAPE2
N.MUSIC
A.MEM2
SHIFT A.TAPE
103
302
*1 *4
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoCenter 8500
BeoCenter 9000
BeoCenter 9500
TAPE2
N.MUSIC
A.MEM2
SHIFT A.TAPE
103
302
*1 *4
AUX
A.AUX
100
-
Input Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
BeoCenter 9300
PHONO
N.RADIO
PHONO
106
206
*1 *4
TAPE2
N.MUSIC
A.MEM2
SHIFT A.TAPE
103
302
*1 *4
AUX
A.AUX
100
-
*1 Input with control data via cable
*2 RCA in/ out
*3 DIN in/ out
*4 No numeric data via cable. The Direct Mode option is recommended as an alternative.

11
Input
Socket
Selected Source
Direct
Option
CableLink
Option
Remarks
LX 2502
LX 2802
L4500
LS 4500
LX 4500
L5000
LS 5000
LX 5000
L5500
LS 5500
LX 5500
L6000
LS 6000
LX 6000
LE 6000
MX 1500
MX 3000
MX 3500
MX 4000
MX 4002
MX 4500
MX 5000
MX 5500
ME 6000
MS 6000
MX 6000
MX 7000
MX 4200
MX 8000
AVANT all models
All newer TV-models may
be connected via the AV
input sockets
too……………
Scart
AV1
AV2
….
Not decoder
Socket.
V.MEM
V.TAPE
110
410
*9
V.MEM2
V.TAPE2
SHIFT V.TAPE
110
410
*9
DTV
SAT
116
416
*9
V.AUX
112
412
*9
DVD
114
414
*9
*9 connection to an AV input on the TV using the OneRemote Adaptor, type 39207496.
Check the TV user guide for setting up the AV inputs.

12
Setting Up the OneRemote iPod Dock
The attached 7-pin DIN-
cable includes audio and
control data connections
allowing for control of the
iPod via Bang & Olufsen
audio or video equipment.
Insert the appropriate cradle
(supplied with your iPhone/
iPod) into the dock.
NOTE for iPhone 3G the
cradle is supplied with the
dock
Setting Up for Video Output
iPhone/ iPhone3G, iPod Touch, Touch 2G, iPod Classic, iPod Nano 3G/ 4G and iPod 5G
have video output and are able to show videos on a screen.
Appropriate but not included cables have to be used to show video signals.
This OneRemote iPod Dock has both RGB and Composite Video outputs.
OneRemote Adaptor, type 39207495

13
Connecting as an AV (scart) Source
Connect the dock as an AV source to any Bang & Olufsen TV, using a OneRemote
Adaptor, type 39207495.
The dock must be option programmed to the CableLink mode (page 6) and the source
must be programmed, i.e. V.MEM or V.AUX (page 5).
Specifications
Video Out Resolution: 480 x 480 to 640 x 480 depending on iPod model.
Provided Power Adaptor: 5VDC @ 650mA
Sockets:
USB mini: For sync function of the iPhone/ iPod.
Attached 7-pin DIN-cable: 2 meter black, data & audio for Bang & Olufsen.
Audio Output: For use with other equipment than Bang & Olufsen.
C/V: TV Composite video out.
Y/G, Pb/B, Pr/R: RGB Component video output.
Video Output
Compatible Devices: iPhone/ iPhone 3G: 640x480 pixels
iPhone Touch/ Touch 2G: 640x480 pixels
iPod Classic 640x480 pixels
iPod Nano 3G/ 4G 640x840 pixels
iPod 5G 480x480 pixels

14

15

16
2601u10uk
