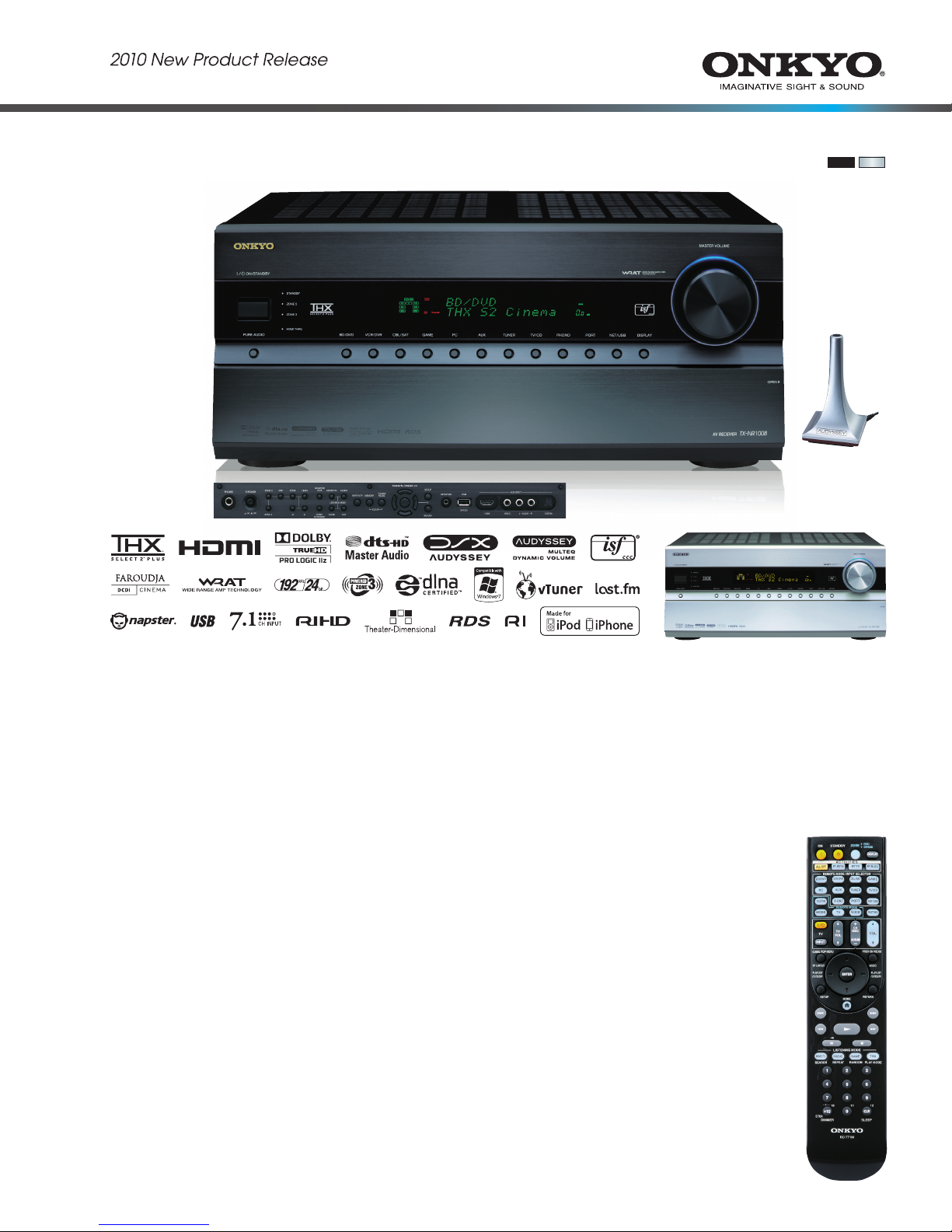

TX-NR1008 9.2-Channel Network A/V Receiver
The Easy Way to Enjoy Home Networking and Distributed Audio
The TX-NR1008 is an upper-mid-range A/V powerhouse designed to give you maximum set-up flexibility in the home. Its 9.2 speaker
channels let you enjoy a multichannel source in your main room, plus powered audio in two other rooms. Or you can use the extra
channels to take full advantage of the new surround dimensions of Audyssey DSX™and Dolby®Pro Logic®IIz. Other processing highlights
include DTS-HD aster Audio™and Dolby®TrueHD for pristine lossless audio on Blu-ray Disc, and HD I®upscaling of all video sources
to 1080p with Faroudja DCDi Cinema™. As a network A/V receiver compatible with Windows®7 and DLNA, the TX-NR1008 lets you
stream audio from your PC or from internet radio channels such as vTuner and Last.fm. Set up and calibration are easy and accurate,
thanks to ISF video calibration, a new overlaid graphical on-screen display, and Audyssey room correction and equalization. Bi-amping
capability and a smorgasbord of the latest connections complete what is an outstanding entertainment package.
HDMI®1.4a Support for 3D Video and Audio Return
Channel
The seven HDMI 1.4a inputs on the TX-N 1008 let you simultaneously
connect high-def sources such as a Blu-ray player, a gaming console, and
a cable/satellite tuner. And the two HDMI outputs let you send a
pristine signal at the same time to two different high-resolution displays.
As the latest version of this connector, HDMI 1.4a adds the exciting
possibilities of 3D video and an Audio eturn Channel. 3D video is the
next big thing in home entertainment, with movie, game, and broadcast
content on the increase and 3D-compatible TVs coming to market. The
TX-N 1008 also offers the convenience of an Audio eturn Channel
via HDMI. Audio content received directly by your HDTV’s tuner can
be sent “upstream” to your A/V receiver, without the need for a
separate S/PDIF audio cable.
PC Audio and Internet Radio via Network Function with
DLNA 1.5 and Windows
®
7 Compati ility
As one of Onkyo’s new breed of receivers that can link directly to the
internet or to your home PC via a local network, the TX-N 1008 takes
streaming audio and internet radio to a whole new level. MP3, WMA,
WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, and LPCM audio files—
whether on your PC or from the internet—can now be played back
through your main system with unprecedented power and fidelity. The
TX-N 1008 brings to life a huge array of internet radio channels from
Last.fm, Napster, and vTuner*. As well as being compatible with earlier
platforms, the receiver is compatible with Microsoft’s new Windows 7
platform, which includes the DLNA 1.5-specified “Play To” media-
streaming feature. Another benefit of having the TX-N 1008 connected
to the internet is that you can then easily update its firmware.
*Availability of services depends on region.
Audyssey DSX™and Dol y
®
Pro Logic
®
IIz Add New
Dimensions to Surround Sound
The TX-N 1008 handles two new surround-sound technologies from
Audyssey and Dolby that offer exciting new ways to set up the
speakers in your home cinema system. Audyssey DSX lets you
incorporate “front wide” speakers, in place of the usual surround back
speakers, to expand the width of the soundstage. Set up at a
recommended 60° off center, these channels help to produce a more
realistic soundstage and a more immersive listening experience.
Alternatively, Audyssey DSX can reconfigure the TX-N 1008’s
surround back channels to deliver “front height” channels. These
channels carry ambient, non-directional audio that adds a new vertical
dimension to your movies and games. Dolby Pro Logic IIz provides a
similar front-height speaker option that likewise works to create a
more enveloping home cinema experience.
THX
®
Select2 Plus™Certified
THX Select2 Plus certification is specified for rooms where the screen-
to-seat viewing distance is 3 to 4 meters and the room volume is
around 56 cubic meters. To achieve THX Select2 Plus certification, the
TX-N 1008 had to meet the world’s most demanding standards for
home cinema audio quality and performance, and play at reference
volume levels with minimal distortion.
SILVERBLACK
TX-NR1008_EU_TX-NR1008 10/05/27 11:44 ページ 1Downloaded from www.Manualslib.com manuals search engine

TX-NR1008 9.2-Channel Network A/V Receiver
NPR No. 10N45 05/10
Due to a policy o continuous product improvement, Onkyo reserves the right to change speci ications and appearance without notice. THX Select2 Plus is a trademark o THX Ltd. THX may be registered in some jurisdictions. All rights reserved. Manu actured under license rom
Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks o Dolby Laboratories. DTS is a registered trademark and the DTS logos and Symbol are trademarks o DTS, Inc. Manu actured under license rom Audyssey Laboratories. U.S. and oreign patents
pending. Audyssey MultEQ and Audyssey Dynamic EQ are registered trademarks, and Audyssey DSX and Audyssey Dynamic Volume are trademarks o Audyssey Laboratories. HDMI, the HDMI logo, and High-De inition Multimedia Inter ace are trademarks or registered trademarks
o HDMI Licensing LLC in the United States and other countries. iPod and iPhone are trademarks o Apple Inc., registered in the U.S. and other countries. “Made or iPod” and “Made or iPhone” mean that an electronic accessory has been designed to connect speci ically to iPod
or iPhone, respectively, and has been certi ied by the developer to meet Apple per ormance standards. Apple is not responsible or the operation o this device or its compliance with sa ety and regulatory standards. x.v.Color is a trademark o Sony Corporation. Faroudja DCDi
Cinema is a registered trademark o Genesis Microchip Inc. Windows 7 and the Windows logo are trademarks or registered trademarks o Microso t Corporation in the United States and/or other countries. WRAT, Music Optimizer, and Theater-Dimensional are trademarks o Onkyo
Corporation. All other trademarks and registered trademarks are the property o their respective holders.
Onkyo Corporation 2-1 Nisshin-cho, Neyagawa-shi, Osaka 572-8540, JAPAN Tel: [phone] Fax: [phone] http://www.onkyo.com/
Onkyo Europe E ectronics GmbH Liegnitzerstrasse 6, 82194 Grobenzell, GERMANY Tel: [phone] Fax: [phone] http://www.eu.onkyo.com/
Onkyo UK Office The Coach House, 81A High Street, Marlow, Buckinghamshire SL7 1AB, UNITED KINGDOM Tel: [phone] Fax: [phone] http://www.onkyo.co.uk/
ISF (Image Science Foundation) Video
Cali ration for Accurate Video
Reproduction
The TX-N 1008 is equipped with industry-leading
ISF (Imaging Science Foundation) video calibration
to dramatically improve your home cinema by
enabling you to adjust the brightness, hue, contrast,
saturation, and gamma levels on all video inputs.
Transforming your A/V receiver into a video hub,
this function ensures that every video source is
independently calibrated for your connected high-
definition display. What’s more, ISF video calibration
has been shown to improve energy savings in
displays and projectors by up to 50%.
HDMI Video Upscaling to 1080p with
Faroudja DCDi Cinema™
When it comes to video processing, Faroudja DCDi
Cinema offers several advantages. This processor can
accept any video signal, regardless of the source
resolution, and upscale it to 1080p to match the
native resolution of your high-definition display.
What’s more, DCDi Cinema effectively removes
video artifacts such as jagged edges during the video
signal deinterlacing process. You get to enjoy smooth
progressive scan video images, even for fast-moving
sports and action scenes.
Play ack of Different Audio Sources in
Up to Three Rooms
With Powered Zone 2/3, you can enjoy surround-
sound entertainment in the main room, while
playing back different stereo sources in a second
and third zone, each equipped with a pair of
speakers. Alternatively, you can use the Zone 2 and
Zone 3 pre-outs to send separate, unamplified
audio signals to amplifiers (and speakers) in a
second and third room. Naturally, you also have the
option of distributing the same audio source to two
or three zones simultaneously.
PLL (Phase Locked Loop) Jitter-Cleaning
Circuit Technology
Jitter is an unwanted side-effect of the digital-to-
analog conversion process. Caused by fluctuations in
the time domain of a digital signal, jitter has a
detrimental impact on perceived audio quality. PLL
jitter-cleaning circuit technology reduces jitter by
comparing the input and output phases of the digital
signal and creating an accurate clock waveform. This
enhances the precision of digital signal processing
and noticeably improves audio quality. Jitter-cleaning
technology works both for digital signals input via
HDMI and for digital signals converted from analog
signals inside the receiver itself.
• THX®Select2 Plus™Certified
• HD I®(Version 1.4a to Support 3D and Audio Return
Channel) with Deep Color™, x.v.Color™, LipSync, Dolby®
TrueHD, DTS-HD aster Audio™, DVD-Audio, Super Audio
CD, ultichannel PC , and CEC
• 7 HD I Inputs (1 Front/6 Rear) and 2 Outputs
• Audyssey DSX™and Dolby®Pro Logic®IIz for New Surround
Channels
• ISF (Imaging Science Foundation) Video Calibration
• Large-Size Transistors for High-Current Drive
• Network Capability for Streaming Audio Files ( P3, W A,
W A Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPC )
• Internet Radio Connectivity (Last.fm, Napster, and vTuner)*
• Certified with Windows®7 and DLNA Version 1.5
• Front-Panel USB Input for emory Devices and iPhone/iPod
odels (Enables Display of Album Artwork)
• Firmware Updates via Ethernet and USB
• Powered Zone 2/3 and Zone 2/3 Pre Outs for Distributed
Audio Playback in ultiple Rooms
*Availability of services depends on region.
ADVANCED FEATURES
• 180 W/Ch at 6 Ω, 1 kHz, 1 Channel Driven, IEC
• WRAT (Wide Range Amplifier Technology)
• Three-Stage Inverted Darlington Circuitry
• H.C.P.S. (High Current Power Supply) assive High Power
Transformer
• Linear Optimum Gain Volume Circuitry
AMPLIFIER FEATURES
• Burr-Brown 192 kHz/24-Bit DACs (PC 1690 and PC 1789)
for All Channels
• Two 32-Bit Processing DSP Chips (DA830 and CS49834)
• PLL Jitter-Cleaning Circuit Technology
• Dolby®TrueHD, DTS-HD aster Audio™, Dolby®Digital Plus,
DTS-HD High-Resolution Audio™Decoding
• HD I Video Upscaling to 1080p with Faroudja DCDi
Cinema™
• 4 DSP odes for Gaming: Rock, Sports, Action, and RPG
• usic Optimizer™for Compressed Digital usic Files
• Direct ode and Pure Audio ode
• A-Form Listening ode emory
• Theater-Dimensional Virtual Surround Function
PROCESSING FEATURES
• Universal Port for Single-Cable Connection of Optional
Onkyo Dock for iPhone/iPod or DAB+ Radio Tuner
• Component Video Switching (2 Inputs and 1 Output)
• 4 S-Video Inputs and 2 Outputs
• Analog RGB Video Input (D-sub, 15 pin) and Audio Input for PC
• 6 Digital Inputs (3 Optical and 3 Coaxial)
• 5 A/V Inputs (1 Front/4 Rear) and 1 Output
• Color-Coded, 7.1 ultichannel Inputs
• Video Output ( onitor)
• 1 Audio Input
• Phono Input
• Color-Coded, 9.2 ultichannel Pre Outs
• RS232 Port, IR (In/Out), and 12 V Trigger Outs (Zone 2/3)
• Bi-Amping Capability
• Color-Coded, Banana Plug-Compatible Speaker Posts
• RIHD (Remote Interactive over HD I) for System Control
CONNECTION FEATURES
• Audyssey ultEQ®for Room Acoustic Correction
• Audyssey Dynamic EQ®for Loudness Correction
• Audyssey Dynamic Volume™
• Overlaid Graphical On-Screen Display (OSD) via All Video
Outputs
• Crossover Adjustment (40/50/60/70/80/90/100/120/150/
200 Hz)
• A/V Sync Control Function (Up to 250 ms in 5 ms Steps)
• 40 F /A Random Presets
• RDS (PS/RT/PTY/TP)
• Compatible with RI (Remote Interactive) Dock for iPod
• Bi-Directional, Preprogrammed, and Customizable RI Remote
Control with On-Screen Setup, ode-Key LEDs, and acro
Presets for Four Activities
OTHER FEATURES
SPECIFICATIONS
AMPLIFIER SECTION
Power Output
Front L/R 180 W/Ch (6 Ω, 1 kHz, 1 channel riven, IEC)
Center 180 W (6 Ω, 1 kHz, 1 channel riven, IEC)
Surroun L/R 180 W/Ch (6 Ω, 1 kHz, 1 channel riven, IEC)
Surroun Back L/R 180 W/Ch (6 Ω, 1 kHz, 1 channel riven, IEC)
Front High L/R, Front Wi e L/R, or Zone 2/3 L/R
180 W/Ch (6 Ω, 1 kHz, 1 channel riven, IEC)
Dynamic Power 300 W (3 Ω, Front)
250 W (4 Ω, Front)
150 W (8 Ω, Front)
THD (Tota Harmonic Distortion)
0.08% (Rate power)
Damping Factor 60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance
200 mV/47 kΩ(Line)
2.5 mV/47 kΩ(Phono MM)
Rated RCA Output Leve and Impedance
200 mV/470 Ω(Pre out)
Maximum RCA Output Leve and Impedance
4.6 V/470 Ω(Pre out)
Phono Over oad 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 5 Hz–100 kHz/+1 B, -3 B (Direct mo e)
Tone Contro ±10 B, 50 Hz (Bass)
±10 B, 20 kHz (Treble)
Signa -to-Noise Ratio 110 B (Line, IHF-A)
80 B (Phono, IHF-A)
Speaker Impedance 4 Ω–16 Ωor 6 Ω–16 Ω
VIDEO SECTION
Input Sensitivity/Output Leve and Impedance
Vi eo 1.0 Vp–p/75 Ω(Component an S-Vi eo Y)
0.7 Vp–p/75 Ω (Component PB/CB, PR/CR)
0.25 Vp–p/75 Ω(S-Vi eo C)
1.0 Vp–p/75 Ω(Composite)
Component Video Frequency Response
5 Hz–100 MHz/0 B, -3 B
TUNER SECTION
Tuning Frequency Range
FM 87.5 MHz–108 MHz
AM 522 kHz–1,611 kHz
FM/AM Preset Memory
40 stations
GENERAL
Power Supp y AC 220–240 V~, 50/60 Hz
Power Consumption 830 W
Dimensions (W x H x D) 435 x 198.5 x 435.5 mm
Weight 18.7 kg
■CARTON
Dimensions (W x H x D) 587 x 337 x 553 mm
Weight 23.5 kg
■Supplied Accessories
• In oor FM antenna • AM loop antenna • Speaker cable labels
• Speaker set-up microphone • Instruction manual • Quick start gui e
• Remote controller • AA (R6) batteries x 2
TX-NR1008_EU_TX-NR1008 10/05/27 11:44 ページ 2Downloaded from www.Manualslib.com manuals search engine
