TX-NR5008 9.2-Channel Network A/V Receiver
BLACK
Leading the Way in Integrated Home Entertainment
Onkyo’s new flagship network receiver answers all your home entertainment questions—even some you hadn’t yet thought to ask. The
quality starts at the very foundations: a massive toroidal transformer, 22,000 µF capacitors, gold-plated terminals, and separate transformers
for audio and video processing. Speaking of video, HQV Reon-VX offers the ultimate in 1080p upscaling via HD I®, while ISF calibration
gets the best out of every video source. On the audio side, 9.2 speaker channels let you take advantage of lossless Dolby and DTS codecs,
as well as expanded surround formats from Audyssey and Dolby. The extra channels also allow you to enjoy a multichannel source in your
main room and powered stereo in two other zones. Connections abound, with eight HD I 1.4a inputs, two USB inputs, and an Ethernet
port for streaming audio from your PC or internet radio. To simplify set-up and adjustments, Onkyo provides a new overlaid on-screen
display and Audyssey room correction. It all adds up to one smart and muscular heavyweight contender.
HDMI®1.4 Support for 3D Video nd Audio Return
Ch nnel
The eight HDMI 1.4a inputs on the TX-N 5008 let you simultaneously
connect high-def sources such as a Blu-ray player, a gaming console, and
a cable/satellite tuner. And the two HDMI outputs let you send a
pristine signal at the same time to two different high-resolution displays.
As the latest version of this connector, HDMI 1.4a adds the exciting
possibilities of 3D video and an Audio eturn Channel. 3D video is the
next big thing in home entertainment, with movie, game, and broadcast
content on the increase and 3D-compatible TVs coming to market. The
TX-N 5008 also offers the convenience of an Audio eturn Channel
via HDMI. Audio content received directly by your HDTV’s tuner can
be sent “upstream” to your A/V receiver, without the need for a
separate S/PDIF audio cable.
PC Audio nd Internet R dio vi Network Function with
DLNA 1.5 nd Windows
®
7 Comp tibility
As one of Onkyo’s new breed of receivers that can link directly to the
internet or to your home PC via a local network, the TX-N 5008
takes streaming audio and internet radio to a whole new level. MP3,
WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, and LPCM audio
files—whether on your PC or from the internet—can now be played
back through your main system with unprecedented power and fidelity.
The TX-N 5008 brings to life a huge array of internet radio channels
sourced via vTuner*. As well as being compatible with earlier platforms,
the receiver is compatible with Microsoft’s Windows 7 platform, which
includes the DLNA 1.5-specified “Play To” media-streaming feature.
Another benefit of having the TX-N 5008 connected to the internet is
that you can then easily update its firmware.
*Availability of services depends on region.
THX®Ultr 2 Plus™Certified
The ultimate benchmark for home audio performance, THX Ultra2 Plus
is specified for rooms where the screen-to-seat viewing distance is
more than 4 meters and the room volume is 85 cubic meters or
greater. To achieve THX Ultra2 Plus certification, the TX-N 5008 must
meet the world’s most demanding standards for home theater audio
quality and performance, and must play at reference volume levels with
minimal distortion.
Adv nced Video Processing nd 1080p Upsc ling with
HQV Reon-VX
HQV eon-VX is the most sophisticated video-processing chip
available for home theater. It provides the ultimate support for 1080p
scaling; for filtering of jaggies and artifacts; and for the reduction of
random, “mosquito”, and block (codec) noise. HQV eon-VX also
enables color region enhancement and the rendering of more than one
billion colors.
icrophone for
Audyssey
The less frequently used
controls are neatly tucked away
behind the drop-down panel.
TX-NR5008_EX_TX-NR3008 10/06/18 14:57 ページ 1Downloaded from www.Manualslib.com manuals search engine

TX-NR5008 9.2-Channel Network A/V Receiver
NPR No. 10N55 06/10
Due to a policy o continuous product improvement, Onkyo reserves the right to change speci ications and appearance without notice. THX and the THX logo are trademarks o THX Ltd., which are registered in some jurisdictions. All rights reserved. Manu actured under license
rom Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks o Dolby Laboratories. DTS is a registered trademark and the DTS logos and Symbol are trademarks o DTS, Inc. Manu actured under license rom Audyssey Laboratories. U.S. and oreign patents
pending. Audyssey MultEQ XT32, Audyssey Dynamic EQ, and Audyssey Dynamic Volume are registered trademarks and Audyssey DSX is a trademark o Audyssey Laboratories. HDMI, the HDMI logo, and High-De inition Multimedia Inter ace are trademarks or registered trademarks
o HDMI Licensing LLC in the United States and other countries. iPhone, iPod, iPod classic, iPod nano, iPod shu le, and iPod touch are trademarks o Apple Inc., registered in the U.S. and other countries. "Made or iPod" and "Made or iPhone" mean that an electronic accessory
has been designed to connect speci ically to iPod or iPhone, respectively, and has been certi ied by the developer to meet Apple per ormance standards. Apple is not responsible or the operation o this device or its compliance with sa ety and regulatory standards. x.v.Color is a
trademark o Sony Corporation. HQV is a registered trademark o Silicon Optix. Windows 7 and the Windows logo are trademarks or registered trademarks o Microso t Corporation in the United States and/or other countries. VLSC, WRAT, Music Optimizer, and Theater-Dimensional
are trademarks o Onkyo Corporation. All other trademarks and registered trademarks are the property o their respective holders.
O kyo Corporatio 2-1 Nisshin-cho, Neyagawa-shi, Osaka 572-8540, JAPAN Tel [phone] Fax [phone] http://www.o kyo.com/
O kyo Chi a Limited Unit 1 & 12, 9/F, Ever Gain Plaza Tower 1, 88 Container Port Road, Kwai Chung, N.T., Hong Kong, SAR of CHINA Tel [phone] Fax [phone] http://www.ch.o kyo.com/
O kyo U.S.A. Corporatio 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel [phone] (Toll free) Fax [phone] http://www.o kyousa.com/
O kyo Europe Electro ics GmbH Liegnitzerstrasse 6, 82194 Grobenzell, GERMANY Tel [phone] Fax [phone] http://www.eu.o kyo.com/
VLSC™(Vector Line r Sh ping Circuitry)
Onkyo’s VLSC employs a unique digital-to-analog
conversion circuit to mitigate the effects of signal
noise. Data is converted between discrete sampling
points, which are then joined with analog vectors in
real-time to produce a continuous output wave
form. The result—a noiseless, smooth analog signal
based on the digital source.
H rnessing Power for Audio Perform nce
Onkyo's H.C.P.S. (High Current Power Supply)
concept is based around power transformers with
the capability to respond to the wide dynamics of
home theater. In the case of the TX-N 5008, a
massive toroidal transformer improves power
efficiency and radiates very little noise into the
surrounding circuitry, while two separate
transformers cater specifically to audio and video
processing. You’ll also find capacitors (operating at
up to 22,000 microfarads) that store the charge
necessary to support an effective power supply,
along with large new custom-designed transistors
to drive high currents.
T ilor Multich nnel Audio to Your Home
with Audyssey nd Dolby Technologies
The TX-N 5008 is equipped with MultEQ®XT32,
Audyssey’s most powerful room-correction
technology. MultEQ XT32 gathers frequency and
time-domain measurements from up to 8 positions
in the listening area, to help create a clear, well-
balanced, and natural sound. Two other Audyssey
technologies, Dynamic EQ®and Dynamic Volume®,
work to optimize frequency response and dynamic
range at all volume levels. In a similar vein, Dolby®
Volume performs independent loudness
adjustments to different frequencies and channels to
produce a listening experience that includes all the
dynamics of the original mix at whatever volume
you choose. It also offers the option of maintaining
playback volume at the same user-chosen level
across all input sources.
• THX®Ultra2 Plus ™Certified
• HD I®(Version 1.4a to Support 3D and Audio Return
Channel) with Deep Color™, x.v.Color™, LipSync, Dolby®
TrueHD, DTS-HD aster Audio™, DVD-Audio, Super Audio
CD, ultichannel PC , and CEC
• 8 HD I Inputs (1 Front/7 Rear) and 2 Outputs
• HD I Video Upscaling to 1080p with HQV Reon-VX
• VLSC™(Vector Linear Shaping Circuitry) for All Channels
• Custom-Designed, Large-Size Transistors to Drive High
Currents
• Customized 22,000 µF Capacitors for Effective Power Supply
• assive Toroidal Transformer and Two Separate Transformers
for Audio and Video Processing
• Burr-Brown 192 kHz/32-Bit DACs (PC 1795 x 6) for All
Channels
• Audyssey ultEQ®XT32 for Room Acoustic Correction
• Network Capability for Streaming Audio Files ( P3, W A,
W A Lossless, FLAC, WAV, Ogg Vorbis, AAC, and LPC )
• Internet Radio Connectivity Through vTuner*1
• Powered Zone 2/3 and Zone 2/3 Pre Outs for Distributed
Audio Playback in ultiple Rooms
• Zone 2 onitor Output (Composite Video)
• Bi-Amping and BTL (Bridged Transless) Capability
• 2 USB Inputs (Front/Rear) for emory Devices and
iPhone/iPod odels (Enables Display of Album Artwork)*2
• Gold-Plated, achined Solid Brass, 19 mm-Pitch Audio Inputs
(CD and Phono)
*1 Availability of services depends on region. *2 Only front-panel USB
inp t is compatible with iPhone/iPod.
ADVANCED FEATURES
• 280 W/Ch at 6 Ω, 1 kHz, 1 Channel Driven, JEITA
• WRAT (Wide Range Amplifier Technology)
• Three-Stage Inverted Darlington Circuitry
• H.C.P.S. (High Current Power Supply) assive High Power
Transformer
• Linear Optimum Gain Volume Circuitry
AMPLIFIER FEATURES
• Three 32-Bit Processing DSP Chips (DA830 x 1, DA788 x 2)
• PLL Jitter-Cleaning Circuit Technology
• DSD Direct for Super Audio CD
• Audyssey DSX™and Dolby®Pro Logic®IIz for New Surround
Channels
• Dolby®T
rueHD, DTS-HD aster Audio™, Dolby®Digital Plus,
DTS-HD High-Resolution Audio™Decoding
• DTS Neural Surround™Decoding
• 4 DSP odes for Gaming: Rock, Sports, Action, and RPG
• usic Optimizer™for Compressed Digital usic Files
• Direct ode and Pure Audio ode
• A-Form Listening ode emory
• Theater-Dimensional Virtual Surround Function
PROCESSING FEATURES

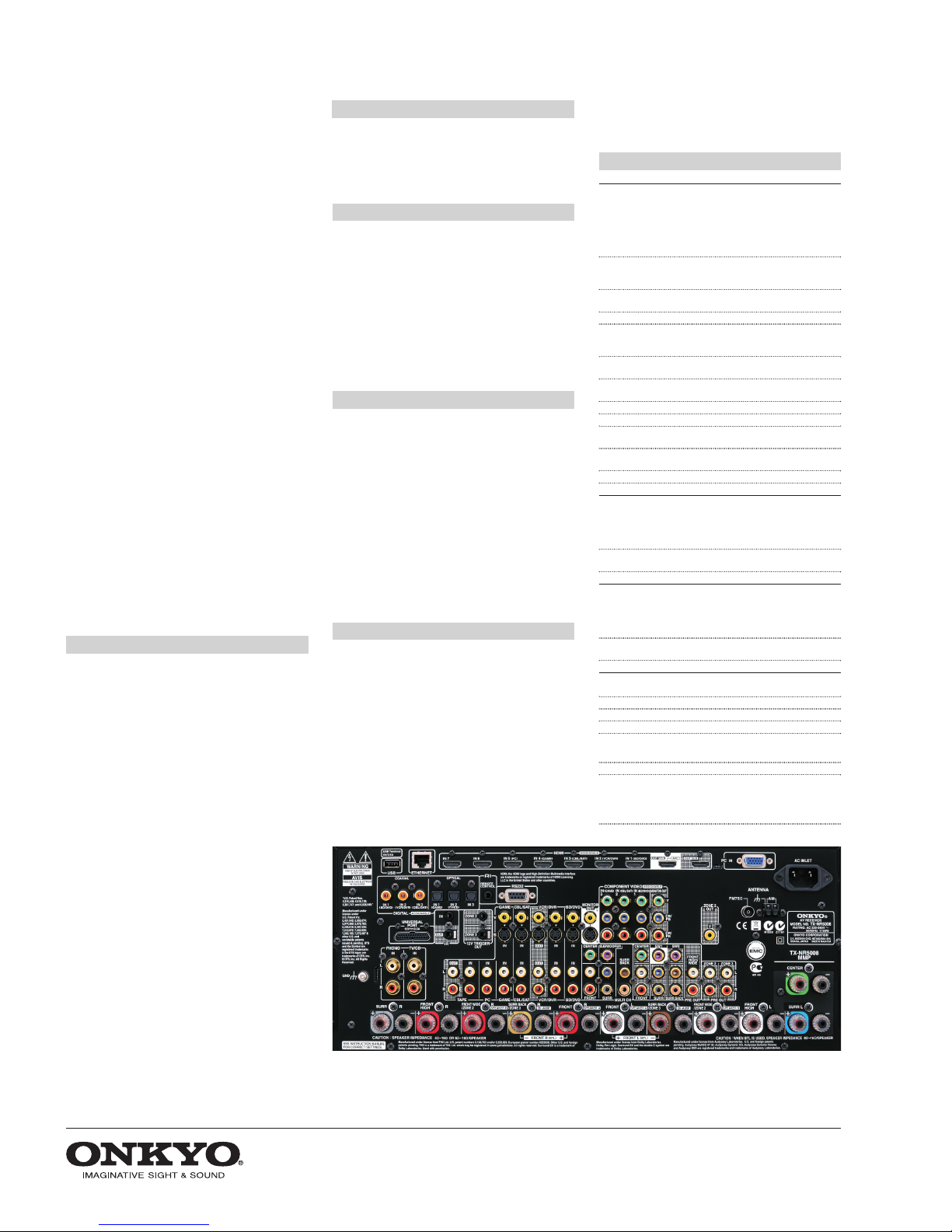

• Universal Port for Single-Cable Connection of Optional
Onkyo Dock for iPhone/iPod
• Component Video Switching (3 Inputs and 1 Output)
• 4 S-Video Inputs and 1 Output
• Analog RGB Video Input (D-sub, 15 pin) and Audio Input
for PC
• 7 Digital Inputs (4 Optical and 3 Coaxial)
• 5 A/V Inputs (1 Front/4 Rear) and 1 Output
• Color-Coded, 7.1 ultichannel Inputs
• Video/S-Video Outputs ( onitor)
• 1 Audio Input and 1 Output
• Color-Coded, 9.2 ultichannel Pre Outs (Including 2
Independent Subwoofer Pre Outs)
• RS232 Port, IR (In/Out), and 12 V Trigger Outs (Zone 2/3)
• Customized, Gold-Plated, Color-Coded, Banana Plug-
Compatible Speaker Posts
• RIHD (Remote Interactive over HD I) for System Control
CONNECTION FEATURES
• ISF (Imaging Science Foundation) Video Calibration for
Optimal Video Performance
• Certified with Windows®7 and DLNA Version 1.5
• Firmware Updates via Ethernet and USB
• Audyssey Dynamic EQ®for Loudness Correction
• Audyssey Dynamic Volume®to aintain Optimal Listening
Level and Dynamic Range
• Dolby®Volume for Reference-Quality Listening Experience at
Any Volume
• Overlaid Graphical On-Screen Display (OSD) via All Video
Outputs
• Crossover Adjustment (40/50/60/70/80/90/100/120/150/
200 Hz)
• A/V Sync Control Function (Up to 250 ms in 5 ms Steps)
• 40 F /A Random Presets
OTHER FEATURES
SPECIFICATIONS
AMPLIFIER SECTION
Power Output
Front L/R 280 W/Ch (6 Ω, 1 kHz, 1 channel driven, JEITA)
Center 280 W (6 Ω, 1 kHz, 1 channel driven, JEITA)
Surround L/R 280 W/Ch (6 Ω, 1 kHz, 1 channel driven, JEITA)
Surround Back L/R 280 W/Ch (6 Ω, 1 kHz, 1 channel driven, JEITA)
Front High L/R, Front Wide L/R, or Zone 2/3 L/R
280 W/Ch (6 Ω, 1 kHz, 1 channel driven, JEITA)
Dy amic Power 400 W (3 Ω, Front)
300 W (4 Ω, Front)
180 W (8 Ω, Front)
THD (Total Harmo ic Distortio )
0.05% (Rated power)
Dampi g Factor 60 (Front, 1 kHz, 8 Ω)
I put Se sitivity a d Impeda ce
200 mV/47 kΩ(Line)
2.5 mV/47 kΩ(Phono MM)
Rated RCA Output Level a d Impeda ce
1 V/470 Ω(Pre out)
Maximum RCA Output Level a d Impeda ce
5.5 V/470 Ω(Pre out)
Pho o Overload 70 mV (MM, 1 kHz, 0.5%)
Freque cy Respo se 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)
To e Co trol ±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Sig al-to-Noise Ratio 110 dB (Line, IHF-A)
80 dB (Phono, IHF-A)
Speaker Impeda ce 4 Ω–16 Ωor 6 Ω–16 Ω
VIDEO SECTION
I put Se sitivity/Output Level a d Impeda ce
Video 1.0 Vp–p/75 Ω(Component and S-Video Y)
0.7 Vp–p/75 Ω (Component PB/CB, PR/CR)
0.28 Vp–p/75 Ω(S-Video C)
1.0 Vp–p/75 Ω(Composite)
Compo e t Video Freque cy Respo se
5 Hz–100 MHz/0 dB, -3 dB
TUNER SECTION
Tu i g Freque cy Ra ge
FM 87.5 MHz–108 MHz
87.5 MHz–107.9 MHz
AM 522 kHz–1,611 kHz
530 kHz–1,710 kHz
FM/AM Preset Memory
40 stations
GENERAL
Power Supply AC 220–240 V~, 50/60 Hz
AC 120 V~, 60 Hz
Power Co sumptio 1,160 W
Dime sio s (W x H x D) 435 x 198.5 x 463.5 mm
Weight 25.0 kg
■CARTON
Dime sio s (W x H x D) 594 x 337 x 576 mm
Weight 31.5 kg
■Supplied Accessories
• Indoor FM antenna • AM loop antenna • Speaker cable labels
• Speaker set-up microphone • Instruction manual
• Quick set-up guide • Remote controller • AA (R6) batteries* x 2
*Not incl ded with Chinese model.
• Compatible with RI (Remote Interactive) Dock for iPod
• Bi-Directional, Preprogrammed, and Customizable RI Remote
Control with Backlight, On-Screen Setup, ode-Key LEDs,
and acro Presets for Four Activities
TX-NR5008_EX_TX-NR3008 10/06/18 14:57 ページ 2Downloaded from www.Manualslib.com manuals search engine
