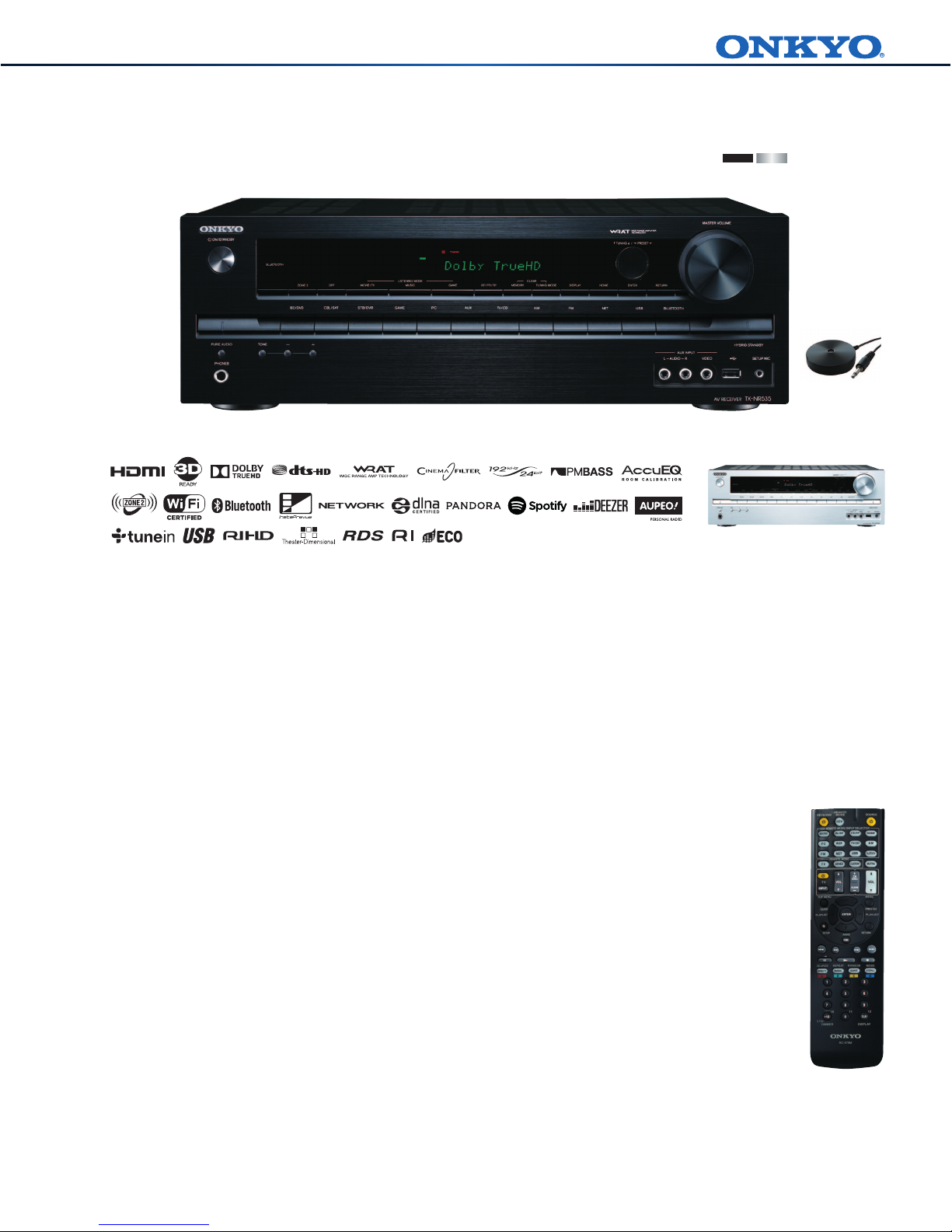

TX-NR535 5.2-Channel Network A/V Receiver
2014 NEW PRODUCT RELEASE
BLACK S ILVER
Time to Join the Ultra HD Revolution
Packing 5.2 channels of pure Onkyo muscle, your 60 fps Ultra HD gaming or movie experience comes to life with the TX-NR535. Seven
4K/60 Hz-ready HDMI®terminals, inbuilt Wi-Fi®for hi-res audio streaming, onboard Bluetooth, and all the leading internet streaming
services pre-loaded—this powerful entertainment hub is ready for anything. To deliver authentic hi- performance, the TX-NR535 features
a high-current power supply, discrete low-distortion amps, and state-of-the-art processing for high-resolution audio.Whether you’re
taste-testing on Spotify, kicking back with a favorite CD, or cranking the latest Hollywood blockbuster, this receiver serves up that classic
Onkyo sound: big soundstage, superb timing, brilliant denition, and enough low-end grunt to make your speakers sing. An ideal blend of
cutting-edge technology and old-school analog power, the TX-NR535 is also easy to use. Everything from quick speaker adjustments to
wireless streaming from smartphone and NAS is made simple with our remote app.At this pricepoint, there’s simply no better way to turn
everyday entertainment into a spectacular event.
ADVANCED FEATURES
• 4K/60 Hz-Capable HDMI®Terminals for Ultra HD
Entertainment
• Built-in Wi-Fi® Certied Wireless LAN Capability
• Bluetooth Version 2.1 + EDR Capability (Compatible
Prole: A2DP v1.2, AVRCP v1.3) with Advanced Music
Optimizer DSP Technology
• Internet Radio and Music Streaming Subscription
Services Included (TuneIn Radio, Pandora®, Spotify,
AUPEO!, and Deezer)*1
• Playback Compressed, Lossless, and Hi-res Audio via
Local Network (MP3, WMA, WMA Lossless, FLAC, WAV,
OggVorbis,AAC,Apple Lossless, DSD 5.6 MHz, LPCM*2)
• Proprietary AccuEQ Room Calibration with Mic Included
• Advanced Music Optimizer to Improve Compressed
Digital Audio Quality (Bluetooth Included)
• Control and Stream with Free Onkyo Remote Streaming
Apps for iPod touch/iPhone*3 and Android Devices*4
• Input Source Preview with InstaPrevue™Technology
• Phase-Matching Bass Boost for Deep Bass and Clear
Mid-Range
• Zone 2 Line-Out for Distributed Audio Playback in
Another Room
*1 Availability of services depends on region. Some services may require a
paid subscription and rmware update. Availability of third-party services
advertised here is accurate at the time of publication, but may be subject to
change without notice. *2 LPCM is supported via DLNA only. *3 Compatible
with iPod touch (3rd generation or later) and iPhone 3GS or later. All models
require iOS 4.2 or later. *4 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
• 100 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
120 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• WRAT (Wide Range Amplier Technology)
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
PROCESSING FEATURES
• HDMI®Support for 4K/60 Hz, 3D,Audio Return
Channel, DeepColor™, x.v.Color™, LipSync, Dolby®
TrueHD, DTS-HD Master Audio™, DVD-Audio, Super
Audio CD, Multichannel PCM, and CEC
• Dolby®TrueHD and DTS-HD Master Audio™Decoding
• TI Burr-Brown 192 kHz/24-Bit DAC (8 Channels x 1)
• Advanced 32-Bit DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• CinemaFILTER™
• Direct Mode
• Pure Audio Mode
• Double Bass Function
• Non-Scaling Conguration
• A-Form Listening Mode Memory
CONNECTION FEATURES
• 6 HDMI Inputs and 1 Output
• USB Port (Front)
• Mass Storage Class USB Memory Playback Capability
• HDTV-Capable (720p/1080i) Component Video
Switching (1 Input and 1 Output)
• 4 Composite Video Inputs (1 Front/3 Rear) and 1 Output
• 3 Digital Audio Inputs (1 Optical and 2 Coaxial)
• 7 Analog Audio Inputs (1 Front/6 Rear)
• 2 Parallel Subwoofer Pre-Outs
• Color-Coded, Banana Plug-Compatible Speaker Posts
• Headphone Jack
OTHER FEATURES
• Crossover Adjustment for Each Channel (40/50/60/
70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 400 ms in 10 ms Steps at 48 kHz)
• Overlaid On-Screen Display (OSD) via HDMI with
Quick Set-Up and Home Menu
• Hybrid Standby Function with HDMI Passthrough to
Reduce Power Consumption
• Smart Grid-Ready
• Tone Control (Bass/Treble) for Front L/R Channels
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• RDS (PS/RT/PTY/TP) (European Model Only)
• 40 FM/AM Random Presets
• Certied with DLNA Version 1.5
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive Over HDMI) for System
Control
• Compatible with RI Dock for iPod/iPhone and AirPlay
(DS-A5)
• Preprogrammed RI (Remote Interactive) Remote
Control
Microphone for
AccuEQ

TX-NR535 5.2-Channel Network A/V Receiver
SPECIFICATIONS
Amplier Section
Power Output
Front L/R 100 W/Ch (6 Ω, 1 kHz, 1% THD,
1 Channel Driven, IEC)
120 W/Ch
(6
Ω, 1 kHz, 1 Channel Driven, JEITA)
Center 100 W/Ch (6 Ω, 1 kHz, 1% THD,
1 Channel Driven, IEC)
120 W/Ch
(6
Ω, 1 kHz, 1 Channel Driven, JEITA)
Surround L/R 100 W/Ch (6 Ω, 1 kHz, 1% THD,
1 Channel Driven, IEC)
120 W/Ch
(6
Ω, 1 kHz, 1 Channel Driven, JEITA)
Dynamic Power 160 W (3 Ω, Front)
125 W (4 Ω, Front)
85 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise)
0.7 % (20 Hz–20 kHz, Half Power)
Damping Factor 60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance
200 mV/47 kΩ(Line)
Rated RCA Output Level and Impedance
200 mV/2.2 kΩ(Line Out)
Maximum RCA Output Level and Impedance
2.0 V/2.2 kΩ(Line Out)
Frequency Response 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 100 dB (Line, IHF-A)
Speaker Impedance 6
Ω– 16 Ω
Video Section
Input Sensitivity/Output Level and Impedance
Video 1.0 Vp–p/75 Ω(Component Y)
0.7 Vp–p/75 Ω(Component PB/CB, PR/CR)
1.0 Vp–p/75 Ω(Composite)
Component Video Frequency Response
5 Hz–100 MHz/+0 dB, -3 dB
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–108 MHz
AM 522 kHz–1,611 kHz
530 kHz–1,710 kHz
FM/AM Preset Memory 40 Stations
General
Power Supply AC 230 V~, 50 Hz
  (AsianModel:AC220−240V~,50/60Hz
Taiwan Model: AC 120 V, 60 Hz)
Power Consumption 330 W (Asian Model: 380 W)
No-Sound Power Consumption
55 W
Standby Power Consumption
0.2 W
Dimensions (W x H x D) 435 x 150 x 329 mm
Weight 8.1 kg
CARTON
Dimensions (W x H x D) 537 x 268 x 416 mm
Weight 10.5 kg
Supplied Accessories
• Indoor FM antenna • Antenna isolator* • AM loop antenna • Color
labels for speaker cable • Speaker setup microphone • Instruction
manual • Remote controller • AA (R6) batteries** x 2
*Included with Chinese model only.
**Not included with Chinese model.
Kitahama Chuo Bldg. 2-2-22 Kitahama, Chuo-ku, Osaka 541-0041 JAPAN http://www.onkyo.com/
Meridien House, Ground floor, 69-71 Clarendon Road, Watford, Hertfordshire, WD17 1DS UNITED KINGDOM
Tel: [phone] Fax: [phone] http://www.onkyo.co.uk/
Liegnitzerstrasse 6, 82194 Grobenzell, GERMANY Tel: [phone] Fax: [phone] http://www.eu.onkyo.com/
Unit 1033, 10/F., Star House, No. 3, Salisbury Road, Tsim Sha Tsui, Kowloon, Hong Kong, CHINA Tel: [phone] Fax: [phone]
http://www.hk.onkyo.com(Hong Kong) http://www.cn.onkyo.com(Mainland)
Duetoapolicyofcontinuousproductimprovement,Onkyoreservestherighttochangespecicationsandappearancewithoutnotice.ManufacturedunderlicensefromDolbyLaboratories.Dolbyandthedouble-DsymbolaretrademarksofDolbyLaboratories.ForDTSpatents,see
http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. © DTS, Inc.All Rights Reserved. HDMI, the HDMI logo, and
High-DenitionMultimediaInterfacearetrademarksorregisteredtrademarksofHDMILicensingLLCintheUnitedStatesandothercountries.iPhone,iPod,iPodclassic,iPodnano,iPodshufe,andiPodtoucharetrademarksofAppleInc.,registeredintheU.S.andothercountries.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this device with iPod or iPhone may affect wireless performance. Android is a trademark of Google Inc. InstaPrevue and the InstaPrevue logo
aretrademarksorregisteredtrademarksofSiliconImage,Inc.intheUnitedStatesandothercountries.TheBluetoothwordmarkandlogosareownedbytheBluetoothSIG,Inc.WRAT,MusicOptimizer,CinemaFILTER,Theater-Dimensional,andAccuEQaretrademarksofOnkyo
Corporation. All other trademarks and registered trademarks are the proper ty of their respective holders.
NPR No. 14N03 01/14
Text on receiver may vary with region.
Future-Ready with the Latest HDMI®
ImagineplayingthelatestRPGblockbusteronyourUltra
HDTV at a breathtaking 60 frames per second. Now add
thunderous 5.2-channel surround sound from Onkyo.With
every HDMI terminal on your TX-NR535 receiver supporting
4K/60 Hz, all this and more is possible. Even if you’re not
planning on upgrading your current display right away, it’s
good to know your Onkyo receiver is ready for the future of
gaming and video entertainment.
Wi-Fi®and Bluetooth Inside
The TX-NR535 has Wi-Fi and Bluetooth technology built
in. No wires, no dongles, no mess. Complete the one-time
Wi-Fi setup, download our streaming and control app,
and you’ve got a full range of remote control and audio
streaming features in the palm of your hand.You can also
pair your Bluetooth-capable device and stream direct to
your home cinema.With Advanced Music Optimizer DSP
compensating for compression, music via Bluetooth has
never sounded better.
Stream from Smartphone and Tablet
For instant lossless or high-resolution audio streaming, just
tap on the Onkyo Remote App icon on your smartphone
andyou’llndyourmusicisloadedupandreadytostream,
with all the playback features you’re used to.Your receiver
switches on automatically, selects your preferred playback
mode, and you’re ready to rock and roll.
Stream Hi-res Audio from PC and NAS
Some A/V receivers might boast high-resolution capability,
but few have been engineered for universal compatibility and
ultimateeaseofuselikeours.Usetheremoteapptoquickly
locate and stream your 192/24 and 96/24 hi-res albums
from PC or NAS and discover how truly amazing music can
soundonanA/Vreceiverbuiltforhigh-denitionaudio.
Built-in Internet Radio and Streaming
If you can think of it, you’ll most likely be able to stream it
on yourTX-NR535.The receiver comes loaded with Spotify,
AUPEO!,TuneIn,andnowDeezer,themusicsubscription
service available in over 200 countries and boasting a library
of an astonishing 25 million songs.You can select a station
and search for music available on these services via the
Onkyo app on your phone.
Play Lossless Music from USB
Ifyoupreferawiredconnection,thefront-panelUSBport
isreadytoacceptalmostanyaudioleformatfrommass-
storage class drives.As well all the usual compressed formats,
there’s FLAC,WAV, ALAC, and DSD support. Alternatively,
you can connect your PC, smartphone, tablet or music
player using one of the many digital and analog audio inputs
and an appropriate cable.
Remote Control App for Smartphone and Tablet
The free Onkyo Remote App gets your system up and
playing your selection in moments.You get all the playback
controls, speaker adjustments, listening modes, and input
source selections you need for everyday use at your
ngertips.Tapthemusiciconandyou’llndamenufor
internet radio and streaming services along with all the
music stored on your handheld device, PC, or NAS.
Fast Switching and Adjustment
Our user interface is a thing of beauty.The Home menu is
mainlyfordetailedadjustmentandsetup(suchasconguring
your A/V receiver remote to control all the components in
yoursystem,ortoassignspeciclisteningmodestodifferent
inputs).Butifyoujustwanttoquicklyboostthecenter
level,switchDSPmodes,orchangesources,the“Q”button
overlays a transparent menu on screen and lets you get the
job done in seconds, without interrupting the program.
Hi- Power and Fidelity
WRAT(WideRangeAmplierTechnology)isallabout
current.You need lots of it to stay in control when speaker
impedanceuctuates,andtohangonwithoutclippingasthe
soundtrack suddenly explodes into action.We use a massive
high-power transformer to drive discrete, low-negative-
feedback amps that cut distortion and preserve the energy
of music. Combined with high-resolution processing, the TX-
NR535 packs a colossal punch for movies but still retains the
pure musicality you need for two-channel playback.
Phase-Matching Bass Enhancement
PMBassoptimizeslowfrequencieswhilepreservingmid-
range clarity. It counters phase shifting (which generally
occurs in the zone occupied by vocals) by synchronizing
thetimingofdifferentfrequencies.Theresultisdeep,well-
denedbassthatwon’tblurvocalsorstrings.
Hybrid Standby Saves Power
HDMI passthrough and network connectivity are maintained
while the receiver is powered down.You can use your TV
and other connected devices when you don’t want to turn
on the receiver, which saves on your energy bill.The TX-
NR535 is also compliant with the Smart Grid system.
Preview Your HD Video Sources
Video switching is made easy with InstaPrevue™technology.
Press the Home button, select InstaPrevue, and video
thumbnails overlay on the program you’re watching, allowing
you to preview content on any component connected via
HDMI.This is great for keeping an eye on the cable sports
channel while you watch a Blu-ray, for example, and is a fast
andconvenientwaytoipbetweensources.
AccuEQ Room Calibration
Calibrating the sound to suit your room’s acoustics is simple
withAccuEQ.Onceyou’vepluggedinyourspeakers,connect
the included mic and wait a few moments as it measures
things such as speaker distance, type, crossover, and output,
takingintoaccountanyreectionsfromyourwallsandoor.
Thesystemthenoptimizesthefrequencyresponsesoyou
can enjoy balanced surround sound regardless of room
shape or furnishing.
