Onkyo TX-NR575E Installation guide

Before Start .................................................... 2
What's in the box .............................................. 2
Part Names ..................................................... 3
Part Names....................................................... 3
Install .............................................................. 7
Installation procedure ....................................... 7
Step1: Speaker Layout ..................................... 8
Step2: Connect the Speakers......................... 14
Step3: Connect the TV & AV Components ..... 16
Initial Setup .................................................. 22
Initial Setup with Auto Start-up Wizard ........... 22
Playback ....................................................... 24
AV Component Playback................................ 24
BLUETOOTH® Playback ................................ 24
Network Functions.......................................... 25
USB Storage Device ....................................... 26
Listening To the AM/FM Radio........................27
Multi-zone........................................................ 29
Listening Mode................................................ 30
For details about the Network Functions and listening
modes, and information regarding the advanced settings,
refer to the "Advanced Manual" available on our website. To
view it, access it through the following URL or QR code.
http://www.onkyo.com/manual/txnr575e/adv/en.html
TX-NR575E / AV RECEIVER
SN29402761_TX-NR575E_BAS_En_1701XX.book 1 ページ ２０１７年１月１０日 火曜日 午後７時１４分

2

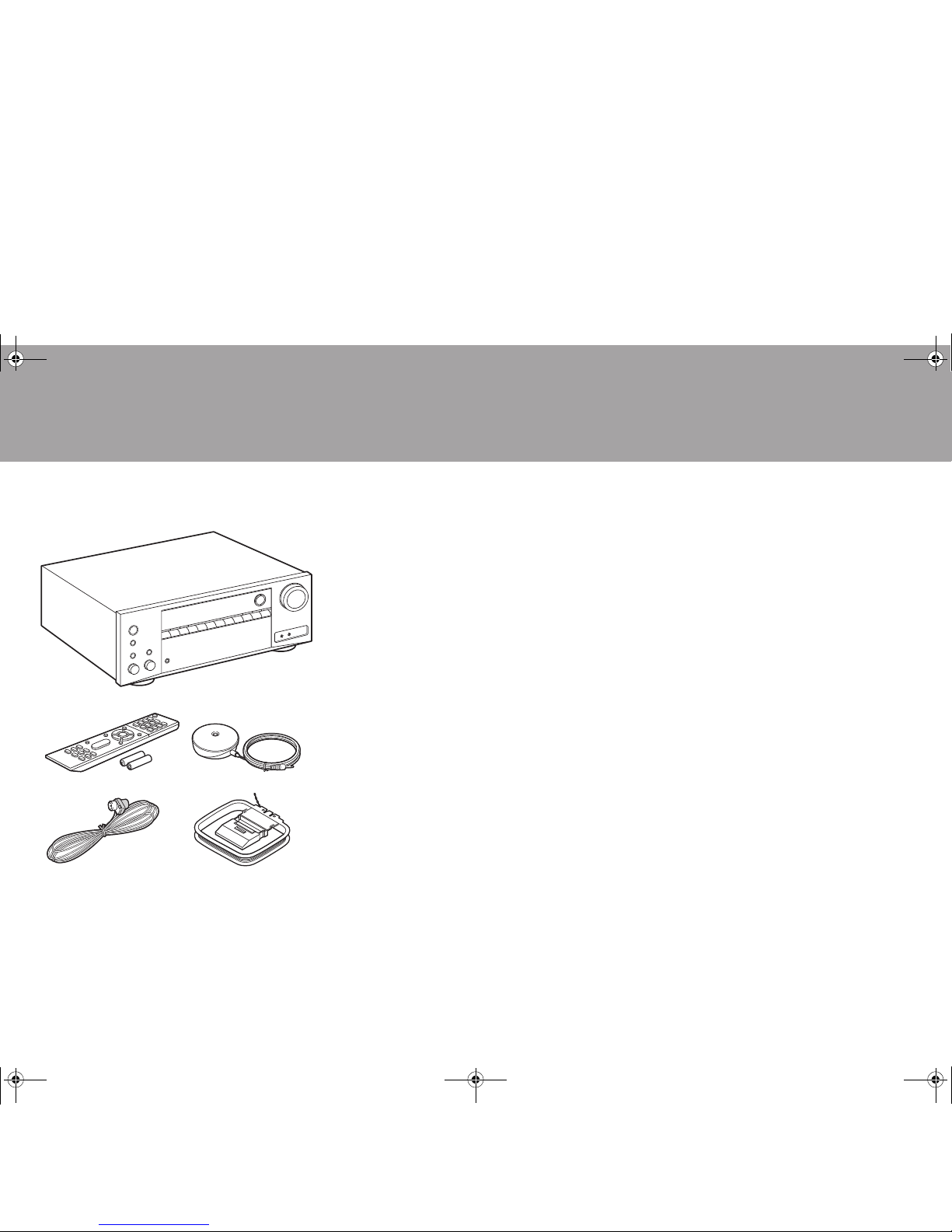

What's in the box
1. Main unit (1)
2. Remote controller (RC-911R) (1), Batteries (AAA/R03)
(2)
3. Speaker setup microphone (1)
0Used during Initial Setup.
4. Indoor FM antenna (1)
5. AM loop antenna (1)
0Quick Start Guide (1)
0Basic Manual (This manual)
0Connect speakers with 4 Ω to 16 Ω impedance.
0The power cord must be connected only after all other
cable connections are completed.
0We will not accept responsibility for damage arising from
the connection of equipment manufactured by other
companies.
0Functionality may be introduced by firmware updates
and service providers may cease services, meaning that
some network services and content may become
unavailable in the future. Furthermore, available services
may vary depending on your area of residence.
0Details on the firmware update will be posted on our
website and through other means at a later date.
0Specifications and appearance are subject to change
without prior notice.
> Before Start > Part Names > Install > Initial Setup > Playback
1
32
54
SN29402761_TX-NR575E_BAS_En_1701XX.book 2 ページ ２０１７年１月１０日 火曜日 午後７時１４分

3
Part Names
Front Panel
1. ÍON/STANDBY button
2. PURE AUDIO button / indicator: The display and analog video circuits are turned off to
switch the unit to Pure Audio mode and provide purer sound.
3. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features
are enabled that continue to work when this unit is in standby, such as HDMI Standby
Through and Network Standby.
4. Remote control sensor: Receives signals from the remote controller.
0The signal range of the remote controller is within about 16´/5 m, at an angle of 20° on
the perpendicular axis and 30° to either side.
5. ZONE 2 button: Controls the multi-zone function (P29).
6. OFF button: Switches the multi-zone function off (P29).
7. DIMMER button: You can adjust the brightness of the display in three steps. It cannot be
turned off completely.
8. Display (P4)
9. SETUP button: You can show advanced setting items on the TV and display to provide
you with an even better experience. (*)
10. Cursor buttons (S / T / W / X) and ENTER button: Select the item with the cursors and
press ENTER to confirm. Use them to tune to stations when using TUNER (P27).
11. RETURN button: Returns the display to the previous state.
12. MASTER VOLUME
13. Press the LISTENING MODE button (above) repeatedly to select a category from "Movie/
TV", "Music", "Game", then turn the LISTENING MODE dial (below) to change the mode
(P30). (*)
14. You can adjust the sound quality of the front speakers. Press the TONE button (above)
repeatedly to select the item to adjust from "Bass" and "Treble", and turn the TONE dial
(below) to adjust.
> Before Start > Part Names > Install > Initial Setup > Playback



  

   

SN29402761_TX-NR575E_BAS_En_1701XX.book 3 ページ ２０１７年１月１０日 火曜日 午後７時１４分

4
> Before Start > Part Names > Install > Initial Setup > Playback
15. PHONES jack: Headphones with a standard plug (Ø1/
4"/ 6.3 mm) are connected.
16. Input selector buttons: Switches the input to be played.
17. SETUP MIC jack: The supplied speaker setup
microphone is connected.
18. AUX INPUT jack: Connect a video camera, etc., using
a stereo mini plug cable (Ø3.5 mm).
(*)You can find details in the Advanced Manual.
Display
1. Speaker/Channel display: Displays the output channel that
corresponds to the selected listening mode.
2. Lights in the following conditions.
Ë: When headphones are connected.
Z2: When ZONE 2 is on.
: When connected by BLUETOOTH.
: When connected by Wi-Fi.
NET: When "NET" is selected with the input selector and the unit is
connected to the network. It will flash if the connection to the network is
not correct.
USB: When "NET" is selected with the input selector and the unit is
connected by USB and the USB device is selected. Flashes if the USB
is not properly connected.
HDMI: When HDMI signals are input and the HDMI input is selected.
DIGITAL: When digital signals are input and the digital input is
selected.
3. Lights according to the type of input digital audio signals and the
listening mode.
4. Lights in the following conditions.
RDS: Receiving RDS broadcasting.
TUNED: Receiving AM/FM radio.
FM ST: Receiving FM stereo.
SLEEP: When the sleep timer is set.
AUTO STBY: Auto Standby is on.
5. Flashes when muting is on.
6. Displays various information of the input signals.
7. This may light when performing operations with the "NET" input
selector.



SN29402761_TX-NR575E_BAS_En_1701XX.book 4 ページ ２０１７年１月１０日 火曜日 午後７時１４分

5
Rear Panel
1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals
with a digital optical cable or digital coaxial cable.
2. ETHERNET port: Connect to the network with an Ethernet cable.
3. USB port: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (5V/1A) to USB devices with a USB cable.
4. Wireless antenna: Used for Wi-Fi connection or when using a BLUETOOTH enabled
device. Adjust their angles according to the connection status.
5. VIDEO IN jacks: Input the AV component video signals with an analog video cable.
6. HDMI OUT jacks: Transmit video signals and audio signals with a HDMI cable connected
to a TV.
7. HDMI IN jacks: Transmit video signals and audio signals with a HDMI cable connected to
an AV component.
8. Power cord
9. GND terminal: The ground wire of the turntable is connected.
10. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.
11. TUNER AM/FM 75Ω terminal: The supplied antennas are connected.
12. ZONE 2 LINE OUT jack: Output audio signals with an analog audio cable to a pre-main
amplifier in a separate room (ZONE 2).
13. SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable.
Up to two powered subwoofers can be connected. The same signal is output from each of
the SUBWOOFER PRE OUT jacks.
14. SPEAKERS terminals: Connect speakers with speaker cables. You can connect the
multichannel speakers for the main room and the speakers for a separate room (ZONE
2).
> Before Start > Part Names > Install > Initial Setup > Playback
180°
90°



    





SN29402761_TX-NR575E_BAS_En_1701XX.book 5 ページ ２０１７年１月１０日 火曜日 午後７時１４分

6
> Before Start > Part Names > Install > Initial Setup > Playback
Remote Controller
1. ÍON/STANDBY button
2. Input selector buttons: Switches the input to be played.
3. Q button: Press during play to display the QUICK MENU on the
TV and display to adjust sound quality, etc. (*)
4. Cursor buttons and ENTER button: Select the item with the
cursors and press ENTER to confirm your selection. When the
folder or file lists are not shown on one screen on the TV, press
W/X to change the screen.
5. button: You can show advanced setting items on the TV and
display to provide you with an even better experience. (*)
6. Volume buttons
7. button: Temporarily mutes audio. Press again to cancel
muting.
8. LISTENING MODE buttons: Allows you to select the listening
mode (P30). (*)
MAIN/ZONE 2 buttons: Controls the multi-zone function. (P29)
9. Play button: Used for play operations when playing Music Server
or USB.
10. button: You can start repeat/random play of the Music
Server or USB. Each time you press the button, the mode
switches from (1-track repeat), to (folder repeat), to
(random).
CLEAR button: Deletes all characters you have entered when
entering text on the TV screen.
11. button: Switches the information on the display and is used to
operate RDS (P28).
12. button: Returns the display to the previous state.
13. MODE button: Switches tuning to an AM/FM station between
automatic tuning and manual tuning.
14. MEMORY button: Used to register AM/FM radio stations.
(*)You can find details in the Advanced Manual.














SN29402761_TX-NR575E_BAS_En_1701XX.book 6 ページ ２０１７年１月１０日 火曜日 午後７時１４分

7

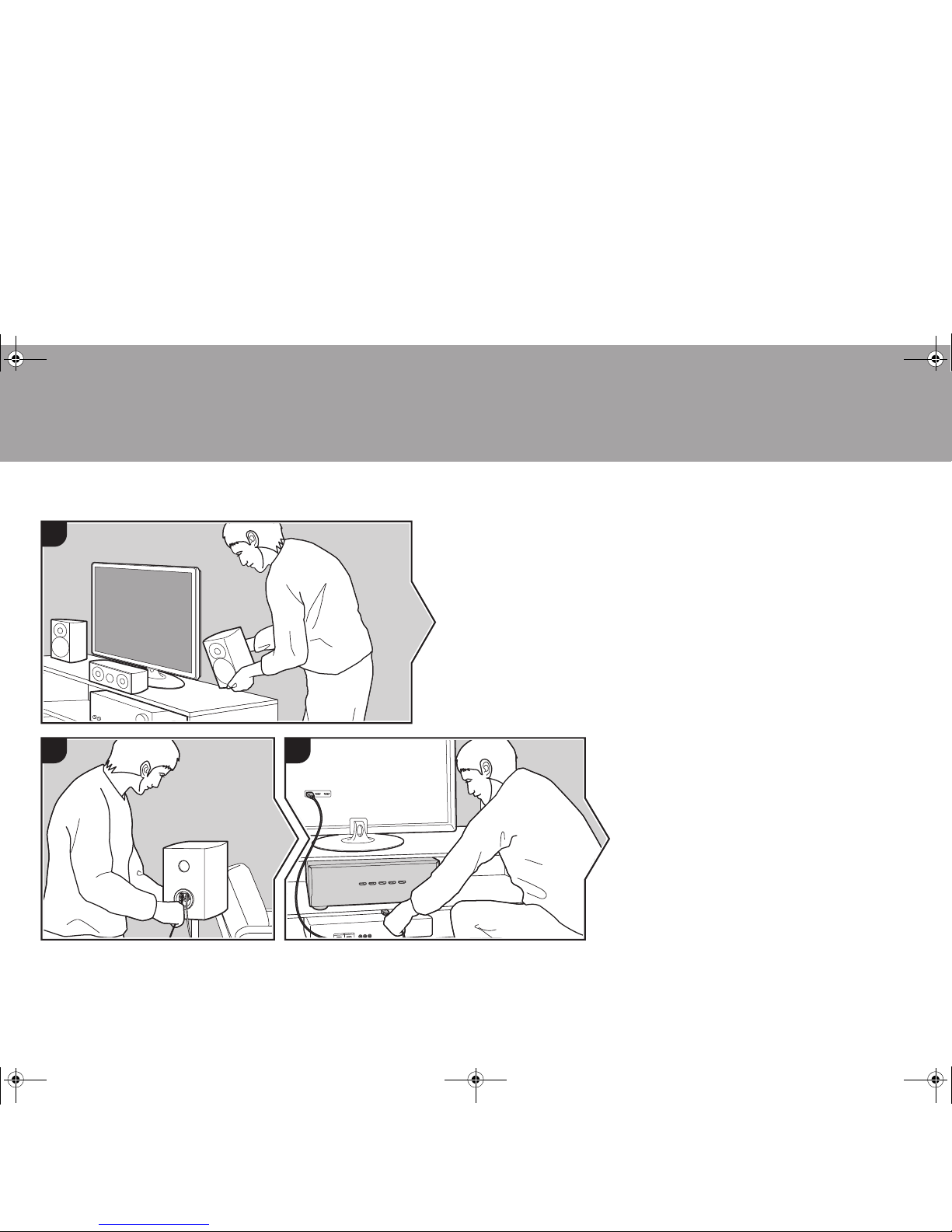

Installation procedure
This unit can be used in a number of ways, depending on
the layout of the speakers you are installing, and the
connections made to external devices. Read the following
to help make the installation process smoother.
Step1: Speaker Layout
Select the speaker layout that suits the types of speakers
you have and the conditions they will be used in from the
choices presented on pages P8 to P12, then install the
speakers by referring to the illustrations and explanations

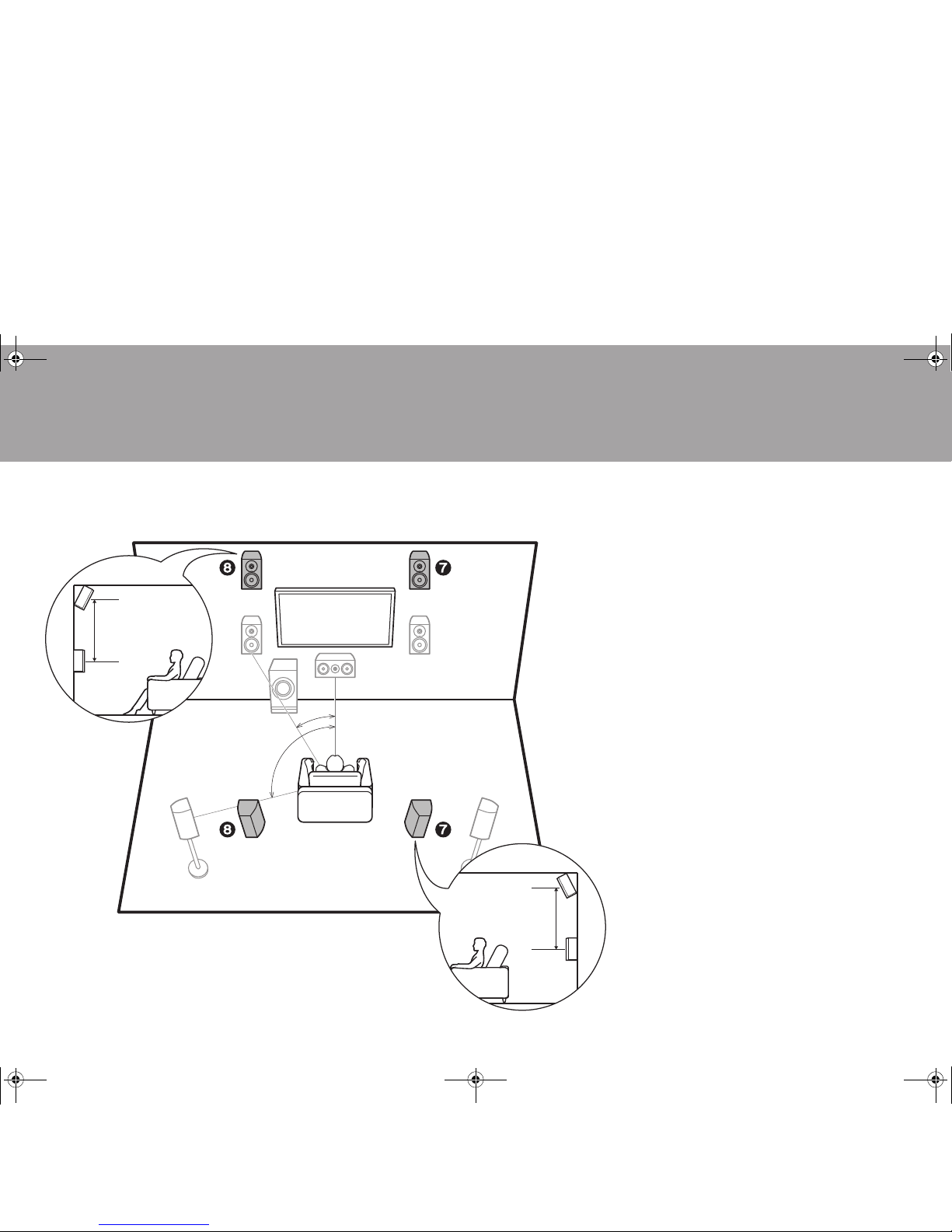

on the relevant page. Speaker layouts include systems that

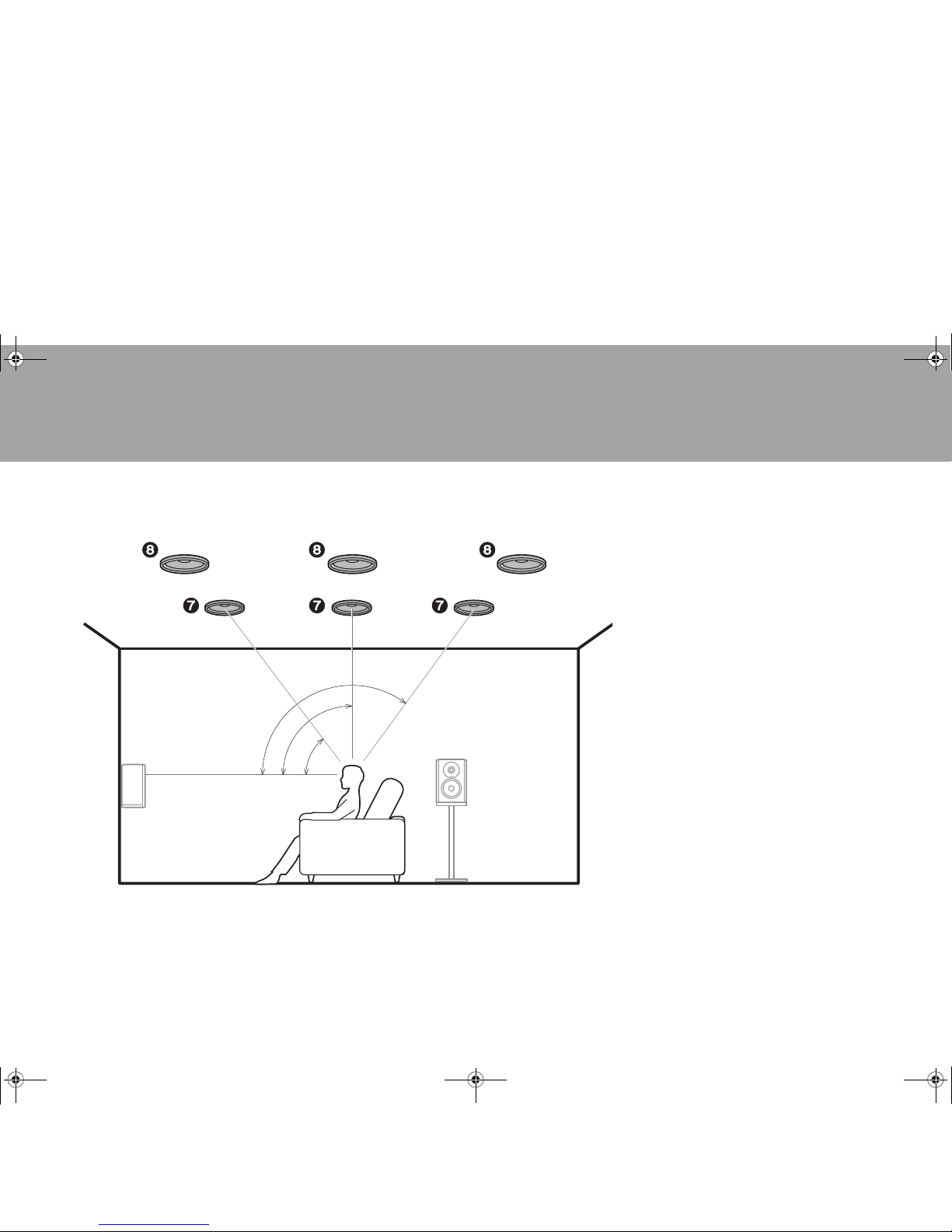

use surround back speakers, systems that use height
speakers, and systems that use bi-amp speakers. Also
refer to the combinations available in "Speaker
combinations" on P13.

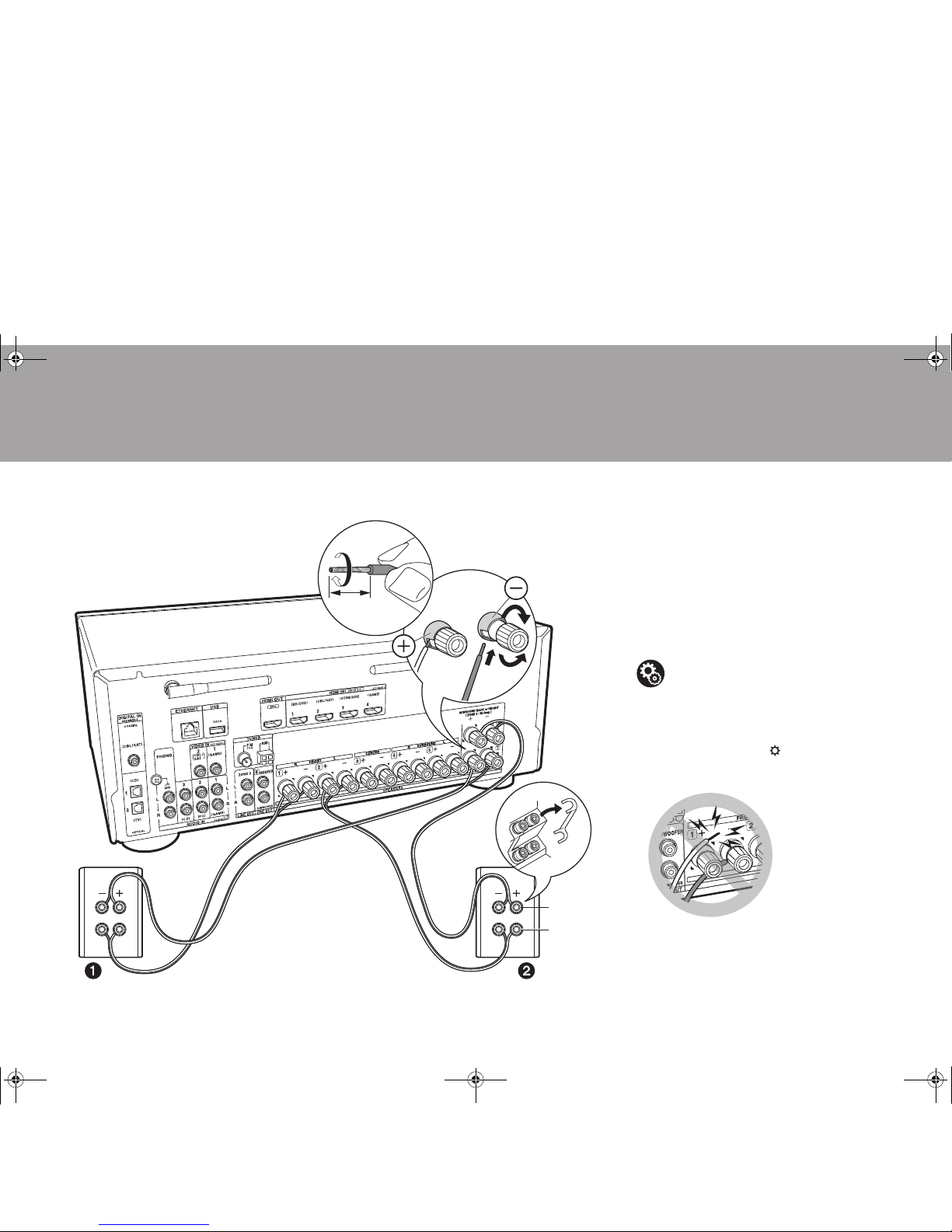

Step2: Connect the Speakers
To connect the speaker systems to this unit, refer to P14 if
you are using a speaker layout described on one of P8 to
P11, and to P15 to use a speaker layout using bi-amp
speakers described on P12. The connection process will be
smoother if you refer to the illustrations and explanations
and prepare the required cables before hand.

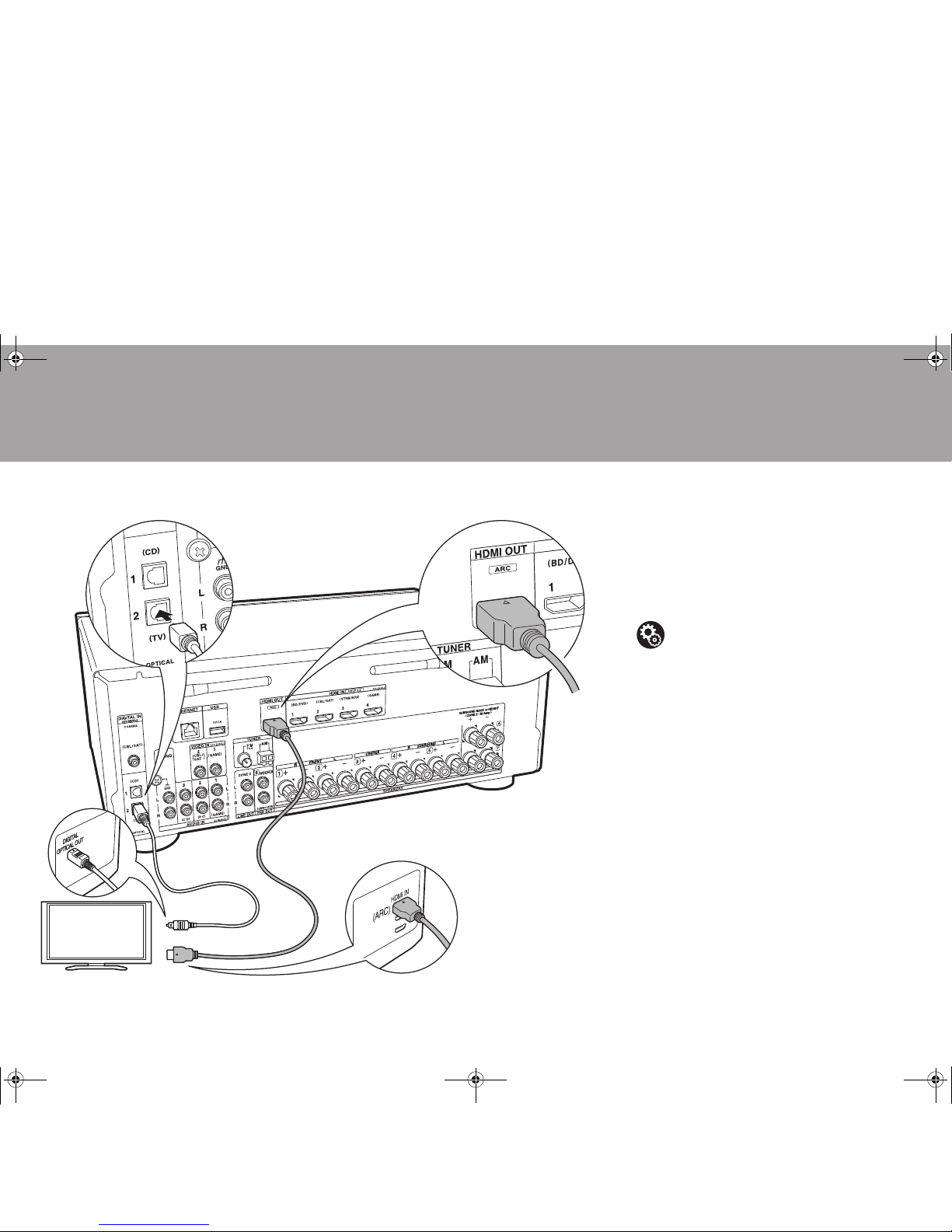

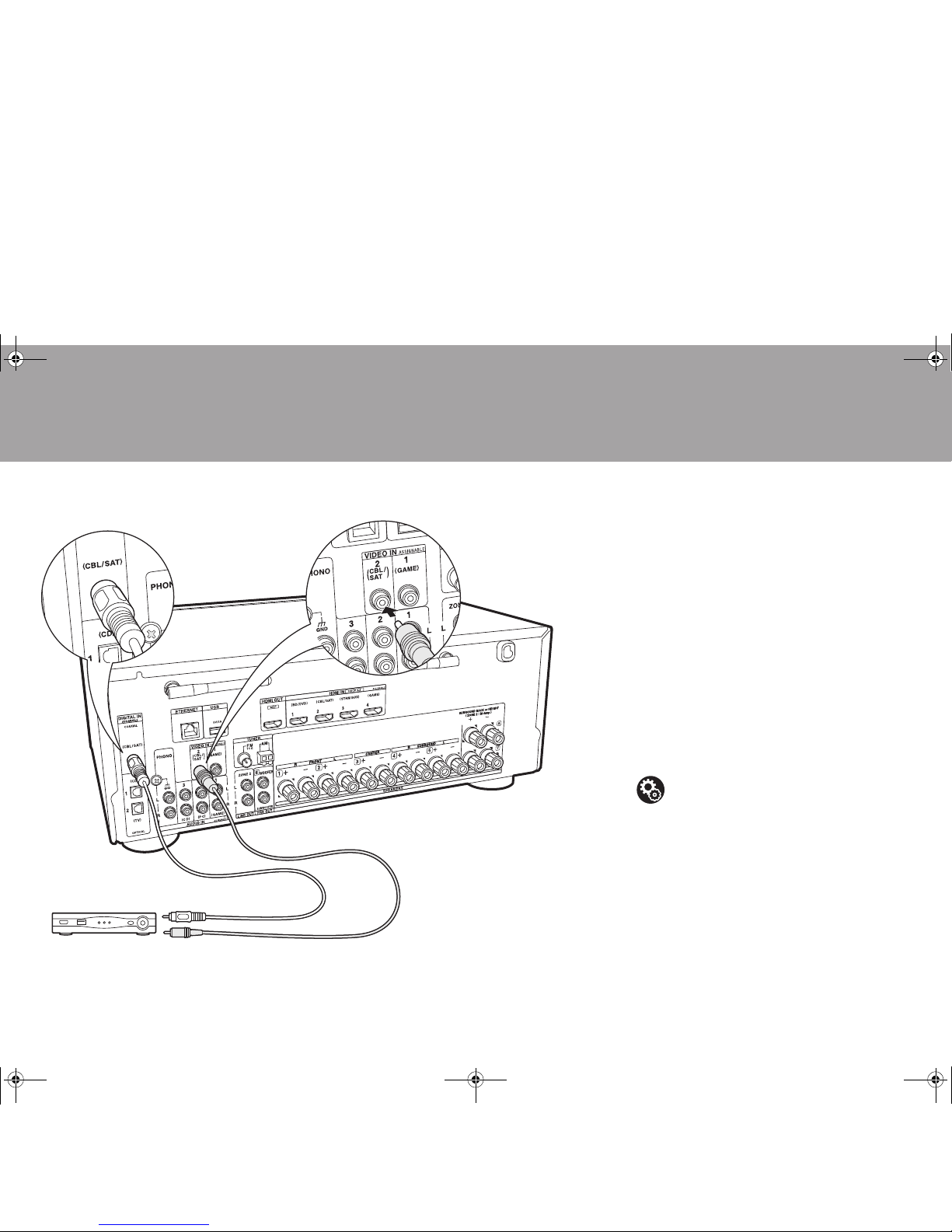

Step3: Connect the TV & AV Components
Refer to P16 to P21 to connect your external devices such
as your TV, Blu-Ray Disc Player, and also supplied
accessories such as the antennas. Also, P20 introduces
the Multi-zone Connection option that allows you to play
audio into rooms other than the main room. The connection
process will be smoother if you refer to the illustrations and
explanations, confirm the connection types on the external
devices, and prepare the required cables before hand.
> Before Start > Part Names >Install > Initial Setup > Playback
1
2 3
SN29402761_TX-NR575E_BAS_En_1701XX.book 7 ページ ２０１７年１月１０日 火曜日 午後７時１４分

8

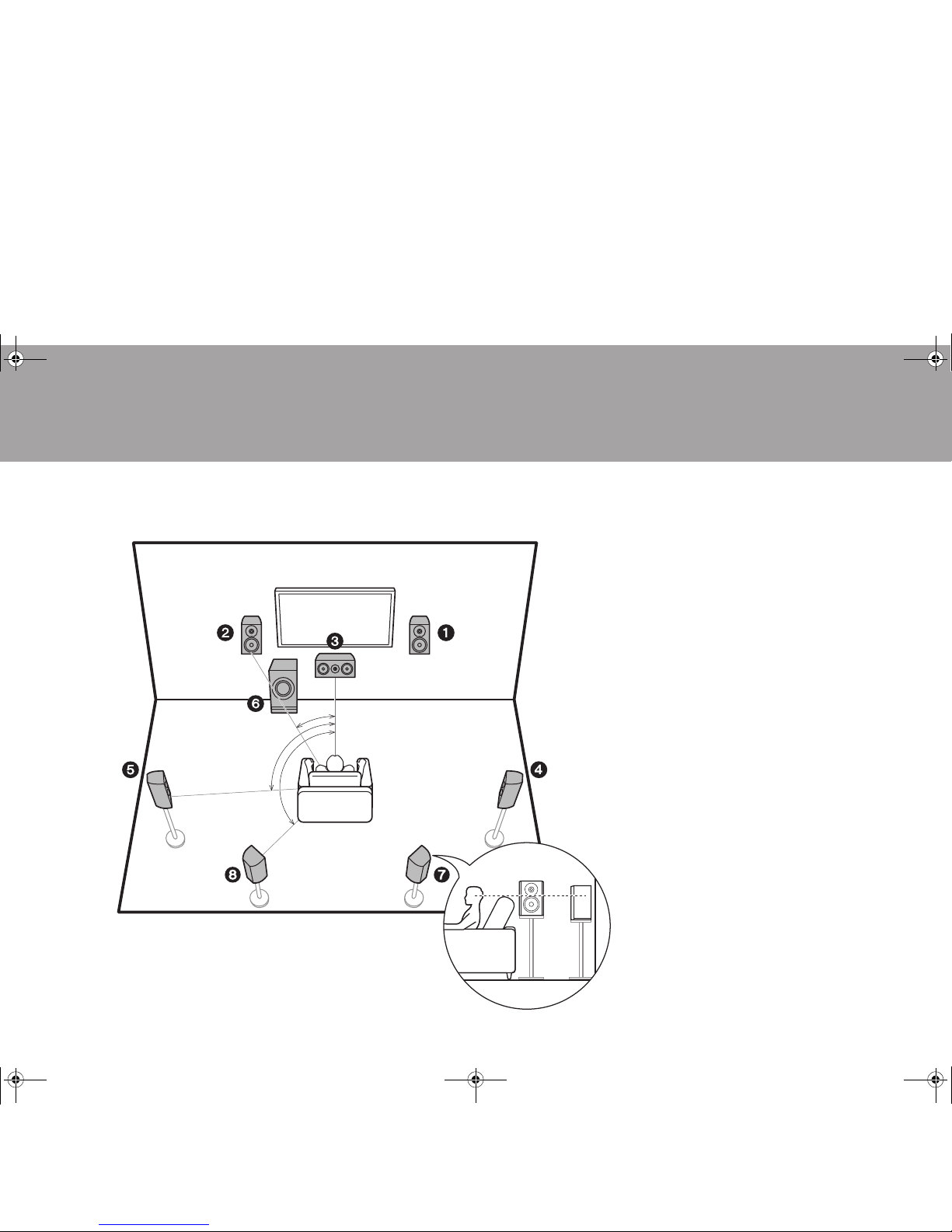

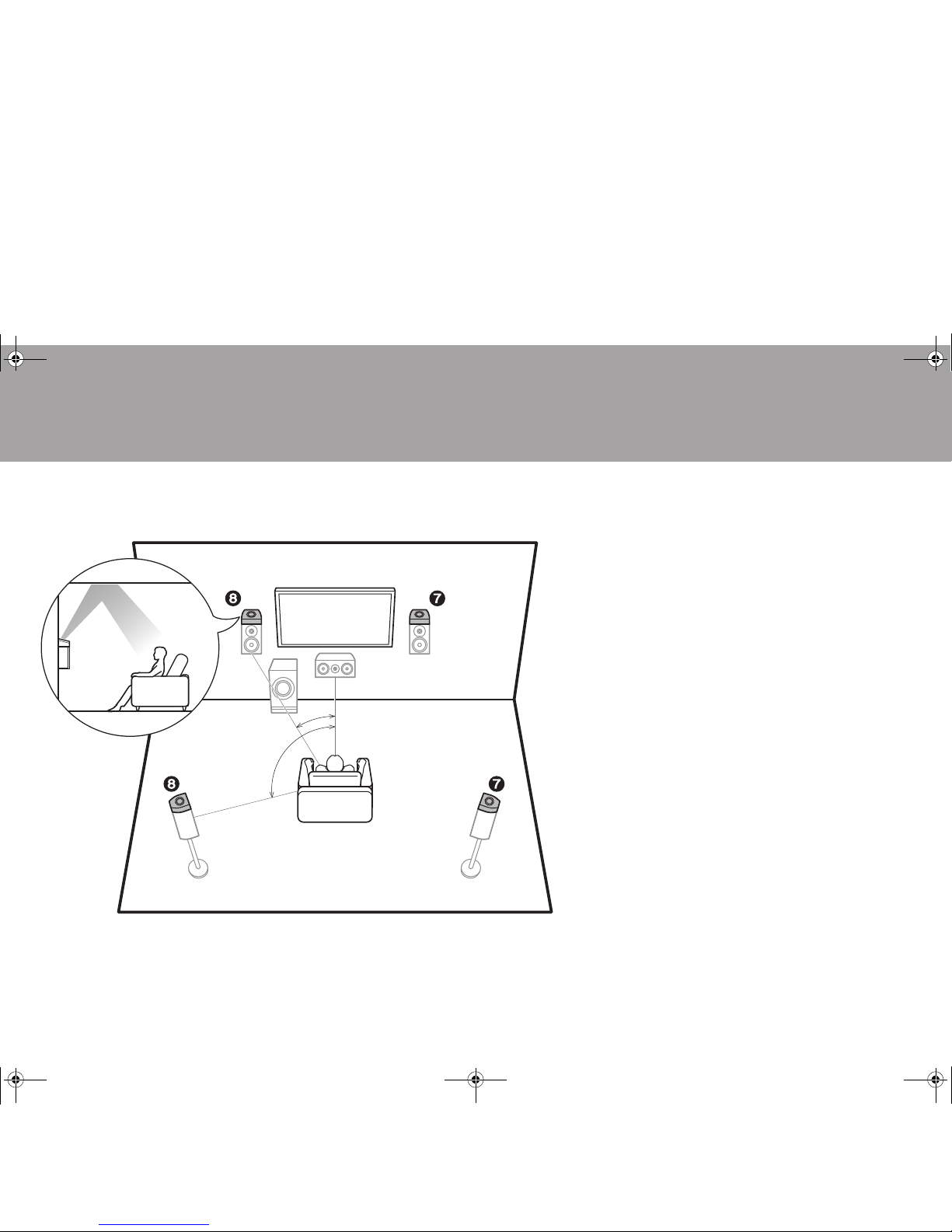

Step1: Speaker Layout
7.1 Channel System
Front speakers output front stereo sound and a center
speaker outputs center sound such as dialogs and vocals.
Surround speakers create back sound field. Powered
subwoofer reproduces bass sounds and creates rich sound
field.
This basic 5.1-Channel System with surround back
speakers added is called a 7.1-Channel System. The
connection of surround back speakers improves the sense
of envelopment and connectivity of sound created by the
back sound field and provides a more real sound field.
Furthermore, by installing surround back speakers, you can
select the Dolby Atmos listening mode, which realizes the
most up-to-date 3D sound, when the input format is Dolby
Atmos.
The front speakers should be positioned at ear height, while
the surround speakers should be positioned just above ear
height. Center speaker should be set up facing the listening
position. Placing the powered subwoofer between the
center speaker and a front speaker gives you a natural
sound even when playing music. The optimal positioning is
for surround back speakers to be at ear height.
0If you are including surround back speakers in the setup,
surround speakers are required.
1,2 Front Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Surround Back Speakers
> Before Start > Part Names >Install > Initial Setup > Playback
＊1
＊2
＊3
½1: 22e to 30e, ½2: 90e to 110e, ½3: 135e to 150e
SN29402761_TX-NR575E_BAS_En_1701XX.book 8 ページ ２０１７年１月１０日 火曜日 午後７時１４分

9
5.1.2 Channel System-1
(Front High Speakers/Rear High Speakers)
This is a basic 5.1-channel system consisting of front
speakers, a center speaker, surround speakers, and a
powered subwoofer, with the addition of front height
speakers or rear high speakers, which are both types of
height speakers. By installing height speakers, you can
select the Dolby Atmos listening mode, which realizes the
most up-to-date 3D sound including overhead sounds,
when the input format is Dolby Atmos.
Front high speakers or rear high speakers should be
situated at least 3´/0.9 m higher than the front speakers.
Front high speakers should be situated directly above the
front speakers and the distance between the rear high
speakers should match the distance between the front
speakers. Both should be set up facing the listening
position.
7,8 Height Speakers
Choose one of the following:
0Front High Speakers
0Rear High Speakers
> Before Start > Part Names >Install > Initial Setup > Playback
＊1
＊2
3´ (0.9 m)
or more
3´ (0.9 m)
or more
½1: 22e to 30e, ½2: 120e
SN29402761_TX-NR575E_BAS_En_1701XX.book 9 ページ ２０１７年１月１０日 火曜日 午後７時１４分

10
5.1.2 Channel System-2
(Ceiling Speakers)
This is a basic 5.1-channel system consisting of front
speakers, a center speaker, surround speakers, and a
powered subwoofer, with the addition of top front speakers,
top middle speakers, or top rear speakers, which are types
of height speakers. By installing height speakers, you can
select the Dolby Atmos listening mode, which realizes the
most up-to-date 3D sound including overhead sounds,
when the input format is Dolby Atmos.
Fit top front speakers on the ceiling forward of the seating
position, top middle speakers on the ceiling directly above
the seating position, and top rear speakers on the ceiling
behind the seating position. The distance between each
pair should match the distance between the two front
speakers.
0Dolby Laboratories recommends placing this type of
height speakers to obtain the best Dolby Atmos effect.
7,8 Height Speakers
Choose one of the following:
0Top Front Speakers
0Top Middle Speakers
0Top Rear Speakers
> Before Start > Part Names >Install > Initial Setup > Playback
＊1
＊2
＊3
½1: 30e to 55e, ½2: 65e to 100e, ½3: 125e to 150e
SN29402761_TX-NR575E_BAS_En_1701XX.book 10 ページ ２０１７年１月１０日 火曜日 午後７時１４分

11
5.1.2 Channel System-3
(Dolby Enabled Speakers (Dolby Speakers))
This is a basic 5.1-channel system consisting of front
speakers, a center speaker, surround speakers, and a
powered subwoofer, with the addition of Dolby enabled
speakers (front) or Dolby enabled speakers (surround),
which are both types of height speakers. Dolby enabled
speakers are special speakers designed to face the ceiling
so that sound is heard after bouncing off the ceiling so that
sound appears to be coming from overhead. By installing
height speakers, you can select the Dolby Atmos listening
mode, which realizes the most up-to-date 3D sound
including overhead sounds, when the input format is Dolby
Atmos.
Place them either above the front speakers or above the
surround speakers.
7,8 Height Speakers
Choose one of the following:
0 Dolby Enabled Speakers (Front)
0 Dolby Enabled Speakers (Surround)
> Before Start > Part Names >Install > Initial Setup > Playback
＊1
＊2
½1: 22e to 30e, ½2: 120e
SN29402761_TX-NR575E_BAS_En_1701XX.book 11 ページ ２０１７年１月１０日 火曜日 午後７時１４分

12
Bi-Amping the Speakers
It is possible to connect front speakers supporting Bi-
amping to improve quality of the bass and treble. The
maximum number of channels available with this
connection is 5.1 because Bi-Amping speakers require one
amplifier for the tweeter jacks and one amplifier for the
woofer jacks. Other than front speakers, you can also
connect a center speaker, surround speakers, and a
powered subwoofer.
1,2 Front Speakers (Bi-Amping)
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
> Before Start > Part Names >Install > Initial Setup > Playback
＊1
＊2
½1: 22e to 30e, ½2: 120e
SN29402761_TX-NR575E_BAS_En_1701XX.book 12 ページ ２０１７年１月１０日 火曜日 午後７時１４分

13
Speaker combinations
0In any of the combinations, up to two powered subwoofers can be connected.
(*)It is not possible to connect Bi-Amp and ZONE 2 speakers at the same time.
> Before Start > Part Names >Install > Initial Setup > Playback
Speaker Channels FRONT CENTER SURROUND
SURROUND
BACK HEIGHT Bi-Amp ZONE 2
2.1 ch (*) (*)
3.1 ch (*) (*)
4.1 ch (*) (*)
5.1 ch (*) (*)
6.1 ch
7.1 ch
2.1.2 ch
3.1.2 ch
4.1.2 ch
5.1.2 ch
SN29402761_TX-NR575E_BAS_En_1701XX.book 13 ページ ２０１７年１月１０日 火曜日 午後７時１４分

14
Step2: Connect the Speakers
Standard Connections (Pages 8 to 11)
Make correct connection between the unit's jacks and
speaker's jacks (+ to + and – to –) for each channel. If
connection is wrong, reverse phase may make bass output
poor. Up to two powered subwoofers can be connected.
The same signal is output from each of the SUBWOOFER
PRE OUT jacks.
Make sure the exposed wires of the speakers
do not stick out of the speaker terminals when
connecting. If the exposed wires of the
speakers touch the rear panel or the + and –
wires touch each other, the protection circuit
will be activated.
> Before Start > Part Names >Install > Initial Setup > Playback
a
b
1/2˝
(12 mm)
a Speaker cable, b Subwoofer cable
Setup
0Settings for the speaker configuration you have
connected need to be made in "1. AccuEQ Room
Calibration" in Initial Setup (P22).
0If any of the connected speakers have an
impedance of 4 Ω or more to less than 6 Ω, after
completing Initial Setup, you need to make some
settings in the Setup menu. Press on the
remote controller, select "2. Speaker" -
"Configuration" and set "Speaker Impedance" to
"4ohms".
SN29402761_TX-NR575E_BAS_En_1701XX.book 14 ページ ２０１７年１月１０日 火曜日 午後７時１４分

15
Connecting with Bi-Amping Speakers (Page 12)
0Refer to "Standard Connections (Pages 8 to 11)" (P14) to
connect the center speaker, surround speakers, and
powered subwoofer.
Make sure you remove the jumper bar fitted between the woofer
jacks and tweeter jacks of the front speakers. Make correct
connection between the unit's jacks and speaker's jacks (+ to +
and – to –) for each channel. If connection is wrong, reverse
phase may make bass output poor. Also refer to the instruction
manual for your speakers when using connections for bi-amping.
Make sure the exposed wires of the speakers
do not stick out of the speaker terminals when
connecting. If the exposed wires of the
speakers touch the rear panel or the + and –
wires touch each other, the protection circuit
will be activated.
> Before Start > Part Names >Install > Initial Setup > Playback
a
1/2˝
(12 mm)
For high-
frequency
For low-
frequency
a Speaker cable
Setup
0Settings for the speaker configuration you have
connected need to be made in "1. AccuEQ Room
Calibration" in Initial Setup (P22).
0 If any of the connected speakers have an impedance
of 4 Ω or more to less than 6 Ω, after completing
Initial Setup, you need to make some settings in the
Setup menu. Press on the remote controller,
select "2. Speaker" - "Configuration" and set
"Speaker Impedance" to "4ohms".
SN29402761_TX-NR575E_BAS_En_1701XX.book 15 ページ ２０１７年１月１０日 火曜日 午後７時１４分

16
Step3: Connect the TV & AV Components
1. Connect the TV
To ARC TV
For a TV that supports the ARC (Audio Return Channel) (*)
feature, use an HDMI cable and connect according to
illustration "a". Choose an HDMI IN jack on the TV that
supports ARC when connecting.
To Non-ARC TV
For a TV that does not support the ARC (Audio Return
Channel) feature (*), connect both the HDMI cable in
illustration "a" and the digital optical cable in "b".
0Connection with a digital optical cable is not necessary if
you will watch TV through a device such as a cable set-
top box (that is, not use a tuner built into the TV) that you
have connected to the input jack on this unit.
(*) The ARC feature:
This feature transfers TV audio signals via HDMI cable so
that you can play the audio from the TV through this unit.
Connection to an ARC compatible TV is complete with one
HDMI cable. Refer to the instruction manual for your TV to
see if it supports ARC.
> Before Start > Part Names >Install > Initial Setup > Playback
TV
a
b
a HDMI cable, b Digital optical cable
Setup
0Settings are required to use the ARC function.
Select "Yes" in "5. Audio Return Channel" (P23) in
the Initial Setup.
0Please refer to the TV's operation manual for
directions on connections and setup for the TV.
SN29402761_TX-NR575E_BAS_En_1701XX.book 16 ページ ２０１７年１月１０日 火曜日 午後７時１４分

17
2. Connect the HDMI AV Component
This is an example of connection with an AV component
that has an HDMI jack. With connection to an AV
component that conforms with the CEC (Consumer
Electronics Control) standard, you can use features such as
the HDMI CEC feature (*) that links with the input selector,
and the HDMI Standby Through feature which allows you to
play video and audio from AV components on the TV even
when this unit is in standby mode.
0To play 4K or 1080p video, use a high speed HDMI
cable.
(*) The HDMI CEC feature:
You can control features such as linking input switching with
the input selector and players conforming to the CEC
standard, switching audio to output it from the TV or from
this unit, and adjusting the volume using the remote
controller of a CEC-compliant TV, and automatically
switching this unit to standby when the TV is turned off.
> Before Start > Part Names >Install > Initial Setup > Playback
BD/DVD
GAME
a
Cable/Satellite set-top
box
Streaming media
player
a HDMI cable
Setup
0To use the HDMI CEC feature and HDMI Standby
Through feature, settings are required in the Setup
menu after Initial Setup is complete. Press on
the remote controller, then go to "5. Hardware" -
"HDMI" and set "HDMI CEC" to "On" to enable
HDMI CEC, and the HDMI Standby Through
setting becomes "Auto (Eco)". Note that "HDMI
CEC" is set to "On" automatically if you have
selected "Yes" in "5. Audio Return Channel" (P23)
in the Initial Setup.
0To enjoy digital surround sound including Dolby
Digital, audio output should be set to "Bitstream
output" on the connected Blu-ray Disc player or
other device.
SN29402761_TX-NR575E_BAS_En_1701XX.book 17 ページ ２０１７年１月１０日 火曜日 午後７時１４分

18
3. Connect the Non-HDMI AV Component
This is an example of connection with an AV component
that does not have an HDMI jack. Make the connections to
the AV component to match the jacks it has. When video
input connection is to the CBL/SAT jack, the audio input
connection should also be to the CBL/SAT jacks, and so on,
so that you connect the video input jacks to the jacks with
the same name as the audio input jacks. Note that video
signals input to the VIDEO IN jack will be converted to
HDMI video signals and then output from the HDMI OUT
jack.
0To enjoy digital surround playback in formats such as
Dolby Digital, you need to make a connection for audio
signals with a digital coaxial cable or a digital optical
cable.
0It is possible to change assignment of the input jacks you
see in the illustration at left, so you can also connect to
any jack other than CBL/SAT. For details, see the
Advanced Manual.
> Before Start > Part Names >Install > Initial Setup > Playback
a
b
Cable/Satellite set-top
box
a Analog video cable, b Digital coaxial cable
Setup
0To enjoy digital surround sound including Dolby
Digital, audio output should be set to "Bitstream
output" on the connected Cable/Satellite set-top
box or other device.
SN29402761_TX-NR575E_BAS_En_1701XX.book 18 ページ ２０１７年１月１０日 火曜日 午後７時１４分

19
4. Connect the Audio Component
Example of a connection with an audio component.
Connect a CD player using a digital optical cable or analog
audio cable. You can also connect a turntable that has an
MM-type cartridge to the PHONO jack.
0If the turntable has a built-in audio equalizer, connect it to
another AUDIO IN jack. Further, if the turntable uses an
MC type cartridge, install an audio equalizer compatible
with the MC type cartridge between the unit and the
turntable, then connect to any AUDIO IN jack other than
the PHONO jack.
If the turntable has a ground wire,
connect it to the GND terminal of this unit.
> Before Start > Part Names >Install > Initial Setup > Playback
OR
CD
a
b
Turntable
a Digital optical cable, b Analog audio cable
SN29402761_TX-NR575E_BAS_En_1701XX.book 19 ページ ２０１７年１月１０日 火曜日 午後７時１４分

20
5. Multi-zone Connection
You can enjoy audio in the separate room by, for example,
playing a Blu-ray Disc player in the main room (where this
unit is located) and listening to internet radio in the separate
room (ZONE 2).
0DSD and Dolby TrueHD audio signals are not output to
ZONE 2 when selected with the "NET" input selector.
Connections with an AV component
When outputting the audio of an external AV component to
ZONE 2, connect using an analog audio cable.
ZONE 2 LINE OUT
It is possible to play 2 ch source in a separate room while
7.1 ch source is being played in the main room. Connect
the ZONE 2 LINE OUT jacks of the unit and the LINE IN
jacks of the pre-main amplifier in a separate room with an
analog audio cable.
ZONE SPEAKER
It is possible to connect speakers in a separate room and
play 2 ch sources.
0You can play through a maximum of 5.1 channels in the
main room during ZONE 2 playback. Listening modes
such as the Dolby Atmos modes cannot be selected.
> Before Start > Part Names >Install > Initial Setup > Playback
ZONE2 LINE OUT
ZONE SPEAKER
ZONE2
CD
a
LINE
IN
MAIN ROOM
b
a
a Analog audio cable, b Speaker cable
Setup
0Settings are required in Initial Setup, "4. Multi
Zone Setup" (P23) to enjoy this feature.
SN29402761_TX-NR575E_BAS_En_1701XX.book 20 ページ ２０１７年１月１０日 火曜日 午後７時１４分
