ADVANCED FEATURES

• THX®Select2 Plus™Certified

• HDMI®Support for 3D, Audio Return Channel,

DeepColor™, x.v.Color™, LipSync, Dolby®TrueHD,

DTS-HD Master Audio™, DVD-Audio, Super Audio

CD, Multichannel PCM, and CEC

• Three-Stage Inverted Darlington Circuitry

• HDMI Video Upscaling to 4K with Qdeo™

Technology by Marvell

• Direct Digital Connection of iPod®/iPhone®via

Front-Panel USB Port

• Supports Onkyo Remote App for Control of A/V

Receiver via iPod/iPhone*1

• Audyssey DSX™and Dolby®Pro Logic®IIz for

Expanded Surround Channels

• Overlaid Graphical On-Screen Display (OSD) and

GUI Navigation via HDMI

• Playback of Audio Files Through Local Network

(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis,

AAC, LPCM)

• Internet Radio and Music Streaming Service

Connectivity (vTuner, SIRIUS XM Internet Radio®,

Mediafly, Pandora®, Slacker™, Napster, Rhapsody®)*2

• Certified with Windows®7 and DLNA Version 1.5

• 2 Parallel Subwoofer Pre Outs

• Analog RGB Video Input (D-sub, 15 pin) for PC

• Illuminated Volume Knob (White)

*1 Compatible iPod/iPhone models: iPod touch 3rd generation or later;

iPhone 3GS or later. (All models require iOS 4.2 or later.)

*2 Availability of ser vices depends on region.

AMPLIFIER FEATURES

• 100 Watts per Channel at 8 Ohms, 20 Hz–20 kHz,

0.08%, 2 Channels Driven, FTC;

125 Watts per Channel at 6 Ohms, 1 kHz, 0.1%,

2 Channels Driven, FTC

• WRAT (Wide Range Amplifier Technology)

• H.C.P.S. (High Current Power Supply) Massive High

Power Transformer

• Optimum Gain Volume Circuitry

• PLL (Phase Locked Loop) itter-Cleaning Circuit

Technology for S/PDIF Audio

PROCESSING FEATURES

• Dolby®TrueHD and DTS-HD Master Audio™

Decoding

• TI Burr-Brown 192 kHz/24-Bit DACs (PCM1690)

for All Channels

• Advanced 32-Bit Processing DSP Chip

• 4 DSP Modes for Gaming: Rock, Sports, Action, and

RPG

• Advanced Music Optimizer for Compressed Digital

Music Files

• Mass Storage Class USB Memory Playback Capability

• Theater-Dimensional Virtual Surround Function

• Direct Mode

• Double Bass Function

• Non-Scaling Configuration

• A-Form Listening Mode Memory

CONNECTION FEATURES

• 6 HDMI Inputs (1 Front/5 Rear) and 1 Output

• Universal Port for Onkyo Peripheral Devices Such

as UP-A1 Dock for iPod/iPhone or UP-HT1 HD

Radio™Tuner

• HDTV-Capable (720p/1080i) Component Video

Switching (2 Inputs and 1 Output)

• 5 Composite Video Inputs (1 Front/4 Rear) and

2 Outputs

• 4 Digital Audio Inputs (2 Optical and 2 Coaxial)

• 6 Analog Audio Inputs and 1 Output

• Powered Zone 2 and Zone 2 Line-Out for

Distributed Audio Playback in Another Room

• Color-Coded, Banana Plug-Compatible Speaker

Posts (Except Zone 2)

• Headphone ack

OTHER FEATURES

• Audyssey 2EQ®for Room Acoustic Correction

• Audyssey Dynamic EQ®for Loudness Correction

• Audyssey Dynamic Volume®to Maintain Optimal

Listening Level and Dynamic Range

• Independent Crossover Adjustment for Each

Channel (40/50/60/70/80/90/100/120/150/200 Hz)

• A/V Sync Control (Up to 800 ms at 48 kHz)

• Tone Control (Bass/Treble) for Front L/R Channels

• Light Dimming (Display: Normal/Dim/Dimmer;

Volume Knob LED: On/Off)*

• 40 FM/AM Random Presets

• Firmware Updates via Ethernet and USB

• RIHD (Remote Interactive over HDMI) for

System Control

• Preprogrammed RI (Remote Interactive)

Remote Control

* Note: Volume nob LED is always off when display is dimmed.

Quality Home Theater Is Now Within Your Reach

Targeting the sweet spot where affordability meets superb functionality, the TX-NR609 looks set to be another Onkyo classic. This THX®

Select2 Plus™Certified A/V receiver handles content from all your favorite disc-based media, as well as networked audio content from the

internet, iPod®/iPhone®, and PC. Six HDMI®inputs—including one on the front panel—provide support for 3D video and ultra-high resolution

4K video upscaling via Qdeo™technology. HDMI also carries master-quality audio formats from Dolby and DTS, as well as the expanded

surround sound of Audyssey DSX™and Dolby®Pro Logic®IIz. Three-stage inverted Darlington circuitry and Onkyo’s proprietary WRAT ensure

a clean and compelling amplifier performance. And when audio signals are output, the 7.2-channel configuration includes twin subwoofer

pre-outs for added bass impact. Meanwhile, a user-friendly on-screen display and GUI make it easy to adjust settings and navigate your content.

All this and more makes the TX-NR609 an irresistible choice for the value-seeking home theater fan.

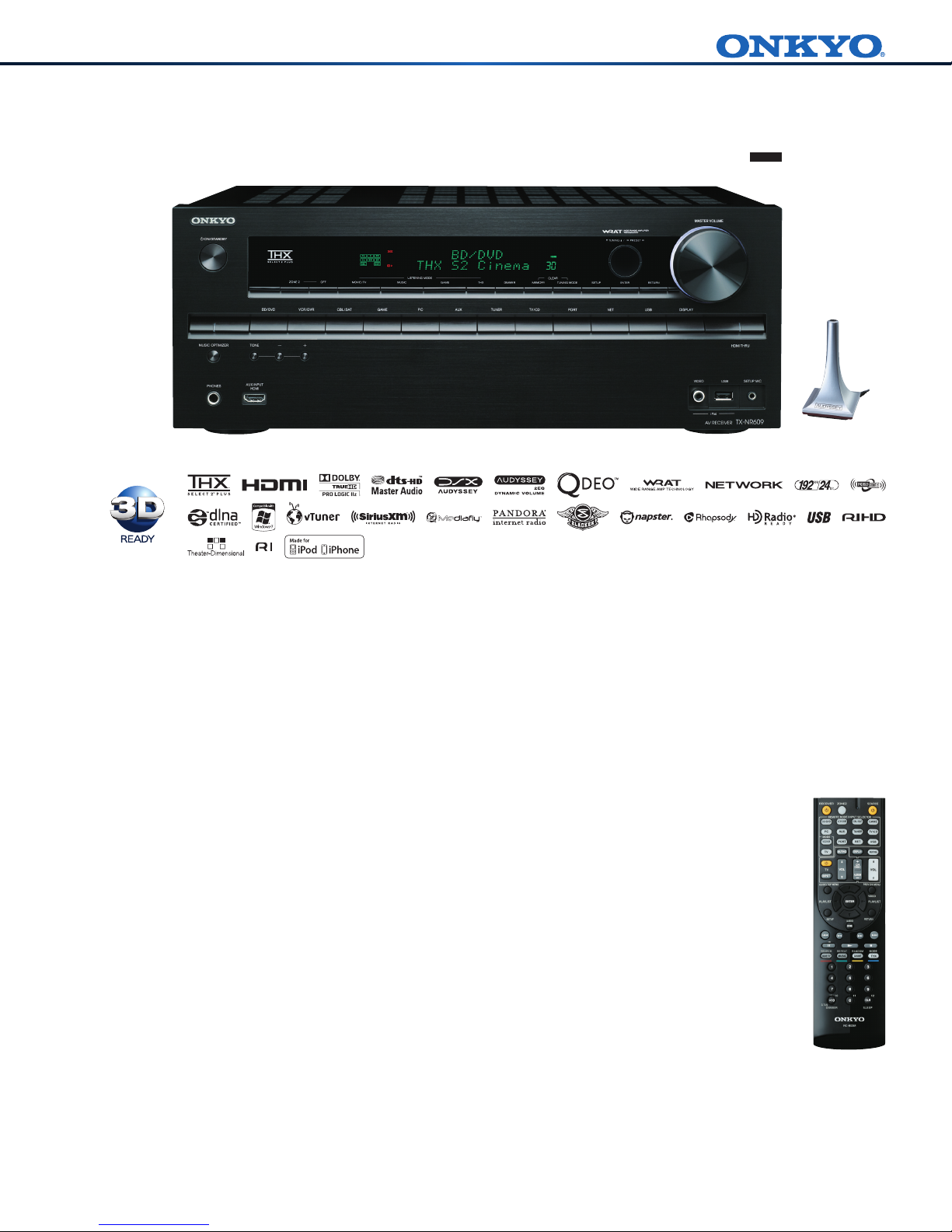

TX-NR609 7.2-CHANNEL NETWORK A/V RECEIVER

2011 NEW PRODUCT RELEASE

BLACK

Microphone for

Audyssey

TX-NR609_US_TX-NR609 11/03/09 12:03 ページ 1Downloaded from www.Manualslib.com manuals search engine

TX-NR609 7.2-CHANNEL NETWORK A/V RECEIVER

HDMI®Support for 3D Video and Audio

Return Channel

The six HDMI inputs on the TX-NR609 let you

simultaneously connect high-def sources such as a Blu-ray

player, a gaming console, and a cable/satellite tuner. A single

output then sends a pristine signal to your connected high-

resolution display. The HDMI implementation on this

receiver supports both 3D video and an Audio Return

Channel, along with numerous high-resolution formats. 3D

video brings exciting possibilities to home entertainment,

with movie, game, and broadcast content on the increase

and 3D-compatible TVs now on the market. Meanwhile, the

Audio Return Channel allows audio content received

directly by your HDTV’s tuner to be sent “upstream” via

HDMI to your A/V receiver, without the need for a

separate S/PDIF audio cable.

Network Capability Delivers Internet Radio and

Network Audio Streaming via Ethernet

As one of Onkyo’s new breed of receivers that can link

directly to the internet or to your home PC via a local

network, the TX-NR609 takes streaming audio and internet

radio to a whole new level. MP3, WMA, WMA Lossless,

FLAC, WAV, Ogg Vorbis, AAC, and LPCM audio files can

now be played back through your main system with

unprecedented power and fidelity. The TX-NR609 also

brings to life a huge array of internet radio channels from

vTuner, SIRIUS XM Internet Radio®, Mediafly, Pandora®, and

Slacker™, plus on-demand music streaming from Napster

and Rhapsody*. As well as being compatible with earlier

platforms, the receiver is compatible with Microsoft’s

Windows®7 platform, which includes the DLNA

1.5-specified “Play To” media-streaming feature. The

TX-NR609’s internet connectivity has the added benefit of

making firmware updates simpler than ever.

* Availability of internet radio and music streaming services depends on region.

Onkyo Remote App for iPod/iPhone*

Available as a free download, this app lets you use your

iPod touch or iPhone as a remote controller to control a

range of functions on the TX-NR609. As well as letting you

select internet radio stations, it also lets you select

streaming audio input from a DLNA-compatible server. The

Remote App also enables you to perform basic playback

operations and control the receiver’s volume with an

interface that uses the iPod/iPhone’s built-in accelerometer.

*Compatible iPod/iPhone models: iPod touch 3rd generation or later; iPhone 3GS or

later. (All models require iOS 4.2 or later.)

Direct Digital Connection of iPod®/iPhone®via

Front-Panel USB Port

The TX-NR609’s front-panel USB port lets you access

MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, and

AAC audio files stored on a USB flash drive or iPod/iPhone.

As the audio signals are transported in digital form, rather

than analog, there is much less chance for signal

degradation. End result: your music sounds cleaner and

SPECIFICATIONS

Amplifier Section

Power Output

Front L/R 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08%,

2 channels driven, FTC)

125 W/Ch (6 ohms, 1 kHz, 0.1%,

2 channels driven, FTC)

Center 100 W (8 ohms, 20 Hz–20 kHz, 0.08%,

2 channels driven, FTC)

125 W (6 ohms, 1 kHz, 0.1%,

2 channels driven, FTC)

Surround L/R 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08%,

2 channels driven, FTC)

125 W/Ch (6 ohms, 1 kHz, 0.1%,

2 channels driven, FTC)

Surround Back L/R or Front High L/R

100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08%,

2 channels driven, FTC)

125 W/Ch (6 ohms, 1 kHz, 0.1%,

2 channels driven, FTC)

Dynamic Power 240 W (3 ohms, Front)

210 W (4 ohms, Front)

120 W (8 ohms, Front)

THD+N (Total Harmonic Distortion + Noise)

0.08% (20 Hz–20 kHz, Half power)

Damping Factor 60 (Front, 1 kHz, 8 ohms)

Input Sensitivity and Impedance

200 mV/47 k-ohms (Line)

Rated RCA Output Level and Impedance

200 mV/2.2 k-ohms (Rec out)

Maximum RCA Output Level and Impedance

2.0 V/2.2 k-ohms (Rec out)

Frequency Response 5 Hz–100 kHz/+1 dB, -3 dB (DSP bypass)

one Control ±10 dB, 50 Hz (Bass)

±10 dB, 20 kHz (Treble)

Signal-to-Noise Ratio 106 dB (Line, IHF-A)

Speaker Impedance 6 ohms–16 ohms

Video Section

Input Sensitivity/Output Level and Impedance

Video 1.0 Vp–p/75 ohms (Component Y)

0.7 Vp–p/75 ohms (Component PB/CB, PR/CR)

1.0 Vp–p/75 ohms (Composite)

Component Video Frequency Response

5 Hz–100 MHz/0 dB, -3 dB

Tuner Section

Tuning Frequency Range

FM 87.5 MHz–107.9 MHz

AM 530 kHz–1,710 kHz

FM/AM Preset Memory 40 stations

General

Power Supply AC 120 V~, 60 Hz

Power Consumption 6.2 A

Dimensions (W x H x D) 17 1/8˝ x 6 13/16˝ x 12 15/16˝

(435 x 173.5 x 328 mm)

Weight 24.7 lbs. (11.2 kg)

CARTON

Dimensions (W x H x D) 22 7/16˝ x 11 11/16˝ x 16 5/8˝

(570 x 297 x 423 mm)

Weight 30.9 lbs. (14.0 kg)

UPC CODE

(B) 751398010002

Supplied Accessories

• Indoor FM antenna • AM loop antenna • Speaker cable labels

• Speaker set-up microphone • Instruction manual

• Quick set-up guide • Remote controller • AA (R6) batteries x 2

more faithful to the original. A further benefit of the USB

input is that it lets you use the system’s remote controller

to play back audio files on the connected device.

THX®Select2 Plus™Certified

THX Select2 Plus certification is specified for rooms where

the screen-to-seat viewing distance is 10 to 12 feet and the

room volume is around 2000 cubic feet. To achieve THX

Select2 Plus certification, the TX-NR609 had to meet the

world’s most demanding standards for home theater audio

quality and performance, and play at reference volume

levels with minimal distortion.

4K Video Upscaling and Processing via Qdeo™

echnology

The TX-NR609 offers full 4 (3840 x 2160) upscaling of

standard video sources such as 480i/p, 720p, and 1080i/p.

Interlaced-to-progressive conversion and scaling are

performed by high-quality Qdeo technology from Marvell.

Qdeo is a versatile video processor that uses algorithms

designed to erase video noise and artifacts such as jaggies

and feathering. Played back on a compatible wide-screen

display, your Blu-ray Discs and DVDs will look more

detailed and cinematic than ever.

Audyssey DSX™and Dolby®Pro Logic®IIz Add

Expanded Dimensions to Surround Sound

The TX-NR609 handles two advanced surround-sound

technologies from Audyssey and Dolby that offer exciting

new ways to set up the speakers in your home theater

system. Audyssey DSX can reconfigure the TX-NR609’s

surround back channels to deliver “front height” channels.

These channels carry ambient, non-directional audio that

adds a new vertical dimension to your movies and games.

Dolby Pro Logic IIz provides a similar front-height speaker

option that likewise works to create a more enveloping

home theater experience.

Three-Stage Inverted Darlington Circuitry

Three-stage inverted Darlington circuitry is a core Onkyo

technology that brings greater efficiency to the TX-NR609.

It incorporates a low-NFB design to remove distortion and

enhance the natural character of audio signals. Sensitive to

oscillations, this circuitry requires very advanced control

technology in order to be incorporated into the amplifier.

Overlaid Graphical On-Screen Display and GUI

Navigation

Changing the TX-NR609’s settings is a seamless affair,

thanks to the receiver’s overlaid graphical On-Screen

Display (OSD). Set-up menus appear overlaid on the video

image you’re watching, so you don’t have to switch to a

blank screen background. Meanwhile, a new GUI lets you

smoothly navigate internet radio and iPod/iPhone contents.

The OSD and GUI both operate over HDMI, making

excellent use of that versatile interface.

Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice. THX Select2 Plus is a trademark of THX Ltd. THX may be registered in some jurisdictions. All rights reserved. Manufactured under license from

Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. DTS, DTS-HD, and the Symbol are registered trademarks and the DTS logos are trademarks of DTS, Inc. Manufactured under license from Audyssey Laboratories, Inc. U.S. and

foreign patents pending. Audyssey 2EQ, Audyssey Dynamic EQ, and Audyssey Dynamic Volume are registered trademarks and Audyssey DSX is a trademark of Audyssey Laboratories, Inc. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries. iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. "Made for iPod" and "Made for iPhone" mean that an electronic

accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod or iPhone may affect wireless performance. x.v.Color is a trademark of Sony Corporation. Windows 7 and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other

countries. Qdeo and QuietVideo are trademarks of Marvell or its affiliates. SIRIUS, XM and all related marks and logos are trademarks of SIRIUS XM Radio Inc. and its subsidiaries. HD Radio and the HD Radio logo are trademarks of iBiquity Digital Corp. WRAT, Music Optimizer,

and Theater-Dimensional are trademarks of Onkyo Corporation. All other trademarks and registered trademarks are the property of their respective holders.

NPR No. 11N20 02/11
