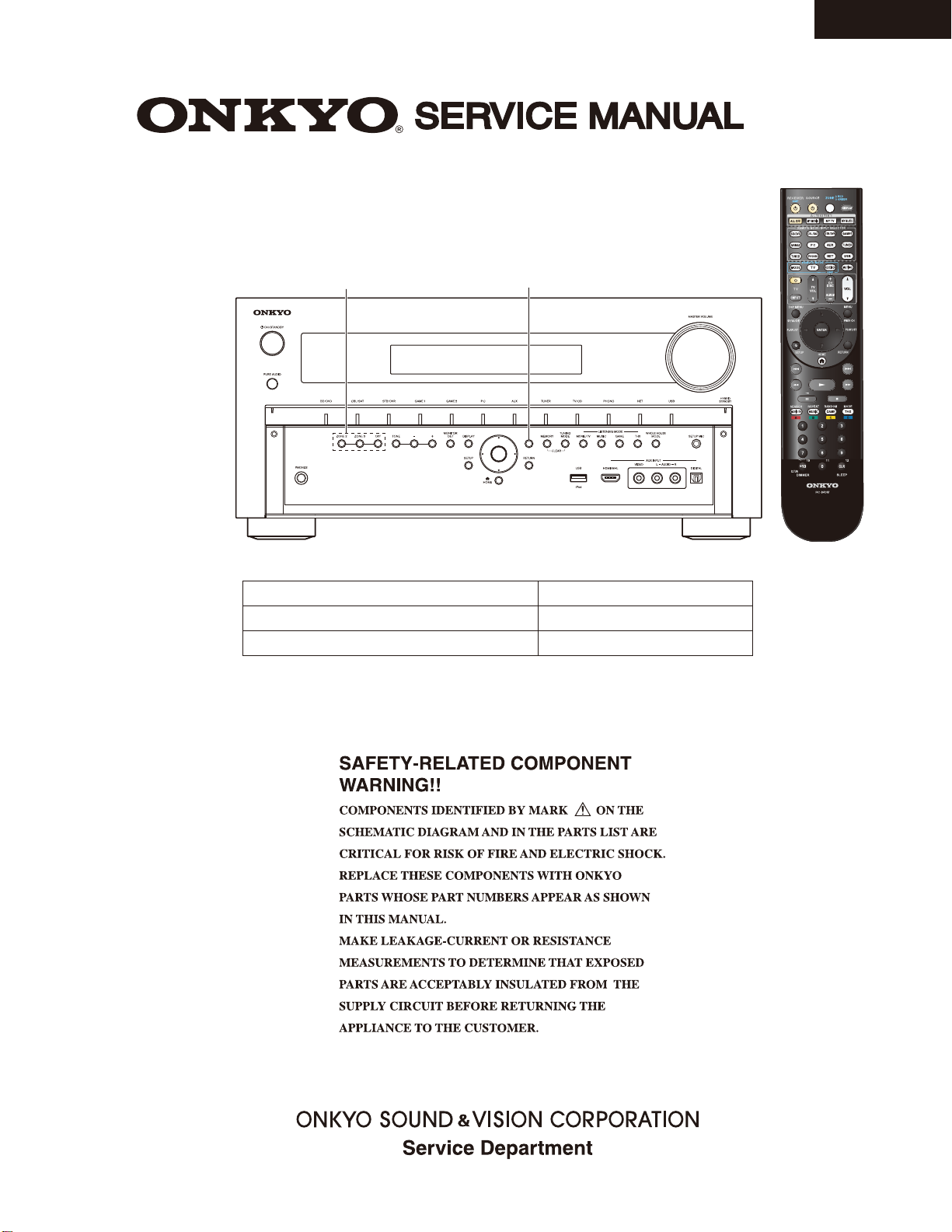

Onkyo TX-NR818B User manual

TX-NR818
European, Australian and Asian models ---> “RT/PTY/TP”
North American and Taiwanese models ---> “DIMMER”
North American and Taiwanese models only
RC-840M
AV RECEIVER
MODEL TX-NR818(B)/(S)
Ref. No. 4392
052012
Black and Silver models 120V AC, 60Hz
220-240V AC, 50/60Hz
220-240V AC, 50Hz
B MDC
B MMQ, B MMR
B MMP, B MMA, B MMB, S MMP

TX-NR818
SERVICE PROCEDURE-1
Clear
Stand-by
CBL/SATON/STANDBY USB
No Strage

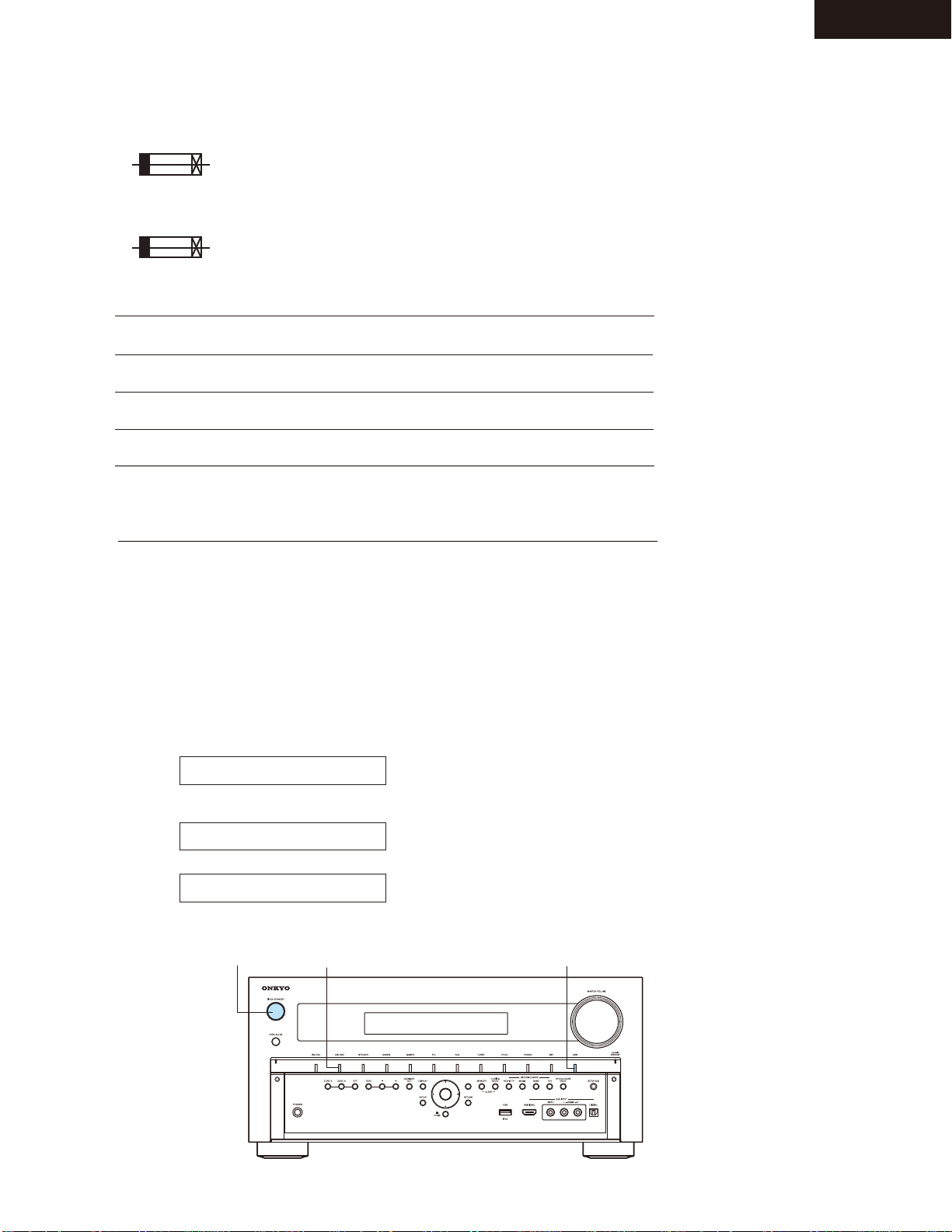

1. Replacing the fuses
3. To initialize the unit
1. Disconnect all cables except AC power code which are connected to unit.
2. Press USB button, and confirm "No Strage"on USB position.
3. Press ON/STANDBY button while pressing down CBL/SAT button when the unit is POWER ON, then the FL displays
"CLEAR", and turn to STAND-BY.
4. Do not touch until "clear "will be disappear from FL tube.(at least 5 seconds)
5. Remove power cord from wall outlet
Preset memory and each mode stored in the memory, are initialized and will return to the factory settings
This symbol located near the fuse indicates that the
fuse used is slow operating type, For continued protection against
fire hazard, replace with same type fuse, For fuse rating, refer to
the marking adjacent to the symbol.
Ce symbole indique que le fusible utilise est e lent.
Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu le present symbol est apposre.
F2000
F2000 or
F2002
F2002 or
F6901
F6901 or
F6902
F6902 or
F9100
F9100 or
F9100
F9100 or
3.15A-UL/T-233
3.15A-T/UL-ST2
4A-UL/T-233
4A-T/UL-ST2
15A-TUL-250V
15A-UL/T-314
15A-TUL-250V
15A-UL/T-314
12A-TUL-250V
12A-UL/T-314
6.3A-SE-EAK
6.3A-SE-TL250V
252323GR
252256GR
252325GR
252257GR
252303GR
252197GR
252303GR
252197GR
252301GR
252196GR
252079GR
252279GR
<MDC>
<MDC>
<MMA, MMB, MMP, MMQ, MMR>
<MMA, MMB, MMP, MMQ, MMR>
!
!
!
!
!
!
!
!
!
!
!
!
FUSE
FUSE
FUSE
FUSE
FUSE
FUSE
FUSE
FUSE
FUSE
FUSE
FUSE
FUSE
REF NO. PART NAME DESCRIPTION PART NO. REMARKS <Notes>
<MDC> : 120V,Canadian model
<MMP> : 230V,CE(European) country model
<MMB> : 230V,UK model
<MMA> : 230V,Australian model
<MMQ> : 220/230-240V,Hong kong model
<MMR> : 220/230-240V,Chinese model
2. Safety check out
(U.S.A. model only)
After correcting the original service problem, perform the following safety check before releasing the unit to the customer.
Leakage current Check
Measure the leakage current to a known earth ground (water pipe or conduct etc.) by connecting a leakage current
tester between the earth ground and exposed metal parts of the unit (input/output ground terminals, screw heads or metal overlays etc.).
Plug the power supply cord directly into a 120Vac 60Hz wall socket and turn ON/STANDBY button on.
Any current measured must not exceed 0.5mA.

TX-NR818
SERVICE PROCEDURE-2
1.10/12723AM
DISPLAY
ON/STANDBY
1.10/12723AM
1.01/12411AM9
1.00/12330aMA
1.01/12329AEO
(TONE)
(TONE)
(TONE)
(TONE)
(TONE) (TONE)
<e.g.>
<e.g.>
(TONE)
(TONE)
(TONE)
(TONE)
(TONE)
(TONE)
1.01/12720AM
4. To check version of each Firmware
Main Microprocessor
1st DSP
HDMI/Video Microprocessor
VSP (Video Signal Processor)
Version displayed
only for 3 seconds.
5. Push ON/STANDBY (Power Off).
1. During the POWER ON, please push ON/STANDBY button while pushing down DISPLAY button.
2. The version of main multiprocessor is displayed at FL tube (only 3 seconds).
3. While the version of main microprocessor is displaying, please push (TONE) + button.

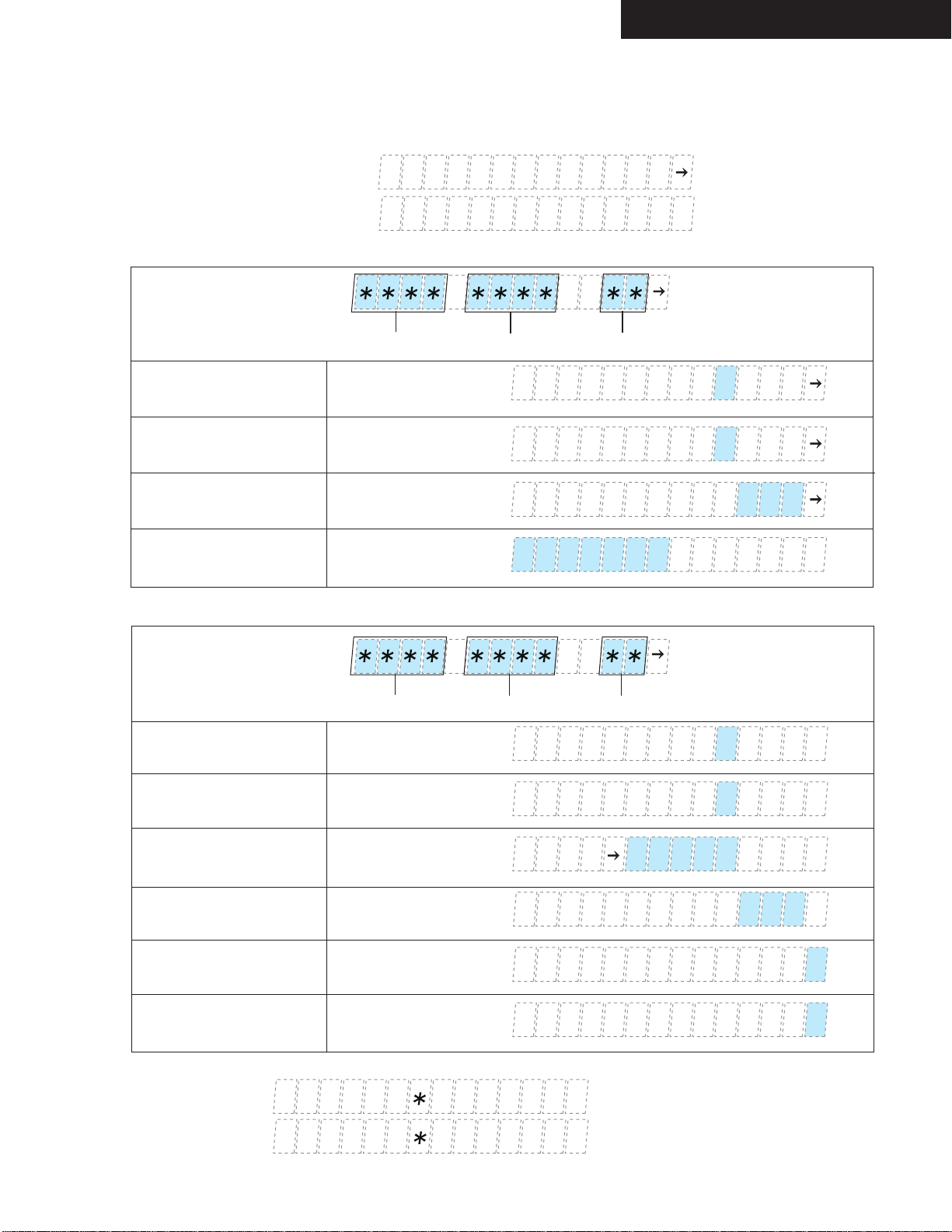

4. FL tube displays by rotation as follows.
2nd DSP

TX-NR818
SERVICE PROCEDURE-3
PRIMARY
Resistor
--- Side-B ---
Top
5. Notes on repairs (Power supply board)
Some parts on BAPS-1145 may remain high voltages
even after the power cord is disconnected from AC power source.
Before starting repair and any other work , please discharge C9002 by connecting resistors between its terminals. See the figure below
(recommended resistor spec: 5 k ohms/ 10W)
It is dangerous to touch the "PRIMARY" area surrounded by white lines without discharging.
U0031
POWER SUPPLY(PRI) PC BOARD ASS'Y
BAPS-1145

TX-NR717/818/1010/3010/5010
DEBUG MODE-1
AUDIO DEBUG MODE-1/4
To set in Debug mode

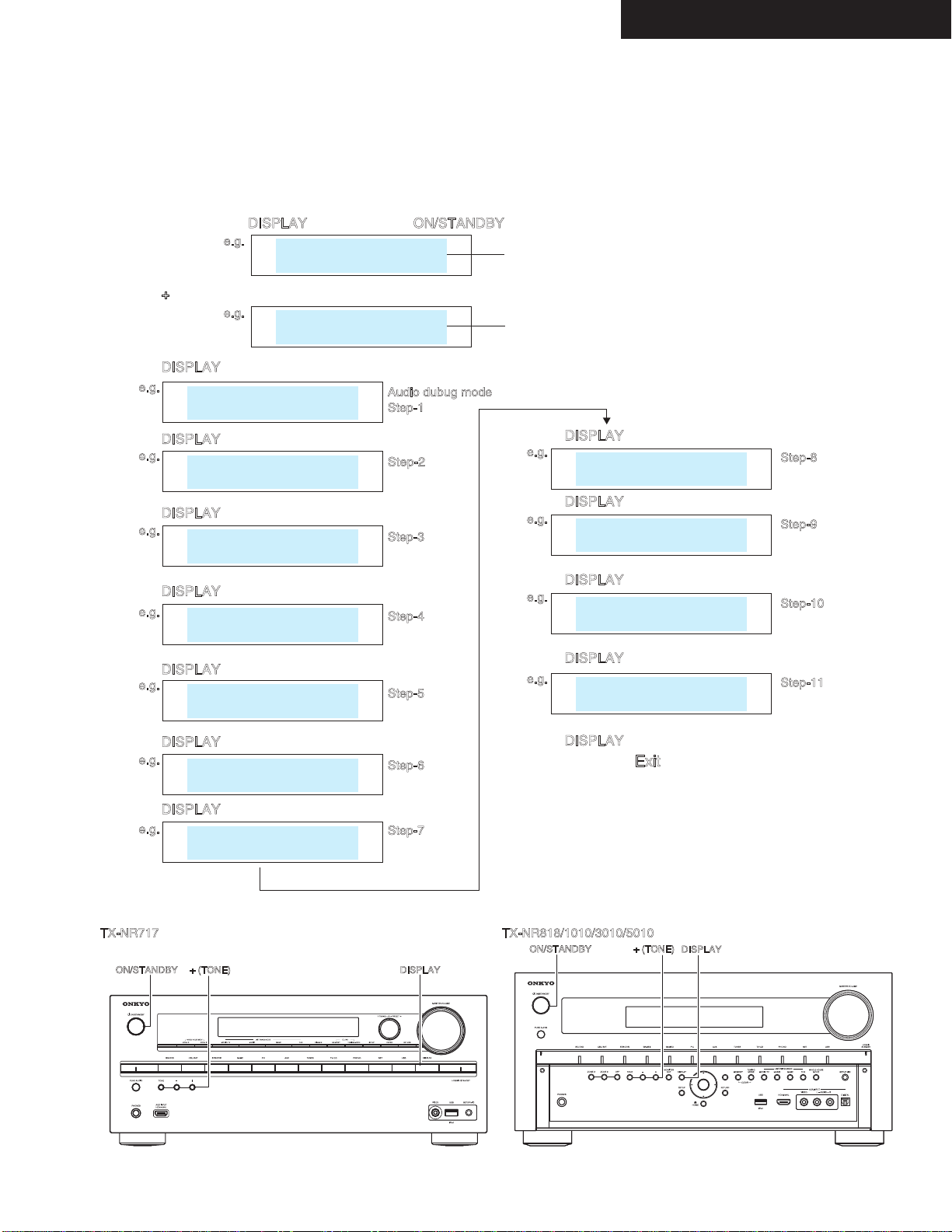

1. Press and hold down DISPLAY button, then press ON/STANDBY button.
The version number of microprocessor is displayed
only for 3 seconds.
The version number of DSP is displayed
only for 3 seconds.
AUDIO DEBUG MODE (Display mode of the audio information)
The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode.
This information will help to analysing digital audio no sound trouble.
Audio dubug mode
Step-1
Exit
e.g.
TX-NR717 TX-NR818/1010/3010/5010
ON/STANDBY + (TONE) DISPLAY
ON/STANDBY + (TONE) DISPLAY
Main:
1.02/12611AH
2. Press +(TONE) button while the version number of microprocessor is displayed.
3. Press DISPLAY button while the version number of DSP is displayed.
DSP 1st/NET:
1.02/12608AHA
e.g.
0A0002: :00
ANA:o:NON: :
4. Press DISPLAY button.
SP00F*00F00409
48 48256STB
2:o:PCM :PCM
00:x:F:OFF
1:ANA 048k048k
2/0.0: 2.0:3/4
9. Press DISPLAY button.
8. Press DISPLAY button.
6. Press DISPLAY button.
5. Press DISPLAY button. 11. Press DISPLAY button.
12. Press DISPLAY button.
10. Press DISPLAY button.
7. Press DISPLAY button. 13. Press DISPLAY button.
LW : 0 0
RW : 0 0
LB : 0 0
RB : 0 0
LH : 0 0
RH : 0 0
LS : 0 0
RS : 0 0
C : 0 0
L : 0 0
R : 0 0 SW : 0 0
SW2 : 0 0
Step-2
Step-11
Step-10
Step-9
Step-8
Step-7
Step-6
Step-5
Step-4
Step-3
14. Press DISPLAY button.
e.g.
e.g.
e.g.
e.g.
e.g.
e.g.
e.g.
e.g.
e.g.
e.g.
e.g.

DEBUG MODE-2
AUDIO DEBUG MODE-2/4
TX-NR717/818/1010/3010/5010
Contents of Display
4. Muting port
B. Factor of muting
1. st_srd.lmd 2. st_srd.extdec
3. st_srd.extdecmd
Step-1
FL Display
D
A: DIGMUTE port
: AMUTE port
bit_1
bit_2
bit_3
bit_4
bit_5
: SEL MUTE
: POW MUTE
: PROTECT MUTE
: AUDIO OUT MUTE
: AUDIO MUTE
C_LM_LAST
C_LM_PURE
C_LM_DIRECT
C_LM_STEREO
C_LM_MONO
C_LM_SURR
C_LM_THX_MUSIC
C_LM_THX_GAME
C_LM_THX_CINEMA
C_LM_THX_U2GAME
C_LM_THX_U2MUSIC
C_LM_THX_U2CINEMA
C_LM_AUDYSSEY
C_LM_DTSSS
C_LM_ORCHESTRA
C_LM_UNPLUGGED
C_LM_STUDIOMIX
C_LM_TVLOGIC
C_LM_ALLCHST
C_LM_FULLMONO
C_LM_TD
C_LM_TESTTONE
C_LM_TESTTHR
C_LM_TESTAUTO
C_LM_ASC
C_LM_FLASH
C_LM_DEBUGMODE
C_LM_FLASH2
C_LM_FLASH3
C_LM_FLASH4
C_LM_FLASH_CHECK
C_LM_RPG
C_LM_ACTION
C_LM_ROCKBAND
C_LM_SPORTS
: 01
: 02
: 03
: 04
: 05
: 20
: 50
: 70
: 90
: A0
: A8
: B0
: D0
: 48
: 06
: 07
: 08
: 09
: 0A
: 0B
: 0C
: F1
: F2
: F3
: F4
: F5
: F6
: F7
: F8
: F9
: FA
: 0D
: 0E
: 0F
: 10
C_EXTDEC_OFF
C_EXTDEC_20_PLII
C_EXTDEC_20_PLIIX
C_EXTDEC_20_PLIIZ
C_EXTDEC_20_NEO6
C_EXTDEC_51_MTR
C_EXTDEC_51_DSC
C_EXTDEC_51_NEO6
C_EXTDEC_51_EX
C_EXTDEC_51_PLIIX
C_EXTDEC_51_PLIIZ
C_EXTDEC_9624
C_EXTDEC_9624_MTR
C_EXTDEC_71MULTI
C_EXTDEC_20_NEURAL
C_EXTDEC_51_NEURAL
: 00
: 01
: 02
: 03
: 04
: 05
: 06
: 07
: 08
: 09
: 0A
: 0B
: 0C
: 0E
: 0F
: 10
C_EXTDECMD_OFF
C_EXTDECMD_10
C_EXTDECMD_20
C_EXTDECMD_MOVIE
C_EXTDECMD_MUSIC
C_EXTDECMD_GAME
C_EXTDECMD_HEIGHT
C_EXTDECMD_WIDE
: 00
: 01
: 02
: 03
: 04
: 05
: 06
: 07
Display area
0A0002: :00
ANA:o:NON: :
e.g.
1 2 3 A B
C D E F G
C. Input terminal
ANA
COX
OPT
HDM
ARC
: Analog
: Caxal
: Optical
: HDMI
: ARC
D. DSP Detect
F. Display inhibit
E. Sound state
G. HDMI mute
o
x: DSP Detect OK : DSP No detect
STB
TRS
NON
: SOUND STATE FIX
: SOUND STATE UNFIX
: SOUND STATE NONE
S
C: display_inhibit SET
: display_inhibit CLR
V : HDMI MUTE

DEBUG MODE-3
AUDIO DEBUG MODE-3/4
TX-NR717/818/1010/3010/5010
1:ANA 048k048k
2/0.0: 2.0:3/4
6. Number of channels for display
7. Number of channels after
the decoding process
(hd_dec_prgfmt)
1.Type of input format
(source_format) 4. Number of input channels for listening mode transition
5. Input channel
(st_srd.lfe, st_srd.lfe2)
Step-2
"10.2" "5.1" "1 +1" four-digit string
UNLK
ANA
PCM
AC3
DTS
MPEG
DATA
UNKW
NORD
NPCM
FS96
NODT
DTSC
AAC
MPCM
MCH
TRUE
MSTR
DSD
PLUS
EXPR
DTSH
: DDR_UNLOCK
: DDR_ANALOG
: DDR_PCM
: DDR_AC3
: DDR_DTS
: DDR_MPEG
: DDR_DATA
: DDR_UNKNOWN
: DDR_NOT_READY
: DDR_NOT_PCM
: DDR_FS96
: DDR_NOT_DETECT
: DDR_DTSCD
: DDR_AAC
: DDR_MCHPCM
: DDR_MCH
: DDR_TRUE
: DDR_MSTR
: DDR_DSD
: DDR_DDPLUS
: DDR_DTSEXP
: DDR_DTSHD
0
1
2
: SW 0ch
: SW 1ch
: SW 2ch
e.g.
1 2 3
4 5 6 7
2. Sampling frequency
(st_srd.fs)
3. Sampling frequency for display
(st_srd.fs)
???
008
011
012
016
022
024
032
044
048
064
088
096
176
192
: unknown
: 8kHz
: 11kHz
: 12kHz
: 16kHz
: 22kHz
: 24kHz
: 32kHz
: 44.1kHz
: 48kHz
: 64Hz
: 88.2kHz
: 96kHz
: 176.4kHz
: 192kHz
???
10
20
30
21
31
22
32
23
33
24
34
4H2
5H2
4W2
5W2
4H4
4H3
5H4
5H3
4W4
4W3
5W4
5W3
11
: C_FMT_UNKNOWN
: C_FMT_10
: C_FMT_20
: C_FMT_30
: C_FMT_21
: C_FMT_31
: C_FMT_22
: C_FMT_32
: C_FMT_23
: C_FMT_33
: C_FMT_24
: C_FMT_34
: C_FMT_42H
: C_FMT_52H
: C_FMT_42W
: C_FMT_52W
: C_FMT_44H
: C_FMT_43H
: C_FMT_54H
: C_FMT_53H
: C_FMT_44W
: C_FMT_43W
: C_FMT_54W
: C_FMT_53W
: C_FMT_11

DEBUG MODE-4
AUDIO DEBUG MODE-4/4
TX-NR717/818/1010/3010/5010
2:o:PCM :PCM
00:x:F:OFF
8. Audio output OK?
(f_dsp_detect_ok)
Step-3
o
x: Decode OK : Decode NG
e.g.
8 9 10
11 12 14 15
11. Dialog Norm
(st_srd.dnorm)
13
9. Details of input format
(st_srd.source)
10. Details of input format for display
(st_hd_display.source)
ANA
PCM
DLB
DEX
DTS
MTR
DSC
D96
96M
AAC
MCH
DSP
MPCM
DSD
TRUE
TREX
MSTR
PLUS
PLEX
EXP
DTSH
DSUR
DPSR
TRSR
: C_SRC_ANA
: C_SRC_PCM
: C_SRC_DD
: C_SRC_DD_EX
: C_SRC_DTS
: C_SRC_DTS_MTR
: C_SRC_DTS_DSC
: C_SRC_DTS_96
: C_SRC_DTS_96M
: C_SRC_AAC
: C_SRC_MCH
: C_SRC_DSP
: C_SRC_MCHPCM
: C_SRC_DSD
: C_SRC_TRUE
: C_SRC_TRUE_EX
: C_SRC_MSTR
: C_SRC_DDPLUS
: C_SRC_DDPLUS_EX
: C_SRC_DTSEXP
: C_SRC_DTSHD
: C_SRC_DD_SUR
: C_SRC_DDPLUS_SUR
: C_SRC_TRUE_SUR
Dialog Norm value of 0 to 31
12. DIRINT
The return value of ddr
Request_dir (DDC_STATUS)
o
x: LOCK : UNLOCK
13. DIR busy or free
The return value of ddr Request_dir
(DDC_BUSY)
F
B: Free : Busy
14. Emphasis information
(f_dir_empha_mode)
ON
OFF : ON : OFF
15. HDDVD/BLUE(Only DDPLUS)
BD
HD : Blu-ray : HDDVD
Step-5 to Step-11
LW : 0 0
RW : 0 0
LB : 0 0
RB : 0 0
LH : 0 0
RH : 0 0
LS : 0 0
RS : 0 0
C : 0 0
L : 0 0
R : 0 0
SW : 0 0
SW2 : 0 0
e.g.
A.The sum of the values of Volume correction related to the DSP.
B:The sum of the values of Volume correction, including correction
of the Analog stage.
A B

TX-NR717/818/1010/3010/5010
DEBUG MODE-5
HDMI DEBUG MODE-1/7
114 1312106 87432 5 9 11
HDMI-related operations can be checked to some extent by displaying HDMI debug mode.
Content of Display
To enter this mode
Hold down DISPLAY button for 3seconds. Information display will last for about 8 seconds.
Resolution display
1 080 i / 6 0
1 080 i / 6 0
List of standard resolution
4 8 0 i / 6 0
4 8 0 p / 6 0
1 0 8 0 i / 6 0
7 2 0 p / 6 0
1 0 8 0 p / 6 0
2 4 0 p / 6 0
# 4 8 0 i / 6 0
# 4 8 0 p / 6 0
# 2 4 0 p / 6 0
5 7 6 i / 5 0
5 7 6 p / 5 0
1 0 8 0 i / 5 0
7 2 0 p / 5 0
1 0 8 0 p / 5 0
2 8 8 p / 5 0
# 5 7 6 i / 5 0
# 5 7 6 p / 5 0
# 2 8 8 p / 5 0
1 0 8 0 p / 2 4
1 0 8 0 p / 2 5
1 0 8 0 p / 3 0
V G A
1 0 8 0 i 1 0 0
7 2 0 p 1 0 0
5 7 6 p 1 0 0
5 7 6 i 1 0 0
1 0 8 0 i 1 2 0
7 2 0 p 1 2 0
4 8 0 p 1 2 0
4 8 0 i 1 2 0
5 7 6 p 2 0 0
5 7 6 i 2 0 0
4 8 0 p / 6 0
4 8 0 p 2 4 0
4 8 0 i 2 4 0
* 4 8 0 p / 6 0
* 5 7 6 p / 5 0
7 2 0 p / 2 4
7 2 0 p / 2 5
7 2 0 p / 3 07 2 0 p / 3 0
114 1312106 87432 5 9 11
The first line : Input resolution
Second line : Output resolution
U N K N O W N

TX-NR717/818/1010/3010/5010
DEBUG MODE-6
HDMI DEBUG MODE-2/7
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114
131210687432 5 9 11
Display of Input resolution
DVI input signal
VGA input signal
No input
i / p will be capitalized.
Display the ” ” in column 1
1 080 i / 6 0
1 080 i / 6 0
first line --->
084 I / 6 0
084 P / 6 0
V G A
k o w
nU nn

TX-NR717/818/1010/3010/5010
DEBUG MODE-7
HDMI DEBUG MODE-3/7
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
Display of Output resolution
For a video processor
DVI input signal
VGA input signal
RSEN is OFF
EDID_READ is NG
Resolution Error
No output
(Signal output destination
can not be found.)
Hot-plug of Sink equipment
can not be detected.
Via VSP
VSP skip
i / p will be capitalized.
Display the ” ”
in column 5
Display the ” ”
in column 14
Display the ” # ”
in column 14
Display the ” x ”
in column 14
1 0 8 0 i / 6 0
1 0 8 0 i / 6 0
4 8 0 I / 6 0
4 8 0 P / 6 0
4 8 0 p / 6 0
4 8 0 p / 6 0
4 8 0 p / 6 0
4 8 0 p / 6 0 #
x
- - - - - -
O F F
Display the ” ”
in column 5
1 080 p/ 6 0
1 080 i / 6 0
Second line --->

TX-NR717/818/1010/3010/5010
DEBUG MODE-8
HDMI DEBUG MODE-4/7
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
14
131211
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
4K Upscaling
Display of Output resolution
Display of input resolution
1 0 8 0 i / 6 0
xp/
If the three-digit numbers are refrate
List of resolution
3 8 4 0 x 2 1 6 0 p / 3 0
3 8 4 0 x 2 1 6 0 p / 2 5
4 0 9 6 x 2 1 6 0 p / 2 4
3 8 4 0 x 2 1 6 0 p / 2 4
Resolution Error
EDID_READ_NG
3 8 4 0 x 2 1 6 0 p / 3 0
3 8 4 0 x 2 1 6 0 p / 3 0x
#
Second line --->
First line --->

DEBUG MODE-9
HDMI DEBUG MODE-5/7
TX-NR717/818/1010/3010/5010
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
Display of Input resolution
RSEN OFF
EDID READ NG
Resolution Error
Display the ” ”
in column 14
Display the ” # ”
in column 9
Display the ” x ”
in column 13
1 0 8 0 p / 2 4 (3 D )
H D M I t4 4 4 3 6 b i#
1 0 8 0 p / 2 4 (3 D )x
Status
Input Mode
Input Color
Deep Color
HDMI input
DVI input
No input
RGB
422
444
24bit
30bit
36bit
- - - t4 4 4 3 6 b i
D V I t4 4 4 3 6 b i
H D M I t4 4 4 3 6 b i
H D M I tR G B 3 6 b i
H D M I t4 2 2 3 6 b i
H D M I t4 4 4 3 6 b i
H D M I tR G B 3 6 b i
H D M I tR G B 3 0 b i
H D M I tR G B 2 6 b i
1 080 p/ 2 4
Second line --->
First line --->
Status
Resolution
D3( )
H DM I t4 4 4 3 6 b i
First line --->
Second line --->
First line --->
Second line --->
Second line --->
Second line --->
Second line --->
Second line --->
Second line --->
Second line --->
Second line --->
Second line --->
Display of 3D resolution

DEBUG MODE-10
HDMI DEBUG MODE-6/7
TX-NR717/818/1010/3010/5010
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
3D format
Frame Packing
Side-by-Side(Full)
Side by Side(Harf)
INPUT/ OUTPUT
F r a m P a k i n ge c
L d e t hp
Ld e t hp
T o p - mn d - o t t oa B
U N K N W NO
Field alternative
Line alternative
L+depth
unknown
Top and Bottom
L+depth + graphics
First line --->
First line --->
First line --->
I N :
O TU :
P U T
P U T
F i a l e r n t i v et a e l d
L i a l e r n t i v et a n e
S i d e y S i eb d- - (F)
u ll
First line --->
cg a p h ir
S i d e y S i eb d- - (H)
a fr

DEBUG MODE-11
HDMI DEBUG MODE-7/7
TX-NR717/818/1010/3010/5010
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
114 1312106 87432 5 9 11
PC resolution
Display of Input resolution
DVI input
HDMI input
No input
U N K N OW N
Display of Output resolution
Input Resolution
Output Resolution
1 0 2 4 x 7 6 p / 6 08
1 0 2 4 x 7 6 p / 6 08
Three-digit numbers
are Referat
Display uppercase P/I
Display lowercase p/i
1 0 2 4 x 7 6 P / 6 08
1 0 2 4 x 7 6 p / 6 08
1 0 2 4 x 7 6 P 1 2 08
Horizontal resolution Vertical resolution Referat
x p /
Horizontal resolution Vertical resolution Referat
x p /
INPUT/ OUTPUT
DVI output
HDMI output
Display”-----”
Three-digit numbers
are Referat
EDID READ NG
Resolution through
Display uppercase P/I
Display lowercase p/i
Display the ” # ” in
column 13
Display the ” x ” in
column 13
1 0 2 4 x 7 6 P / 6 08
1 0 2 4 x 7 6 p / 6 08
- ---
-
1 0 2 4 x 7 6 P 1 2 08
1 0 2 4 x 7 6 P / 6 08 #
1 0 2 4 x 7 6 P / 6 08 x
First line --->
Second line --->
First line --->
Second line --->
I N :
O TU :

TX-NR717/818/ DTR-40.4/50.4
OPERATION CHECK-1
1.OPERATION CHECK(1/3)
1-1. OPERATIONS OF SPEAKER RELAYS
The relay shall be ON about 10 seconds after POWER is ON and shall be OFF immediately after POWER is OFF.
1-2. OPERATIONS OF VOLTAGE-DETECTION PROTECTORS.
See “OPERATION CHECK-4, -6” for TEST MODE operation.
NOTE: Don't connect load nor short speaker terminals.
(How to check in test mode)
a. Change the state to "TEST 4-24".
b. It tests by being automatic in order of TEST 4-24(FL+) → 25(FR-) → 26(C+) → 27(SL-)
→ 28(SR+) → 29(SBL-) → 30(SBR+) → 31(FHL-) → 32(FHR+). If TEST 4-32 is ok, it becomes the display of "TEST 4-42."
c. It will complete, if displayed on FL TUBE as "TEST 4-42."
1-3. OPERATIONS OF CURRENT-DETECTION PROTECTORS
See “OPERATION CHECK-4, -6” for TEST MODE operation.
a. Change the state to "TEST 4-42".
Even if you connect 3-ohm load for every channel of L, R, C, SL, SR, SBL and SBRch, a relay should not cut off.
b. If 1-ohm load is connected for every channel of L, R, C, SL, SR,SBL and SBRch, a relay should hold the state of ON.
1-4. CONFIRMATION OF RDS (RADIO DATA SYSTEM) OPERATION
(applies to MMA/MMP/MMQ/MMR Type. )
a. Input 98MHz,30dBμ signal modurated with RDS data.
b. When a PS information is received, the name of the station "RDS TEST" shall be displayed within 2 seconds instead of the frequency.
1-5. CONFIRMATION OF HEAD PHONE OPERATION.
Confirm the Listening Mode is automatically switched to "STEREO" mode when headphones plug is inserted into the PHONES jack.
1-6. CONFIRMATION OF 12V TRIGGER OPERATIONS .
See “OPERATION CHECK-4, -5” for TEST MODE operation.
a. After checking that there is no output from 12V TRIGGER ZONE2(Integra model is TRIGGER A) terminal, confirm that
there is an output of 12V±10%/150mA mmediately switched the "TEST2-11". (except TX-NR717MJJ/818MJJ)
b. After checking that there is no output from 12V TRIGGER ZONE3 (Integra model is TRIGGER B) terminal, confirm that
there is an output of 12V±10%/ 25mA after 2 seconds switched the "TEST2-12". (except TX-NR717MJJ/818MJJ)
c. After checking that there is no output from 12V TRIGGER C terminal, confirm that there is an output of 12V±10%/ 25mA after 2 seconds
switched the "TEST2-13". (only DTR-40.4/50.4)
1-7. CONFIRMATION OF OUTPUT VOLTAGE SENSOR AND THERMAL PROTECTOPERATION.
a. Set the TEST MODE to "TEST 4-43". Confirm to lit "FM STEREO" on FL displaythe .
Confirm the relays RL6901/6902(TX-NR818, DTR-50.4) is OFF immediately .
Confirm the relays RL691/692(TX-NR717,DTR-40.4) is OFF immediately .
b. Push STANDBY/ON button while pushing down DISPLAY button to display CPU PROGRAM version.
Push TONE button while displaying CPU PROGRAM version to display value of temparature sensor.
Regarding to "AT" and "DT" of display value, confirm outside temperature ±20C is displayed immediately after energizing.
No singal condition (Ex. Display)
V:>00 F:x S:H
AT:020 DT:020 V: Output signal level
F: FAN condition
S: Amplifier power supply voltage condition
AT: Temparature sensor of Amplifier
DT: Temparature sensor of HDMI PWB

TX-NR717/818/ DTR-40.4/50.4
OPERATION CHECK-2
1.OPERATION CHECK(2/3)
1-8. CONFIRMATION OF HDMI MAIN OUTPUT OSD(ON SCREEN DISPLAY) OPERATION
a. Confirm that display SET-UP MENU for push SET UP buttons.
b. Confirm that specified operations for ENTER(with 4-cursor) buttons are made.
c. Confirm whether the screen displayed at the POWER ON is correct.
At the POWER ON, please confirm the following image is displayed on HDMI MAIN OUT.
ONKYO model (TX-NR717/818) Integra model (DTR-40.4/50.4)
1-9. MISCELLANEOUS
a. Confirm SELECTOR MUTING operation.
b. Check the action of Left, Right, Center, L-Sur., R-Sur., Subwoofer, Sur.Back-L,Sur.Back-R, Front High-L, Front High-R,
Level Up/Down.
c. Confirm analog, digital and video REC SELECTOR operation.
d. Confirm Video output signal as shown Table 2., while Video signal are input as shown Table 1.
e. Confirm the video signal from BD/DVD Composite in is output to HDMI monitor out at the initial setting.
Then, input video signal to Component IN1, confirm change to Component IN1 signal from composite video signal.
f. Confirm the firmware combination check.
1. Push STANDBY/ON button while pushing down TV/CD button to display "TEST-_".
2. Next, if Enter keys are pushed, FL display "F/W Set OK" or "F/W Set NG" after it becomes a F/W COMBINATION TEST MODE.
1-10. CONFIRMATION OF COOLING FAN OPERATION
See “OPERATION CHECK-4, -6” for TEST MODE operation.
a. When no input signal, confirm to fan no rotate.
b. When TEST4-43, confirm to fan slow speed rotate.
c. When TEST4-46, confirm to fan fast speed rotate. Only TX-NR818,DTR-50.4
1-11. CONFIRMATION OF HDMI AUDIO OPERATION.
See “OPERATION CHECK-4, -7” for TEST MODE operation.
CONFIRMATION OF HDMI I2S SIGNAL.
a. DVD-AUDIO Fs=192kHz 2ch signal is input from HDMI rerminal.
b. Change the state to "TEST 6-00,6-01,6-02,6-03 one by one. Confirm the signal is output from L/R,SW/C,SL/SR,SBL/SBR.
CONFIRMATION OF HDMI SPDIF SIGNAL.
c. When TEST 6-06, confirm the sound(HDMI IN3) outputs from the speaker.
d. When TEST 6-07, confirm the sound(DVD analog input) outputs from the TV of Main HDMI OUT and Sub HDMI OUT.
1-12. COMFIRMATION OF NETWORK
See “OPERATION CHECK-4, -5” for TEST MODE operation.
a. PC and the set are connected through the router.
b. Change the state to "TEST 3-09"(Front) or "TEST 3-10"(Rear).
c. When Connect iPod to AVR USB front port and connect USB storage to AVR USB Rear port,confirm this iPod or USB
storage is shown on FL display and HDMI main out of AVR .
d. Confirm the audio signal is output, when TEST MODE is set from TEST 3-11 to TEST 3-17.
(Confirm at Zone2 Preout/Line out terminal.)
*Please wait for about 20 seconds after turning on the power supply of the set when you use from TEST 3-11 to TEST 3-17.
The following iPod models can be used for inspection.(The above-mentioned operation is not done excluding the following items. )
iPod classic, 3G nano, 4G nano, 5G nano

TX-NR717/818/ DTR-40.4/50.4
OPERATION CHECK-3
1.OPERATION CHECK(3/3)
a. Confirm Video output signal as shown Table 2, while Video signal are input as shown Table 1.
Input
BD/DVD
CBL/SAT
STB/DVR
GAME or GAME1
PC
TV/CD
PHONO
GAME2
AUX / USB
Composite Video
A
B
C
D
---
---
---
---
E
Component
IN1
IN2
---
---
---
---
---
---
---
F
G
---
---
---
---
---
---
---
HDMI
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
Front
H
I
J
K
L
M
N
P
Q
RGB(D-SUB)
---
---
---
---
T
---
---
---
---
D4 (Note 3)
---
---
IN1
IN2
---
---
---
---
---
---
---
R
S
---
---
---
---
---
Test mode
5-00
5-01
5-02
5-03
5-04
5-05
5-06
5-07
5-08
5-09
5-10
5-11
5-12
5-13
Composite Video
Zone2 out
(Note 3)
A
B
C
D
---
---
---
---
E
A
A
A
E
---
Monitor out
A
B
C
D
----
----
----
----
E
A
A
A
E
----
Component
OUT
F
G
R
S
----
----
----
----
----
F
F
F
E
----
HDMI
"OUTMain/Sub"
(Note 3)
H/---
I/---
J/---
K/---
L/L
M/---
N/---
P/---
Q/---
H/---
F/---
A/---
---/---
S/---
D4
OUT
(Note 3)
F
G
R
S
----
---
---
---
---
F
F
F
E
---
MODE
HDMI Through
HDMI Through
HDMI Through
HDMI Through
HDMI Through,Out=Both
HDMI Through
HDMI Through
HDMI Through
HDMI Through
HDMI non Through
Component?HDMI
CV?HDMI
CV?CV,Component
RGB INPUT
Output
(BD/DVD)
(CBL/SAT)
(STB/DVR)
(GAME or 1)
(PC)
(TV/CD)
(PHONO)
(GAME2)
(AUX)
(BD/DVD)
(BD/DVD)
(BD/DVD)
(USB)
(PC)
The specification of Composite Zone2 out, D4 in/out according to the model is as shown in the following table.
Model
Destination
Composite Zone2 out
D4 in/out
TX-NR717
OTHER
No
No
TX-NR818
OTHER
No
No
MJJ
No
Yes
DTR-40.4
ALL
Yes
No
DTR-50.4
ALL
Yes
No
MJJ
No
Yes
Table 1
Table 2
Table 3
1-13. VIDEO FUNCTION CHECK
b. OPERATIONS OF VIDEO SIGNAL-DETECTION
See “OPERATION CHECK-4, -7” for TEST MODE operation.
Set the TEST MODE to "TEST 5-00".
When the composite video signal is input, confirm that "FM STEREO" of FL TUBE lights.
And, When the component video signal is input, confirm that "RDS" of FL TUBE lights.

TX-NR717/818/ DTR-40.4/50.4
OPERATION CHECK-4
2.TEST MODE(1/4)

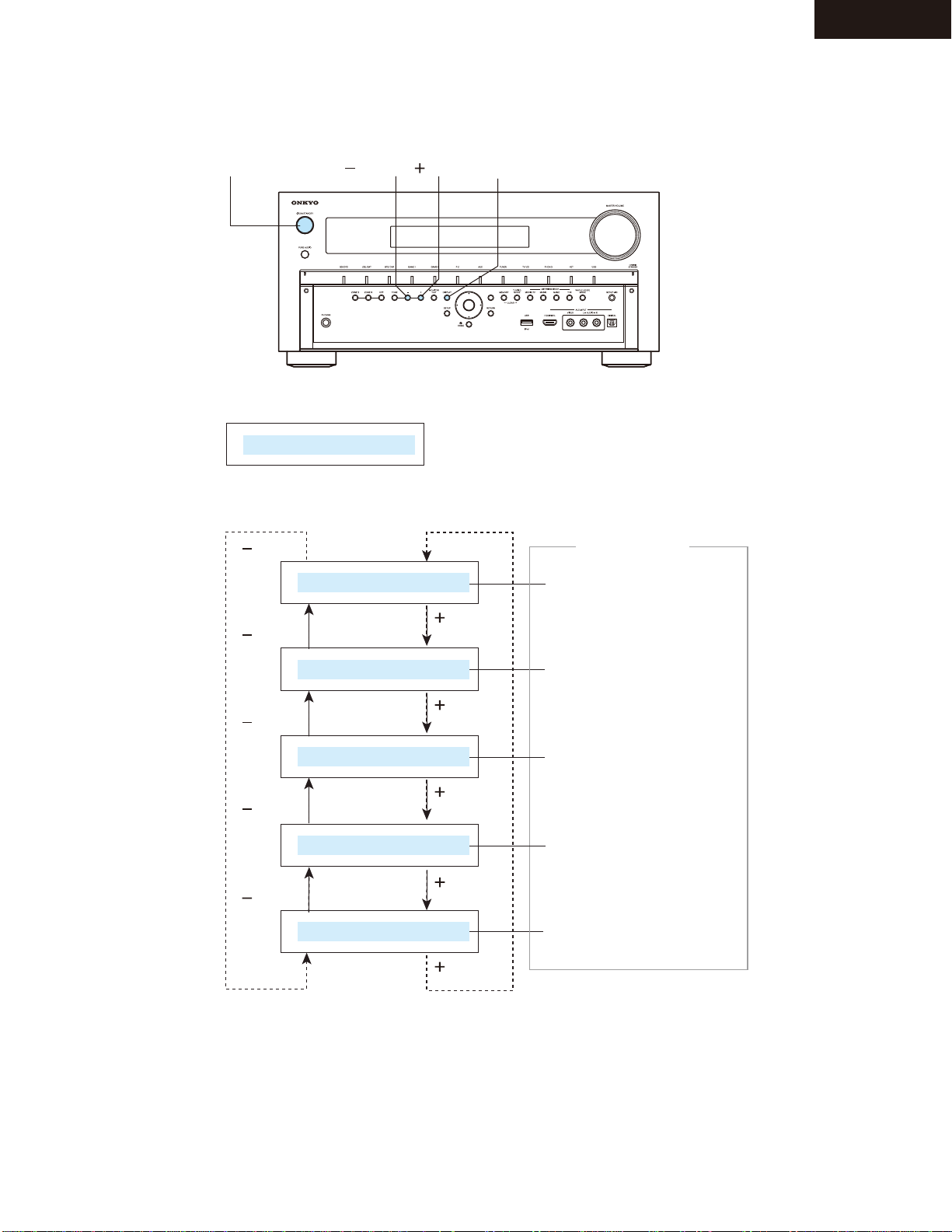

2-1.TEST MODE FOR MODEL, DESTINATION AND FL DISPLAY
NOTE: If VOL value is not 30 (-52dB) (initial setting), test mode cannot be set.
a. Push ON/STANDBY key while pushing down TV/CD button button to display "TEST-".
b. Then push DIMMER (or RT/PTY/TP) button and get the FL test mode.
c. In the FL test mode, TONE - button is FL TEST UP and TONE + button is FL TEST DOWN.
d. REC OUT and ZONE2 button's originally operation can't work when it is in FL test mode.
e. The contents of the step are as follows.
1. Lit all segment
2. Lit upper 'EDCBA987654321', lower '23456789ABCDEF'.
3. Lit a even number segment
4. Lit an odd number segment
5. The Destination is displayed. Please see the below for detail.
f. To close the FL test, push POWER button.
N R 7 1 7 D 2 0 0 0
MODEL Name Destination A B C D
TX-NR717: NR717
TX-NR818: NR818
DTR-40.4: DTR404
DTR-50.4: DTR504
A:Value of AD port of BAND
B:Value of AD port of INIT1
C:Value of AD port of INIT2
D:Value of AD port of INIT3
MODEL Name NR717 NR818
Destination DC DF MA JJ DC MA JJ
MP MB
MQ MP
MR MQ
MR
ABCD 2000 0000 8000 4000 2400 8400 4400
DTR404 DTR504
DD MA DD MA
MR
2060 8060 2460 8460
Dx: USA
DF: Taiwan
JJ: JAPAN
xx: OTHER
2-2. TEST MODE FOR OPERATION
a. Push STANDBY/ON button while pushing down TV/CD button to display "TEST-_".
b. Next, if the following keys are pushed, it becomes a each TEST MODE.
c. In the test mode, (TONE)- button is TEST MODE DOWN and (TONE)+ button is TEST MODE UP.
d. "TEST 1-00" are used to check a protection circuit, and the relay recovered in one second.
1-00 2-00 3-00 4-00 5-00 6-00
KEY TEST FIRMWARE
VERSION
BD/DVD CBL/SAT STB/DVR GAME
GAME1 TUNER TV/CD
MEMORY
(Re-EQ) TONE
IDLING
TIMER FL TEST
TUNING MODE
(LATE NIGHT) DIMMER (RT/PTY/TP)
TEST MODE
FIRMWARE
COMBINATION CHECK
ENTER
When the MPU version
is displayed, push
"MEMORY(Re-EQ)"
CHECK SUM
TEST MODE
Button --->
Test No. --->

TX-NR717/818/ DTR-40.4/50.4
OPERATION CHECK-5
2.TEST MODE(2/4)
2-2. TEST MODE FOR OPERATION(Continue)
e. Test mode is as follows.
TEST
No
1-00
1-01
2-00
2-01
2-02
2-03
2-04
2-05
2-06
2-07
2-08
2-09
2-10
2-11
2-12
2-13
2-14
2-15
2-16
2-17
2-18
2-19
2-20
2-21
2-22
2-23
2-24
2-25
2-26
2-28
3-00
3-01
3-02
3-03
3-04
3-05
3-06
3-07
3-08
3-09
3-10
3-11
3-12
3-13
3-14
3-15
3-16
3-17
3-18
Analog Input
/Rec Sel
(Zone2/Zone3)
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
BD/Source
CBL/Source
CBL/Source
STB/Source
GAME/Source
AUX/Source
PC/Source
TV/Source
TV/Source
AUX/Source
MIC
MIC
PHONO/Source
PHONO/Source
BD/Source
BD/Source(Source)
BD/Source
BD/Source
FM/Source
TV(BD/GAME)
TV(BD/GAME)
TV(BD/GAME)
TV(BD/GAME)
TV(BD/GAME)
TV(BD/GAME)
TV(BD/GAME)
TV(BD/GAME)
USB(Front)/(Source)
USB(Rear)/(Source)
NET/(Source)
NET/(Source)
NET/(Source)
NET/(Source)
NET/(Source)
NET/(Source)
NET/(Source)
NET/(Source)
Lstn Mode/
Input Format
ADC DSP 8ch Thru.
ADC DSP 8ch Thru.
Stereo(Direct)
Stereo(Direct)
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
Automatic
Automatic
DIR DSP 10ch Thru
DIR DSP 10ch Thru
DIR DSP 10ch Thru
DIR DSP 10ch Thru
Automatic
DIR DSP 10ch Thru
DIR DSP 10ch Thru
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
Direct
Direct
Bi AMP
Whole House Mode
ADC DSP 10ch Thru.
ADC DSP 10ch Thru.
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
Stereo(Direct)
VIDEO Input
(Zone2)
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
CBL/SAT
CBL/SAT
STB/DVR
GAME
AUX
Last
Last
Last
AUX
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
BD/DVD
Last
Last(BD)
Last(BD)
Last(BD)
Last(BD)
Last(BD)
Last(BD)
Last(BD)
Last(BD)
Last
Last
Last
Last
Last
Last
Last
Last
Last
Last
Compo-
nent V
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN2
IN2
-
-
-
-
-
-
-
-
-
-
-
IN1
IN1
IN1
IN1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
HDMI
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN1
IN2
IN2
IN3
IN4
-
-
-
-
-
-
-
-
-
IN1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
12V
Trigger
-
-
-
-
-
-
-
-
-
-
-
-
-
Zone2/A
Zone3/B
C
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Z2/Z3
Z2/Z3
Z2/Z3
Z2/Z3
Z2/Z3
Z2/Z3
Z2/Z3
Z2/Z3
-
-
-
-
-
-
-
-
-
-
Digital Input
/Output
-
-
-
-
-
-
-
-
-
-
-
-
-
OPT1
COAX1
OPT1
OPT1
COAX1
COAX1
OPT2
OPT2
FRONT OPT
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
USB(Front)
USB(Rear)
NET
NET
NET
NET
NET
NET
NET
NET
Config.
-
-
-
-
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
Y/L/L/L/L
-
-
-
-
Y/L/L/L/L
Y/L/L/L/L
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Master Vol.
/Zone2 Vol.
Max (+18dB)
Min (-82dB)
Max (+18dB)
82 (0dB)
82 (0dB)
82 (0dB)
82 (0dB)
Max (+18dB)
82 (0dB)
70 (-12dB)
70 (-12dB)
Min (-82dB)
82 (0dB)
82 (0dB)
82 (0dB)
Max (+18dB)
82 (0dB)
Max (+18dB)
82 (0dB)
82 (0dB)
82 (0dB)
82 (0dB)
82 (0dB)
82 (0dB)
Max (+18dB)
62 (-20dB)
82 (0dB)
82 (0dB)
82 (0dB)
82 (0dB)
84 (+2dB)
Max (+18)/Max(+18)
0dB/0dB
0dB/0dB
0dB/0dB
0dB/0dB
0dB/0dB
0dB/0dB
Min/Min
-20dB/-20dB
-20dB/-20dB
-20dB/-20dB
0dB/0dB
-20dB/-20dB
-20dB/-20dB
-20dB/-20dB
-20dB/-20dB
-20dB/-20dB
-20dB/-20dB
Speaker
Relay
F/C/S/SB
F/C/S/SB
F
F
F/C/S/SB
F/C/S/FW
F/C/S/FH
F/C/S/SB
F/C/S/SB
F/C/S/SB/FW
F/C/S/SB/FH
F/C/S/SB/FH
C/S/SB
F/C/S/SB
F/C/S/SB
F/C/S/SB/FH
F/C/S/SB
F/C/S/SB
F/C/S/SB
F/C/S/SB
F/C/S/SB
F/C/S/SB
F/C/S/SB
F/C/S/SB
F
F
F/C/S/FH
F/C/S/SB
F/C/S/SB
F/C
F
F/Z2/Z3
F/Z2/Z3
F/Z2/Z3
F/Z2/Z3
F/Z2/Z3
F/Z2/Z3
F/Z2/Z3
F/Z2/Z3
F
F
F
F
F
F
F
F
F
F
etc.
SW=NO
SW=NO
SW:MUTE
SPRLF OFF
MICMUTE ON
Bi AMP
Whole House Mode
EXT AMP(SB)
Diffential signal mode
Z2/Z3 MUTE ON
Z2 BASS MAX
Z2 BASS MIN
Z2 TREBLE MAX
Z2 TREBLE MIN
Output Level / Distortion
SN Ratio
Freq. Resp.
Freq. Resp.
Separation
Separation
Output Level / Distortion
Net connection
*1 PROTECT
Preout=SB
EXT AMP OUT=SB
Z2/Z3 Powered
Z2/Z3 Powered
Z2/Z3 Powered
Z2/Z3 Powered
Z2/Z3 Powered
Z2/Z3 Powered
Z2/Z3 Powered
Z2/Z3 Powered
WAV,44.1kHz,16bit,1kHz,0dBfs,
WAV,44.1kHz,16bit,-∞dBfs,
WAV,44.1kHz,16bit,20Hz,0dBfs,
WAV,44.1kHz,16bit,20kHz,0dBfs,
WAV,44.1kHz,16bit,1kHz,0dBfs,Lch
WAV,44.1kHz,16bit,1kHz,0dBfs,Rch
WAV,48kHz,16bit,1kHz,0dBfs,
Display IP address
In all test modes, it is not concerned with detection of VOLH but SEC1H are made "H" fixation. (Except TEST 2-25,4-43.)
*1 : All SP-RELAYs are turned ON only at the time of this STEP.
Moreover, whether make RELAY restoration time at the time of protection operation into 1 second, and PROTECT input "H" is detected
how many times or it continues 1 second or more, RELAY is not held at OFF or POWER OFF is not carried out, either.
When "H" is 1 seconds or more to PROTECT input and it is set to "L", RELAY is turned ON again.
Moreover, not any MUTE is outputted at the time of this STEP.
NOTE-1: For inspection procedure of NET, TEST 3-11 should be measured first. (for prevention of the malfunction)
NOTE-2: TEST of NET/USB can't do immediately after the start-up. It should be measure after other TEST.
