Open House ChannelPlus H110 User manual

ChannelPlus Video Wall Plate
Connecting a Video Source
DECLARATION OF CONFORMITY
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
FCC classifies this product under part 15 of its rules as a “television interface device”.
Systems designed using television interface devices have the following legal
requirements:
1) The modulated channel signal strength may not exceed 15.56dBmV at any
television.
2) If an antenna is used in the system, the modulated channel signal strength may
not exceed -51dBmV at the antenna input port.
Any system you design must comply with these regulations. As the installer, you are
responsible. The H110 (when used with an H511) has the necessary characteristics
to comply with the above requirements as designed without additional accessories.
The H511HHR is suitable for use with an antenna or with CATV systems.
The H511BID is suitable for use with CATV systems only.
Installation requirements:
For the Installer:
Federal Regulation 47CFR15.115(b)(1)(i).
Federal Regulation
47CFR15.115(c)(4).
Connect H511 output to splitter
or distribution panel input.
(See H511 manual)
Output
Program
CATV
/Ant Power
Channel Injector
CAT-5 video
Connect antenna or incoming
cable to H511 input.
H511HHR
H511BID
or
H110
(rear view)
Connect the H110 wall plate using only method:
1 Terminate cable with a CAT-5 jack and connect to the H511 using
supplied RJ45 jumper. (Also see example H628 manual)
2 Wire camera or wall plate directly to the 8 position terminal block
matching the CAT-5 wire colors to the colors on the terminal block.
Insert wires and tighten screws.
one
1
2
Power the H511 or H110
last - make all cable and
CAT-5 connections first.
Maximum CAT-5 run:
System powered from H511 300 feet
System powered from H110 100 feet
Insert wire into terminal block and tighten screws. Use the color bar to match
wire colors. The color bar has two rows, one for CAT-5 and one for quad wire:
- For CAT-5 wire, remove the default resistor and use all 8 wires.
- For quad wire , leave default resistor in place and match four color wire.
The H110 was designed to work with CAT-5 wiring. Although the system will function with quad
wire, CAT-5 delivers the highest quality picture. CAT-5 allows the use of an automatic line length
sensor and picture compensator. Quad wire does not take advantage of this enhancement.
*
*
The H110 video wall plate provides an easy way to add a new TV
channel to your existing television channels. The H110
connects to one of its companion channel injectors
(H511HHR or H511BID) via a single run of CAT-5 wire - no
coax is needed. Use the H110 with any video/audio source.
The H110 provides switchable 75ohm or Hi-Z termination
and loop-through capability. The “looped” video can be fed
to a local monitor or VCR.
Note: The H110 is not a standalone video interface.
Use only with an H511 channel injector.
POWER
L
O
O
P
N
O
R
M
AUDIO R
AUDIO L
VIDEO
Model
H110
SATELLITE
RECEIVER
LOCAL TV
audio/video
outputs
video
input
audio
inputs
AUDIO RECEIVER
12:00
POWER
POWER
L
O
O
P
L
O
O
P
N
O
R
M
N
O
R
M
AUDIO R
AUDIO L
VIDEO
NORM:
Select NORM when a television or
a/v receiver is not used at the wall
plate to view the connected source.
The NORM position terminates the
video source with 75 .
LOOP:
Select LOOP when a television or
a/v receiver is connected to the wall
plate to view the connected source.
The LOOP position leaves the
source unterminated - the local
monitor will provide termination.
POWER:
When the H110 is wired to the
H511HHR or H511BID, both units
can be powered from either location.
The H110 does not come with its
own power supply - to power the
system from the H110, use the power
supply provided with the H511.
The green power LED will be lit
showing active power when the
power supply is plugged into either
the H110 or the H511.

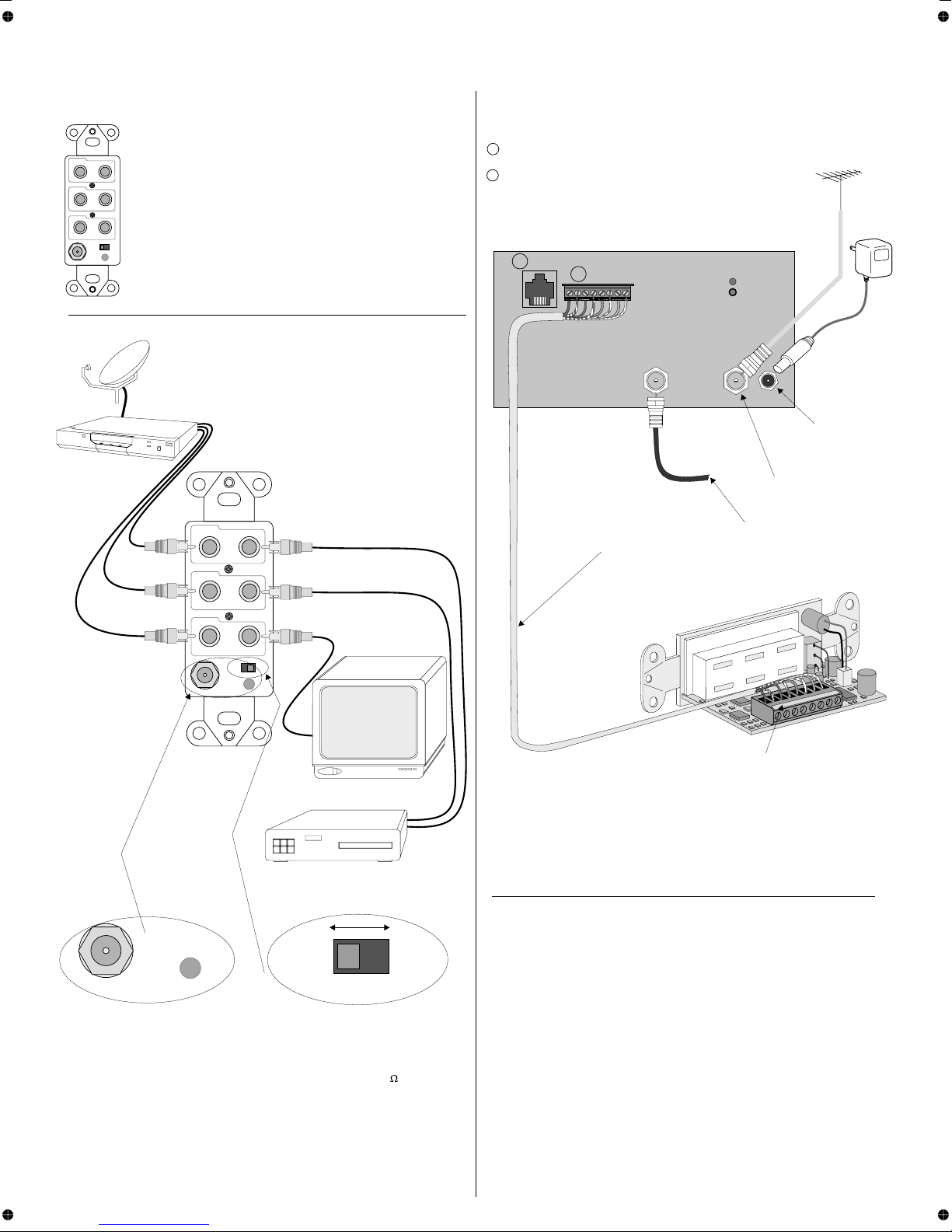

Typical Installation

multiplex
technology, inc.
®
***
3001 Enterprise Street, Brea, CA 92821-6213, U.S.A.
714-996-4100 800-999-5225 FAX [phone] www.channelplus.com
TM
ChannelPlus®
Video Wall Plate
Model H110
ChannelPlus Enclosures, Modules,
Accessories & Wall Plates
ChannelPlus model H628
Data Hub (8 cables, TIA-568A) Category 5 Compliant
OUT
IN
532-230 5MHz to 1000MHz
OUT IN OUT IN OUT IN OUT IN
SPLITTER
COMBINER
R
TelephonesFrom
Telco
ChannelPlus model H801
Combo Hub (2 lines x 6 phones, 1input x 4 televisions)
R
T
2
R
T
1
ChannelPlus model H616
Telephone Master Hub (4 lines x 6 phones)
Telephones
From
Telco
RJ31X
Out
Expansion
Ports
R
T
4
R
T
3
R
T
2
R
T
1
Starter systems
RF splitters and telephone punch
downs. When it is time to upgrade,
just snap this module out and
replace with one of more of the
more sophisticated units.
Data hubs
Termination blocks for the CAT-5 cables,
Ethernet hubs. Bring the Internet to any
room in the home. Or create a home data
network.
Telephone hubs
Connections for 1-4 phone lines to
every room. Starter hub adds RJ-
31X jack for security system dialer.
Coax panels
Distribute antenna or cable TV to every
room of the house. Some models include
bi-directional amplifiers for interactive cable
systems. Some models include
IR engines.
modulator
inputs and
AV modulators
(for service center)
Create a new TV channel for a front
door camera. Some models feature
Cat-5 input connections.
Warranty
Multiplex Technology, Inc. warrants this product to be free from defects in materials and workmanship
for a period of one year from the date of purchase or MTI will repair, or at its option, replace the
defective product. To obtain warranty service, call MTI for a return material authorization (RMA)
number and return the product prepaid to Multiplex Technology, Inc., 3001 Enterprise Street, Brea, CA
92821, Attention: Customer Service. Please put the RMA number on the outside of the carton.
Any implied warranty arising from the sale of the product including implied warranties of
merchantability and fitness for purpose are limited to the warranty stated above. MTI shall not be
responsible for losses or damages or expenses, whether direct, consequential or incidental arising
from the use of or the inability to use this product. Some states do not allow limitations on how long the
implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the
above limitations and exclusions may not apply to you. This warranty gives you specific legal rights,
and you may have other rights which may vary from state to state.
TM
Compatible
Service center
enclosures
A full line of OpenHouse compatible
enclosures, from simple, inexpensive
mounting plates to high capacity in-wall
cabinets. AC outlets can be mounted
inside the cabinets using a UL listed
accessory.
AV modulators
(for media center)
Create new TV channels for DVD, VCR,
or a satellite receiver. These modulators
sit in the media center. Some offer true
MTS stereo.
®
model 5445 quad digital modulator
pll frequency control
D
C
BA
program
select
Wall plates
Wall plate systems for all rooms. The typical room gets TV
and telephone. The Home office wall plate adds data ports.
The media center wall plate adds satellite feeds.
IR Accessories
Control video devices from any room.
New ChannelPlus products are added all the time.
Visit our website to learn more: www.channelplus.com
Wiring a house for OpenHouse
Typical Room Media Center Home Office
Good
Better
Best
1 Cat-5
1 RG-6
1 Cat-5
3 RG-6
1 Cat-5
2 RG-6
2 Cat-5
1 RG-6
2 Cat-5
2 RG-6
2 Cat-5
3 RG-6
3 Cat-5
3 RG-6
2 Cat-5
2 RG-6
3 Cat-5
3 RG-6
Good ...
Typical room - phone, TV
Media center - phone, satellite receiver, AV modulators
Home office - phone, TV,
Better …
Typical room - phone, TV, ethernet
Media center - phone, TV, satellite receiver, AV modulators
Home office -
Best …
cable modem
ethernet,
phone, TV, ethernet, cable modem
Typical room - phone, TV, ethernet, satellite receiver
Media center - phone, TV, ethernet, satellite receiver, AV modulators, hi-speed data
Home office - phone, TV, ethernet, satellite receiver, cable modem, hi-speed data
The cables in an OpenHouse run from the various rooms of the house
directly to the service center location.(This is known as ‘home run’
wiring.) Two types of wire are used for communication and
entertainment: Cat-5, 4-UTP (4 nshielded wisted airs) wire handles
data or 1 to 4 telephone lines. RG-6 coax handles television (antenna or
cable), satellite dish, cable modem, or AV modulator signals. (An AV
modulator creates new TV channels for front door camera, DVD player, a
VCR or a satellite receiver.)
We recommend the following pre-wire schemes . Run these wires from
the service center to the rooms indicated.
UTP
