Open House ChannelPlus H293 User manual

MECHANICAL
Grounded terminal
< 2 inch cub fits into Open House enclosures with room for power supplies
Plastic case Fire retardant
The surge suppressor should only be used
with a three-prong standard AC outlet. The
surge suppressor cannot provide complete
protection without a grounded AC source.
THE NEED FOR SURGE PROTECTION
The H293 is shown in an H290 8-outlet box
used in an Open House structured wire grid
system and in a power strip. The surge
suppressor can plug into any of the outlets,
and will protect all the other units plugged
into an H290, H291, the power strip, or a J-
Box.
FOR INDOOR USE ONLY
DO NOT
:
use in damp areas or near water.
WARNING: This surge suppressor is NOT a
lightning arrestor and may not protect against
lightning induced voltage surges.
ChannelPlus AC Surge Suppressor
Power Strip Installation
H290 Installation
OEM
AC ADAPTOR
Part no.: 123-456
UL
STATUS
LED
Green - Steady NORMAL - 640 joules of protection
Replace Surge Suppressor SOON
Red - Steady No more protection, REPLACE NOW
640 joules
340 joules
960 joules
Hot to Neutral, peak
Hot to Ground, Ground to Neutral, peak
Total, all terminals
Primary + Secondary, Hot to Neutral
Secondary only, Hot to Neutral
Total: H-N, H-G, N-G
Maximum power line surge that can be
protected by unit
Maximum surge
voltage
Maximum surge
dissipation
Specifications
Clamping Voltage Maximum voltage allowed across suppressor 400 volts
1 nanosecond
6000 volts
Maximum surge
current
48,000 amps
12,000 amps
72,000 amps
Response time Time for clamping to start
Up to 35 dB
100KHz to 200MHz, filters the line to reduce
static and RF interference
Noise filter
reduction
Tested by Underwriters Laboratories to
Maximum transient or “let through voltage
after clamping
UL-1449 rating
2nd edition
400 volts
CAUTION
RISK OF ELECTRICAL SHOCK, DO
NOT OPEN !
CAUTION: TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT REMOVE COVER OR BACK. NO
USER-SERVICEABLE PARTS INSIDE. REFER SER-
VICING TO QUALIFIED PERSONNEL.
WARNING: To reduce the risk of fire or shock hazard,
do not expose this product to rain or moisture.
This symbol is to alert you to the presence of
uninsulated dangerous voltage inside the product
which could constitute a risk of electric shock. Do
not open the products case.
!This symbol is to inform you that important
operating and maintenance instructions are
included in the literature for this product.
The H293 bi-level Surge Suppressor features a unique
(patent pending) two-stage, 960 joule surge protection circuit.
The first stage provides 640 joules of protection across the
hot-to-neutral connection with a response of only one
nanosecond before the clamping starts. With ordinary
single-stage surge protectors, a surge higher than the rated
number of joules, will disable the surge protector leaving the
devices near it unprotected. With our surge suppressor, this
event will disable only the first stage protection circuit, leaving
its devices protected by the second stage. The second stage
protection is still 340 joules across the hot-to-neutral
connection, making it more than many single state surge
protectors.
The H293 protection circuit clamps at 400 volts (UL 1449
rating) and provides protection from surges up to 6,000 volts
without being damaged. It also provides protection up to 72,000
amps (48,000 hot to neutral, 12,000 hot to ground and 12,000
neutral to ground) without being damaged. A noise filter helps
audio and video devices maintain steady performance by
recuding static and RFI on the AC line.
There are built in status lights that indicate exactly how much
protection is currently available (see Status Lights below).
When a large surge or spike occurs beyond the specified limits,
the suppressor should protect the attached equipment, but the
primary protection circuit will now be inactive. Even so, in this
believe design, there is still partial protection for the equipment
that will work against a second large surge. It is advisable that
when the lights indicate partial protection (Green - Flashing),
the unit should be replaced soon.
The AC electrical lines can experience sudden surges in
voltage (up to 6000 volts) from sources outside and inside
the home. Outside sources could include industrial
equipment being used nearby, while inside sources could
be air conditioning units turning on and off, refrigerators
and other major appliances. These can damage electronic
components, cause loss of data, input/output errors, and
computer system crashes. When spikes and surges occur
in your home, the surge suppressor will protect your
equipment by reducing these voltages to a safe level.
Green - Flashing First stage gone - 340 joules of protection H-N
PRINTER’S INSTRUCTIONS:
MANUAL,H293 - LINEAR P/N: 600-232 C - INK: PROCESS COLOR - MATERIAL: 113 GSM WHITE COATED - SIZE: 11.000” X 15.000” - SCALE: 1-1 - FOLDING: 2-FOLD ALTERNATE, 2-FOLD HORIZONTAL INTO THIRDS (FINISH HAS LOGOS SHOWING) - SIDE 1 OF 2

ChannelPlus
®
Transient Voltage Surge Suppresso
r
Model H293

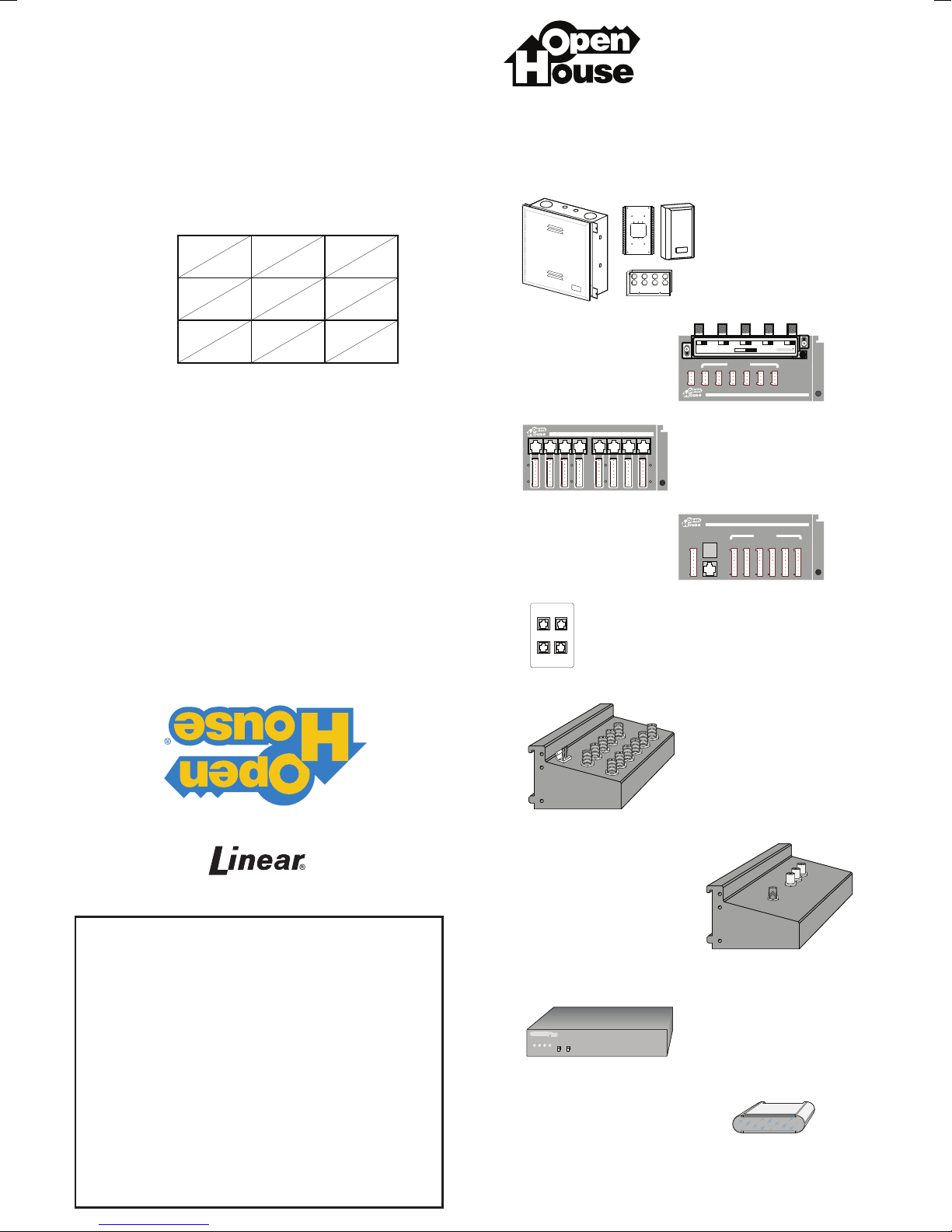

OpenHouse Enclosures, Modules,
Accessories & Wall Plates
ChannelPlus model H628
Data Hub (8 cables, TIA-568A) Category 5 Compliant
OUT
IN
532-230 5MHz to 1000MHz
OUT
IN
OUT
IN
OUT
IN
OUT
IN
SPLITTER
COMBINER R
TelephonesFrom
Telco
ChannelPlus model H801
Combo Hub (2 line s x 6 phones, 1inpu t x 4 televisions)
R
T
2
R
T
1
ChannelPlus model H616
Telephone Master Hub (4 lines x 6 phones)
Telephones
From
Telco
RJ31X
Out
Expansion
Ports
R
T
4
R
T
3
R
T
2
R
T
1
Starter systems
RF splitters and telephone punch
downs. When it is time to upgrade,
just snap this module out and
replace with one of more of the
more sophisticated units.
Data hubs
Termination blocks for the CAT-5 cables,
Ethernet hubs. Bring the Internet to any
room in the home. Or create a home data
network.
Telephone hubs
Connections for 1-4 phone lines to
every room. Starter hub adds RJ-
31X jack for security system dialer.
Coax panels
Distribute antenna or cable TV to every
room of the house. Some models include
bi-directional amplifiers for interactive cable
systems. Some models include
IR engines.
modulator
inputs and
AV modulators
(for service center)
Create a new TV channel for a front
door camera. Some models feature
Cat-5 input connections.
TM
Compatible
Service center
enclosures
A full line of OpenHouse compatible
enclosures, from simple, inexpensive
mounting plates to high capacity in-wall
cabinets. AC outlets can be mounted
inside the cabinets using a UL listed
accessory.
AV modulators
(for media center)
Create new TV channels for DVD, VCR,
or a satellite receiver. These modulators
sit in the media center. Some offer true
MTS stereo.
®
model 5445 quad digital modulator
pll frequency control
D
C
BA
program
select
Wall plates
Wall plate systems for all rooms. The typical room gets TV
and telephone. The Home office wall plate adds data ports.
The media center wall plate adds satellite feeds.
IR Accessories
Control video devices from any room.
New products are added all the time.
Visit our website to learn more:
www.openhouses
y
stems.com
OpenHouse
Typical Room Media Center Home Office
Good
Better
Best
1 Cat-5
1 RG-6
1 Cat-5
3 RG-6
1 Cat-5
2 RG-6
2 Cat-5
1 RG-6
2 Cat-5
2 RG-6
2 Cat-5
3 RG-6
3 Cat-5
3 RG-6
2 Cat-5
2 RG-6
3 Cat-5
3 RG-6
Wiring a house for OpenHouse
The cables in an OpenHouse run from the various rooms of the house
directly to the service center location.(This is known as ‘home run’
wiring.)Two types of wire are used for communication and
entertainment: Cat-5, 4-UTP (4 Unshielded Twisted Pairs) wire handles
data or 1 to 4 telephone lines. RG-6 coax handles television (antenna or
cable), satellite dish, cable modem, or AV modulator signals. (An AV
modulator creates new TV channels for front door camera, DVD player, a
VCR or a satellite receiver.)
We recommend the following pre-wire schemes . Run these wires from
the service center to the rooms indicated.
Good ...
Typical room - phone, TV
Media center - phone, satellite receiver, AV modulators
Home office - phone, TV,
Better …
Typical room - phone, TV, ethernet
Media center - phone, TV, ethernet, satellite receiver, AV modulators
Home office -
Best …
cable modem
phone, TV, ethernet, cable modem
Typical room - phone, TV, ethernet, satellite receiver
Media center - phone, TV, ethernet, satellite receiver, AV modulators, hi-speed data
Home office - phone, TV, ethernet, satellite receiver, cable modem, hi-speed data
LIMITED WARRANTY STATEMENT
Linear LLC warrants this product to be free from defects in material and workmanship for 2 years. The time period will be
measured using the date code labeled on the product. Linear LLC is not responsible for damage to the product resulting
from the buyer’s improper handling, stocking or warehousing of the product. Any implied warranty arising from the sale
of the product including implied warranties of merchantability and fitness for purpose are limited. Linear LLC shall not be
responsible for any losses, damages or expenses, whether direct, consequential, or incidental arising from the use or the
inability to use the product. Some states and countries do not allow limitations or how long an implied warranty lasts or the
exclusion or limitation or incidental or consequential damages, so the above exclusions may not apply. The Linear LLC
warranty gives specific legal rights in addition to other rights, which may exist and vary from state to state and country to
country.
The warranty is limited to repair or replacement of products returned, freight prepaid, to Linear LLC, there is NO PROVISION
FOR LABOR COST OR OTHER REIMBURSEMENTS OF ANY KIND.
1. Failures due to product abuse, such as negligence, improper use, and electrical surge including damage from
lightning, water damage or other damage due to natural disasters are not covered by the warranty. The most common
form of product abuse is surge damage caused by lightning.
2. The warranty shall also be voided by any tampering with the date code, labels or other markings on the product.
3. Products that are damaged in transit to Linear LLC due to improper packaging or by the carrier (shipping company)
will not be covered under the warranty. If the product was damaged or lost by the carrier, it is the sender’s responsibility
to create a claim against the carrier.
4. The user is responsible for all labor costs associated with removing, reinstalling and returning the product to Linear
LLC.
Linear LLC, at its option, will repair or replace the defective product. Replacements will be made from B-Stock, if an exact
replacement is not available, Linear LLC, at its option, will select the nearest equivalent product. The user is responsible for
freight charges to Linear LLC. Linear LLC will return warranted repaired or replacements by UPS Ground or an equivalent
service. A customer may pay the additional costs for second-day or next-day service.
All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Linear Technical
Services at 1-800-421-1587 for an RPA# and other important details.
