OpenEye OE-GRANITE1U User manual

GraniteRack 1U Chassis
Digital Storage System
User Manual
Please carefully read these instructions before using this product.
Save this manual for future use.
OE-GRANITE1U
model no.

ii 28079AB

28079AB iii
OpenEye® GraniteRack 1U Rackmount Chassis
User Guide
Manual Edition 28079AB – JULY 2008
©2000-2008, OPENEYE
All Rights Reserved
No part of this documentation may be reproduced in any means, electronic or mechanical, for any purpose, except as expressed in the
Software License Agreement. OPENEYE shall not be liable for technical or editorial errors or omissions contained herein. The information in
this document is subject to change without notice.
The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information
remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages
whatsoever (including without limitation, damages for loss of business profits, business interruption or loss of business information), even if
OPENEYE has been advised of the possibility of such damages and whether in an action or contract or tort, including negligence.
This software and documentation are copyrighted. All other rights, including ownership of the software, are reserved to OPENEYE. OPENEYE,
OpenEye, HDDR, and High Definition Digital Recorder are registered trademarks of OPENEYE in the United States and elsewhere; Windows,
and Windows XP Embedded are registered trademarks of Microsoft Corporation. All other brand and product names are trademarks or
registered trademarks of the respective owners.
The following words and symbols mark special messages throughout this guide:
WARNING: Text set off in this manner indicates that failure to
follow directions could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to
follow directions could result in damage to equipment or loss of
information.
OPENEYE
Liberty Lake, WA ●U.S.A.

ii 28079AB
NOTES ON HANDLING
Please retain the original shipping carton and/or packing materials supplied with this product. To ensure the integrity of this product when
shipping or moving, repackage the unit as it was originally received from the manufacturer.
Do not use volatile liquids, such as aerosol spray, near this product. Do not leave rubber or plastic objects in contact with this product for
extended periods of time. Rubber or plastic objects left in contact with this product for extended periods of time will leave marks on the
finish.
The top and rear panels of the unit may become warm after long periods of use. This is not a malfunction.
NOTES ON LOCATING
Place this product on a level surface. Do not use it on a shaky or unstable surface such as a wobbling table or inclined stand.
IMPORTANT SAFEGUARDS
1. Read Owner’s Manual – After unpacking this product, read the owner’s manual carefully, and follow all the operating and safety
instructions.
2. Power Sources – This product should be operated only from the type of power source indicated on the label. If you are not sure of
the type of power supply to your home or business, consult your product dealer or local power company
3. Ventilation – Slots and openings in the product are provided for ventilation and to ensure reliable operation of the product and to
protect it from overheating, and these openings must not be blocked or covered. The product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered
to.
4. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products that
produce heat.
5. Water and Moisture – Do not use this product near water. Do not exceed the humidity specifications for the product as detailed in
the Appendix section in this manual
6. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
7. Power Cord Protection – Power-supply cords should not be routed so that they are not likely to be walked on or pinched by items
placed against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the
product.
8. Overloading – Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire
or electrical shock.
9. Lightning – For added protection for this product during storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet. This will prevent damage to the product due to lightning and power line surges.
10. Object and Liquid Entry Points – Never insert foreign objects into the any part of this product, as they may touch dangerous
voltage points or short-out parts that could result in fire or electrical shock. Never spill liquid of any kind on this product.
11. Location – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious
personal injury and serious damage to the unit.
12. Burden – Do not place a heavy object on or step on this product. The object may fall, causing serious personal injury and serious
damage to the unit.

28079AB iii
NOTES ON CLEANING
Use a soft dry cloth for cleaning.
For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. Do not use any type of
solvent, such as thinner and benzene, as they may damage the surface of this product.
If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.
NOTES ON MAINTENANCE
This storage unit is designed to last for long periods of time. To keep your unit always operational we recommend regular inspection
maintenance (cleaning parts or replacement). For details contact your nearest dealer.
NOTES ON MOISTURE CONDENSATION
Moisture condensation damages the DVR unit. Read the following information carefully.
Moisture condensation occurs during the following cases:
When this product is brought directly from a cool location to a warm location.
When this product is moved to a hot and humid location from a cool location.
When this product is moved to a cool and humid location from a warm location.
When this product is used in a room where the temperature fluctuates.
When this product is used near an air-conditioning unit vent
When this product is used in a humid location.
Do not use this product when moisture condensation may occur.
If this product is used in such a situation, it may damage internal components. Remove any CD discs, connect the power cord of the unit to
the wall outlet, turn on the unit, and leave it for two to three hours. After two to three hours, the unit will have warmed up and evaporated
any moisture. Keep the unit connected to the wall and moisture will seldom occur.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE.
DO NOT OPEN THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

iv 28079AB
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user
to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instruction in the literature accompanying the
product.

28079AB v
TABLE OF CONTENTS
INTRODUCTION.............................................................................................................1
PRODUCT DESCRIPTION.......................................................................................................................................1
FEATURES...............................................................................................................................................................1
CONTROLS AND CONNECTIONS................................................................................3
SYSTEM SPECIFICATIONS.....................................................................................................................................3
FRONT PANEL CONTROLS AND LEDS .................................................................................................................4
REAR PANEL CONNECTORS.................................................................................................................................4
GETTING STARTED ......................................................................................................5
IDENTIFYING INCLUDED COMPONENTS..............................................................................................................5
1U BASICS.....................................................................................................................7
CONNECTING TO A DVR ........................................................................................................................................7
CONNECTING MULTIPLE TO 1U UNITS.................................................................................................................8
SETTING THE 1U SCSI ID.......................................................................................................................................9
SETTING THE 1U MODE .........................................................................................................................................9
TURNING ON THE 1U............................................................................................................................................10
TURNING OFF THE 1U..........................................................................................................................................10
MULTIPLE SCSI FORMAT SUPPORT...................................................................................................................10
SCSI CARD BIOS SETUP............................................................................................11
CONFIGURING THE BIOS.....................................................................................................................................11

vi 28079AB

28079AB 1
INTRODUCTION
PRODUCT DESCRIPTION
The 1U External Storage unit provides convenient storage expansion with the robustness and value expected from OpenEye®. This
storage unit utilizes the JBOD specification to build up to 2TB of external storage or greater through a SATA-SCSI interface. Using
SATA drives makes the usnit affordable and due to their wide availability, allows you to quickly replace individual Hard Disk Drives
(HDDs) when necessary. OpenEye storage units are a perfect match with SCSI-enabled DVR Security systems.
FEATURES
High capacity data storage with capacities over 2TB
High scalability / Ability to stack 5 storage units
48-bit LBA supports Big Drives Technology (exceeding 137 GB HDD)
Maximum capacity reaches 2 TB
Built-in RISC micro controller core improves chip performance
On-board Flash ROM easy for firmware upgrade
Cost-effective and high performance

2 28079AB
NOTES:

28079AB 3
CONTROLSANDCONNECTIONS
SYSTEM SPECIFICATIONS
The GraniteRack 1U Rackmount Chassis is an industry standard 19 inch rack-mountable 1U chassis, featuring 4 easily accessible
Ultra DMA drive trays to give maximum storage capacity.
Drive Capacity 4 X Removable SATA HDD
UDMA Mode With Transfer Rates up to 133 MB/sec
Construction Heavy Duty Cold Rolled Steel
LVD SCSI Ultra160 LVD SCSI target features with transfer rate up to 160MB/sec
Rear Panel Controls 1 X Power on/off, 1 X SCSI ID Dip-Switch
Front Panel Controls 4 X HDD Key lock, 4 X Power LED and 4 X Recording Status Indicator LED
SCSI ID Selectable ID from 0 to 15
Operating Temperature Range 0C (32F) ~ 35C(95F)
Dimensions (WxHxL) 19” 483mm x 44mm x 400mm
ATA Supports Ultra ATA 133/100/66/33 HDD

4 28079AB

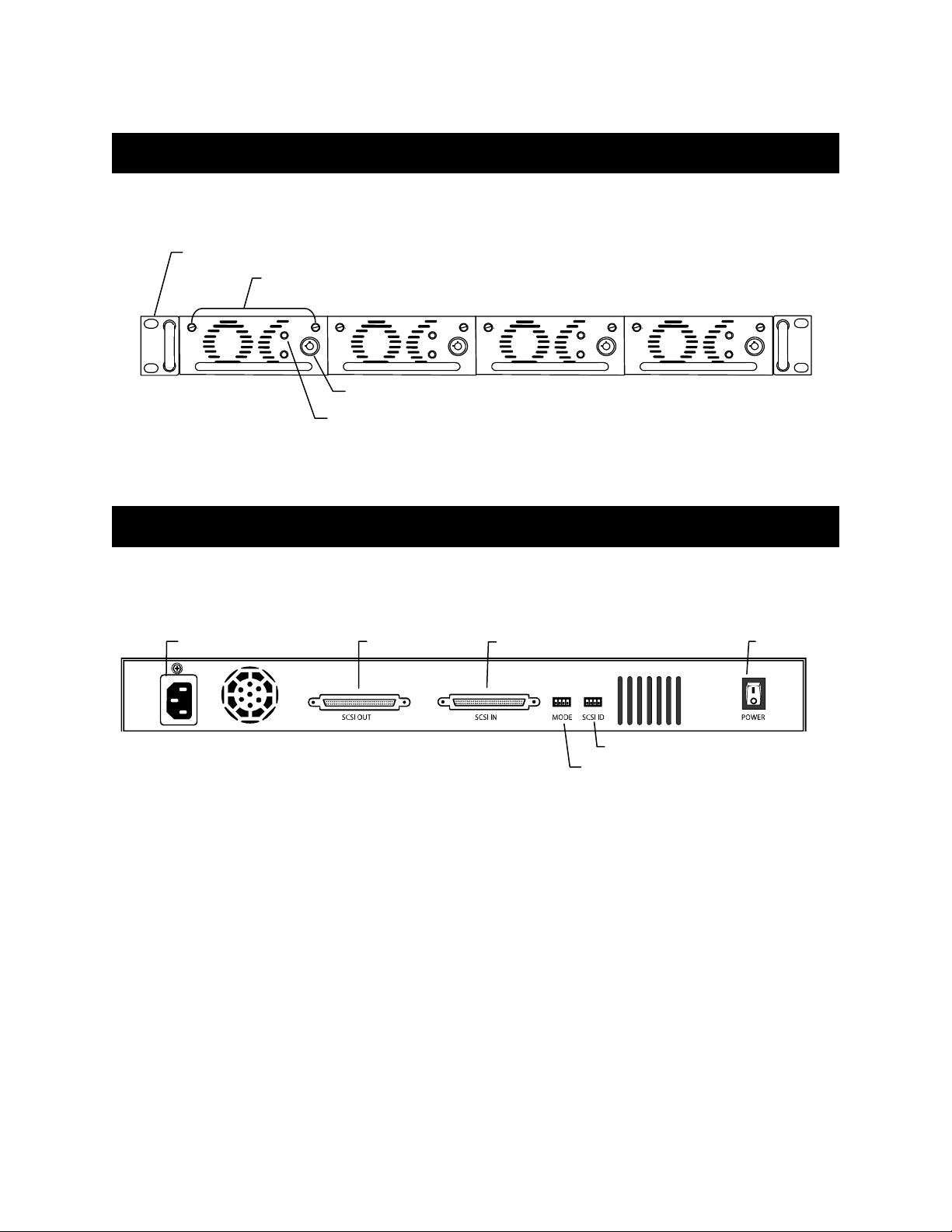

FRONT PANEL CONTROLS AND LEDS
The front panel of the 1U unit houses the drive bays and LEDs:
REAR PANEL CONNECTORS
The rear panel of the 1U Chassis contains virtually all of the connectors you will be using. Below is a diagram that outlines the location
and description of each connector:
AC Power Connector SCSI Out SCSI In
Mode Switch
SCSI ID Switch
Power Switch
Hand Screws
Rack Mount Bracket
Hard Drive LEDs
Hard Drive Bay Lock

28079AB 5
GETTINGSTARTED

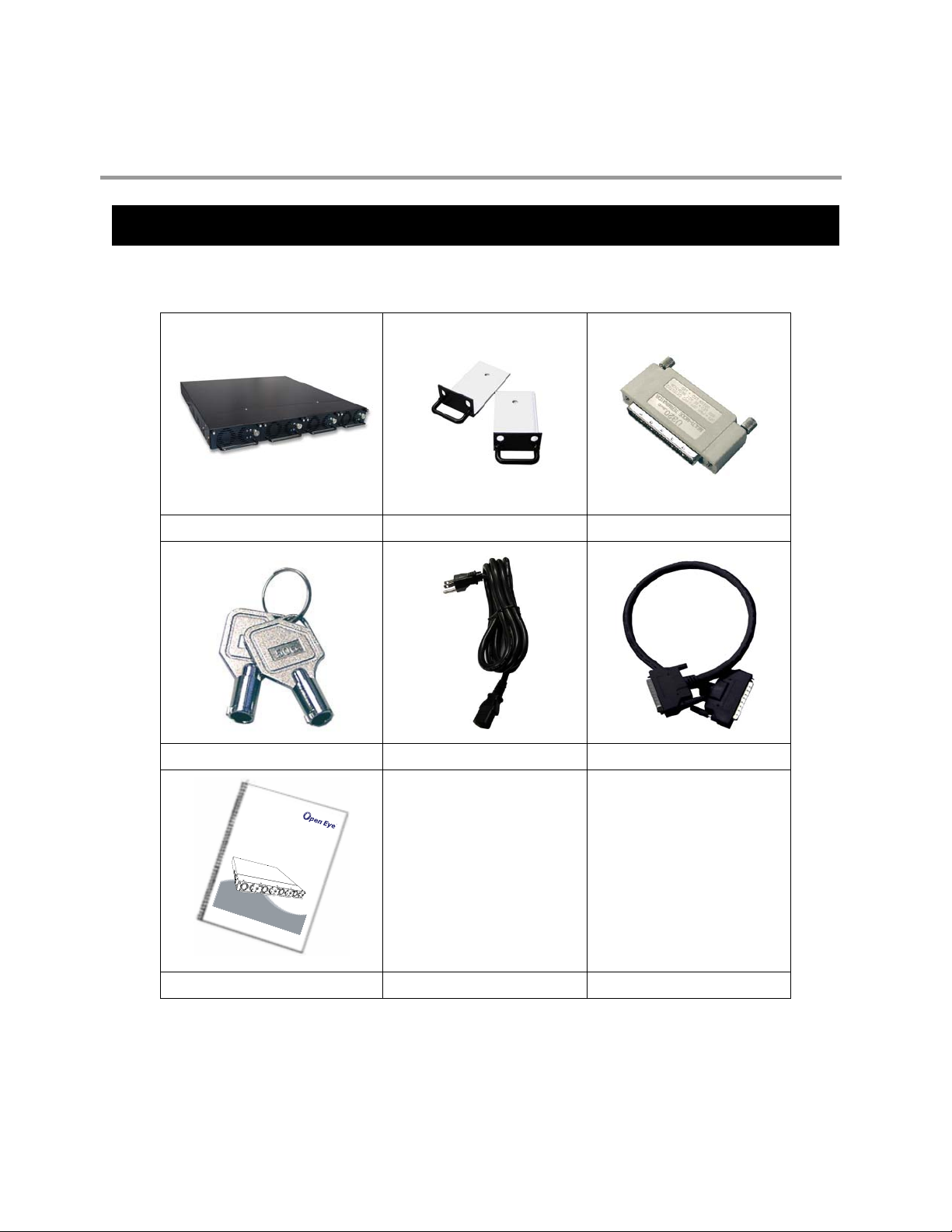

IDENTIFYING INCLUDED COMPONENTS
The GraniteRack 1U Rackmount Chassis package has everything needed to get started, including rack mount brackets, multi-mode
terminator, power cable, drive bay keys and a SCSI cable.
GraniteRack 1U Unit Rackmount Brackets Multi-Mode Terminator
Drive Bay Keys Power Cable SCSI Cable
1U Manual
GraniteRack 1U Chassis
Digital Storage System
UserManual
Please carefully read these instructions before using this pro
Save this manual for future use.
OE-GRANITE1U
model no.

6 28079AB
NOTES:

28079AB 7
1UBASICS

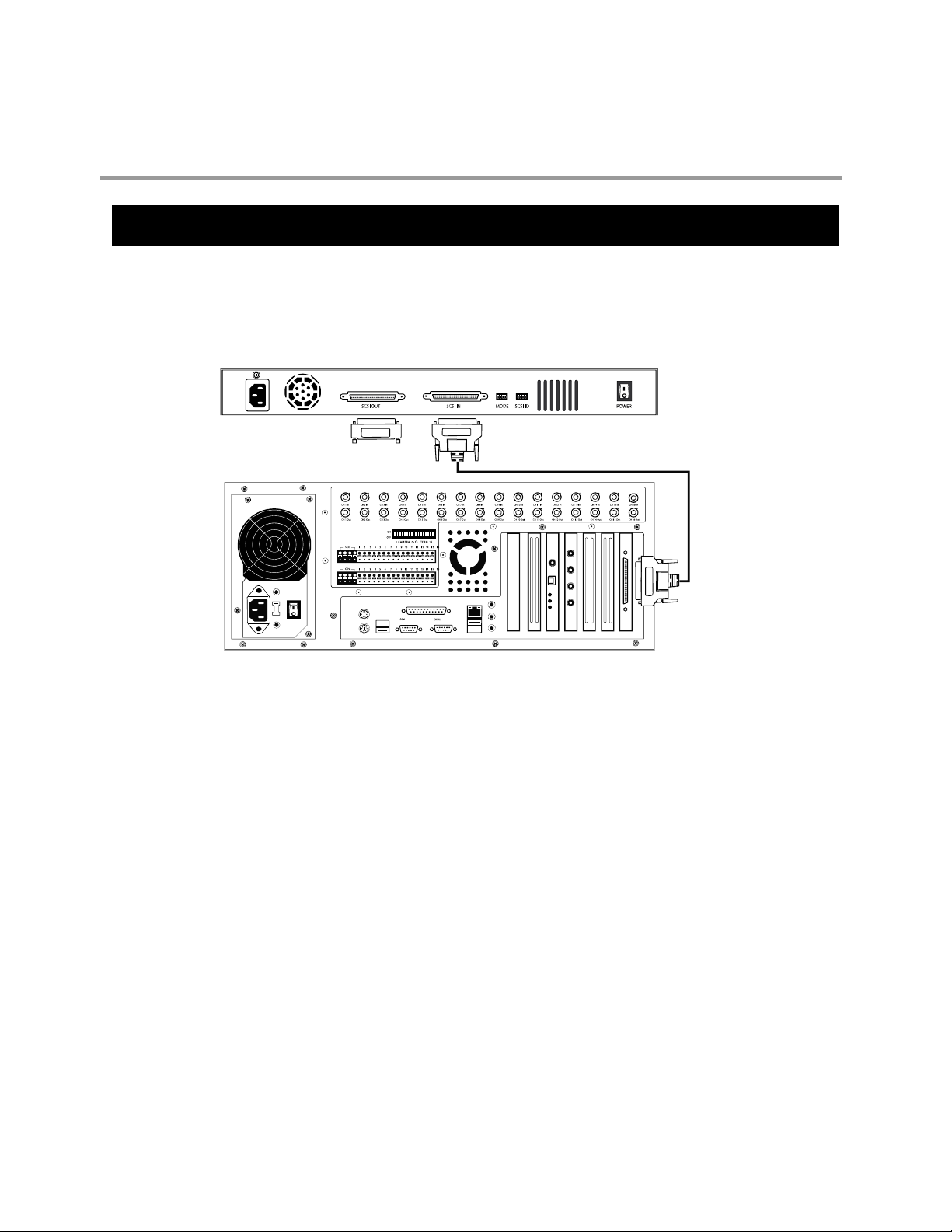

CONNECTING TO A DVR
1. Plug the SCSI Cable to the SCSI IN connection on the back of the 1U unit.
2. Plug the other end of the SCSI cable into the SCSI port on the back of the DVR.
3. If connecting a single 1U unit to the DVR, plug the Mutli-Mode Terminator to the SCSI OUT connection.

8 28079AB
CONNECTING MULTIPLE TO 1U UNITS
1. Connect the SCSI Cable to the SCSI IN connection on the back of the 1U unit.
2. Connect the other end of the SCSI cable into the SCSI port on the back of the DVR.
3. To connect a 2nd 1U Connect the other SCSI Cable into the SCSI IN port on the second 1U unit.
4. Connect the other end of the SCSI Cable into the SCSI OUT port of the first unit. (Repeat for multiple units)
5. Connect the Multi-Mode Terminator to the SCSI OUT port of the 2nd DVR

28079AB 9

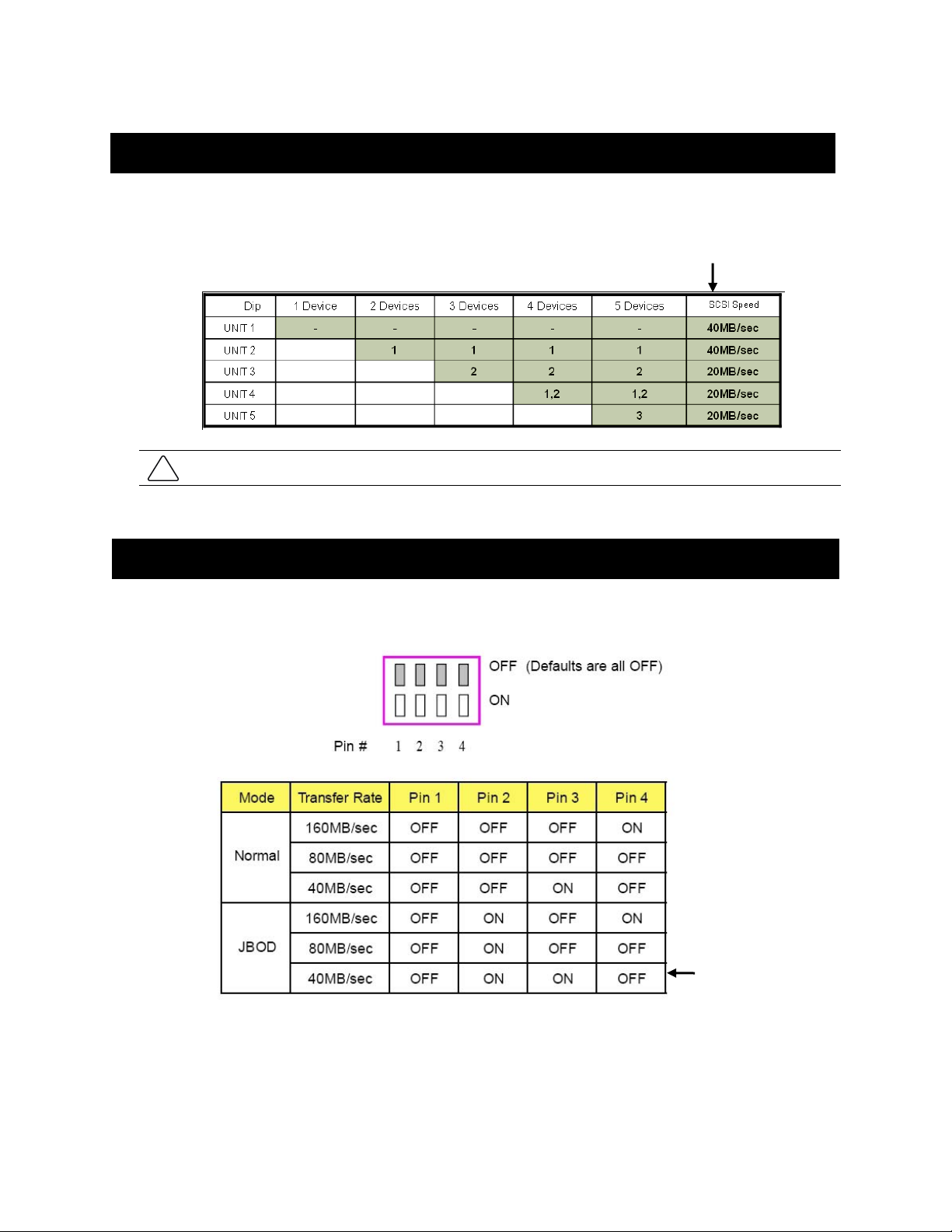

SETTING THE 1U SCSI ID
When connecting multiple 1U units each unit must have a unique SCSI ID. The SCSI ID can be set on each unit via a dip switch on
the back of the 1U unit. The Chart below illustrates the settings of the dip switches when adding multiple units. Each unit must have a
unique SCSI ID to identify the device.
CAUTION: Do not change the SCSI ID while the device is running.
NOTE: Install the Multi-Mode Terminator on the last unit.
SETTING THE 1U MODE
The 1U Rack mount system’s MODE setting configures the unit to run in either JBOD mode or Normal mode. In either mode, the
transfer rate can be set by adjusting the MODE dip switches on the back of the 1U unit.
For DVR,
Use Normal/40MB/sec
SCSI BIOS Setting

10 28079AB
TURNING ON THE 1U
1. Connect all cables including the SCSI Cable and the Power Cable.
2. Plug the connected power cable into an outlet.
3. Flip the Power Switch to the ON position, starting the unit
4. If daisy chaining multiple 1U units -- power the first unit in the chain on and wait 10 sec. before powering on each unit after the
previous unit has completed booting.
TURNING OFF THE 1U
1. Flip the Power Switch to the OFF position, turning off the unit
MULTIPLE SCSI FORMAT SUPPORT
The subsystem supports the SCSI interface standards listed below.
NOTE: Data bit and cable length restrictions must be followed.
SCSI Type Data Bit Data Rate Cable Length
SCSI-1 8 Bits 5 MB/Sec 6 m
Fast SCSI 8 Bits 10 MB/Sec 3 m
Fast Wide SCSI 16 Bits 20 MB/Sec 3 m
Ultra SCSI 8 Bits 20 MB/Sec 1.5 m
Ultra Wide SCSI 16 Bits 40 MB/Sec 1.5 m
Ultra 2 SCSI 8 Bits 40 MB/Sec 12 m
Ultra 2 Wide SCSI 16 Bits 80 MB/Sec 12 m
Ultra 160 Wide LVD 16 Bits 160 MB/Sec 12 m
Ultra 320 LVD 16 Bits 320 MB/Sec 12 m

28079AB 11
SCSICARDBIOSSETUP
CONFIGURING THE BIOS
1. Properly connect the 1U unit to the DVR
2. Power on the GraniteRack 1U Unit

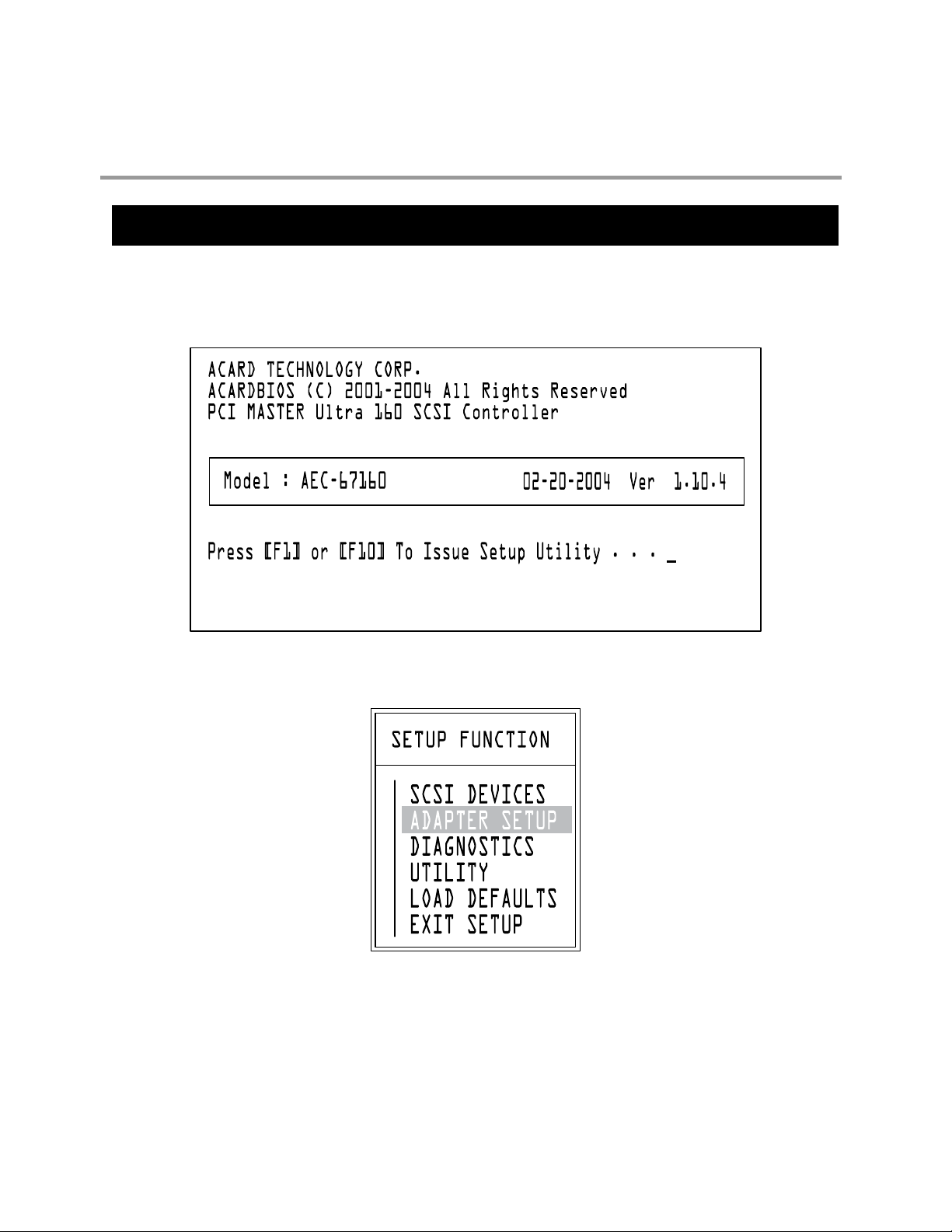

3. Power on the DVR and Press F1 to enter the SCSI bios
4. At the SETUP FUNCTION menu, select ADAPTOR SETUP

12 28079AB
5. Select “PCI Master – DMA Burst Mode” and set to Disable by pressing spacebar
6. Select “Support LUN# 0 Up to Max LUN#” and set to 3 by pressing the spacebar
7. Select “Include In Scan” and set to No by pressing spacebar
8. Select “SCSI Speed Setup” and press Enter
9. Configure the “XFER” speed to match the transfer rate that was set on the MODE dipswitch on the back of the 1U unit
10. Press Enter to exit SCSI Speed Setup
11. Press Enter to exit the Adapter Parameters Menu
12. Select Exit Setup and press Enter
