Huawei 3 U User manual

(IEC 19-inch & ETSI 21-inch Cabinet)
3 U Quick Installation Guide
This document applies to the installation of the ATN 980C, NetEngine
8000 M8, PTN 6900-2-M8C, OptiX PTN 980, and OptiX PTN 980B.
Issue：01

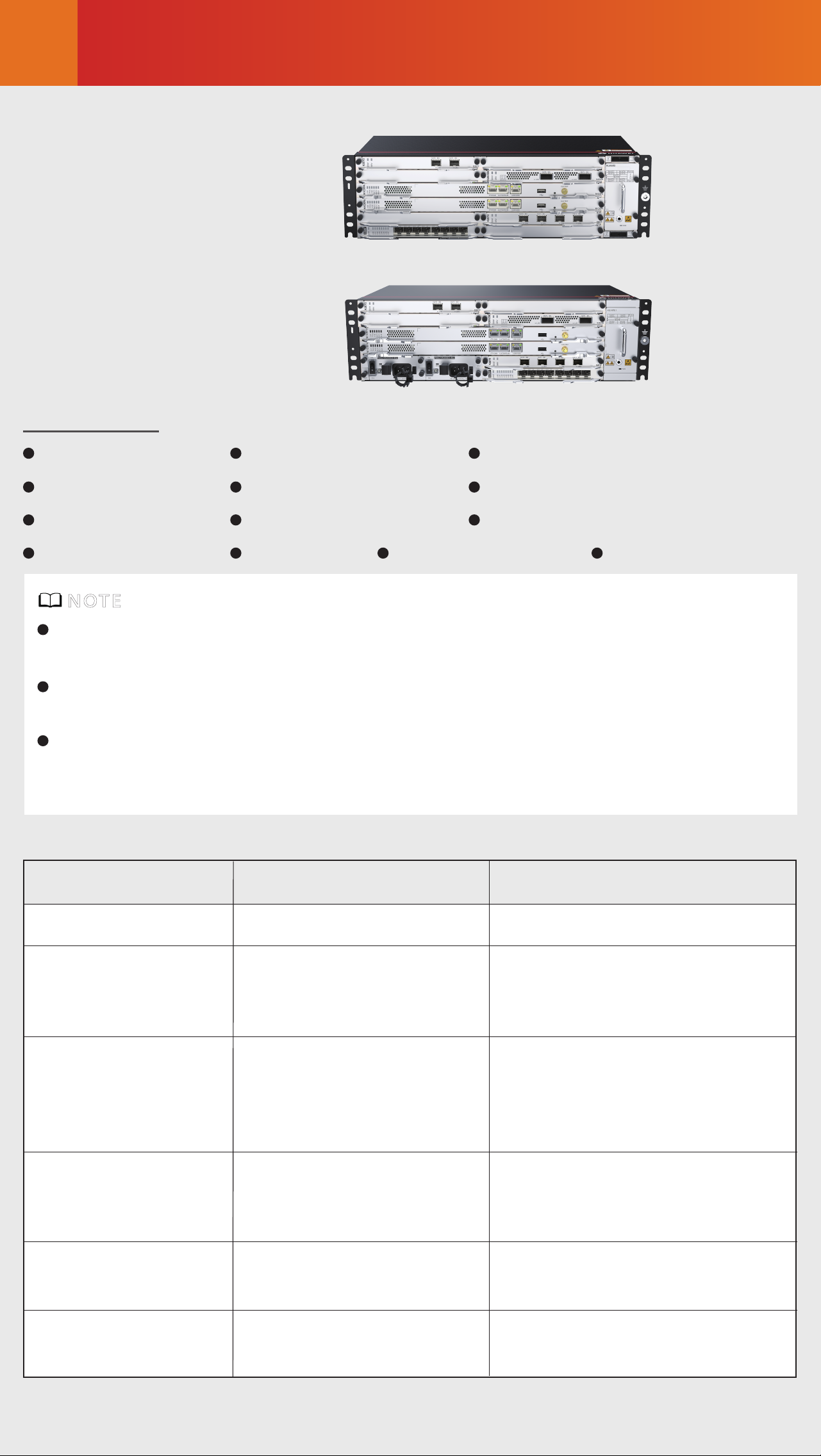

Device Overview
1
DC chassis
AC chassis
Insulation tape Corrugated pipe
ESD wrist strap
Signal cable label Cable management framePanel screw (M6x12)
Label cable tie
Floating nut (M6)
Cable tie (300 x 3.6 mm)
Power cable label
Quick Installation Guide
Serial cable Fiber binding tape
Packing list
DC and AC Chassis are installed in the same way, and DC Chassis is
used as an example here.
Figures in the document are for reference only and may be dierent
from actual devices.
The type and quantity of items in an installation accessory package
vary according to the device model. Check the delivered items
against the actual packing list.
NOTE
Item
Chassis height[U]
Rated input
voltage[V]
Input voltage
range [V]
Maximum input
current [A]
DC Chassis
3 U
132.6 mm x 442 mm x
220 mm (5.22 in. x
17.4 in. x 8.66 in.)
5.7 kg (12.57 lb)
-48 V/-60 V
AC Chassis
3 U
132.6 mm x 442 mm x 220
mm (5.22 in. x 17.4 in. x
8.66 in.)
7.8 kg (17.2 lb)
200 V to 240 V/100 V to
127 V dual live wires, support
240V HVDC
Dimensions without
packaging (H x W x
D)[mm(in.)]
Weight without
packaging (base
configuration)
[kg(lb)]
-40 V to -72 V
40 A 10 A
90 V to 290 V

Safety Guidelines
2
Observe all safety regulations and precautions
Only trained and qualified personnel are allowed to install, operate
or maintain the equipment. Familiarize yourself with all safety pre-
cautions before performing any operation on the equipment.
Operator qualifications
To ensure personal and equipment safety, observe all the safety
precautions on the equipmentand in this document.
and and items do not cover all the safety precautions and
are only supplementary to the safety precautions.
Follow all the safety precautions and instructions provided by Huawei.
The safety precautions outlined in this document are only requirements
of Huawei and do not cover general safety regulations. Huawei is not
liable for any consequence that results from violation of regulation
spertaining to safe operations or safety codes pertaining to design,
production, and equipment use.
DANGER WARNING
CAUTION NOTICE
Do not install or remove the equipment or power cables while power is on.
To ensure equipment and personal safety, ground the equipment before
powering it on.
DANGER
Use multiple persons to move or lift a chassis and take measures to pro-
tect personal safety.
Laser beams will cause eye damage. Do not look into bores of optical
modules or opticalfibers without eye protection.
WARNING
During equipment transport and installation, prevent the equipment
from colliding withobjects like doors, walls, or shelves.
Move an unpacked chassis upright. Do not drag it with it lying down.
Do not touch unpainted surfaces of the equipment with wet or contami-
nated gloves.
Do not open the ESD bags of cards and modules until they are delivered
to the equipmentroom. When taking a card out of the ESD bag, do not
use the connector to support the card's weight because this operation
will distort the connector and make the pins on the backplane connector
bend.
NOTICE
Before installing, operating, or maintaining the
equipment, wear an ESD wrist strap and insert the other
end into the ESD jack on the chassis or cabinet. Remove
conductive objects like jewelry and watches to prevent
damages to the equipment and cards caused by
electrostatic discharge.
ESD Protection

Site Requirements
3
To ensure personal and equipment safety, observe all the safety
precautions on the equipmentand in this document.
and and items do not cover all the safety precautions and
are only supplementary to the safety precautions. The device needs to be installed in a clean, dry, well ventilated, and
temperature-controllable standard equipment room. In addition, the
equipment room must be free from leaking or dripping water, heavy
dew, and condensing.
Dustproof measures must be taken in the installation site. This is
because dust will cause electrostatic discharges on the device and
aect connections of metal connectors and joints, shortening the
service life of the device and even resulting in device failures.
The installation site must be free from acidic, alkaline, and other
types of corrosive gases.
The device that is operating may cause radio interference. If this is the
case, relevant measures may be needed to reduce the interference.
Generally, devices such as wireless antennas should not be installed in
the equipment room. If such devices must be installed indoors, ensure
that the electromagnetic environment meets relevant requirements or
take necessary electromagnetic shielding measures.
The device to be installed must be used indoors. To ensure normal
operation and long service life of the device, the following requirements
must be met:
The temperature and humidity in the installation site must meet device
requirements described in the following table.
Long-term operating
temperature [°C]
Relative operating
humidity [RH]
DC: PTN devices: –20°C to +60°C
Other devices: –40°C to +65°C
AC: –20°C to +55°C
≤ 4000 m (For the altitude in the range of 1800 m
to 4000 m, the operating temperature of the device
decreases by 1°C every time the altitude increases
by 220 m.)
Item Requirements
Storage temperature
[°C] –40°C to +70°C
Relative storage
humidity [RH]
Long-term operating
altitude [m]
Storage altitude [m] < 5000 m
ATN 980C: Long-term: 5% to 95% RH,
non-condensing Short-term: N/A
NetEngine 8000 M8/PTN 6900-2-M8C:
Long-term: 5% to 85% RH, non-condensing
Short-term: 5% to 95% RH, non-condensing
OptiX PTN 980/980B: Long-term: 10% to 90% RH,
non-condensing Short-term: N/A
ATN 980C: 5% to 100% RH, non-condensing
NetEngine 8000 M8/PTN 6900-2-M8C:
5% to 95% RH, non-condensing
OptiX PTN 980/980B: 10% to 100% RH, non-condensing

Cabinet Requirements
4
Installing a Device
5
The device must be installed in an IEC 19-inch cabinet or an ETSI 21-inch
cabinet.
Huawei A63B cabinet is recommended. If customers choose to purchase
cabinets by themselves, the cabinets must meet the following require-
ments:
NOTE
1. 19-inch or 21-inch cabinet with a depth of greater than or equal to
300 mm.
2. The cabling space in front of the cabinet complies with the cabling
space requirements of boards. It is recommended that the distance
between the cabinet door and any device board be greater than or equal
to 120 mm. If the cabling space is insucient, cables will block the
cabinet door from closing. Therefore, a cabinet with broader cabling
space is recommended, such as a cabinet with a convex door.
3. The device draws air from the left side and exhausts from the right
side. Therefore, if the device is installed in a 19-inch cabinet, there must
be a clearance of at least 75 mm at the left and right sides of the cabinet
to ensure good ventilation.
4. The porosity of each cabinet door must be greater than 50%, meeting
heat dissipation requirements of devices.
5. The cabinet has installation accessories, such as guide rails, floating
nuts, and screws.
6. The cabinet has a ground terminal to connect to the device.
7. The cabinet has a cable outlet on the top or at the bottom for
overhead or underfloor cabling.
The cabinet may be installed on an ESD floor or a concrete floor. For de-
tails about how to install a cabinet, see the Cabinet Installation Guide
delivered with a cabinet.
When installing a device in a cabinet, ensure that the total heat
consumption of all devices in the cabinet does not exceed the heat
dissipation capability of the cabinet.
To prevent air return from aecting heat dissipation, leave at least 2 U
space between devices in the cabinet. In addition, if the cabinet has
middle columns, devices can be installed in stacking mode.
Do not block the heat dissipation holes on panels.
A device that needs to share the same cabinet with other devices cannot
be installed near the air exhaust vents of those devices.
Consider the impact of a device's air exhaust vent on adjacent devices to
prevent high temperature.
When fastening floating nuts, ensure that there is at least 75 mm space
on the left and right sides of the device for ventilation after device
installation.
CAUTION

Installing a Device
5
5.1 Installing a Device in an IEC 19-Inch Cabinet
1Install floating nuts onto the cabinet.
2Install the cable management frame and power cable tray
onto the device.
3Connect the PGND cable to the front or side face of the device.
The side face is preferred.
Installation hole
Floating nut
M3
x2
x2
M6

Installing a Device
5

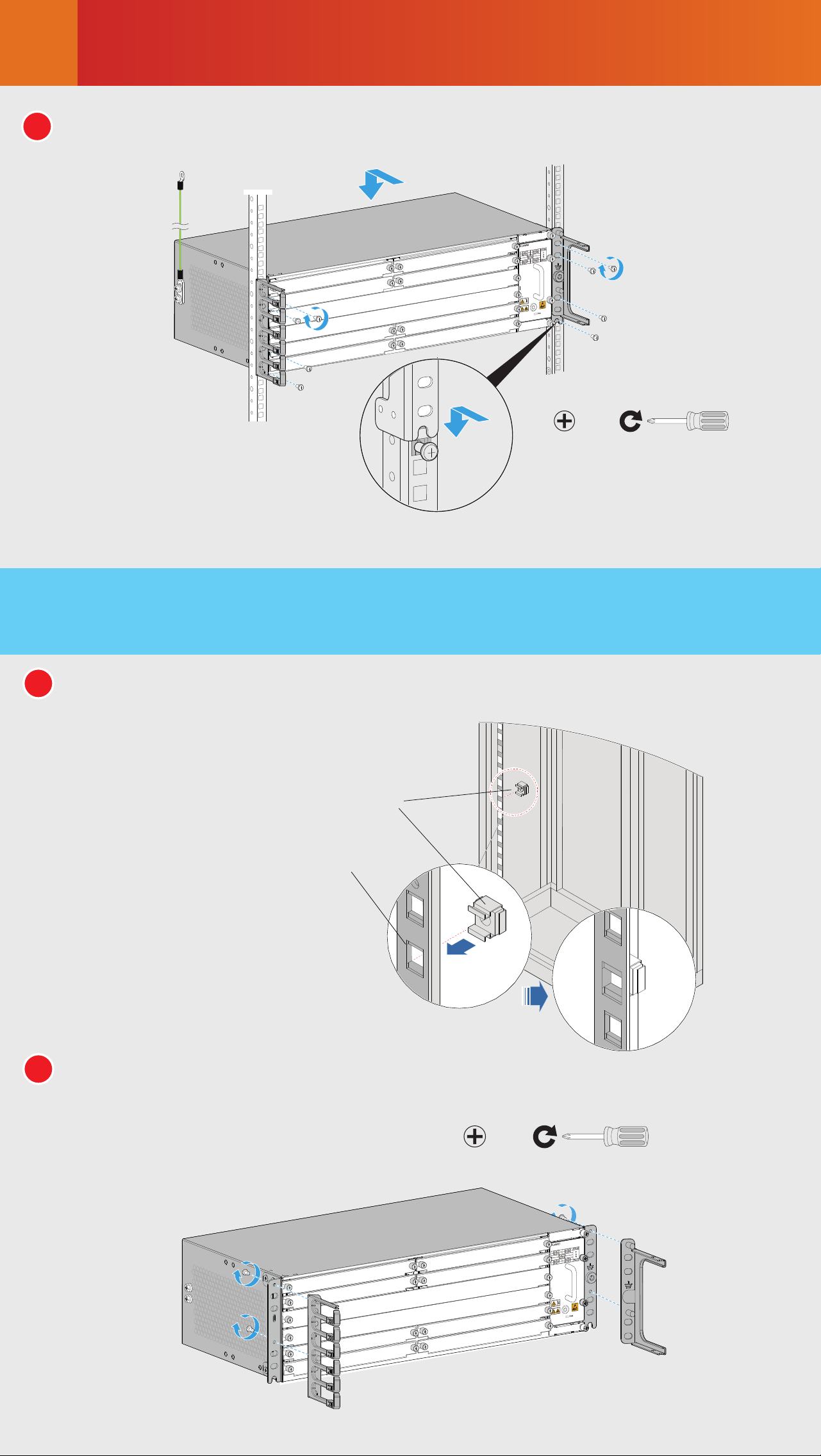

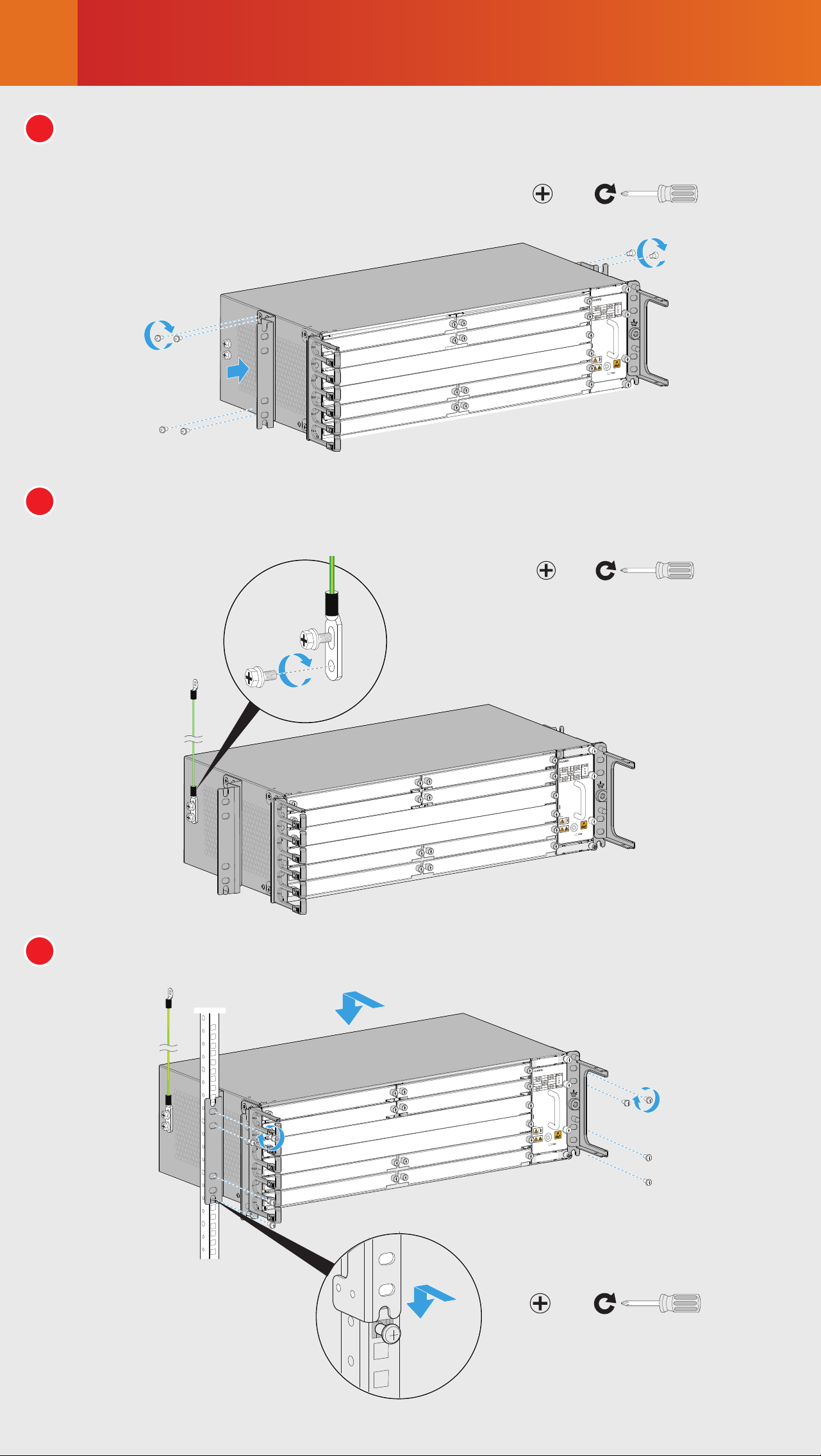

5.2 Installing a Device in an ETSI 21-Inch Cabinet
with Front Columns
2Install the cable management frame
and power cable tray onto the device.
1Install floating nuts onto the cabinet.
4Install the device into the cabinet.
x4
x4
M6
Installation hole
Floating nut
x2
x2
M3

Installing a Device
5
5Install the device into the cabinet.
4Connect the PGND cable to the front or side face of the device.
The side face is preferred.
3Install conversion mounting ears on both sides of the device.
x4
M6
M6
x4
x4
M6

Installing a Device
5

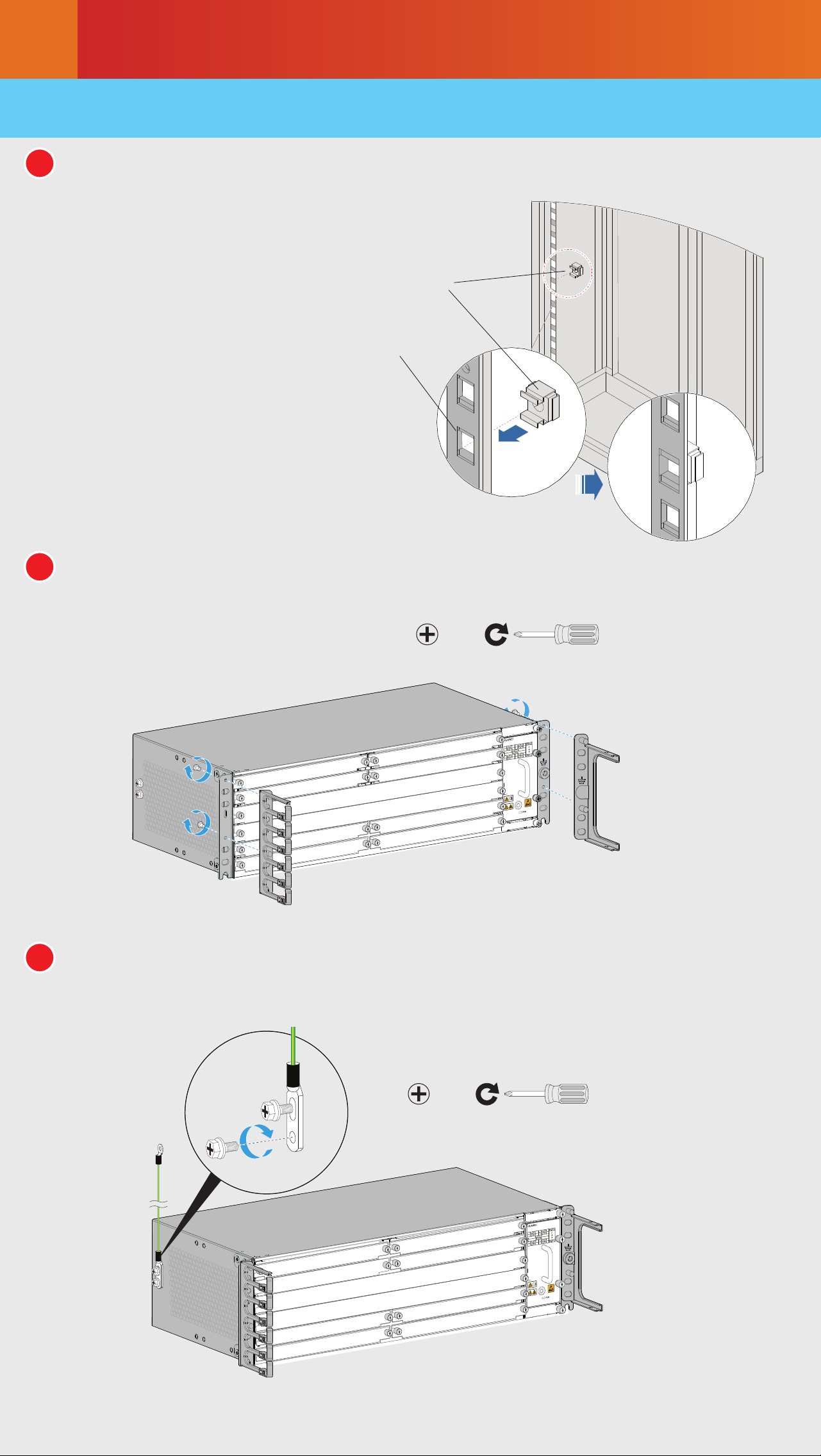

5.3 Installing a Device in an ETSI 21-Inch Cabinet
with Middle Columns
1Install floating nuts onto the cabinet.
2Install the cable management frame
and power cable tray onto the device.
Installation hole
Floating nut
3Take out a pair of 19-inch mounting ears and install ETSI
conversion mounting ears onto the 19-inch ones.
x2
x2
x4 x4
Left Right
M6
M3

Installing a Device
5
4Install the 19-inch mounting ears and conversion mounting ears
on the left and right sides of the device.
5Connect the PGND cable to the front or side face of the device.
The side face is preferred.
6Install the device into the cabinet.
x4
x4
M4
M6
x4
x4
M6

Installing Components
6

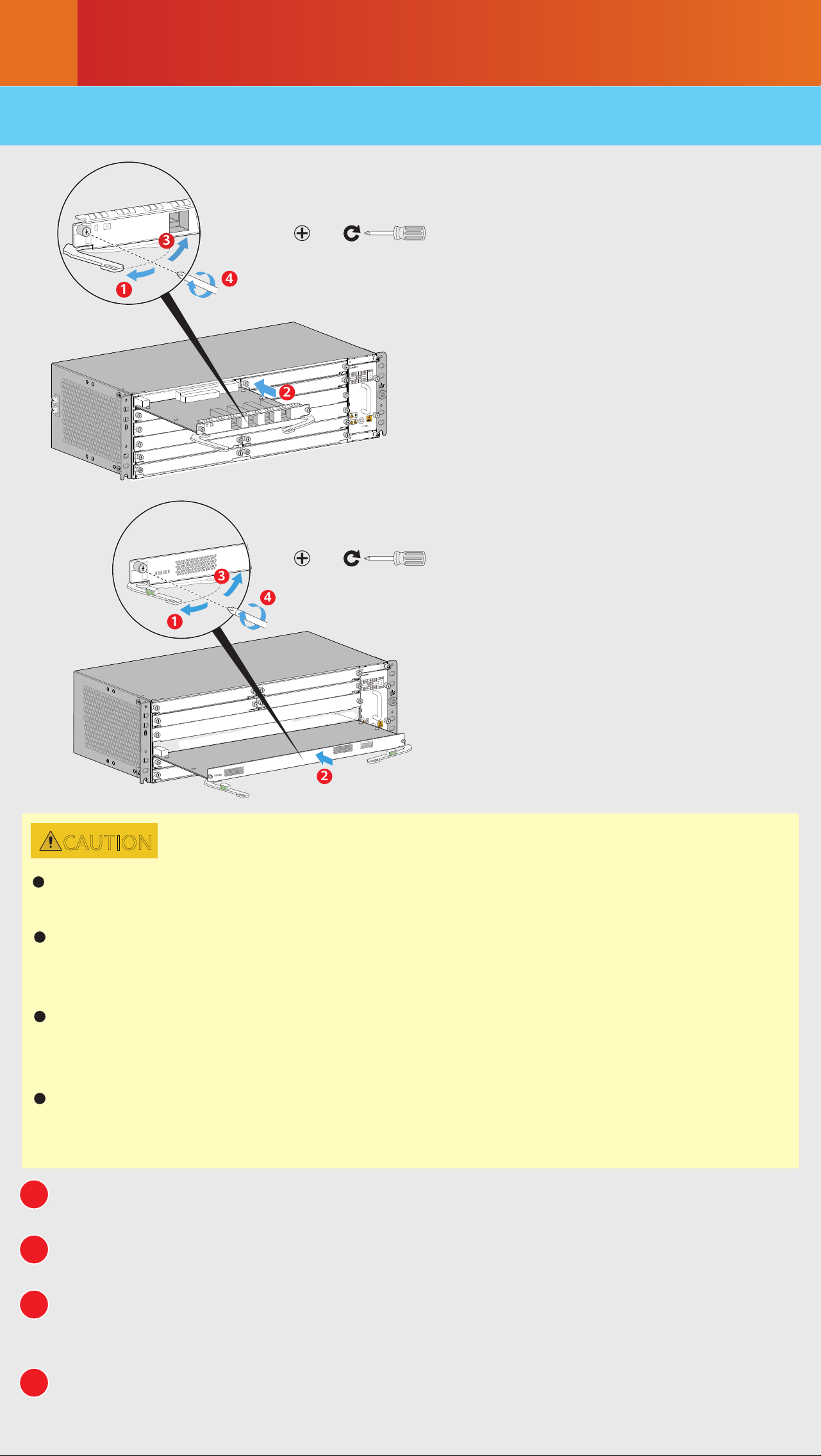

6.1 Installing Boards

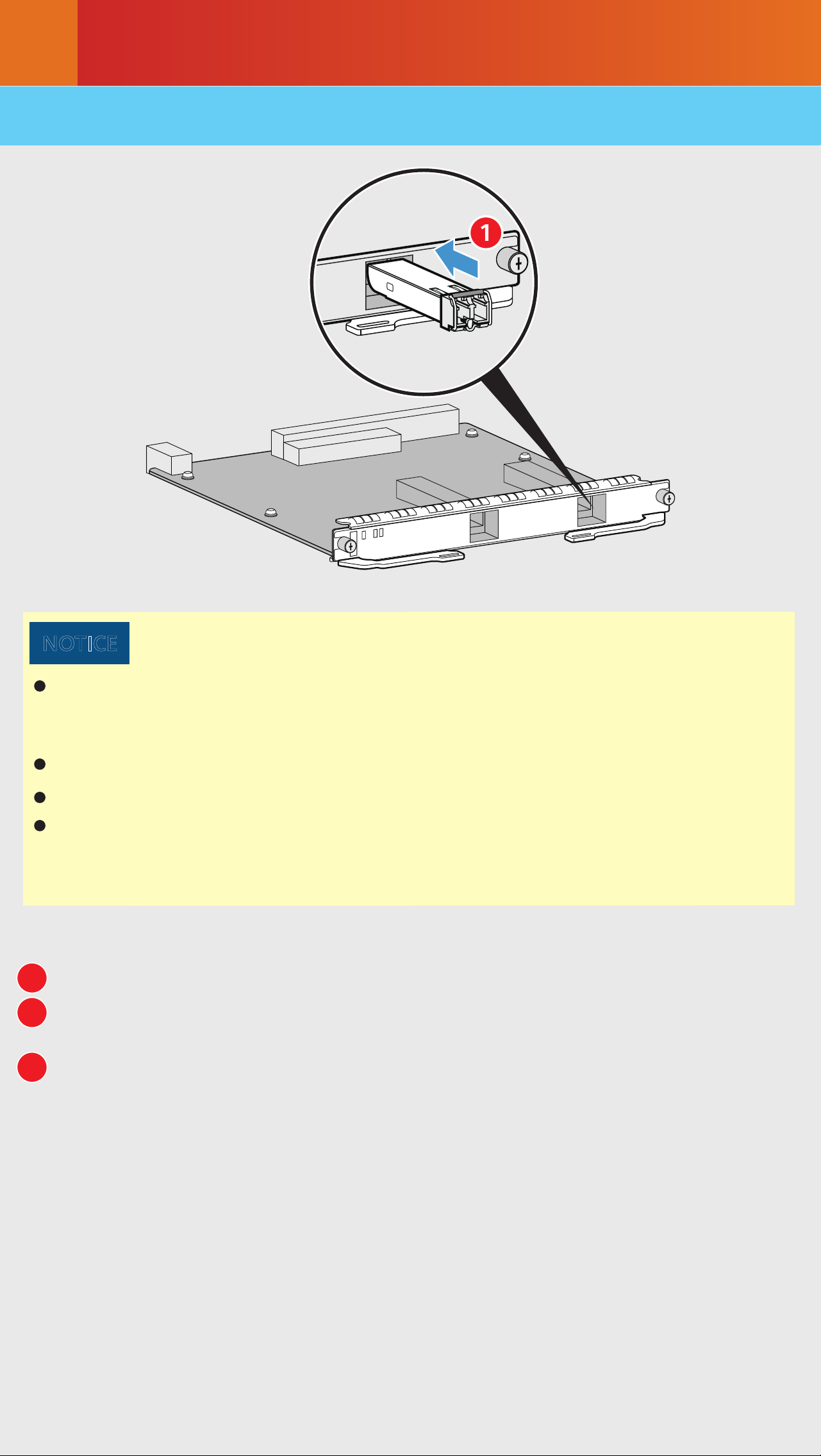

Installing an interface board
Installing a main control board
1
2
3
4
CAUTION
Hold the ejector levers on the panel with both hands, and turn them
outward until they make an angle of 45 degrees with the panel.
Push the board along guide rails into the slot until it cannot move
forward.
Lower the ejector levers and push them inward until they cannot
move forward. (When installing a main control board, ensure that
the latches of the ejector levers are locked into the panel.)
Use a Phillips screwdriver to fasten the captive screws clockwise on
both sides of the panel.
Wear ESD wrist straps or ESD gloves before installing or removing a
board.
Filler panels must be installed in vacant slots to ensure good
electromagnetic compatibility and meet dust-proof and heat dissipation
requirements.
The filler panel in a slot can be removed only before you insert an
interface board into the slot. Removing multiple filler panels and then
inserting multiple interface boards at a time is not allowed.
When sliding a board into a slot along guide rails, press the front panel
of the board with your thumbs, and push the board until it cannot move
forward. Then, fasten the ejector levers.
STAT
L/A0
L/A1
1
4
3
STAT
L/A0
L/A1
2
M3
M3
L/A1
ACTC
ACTX
SYNG
PROG
STAT
2
1
4
L/A1
ACTC
ACTX
SYNG
PROG
STAT
3

Installing Components
6
6.2 Installing Optical Modules
STAT
L/A0
L/A1
1
NOTICE
Huawei-certified optical modules need to be used. This is because the
reliability of non-Huawei-certified optical modules cannot be ensured,
and using such modules may aect service stability.
Wear ESD wrist straps or ESD gloves before installing optical modules.
Install dust-proof caps on optical ports without optical modules.
Ensure that optical modules are not reversely installed. If an optical
module cannot be completely inserted into an optical port, do not force
it into the port. Turn the optical module over and try again.
1
2
3
Insert the optical module fully into the optical port.
Connect optical fibers according to the required connection
sequence.
Check the LINK indicator on the corresponding optical port. If the
LINK indicator is steady green, the optical module is working
properly.

Connecting Cables
7
Cable layout for a DC device
Cable layout for an AC device

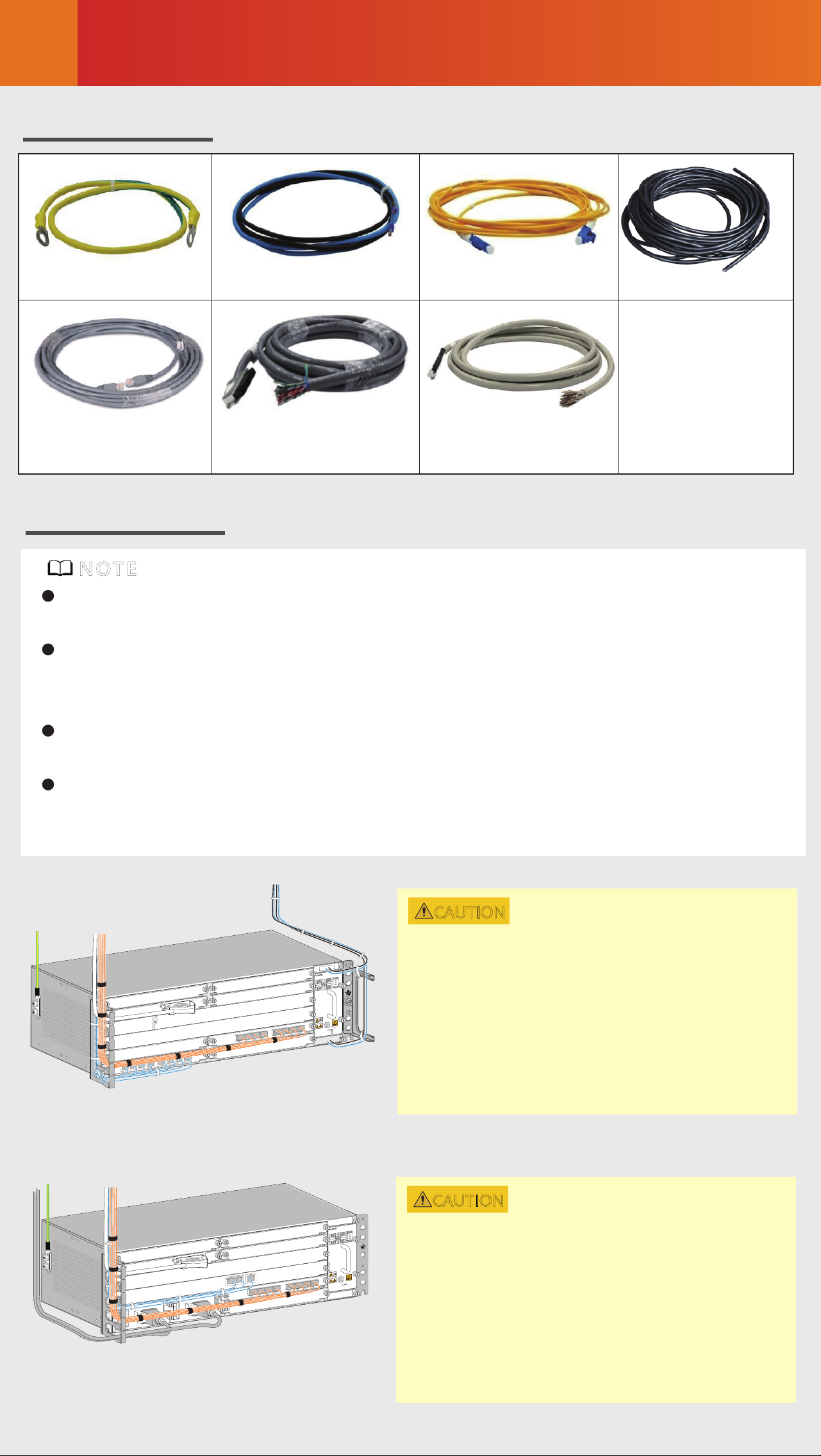

Common Cables
PGND cable Optical fiberDC power cable AC power cable
Shielded Ethernet
cable
120-ohm 16 x E1
cable
75-ohm 16 x E1
cable
Routing Planning
It is recommended that cables, including E1 cables, optical fibers, and
Ethernet cables, be routed on the left side of the cabinet.
If cables are routed on the rear of a device, ensure that the cables do not
block the air vents of the device to achieve proper heat dissipation.
Before routing cables, make temporary labels and attach them to the
cables. After the cables are routed, make formal labels and attach them
to the cables as required.
Do not bundle or route outdoor cables (such as outdoor antenna feeders
and outdoor power cables) and indoor cables together in the cabinet or
cable tray.
NOTE
CAUTION
It is recommended that the power
cables of a DC device be routed on
the right side of the cabinet. To
facilitate fan module maintenance,
keep the cables away from the upper
or lower fan module insertion and
removal areas.
CAUTION
It is recommended that the power
cables of an AC device be routed on
the left side of the cabinet. To
facilitate power module maintenance,
keep the cables away from the upper
or lower power module insertion and
removal areas.
STAT
L/A0
ALM1/ALM0
CLK/TOD/RS-485
ETH/OAM
STAT
L/A0

Connecting Cables
7
Installing a PGND Cable
Installing DC Power Cables
Check the fuse capacity of the external power supply.
Device Model Recommended Fuse Capacity
ATN 980C
NetEngine 8000 M8
PTN 6900-2-M8C
OptiX PTN980/980B
320G/360G or lower: ≥ 16 A (For long-term evolution
purposes, if permitted, it is recommended that the fuse
capacity be greater than or equal to 40 A.)
≥ 32 A (For long-term evolution purposes, if permitted,
it is recommended that the fuse capacity be greater
than or equal to 40 A.)
≥ 16 A (For long-term evolution purposes, if permitted,
it is recommended that the fuse capacity be greater
than or equal to 40 A.)
Device Model Maximum Cable Size
ATN 980C
NetEngine 8000 M8
PTN 6900-2-M8C
OptiX PTN 980/ 980B
6 mm² (0 m to 13 m) or 10 mm² (14 m to 22 m)
10 mm² (0 m to 20 m)
6 mm² (0 m to 13 m)
TO:
X-XXX-X-X
1
3
2
M8
M6
Cable layout in a scenario where
a 3U device shares the same
cabinet with other devices

Connecting Cables
7
3
4
5

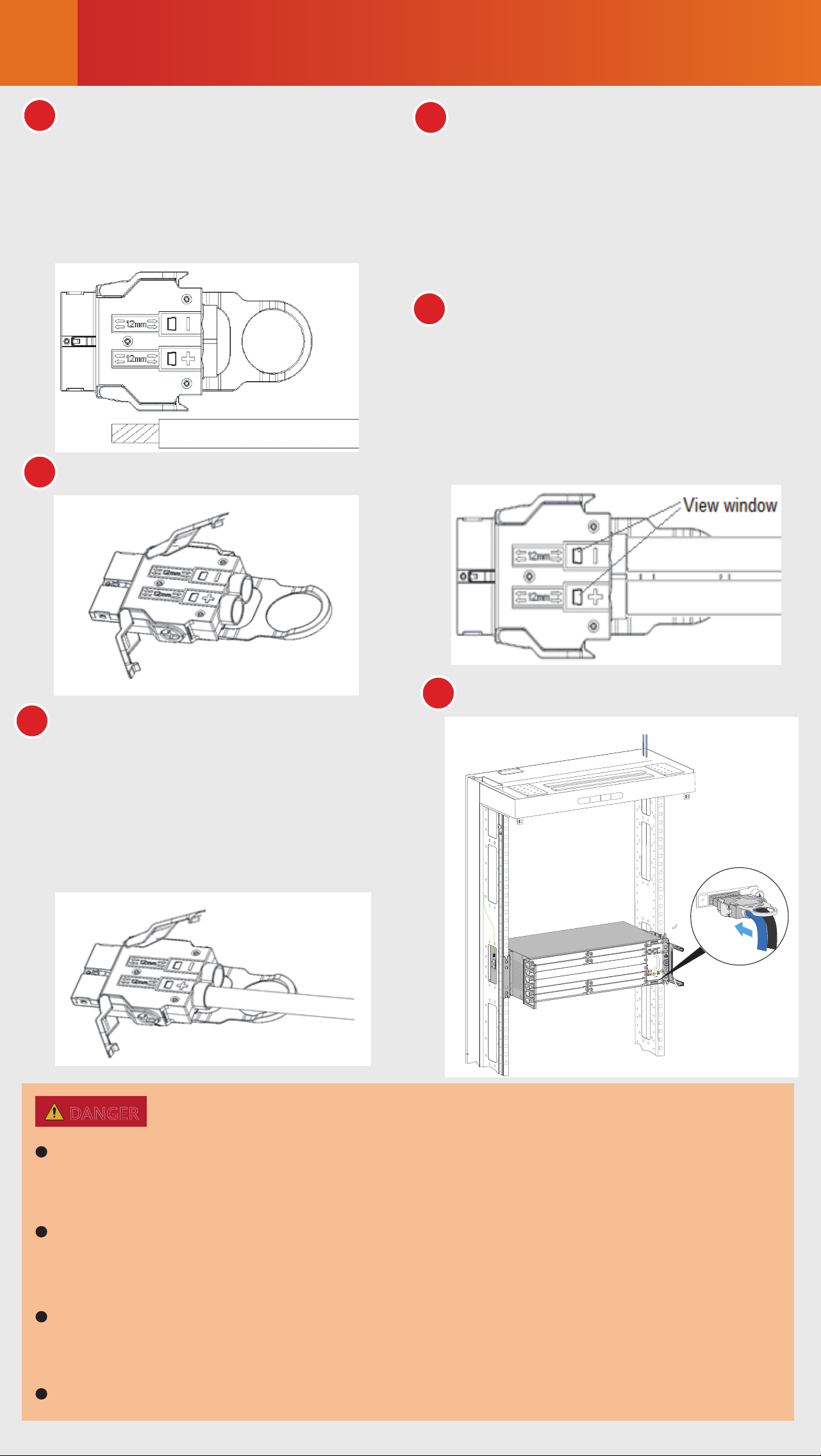

6Insert the connector into the PIU.
Insert one power cable into the
corresponding hole according to
its pole (positive or negative).
Then, fasten the screws and
latch. The method of power
cable installation for the other
pole is similar.
Drag each power cable slightly
to check whether it is fastened.
If the cable is loose or its core
wires are exposed, disconnect
the cable, cut o the split part,
re-strip the cable, and then
reconnect it.
Check whether the cables have
been properly connected and
whether the cable sheath has
been pressed through view
windows. If not, repeat the
preceding steps to prepare and
connect the cables again.
The conductor of each power cable must be completely inserted into
the DC connector to prevent electric shocks. Shut down the power
supply before connecting or disconnecting power cables.
The power cables must be correctly connected according to the
labels on the PIU. If the power cables are reversely connected, the
device cannot be powered on.
Ensure that the power cables do not have joints or excess part, and
are not coiled. The bent part of the cables must have enough slack,
with a bending radius of no less than 20 mm.
No bare copper wire is allowed at power cable terminals.
DANGER
1
2
Take out the power connector
from the packaging bag, and
then strip each DC power cable
for a length of 6 mm to 10 mm
according to the mark on the
silkscreen of the connector.
Unfasten the connector latch.
-48~-60V
RTN(+)
NEG(-)
PWR
-48~-60V
RTN(+)
NEG(-)
PWR
-48~ -60V
RTN(+)
NEG(-)
PWR

Connecting Cables
7
Installing an E1 Cable
To avoid aecting right-hand board maintenance after cable routing, you
are advised to connect an E1 cable only to a left-hand board.
An E1 cable is a thin cable with a diameter of 1.6 mm. It needs to be con-
nected to a DDF using an MC 75-1-1 connector and a crimping tool with
a bore diameter of 1.7 mm. If you use an MC 75-1-1 connector and a
crimping tool with a bore diameter of 2.5 mm, crimp the joint twice. Spe-
cifically, after performing the first crimping, rotate the coaxial connector
by 90 degrees and crimp the joint again.
An E1 cable with a negative 45-degree connector is delivered by default.
If you use this cable, connect the connector to the desired board port and
use a Phillips screwdriver to fasten screws.
If you use an E1 cable with a positive 45-degree connector, the cable must
be routed without aecting fan module installation or removal. To
achieve this, you need to use an E1 transfer cable instead of directly con-
necting the connector to a board port. Specifically, connect the cable to
the E1 transfer cable, and then connect the E1 transfer cable to the de-
sired board port.
NOTE

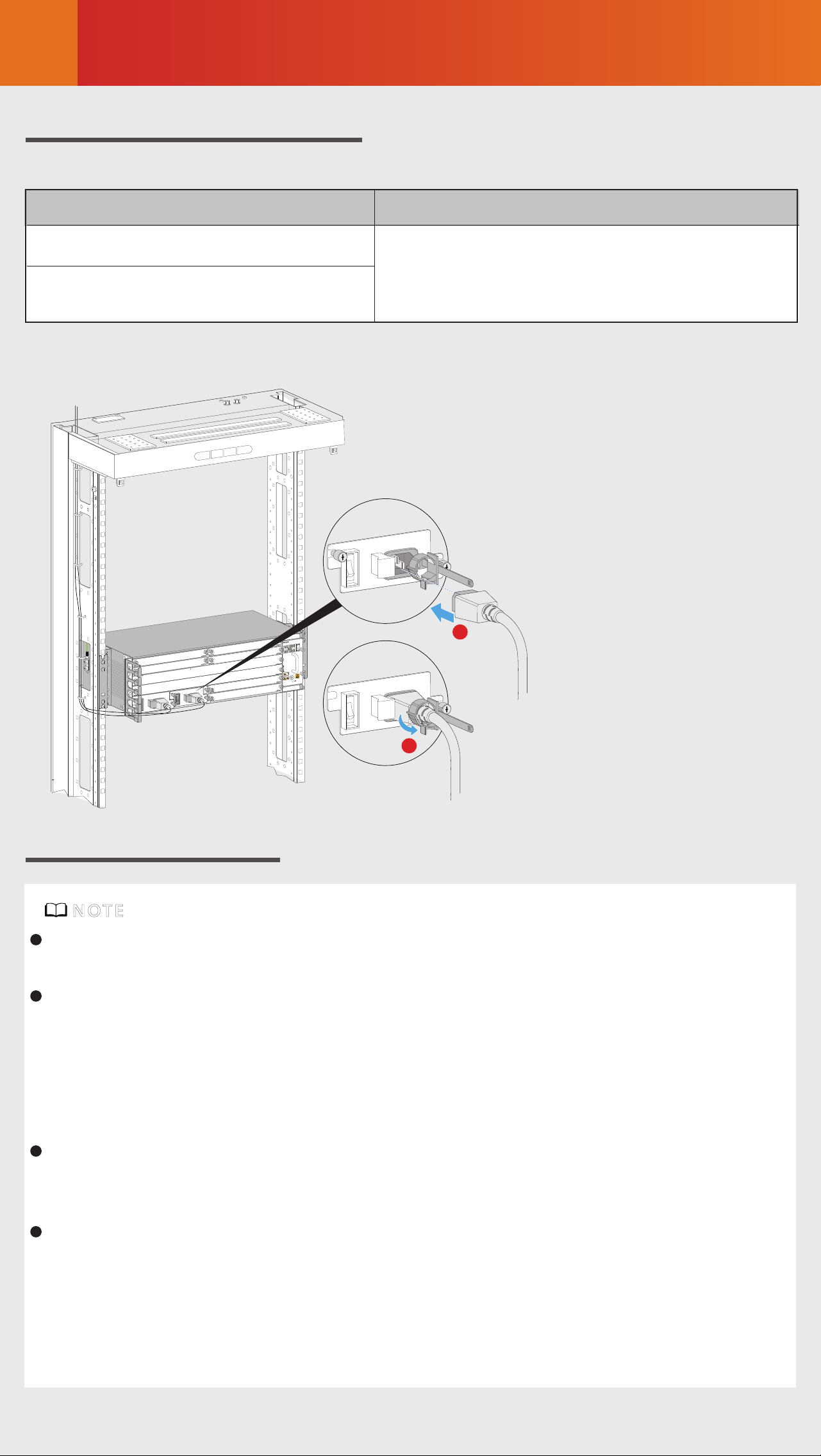

Installing an AC Power Cable
Check the fuse capacity of the external power supply.
Device Model Recommended Fuse Capacity
ATN 980C
NetEngine 8000 M8/PTN 6900-2-M8C
1
2
≥10A, ≤16A (For hierarchical power
supplying protection,the current of the
circuit breaker at the userside should be 10 A.)

Connecting Cables
7
Installing Optical Fibers
Installing an E1 cable with
a negative 45-degree connector
Installing an E1 cable with
a positive 45-degree connector
When performing operations such as installing or maintaining optical
fibers, do not move your eyes close to or look into the optical fiber
outlet without eye protection.
WARNING
CAUTION
Before routing internal optical fibers, install fixed optical attenua-
tors at the corresponding optical ports on boards according to the
fixed optical attenuator installation table.
If you use the recommended A63B cabinet, it is recommended that
only one optical attenuator be added. If multiple optical attenua-
tors are added, there is a risk that the cabinet door cannot be prop-
erly opened.
STAT
L/A0
2
1
STAT
L/A0

Connecting Cables
7

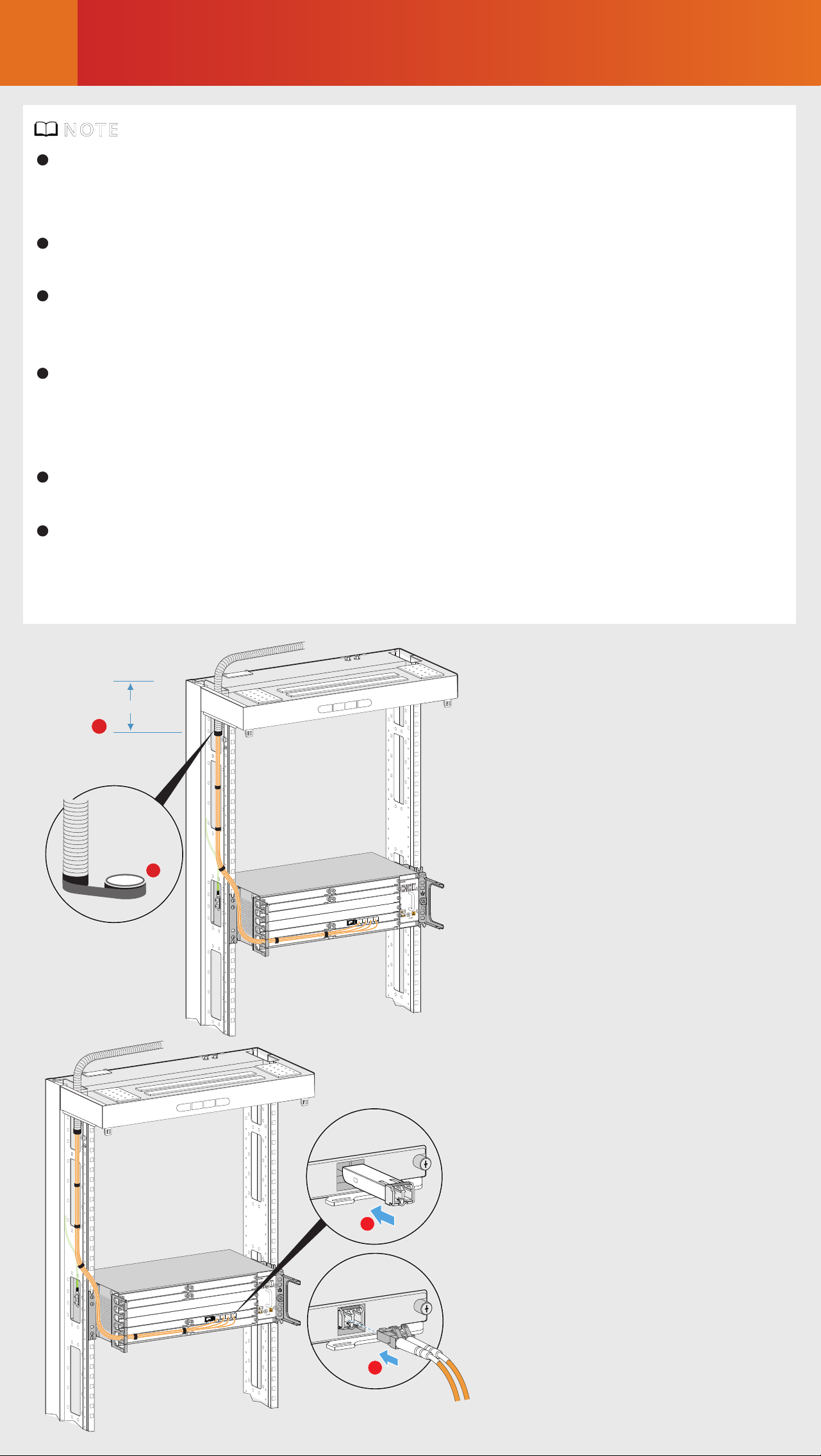

Handling Corrugated Pipes
Installing Optical Fibers
The bending radius of a single-mode G.657A2 optical fiber is no less
than 10 mm, and that of a multi-mode A1b optical fiber is no less than
30 mm.
After laying out optical fibers, use binding straps to bind the fibers
neatly without squeezing them.
After the optical fibers are connected, the optical ports and optical con-
nectors that are not used must be covered by dustproof plugs and dust-
proof caps, respectively.
Do not use an open-end corrugated pipe to hold excessive optical fibers.
It is recommended that an open-end corrugated pipe with a diameter of
32 mm accommodate a maximum of 60 fibers with a diameter of 2
mm.
It is recommended that the length of a corrugated pipe inside a cabinet
be about 10 cm.
Use an A63B cabinet as an example. If corrugated pipes need to be used
in the cabling area on the top of the cabinet, a maximum of two such
pipes are supported, accommodating a maximum of 120 optical fibers.
If more optical fibers are required, use the E1 cable hole.
NOTE
1
100mm (3.94 in.)
2
1
2

Connecting Cables
7
Installing Ethernet Cables
Installing a 75-ohm Coaxial Cable
The maximum number of shielded Ethernet cables supported by a flat-door
cabinet is limited. For example, a 300 mm deep flat-door N63B/N63E cabi-
net supports a maximum of six shielded Ethernet cables per layer of inter-
face boards.
In contrast, a convex-door cabinet supports more shielded Ethernet cables.
For example, a convex-door A63B/A63E cabinet supports a maximum of 16
shielded Ethernet cables per layer of interface boards.
Connecting a device to an NMS server requires two Ethernet cables: one for
the active main control board and the other for the standby main control
board.
NOTE
FE1 FE2 FE3 FE4
2
3
1

Checking the Installation
8
Check Before Power-on
If the power supply voltage does not meet requirements, do not power on
the device.
Check whether fixed optical attenuators have been added in accordance
with corresponding configuration rules.
Check whether the fuse capacity of the external power supply meets re-
quirements.
Check whether the external power supply voltage is normal.
CAUTION
STAT
Indicator Abnormal State Possible Cause Handling Procedure
Steady red
Steady o
Signals on an
optical port are
lost.
The corre-
sponding
module cannot
be detected.
1. Power on the peer chassis.
2. Check the peer board and
ensure that the transmit opti-
cal power of the board is
normal.
3. Check that fiber connections
are correct.
4. If there is no fixed optical
attenuator at the optical port,
check the fiber attenuation,
clean the fiber connector, and
replace damaged fibers until
the indicator turns green.
If the chassis is powered on
but all the indicators on the
board are o, contact software
commissioning engineers to
replace the board.
Before performing a power-on check,
turn o all the switches on the device
and external power supply system.
WARNING
The following table describes the
states of indicators when the device
is operating properly.
Hardware Module
Steady greenPower module
Steady green
Steady green
Steady green
Steady green
Steady green
Fan module
Main control board
Interface board
PWR
FAN
STAT
PROG
STAT
L/A
Indicator State
Power-on Check
If board indicators are in speci-
fied abnormal states after you
power on the device, handle
the abnormalities onsite.
For more information about device indi-
cators, see in the
corresponding product documentation.
NOTE
HardwareDescription
