Oppo VS1000 User manual

DVD MINI COMBO
CH-SW
CH-SW
VOLUME
VOLUME
POWER
POWER
VS1000

Safety Instructions
This product incorporates copyright protection technology that is protected by method
claims of certain U.S. patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
All images in this manual are sketch illustrations for reference only. The actual displays
are contingent upon discs.
WARNING:
To prevent the risk of fire or electric shock, do not expose this unit to rain or moisture.
High voltage components in it so do not attempt to open the enclosure. Only qualified personnel
are allowed for maintenance.
CAUTION:
This DVD player contains laser system.
To prevent direct laser radiation, do not attempt to open the enclosure. Visible laser beam will radiate
when the enclosure is opened or when the interlock device is released. Do not stare at the laser-beam.
Never place other things or articles upon the player, otherwise it may cause improper playback.
After reading this manual, please keep it for future reference. Please contact your local dealer or
our technical service center for maintenance.
Read this manual carefully and get familiar with the instructions before operating.
Reminding the user of the dangerous voltage!
Danger Symbol
Reminding the user of the important instructions for operation and maintenance.
Warning Symbol
is a trademark of DVD Format/Logo Licensing Corporation, registered in the U.S.,
Japan and other countries.

Contents
PREFACE FUNCTION
SETUP
OTHERS
SYSTEM
CONNECTIONS
PLAY
OPERATION
BASIC
OPERATION
Accessories
Brief introduction to DVD
Cautions
Features

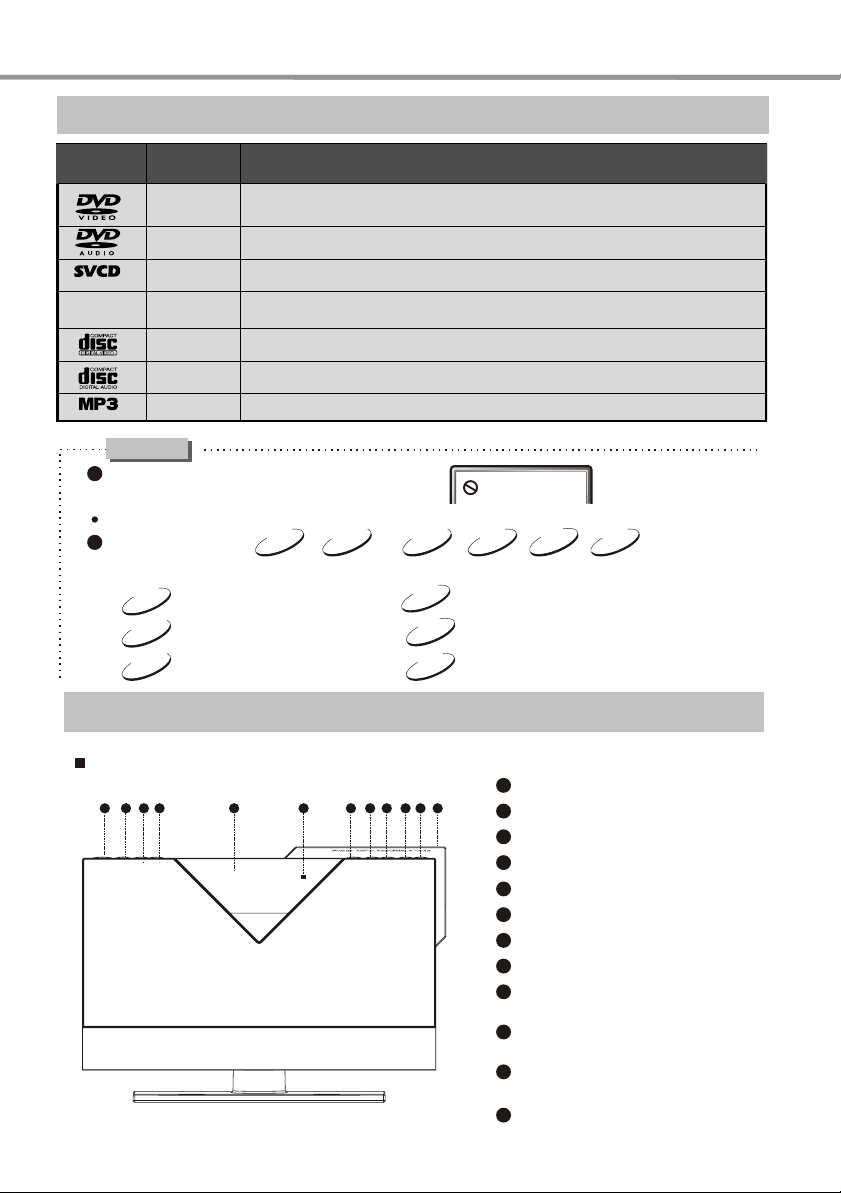

Compatible disc types
Control Button Locations and Explanations

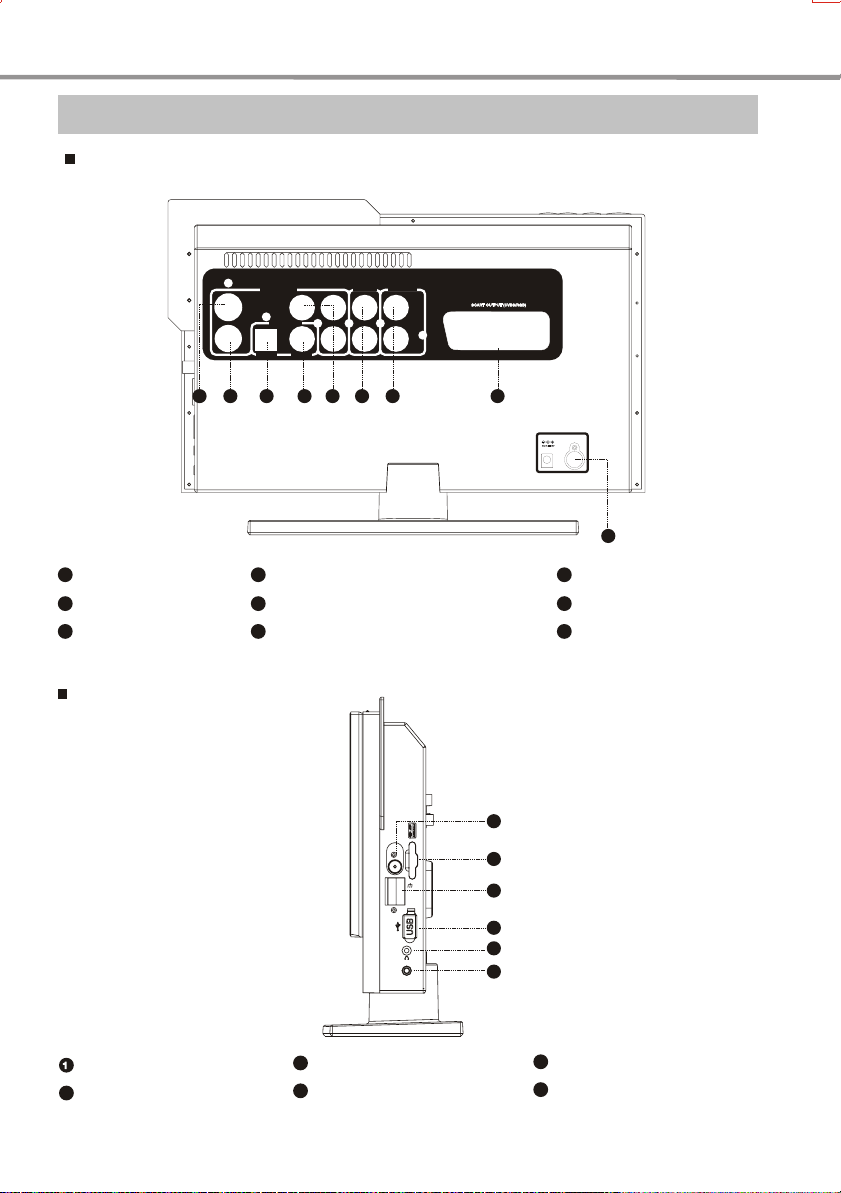

Rear Panel Illustration

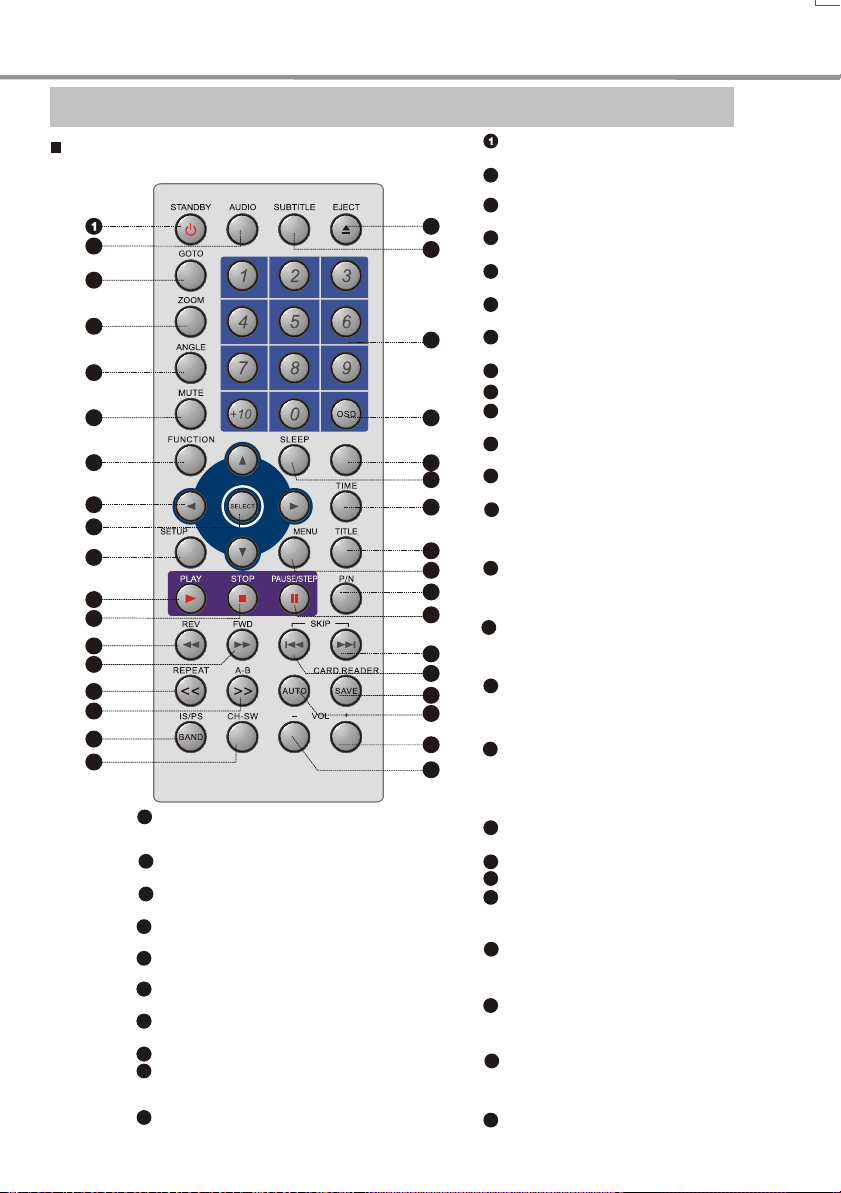

Remote Control Illustration
Side panel illustration

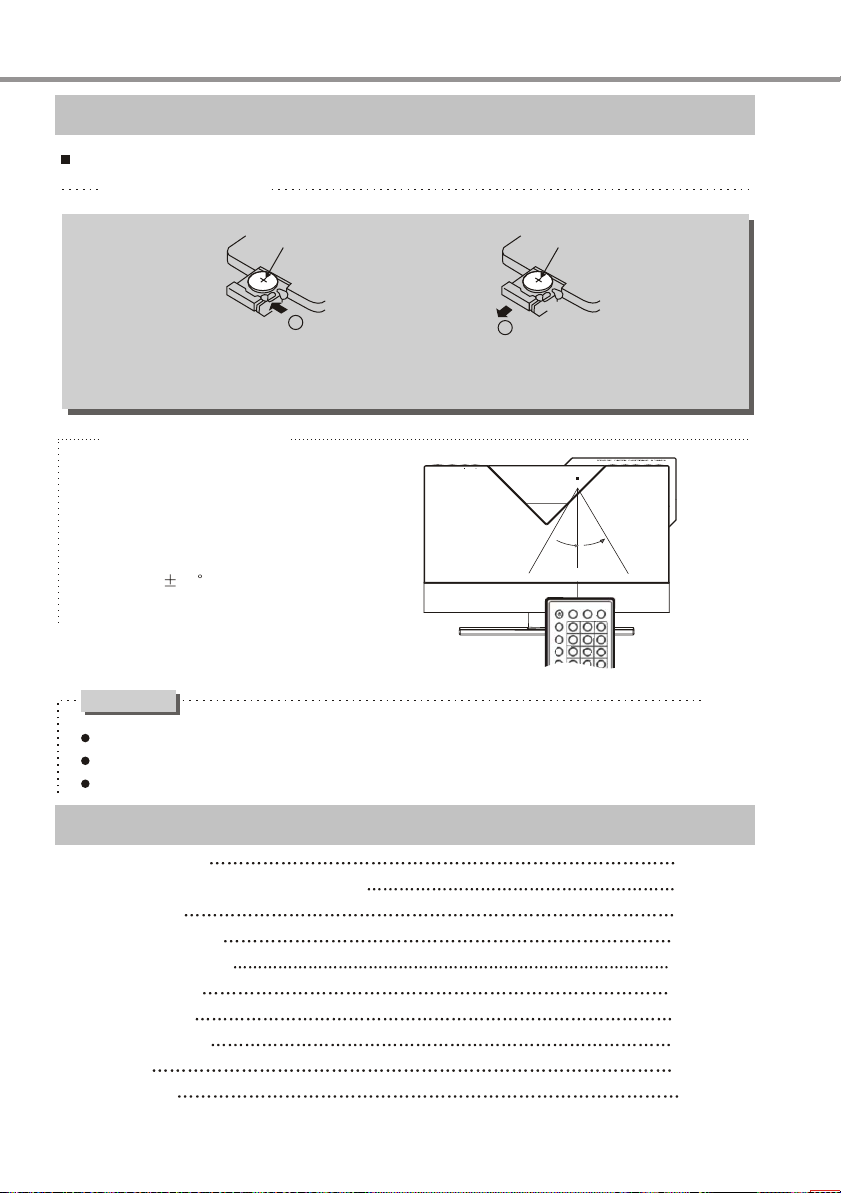

How to use the Remote Control
Audio Setup
Video Setup
Function Setup
General Settings
Useful notes
Specifications
Terms
Language Code List
Troubleshooting

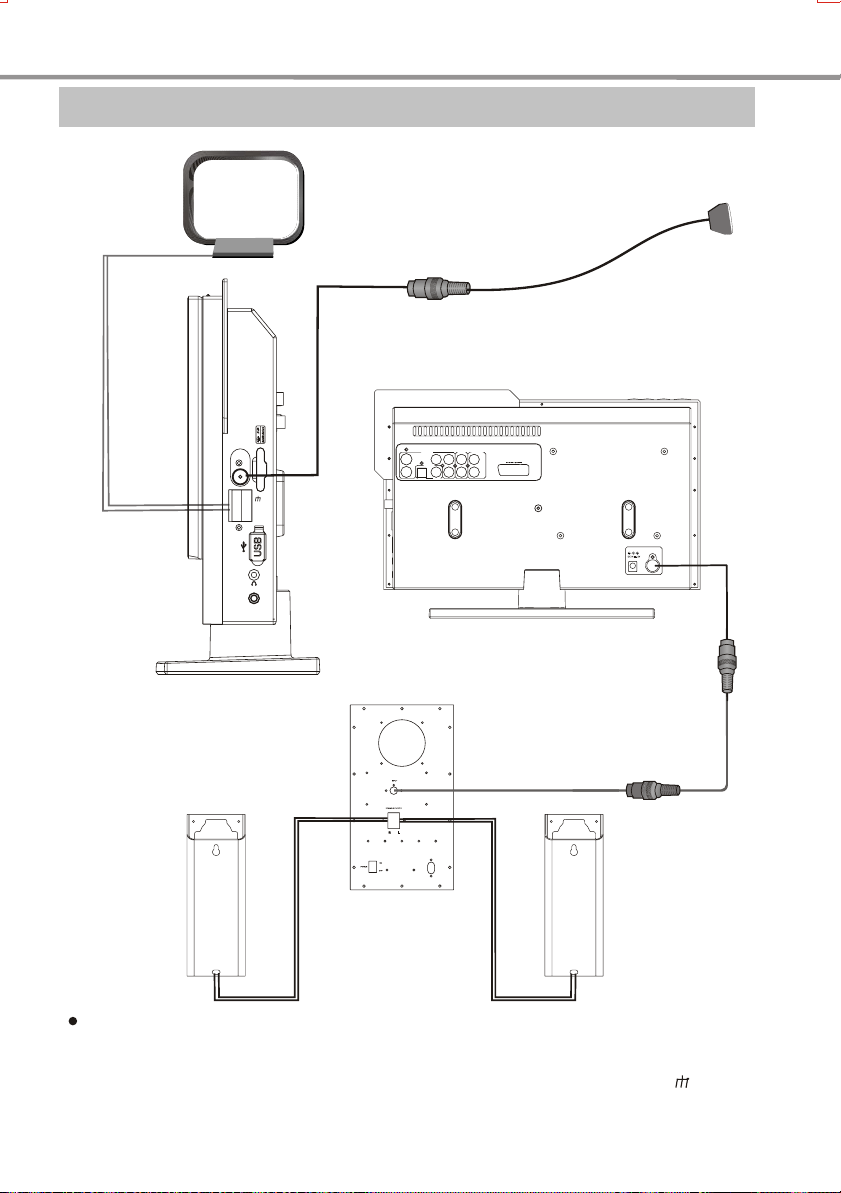

Connected to FM/AM Tuning

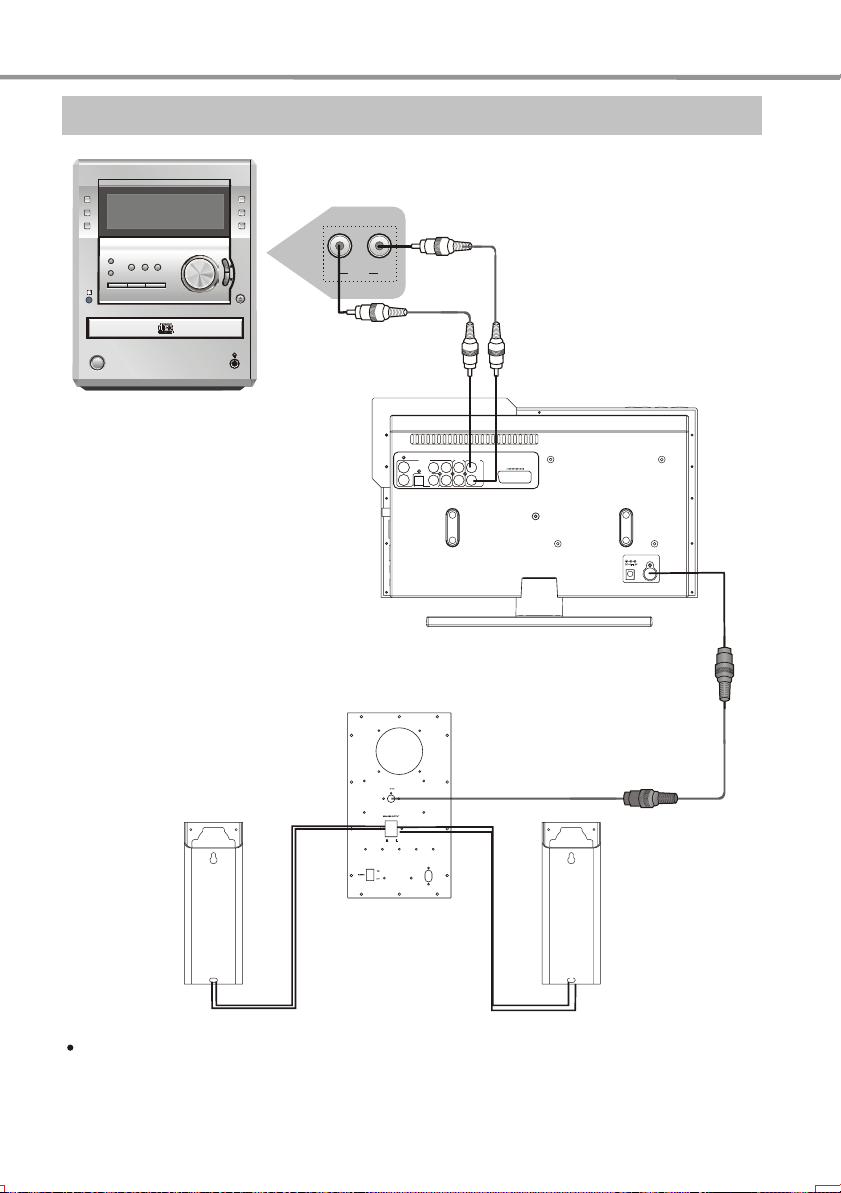

Connected to AUX IN 2

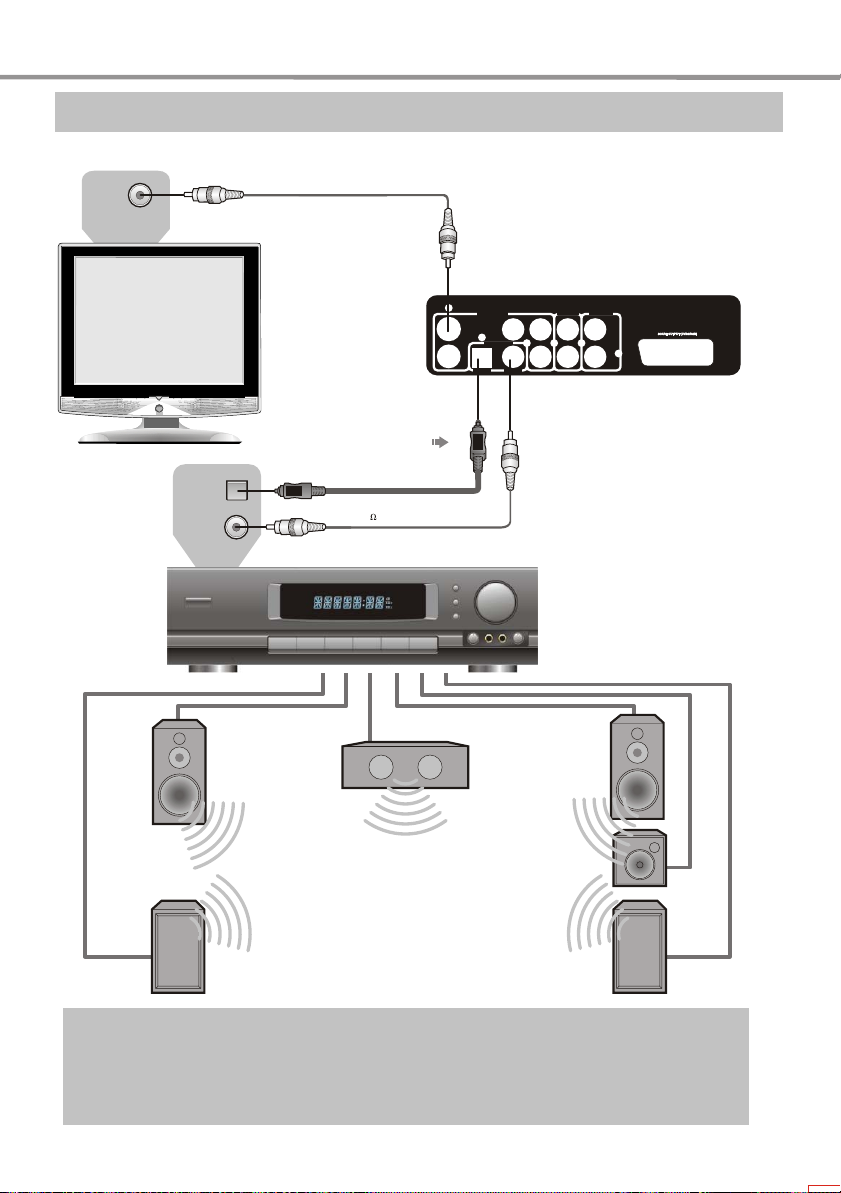

Connected to Amplifier with DOLBY DIGITAL/DTS Decoder

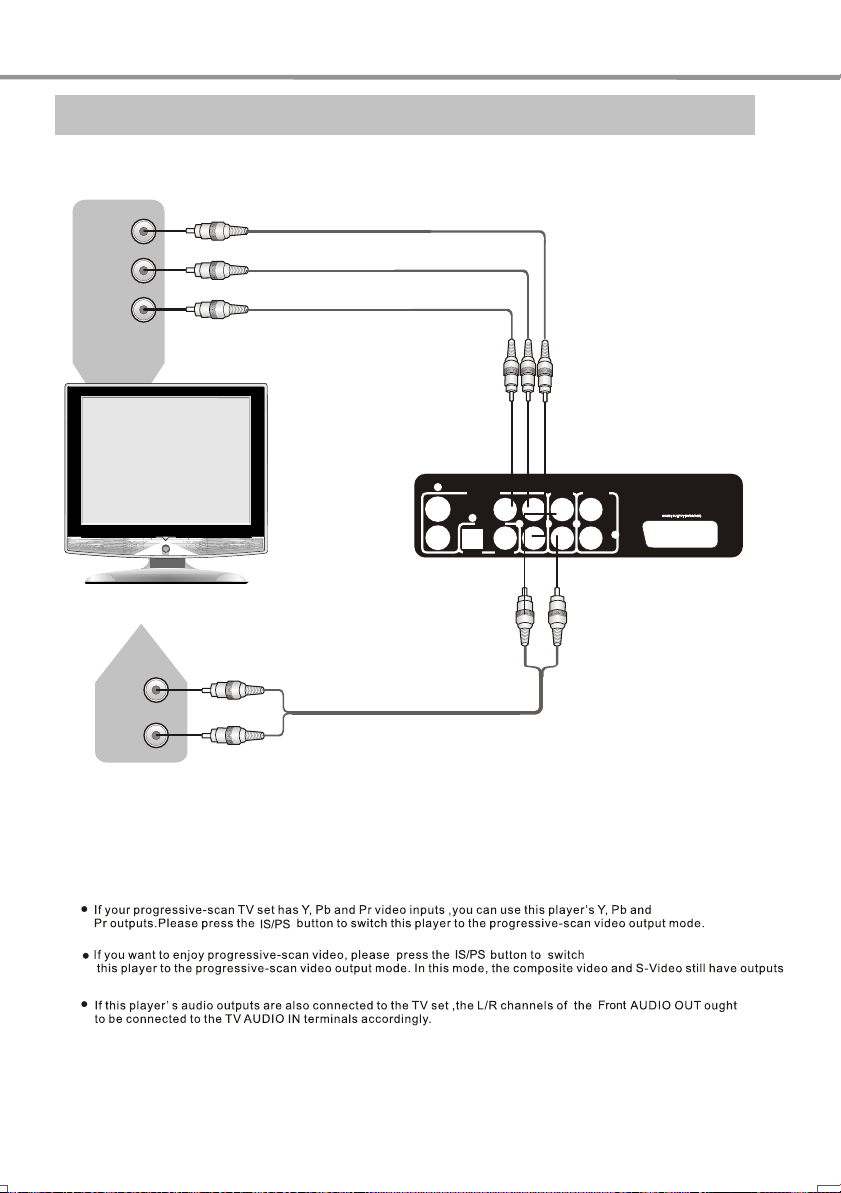

Connected to Progressive Scanning TV set

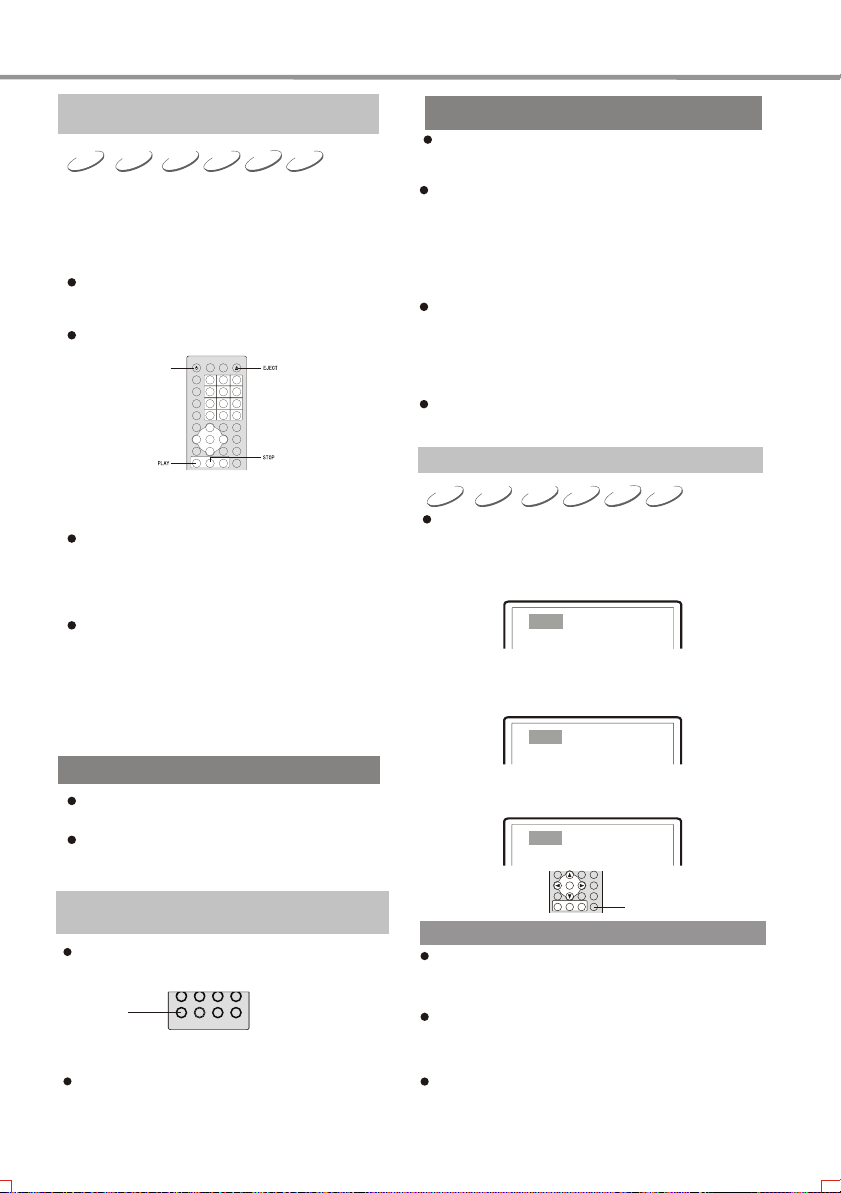

Playback
Function switch
Channel Volume Control

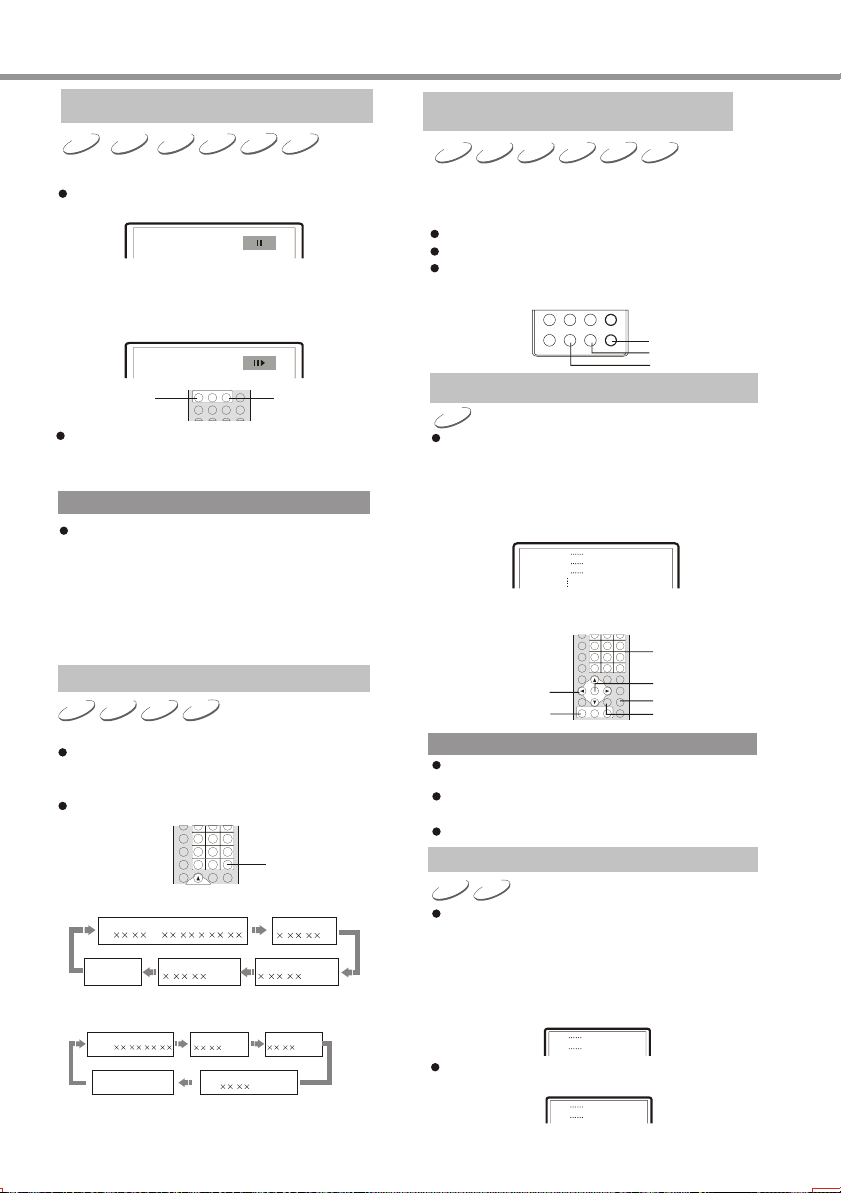

Pause/step Playback
TV System selection
DVD menu playback
PBC Playback
Mute
Usage of USB equipment and 3-IN-1 card reader
Save radio station
Connected to AUX IN 1
Initial Setup
AUX IN Amplifying
Direct selection playback function
by number button

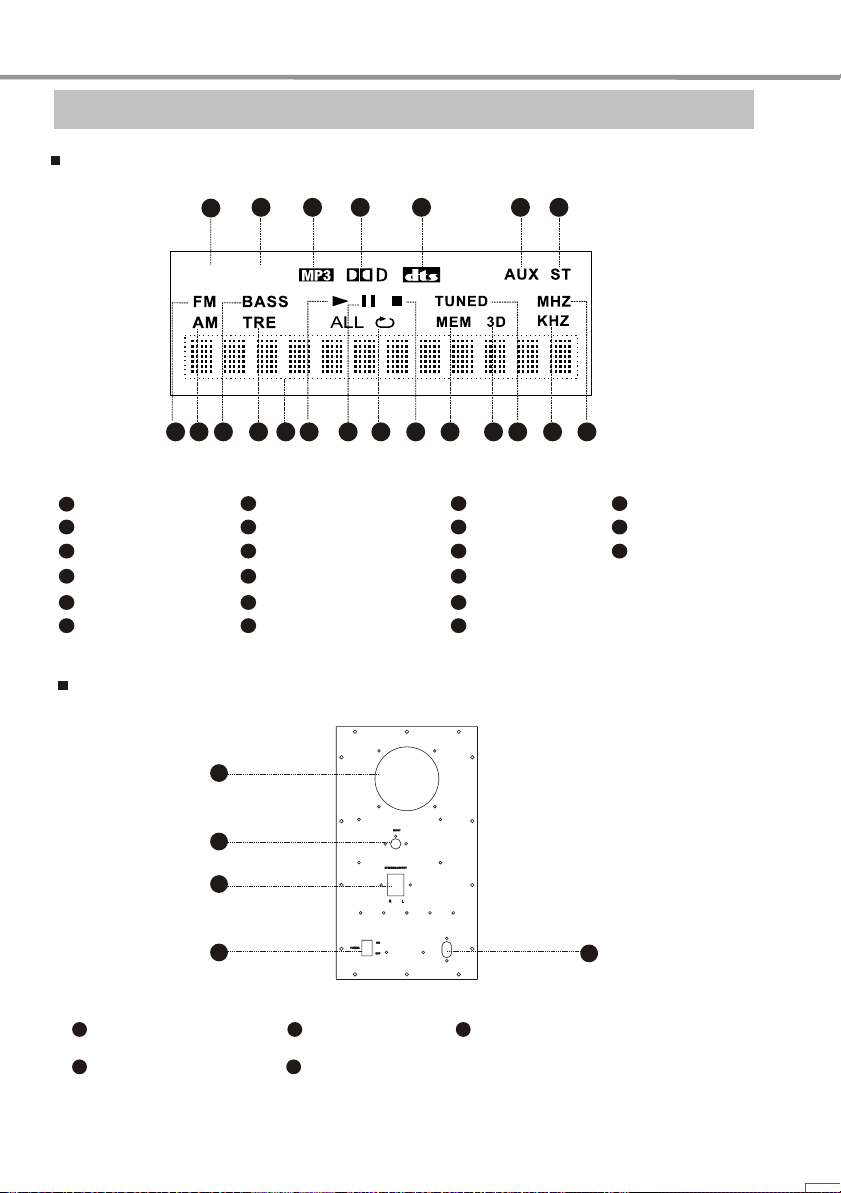

Dot matrix VFD
Subwoofer rear panel illustration
Front Panel Illustration

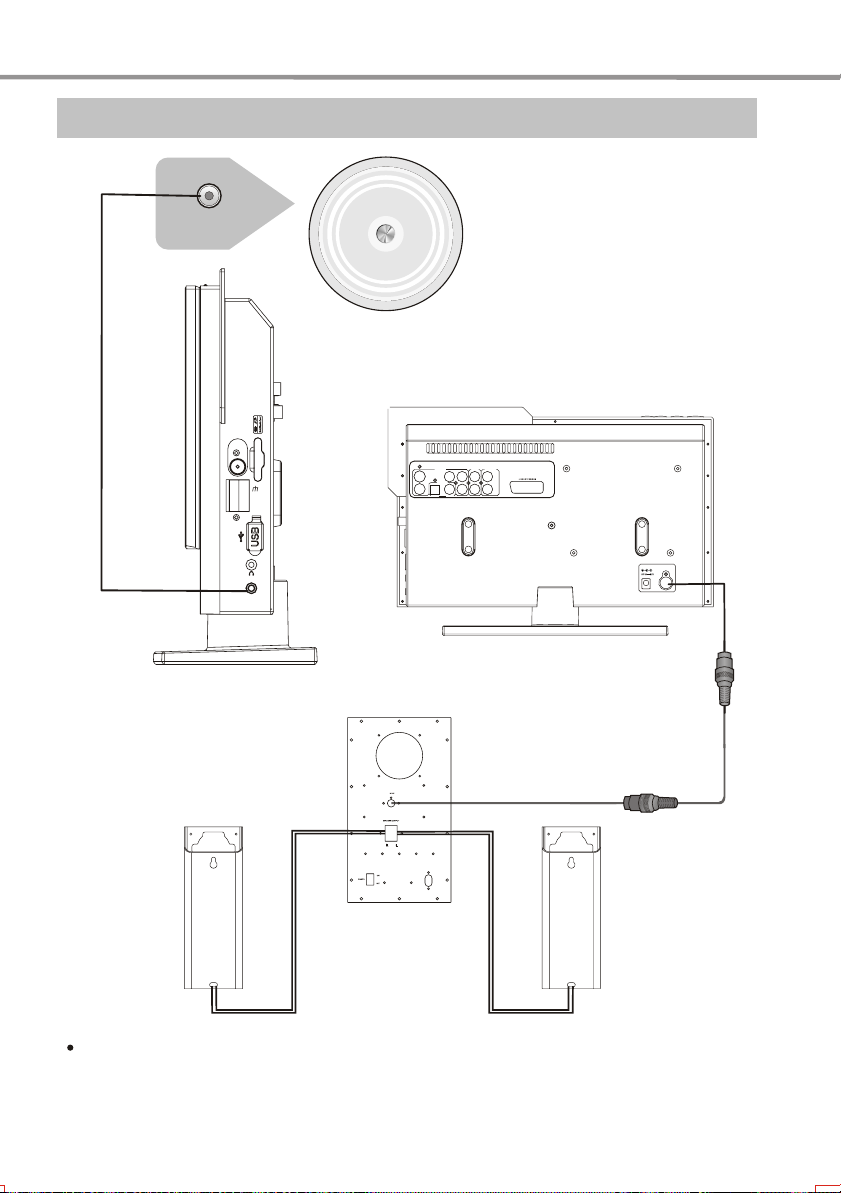

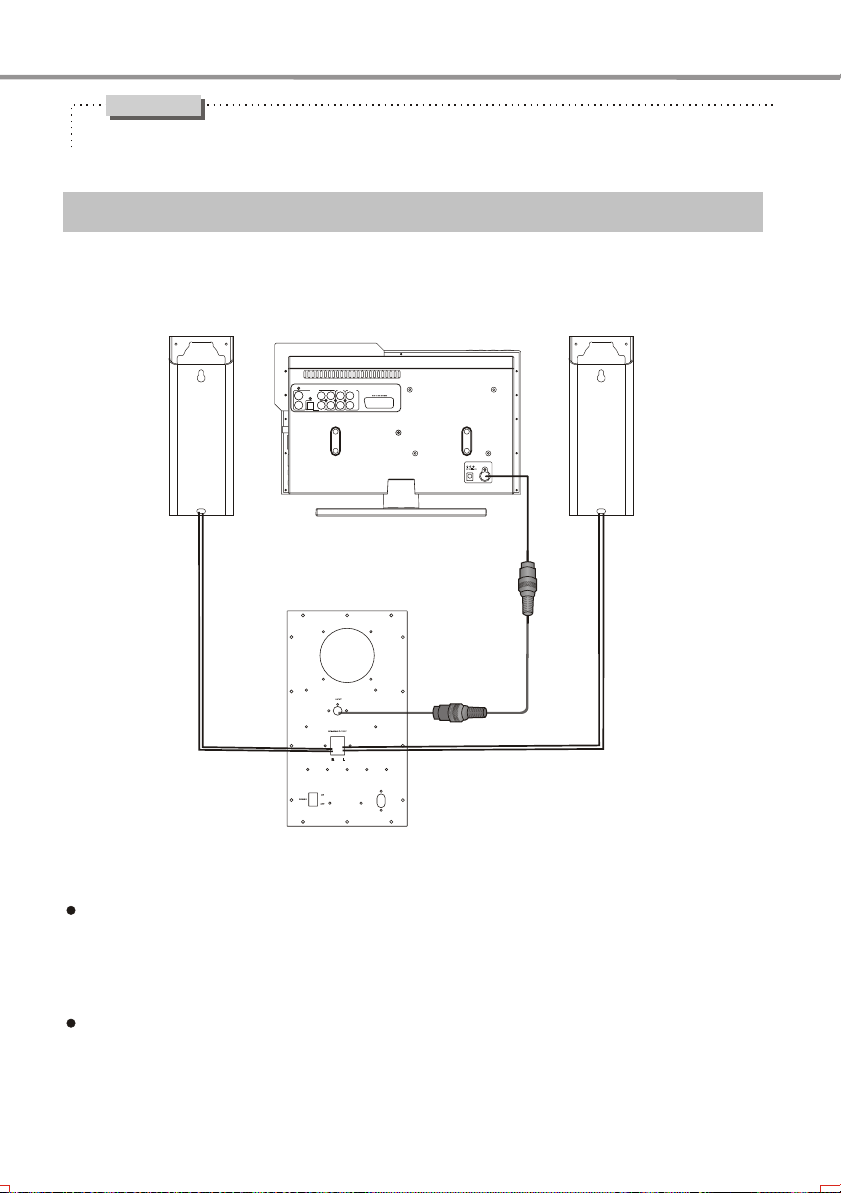

Connected to This Player

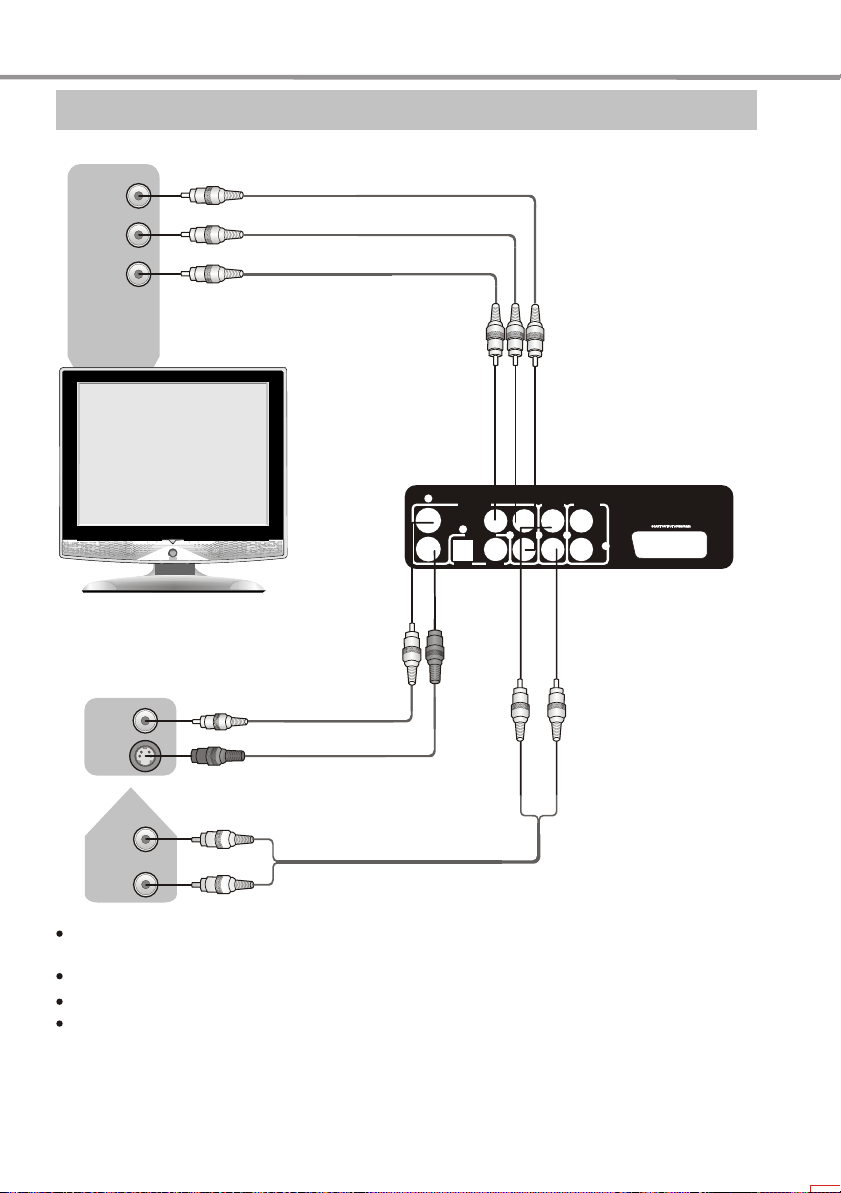

Connected to TV set
Progressive/Interlacing Output Mode
OSD

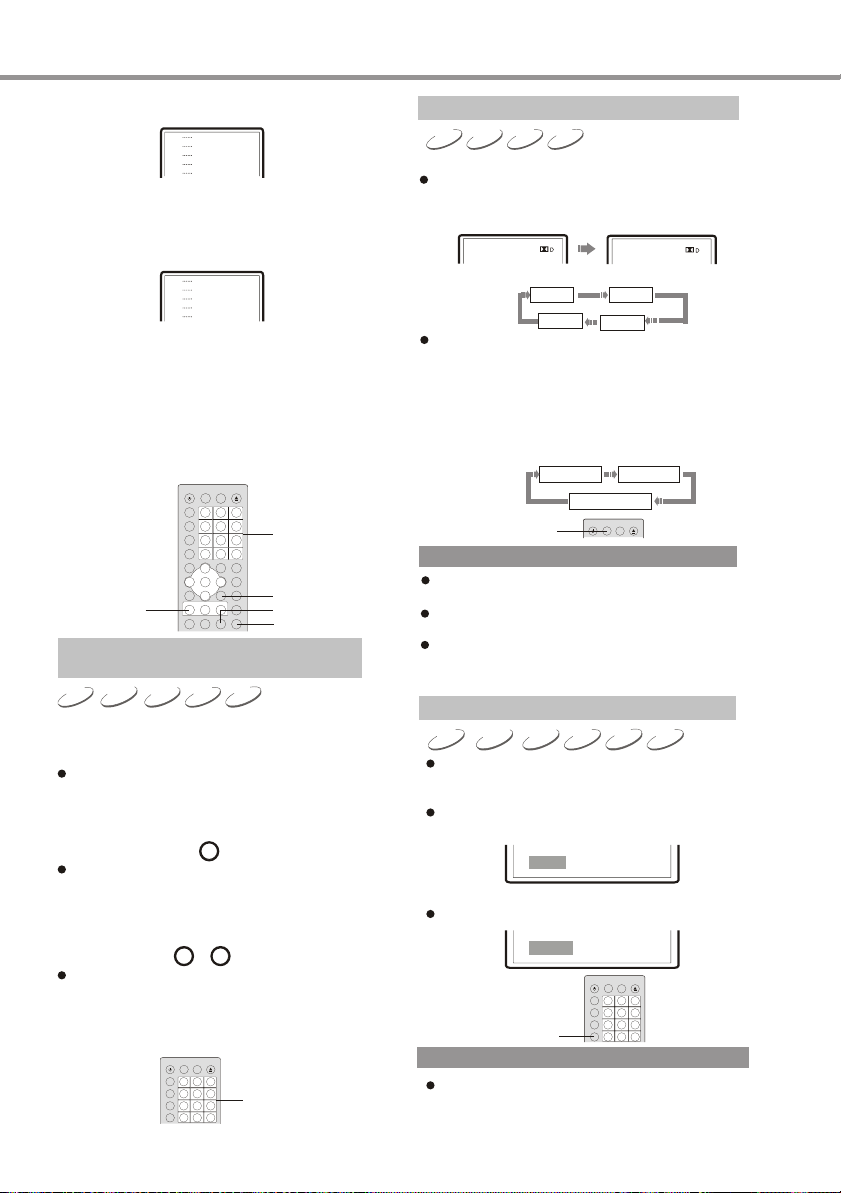

Language/audio channel selection
Zooming the Displayed Frame
MPEG4,MP3 and JPEG File Playing
Sleep power -off time setup
Real-time clock display
Timing Power-on setup
Fast Playback
Angle selection
Quick-play Playback
Repeat the selected section
Repeat playback
Subtitle selection
Playback from the desired point
Headphone enjoying
Specifications for sound system
Tuning
Disc info

1
PREFACE

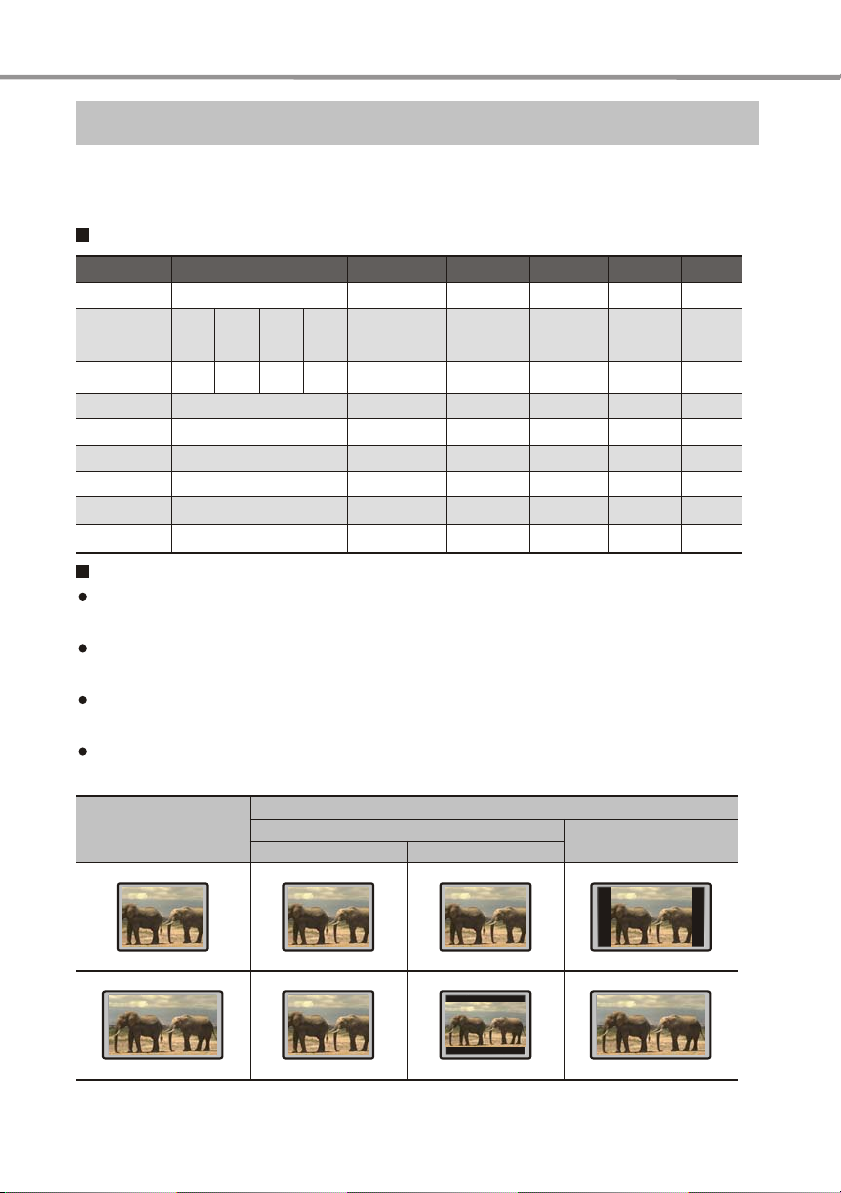

Brief Introduction to DVD
Disc Pictures
TV Screen
4:3 16:9
Pan-Scan Letterbox
16:9
4:3
DVD is well known for its extraordinarily large capacity and outstanding audio-video effects. Its capacity is as high
as 4.7 -17GB (approximately 7-26 times the CD capacity).With 500-line horizontal resolution of picture and Dolby
Digital 5.1 Channel surround sound, it brings a new era to the household AV products.
GB
Analog
Linear PCM
FM modulation
Linear PCM
One
430 lines or more 350 lines or more 250 lines or more
CDROM
650MB
12cm/8cm
VCD
Super VCD
Digital/MPEG1 Digital Digital Digital/MPEG2
650MB
44.1kHz
12cm/8cm
74min.
650MB
12cm/8cm
45min.
CD
650MB
44.1kHz/16bit
12cm/8cm
74min.
LD
44.1kHz/16bit
30cm/20cm
1 side 60min.
2 sides 120min.
Digital/MPEG2
Single-
sided
1layer
4.7G
Single-
sided
2layers
8.5G
Double-
sided
1layer
9.4G
Double-
sided
2layers
17G
133min.
500 lines or more
Multiple
Dolby Digital/Linear PCM
32 types
242min. 266min. 484min.
DVD
48kHz,96kHz/16,20,24bit
12cm/8cm
Recording Method
Capacity
Playback time
Disc Diameter
Horizontal
Resolution
Aspect Ratio
Subtitle
Audio
Sound Quality
Max. 16 types
DVD disc can support as many as 8 dubbing languages and 32 subtitle languages.
DVD disc may support as many as 9 camera angles.
User can select to play the desired plots (the beginning, development or ending) of the same disc.
Multiple aspect ratios support various TV screens.
Multiple languages and subtitles
Multiple angles
Multiple story plots
Multiple aspect ratios
Comparison Between DVD and Other Discs
Function Introduction

2
PREFACE
Cautions
Features
Please remove the power plug from the socket when you are not going to use the player for a long time.
Ensure that all wires and the power supply are properly connected befor turning the Power on.
The player uses the switching power supply .The range of the power supply: AC 110V~250V, 50/60Hz.
Before turning on the power of the player, please adjust the volume level knob of audio system speakers and amp-
lifiers to minimum. Adjust the volume as necessary only after starting normal playback to avoid damage to your
amplifiers or speakers.
Do not put your player near any high power speaker or put both on the same table-board so as to avoid any
influence on its nomal operation due to vibration.
Please put the player at a dry and ventilated area. Do not put it near heat source, or expose it to direct sunlight, me-
chanical vibration, humidity or dust-rich environment ,and also do not put it over heat releasing substances.
When moving the player from a cold place to a warm one, or vice versa, the laser head may have condensation.
Then the player will not work properly. In such a case, please turn the power on for 1-2 hours(without disc) before playing.
It is allowed to use a small amount of neutral detergent to clean the player. Never use sandpaper or organic solvent
such as alcohol or gasoline for cleaning.
Do not place objects full of liquid such as vase on the player.
MAINS plug is used as the disconnect device, so mains plug shall always remain readily operable.
This player has employed the new generation DV decode chip with built-in Dolby Digital decoder which will
bring you to a brand-new AV ententainment world. The 2-laser super error-correction mechanism supports CD-R.
Brand-new AV Effects
Progressive-scan video outputs to eliminate the flickers hardly overcome by interlacing scan and therefore your
eyesight will be well-protected. At the same time, the pictures definition is sharply enhanced and the pictures will
be finer, smoother and stabler.
Brightness, chroma and contrast adjustment functions to render your eyes more comfortable.
Composite Video, S-Video and Component Video outputs.
Dolby output for 2channel(DOWNMIX)
High Quality Digital Audio
Optical and coaxial outputs for Digital audio.
Dobly Digital, PCM Digital audio outputs to satisfy the Fans’ acoustic requirements.
Many Convenient Features
Screen saver protects your TV set carefully.
The novel Mp3 playback window GUI provides you a new way to appreciate Mp3 music.
Multi-angle playback function makes it possible for you to view a scene from different camera angles.
It’s possible to select the desired beginning, development and ending of a story.
Direct entry into desired scenes(title/chapter/time/track search).
Zooming function to zoom up any playing picture.
Capable of playing PAL/NTSC discs.
Multiple aspect ratios to fit TV sets of various screen ratios.
Parental lock function to prevent children from watching unsuitable discs.
Multiple dubbing languages and subtitle languages bring you the best entertainment status all the time.
Super Compatibility with super VCD, VCD, CD , CD-R , MP3,HDCD,KODAK PICTURE CD etc.
Compatible with DivX, MPEG4 discs to produce wonderful pictures.
108MHz/12bit video DAC, with more vivid and brilliant pictures.
NOTE: DivX version is still upgrading continuously and the latest version of this unit is DivX 5.1. Some discs
labelled with MPEG4 on the market actually are*.rm/*.ram/*.rmm and others which are imcompatible.
Please take care when buying discs.
Compatible with three fashion storage cards such as MMC/SD/MS (Memory stick) Capable of reading the audio/video data
in the storage cards through card reader.
Compatible with USB equipment, capable of reading the audio/video data in the USB through USB port.
Hi-Fi stereo headphone output.
2-way separate audio input function.
FM/AM digital tuning function, capable of storing (memorizing) 20 FM or AM radio stations.
High/low tone control, 2-channel separate volume fining function.
Real time clock (year, month, date, hour, minute, second) display, timing power on/off function.
Power amplifier employs high-performance and large-power IC, with complete protection and perfect sound quality.
Subwoofer employs large diameter bass unit matched with large-capacity speaker body to produce deep and dynamic effect.
Main speaker is dual-magnetic and magnetic shielded design for environmental protection, with clear and sweet sound quality.
More personalized mini I-Link connection, simple and convenient.
8
9
10
11
12
13
14
15
16
17
DVD-Audio decoding output to reproduce original and realistic sound effects.
18
