Optex HX-40 User manual

N219
CONTENTS
1 INSTALLATION PRECAUTIONS............2
1-1 BEFORE INSTALLATION................2
1-2 PARTS IDENTIFICATION................3
1-3 KNOCKOUTS..................................4
1-4 DETECTION AREA..........................5
1-5 DETERMINATION OF PIR
DETECTION LENGTH ....................5
2 INSTALLATION.......................................6
2-1 MOUNTING WITH BRACKET.........6
2-2 ADJUSTING THE VERTICAL
ANGLE.............................................8
2-3 MOUNTING WITHOUT
BRACKET........................................9
2-4 WIRING .........................................10
2-5 WALL TAMPER (OPTION) ............11
3 WALK TEST..........................................12
4 SETTING..............................................13
5 AREAADJUSTMENT...........................16
6 LED INDICATION.................................17
7 SPECIFICATIONS................................18
7-1 SPECIFICATIONS.........................18
7-2 DIMENSIONS................................19
HX-40 2 PIRs standard model
HX-40AM HX-40 with anti-masking
HX-40DAM HX-40AM with micro-wave
3.0 m high mount detection area (12.0 m)
Unique pyro element
Intelligent AND logic
Dual signal processing logic
Vegetation sway analysis logic
Ideal detection area setting
Digital anti-masking (AM/DAM model only)
Microwave range selector (DAM model only)
•
•
•
•
•
•
•
•
NO.59-1501-3
INSTALLATIONINSTRUCTIONS
High Mount
Outdoor Detector
HX-40/40AM/
40DAM
HX-40/40AM/
40DAM
High Mount
Outdoor Detector
- 1 -
HX-40DAMEN.indd1 2010/06/2414:11:55

1INSTALLATION PRECAUTIONS
1-1 BEFORE INSTALLATION
Warning Failure to follow the instructions provided with this indication and improper
handling may cause death or serious injury.
Caution Failure to follow the instructions provided with this indication and improper
handling may cause injury and/or property damage.
The check mark indicates recommendation.
The nix sign indicates prohibition.
Warning Warning Caution
Do not repair or modify
product Keep product away from water Mount the unit securely
Mounting height Keep the detector parallel to the ground.
Consider the direction a person is approaching from, as well as the detection area.
Install the detector in a place where it is free from false alarm factors. For example:
Sunlight and reflection• Heat source• Objects moving in the wind•
Tilt
Parallel
2.5 m – 3.0 m
(8'2" – 9'10")
- 2 -
HX-40DAMEN.indd2 2010/06/2414:11:57

-Precautions for installing two or more sensors HX-40
HX-40AM
HX-40DAM
Do not install two or more HX-40DAM’s units side-by-side or face-to-face. Instead, install them
back-to-back. If mounting on the same wall, be sure they are at least 1.0 m (3'3") apart from
each other.
1.0 m (3'3") or more Less than 1.0 m (3'3")

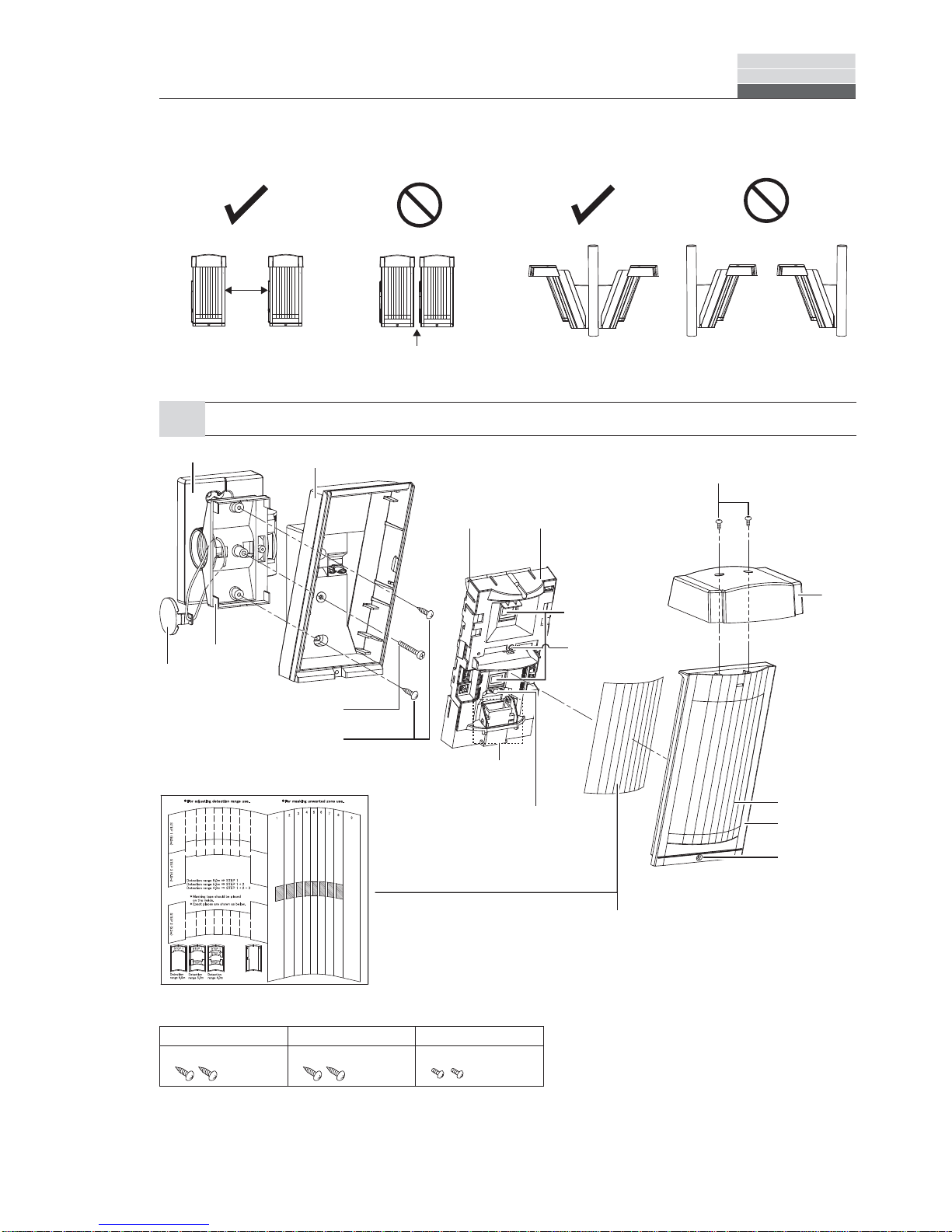

1-2 PARTS IDENTIFICATION
Screw kit
For joint For wall mounting For hood
Screw (4 × 20 mm) Screw (4 × 20 mm) Screw (3 × 10 mm)
*Lock screw attached on bracket base
Bracket base Screw (3 × 10 mm)
Area masking seal
Main unit
Bracket
LED indicator
Lock screw* (M4 × 35 mm)
Lens
Base
PIR sensor
(Do not touch)
Terminals
Shaft cover
Cover
Lock screw
Hood
Anti-masking infrared LED
(HX-40AM/DAM only)
Microwave unit
(HX-40DAM
only)
(Do not touch)
Screw (4 × 20 mm)
- 3 -
HX-40DAMEN.indd3 2010/06/2414:11:58

1-3 KNOCKOUTS
For wall fastening/bracket fastening
(installation pitch 83.5 mm (3.29")) For main unit fastening
Adjustment screw
Bracket
Main unit
(Off-the-shelf) magnet switch
installation position
For bracket
Up-Down lock screw
Wiring Hole
For wall
fastening For switch box fastening
Do not touch
Up-Down
lock screw
Wiring
knockout
Wiring sponge pad
Wiring Hole
- 4 -
HX-40DAMEN.indd4 2010/06/2414:11:58

1-4 DETECTION AREA
0
2
4
6
8
(m)
(m)
2
4
6
8
MW
PIR
MW
PIR
M
W
PIR
10'
3.0 m2.5 m
5'
0'
(ft.)
(ft.)
20'
10'
10'
20'
0'
(ft.)
(ft.)
10'
5'
0'
(ft.)
10'
12.0 m
12.0 m
0' 20' 30' 40'
40'
40'
(ft.)
10'0'
246810
10
10 12
(m)
20' 30' 40'
(ft.)
10'0' 20' 30' 40'
85°
10°
20°
30°
40°
1-5 DETERMINATION OF PIR DETECTION LENGTH

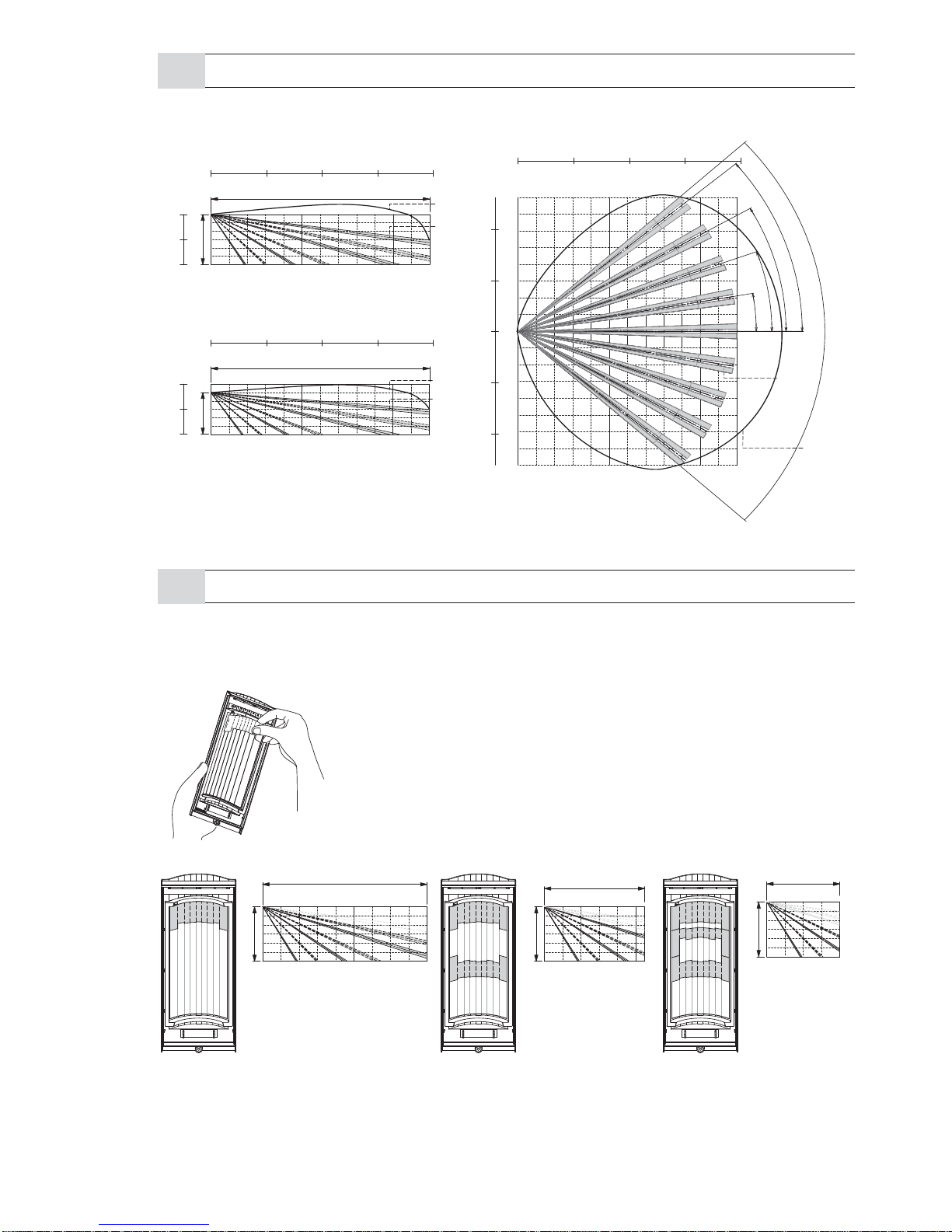

To adjust the detection length, apply the masking seals to the back of the lens according to
the required detection length. Three types of masking seals are provided. Combine them
according to the detection length required.
Apply masking seal directly on the back side of the lens.
1
3
2
11
2
For microwave detection setting please refer to “4 SETTING”.
(Mounting height: 2.5 m (8'2"))
Top viewSide view
(Mounting height: 3.0 m (9'10"))
Vertical angle: 1 click (2.5°) upward
(Refer to “caution” in 2-2).
•
9.0 m (29'6")
3.0 m (9'10")
5.5 m (18'1")
3.0 m (9'10")
4.0 m (13'1")
3.0 m (9'10")
- 5 -
HX-40DAMEN.indd5 2010/06/2414:11:59

Use the bracket for normal installation. The unit may be mounted directly on the wall, without
the bracket, only if the following three conditions are not;
The mounting height 3.0 m (9'10").
Horizontal direction adjustment is unnecessary.
The ground is level.
•
•
•
2-1 MOUNTING WITH BRACKET

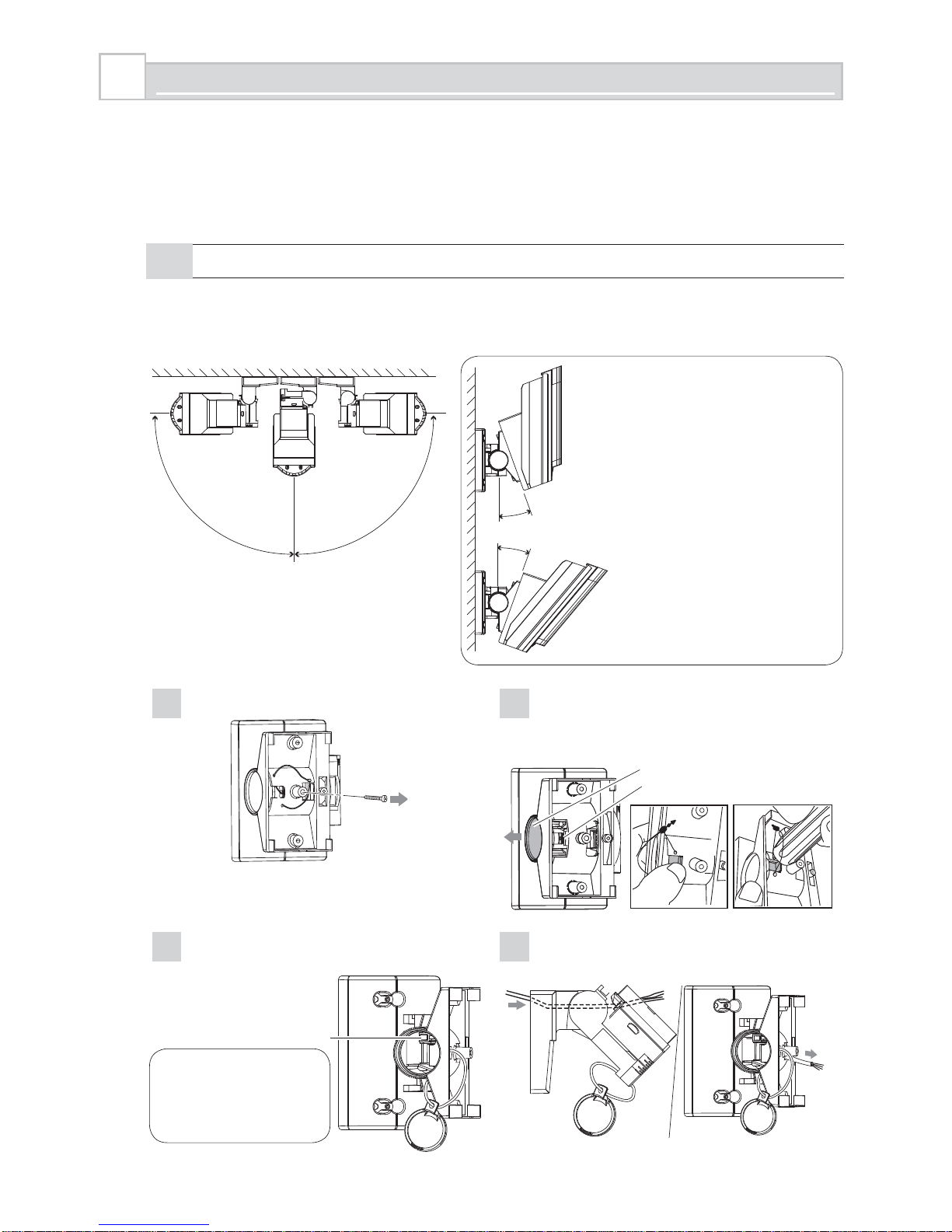

Using the bracket makes it possible to adjust the unit horizontally by ±90°.
In cases where the ground is uneven and/or not parallel with the base of the unit, it is possible
to adjust the unit vertically by ±20°.
2INSTALLATION
90° 90° 20°
20°
Caution>>
Do not change the detection
length with bracket.
Use the masking seal to
adjust the detection length.
1Remove the Up-Down lock screw. 2
Push the shaft cover clip straightforwardly with
your thumb. In case the clip is stuck, use a
suitable tool. e.g. back side of a screw driver.
Shaft cover clip
Shaft cover
3Loosen the adjustment screw two turns. 4Tilt the bracket about 45° and pass
through the wire.
In Out
Adjustment screw
Caution>>
Do not loosen the
screw too much.
It may disassemble.
- 6 -
HX-40DAMEN.indd6 2010/06/2414:11:59

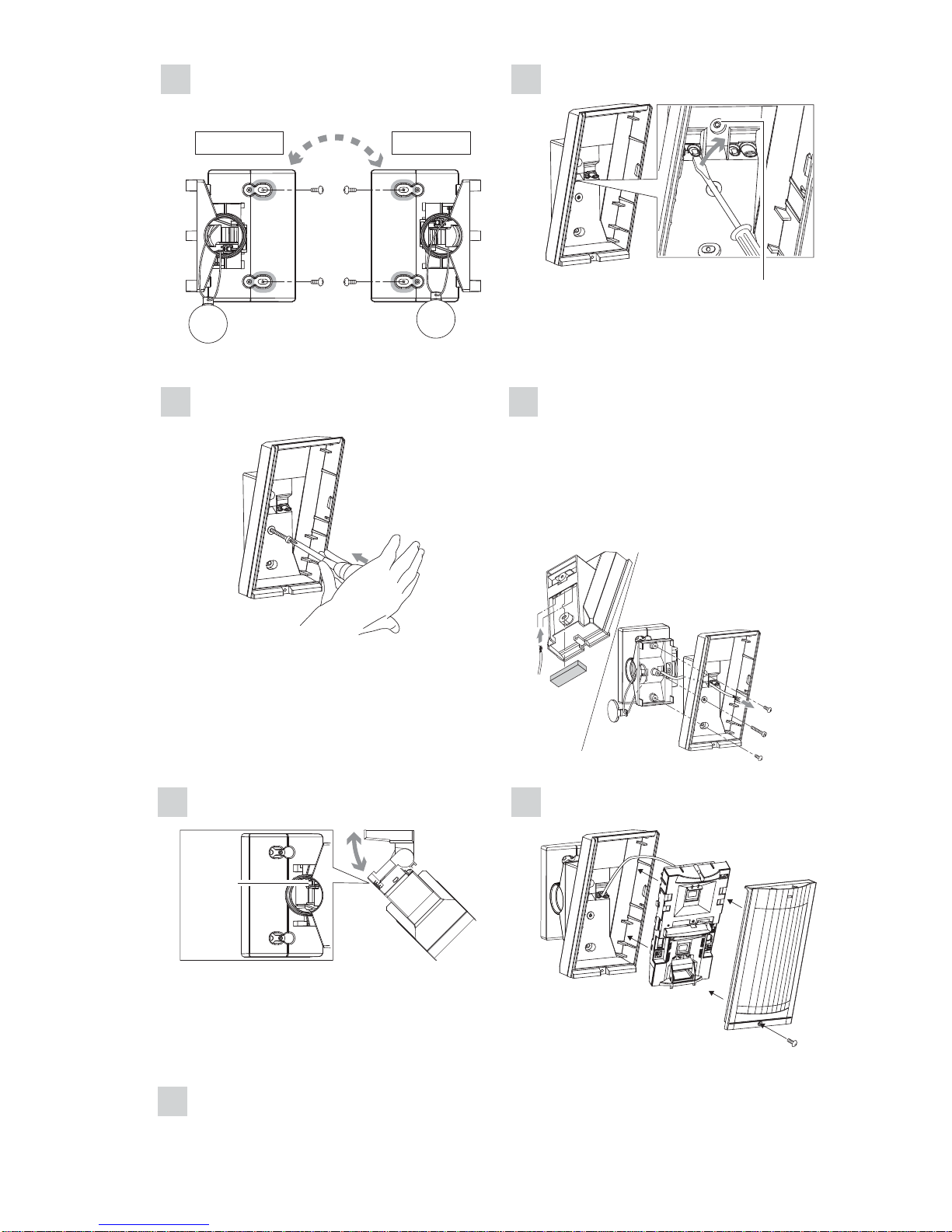

5Determine the horizontal direction (left or
right) of the detector before installing the
bracket on the wall. 6Open the wiring knockout.
7Open the Up-Down lock screw knockout
for connecting the bracket.
Knockout with 4 × 20
tapping screw (screwkit)
8
Tighten screws 1 and 2 , adjust the bracket
angle (refer to 2-2), then tighten screw 3 .
Perform an area check. If re-adjustment is
required, loosen screw 3and change the
bracket angle.
After the adjustment is complete, tighten
screw 3again.
To the right To the left
Wiring knockout
24 × 20 screw
Wiring
hole
Out
Wiring
sponge pad
14 × 20 screw
34 × 35 Up-Down
lock screw
In
Adjustment
screw
9Tighten the adjustment screw clockwise. 10 Wire to the terminal and install the main
unit and lens on the base.
11 Install the shaft cover into place.
- 7 -
HX-40DAMEN.indd7 2010/06/2414:12:00

2-2 ADJUSTING THE VERTICALANGLE
For best performance, install detector parallel to the ground.
Decide the detection length. If you choose 9.0 m/5.5 m/4.0 m, mask the unnecessary lens with
masking seals. Refer to the 1-5 for the details.
Caution>>
If the base of the unit is already parallel to the ground,
Do not change the detection length by tilting the unit up or down. Detection length should
be adjusted with masking seal. Refer to 1-5 and 2-1 for the details.
•
12.0 m (40')
3.0 m (9'10")
If the detection length is
shorter than the designated
one (refer to page 5), change
the detector angle upward.
If the detection length is
longer than the designated
one (refer to page 5), change
the detector angle downward.
If the detection length is
equal to the designated
one, adjustments have
been completed.
0° is the right setting for 3.0 m
(9'10") height installation.
4 clicks (10°)
2 clicks (5°)
0°
Adjust 1 click (2.5° upward) for 2.5 m
(8'2") height installation.
Example (the ground is level)
* This is the case to have 12 m detection length.
Perform the walk test to check
if detector is parallel to the
ground.
- 8 -
HX-40DAMEN.indd8 2010/06/2414:12:01

2-3 MOUNTING WITHOUT BRACKET
1Open the wiring knockout with suitable
tool e.g. screwdriver.
3Fasten the base to the wall.
2Pull the wire through the base knockout.
4Install main unit after wiring to the
terminal.
In
Out
Wiring sponge pad
- 9 -
HX-40DAMEN.indd9 2010/06/2414:12:01

9.5-18VDC
+
–
N.C.
COM
N.O.
N.C.
COM
N.O.
SPSP
T.O.(N.C.)
AUX
(N.C.) (N.C.)
TAMPER
(N.C.) (N.C.)
TAMPER
INPUT TROUBLE
OUTPUT ALARM POWER
+
–
SPSP
AUX
INPUT ALARM POWER
9.5-18VDC
*1: TAMPER terminals to be connected to a 24 hour supervisory loop.
TAMPER OUTPUT (N.C.) *1 AUX INPUT (N.C.) TROUBLE OUTPUT (N.C.) SPARE (Non short)
ALARM OUTPUT (N.O.) ALARM OUTPUT (COM) ALARM OUTPUT (N.C.) POWER INPUT (-) (9.5 - 18VDC) POWER INPUT (+) (9.5 - 18VDC)
HX-40AM
HX-40DAM
HX-40
2-4
WIRING
Power wires should not exceed the following lengths.
WIRE GAUGE HX-40 HX-40AM HX-40DAM
12 V 14 V 12 V 14 V 12 V 14 V
AWG22 (0.33 mm2)160 m
(520') 360 m (1,180') 140 m (460') 310 m (1,020') 120 m (390') 250 m (820')
AWG20 (0.52 mm2)260 m
(850') 560 m (1,840') 230 m (750') 490 m (1,610') 180 m (590') 390 m (1,280')
AWG18 (0.83 mm2)410 m
(1,350') 900 m (2,950') 360 m (1,180') 780 m (2,560') 290 m (950') 630 m (2,070')
- 10 -
HX-40DAMEN.indd10 2010/06/2414:12:01

2-5 WALL TAMPER (OPTION)

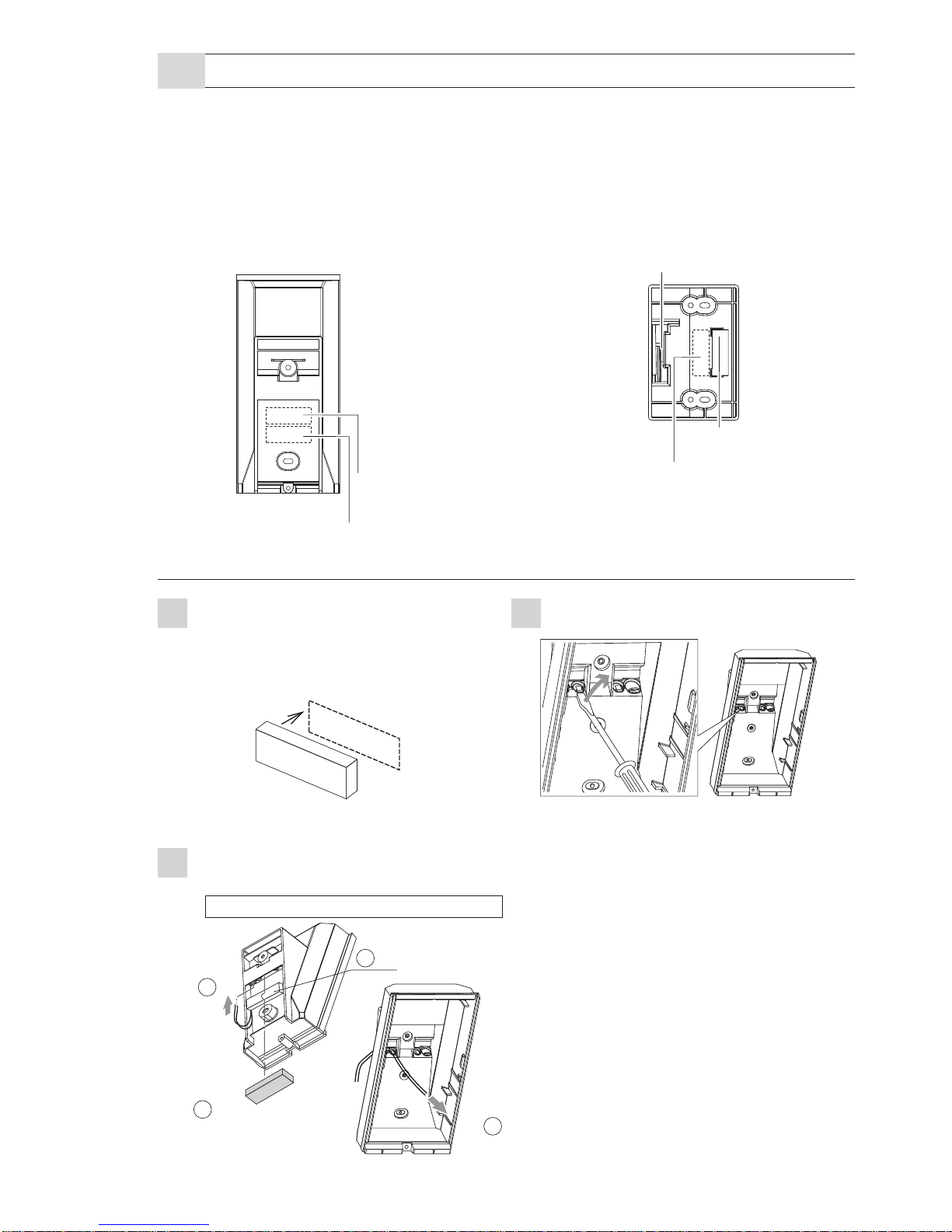

Universal magnet switch may be mounted as a wall tamper.
Installation space for universal magnet switch is provided on the back of the main unit and the
bracket.
Maximum size of an applicable universal magnet switch: D 9 mm (0.35'') × W 40 mm (1.57'') × H 9
mm (0.35'').
Universal magnet switch on the market assist is not included.
-Installation
1
Install the universal magnet switch (wall
side) to the wall. To determine the install
position, use the “Install position template”
provided on the inside cover of the product
package.
2Open the wiring knockout with suitable
tool e.g. screwdriver.
3Install the other portion of the universal magnet switch to the back of the main unit or the
bracket. Pull the wiring through the knockouts.
2
1
3
4
BracketMain unit Wiring Hole
Magnet switch (Wall side)
installation position
Magnet switch (Base side) installation position
Magnet switch
(Bracket side)
installation position
Magnet switch (Wall side)
installation position
When not using the bracket
Fix
In
Wiring sponge pad Out
- 11 -
HX-40DAMEN.indd11 2010/06/2414:12:02

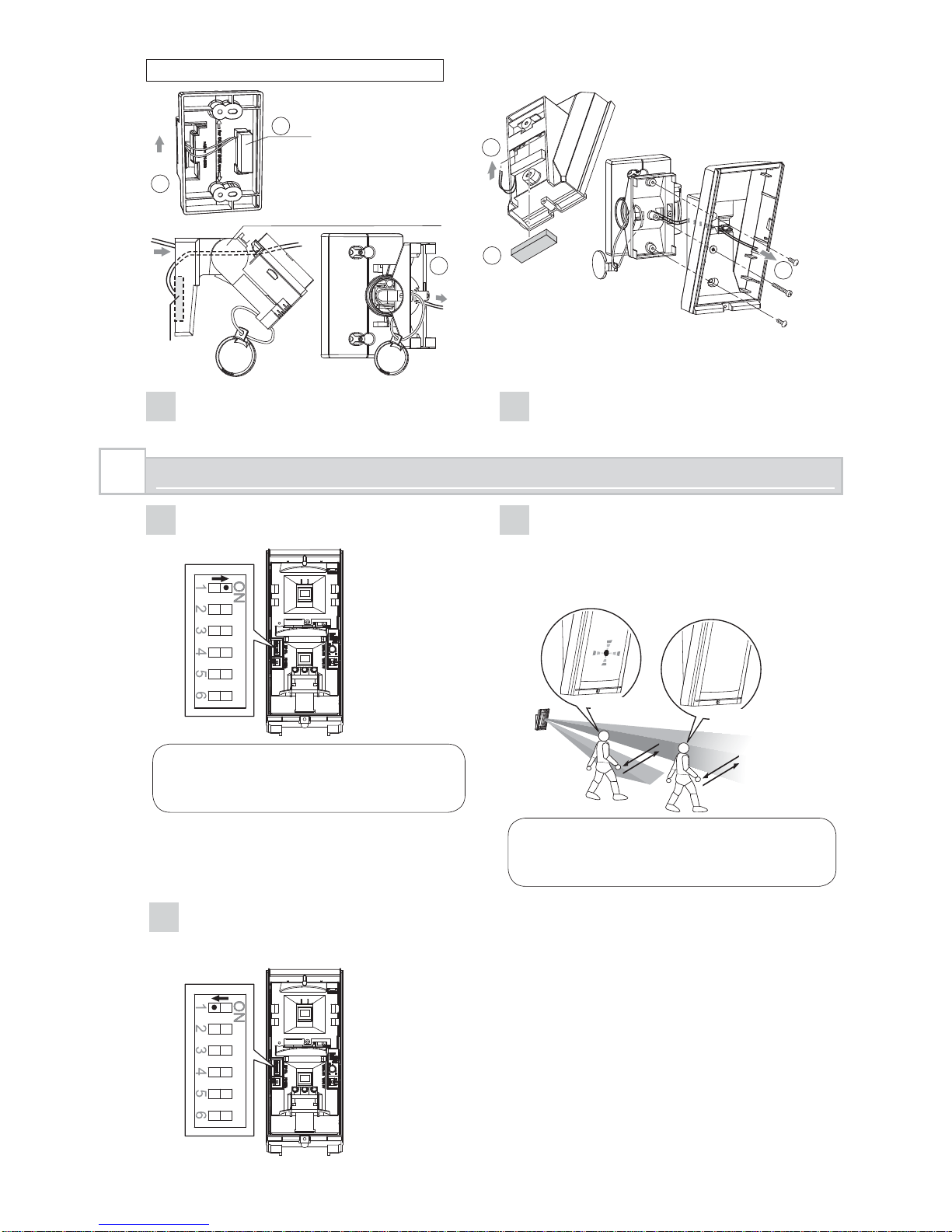

1Set the DIP switch 1 (LED ON/OFF) to
“ON”.
Note>>
The switch is set “ON” by factory
default.
2Check that the detector detects an
object in the intended detection area.
The installation has been successful if
the LED lights for two seconds after a
person walks into the detection area.
Detected Not detected
Note>>
For the walk test, move more than 1.0 m
(3'3") away from the detector.
3If the LED indication is not required at all
times, set the DIP switch 1 (LED ON/
OFF) to “OFF”.
3WALK TEST
2
3
4
65
1
4Install the bracket and the main unit to
the wall surface. 5
Connect the universal magnet switch wiring
to the tamper terminal of the main unit.
When using the bracket
Fix
In
Wiring
sponge pad
Out
In
In Out
Tilt the bracket about 45° and
pass through the wire.

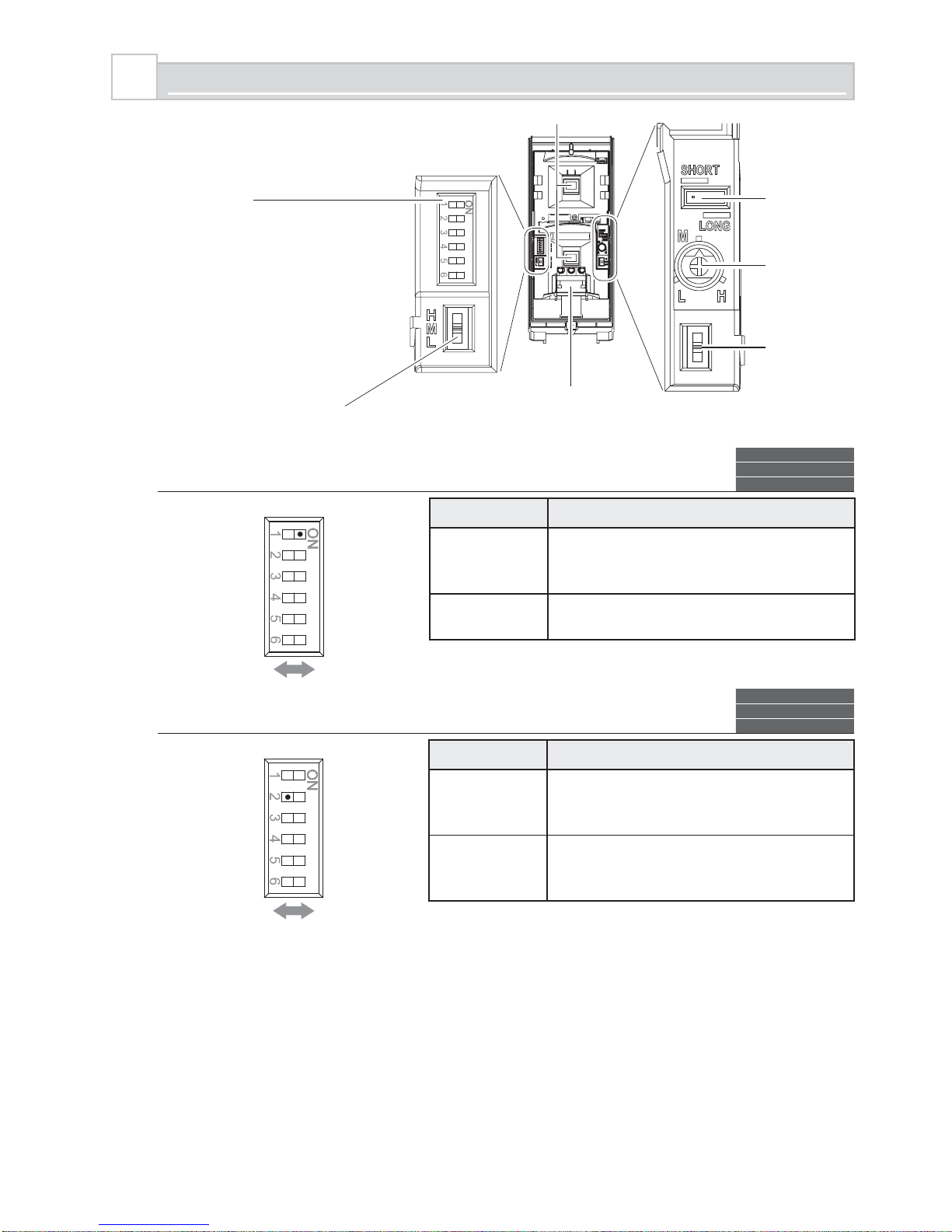

Magnet
switch
- 12 -
HX-40DAMEN.indd12 2010/06/2414:12:02

-LED ON/OFF DIP switch 1HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
ON
(Factory
default)
The LED lights when someone is
detected.
OFF The LED does not light even if
someone is detected.
-PIR IMMUNITY DIP switch 2HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
STD
(Factory
default) PIR IMMUNITY logic is not activated.
IMMUNITY PIR IMMUNITY logic is activated. Use this under harsh environment (e.g.
small animal).
4SETTING
MW range
selector
HI
STD
OFF
MW sensitivity
adjustment
Anti masking
sensitibity
selector
DIP switch
1. LED ON/OFF
2. PIR IMMUNITY
3. AUX INPUT
4. TROUBLE OUTPUT
5. MICROWAVE IMMUNITY
6. (Reserved)
Do not touch
PIR sensitivity selector
STD IMMUNITY
OFF ON
Do not touch
- 13 -
HX-40DAMEN.indd13 2010/06/2414:12:03

-AUX INPUT DIP switch 3HX-40
HX-40AM
HX-40DAM
By connecting a satellite unit (another warning sensor), you can extend the detection area
and correct false alarms. As a satellite unit, you can use any general no-voltage contact
output (NC) warning sensor, including the following.
<Infrared (AIR) sensors, thermal line (PIR) sensors, universal magnet switches, etc.>
POSITION FUNCTION
AND
(Factory
default)
When both the main unit and the satellite detect someone, the
alarm is output.
Set to this when not connecting a satellite unit.
OR
When either the main unit or the satellite detects someone,
the alarm is output.
Notes>>
The alarm does not output unless both the main unit and the satellite
detect someone within 60 sec.
If the OR mode is selected without a satellite unit connected, the alarm
is generated continuously.
•
•
-TROUBLE OUTPUT DIP switch 4HX-40
HX-40AM
HX-40DAM
Trouble output is used for anti-masking signal.
When an object is placed close to the lens surface, for a period of more than 180 sec., the IR
Anti-Masking circuit is activated and generates a trouble signal.
POSITION FUNCTION
ON
(Factory
default) Anti-masking signal is output from TROUBLE OUTPUT
terminal.
OFF Anti-masking signal is output from both TROUBLE and
ALARM OUTPUT terminal.
Note>>
Use this when not wiring a detected trouble input terminal on the control
panel.
-MICROWAVE IMMUNITY DIP switch 5HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
STD
(Factory
default) MICRO WAVE IMMUNITY logic is not activated.
IMMUNITY MICRO WAVE IMMUNITY logic is activated. Use this
under harsh environment (e.g. vegetation sway).
AND OR
ONOFF
STD IMMUNITY
- 14 -
HX-40DAMEN.indd14 2010/06/2414:12:03

-MW RANGE SELECTOR/MW SENSITIVITY ADJUSTMENT
RANGE SELECTOR/
SENSITIVITY
ADJUSTMENT
HX-40
HX-40AM
HX-40DAM
PIR AREA SETTING DETECTION AREA
(SIDE VIEW) MW RANGE SELECTOR MW SENSITIVITY ADJUSTMENT
Factory default
0
MW
PIR
LONG MID
M
HL
1
0
MW
PIR
SHORT HIGH
M
HL
1
20
MW
PIR
SHORT MID
M
HL
1
3
20
MW
PIR
SHORT LOW
M
HL
12.0 m
(40')
9.0 m
(29'6'')
5.5 m
(18'1'')
4.0 m
(13'1'')
SHORT
LONG
SHORT
LONG
SHORT
LONG
SHORT
LONG
- 15 -
HX-40DAMEN.indd15 2010/06/2414:12:03

-DETECTION LENGTH ADJUSTMENT
To limit the detection length, apply the appropriate masking seal. Note that there are three
different types of seal.
1
3
2
11
2
-AREA MASKING
1
2
3
4
5
6
7
8
9
0
1
9
2
8
3
7
4
6
556
-PIR SENSITIVITY PIR
SENSITIVITY SELECTOR
HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
HIGH High sensitivity
MIDDLE
(Factory default) Middle sensitivity
LOW Low sensitivity
-ANTI-MASKING SENSITIVITY ANTI-MASKING
SENSITIVITY SELECTOR
HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
HIGH High sensitivity
STD
(Factory default) Standard sensitivity
OFF Disabled
Caution>>
When closing the cover, do not leave any object within
1 meter from the unit.
HIGH
MIDDLE
LOW
HIGH
STD
OFF
Area masking seal
Pasting on example for
masking No. 5 and No. 6
9.0 m (29'6")
3.0 m (9'10")
5.5 m (18'1")
3.0 m (9'10")
4.0 m (13'1")
3.0 m (9'10")
5AREAADJUSTMENT
- 16 -
HX-40DAMEN.indd16 2010/06/2414:12:04

-HX-40/40AM
DETECTOR CONDITION LED INDICATOR (RED ONLY)
Warm-up Blinks for approx. 60 sec.
Alarm Lights for 2 sec.
Trouble
output
Anti-Masking
booting
(Anti-Masking
start up)
Blinks 2 times and goes off for 5 sec. and then repeats for 180 sec.
Masking detection
Blinks 3 times and goes off for 3 sec. and then repeats.
-HX-40DAM
DETECTOR CONDITION LED INDICATOR
Warm-up Blinks for approx. 60 sec.
Alarm Red lights for 2 sec.
PIR detection Green lights for 2 sec.
MW detection Yellow lights for 2 sec.
Trouble
output
Anti-Masking
booting
(Anti-Masking
start up) Green and Red blink 2 times simultaneously and go off for
5 sec. This sequence is repeated for 180 sec.
Masking detection Green and Red blink 3 times simultaneously and go off for
3 sec. This sequence is repeated.
6LED INDICATION
Red
Blink Light OFF
Green
(HX-40DAM only)
Yellow
(HX-40DAM only)
- 17 -
HX-40DAMEN.indd17 2010/06/2414:12:04

7SPECIFICATIONS
7-1 SPECIFICATIONS
Model HX-40 HX-40AM HX-40DAM
Detection method Passive infrared Passive infrared & Microwave
PIR Coverage 12.0 m (40') 85° wide / 94 zones
PIR distance limit 4.0 m, 5.5 m, 9.0 m (13'1", 18'1", 29'6")
Detectable speed 0.3 m/s – 1.5 m/s (1'/s – 4'11"/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s
Power input 9.5 – 18 V DC
Current draw 35 mA (max.)
at 12 V DC 40 mA (max.) at 12 V DC 50 mA (max.)
at 12 V DC
Alarm period 2.0 ±1 sec.
Warm-up period Approx. 60 sec. (LED blinks)
Alarm output Form C 28 V DC 0.2 A (max.)
Tamper output N.C. 28 V DC, 0.1 A (max.) N.C. open when cover removed.
Trouble output – N.C. 28 V DC, 0.1 A (max.)
Aux input N.C. 28 V DC, 0.1 A (max.)
LED indicator Red: Warm-up,
Alarm
Red: Warm-up,
Alarm,
Trouble
Red:
Warm-up, Alarm, Trouble
Green:
Warm-up, PIR detect, Trouble
Yellow:
Warm-up, MW detect
RF interference No alarm 10 V/m
Operating temperature -20 – +60°C (-4 – +140°F)
Environment humidity 95% max.
Weatherproof IP55
Mounting Wall
Mounting height 2.5 – 3.0 m (8'2" – 9'10")
Bracket adjust angle Vertical: ±20° Horizontal: ±95°
Weight 600 g (21.2 oz.) 700 g (24.7 oz.)
Accessories
Bracket, Hood, Area masking seal, Screw (3 ×10 mm) ×2, Screw (4 ×20 mm) ×4
*Specifications and designs are subject to change without prior notice.
- 18 -
HX-40DAMEN.indd18 2010/06/2414:12:05

7-2 DIMENSIONS
99 (3.90)
205 (8.07)
266 (10.47)
148 (5.83)
197.5 (7.78)
92 (3.62)
Using bracket and hood
Unit: mm (inch)
Without bracket and hood
Unit: mm (inch)
- 19 -
HX-40DAMEN.indd19 2010/06/2414:12:05

NOTE
The following statement will be provided with the equipment as required by Article 6.3 of the
R&TTE Directive, 1999/5/EC.
The Optex HX series are in conformity with all essential requirements of the R&TTE Directive
(1999/5/EC). This equipment has been assessed to the following standards:
EN 300 440-1: 2009
EN 50130-4: 2004 including amendment 2: 2003
EN 60950-1: 2006+A11: 2009
This product is marked with which signifies conformity with Class II product
requirements specified in the R&TTE Directive.
The following table indicates the areas of intended use of the equipment and any known
restrictions. For countries not included in this list, please consult the responsible Spectrum
Management Agency.
Country of intended use Restrictions Country of intended use Restrictions
Austria 9.900GHz Luxembourg 10.525GHz
Belgium 10.525GHz The Netherlands 10.525GHz
Denmark 10.525GHz Spain 10.525GHz
Finland 9.900GHz Sweden 10.525GHz
France 10.587GHz United Kingdom 10.587GHz
Greece 10.525GHz
Other non-EU: Iceland 10.525GHz
Ireland 10.587GHz Norway 10.525GHz
Italy 10.525GHz Switzerland 10.525GHz
FCC ID : DC9 OPMW IC : 4012A-OPMW
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The HX-40 series is only a part of a complete system, therefore we cannot accept complete
responsibility for any damages or other consequences resulting from an intrusion.
OPTEX INCORPORATED (USA)
TEL:[phone]
Tech:[phone]
URL:http://www.optexamerica.com/
OPTEX KOREA CO., LTD. (KOREA)
TEL:[phone]
URL:http://www.optexkorea.com/
OPTEX SECURITY Sp. z o. o. (POLAND
)
TEL:[phone]
URL:http://www.optex.com.pl/
OPTEX (DONGGUAN) CO., LTD.
SHENZHEN OFFICE (CHINA)
TEL:[phone]
URL:http://www.optexchina.com/
OPTEX CO., LTD. (JAPAN)
(ISO 9001 Certified)
(ISO 14001 Certified)
5-8-12 Ogoto Otsu
Shiga 520-0101
JAPAN
TEL:[phone]
FAX:[phone]
URL:http://www.optex.co.jp/e/
OPTEX (EUROPE) LTD. (UK)
TEL:[phone]
URL:http://www.optexeurope.com/
OPTEX SECURITY SAS (FRANCE)
TEL:[phone]
URL:http://www.optex-security.com/
- 20 -
HX-40DAMEN.indd20 2010/06/2414:12:05
