Chapter 1. Introduction and installation
The OMM-1000 modular matrix enables to switch up to 16 different DVI / HDMI or SDI sources to 16
different digital displays. It can be configured using 4 input and output cards and each card has 4 ports
of input and output.
Any input source, whether it is a HD-DVD player, Blue-Ray player or a computer with high-resolution
graphics, can be routed to DVI and HDMI output digital display.
Note) SDI is not a licensed HDCP interface and if the content received from HDMI is protected by
HDCP, there should be no output from the SDI slot.
1.1 Key features
▪Up to 16 DVI, HDMI and SDI inputs and outputs can be configured.
▪Each card has 4 input or 4 output ports and 4 cards can be fitted into input and output bays.
▪Has Electrical DVI, HDMI and SDI and Optical DVI input and output cards.
▪Any input formats can be converted to DVI, HDMI and SDI. But the resolution between the
formats should be same.
▪Complies with DDC/HDCP (Electrical DVI and HDMI cards only).
▪Supports up to WUXGA (1920x1200) at 60Hz refresh ratio for DVI or 1080P at 60Hz for
HDMI and SDI (Maximum 2.97Gbps bandwidth).
▪Supports 3 types of EDID management:
Default Mode.
Auto Mix Mode.
Output Copy Mode.
▪Supports various control methods:
Key buttons operation
Command input (Such as Hyper terminal by RS-232 and Telnet by TCP/IP)
Web panel control (TCP/IP)
PC program by RS-232 and UDP
▪Works with OPTICIS DVI, HDMI and SDI optical extender for long signal extension.
▪Has dual-power supplier for hot-swappable and load-sharing.
▪Equips multi-viewer card to be used in various monitoring systems.
▪Provides diagnostic function for quick trouble shooting.
▪Has video generator output and monitoring output for easy installation.

5
1.2 Shipping group
▪OMM-1000, Modular matrix chassis: 1 EA
▪Input output cards: Option
SDVI-4EI, 4 ports electrical DVI input card
SDVI-4EO, 4 ports electrical DVI output card
SDVI-1FI, 4 ports 1 fiber optical DVI input card
SDVI-1FO, 4 ports 1 fiber optical DVI output card
HDMI-4EI, 4 ports electrical HDMI input card
HDMI-4EI, 4 ports electrical HDMI output card
SDI-4EI, 4 ports electrical SDI input card
SDI-4EO, 4 ports electrical SDI output card
QDVI-O, Multi-viewer card
▪AC power cord: 1 EA
▪Power supplier: 1 EA (Dual power supplier is an option)
▪User manual: 1 EA
▪Firmware download cable: 1 EA
▪RS-232 cable (Straight type): 1 EA
▪PC software CD: 1 EA
1.3 Notice of safe usage
We recommend you to read following warning, precaution and information before start to
operate the OMM-1000 modular matrix.
▪Use of the equipment in a manner not specified by the manufacturer may result in ire-
coverable damage.
▪Keep the unit away from liquid, magnetic and combustible substances.
▪Do not place heavy weight on the unit.
▪Move away from noisy environment such as vibration or impact.
▪Do not install the unit vertically.
▪Do not disassemble the unit.

6
1.4 Physical description
The OMM-1000 modular matrix chassis is mountable on a 19” standard rack. Key buttons,
LCD display and reset switch are placed on the front panel as shown in Figure 1-1.

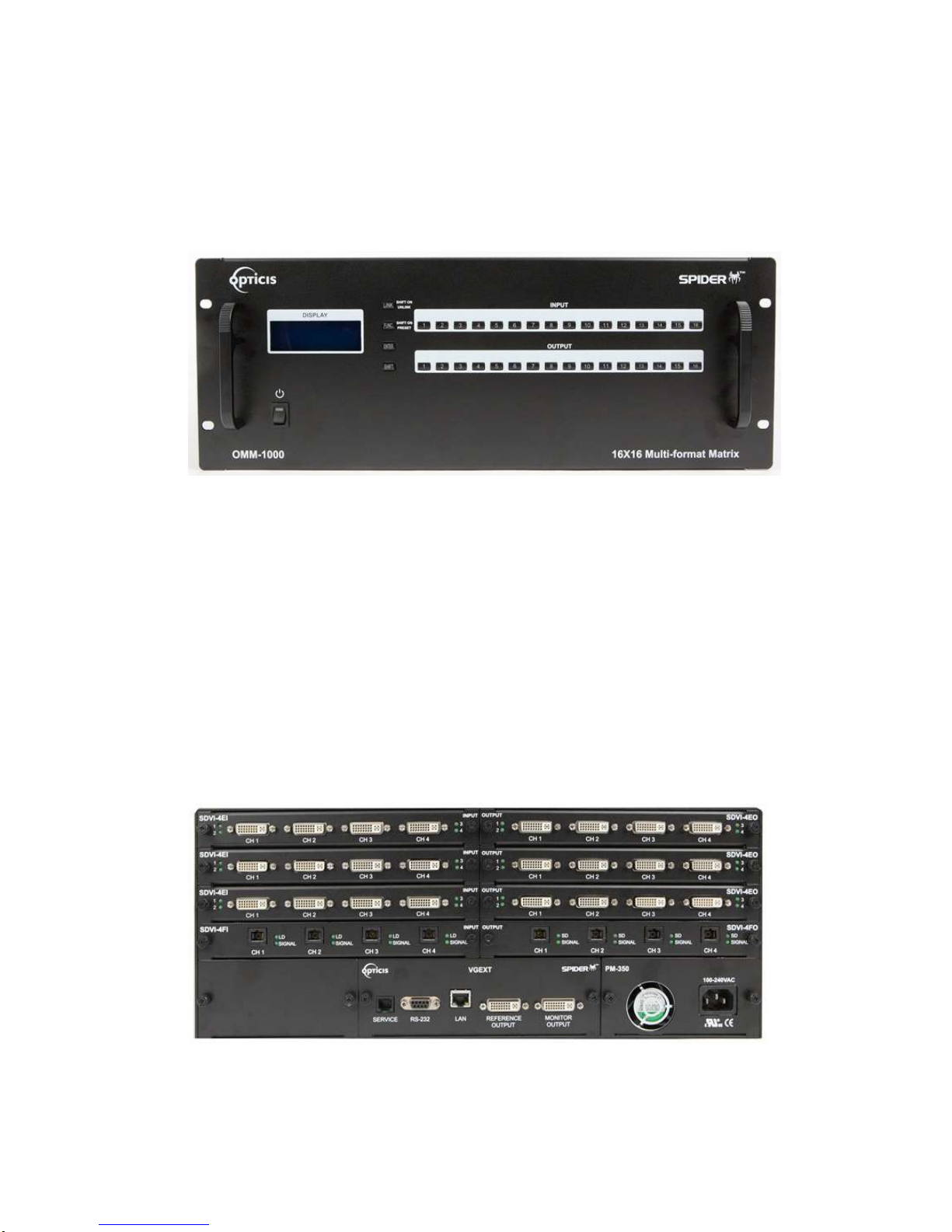

Figure 1-1 Front panel of OMM-1000
All Input and output cards, interface ports and power supplier are placed on the rear panel as
below.
▪Input bay for 4 input cards (left side)
▪Output bay for 4 output cards (right side)
▪SERVICE, RJ-11 receptacle for firmware upgrade
▪RS-232, Serial communication port
▪LAN, RS-45 receptacle for TCP/IP or UDP control
▪REFERENCE OUTPUT for internal video source for easy installation
▪MONITORING OUTPUT for internal output port to monitor input signal
▪Power supplier (Dual-power is an option)
Figure 1-2 Rear panel of OMM-1000

7
1.5 Installation
1.5.1 Initialization
▪Connect the provided AC power cord to AC power inlet and turn on switch on the front
panel. Then, OMM-1000 will start initialization process (To turn it off completely, pull out
AC power cord, switch on the front panel is reset switch).
▪‘OMM-1000 Starting’will be shown on LCD display.
▪After 7~10 sec, ‘OMM-1000 Booting complete’message and hardware and firmware
version information will be shown.
▪Now, OMM-1000 is ready to receive commands from user.
1.5.2 Connection for remote control
▪Connect the OMM-1000 to PC with the supplied RS-232 cable.
▪Connect the OMM-1000 to PC with LAN cable with RJ-45 connector.
[NOTE] Typically, the IP address of PC connected to the network is configured by DHCP
server. But, if the PC is connected directly to the OMM-1000, the network server will
not able to assign the IP address. In this case, network information of PC should be
set manually.
The default IP address of OMM-1000 is 192.168.1.117. Before connecting OMM-
1000 to your network, please verify the availability of IP address in your network.
The IP address can be reconfigured by key button, PC program or command lines
over RS-232 or TCP/IP.
1.6 EDID Configuration
▪EDID (Extended Display Identification Data) is an information set that is provided by a
display to describe its capabilities to a graphic source. It enables a graphic source to identify
the connected display.
▪The information set includes: manufacturer, product type, phosphor or filter type, timings
supported by the display, display size, luminance data and (for digital displays only) pixel
mapping data.
▪Once the graphic source reads the information set (usually during the booting process), the
EDID determines the optimal format for a connected display.
▪OMM1000 supports storing of EDID information to an EEPROM for each Input.
▪OMM1000 has three-way EDID settings, 1) Default Mode: default EDID from the factory, 2)
Output Copy Mode: read of EDID from any target display and copy in input port and the most

8
advanced one is 3) Auto Mix Mode: analyzing of all EDID from the attached displays and
store optimized EDID in input port to avoid any compliance problems in the field.

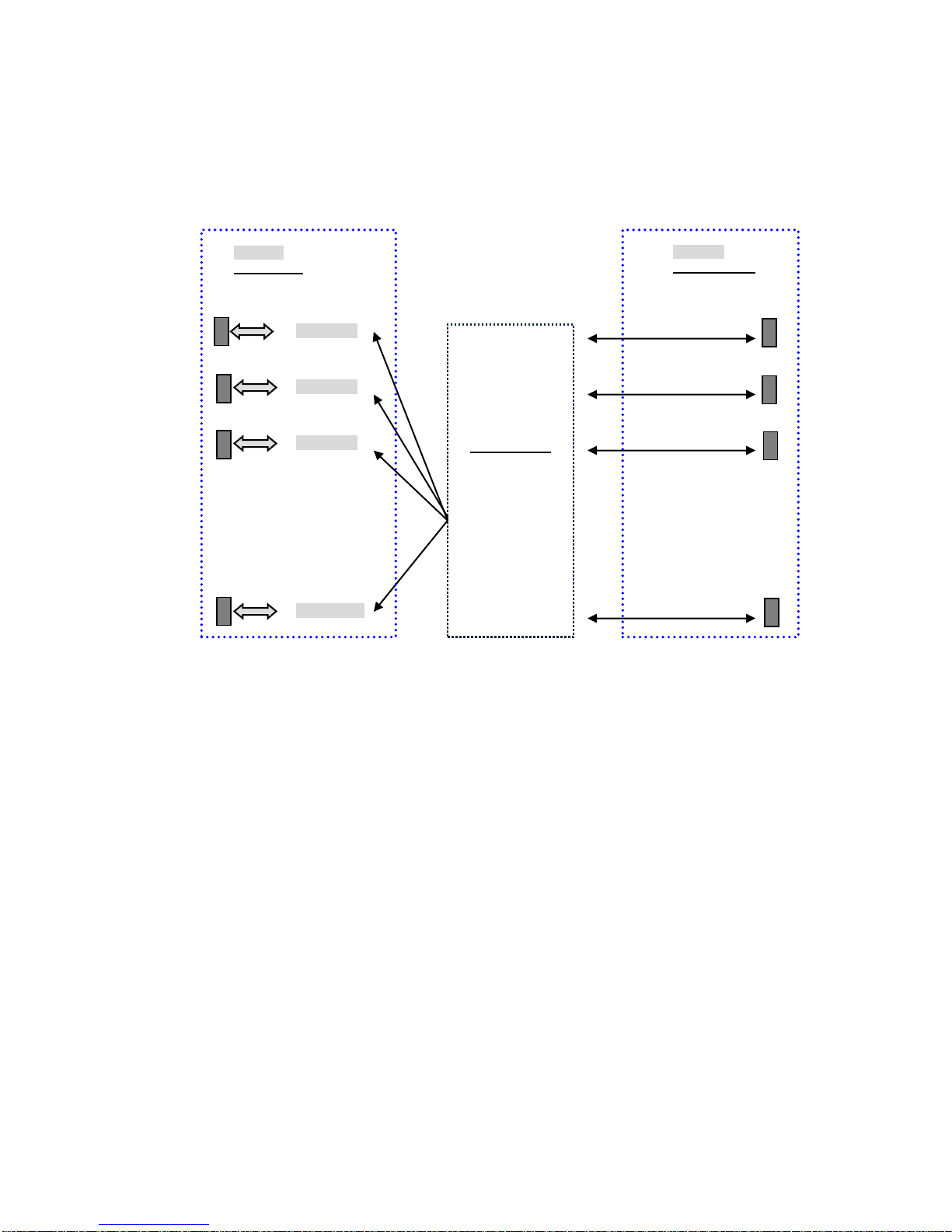

Figure 1-3 Concept of EDID setting and working in OMM-1000 modular matrix
As depicted in Figure 1-3, once EDID is configured, each EDID is stored in EEPROM in Input
ports. As a result, the video sources are able to read EDID from the EEPROM during booting
process even though the OMM-1000 and connected displays are not powered on yet.
EEPROM1
EEPROM2
EEPROM3
EEPROM16
EDID
INTERFACE
CONTROL
Read/Write
Sources
INPUT 1~16
Displays
OUTPUT 1~16
WRITE EDID
.
.
.
.
.
.
.
.

9
Chapter 2. Control setup
The OMM-1000 modular matrix can be controlled in various ways such as command input (RS-232,
TCP/IP), Web control panel (TCP/IP), supplied PC program (RS-232, UDP) as well as key button on
the front panel. To do this, PC should be configured properly.
2.1 TCP/IP
2.1.1 TCP/IP setup of PC
TCP/IP, the abbreviation of Transmission Control Protocol (TCP) and the Internet Protocol (IP)
is commonly used protocol to control remote computers.
To control OMM-1000 over TCP/IP, set network properties of PC as below (Explained here is
based on Win 7 OS).
▪Open Control Panel.
▪Select Network Status in Network and Internet menu.
▪Select Adapter setting.
▪Select Local Area Connection and right click to open property.
▪Select Internet Protocol Version 4 (TCP/IPv4)
▪Enter IP, Subnet mask, Gateway and DNS server address, compatible with the current
network setting of OMM-1000.
▪Click OK to terminate IP setup session.
[Note] If the IP address of OMM-1000 is 192.168.001.117, the PC IP address should be
chosen as 192.168.001.nnn; where ‘nnn’ can range from 000 to 255 except 117.
2.1.2 Launching Telnet
Telnet is a terminal program embedded in Window OS system to access remote computers
using TCP/IP protocol. With the network setting of the PC as above, launch Telnet as below.
▪Make sure PC and OMM-1000 are connected by Ethernet.
▪Click Start menu and select Run.
▪Type CMD to open command window.
▪Type ‘telnet 192.168.1.117’(Type current IP address of OMM-1000).

10
▪Press ENTER then, “==Welcome to OMM-1000==”and “== TELNET control ==”
messages will be shown.
▪Type command inputs to control OMM-1000. (Refer to Chap. 5)
2.2 RS-232
2.2.1 Launching HyperTerminal
The OMM-1000 modular matrix provides RS-232 serial communication. The simplest way to
control OMM-1000 over RS-232 is using embedded software in Windows OS, HyperTerminal.
To launch Hyper Terminal (Explained here is based on Windows XP OS. Hyper Terminal is
not available on Win 7.):
▪Connect the PC to OMM-1000 over RS-232 cable.
▪Select Start > Programs > Accessories > Communications > HyperTerminal.
▪Enter a name and choose an icon in Connection Description window and click OK.
▪In Connect To window, ignore the Country, Area Code and Phone Number fields but select
available COM port of PC to be connected to OMM-1000 then, click OK.
▪In COM Properties window, set the parameters as below:
Bits per second (baud rate): 115200 (115200 is default baud rate of OMM-1000)
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
[Note] Bit per second of Hyper Terminal should be set as same as baud rate of OMM-1000.
▪Click OK to save the parameters.
▪Go Start > Programs > Accessories > Communications > HyperTerminal, then new icon
will be shown. Then select it to launch Hyper Terminal.
▪Type command inputs to control OMM-1000 (Refer to Chap. 5)
