IMPORTANT SAFETY INSTRUCTIONS
1. Read and keep these instructions. Heed all warnings.
2. Do not use this apparatus near water.
3. Clean only with dry cloth.
4. Do not block any ventilation openings. Install in accordance with manufacturer instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
6. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the power where they exit from the device.
7. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in a way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture,does not operate normally or has been dropped.
8. To reduce the risk of ignition of hazardous atmospheres, disconnect the equipment from the
supply circuit before opening. Keep assembly tightly closed when in operation.
9. The maximum ambient temperature range is –40° to 122°F (–40° to 50°C).
10. Installation should be done only by qualified personnel and conform to all local codes.
11. Use only installation methods and materials capable of supporting four times the maximum
specified load.
WARNING: To reduce the risk of ignition of hazardous atmospheres, disconnect the device
from the supply circuit before opening. Keep assembly tightly closed when operating.
WARNING: To reduce the risk of ignition of hazardous atmospheres, conduit runs must have
a sealing fitting connected within 2 inches of the enclosure.
TO REDUCE THE RISK OF IGNITION DO NOT OPEN WHEN AN EXPLOSIVE GAS ATMOSPHERE
MAY BE PRESENT.
DISCLAIMER: Opticom Technologies Inc. will not be responsible for injuries or damages resulting
from the improper installation or use of any product sold by Opticom Technologies Inc. their
agents, distributors or dealers.

Opticom Technologies Inc. USA Sales: BattleCreek, Michigan: 800-578-1853
www.opticomtech.com Canada: Head Office(Vancouver): 855-569-3240
www.toughestvideocamera.com
March 2016
Installation Manual
CC03-IP2MVFIR Camera
CAMERA DESCRIPTION
•2.43 Megapixel CMOS Image Sensor
•3.5~16mm Varifocal Auto-Iris Lens
•10/100-Base-T Ethernet (auto-sensing) Interface
•Maximum Frame Rate of 30FPS @ 2MP (1920x1080)
•Dual Streaming (H.264, MJPEG codecs)
•39 Piece Infrared Array - 20m Range
•Supports PoE or 12V DC direct power
HOUSING DESCRIPTION/FEATURES
•Copper free aluminum body
•¾” NPT conduit feed-through hubs, offset for maximum clearance and capacity
•60 chamfer on window opening provides enhanced viewing angle
•Internal and external ground screws and tamper resistant cover set screws for extra safety
•2-5/8” diameter tempered glass window for local read out or display
•Buna-Nitrile rubber gasket for NEMA Type 4X watertight applications
FINISH
•Corrosion resistant Industrial and Marine Coating.
•TILE-CLAD®HIGH SOLIDS is a VOC compliant, two-package, epoxy-polyamide coating
•Chemical resistant
•Dry film resists bacterial attack
•Abrasion resistant
•Suitable for use in USDA inspected facilities
•Low VOC
PARTS LIST
•CCO3-IP2MVFIR CAMERA
•Software & Manual DVD
•12V DC 500mA Regulated Power Adaptor
•Allen Key (for housing cover set screw)

Opticom Technologies Inc. USA Sales: BattleCreek, Michigan: 800-578-1853
www.opticomtech.com Canada: Head Office(Vancouver): 855-569-3240
www.toughestvideocamera.com
March 2016
Installation Manual
CC03-IP2MVFIR Camera
HOUSING DIMENSIONS
5/16” Mounting Lugs

Opticom Technologies Inc. USA Sales: BattleCreek, Michigan: 800-578-1853
www.opticomtech.com Canada: Head Office(Vancouver): 855-569-3240
www.toughestvideocamera.com
March 2016
Installation Manual
CC03-IP2MVFIR Camera
INSTALLATION
Install with the appropriate hardware to suit the mounting surface. Select a suitable location that
is protected from accidental damage or tampering, and environmental conditions that could
exceed the camera’s general specifications. Ensure the selected location is protected from falling
objects, accidental contact with moving objects, and unintentional interference from personnel.
Follow all applicable building codes.

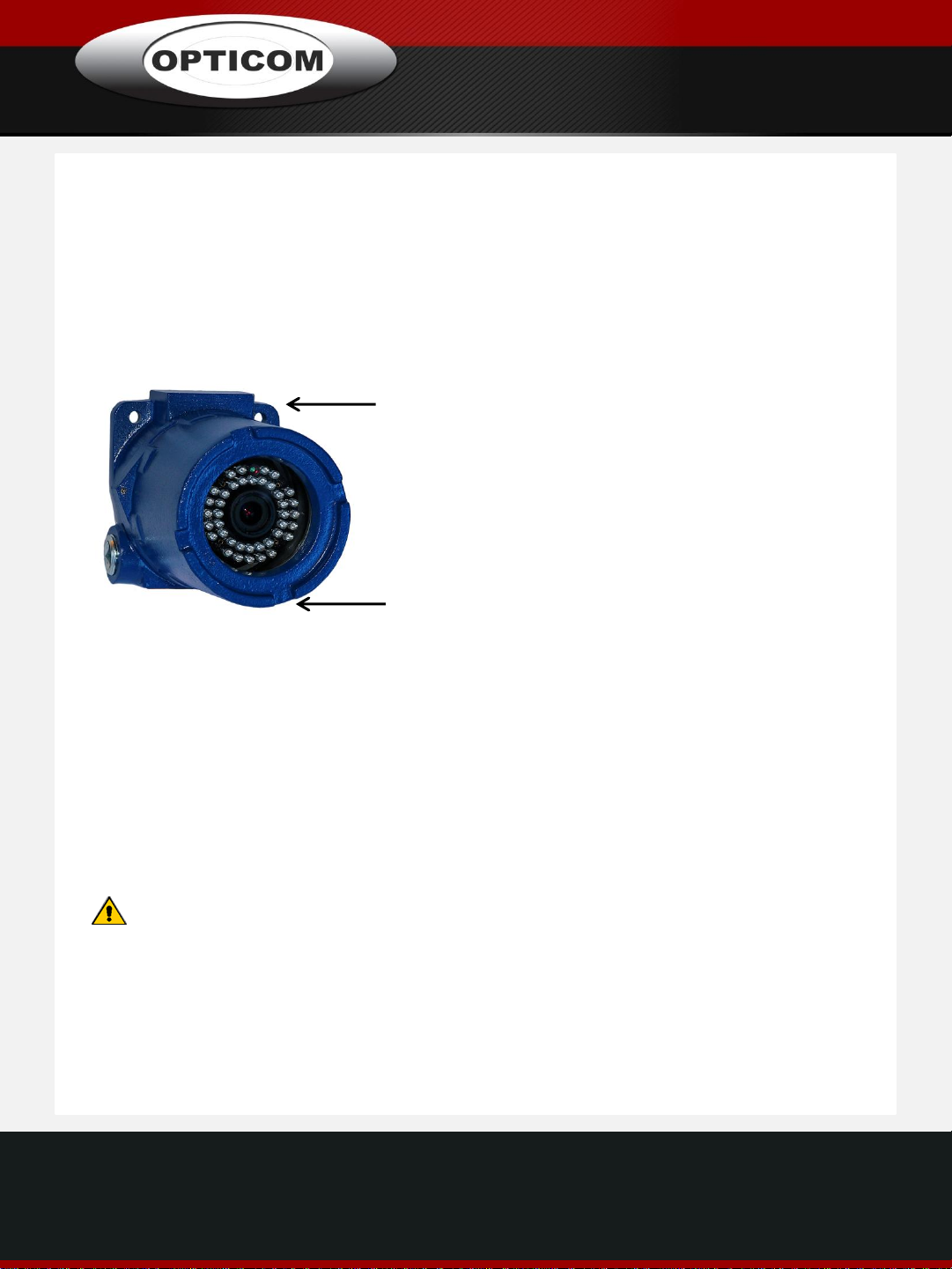

NOTE: Make sure the camera is correctly oriented when mounting –see picture below:
The “TOP” designation label on the housing indicates the correct upright viewing orientation for
the camera lens.
The weight of the camera is 2.27 KG (5 lbs). It is recommended that all hardware used for
mounting be capable of supporting four times the actual weight of the unit (ie: 10 KG or 20 lbs).
The camera must be bolted to the mounting surface using the 5/16” mounting lugs as shown in
the picture above. Rubber washers should be installed on the housing side of the bolts to avoid
damage to the epoxy housing finish. Fluorosilicone or Aramid/Buna-N type washers are
recommended for maximum oil, abrasion, chemical and weather resistance
TOP (2 x 5/16” Mounting Lugs)
BOTTOM (2 x ¾” NPT Openings)
CAUTION! Do not remove the housing cover when mounting the camera to prevent
damage to the camera module and interior components. The housing cover should only
be removed after mounting to allow for the focusing of the lens to the desired focal
length. See details of lens focusing below.

Opticom Technologies Inc. USA Sales: BattleCreek, Michigan: 800-578-1853
www.opticomtech.com Canada: Head Office(Vancouver): 855-569-3240
www.toughestvideocamera.com
March 2016
Installation Manual
CC03-IP2MVFIR Camera
ELECTRICAL
During installation, it is important to attach a 10 AWG copper stranded wire (minimum
requirement) from the earth ground attachment point on the unit to an appropriate grounding
location for your installation.
The camera can be powered either by PoE (802.3af) (power over ethernet)or by 12VDC using LVT
connected the 2.1mm power jack.
WARNING! CSA Certified / UL Listed CLASS 2 power adaptors must be used in order to
comply with electrical safety standards. A UL certified power adaptor is included with the
unit. For permanent installation using 12VDC adaptor in Canada ensure that a CSA
certified adaptor is installed.
LENS FOCUSING
After mounting the camera, carefully remove the housing cover after loosening the set screw.
WARNING! Avoid thread damage.Neveruse force when removing orassemblinghousing cover.
Ensurethat the Buna-N rubber gasket is correctlypositionedat the base of the threaded flange
before reattachingthe housingcover. Failureto correctlyreinstallthe housingcover will
compromisethe sealingof the unit.
Set Screw
Correctly Positioned Buna-M Rubber Gasket

Opticom Technologies Inc. USA Sales: BattleCreek, Michigan: 800-578-1853
www.opticomtech.com Canada: Head Office(Vancouver): 855-569-3240
www.toughestvideocamera.com
March 2016
Installation Manual
CC03-IP2MVFIR Camera
LENS FOCUSING

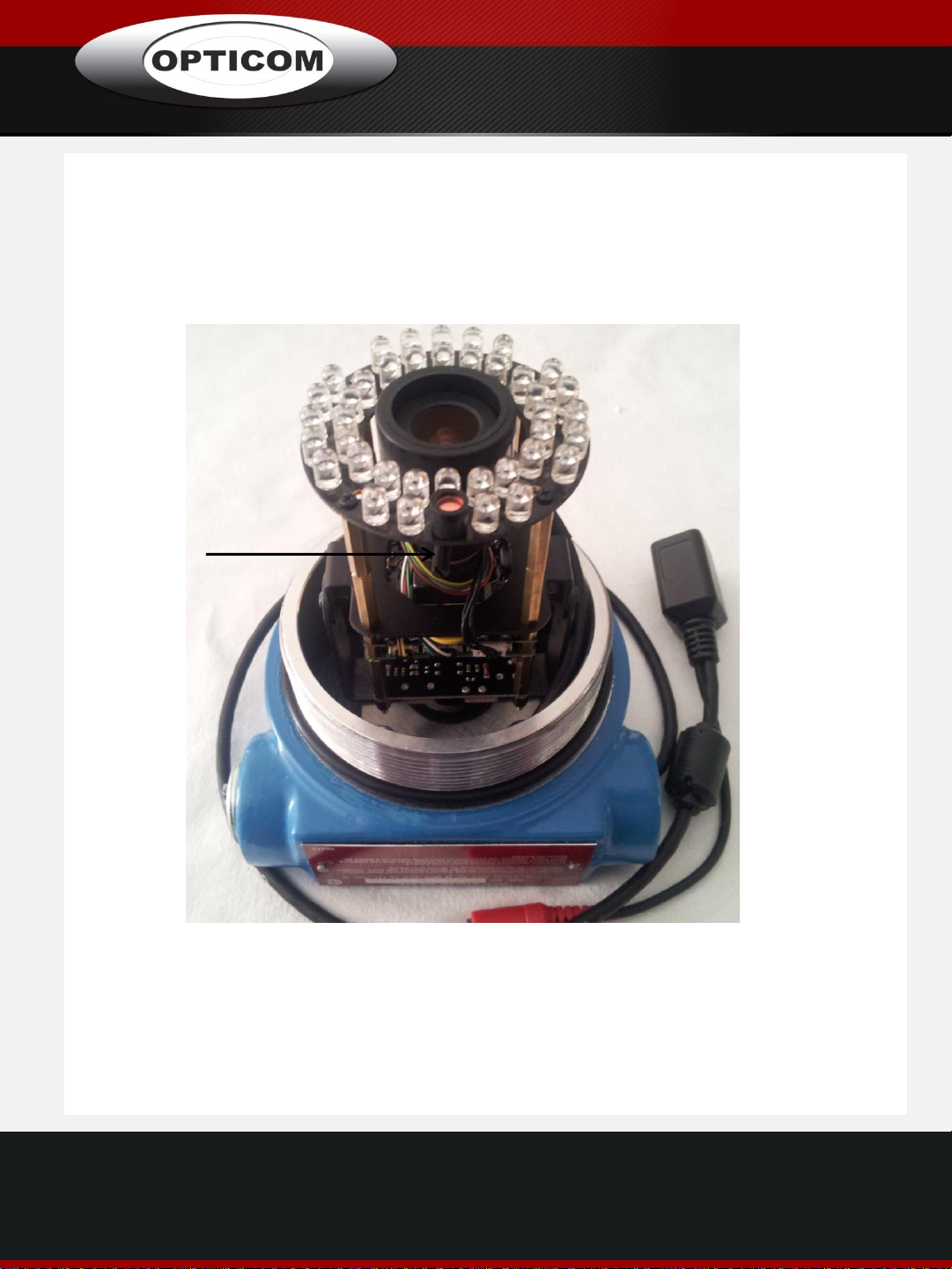

Removing the housing cover allows access to the varifocal lens adjustment screws. The CC03-
IP2MVFIR camera module is equipped with a 3.5~16mm varifocal lens allowing for a viewing angle
of between 68 º and 17 º respectively. There are two adjusting screws below the infrared
assembly. The upper adjusting screw controls the zoom (ie. focal length) while the bottom
adjusting screw focuses the image after the focal length has been selected.
Lens
Adjusting
Screws
Connect the camera to the network using the provided IP Installer software. The camera can also
be connected directly to a laptop using a switch with a Default Gateway of 192.168.0.1 which is the
camera default setting. Adjust the focal length manually using the adjusting screws to obtain the
desired image. Tighten the adjusting screws and carefully reinstall the housing cover.
For camera Operation and Settings refer to the IP Installers User Manual on the DVD included
with the unit.

Opticom Technologies Inc. USA Sales: BattleCreek, Michigan: 800-578-1853
www.opticomtech.com Canada: Head Office(Vancouver): 855-569-3240
www.toughestvideocamera.com
March 2016
Installation Manual
CC03-IP2MVFIR Camera
Specifications CC03-IP2MVFIR
H.264/MJPEG(simultaneous dual stream)
H.264/H.264 (true H.264 dual streaming)
Simultaneous streaming with independent control
Resolution 1920x1080, 1280x720,640x352, 320x176, 160x96
Serial Interface Console, By-pass command to control UART device
Bandwidth Management Frame rate control / Bandwidth control / CBR / VBR
External Interface
10/100-Base-T Ethernet (auto-sensing), 1 DI/DO(3.3V TTL),
1UART port(3.3V TTL)
1/2.9” progressive scan CMOS
Total number of pixels: 2000H×1241V=2.48M
Pixel size : 2.5 8 (H) μm × 2.5 8 (V) μm
Color filter Bayer arrangement of primary colors: R, G, B
Bit number of internal ADC: 10/12 bits
Parallel output: 37.125 MHz, 10/12 bits
Maximum frame rate in all-pixel scan mode: 60/30 fps
Image Controls
Day & Night (Auto/B&W/Off), AWB, Noise Filter (Off/On),
Brightness/Contrast/Sharpness/AGCGain Control, Shutter
Illumination 0.0016 Lux
Lens / IR 3.5~16mm Varifocal Lens / 39 Pc IR LED - 20m Range
Housing
Epoxy Coated Die Cast Aluminum (Copper Free)
Power POE or 12V DC (4.8W Max. Consumption)
Color Pantone 293 Blue
Ground Screws Internal & External
Cover Set Screw Tamper Resistant Cover Set Screws
O Ring Buna N
Conduit Connections 2 x 3/4" NPT Standard Connections
External Mounting Holes 2 x 0.33in / 8.4mm
Dimensions (H x W) 4.86 x 5.65 inches / 12.4 x 14.4 cm
Weight 5 lbs (2.27 kg)
Operation Temp. -40C ~ 50C
Image Sensor
Video Encoding
