Opticon OPN-2102i User manual

1st
O
This m
OP
D
anual pro
v
data
c
SPECIFI
PN
D
ata Coll
e
v
ides spec
i
c
ollector
w
I
CATIONS
M
N
-
2
e
ctor wit
h
ifications f
o
w
ith laser b
a
M
ANUAL
2
1
0
h
Bluetoo
t
o
r the OP
N
a
rcode sc
a
0
2
t
h
N
-2102i Bl
u
a
nner.
O
i
u
etooth
O
PN-2102i
1st
1

OPN-2102i
1st
2
SPECIFICATIONS MANUAL
The information in this document is subject to change without notice.
Document History
Model Number: OPN-2102i Specification Number: SS16056
Edition: 1st Original Spec Number: (SS16017)
Date: 30-September-2016
© 2016 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted
to any electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
Please read this manual carefully before installing or using the product.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to
the device purchased. Do not remove the serial number from your Opticon device. Removing the
serial number voids the warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in
materials and workmanship for two years after purchase excluding batteries. Opticon will repair or, at
its option, replace products that are defective in materials or workmanship with proper use during the
warranty period. Opticon is not liable for damages caused by modifications made by a customer. In
such cases, standard repair charges will apply. If a product is returned under warranty and no defect is
found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should
you need to transport your data collector or send it for service. Damage caused by improper
packaging during shipment is not covered by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of
OPTOELECTRONICS Co., Ltd., 12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002.
TEL [phone]; FAX [phone]
SUPPORT
USA Europe
Phone: [phone] Phone: [phone]
Email: [email protected] Email: [email protected]
Web: www.opticonusa.com Web: www.opticon.com

OPN-2102i
1st
3
SPECIFICATIONS MANUAL
Revision History
Product Name : OPN-2102i
Edition Date Page Section Description of Changes
1st 2016/09 /30 - -

OPN-2102i
1st
4
SPECIFICATIONS MANUAL
Contents
1Abstract............................................................................................................................6
2Overview..........................................................................................................................6
3Basic Specifications.......................................................................................................7
4Detailed View...................................................................................................................9
5Electrical Specifications...............................................................................................10
5.1 USB ........................................................................................................................................ 10
5.2 Wireless Charging .................................................................................................................. 10
6Interface Specifications................................................................................................10
6.1 USB Interface ......................................................................................................................... 10
6.1.1 Connector ....................................................................................................................... 10
6.1.2 USB Interface Circuit ...................................................................................................... 10
6.2 Bluetooth ................................................................................................................................ 11
6.3 NFC Tag................................................................................................................................. 11
7Optical Specifications...................................................................................................11
7.1 Basic Specifications ............................................................................................................... 11
7.2 Laser Scanning Standards..................................................................................................... 12
7.2.1 Laser Scanning Tilt ......................................................................................................... 12
7.2.2 Laser Scanning Curvature.............................................................................................. 12
8Technical Specifications..............................................................................................13
8.1 Barcode Test Sample............................................................................................................. 13

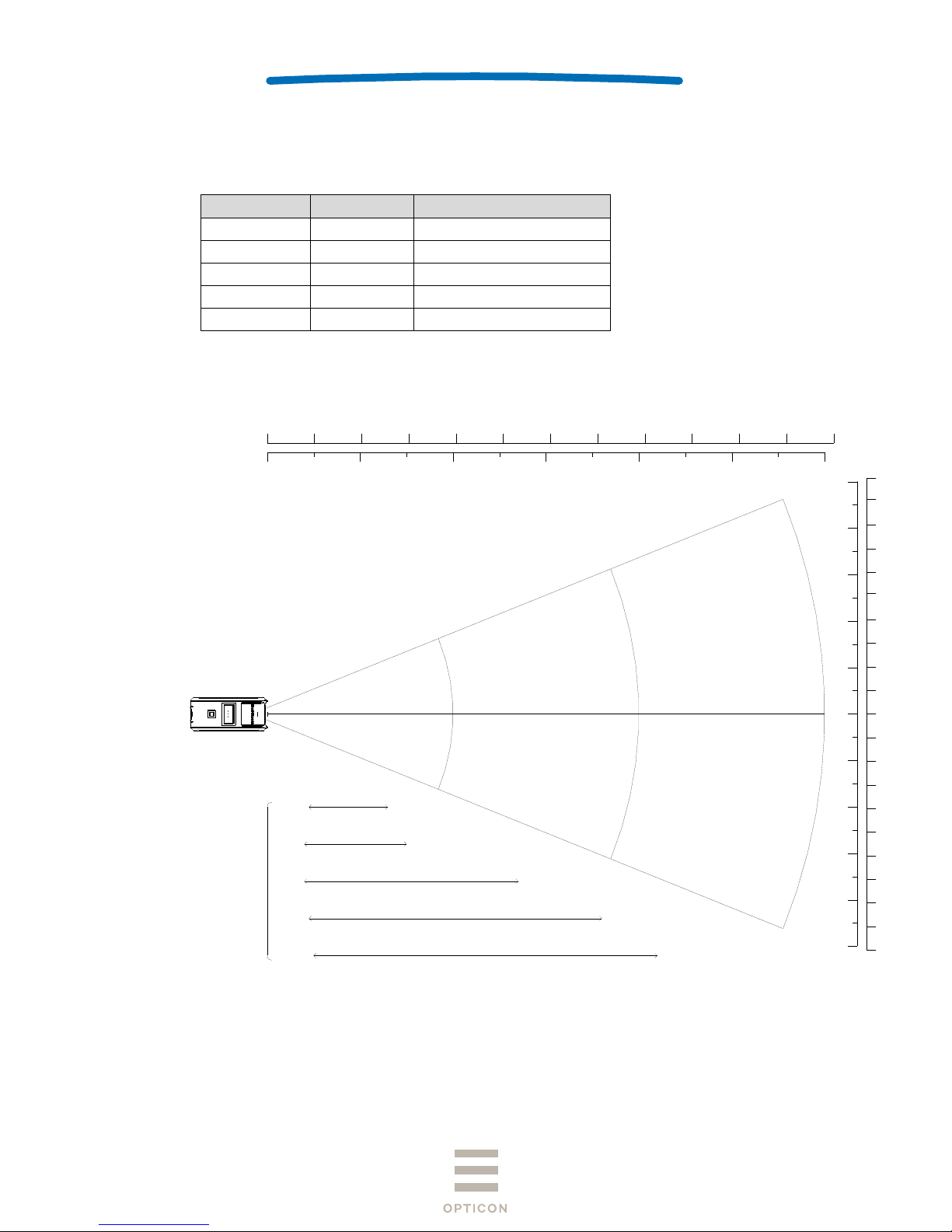

8.2 Scan Area and Depth of Field ................................................................................................ 14
8.3 Printed Contrast Signal (PCS) ............................................................................................... 15
8.4 Minimum Resolution............................................................................................................... 15
8.5 Pitch, Skew and Tilt................................................................................................................ 15
8.6 Curvature................................................................................................................................ 16
9Environmental Specifications......................................................................................16
9.1 Temperature........................................................................................................................... 16
9.2 Humidity.................................................................................................................................. 16
9.3 Ambient Light Immunity.......................................................................................................... 17
9.4 Dust and Drip Proof................................................................................................................ 17
9.5 Vibration Strength (without packing) ...................................................................................... 17
9.6 Vibration Strength (in individual packing)............................................................................... 17
9.7 Drop Impact Strength (without packaging)............................................................................. 18
9.8 Drop Impact Strength (in individual packaging) ..................................................................... 18
9.9 Electrostatic Discharge Immunity ........................................................................................... 18
10 Regulatory Compliance................................................................................................19
10.1 LED Safety ............................................................................................................................. 19
10.2 Product Safety........................................................................................................................ 19
10.3 EMC........................................................................................................................................ 19
10.4 Other....................................................................................................................................... 20

OPN-2102i
1st
5
SPECIFICATIONS MANUAL
11 RoHS ..............................................................................................................................20
12 Reliability.......................................................................................................................20
13 Precautions....................................................................................................................20
13.1 Precaution against Laser Light............................................................................................... 20
13.2 Handling ................................................................................................................................. 21
13.3 Radio Law............................................................................................................................... 21
13.4 Bluetooth ................................................................................................................................ 22
13.5 Frequency Band ..................................................................................................................... 22
14 Product Labels..............................................................................................................23
15 Packaging Specifications.............................................................................................24
15.1 Individual Packaging .............................................................................................................. 24
15.2 Collective Packaging .............................................................................................................. 25
16 Physical Features..........................................................................................................26
16.1 Dimensions............................................................................................................................. 26
16.2 Weight .................................................................................................................................... 26
16.3 Mechanical Drawing ............................................................................................................... 26
17 Supported Symbologies...............................................................................................27
17.1 Default Setting........................................................................................................................ 27
17.2 Supported Symbologies ......................................................................................................... 27
17.2.1 1D Barcodes ................................................................................................................... 27
17.2.2 GS1 Databar, Composite Code...................................................................................... 28
Table of Figures
Figure 1: Detailed View ........................................................................................................................... 9
Figure 2: micro USB B Connector ......................................................................................................... 10
Figure 3: Interface Circuit (USB) ........................................................................................................... 10
Figure 4: Laser Scanning Specification................................................................................................. 12
Figure 5: Scan Area and Depth of Field ................................................................................................ 14
Figure 6: Pitch, Skew and Tilt................................................................................................................ 15
Figure 7: Curvature................................................................................................................................ 16
Figure 8: Drop Test................................................................................................................................ 18
Figure 9: Product Label Position........................................................................................................... 23
Figure 10: Individual Packaging ............................................................................................................ 24
Figure 11: Collective Packaging............................................................................................................ 25
Figure 12: Mechanical Drawing............................................................................................................. 26

OPN-2102i
1st
6
SPECIFICATIONS MANUAL
1 Abstract
This manual provides specifications for the OPN-2102i compact laser data collector with built-in
Bluetooth.
2 Overview
The OPN-2102i is compact battery powered portable laser scanner with a build-in wireless battery
charger. Below are some of the key features:
•The OPN-2102i is a handy and simple to use data collector.
•The scanned barcode data can be transmitted to a host device through the USB interface or via the
build-in Bluetooth interface.
•The scanner can work with many Bluetooth enabled host devices, such as PCs, tablets and smart
phones.
•Bluetooth SPP (Serial Port Profile) and HID (Human Interface Device Profile) are implemented.
•Built-in NFC tag allows for “tap to connect” on supported telephones which greatly simplifies the
pairing process of Bluetooth.
•A red LED aiming line toward a target bar code can help the users find the appropriate scanning
position.
•Alcohol can be used to wipe the scanner clean
•The power source is a 3.7 V 600 mAh (typ.) Li-ion polymer battery.
•The OPN-2102i supports wireless charging and a dedicated charging cradle, the CRD-3000 is
available for that. The OPN-2102i can also be charged via its USB interface.
•The scanner is Apple MFi certified.

OPN-2102i
1st
7
SPECIFICATIONS MANUAL
3 Basic Specifications
Item Specification Note
Control
Section
CPU 32 bit CISC / 96 MHz
FROM 512 Kbyte + 32 Kbyte
SRAM 96 Kbyte
FROM (storage) 1 Mbyte For data area only
Input
Section
Key type 2 key: trigger, function
Indicator
LED 2 bi-colors LEDs (red, green) and 1 blueLED
Buzzer Loudness (3-level) / tone adjustable
Vibration motor Strength (3-level) / duration adjustable
RTC
Contents Year, month, date, hour, minute, second
Data and time are lost
when the main battery
is removed.
Accuracy ± 90 seconds per month
Interface
Bluetooth
Frequency 2402 ~ 2480 MHz
Specification Bluetooth Ver 2.1 compliant
Communication
distance 10 m Not guaranteed.
Output level Class 2 Max output 4 dBm
Profile SPP / HID
NFC tag ISO/IEC 14443 TYPE A, TYPE B
JISX6319-4
USB ・Full-Speed 12Mbps ( HID/COM )
・Hi-Power Bus-powered supported
Optical
Section
Light-emitted element Red laser diode
Laser wavelength
/ output 650±10nm 1mW or less Wavelength in
temperature 25℃
Scan rate 100±20scan/sec
Supported 1D Symbologies
Symbologies
JAN,EAN,UPC-A,UPC-E,NW-7 (Codabar),
Industrial 2 of 5,Interleaved 2 of 5,
Code 11，Code 39，Code 93，Code 128
Refer to Section 17.
for details
Minimum resolution Code 39 : 0.076mm PCS 0.9
Curvature R ≥15 mm ( 8-digit JAN)
R ≥20 mm (13-digit JAN) PCS 0.9
Barcode width 100 mm wide 0.2 mm resolution Code 39 (DOF 150
mm) is readable:
Scan angle
Pitch : α≦±35°
PCS 0.9
Skew : β≦±50° (Excluding dead zone)
Tilt : γ≦±20°
Depth of Field Code 39
Resolution (1.0) 50 ~ 420
Resolution (0.5) 45 ~ 340
Resolution (0.25) 40 ~ 250
Resolution (0.15) 40 ~ 155
Resolution (0.127) 45 ~ 130

OPN-2102i
1st
8
SPECIFICATIONS MANUAL
Item Specification Note
Minimum PCS 0.3 or more MRD 32% or more
Power Section
Main battery Lithium-polymer 600 mAh (typ.)
Up-time 25 hours or more *1
Feeding system Electromagnetic guidance wireless charging,
microUSB
Operating (charging) voltage 4.5 ~ 5.5V Charging with USB
Current
consumption Charging Less than 500 mA
Environmental Specifications
Temperature
Operating -10 ~ 50°C
Storage -20 ~ 60°C
Humidity
Operating 20 ~ 85% No condensing
No frost
Storage 20 ~ 85%
Ambient light
immunity
Fluorescent 4,000 lx or less
Sunlight 80,000 lx or less
Vibration
10 Hz ~ 100 Hz, acceleration of 19.6 m/s
2
, 60
minutes per cycle, repeat once in each X, Y and Z-
direction
Drop Drop the scanner 18 times (6 faces x 3) from a
height of 150 cm onto a concrete floor
Dust and drip proof IP54 equivalent
Regulatory Compliance
LED safety
JIS C 6802：2011 Class2
IEC 60825-1 Ed.2: 2007 Class 2
CDRH Class Ⅱ
Product safety EN60950-1:2005
IEC60950-1:2006
EMC
EN 55024:2010
EN 55032:2012+AC: 2013
EN 301 489-1 V1.9.2
EN 301 489-17 V2.2.1
EN 300 328 V1.9.1
EN 302 291-2 V1.1.1
FCC Part 15 Subpart C, Subpart B ClassB
VCCI Class B
For residential,
commercial and light-
industrial
environments
European conformity
CE Marking
Certification for Construction Design of Specified
Radio Equipment
Other Bluetooth logo certification
MFi license
Immunity
Test
ESD
No
distraction Air discharge (direct): ±15 kV Conditions:
IEC61000-4-2
compliant
No
malfunction Air discharge (direct): ±8 kV
Physical
Features
Dimensions 83.0 × 36 × 21.5 (WDH mm)
Weight Approx. 60 g Excluding accessories
*1: When a barcode is read twice every 10 seconds at room temperature in a constant Bluetooth connection (SPP
master mode).

OPN-2102i
1st
9
SPECIFICATIONS MANUAL
4 Detailed View
1
2
3
4
5
6
7
8
9
Figure 1: Detailed View
No Name Description
1 Scan Window The laser light is emitted through this window. Ensure that the lens is
not exposed to dust and dirt before scanning.
2 USB Cap Cap for USB connector part used to make the scanner IP54 water tight.
3 Trigger Key Press this key to enable the laser and start reading barcodes.
4 Function Key The function of this key depends on the installed application.
5 LED Indicates operating status, such as bar code reading, Bluetooth
connection, warning etc.
6 Buzzer Orifice Holes for buzzer.
7 Strap Orifice Holes for attaching a hand strap.
8 Charging Coil The charging coil is located here with which the dedicated cradle can
supply power to the scanner.
9 NFC This is the location of the NFC tag. Hold an NFC reader close to this
area when the tag has to be read.

5 El
e
5.1 U
S
u
B
u
C
u
5.2
W
F
e
P
o
6 In
t
The OP
N
6.1 U
In
6.1.1
C
6.1.2
e
ctrical
S
U
SB
u
pply Voltag
u
s-power (C
l
u
rrent cons
u
W
ireless C
e
eding syste
o
wer consu
m
t
erface
S
N
-2102i sup
p
U
SB Interf
a
terface is F
u
C
onnecto
r
Signal
N
VC
DAT
A
DAT
A
(N
C
GN
USB Interf
a
S
pecific
a
e
l
ass)
u
mption
harging
m
m
ption
S
pecific
a
p
orts two ty
p
a
ce
u
ll Speed US
r
N
ame
C
C
A
(-)
A
(+)
C
)
D
a
ce Circui
t
Po
w
Su
p
Micro-
controller
SPECIFI
a
tions
: 4.5-5.5
V
: 500mA
m
: Less th
a
: Electro
m
: Less th
a
a
tions
p
es of interfa
c
B interface.
C
ontact Nu
m
1
2
3
4
5
t
Figure 3:
w
er
pp
l
y
I
CATIONS
M
V
m
ax (hi-pow
e
a
n 500m
A
m
agnetic ind
u
a
n 5W
ces; USB a
n
m
ber
:
Interface Cir
c
M
ANUAL
e
r)
u
ction
n
d Bluetooth
.
Fig
u
c
uit (USB)
re 2: micro U
S
USB Connec
t
O
S
B B Connec
t
c
to
r
O
PN-2102i
1st
10
t
or

OPN-2102i
1st
11
SPECIFICATIONS MANUAL
6.2 Bluetooth
The specifications of the OPN-2102i Bluetooth interface are as follows:
Frequency : 2402 ~ 2480 MHz
Specification : Bluetooth Ver 2.1 compliant
Communication distance : 10 m
Output level : Class 2 (max 4 dBm)
Implemented profile : SPP / HID
Communication configuration : 1 to 1
Operating mode in communication : Master / Slave mode
Security mode : Authentication supported
Encryption : Encryption supported
6.3 NFC Tag
OPN2102i has NFC tag built-in which record Bluetooth device address.
Frequency: 13.56MHz
Standard : ISO/IEC 14443 TYPE A, TYPE B and JISX6319-4
Recorded Contents:
Total 928 byte
NDEF
Record #1
t
ype: ”application/vnd.bluetooth.ep.oob”
OOB data length: 8 Byte
MAC address: 00:12:6A:xx:xx:xx
Record #2
t
ype: ”T”
TEXT data length: 15 Byte
TEXT data: ”00126Axxxxxx”
Free area
Reserved area
*xx will differ according to product.
Rewriting from external: possible
7 Optical Specifications
7.1 Basic Specifications
Item Characteristics Unit
Light-Emitting Element Red laser diode -
Emission Wavelength 650 ±10 (25° C) nm
Light Output < 1.0 μW
Scanning Method Bi-directional scanning -
Scanning Speed 100 ±20 scans/sec
Scan Angle
Scan Angle 54 ±5 deg
Effective Scan
Angle 44 (Min) deg

OPN-2102i
1st
12
SPECIFICATIONS MANUAL
7.2 Laser Scanning Standards
7.2.1 Laser Scanning Tilt
Vertical differences between both ends of a laser scanning line:
- Up to 1.2 degrees in a vertical direction from the scan origin (scanning mirror).
- Up to 3.1 mm measured at 150 mm from the scan origin and with zero skew angle.
- Measure in the middle of the scanning line.
7.2.2 Laser Scanning Curvature
The maximum differences between the laser scanning line and a straight line connecting the
both ends of the scanning line:
- Up to 1.27 degrees from the scan origin (scanning mirror).
- Up to 3.3 mm measured at 150 mm from the scan origin.
- Measure in the middle of the scanning line.
Figure 4: Laser Scanning Specification

OPN-2102i
1st
13
SPECIFICATIONS MANUAL
8 Technical Specifications
Ambient conditions are as follows unless otherwise specified in each section:
<Conditions>
Ambient Temperature and Humidity Room temperature, room humidity
Ambient Light 500 ~ 900 lx
Barcodes Refer to Section 8.1.
Background Black
Power supply voltage 5V (USB)
Reading Test Accept the performance with 10 consecutive successes
in reading. Each reading should be done in 0.5 seconds
or less.
8.1 Barcode Test Sample
<Code 39>
Resolution Symbology PCS Quiet Zone
()
No. of Digits
1.0 mm
Code 39 0.9
25 mm 1
0.5 mm 18 mm 3
0.25 mm 10 mm 8
0.25 mm 10 mm 9
0.15 mm 7 mm 10
0.127 mm 5 mm 4
0.076mm 5 mm 5
<JAN>
Resolution Symbology PCS Quiet Zone
()
No. of Digits
0.26 mm JAN 0.9 10 mm 13
0.26 mm 10 mm 8

OPN-2102i
1st
14
SPECIFICATIONS MANUAL
8.2 Scan Area and Depth of Field
The scanner is able to read in the area between the two arcs that are centered on the scan
origin with a center line distance from the front of the scanner as indicated for each resolution.
Resolution No. of Digits Depth of Field (mm)
1.0mm 1 50 ~ 420
0.5mm 3 45 ~ 340
0.25mm 8 40 ~ 250
0.15mm 10 40 ~ 155
0.127mm 4 45 ~ 130
<Conditions>
Barcode : Code 39 specified in Section 8.1.
Angle : α= 0°, β= + 15°, γ= 0°
050 100 150 200 250 300 350 400
2" 4" 6" 8" 10" 12" 14" 16"0"
050
50 25
25
75 75
100 100 125 150125150
0" 2"2" 1"1"
3" 3"
4" 4" 5" 6"5"6"
[ mm ]
[ inch ]
Code 39
0.127mm ( 5mil )
0.15mm ( 6mil )
0.25mm ( 10mil )
18"
450 500 550 600
20" 22" 24"
175
200225250
[ mm ]
175 200 225 250
7"
8"9"10"
[ inch ]
7" 8" 9" 10"
0.5mm ( 20mil )
1.0mm ( 40mil )
Figure 5: Scan Area and Depth of Field

OPN-2102i
1st
15
SPECIFICATIONS MANUAL
8.3 Printed Contrast Signal (PCS)
PSC 0.3 or higher (70% or higher reflectivity of space and quiet zone)
Note:
Be sure to keep the optical window clean without dirt or scratches, or it may have a detrimental effect on
the reading characteristics.
8.4 Minimum Resolution
Minimum Resolution 0.076mm
<Conditions>
Barcode Code 39 specified in Section 8.1
Distance 60 mm from the front edge of the scanner
Angle Skew angle β= 15°
8.5 Pitch, Skew and Tilt
Pitch : α≦±30°
Skew : β≦±50° (Excluding dead zone)
Dead Zone : β≦±8 ° (Decoding may fail in some areas as a result of specular reflection)
Tilt : γ≦±20°
<Conditions>
Bar code <Pitch, Skew and Dead Zone>
Resolution 0.25 mm, 9-digit Code 39 specified in Section 8.1.
<Tilt>
Resolution 0.26 mm, JAN-13 specified in Section 8.1.
Distance 100 mm from the edge of the scan engine
Curvature R = ∞
Angle Pitch angle : β= +15°, γ= 0°
Tilt angle : α= 0°, β= +15°
Skew angle / Dead zone: α= 0°, γ= 0°
β
γ
+
+
+
-
-
-
Figure 6: Pitch, Skew and Tilt
PCS = Reflectance of white space – Reflectance of black bar
Reflectance of white space

OPN-2102i
1st
16
SPECIFICATIONS MANUAL
8.6 Curvature
8-digit JAN: R ≧15 mm
13-digit JAN: R ≧20 mm
<Conditions>
Barcode Resolution 0.26 mm, JAN specified in Section 8.1.
Distance 100 mm from the edge of the scan engine
Angle Skew angle β= +15°
R
バーコード
Figure 7: Curvature
Note:
The reading performance may deteriorate if there is specular reflection of the laser light, this typically will occur
when the reflectivity of the barcode is high.
9 Environmental Specifications
9.1 Temperature
Scanning performance is guaranteed when the ambient temp. is within the following range:
Operating Temperature: -10 ~ 50 °C
Storage Temperature : -20 ~ 60 °C
Please charge when the temperature is between 0 and 40°C. When the temperature is over 40°C,
charging may stop to prevent battery breakdown..
9.2 Humidity
Scanning performance is guaranteed when the ambient humidity within following range:
Operating Humidity: 20 ~ 85%RH (no condensation, no frost)
Storage Humidity: 20 ~ 85%RH (no condensation, no frost)
Bar code

OPN-2102i
1st
17
SPECIFICATIONS MANUAL
9.3 Ambient Light Immunity
Scanning performance is guaranteed when the illumination on a barcode surface is between
zero and the following values:
Incandescent light: 4,000 lx
Fluorescent light: 4,000 lx (excluding high-frequency lighting)
Sunlight: 80,000 lx
<Conditions>
Barcode: Optoelectronics Test Sample
Resolution 0.25 mm, 9-digit Code 39,
Quiet Zone 10 mm, N/W Ratio = 1 : 2.5
Distance: 100 mm from the front edge of the scanner
Angle: α= 0°, β=＋15°, γ= 0°
Curvature: R = ∞
Power-supply voltage: 5.0V
* Avoid direct or specula reflection from the laser beam as it may blind the scanners optical receiver.
9.4 Dust and Drip Proof
IEC IP54 equivalent
Protection against solid objects: Level 5 equivalent (Dust proof type)
Prevent dust ingress to inside. Even if slight dust intrusion will not inhibit normal operation.
Protection against liquids: Level 4 equivalent (Splash proof type)
Protected against water splash from any direction.
* () is JIS drip-proof type.
9.5 Vibration Strength (without packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6m/s2(2.0 G) for 30 minutes (60 minutes per cycle) in non-operating state.
Repeat this in each X, Y and Z direction.
9.6 Vibration Strength (in individual packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6 m/s2(2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state.
Repeat this in each X, Y and Z direction.

OPN-2102i
1st
18
SPECIFICATIONS MANUAL
9.7 Drop Impact Strength (without packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop the scanner 18 times in total (3 times at each 6 face), from a height of 150 cm
onto a concrete floor as shown below.
150cm
Figure 8: Drop Test
9.8 Drop Impact Strength (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges,
and 6 faces, from a height of 150 cm onto a concrete floor.
9.9 Electrostatic Discharge Immunity
Air discharge ±8 kV max. (No malfunction)
±15 kV max. (No destruction)
Measurement environment An electrostatic testing device compliant with IEC 61000-4-2
Discharge resistance 330 Ω
Charging capacitor 150 pF

OPN-2102i
1st
19
SPECIFICATIONS MANUAL
10 Regulatory Compliance
10.1 LED Safety
JIS C 6802：2011 Class 2
IEC 60825-1 Ed.2: 2007 Class 2
CDRH Class Ⅱ
10.2 Product Safety
EN60950-1:2005
IEC60950-1:2006
10.3 EMC
R & TTE Directive
・EN 55024:2010
・EN 55032:2012+AC: 2013
・EN 301 489-1 V1.9.2
・EN 301 489-17 V2.2.1
・EN 300 328 V1.9.1
・EN 302 291-2 V1.1.1
FCC Part 15 Subpart C, Subpart B ClassB
Federal Communications Commission Notices
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This product complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used according to the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which is found by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

V
C
10.4
O
・
・
・
11 R
o
R
o
R
o
el
e
12 R
e
MTBF (
M
13 Pr
13.1 P
・
・
・
・
Th
R
e
Eq
m
a
“Made fo
r
mean that
connect s
p
and has b
e
performan
operation
o
regulatory
accessory
performan
C
CI Class B
O
ther
Bluetooth l
o
MFi license
Certificatio
n
・Classific
a
Radio Eq
u
・Model N
a
・Certificat
e
o
HS
o
HS compli
a
o
HS: The re
s
e
ctronic equi
e
liability
M
ean Time
B
ecautio
n
recaution
Do not star
It may har
m
Do not poi
n
It may har
m
Do not star
It may har
Use of con
t
herein ma
y
is is a Class
B
e
quirement of
t
uipment (VC
C
a
y cause radi
o
r
iPod,” “Mad
e
an electronic
p
ecifically to i
P
e
en certified
b
ce standards.
o
f this device
standards. Pl
with iPod, iP
h
ce.
o
go certificati
n
for Constru
c
a
tion of Specif
i
u
ipment
a
me
e
Number
a
nce.
s
triction of th
pment, 201
1
B
etween Fail
n
s
against
L
e into the la
s
m
your eyes.
n
t the laser d
m
their eyes.
e into the b
e
m your eyes
t
rols or adju
s
y
result in ha
z
B
product, to
b
t
he Voluntary
C
I). If this is u
s
o
interference.
SPECIFI
for iPhone,”
a
accessory h
a
P
od, iPhone,
o
b
y the develo
p
Apple is not r
e
or its complia
n
ease note th
a
h
one, or iPad
on
c
tion Design
ed
A
c
O
2
e use of cer
t
1
/65/EU
ures) 50,
0
L
aser Lig
h
s
er light fro
m
irectly at oth
e
am with opti
.
s
tments or p
e
z
ardous radi
b
e used in a d
o
Control Coun
s
ed near a ra
d
I
CATIONS
M
a
nd “Made fo
r
a
s been desig
n
o
r iPad, respe
p
er to meet A
p
e
sponsible fo
r
nce with safe
t
a
t the use of t
h
may affect wi
r
n
of Specifie
d
A
rticle 2 Par
a
c
ommunicati
o
O
PA-26X1
2
01-125603
t
ain hazardo
0
00 hours
h
t
m
the scanni
n
h
ers’ eyes.
i
cal instrum
e
e
rformance
o
i
ation expos
u
o
mestic envir
o
cil for Interfer
e
d
io or televisi
o
M
ANUAL
r
iPad”
n
ed to
ctively,
p
ple
r
the
t
y and
h
is
r
eless
d
Radio Equi
a
graph 1, Ite
m
o
n system in 2
us substanc
n
g window.
e
nts.
o
f procedure
u
re.
o
nment, base
d
e
nce from Inf
o
o
n receiver in
a
pment
m
19 Low p
o
.4 GHz band
e
s in electri
c
s other than
d
on the Tech
o
rmation Tec
h
a
domestic en
O
o
wer data
c
al and
those speci
f
nical
h
nology
n
vironment, it
O
PN-2102i
1st
20
f
ied
