Optilia Desk-top USB 3.0 User manual

Installation Instructions

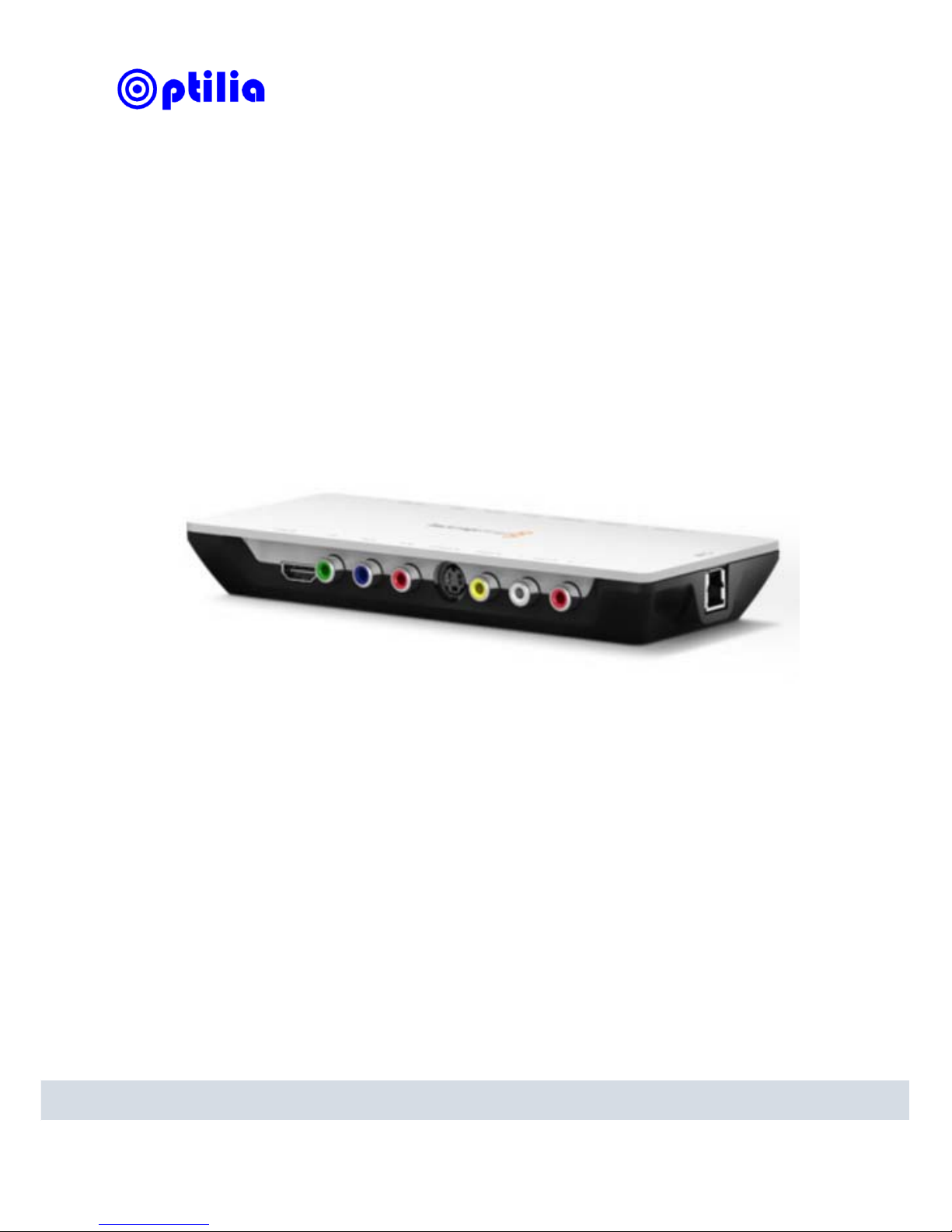

Desk-top USB 3.0 HD Frame Grabber
This manual describes how to install Desk-top USB 3.0 HD Frame Grabber

Before you start
Make sure that your PC meets the frame grabber system requirements.
Do not connect your frame grabber to PC before installing the drivers!
“Administrator Account” or “Administrator privileges” are required to install the
software
It is essential to run the latest USB 3.0 drivers on your PC. Optilia’s
recommended PC’s are equipped with Intel® USB 3.0 eXtensible Host Controller
the up-to-date driver installations files can be found Intel’s Download Centre .
Download and install the latest USB 3.0 drivers.

Installing the software and drivers

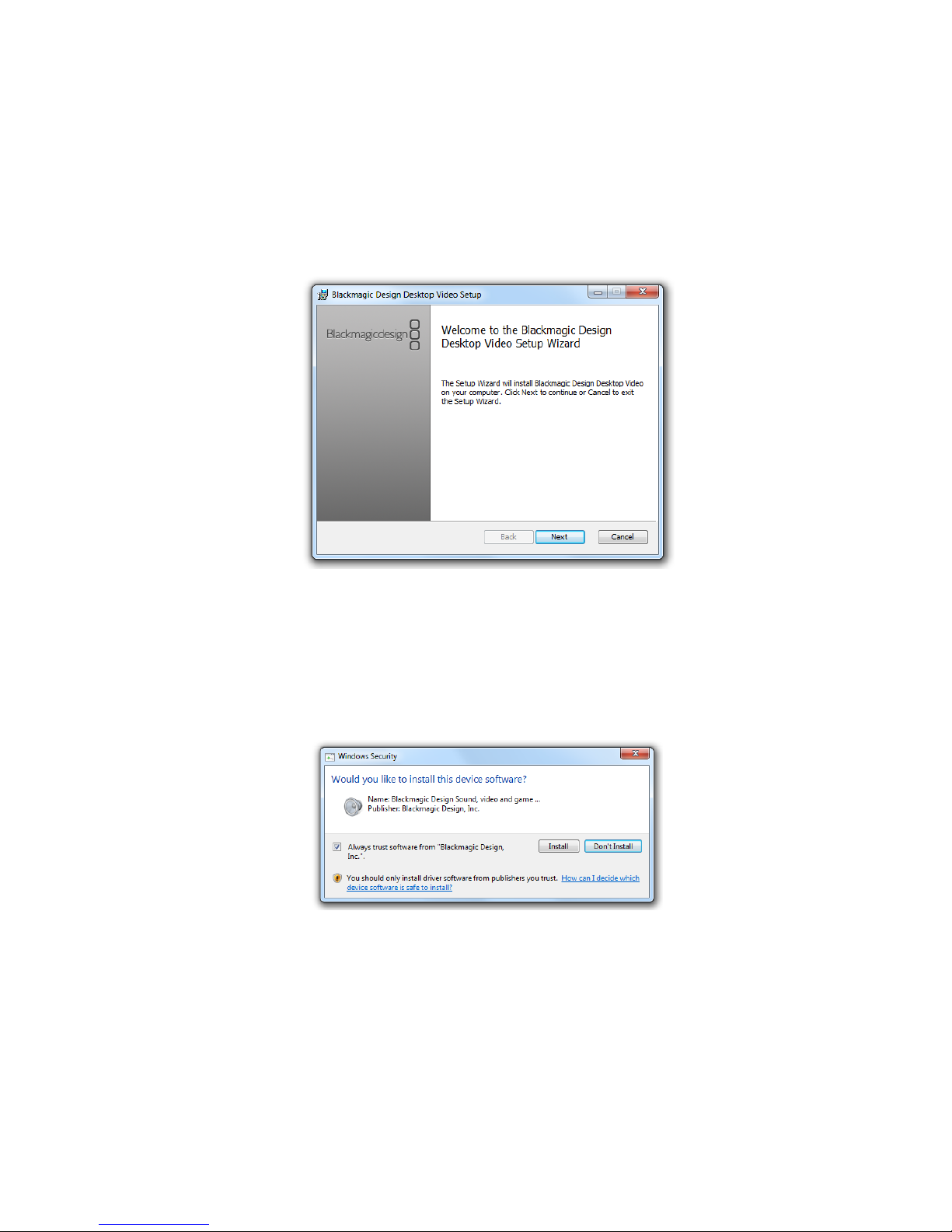

1. Install DesktopVideo_9.6.x.msi under Intensity Pro folder from the supplied CD.
Click Next and follow the on screen instructions.
2. The drivers will now be installed on your system. A number of alerts will appear:
“Do you want to allow the following program to install software on this computer?”
“Would you like to install this device software?” Click Yes/Install to continue.
3. Restart your after installing the drivers have finalised.

Connecting HD camera to frame grabber
4. Connect component Y/Pb/Pr video cables (green, blue, red) of the HD camera to
the Y/Pb/Pr input of the frame grabber respectively.
5. Make sure that HD camera is connected to the power and switched on.
6. If you want to send the live image to external monitor while working with OptiPix,
connect HDMI output or Y/Pb/Pr output of the frame grabber to external monitor.
Cables for direct monitoring are not provided with the frame grabber!
7. Connect provided blue USB 3.0 cable to frame grabber and to an available USB
3.0 port marked with logo.
8. At the first connection Windows will detect the frame grabber and install the
drivers automatically.

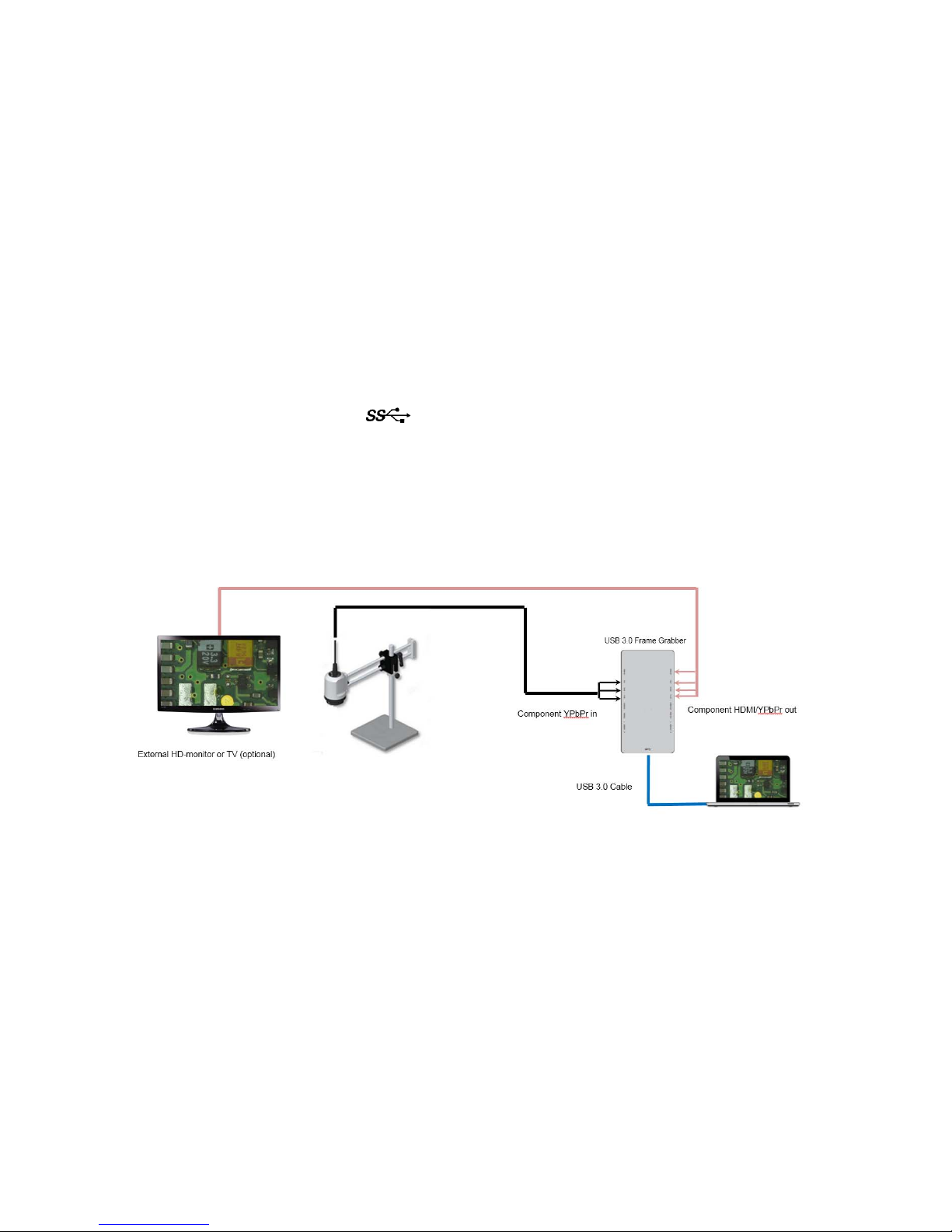

Connection scheme for frame grabber

Configuring the frame grabber
9. Open “Black Magic Design Control Panel” from the Windows Control Panel.
10.To frame grabber to function properly, the input format of the frame grabber and
output format of the HD camera must be the same. Default output format of
Optilia HD Cameras:
oHD 1080i 59.94 for W10x-HD
oHD 1080i 50 for W20x-HD (EU),
oHD 1080i 59.94 for W20x-HD (US),
oHD 720p 50 for M20x-HD (EU)
oHD 720p 60 for M20x-HD (US)
To check the output format of the HD camera or changing the output format, please
refer to the “Optilia HD Camera Control Software Manual”.
11.Set Output : All Outputs Active
12.Set Input : Component Video & Analog RCAAudio
13.Set Default Video Standard as : Same output format as the HD Camera
14.Click Apply and OK.

Selecting the frame grabber in OptiPix
15.Run OptiPix.

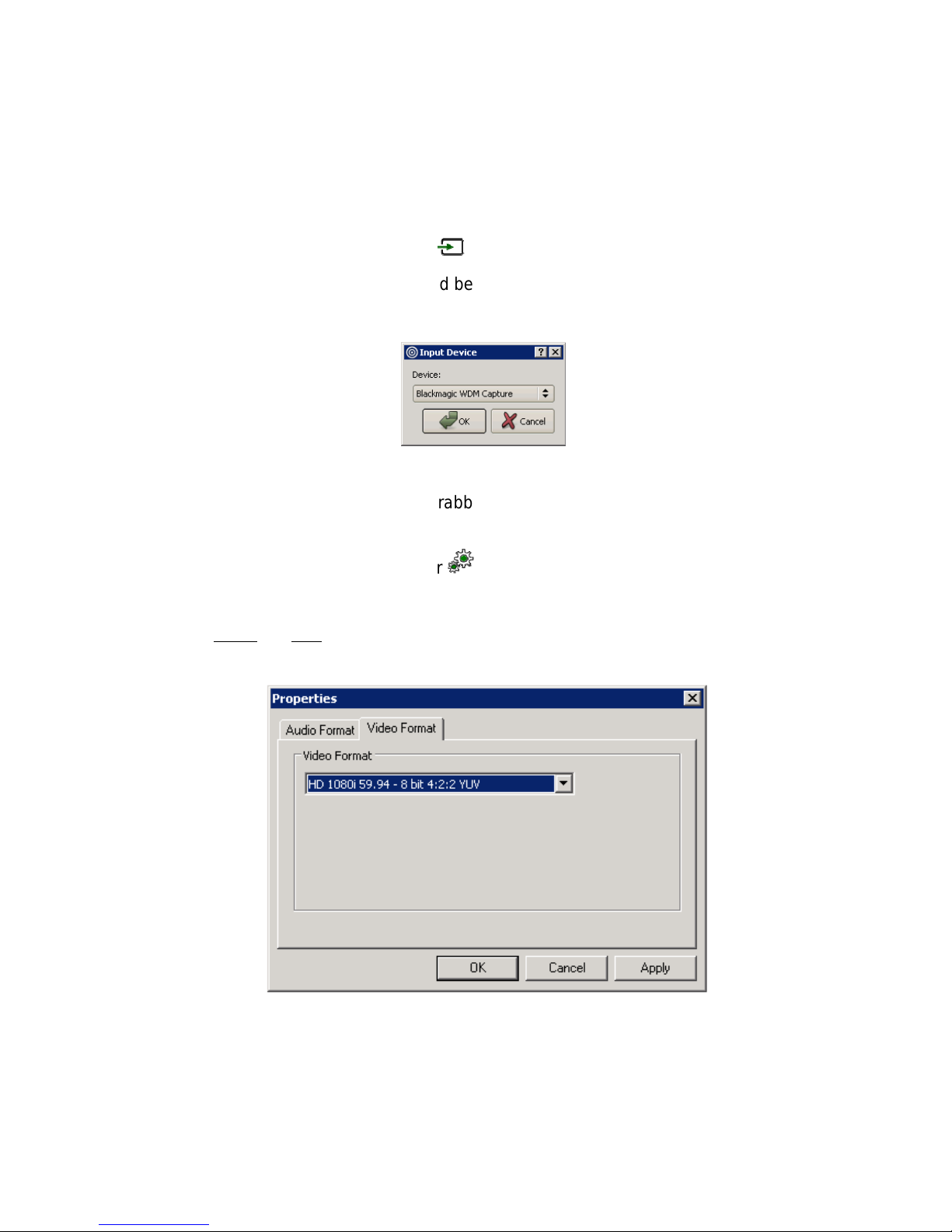

16.Click Device->Input Device or icon and select “Blackmagic WDM
Capture”. The live image should be visible in OptiPix.

The input format of the frame grabber can also be changed in OptiPix if
necessary.
 Click Device->Device Properties or icon.
 Click Video Format Tab.
 Select the input format (Must be same output format of the HD Camera!).
 Click Apply and OK.
 Press F12 on your keyboard or select “Blackmagic WDM Capture” from the Device-
>Input Device again to restart the camera. The live image should be visible in
OptiPix.

Common issues and solutions
Black Magic Control panel is greyed out and settings cannot be changed.
Unplug the Frame Grabber and connect to another available USB port. If the
problem stays, re-install the drivers.
Black Magic Control Panel settings changed after restarting the PC.
Install the latest USB 3.0 drivers from Intel. If problem persists follow up the power
off/on sequence as follows:
Power-off sequence
- Turn-off the computer.
- Remove the USB3.0 Cable from the Frame Grabber side.
Power-on sequence
-Turn-on the computer and wait until Windows starts completely and desktop is
visible.
-Plug the USB3.0 cable to frame grabber.
-Start OptiPix.
Live images freezes in OptiPix
Connect the PC always to the power. Disable any power saving options.
Getting Help
Please check first F.A.Q and Support Documents pages in Optilia homepage. It is
recommended to go through the following checklist before contacting your local Optilia
representative.
Latest OptiPix and HD Frame grabber drivers are installed (Available on
www.optilia.eu ).
HD camera is switched on and cables are connected correctly.
Frame grabber input source is correct in Black Magic Control Panel.
Frame grabber input format is same with the HD Camera, in Black Magic Control
Panel.
Black Magic WDM is selected as input in OptiPix.

…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
