Preface
Dear customer,
Thank you very much for purchasing a product made by OPTIMUM.
OPTIMUM metal working machines offer a maximum of quality, technically optimum solutions
and convince by an outstanding price performance ratio. Continuous enhancements and prod-
uct innovations guarantee state-of-the-art products and safety at any time.
Before commissioning the machine please thoroughly read these operating instructions and get
familiar with the machine. Please also make sure that all persons operating the machine have
read and understood the operating instructions beforehand.
Keep these operating instructions in a safe place nearby the machine.
The operating instructions include indications for safety-relevant and proper installation, opera-
tion and maintenance of the machine. The continuous observance of all notes included in this
manual guarantee the safety of persons and of the machine.
The manual determines the intended use of the machine and includes all necessary information
for its economic operation as well as its long service life.
In the paragraph "Maintenance" all maintenance works and functional tests are described which
the operator must perform in regular intervals.
The illustration and information included in the present manual can possibly deviate from the
current state of construction of your machine. Being the manufacturer we are continuously
seeking for improvements and renewal of the products. Therefore, changes might be performed
without prior notice. The illustrations of the belt grinder may be different from the illustrations in
these instructions with regard to a few details. However, this does not have any influence on
the operability of the belt grinder.
Therefore, no claims may be derived from the indications and descriptions. Changes and errors
are reserved!
Your suggestion with regard to these operating instructions are an important contribution to
optimising our work which we offer to our customers. For any questions or suggestions for
improvement, please do not hesitate to contact our service department.
If you have any further questions after reading these operating instructions and you are not able
to solve your problem with a help of these operating instructions, please contact your special-
ised dealer or directly the company OPTIMUM.
Optimum Maschinen Germany GmbH
Dr.- Robert - Pfleger - Str. 26
D-96103 Hallstadt
Fax (+49)0951 / 96555 - 888
Email: in[email protected]
Internet: www.optimum-machines.com
Safety
Version 1.0.1 - 2020-10-14 3Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm
1 Safety
Glossary of symbols
This part of the operating instructions
explains the meaning and use of the warning notes included in these operating instructions,
defines the intended use of the belt grinder,
points out the dangers that might arise for you or others if these instructions are not
observed,
informs you about how to avoid dangers.
In addition to these operating instructions, please observe
the applicable laws and regulations,
the statutory provisions for accident prevention,
the prohibition, warning and mandatory signs as well as the warning notes on the belt
grinder.
Always keep this documentation close to the belt grinder.
1.1 Safety instructions (warning notes)
1.1.1 Classification of hazards
We classify the safety warnings into different categories. The table below gives an overview of
the classification of symbols (ideogram) and the warning signs for each specific danger and its
(possible) consequences.
provides further instructions
calls on you to act
listings
Symbol Alarm expression Definition / consequence
DANGER! Impending danger that will cause serious injury or death to people.
WARNING! A danger that can cause serious injury or death.
CAUTION!
A danger or unsafe procedure that can cause personal injury or damage
to property.
ATTENTION!
Situation that could cause damage to the belt grinder and product, as
well as other types of damage.
No risk of injury to persons.
INFORMATION
Practical tips and other important or useful information and notes.
No dangerous or harmful consequences for people or objects.
Safety
Version 1.0.1 - 2020-10-144 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm
1.1.2 Other pictograms
1.2 Intended use
WARNING!
In the event of improper use, the belt grinder
may be a hazard to personnel,
the belt grinder and other property of the operating company will be endangered,
the functionality of the belt grinder may be compromised.
The belt grinder is designed and built for sanding a wide variety of materials. The belt grinder
must be used exclusively for this purpose.
If the belt grinder is used for grinding materials that are hazardous to health or generate dust, a
suitable extraction system must be connected.
If the belt grinder is used in any way other than described above, modified without authoriza-
tion of Optimum Maschinen Germany GmbH, then the belt grinder is being used improperly.
We will not be held liable for any damages resulting from any operation which is not in accord-
ance with the intended use.
We expressly point out that the guarantee will expire, if any constructive, technical or proce-
dural changes are not performed by the company Optimum Maschinen Germany GmbH. It is
also part of the intended use that you
the limits of performance of the belt grinder are observed,
the operating manual is observed,
the inspection and maintenance instructions are observed.
Activation forbidden! Warning: flammable
substances! Warning: suspended loads! Warning: risk of stumbling!
Warning: tilting danger! Warning: automatic start-
up! Warning: biological hazard! Warning: injuries to hands!
Read the operating
instruction before
commissioning!
Pull out the mains plug! Wear protective glasses! Use face shield!
Wear safety shoes! Wear a protective suit! Use ear protection! Protect the environment!
Safety
Version 1.0.1 - 2020-10-14 5Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm
WARNING!
Severe injuries due to non-intended use.
It is forbidden to make any modifications or alternations to the operating parameters
values of the belt grinder. They could pose an accident hazard to persons and cause
damage to the belt grinder.
ATTENTION!
If the belt grinder is not used as intended or if the safety directives or the operating
instructions are ignored the liability of the manufacturer for any damages to personnel
or objects resulting hereof is excluded and the claim under guarantee is becoming null
and void!
1.3 Reasonably foreseeable misuse
Any other use other than that specified under "Intended use" or any use beyond the described
use shall be deemed as non-intended use and is not permissible.
Any other use has to be discussed with the manufacturer.
In order to avoid misuse, it is necessary to read and understand the operating instructions
before first commissioning.
Operators must be qualified.
1.3.1 Avoiding misuse
The direction of rotation of the belt grinder must be in the direction of the contact surface or
the stop. If the phase sequence is not used correctly, it is possible to operate the belt
grinder in the wrong direction of rotation.
Pay attention to the current direction of rotation of the belt grinder to prevent the spin-up of
workpieces at the start of grinding.
We expressly point out that the guarantee will expire, if any constructive, technical or proce-
dural changes are not performed by the company Optimum Maschinen Germany GmbH.
WARNING!
Risk of injury caused by flying workpieces. Injuries caused by sharp-edged workpieces.
Injuries caused by hot workpieces. Wear protective gloves and goggles. For certain
materials it may be necessary to wear face protection instead of safety glasses.
Make sure that the support surface for the workpiece is firmly clamped.
1.4 Dangers that can be caused by the belt grinder
The belt grinder was built using state-of-the-art technology. Nevertheless, there is a residual
risk, as the belt grinder operates with
high speeds,
rotating parts,
a sanding belt,
electrical voltage and currents.
We have used design and safety engineering to minimize the health risk to personnel resulting
from these hazards.
If the belt grinder is used and maintained by personnel who are not duly qualified, there may be
a risk resulting from its incorrect or unsuitable maintenance.
INFORMATION
Everyone involved in the assembly, commissioning, operation and maintenance must
be duly qualified,
Safety
Version 1.0.1 - 2020-10-146 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm
and strictly follow these operating instructions.
Always disconnect the belt grinder from the electrical power supply before performing cleaning
or maintenance tasks.
CAUTION!
The belt grinder may only be operated with the support plate clamped. Operation with a
dismantled or unclamped plate can lead to dangerous conditions for the operator. Make
sure that the gap between the support plate of the workpiece and the belt grinder is as
small as possible.
Disconnect the belt grinder immediately, whenever you detect a failure in the safety
devices or when they are not fitted!
All additional devices installed by the operator must be equipped with the stipulated
safety devices. This is your responsibility as the operator!
1.5 Personnel qualification
1.5.1 Target group
This manual is addressed to
the operating companies,
the operators,
the maintenance personnel.
Consequently, the warning notes refer both to the use of the belt grinder and to its mainte-
nance.
Always disconnect the belt grinder from the electrical power supply. This will prevent it from
being used by unauthorized persons.
The qualifications of the personnel for the different tasks are mentioned below:
Operator
The user must have been instructed by the operator about the assigned tasks and possible
risks in case of improper behaviour. The user may only carry out tasks that exceed normal
operation if this is stated in these instructions and the operator has explicitly entrusted him with
the task.
Qualified electrician
With professional training, knowledge and experience as well as knowledge of respective
standards and regulations, qualified electricians are able to perform work on the electrical sys-
tem and recognise and avoid any possible dangers.
Qualified electricians have been specially trained for the working environment, in which they are
working and know the relevant standards and regulations.
Qualified personnel
Due to their professional training, knowledge and experience as well as knowledge of relevant
regulations, qualified personnel are able to perform the assigned tasks and to independently
recognise and avoid any possible dangers.
Instructed person
Instructed persons were instructed by the operating company regarding the assigned tasks and
any possible risks of improper behaviour.
INFORMATION
Everyone involved in the assembly, commissioning, operation and maintenance must
Safety
Version 1.0.1 - 2020-10-14 7Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm
be duly qualified,
and strictly follow these operating instructions.
In the event of improper use
there may be a risk to personnel,
the grinding machine and other property and
the functionality of the belt grinder may be compromised.
1.6 User positions
The operator position is in front of the belt grinder or next to the belt grinder.
1.7 Safety devices
WARNING!
If you bypass, remove or override a safety device in any other way, you are endangering
yourself and other persons working with the belt grinder. The possible consequences
are:
injuries due to components or workpieces flying off at high speed,
contact with rotating parts,
fatal electrocution.
The belt grinder must only be operated with fully functional safety devices.
Stop the belt grinder immediately if there is a failure on the safety device or becomes ineffec-
tive.
It is your responsibility!
If a safety device has been activated or has failed, the belt grinder must only be used if
the cause of the fault has been eliminated,
The belt grinder features the following safety devices:
A support surface for the workpiece.
An open top partial cover to allow grinding of longer surfaces on the top.
A restart protection that prevents the unit from restarting independently by connecting the
power supply.
CAUTION!
Always work carefully and observe the limit values of the process.
1.8 For your own safety during operation
WARNING!
Before switching the belt grinder on, make sure that there is no risk of personal injury or
damage to property.
Avoid any unsafe work methods:
The instructions mentioned in these operating instructions have to be strictly observed dur-
ing assembly, operation, maintenance and repair.
Wear protective goggles, if necessary face protection and protective gloves.
Do not work on the belt grinder, if your concentration is reduced, for example, because you
are taking medication.
Stay on the belt grinder until the rotation of the sanding belt has come to a complete stop.
Use the specified personal protective equipment. Ensure you wear close-fitting clothing
and, if necessary, a hairnet.
Make sure that your operation does not create a safety hazard.
Technical specification
Version 1.0.1 - 2020-10-148 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm
1.9 Disconnecting and securing the belt grinder
Disconnect the mains plug before starting maintenance and repairs.
1.10 Emissions
The noise emission of the belt grinder is in the range of 82 to 85 dB(A). If the belt grinder is
installed in an area where various machines are in operation, the noise exposure (immission)
on the operator of the belt grinder at the working place may exceed 85 dB(A).
INFORMATION
This numerical value was measured on a new machine under the operating conditions specified
by the manufacturer. The noise behaviour of the machine might change depending on the age
and wear of the machine.
In addition, the value of the noise emission also depends on manufacturing factors, e.g. the wall
thickness of a sheet to be ground.
INFORMATION
The specified numerical value represents the emission level and does not necessarily a safe
working level. Though there is a dependency between the degree of the noise emission and the
degree of the noise disturbance it is not possible to use it reliably to determine if further precau-
tion measures are required or not. The following factors influence the actual degree of the noise
exposure of the operator:
Characteristics of the working area, e.g. size or damping behaviour,
other noise sources, e.g. the number of machines,
other processes taking place in proximity and the period of time, during which the operator
is exposed to the noise.
Furthermore, it is possible that the admissible exposure level might be different from country to
country due to national regulations. This information about the noise emission should, how-
ever, allow the operator of the machine to more easily evaluate the hazards and risks.
CAUTION!
Depending on the overall noise exposure and the basic threshold values, machine
operators must wear appropriate hearing protectors. We generally recommend the use
of noise and ear protection.
2 Technical specification
GBS 75 GBS 150
Electrical connection 400V ~50Hz (60Hz)
Motor power 2.2 / 1.5 kW
Current consumption 3,6 A / 2,6 A
Speed [ min-1 ] 2850 / 1450
Circumferential speed of the sanding belt 29.4 m/s at 2850 min-1
Dimensions of the sanding belt 2000mm x 75mm 2000mm x 150mm
Extraction socket 60mm
Machine weight [kg] 73 88
Delivery, interdepartmental transport, assembly and commissioning
Version 1.0.1 - 2020-10-14 9Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm
3 Delivery, interdepartmental transport, assembly and
commissioning
3.1 Notes on transport, installation, commissioning
Improper transport, installation and commissioning is liable to accidents and can cause damage
or malfunctions to the machine for which we do not assume any liability or guarantee.
Transport the scope of delivery secured against shifting or tilting with a sufficiently dimen-
sioned industrial truck or a crane to the installation site.
WARNING!
Severe or fatal injuries may occur if parts of the machine tumble or fall down from the
forklift truck or from the transport vehicle. Follow the instructions and information on the
transport box.
Note the total weight of the machine. The weight of the machine is indicated in the "Tech-
nical data" of the machine. When the machine is unpacked, the weight of the machine
can also be read on the rating plate.
Only use transport devices and load suspension gear that can hold the total weight of
the machine.
WARNING!
The use of unstable lifting and load suspension equipment that might break under load
can cause severe injuries or even death. Check that the lifting and load suspension gear
has sufficient load-bearing capacity and that it is in perfect condition.
Observe the accident prevention regulations issued by your Employers Liability Insur-
ance Association or other competent supervisory authority, responsible for your com-
pany. Fasten the loads properly.
3.1.1 General risks during internal transport
WARNING: TILTING DANGER!
The machine may be lifted unsecured by a maximum of 2 cm.
Employees must be outside the danger zone, i.e. the reach of the load.
Warn employees and advise them of the hazard.
Machines may only be transported by authorized and qualified persons. Act responsibly during
transport and always consider the consequences. Refrain from daring and risky actions.
Gradients and descents (e.g. driveways, ramps and the like) are particularly dangerous. If such
passages are unavoidable, special caution is required.
Before starting the transport check the transport route for possible danger points, unevenness
and faults.
Danger points, unevenness and disturbance points must be inspected before transport. The
removal of danger spots, disturbances and unevenness at the time of transport by other
employees leads to considerable dangers.
Careful planning of interdepartmental transport is therefore essential.
Delivery, interdepartmental transport, assembly and commissioning
Version 1.0.1 - 2020-10-1410 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm
3.2 Unpacking and connecting
The belt grinder is mounted ready for operation. In order to obtain the correct direction of rota-
tion, the phase sequence must be changed if necessary. This is done at your three-phase con-
nection or - if equipped with it - at the three-phase connector by changing the phase sequence.
3.3 Scope of delivery
Check the belt grinder immediately after delivery for transport damage, missing parts and loose
locking bolts. Compare the scope of delivery with the delivery note. Sanding belts are available
in specialist shops or from our main catalogue.
3.4 Storage
ATTENTION!
Incorrect and improper storage might result in damage or destruction of electrical and
mechanical machine components.
Store packed and unpacked parts only under the intended environmental conditions.
Follow the instructions and information on the transport box.
Consult Optimum Maschinen Germany GmbH if the machine and accessories are stored for
more than three months or are stored under different environmental conditions than those spec-
ified here.
3.5 Set-up and assembly
3.5.1 Installation site requirements
Organise the working area around the grinding machine according to the local safety regula-
tions.
CAUTION!
The belt grinder must be firmly connected to the substructure. For this purpose there are
holes in the base to screw the belt grinder to your ground.
INFORMATION
In order to achieve high levels of functionality and machining accuracy, as well as a long ser-
vice life of the machine, the set-up location should meet certain criteria.
Delivery, interdepartmental transport, assembly and commissioning
Version 1.0.1 - 2020-10-14 11Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm
The following points should be noted:
The device must only be installed and operated in a dry and well-ventilated place.
The ground must be suitable for the belt grinder.
Provide enough space for set-up and operating personnel and material transport.
Ensure adequate lighting is available (minimum value: 500 Lux, measured at the tool tip). In
the event of a lower level of lighting, additional illumination must be provided, e.g. by means
of a separate workplace light.
The power plug of the belt grinder must be readily accessible.
CAUTION!
Arrange the machine's connection cable in such a way that it will not cause a tripping
hazard.
3.5.2 Extraction socket
For certain operations, it may be appropriate to connect
the belt grinder to an extraction system or to an industrial
vacuum cleaner. The suction connection at the bottom
and the back of the belt grinder has an outer diameter of
60mm.
Use both extraction ports simultaneously or only one of
the two extraction ports that best suits the purpose of
extraction using the material. The second extraction con-
nection should be blindly closed to maintain the extraction
performance of your extraction system.
The GU2 from Optimum Maschinen Germany GmbH is the ideal extraction unit. This suction
device has 60mm suction hoses, where both suction connections of the belt grinder can be
connected at the same time.
P
60
Delivery, interdepartmental transport, assembly and commissioning
Version 1.0.1 - 2020-10-1412 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm

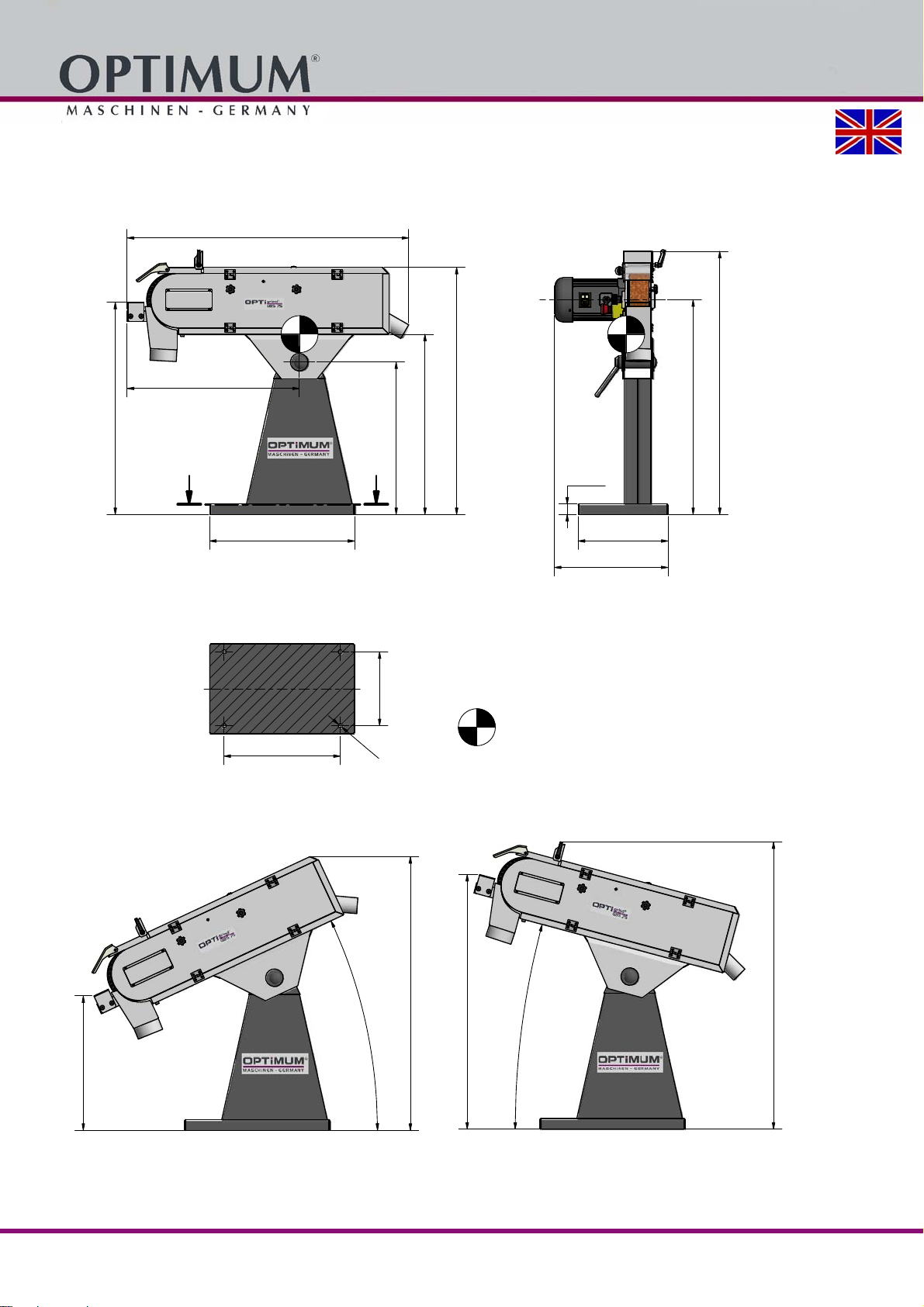

3.6 Dimensions
3.6.1 GBS 75
A-A
AA
814
340
40
430
1000
550
937
805
1070
440
280
P16
25°
510
1035
15°
965
578
1090
650
683
Center of gravity
Delivery, interdepartmental transport, assembly and commissioning
Version 1.0.1 - 2020-10-14 13Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm

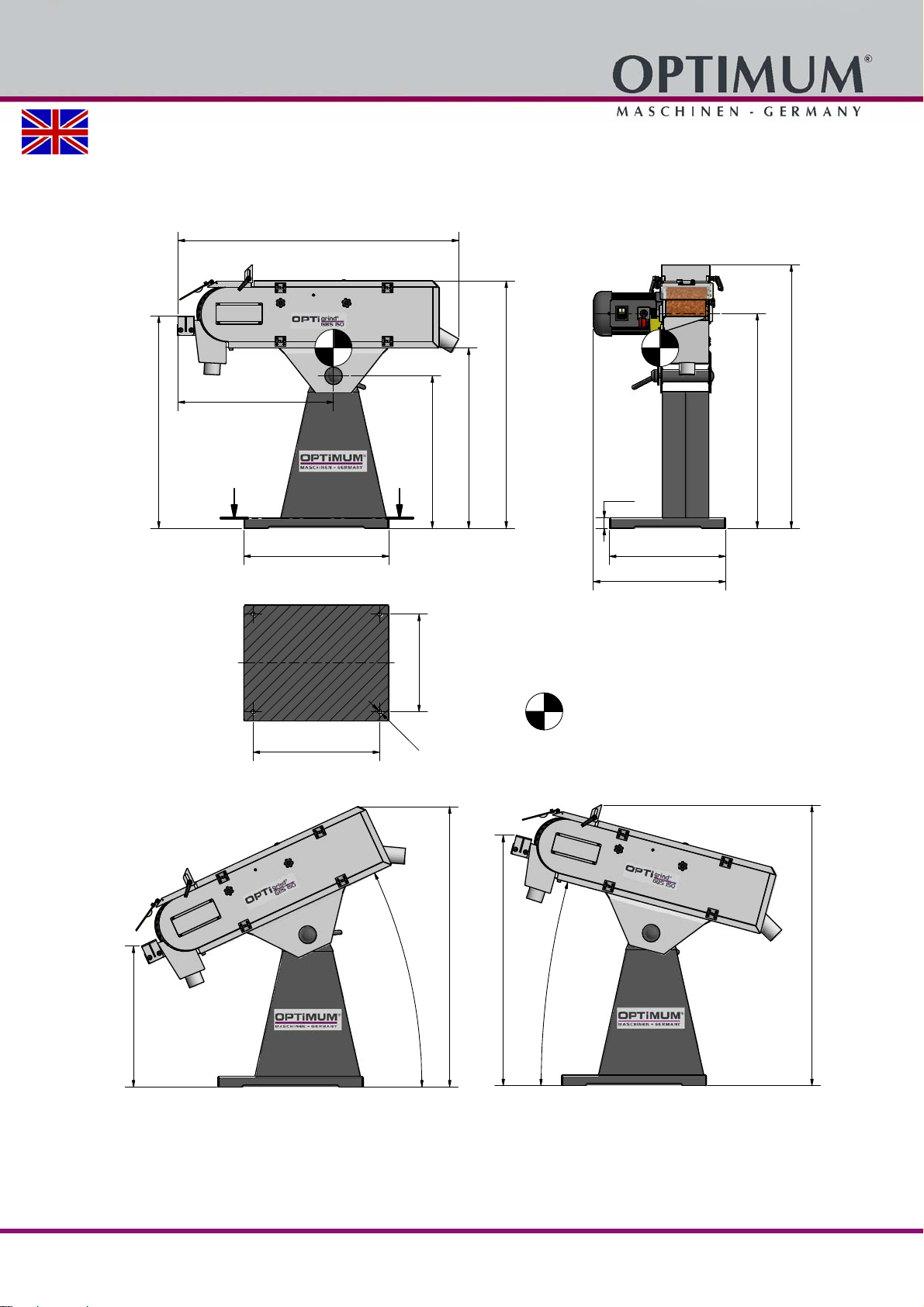

3.7 Dimensions
3.7.1 GBS 150
A-A
AA
550
805
1070
937
40
440
500
814
1000
370
480
P
16
578
25°
1065
535
15°
950
1065
590
683
Center of gravity
Operation
Version 1.0.1 - 2020-10-1414 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm
3.8 First commissioning
ATTENTION!
Before commissioning the machine, all bolts, fastenings and protections must be
checked and retightened as necessary!
CAUTION!
Danger from the use of unsuitable sanding belts. Only use abrasive belts with the correct
width and length.
WARNING!
First commissioned of the belt grinder by inexperienced personnel constitute a risk to
personnel and equipment.
We do not accept any liability for damages caused by incorrectly performed commissioning.
Personnel qualification on page 6
4 Operation
The step switch allows you to switch from a low belt speed to a higher belt speed.
If the drive is overloaded, the motor-protective circuit-breaker may trip. The motor-protective cir-
cuit-breaker is reset by pressing the button on the underside of the drive control panel.
4.1 Adjusting the tilt angle
CAUTION!
Danger of tipping Loosen the clamping lever only slightly. There are small points on the
shaft to engage the desired angle.
Hold the belt grinder and release the clamping lever.
Adjust the angle of inclination according to the intended use.
Tension the clamping lever again.
Operation
Version 1.0.1 - 2020-10-14 15Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm
4.2 Switching on the machine
CAUTION!
Only press the emergency-stop button in a genuine emergency. You may not use the
emergency stop button to stop the machine during normal operation. The service life of
the emergency stop switch is not designed to stop the machine during normal operation.
4.2.1 Switching on
Check that the emergency-stop button is not pressed or is unlocked. Turn the emergency-
stop button to the right in order to release the push button.
Turn the step switch to the desired grinding speed.
Actuate the push button "ON".
4.3 Switching the machine off
Actuate the push button “Off”.
Disconnect the mains plug if the machine is not used for a longer period of time.
4.4 Adjusting the belt run correctly
ATTENTION!
Pull out the mains plug and first move the sanding belt by hand in order to estimate the
correct running of the sanding belt and to roughly adjust it. Only then switch on the belt
grinder and then readjust the run of the sanding belt with the knurled screw (1).
The belt run is adjusted by adjusting the knurled screw (1) at the front of the belt. By screwing in
the knurled screw, the tape reel moves in direction A. By unscrewing the knurled screw, the reel
moves in direction B. The sanding belt changes direction in opposite directions.
AB
1
Operation
Version 1.0.1 - 2020-10-1416 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm
4.5 Surface grinding
Open the lid at the top and fold it back. Place the workpiece on top of the sanding belt, place it
against the counter stop and press it down.
4.6 Contact rollers grinding
Place the workpiece on the workpiece support and by rocking grind and/or deburr the work-
piece.
4.7 Replacing the sanding belt
ATTENTION!
Use a new sanding belt if it is worn out. Continued use of a worn sanding belt may
damage the rollers and other parts of the belt grinder.
INFORMATION
Abrasive grains of corundum are glued onto abrasive paper with the aid of binders. Corundum
is aluminium oxide with the chemical name Al2O3. The grain size indicates whether an abra-
sive paper is coarse, medium, fine or very fine. Grain 100-180, for example, is a fine grain. The
numbers (40, 60, 80, 120) indicate the number of meshes per 25.4 mm length of one sieve side
of a vibrating sieve. The grain mixture of the abrasives is separated by vibrating screens
according to grain size. The higher the grain number, the finer the abrasive paper.

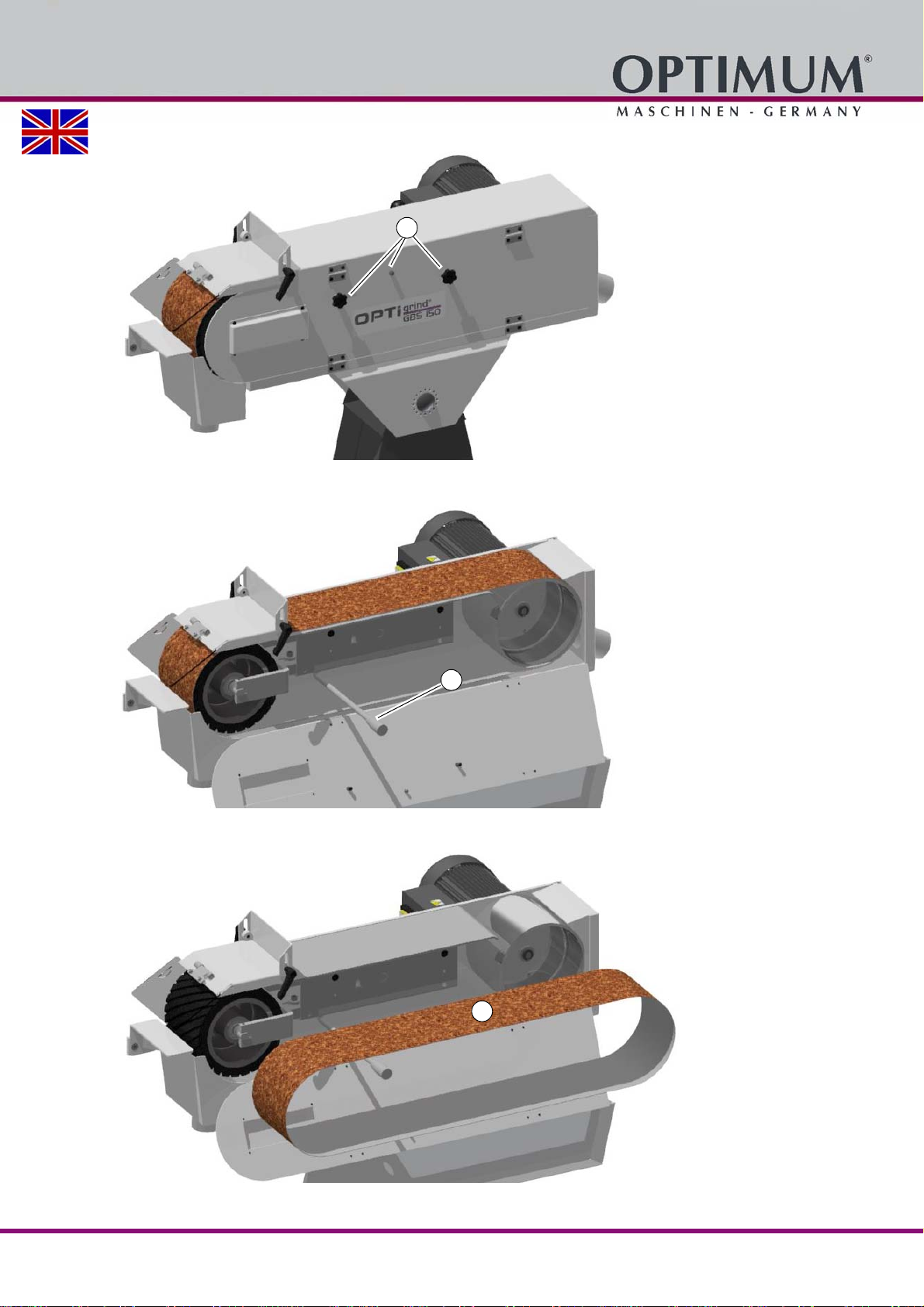

Unscrew the lateral screws (2) and open the cover.
Operation
Version 1.0.1 - 2020-10-14 17Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm
Turn the tension lever (3) out to release the tension of the sanding belt.
Lift the sanding belt (4) off the rollers and insert a new sanding belt.
2
3
4
Maintenance
Version 1.0.1 - 2020-10-1418 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm
5 Maintenance
5.1 Inspection and maintenance
INFORMATION
The bearing is lifetime-lubricated. It is not necessary to lubricate it again.
5.2 Cleaning
Even if a suction device is used, it is necessary to clean the belt grinder regularly from depos-
ited grinding residues in the interior.
5.3 Repair
Optimum Maschinen Germany GmbH accepts no liability nor does it guarantee against damage
and operating malfunctions resulting from failure to observe these operating instructions.
Use only perfect and suitable tools, only original spare parts or serial parts expressly approved
by Optimum Maschinen Germany GmbH for repairs.
6 Appendix
6.1 Copyright
This document is protected by copyright. All derived rights are reserved, especially those of
translation, re-printing, use of figures, broadcast, reproduction by photo-mechanical or similar
means and recording in data processing systems, either partial or total.
Subject to technical changes without notice.
6.2 Liability claims/warranty
Besides the legal liability claims for defects of the customer towards the seller, the manufac-
turer of the product, OPTIMUM GmbH, Robert-Pfleger-Straße 26, D-96103 Hallstadt, does not
grant any further warranties unless they are listed below or were promised as part of a single
contractual provision.
Liability or warranty claims are processed at OPTIMUM GmbH's discretion either directly or
through one of its dealers.
Any defective products or components of such products will either be repaired or replaced
by components which are free from defects. Title to replaced products or components is
transferred to OPTIMUM Maschinen Germany GmbH.
The automatically generated original proof of purchase which shows the date of purchase,
the type of machine and the serial number, if applicable, is the precondition in order to
assert liability or warranty claims. If the original proof of purchase is not presented, we are
not able to perform any services.
Defects resulting from the following circumstances are excluded from liability and warranty
claims:
- Using the product beyond the technical options and proper use, in particular due to over-
straining of the machine.
- Any defects arising by one's own fault due to faulty operations or if the operating manual
is disregarded.
- Inattentive or incorrect handling and use of improper equipment
- Unauthorized modifications and repairs
- Insufficient installation and safeguarding of the machine
- Disregarding the installation requirements and conditions of use
- atmospheric discharges, overvoltage and lightning strokes as well as chemical influences
Appendix
Version 1.0.1 - 2020-10-14 19Translation of original instruction
GBS75 | GBS150 EN
GBS75_GBS150_GB.fm
Neither are the following items covered by liability or warranty claims:
- Wearing parts and components which are subject to normal and intended wear, such as
V-belts, ball bearings, lighting, filters, seals, etc.
- Non reproducible software errors
Any services, which OPTIMUM GmbH or one of its agents performs in order to fulfil any
additional warranty are neither an acceptance of the defects nor an acceptance of its obli-
gation to compensate. These services neither delay nor interrupt the warranty period.
The court of jurisdiction for legal disputes between businessmen is Bamberg.
If any of the aforementioned agreements is totally or partially inoperative and/or invalid, a
provision which nearest approaches the intent of the guarantor and remains within the
framework of the limits of liability and warranty which are specified by this contract is
deemed agreed.
6.3 Advice for disposal / Options of re-use
Please dispose of your equipment in an environmentally friendly manner, by not placing waste
in the environment but in a professional manner.
Please do not simply throw away the packaging and later the disused machine, but dispose of
both in accordance with the guidelines laid down by your city council/local authority or by an
authorised disposal company.
6.3.1 Decommissioning
CAUTION!
Immediately decommission used machines in order to avoid later misuse and
endangering of the environment or of persons.
Cut the connection cable.
Disassemble the machine if required into easy-to-handle and reusable assemblies
and component parts.
Dispose of machine components and operating fluids using the intended disposal
methods.
6.3.2 Disposal of new device packaging
All used packaging materials and packaging aids from the machine are recyclable and gener-
ally need to be supplied to the material reuse.
Any packaging components made of cardboard box can be chopped up and supplied to the
waste paper collection. The films are made of polyethylene (PE) and the cushion parts are
made of polystyrene (PS). These materials can be reused after reconditioning if they are
passed to a collection station or to the appropriate waste management enterprise.
Only forward the packaging materials correctly sorted to allow direct reuse.
INFORMATION
Please take care in your interest and in the interest of the environment that all component parts
of the machine are only disposed of in the intended and admitted way.
Please note that the electrical devices comprise a variety of reusable materials as well as envi-
ronmentally hazardous components. Please ensure that these components are disposed of
separately and professionally. In case of doubt, please contact your municipal waste manage-
ment. If appropriate, call on the help of a specialist waste disposal company for the treatment of
the material.
Appendix
Version 1.0.1 - 2020-10-1420 Translation of original instruction
GBS75 | GBS150
EN
GBS75_GBS150_GB.fm
6.3.3 Disposal of electrical and electronic components
Please make sure that the electrical components are disposed of professionally and according
to the statutory provisions.
The device is composed of electrical and electronic components and must not be disposed of
as household waste. According to the European Directive regarding electrical and electronic
used devices and the implementation of national legislation, used power tools and electrical
machines need to be collected separately and supplied to an environmentally friendly recycling
centre.
As the machine operator, you should obtain information regarding the authorised collection or
disposal system which applies for your company.
6.4 Disposal through municipal collection facilities
Disposal of used electrical and electronic components
(Applicable in the countries of the European Union and other European countries with a sepa-
rate collecting system for those devices).
The sign on the product or on its packing indicates that the product must not be handled as
common household waste, but that is needs to be disposed of at a central collection point for
recycling. Your contribution to the correct disposal of this product will protect the environment
and the public health. Incorrect disposal constitutes a risk to the environment and public health.
Recycling of material will help reduce the consumption of raw materials. For further information
about the recycling of this product, please consult your District Office, municipal waste collec-
tion station or the shop where you have purchased the product.
6.5 Change information manual
6.6 Product follow-up
We are required to perform a follow-up service for our products which extends beyond ship-
ment.
We would be grateful if you could send us the following information:
Modified settings
Any experiences with the belt grinder which might be important for other users
Recurring failures of the belt grinder.
Chapter Short note new version no.
3 Interdepartmental transport 1.0.1
This manual suits for next models
3
Table of contents
Other OPTIMUM Maschinen Grinder manuals
