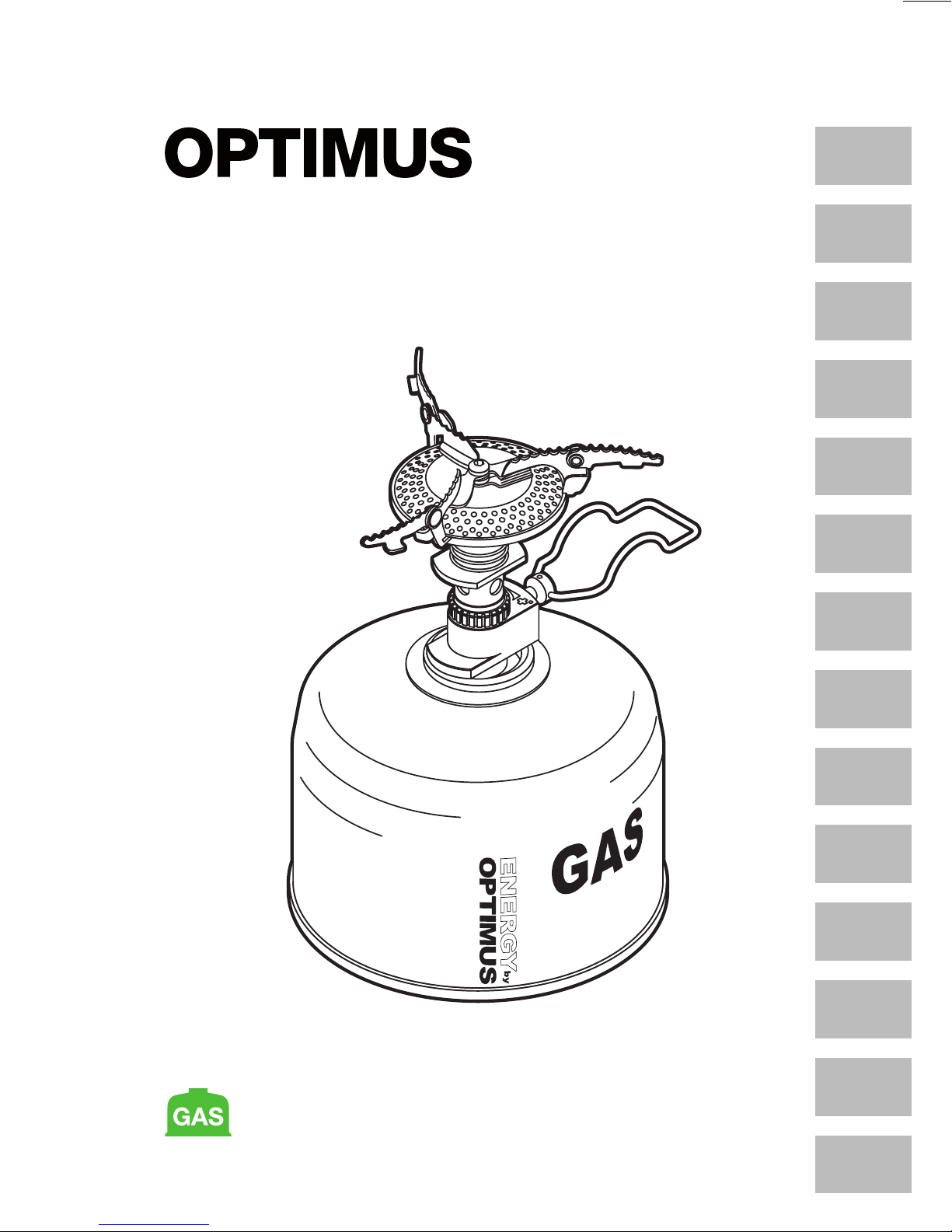

Optimus Crux User manual

OPTIMUS | CLEVER COOKING SINCE 1899™
Crux TM
Canister mounted stove for outdoor use
ENEN
FR
DE
NL
DK
SWE
NO
FI
IT
PL
ES
CZ
PT
RU
ARTICLE NO. 8019260
PRINT NO. 8019127/2

1
This stove is designed for outdoor sports enthusiasts for
outdoor cooking and boiling of water only – never use it
for any other purpose.
IMPORTANT: This manual uses the terms DANGER,
WARNING and CAUTION to indicate possible safety hazards.
Please read these messages carefully and follow the safety
precautions. Please make sure you understand the contents
of this manual before using the stove. Never let children and
individuals with diminished mental capacity use this stove.
ENGLISH
WARNING
Gas leakages are highly
flammable
IF YOU SMELL GAS:
- Do not attempt to light stove
- Extinguish any open flame
- Disconnect stove from fuel
supply
WARNING
Do not store or use gasoline
or other liquids with flammable
vapors in the vicinity of this or
any other appliance.
FIGURE [5]
FIGURE [1]
FIGURE [3]
FIGURE [6]
FIGURE [2]
FIGURE [4]
O-ring
Art. No. 8017867

1
This stove is designed for outdoor sports enthusiasts for
outdoor cooking and boiling of water only – never use it
for any other purpose.
IMPORTANT: This manual uses the terms DANGER,
WARNING and CAUTION to indicate possible safety hazards.
Please read these messages carefully and follow the safety
precautions. Please make sure you understand the contents
of this manual before using the stove. Never let children and
individuals with diminished mental capacity use this stove.
ENGLISH
WARNING
Gas leakages are highly
flammable
IF YOU SMELL GAS:
- Do not attempt to light stove
- Extinguish any open flame
- Disconnect stove from fuel
supply
WARNING
Do not store or use gasoline
or other liquids with flammable
vapors in the vicinity of this or
any other appliance.
FIGURE [5]
FIGURE [1]
FIGURE [3]
FIGURE [6]
FIGURE [2]
FIGURE [4]
O-ring
Art. No. 8017867

2
WARNING CALIFORNIA PROPOSITION 65:
The fuel and byproducts of combustion of this fuel contain
chemicals known to the state of California to cause cancer,
birth defects, or other reproductive harm.
ENENEN
FR
DE
NL
DK
SWE
NO
FI
IT
PL
ES
CZ
PT
RU
DANGER CARBON
MONOXIDE
HAZARD
This appliance can
produce carbon
monoxide which
has no odor.
Using it in an en-
closed space can
kill you.
Never use this
appliance in an en-
closed space such
as a camper, tent,
car or home.

3
WARNING AUSTRALIAN GAS ASSOCIATION:
Use outdoors only, see operating instructions. Only use in well
ventilated areas.
SAFETY FIRST
DANGER
If the stove is used incorrectly, it could cause fire,
explosion or carbon monoxide poisoning.
Please keep these instructions in a safe place for future
reference.
• If you have any questions, call Katadyn Products Inc. in
Switzerland at [phone], cust[email protected]
• US customers contact Katadyn North America at
[phone], [email protected]
DANGER
This stove uses a liquid pressurized gas (LPG) canister
that is highly flammable and explosive. Improper or unsafe
use can result in accidental fire and explosions which can
cause serious injury or possible death.
• For outdoor use only
• The Optimus Crux is designed for Optimus gas canisters
with a threaded valve certified to EN 417 (for Australia:
70% butane and 30% propane) (max. 450g). It may be
hazardous to attempt to fit other types of gas canisters.
• Listen and smell for leaking gas. LPG is invisible and may
be odorless, as its strong odorant can fade over time. As a
result, leaks are not always detectable by smell.
• If you suspect that there is a leak, do not use the stove or
canister. To locate and stop the leakage, move stove to a
well-ventilated area outdoors away from any ignition
source. Check that the stove and fuel canister connection
is secure and tight.

4
WARNING
Risk of fire and explosion when using fire to detect gas
leaks.
• Only check for leaks using soapy water. Do not try to
detect leaks using a flame.
• Check the seals before connecting a new fuel canister to
the stove. Do not use the stove if seals are damaged or
worn. FIGURE [1]
If you expose the fuel canister to high heat, the canister
could explode or leak.
• Keep stove and fuel canister away from other heat sources.
• Follow all warnings on fuel canister regarding use and
storage.
• Do not attach or remove canister near high heat, open
flames, direct sunlight, other ignition sources or where
temperature of canister exceeds 50°C (120°F).
• Only use fuel canisters which are intended to be used with
this stove.
INSTRUCTION FOR USE
Before using your Optimus Crux, read the entire manual. To
minimize any risk of serious injury or possible death, follow
the instructions and safety precautions in this manual. Only
use the stove as described in this manual.
FIGURE [2]
A: Pot Supports
B: Control Valve
C: Gas Canister
D: Burner Head
E: Burner head folding mechanism
TECHNICAL SPECIFICATIONS (STOVE ONLY):
Fuel: Optimus gas canisters with a threaded valve certified to
ENENEN
FR
DE
NL
DK
SWE
NO
FI
IT
PL
ES
CZ
PT
RU

5
EN 417 (for Australia: 70% butane and 30% propane) (max.
450g) Weight: 83g (2.9 oz) Measurements: 84 x 57 x 31mm /
3.3 x 2.2 x 1.2 in Power: 3000 W / 10200 BTU / 10.8 MJ/h
Burn time: up to 90 minutes at maximum output (230 g gas
canister) Boil time: As little as 3 minutes depending on
climate, altitude, etc. Injector size of stove: 0.32 mm EN
521:2006 Category: direct pressure – butane / propane mix
CE-048BN – 0045
SET UP STOVE
1. Fold out burner head until it springs into locked position.
FIGURE [3]
2. Fold out the control valve handle and make sure that the
valve is fully closed. FIGURE [4]
3. Fold out pot supports. FIGURE [4]
4. Check O-ring for damage before connecting it to gas
canister.
CONNECT STOVE TO GAS
CANISTER
1. Hold onto the stove and screw the correct gas canister
counterclockwise tightly. FIGURE [5] Tighten by hand only
and be careful not to damage the threads when you
connect the gas canister.
2. Always keep the gas canister in an upright position while
connecting it to the stove.
3. Ensure that the stove is screwed all the way to the bottom
of the thread.
4. Make sure the stove is in a stable position so it will not tip
over.
5. Allow plenty of free space around the stove, at least 1.25
meters (4 feet) on each side and 1.5 meters (4.5 feet) above
it.
2
1

6
6. Keep stove area clear and free from combustible
materials, gasoline and other flammable vapors and
liquids.
WARNING
Risk of burning or serious injuries due to gas leakage
hazard.
• This appliance should only be used in an above ground
open air situation with natural ventilation without stagnant
areas, where gas leakages and products of combustions
are rapidly dispersed by wind and natural convection.
• Never light the stove if you detect a hissing sound or the
smell of gas after tightening the canister. The gas has an
additive with a foul smell. Never use a stove that smells of
gas.
• Do not use stove if damaged or if it does not operate
properly.
• Never overtighten gas canister when connected to the
stove. Overtightening can damage stove or canister
causing gas to leak.
• Use extreme caution when using stove in temperatures
below freezing. In freezing temperatures, O-rings can stien
and leak gas.
• Always check for gas leaks before and after lighting the
stove.
• Keep children more than 3 meters (10 feet) away from stove
and fuel.
• Keep highly flammable fabrics away from stove, such as
outdoor clothing, sleeping bags, tents, etc.
• Never leave a burning or hot stove unattended.
• When a canister change is necessary, please follow steps
1-4 of this manual carefully.
USE THE STOVE TO COOK
1. Open the control valve approximately one turn counter-
clockwise and light the burner. FIGURE [6] Check that the
flame ring is complete and that the flame is mostly blue and
non-pulsating in normal operation.
3
ENENEN
FR
DE
NL
DK
SWE
NO
FI
IT
PL
ES
CZ
PT
RU

7
2. Adjust the control valve to get the flame you want.
3. If the output is weak, it could mean that the gas is running
out, or that the canister is too cold. Turn o the stove and
let it cool down. Make sure there is no open flame nearby
when changing the gas canister.
4. Accessible parts may become very hot. Keep out of reach
of children, people with diminished mental capacity and
pets.
WARNING
Overheating and explosion hazards
• Never add a windscreen after the stove is lit.
• Never use a windscreen which fully encloses the gas
canister.
• Keep solid combustibles at least 1.25 meters (4 feet) away
from the top and 1 meter (3 feet) from sides of a burning
stove or a stove that you are in the process of lighting.
• Keep flammable liquids and vapors at least 8 meters (25
feet) away from the top and sides of a burning stove or a
stove that you are in the process of lighting.
• Never attempt to light a stove if control valve has been left
open. If control valve is left open, close it immediately and
thoroughly ventilate area before lighting stove. Failure to
ventilate area can result in an explosion.
• Never use cookware with a diameter larger than 220 mm
(8.5 in). The pan plus food must not weigh more than 2 kg
(4.4 lbs) combined.
• Never place and operate two or more stoves together.
• Never operate stove with empty or dry cookware.
• Never use non-Optimus heat reflectors or windscreens.
TURN OFF, COOL AND PACK STOVE
1. Turn o the stove by turning the control valve handle fully
clockwise and double-check that the flame is completely
extinguished.
4

8
2. Allow stove to cool properly.
3. Disconnect the gas canister.
4. It is normal for a small amount of gas to fizz out when you
unscrew the gas canister.
5. Fold in pot supports and the head of the burner by pushing
down the metal ring between the fuel control valve and the
burner head. Place stove in stu sack.
CAUTION
Risk of burning due to incorrect handling and storage.
Storing gas canisters near any heat or ignition source, or
where temperatures exceed 50° C (120° F) can result in the
canister exploding.
Never move a burning or hot stove. Allow stove to cool for at
least 10 minutes before moving it.
Never transport or store the stove with the gas canister
connected to it.
Always store gas canisters in a well-ventilated area away from
any possible heat or ignition source such as: water heaters,
stoves, pilot lights, furnaces or where temperatures exceed
50°C (120°F).
MAINTENANCE
Before each use, check the O-ring where the stove connects to
the gas canister. FIGURE [1] Leakage may result if the O-ring is
not in place, or if it is worn or damaged. Replace the O-ring by
teasing it out with a tool such as the blunt end of a sewing
needle. Never use a sharp or pointed object that can damage
the seal surfaces. Fit the new O-ring with care to avoid
damaging it. Only use original Optimus O-rings (Art. Nr.
8017867) for this purpose. Do not modify the stove. Only
qualified individuals are allowed to do additional service. For
major repairs send stove back to Optimus.
5
ENENEN
FR
DE
NL
DK
SWE
NO
FI
IT
PL
ES
CZ
PT
RU

9
If you have any questions about these instructions, your
stove, replacement parts, or repairs, please contact:
Katadyn Products Inc. Katadyn North America Inc.
Pfäkerstrasse 37 4830 Azelia Avenue North
8310 Kemptthal Minneapolis, MN 55429
Switzerland USA
[phone] [phone]
[email protected] [email protected]
www.optimusstoves.com
LIMITED WARRANTY
Optimus provides a 2-year limited warranty against
manufacturing defects for the original stove purchaser. Proof
of purchase is required for this warranty to be valid. This
warranty does not cover damage due to accident, improper
use or modifications.
If you have any problems with your Optimus Crux, return it to
your dealer or contact Katadyn. Clean food and dirt from the
stove before returning it. For more information, contact your
dealer or Katadyn Products Inc. in Switzerland at
[phone] or e-mail us at
[email protected]. US customers please contact
Katadyn North America at [phone] or
[email protected].
This warranty gives you specific legal rights and you may have
other legal rights which vary from state to state.
SUPPLEMENT INSTRUCTIONS TO OPTIMUS CRUX
Important: Read these instructions for use carefully.
Familiarise yourself with the appliance before connecting
it to its gas container. Keep these instructions for future
reference.
Always ensure that the appliance is placed on a firm horizontal
surface before using it. Always ensure a clearance of at least 1
meter to each side and 1.5 meters overhead of appliance
before using it.

1010
Injector size of appliance: 0.32 mm
Australian Gas association certified. Certificate number AGA
7459 G.
Outdoor Agencies Warranty for Australia
If this Outdoor Agencies supplied product is in any way
defective, other than resulting from abnormal use, for a period
of two (2) years after purchase, please return it to your place
of purchase with its proof of purchase. Alternatively you may
contact Outdoor Agencies Pty Ltd, PO Box 620, Regents Park
or call 02 8717 7300 or email [e-mail],
regarding this warranty and, after contact, return the product
at your cost. If Outdoor Agencies determines the product is
under warranty we will repair or replace it. Our goods come
with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for
a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major
failure. The benefits under this warranty are in addition to
other rights and remedies you may have at law.
Distributor of Optimus in Australia:
Outdoor Agencies PTY LTD
Unit N2, 391 Park Rd, Regents Park NSW 2143
Australia
Please visit our website for additional information about our
other products: www.optimusstoves.com
For clean water please visit www.katadyn.com
ENENEN
FR
DE
NL
DK
SWE
NO
FI
IT
PL
ES
CZ
PT
RU
