Optoma EP783 User manual
SERVICE MANUAL
SI : TSE: Check: Approved:
Date Revise Version Description
2008.06.05 V1.0 Initial Issue
2008.08.20 V2.0 Update Wireless Function “Hard-Reset” in Chapter 4
Add Appendix A and Appendix B
2009.11.30 V3.0 Update test specications in Chapter 4;
Update FW upgrade method in Chapter 5;
2010.02.22
V4.0
Modify CH4 "Defect specication table"
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S
Copyright February, 2010. All Rights Reserved P/N: 36.87F03G001
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential II
EP783/EP783S/OPX5000/EP783L/TX783L/TX783S Comparison List
Preface
This manual is applied to EP783/EP783S/EP783L/OPX5000/TX783L/TX783S projection
system. The manual gives you a brief description of basic technical information to help in
service and maintain the product.
Your customers will appreciate the quick response time when you immediately identify
problems that occur with our products. We expect your customers will appreciate the
service that you offer them.
This manual is for technicians and people who have an electronic background. Please
send the product back to the distributor for repairing and do not attempt to do anything that
is complex or is not mentioned in the troubleshooting.
Notice:
The information found in this manual is subject to change without prior notice. Any
subsequent changes made to the data herein will be incorporated in future edition.
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Service Manual
Copyright February. 2010
All Rights Reserved
Manual Version 4.0
PARTS EP783 EP783S OPX5000 TX783S TX783L EP783L
Main Board NTSC 70.87F24GR01 N/A 70.87F24GR01
Main Board PAL 70.87F25GR01 N/A
Engine Module 70.87F20GR01 70.87F22GR01
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential IV
Table of Content
Chapter 1 Introduction
Highlight 1-1
Compatible Mode 1-3
Chapter 2 Disassembly Process
Equipment Needed & Product Overview 2-1
Disassemble Lamp Cover and Lamp Module 2-2
Disassemble Inside Ring and Outside Ring 2-3
Disassemble Top Cover Module and FPC Cable 2-3
Disassemble Keypad Module and Top Cover 2-4
Disassemble IR Sensor Board 2-5
Disassemble Keypad Board 2-5
Disassemble I/O Cover 2-6
Disassemble I/O Shielding 2-6
Disassemble Top Shielding 2-7
Disassemble Main Board Module 2-7
Disassemble Wireless Board 2-9
Disassemble Wireless House 2-10
Disassemble Blower Module 2-10
Disassemble Sheet Metal 2-11
Disassemble Lamp Driver Module 2-10
Disassemble Air Duct 2-12
Disassemble Left Cover and IR Sensor 2-13
Disassemble Handle Bar 2-14
Disassemble Right Cover Module and Plastic-net 2-14
Disassemble Fan Module 2-15
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential V
Disassemble Thermal Switch 2-17
Disassemble Engine Module 2-18
Disassemble Color Wheel Module 2-19
Disassemble Photo Sensor Board 2-19
Disassemble Rod Module 2-20
Disassemble Lamp House 2-20
Disassemble DMD Heat Sink Thermal Module 2-21
Disassemble DMD Module 2-21
Disassemble Small Heat Sink 2-22
Disassemble Motors 2-22
Disassemble I/O Board 2-23
Disassemble Blower Module 2-23
Disassemble Metal Shielding 2-24
Disassemble LVPS Module 2-24
Disassemble Interlock Switch 2-25
Disassemble Speaker 2-26
Disassemble Rear Cover 2-28
Disassemble Lamp Cover Lock Button 2-28
Rod Adjustment 2-29
Re-write Lamp Usage Hours 2-30
Chapter 3 Troubleshooting
LED Lighting Message 3-1
Main Procedure 3-2
Chapter 4 Function Test & Alignment Procedure
Test Equipment Needed 4-1
Service Mode 4-1
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential VI
OSD Reset 4-1
Test Condition 4-2
Test Inspection Procedure 4-3
PC Mode 4-3
Video Performance 4-7
PC/Video Calibration 4-8
Lens Calibration 4-8
Optical Performance Measure 4-9
Network Function Test 4-10
Wireless Function Test 4-12
Others 4-16
Chapter 5 Firmware Upgrade
Section 1: System Firmware Upgrade 5-1
Equipment Needed 5-1
DLP Composer Lite Setup Procedure 5-2
USB Driver Upgrade Procedure 5-4
Firmware Upgrade Procedure 5-5
Section 2: 8051 Firmware Upgrade 5-8
Equipment Needed 5-8
8051 Firmware Upgrade Procedure 5-9Procedure 5-95-9
Chapter 6 EDID Upgrade
EDID Introduction 6-1
Equipment Needed 6-2
Setup Procedure (VGA-1& DVI-D Port) 6-3
EDID Key-In Procedure (VGA-1 & DVI-D Interface) 6-3
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential VII
Setup Procedure(VGA-2 & HDMI Port) 6-6
EDID Key-In Procedure (VGA-2 & HDMI Interface) 6-6
Appendix A (Exploded Image) I
Appendix B XVIII
Serial Number System Denition XVIII
PCBA Code Denition XIX
1-1
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S
Chapter 1
Introduction
No
1
2
3
5
7
8
10
11
12
13
15
1-1 Highlight
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S 1-2
No
17
18
20
21
22
23
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S 1-3
1-2 Compatible Mode
Analog
70
85
85
72
75
85
70
85
72
75
85
70
75
85
70
75
85
75
85
72
75
85
75
85
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S
70
75
85
70
75
72
75
85
75
85
70
75
85
75
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S 1-5
72
75
70
72
75
70
75
75
50
50
Digital
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-1
Chapter 2
Disassembly Process
2-1 Equipment Needed & Product Overview
1. Screw Bit (+) :105
2. Screw Bit (+) :107
3. Screw Bit
(-)
:107
4. Hex Sleeves 5 mm
5. Tweezers
6. Projector
* Before you start: This process is protective level II. Operators should wear electrostatic chains.
* Note: - If you need to replace the main board, you have to get into service mode and record the
lamp usage hour.
- As the disassembliy process of EP783/EP783S/EP783L/OPX5000/TX783L/TX783S is the
same, we take EP783 for example here.
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-2
2-2 Disassemble Lamp
Cover and Lamp Module
1. Adjust the button (as red square) to
“Unlock”, then take off the lamp cover
as red arrow.
2. Unscrew 3 screws (as red circle) then
pull out the lamp module.
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-3
2-3 Disassemble Inside Ring
and Outside Ring
1. Rotate the Inside Ring by anticlockwise
(as red arrow), then take off it.
2. Rotate the Outside Ring by clockwise
(as yellow arrow), then take off it.
2-4 Disassemble Top Cover
Module and FPC Cable
1. Unscrew 2 screws (as red circle).
2. Push the top cover as red arrow.
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-4
3. Unplug 2 connectors (as yellow square).
4. Take off the FPC Cable.
Note: - Avoid damage by pulling and draging
IR cable and keypad FPC cable.
- Hold the CNNT plug when pulling the
FPC cable is strongly recommended.
Pulling the cable directly from the unit
will cause the cable damages.
- Make sure cables are plug into the
correct ports when assembling the unit.
2-5 Disassemble Keypad
Module and Top Cover
1. Tear off the Keypad Mylar.
2. Unscrew 2 screws (as red circle) to
disassemble the Keypad Module.
3. Separate the Keypad module from the
top cover.
Note: - Take care the six tenons (as yellow
square) when sepatate the Keypad
Module.
- Make sure cables plug into the correct
ports when assembling the unit.
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-5
2-6 Disassemble IR Sensor
Board
1. Use tweezers to disassemble the IR
Sensor Board.
Note: - When you disassemble the IR Sensor
Board, you should use ngures to
press the two tenons (as yellow
square) and use tweezers to pull out
the IR Sensor Board.
2-7 Disassemble Keypad
Board
1. Unscrew 6 screws (as red circle) to
disassemble Keypad Board Module.
2. Use tweezers to press the 3 tenons (as
yellow circle),then separate Keypad
Board from the Keypad Module.
3. Take off IR Lens from Key Pad Panel.
IR Lens
Key Pad Panel
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-6
2-8 Disassemble I/O Cover
1. Unscrew 10 hex screws to disassemble
I/O Cover.
2-9 Disassemble I/O
Shielding
1. Unscrew 4 screws (as red circle) to
disassemble I/O shielding.
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-7
2-10 Disassemble Top
Shielding
1. Unscrew 9 screws (as red circle) to
disassemble Top Shielding.
2. Push the Top Shielding (as red arrow)
and pull it up.
Note: There are 2 tenons (as yellow square)
on it.
2-11 Disassemble Main
Board Module
1. Use Tweezers to take off black tape (as
orange square).
2. Unplug 13 connectors (as yellow square).
3. Unscrew 8 screws (as red circle).
4. Unplug 1 FPC cable (as blue square).
5. Take off the Main Board module.
Note: - Make sure cables plug into the correct
ports when assembling the unit.
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-8
Item Male Connector
on Main Board The key feature Figure
AMotor (top) Compose of Red/Black Wire and
Black wire tube (2 pin)
B Lens
Compose of Red/Black/Yellow/
Blue Wire and Black wire tube
(4 pin)
CMotor (underside) Compose of Red/Black Wire and
Black wire tube (2 pin)
DIR Compose of Red/Black/Yellow
Wire and Black wire tube (3 pin)
EPhoto Interrupter
(underside)
Compose of Red/Yellow/Black/
White Wire and Black wire tube
(4 pin)
FPhoto Interrupter
(top)
Compose of Red/Yellow/Black/
White Wire (4 pin)
GSpeaker Compose of Red/Yellow/Black/
White Wire (4 pin)
Please refer to the table as below
for details of each connector. A
D
C
B
LK
J
I
H
G
F
E
EP783/EP783S/EP783L/OPX5000/TX783L/TX783S Condential 2-9
2-12 Disassemble Wireless
Board
1. Unscrew 1 screw (as red circle) to
disassemble Wireless Board.
HColor Wheel Blower Compose of Red/Black/Yellow
Wire and Blue wire tube (3 pin)
I Photo Sensor Compose of Red/Black/Yellow
Wire and Black wire tube (3 pin)
JLamp Blower Compose of Red/Black/Yellow
Wire and Blue wire tube (3 pin)
K Lamp Driver
Compose of Red/White/Black/
Yellow/Brown Wire and Blue wire
tube (5 pin)
LSystem Fan Compose of Red/Black/Yellow
Wire and Green wire tube (3 pin)
Other manuals for EP783
1
This manual suits for next models
5
Table of contents
Other Optoma Projector manuals
Optoma

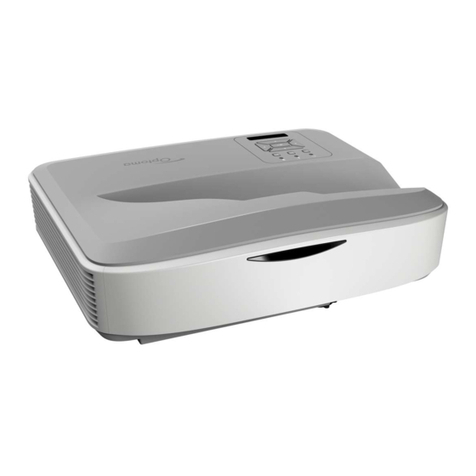

Optoma ZU500USTe User manual
Optoma

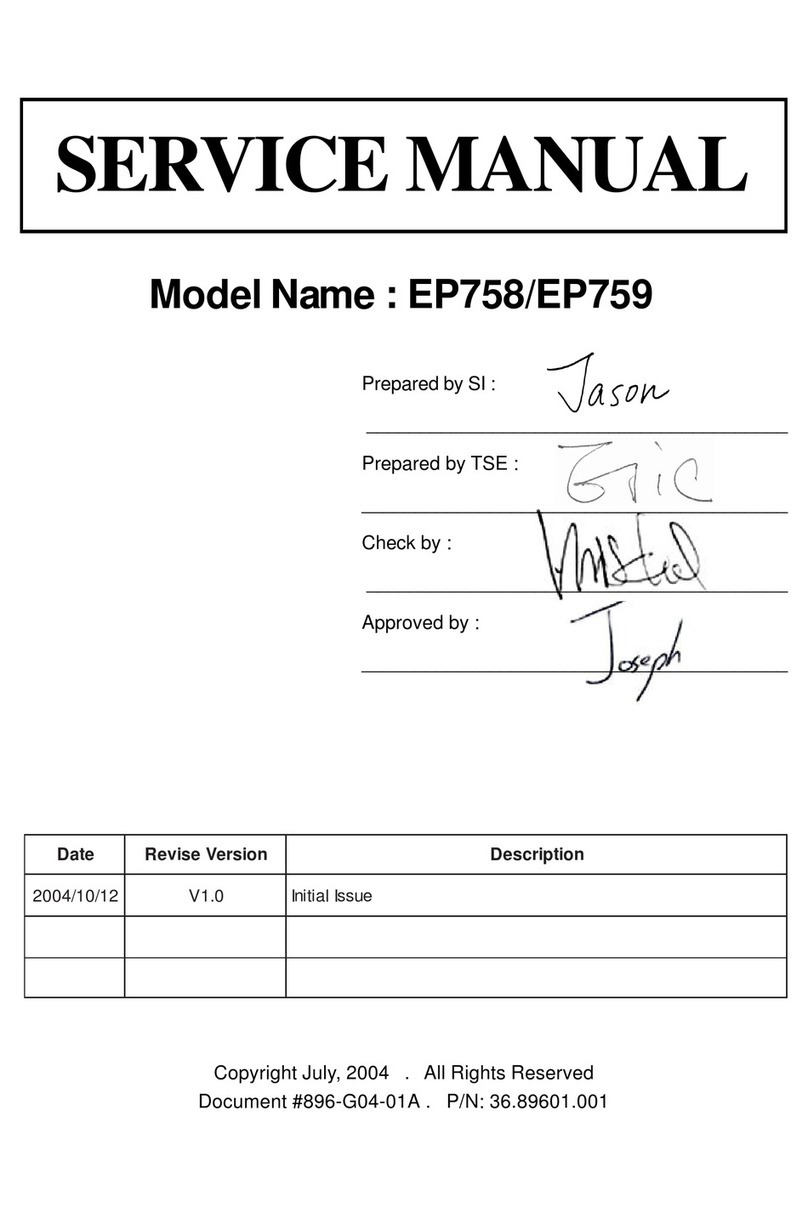

Optoma EP 758 User manual
Optoma
Optoma EP725 User manual
Optoma

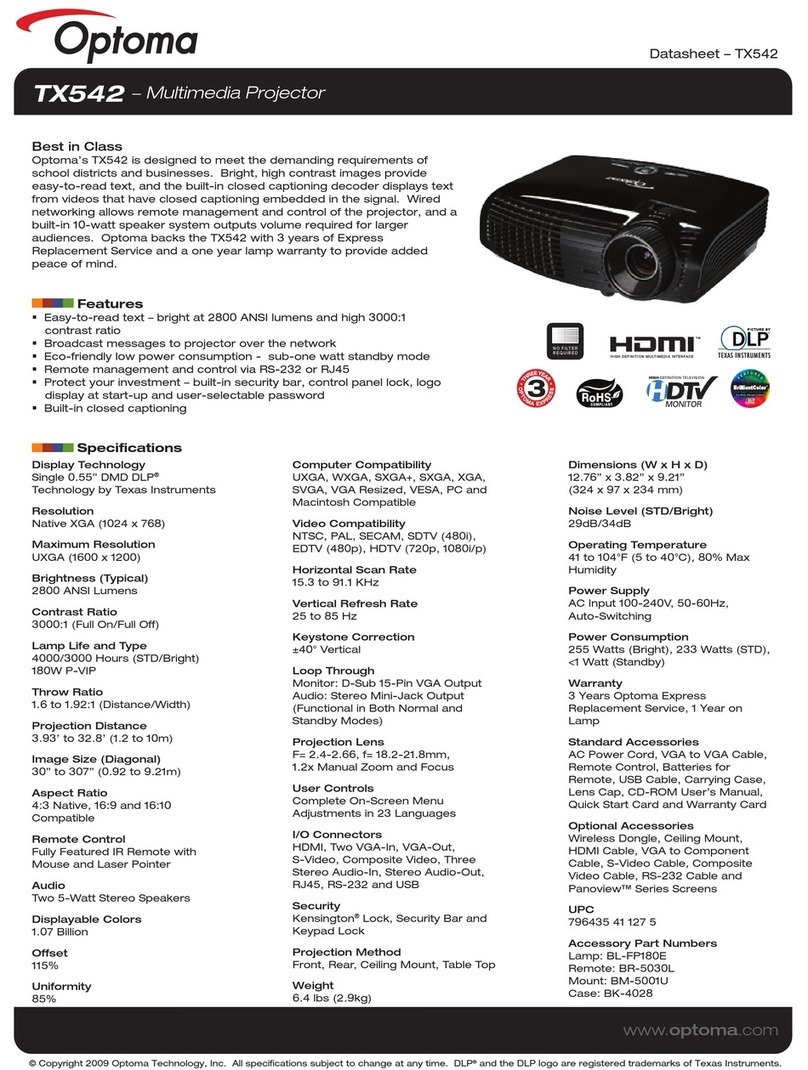

Optoma TX542 User manual
Optoma
Optoma Optoma EP721 User manual
Optoma
Optoma MovieTime DV11 User manual
Optoma
Optoma HD91 User manual
Optoma
Optoma GT200 User manual
Optoma

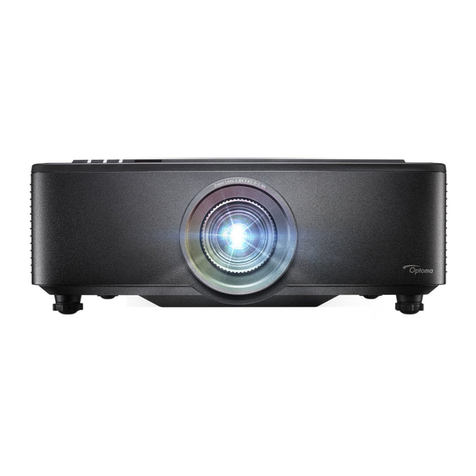

Optoma ZU720TST User manual
Optoma
Optoma Optoma EP721 User manual
Optoma
Optoma HD73 User manual
Optoma
Optoma TX778W User manual
Optoma

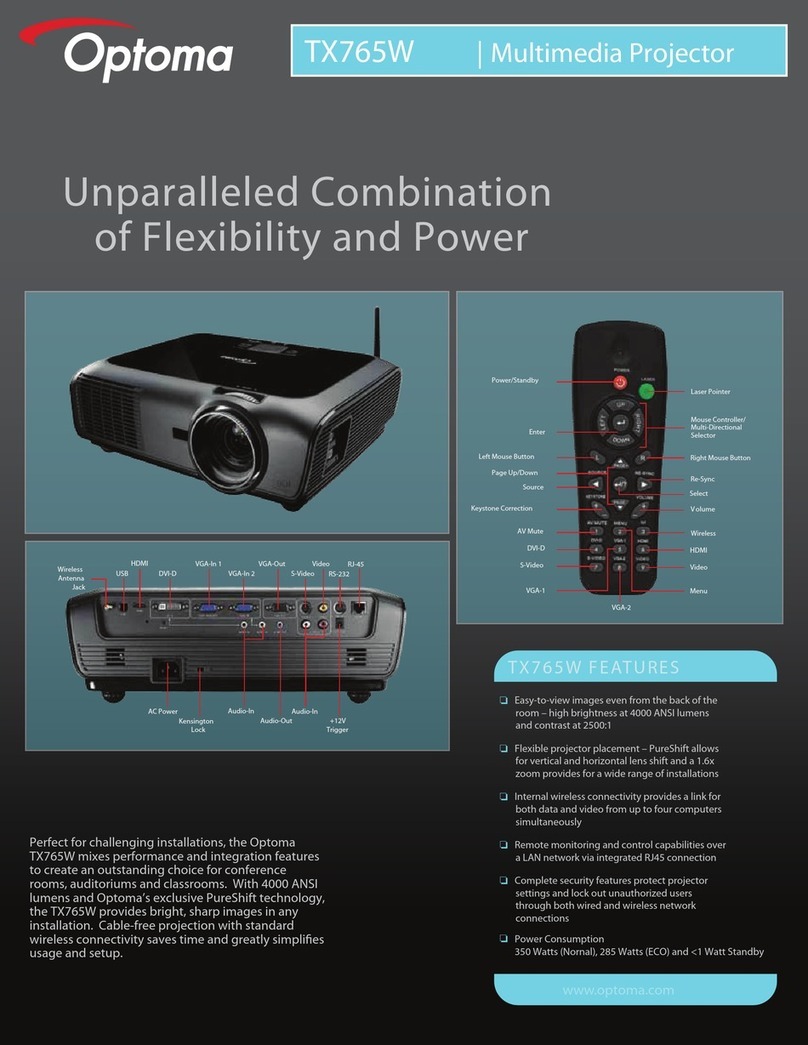

Optoma TX765W User manual
Optoma
Optoma TX762-GOV User manual
Optoma

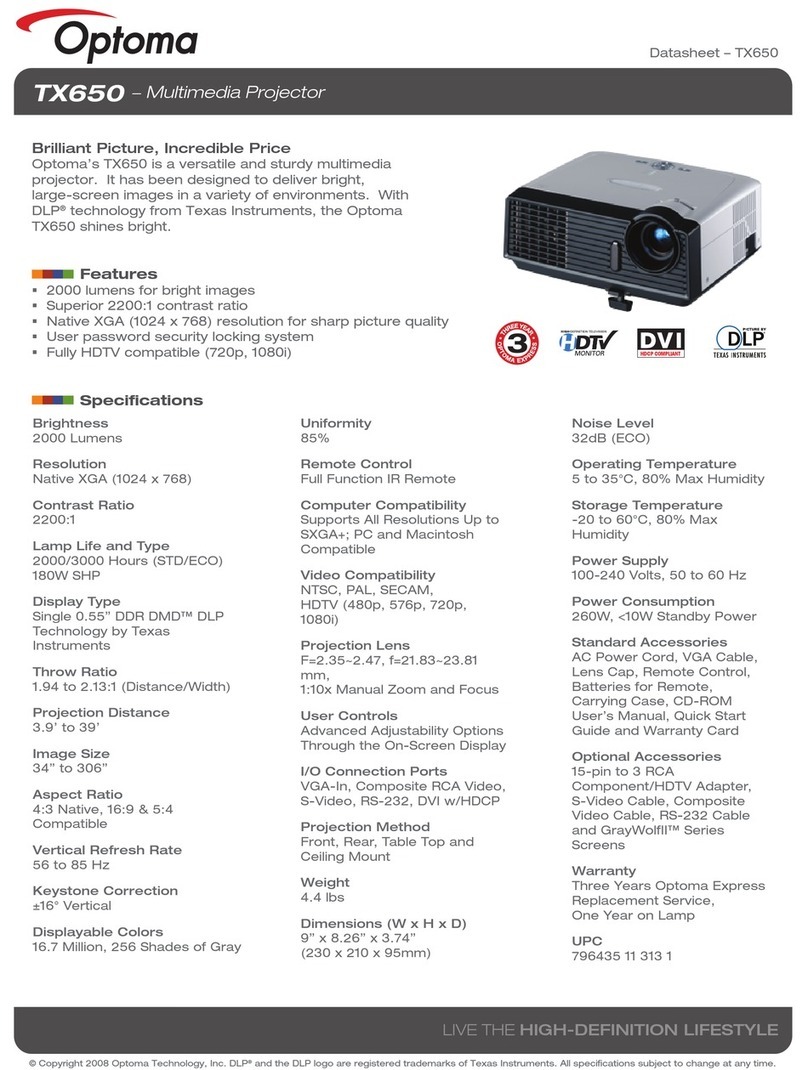

Optoma TX650 User manual
Optoma
Optoma TW610 User manual
Optoma
Optoma DX211 Manual
Optoma

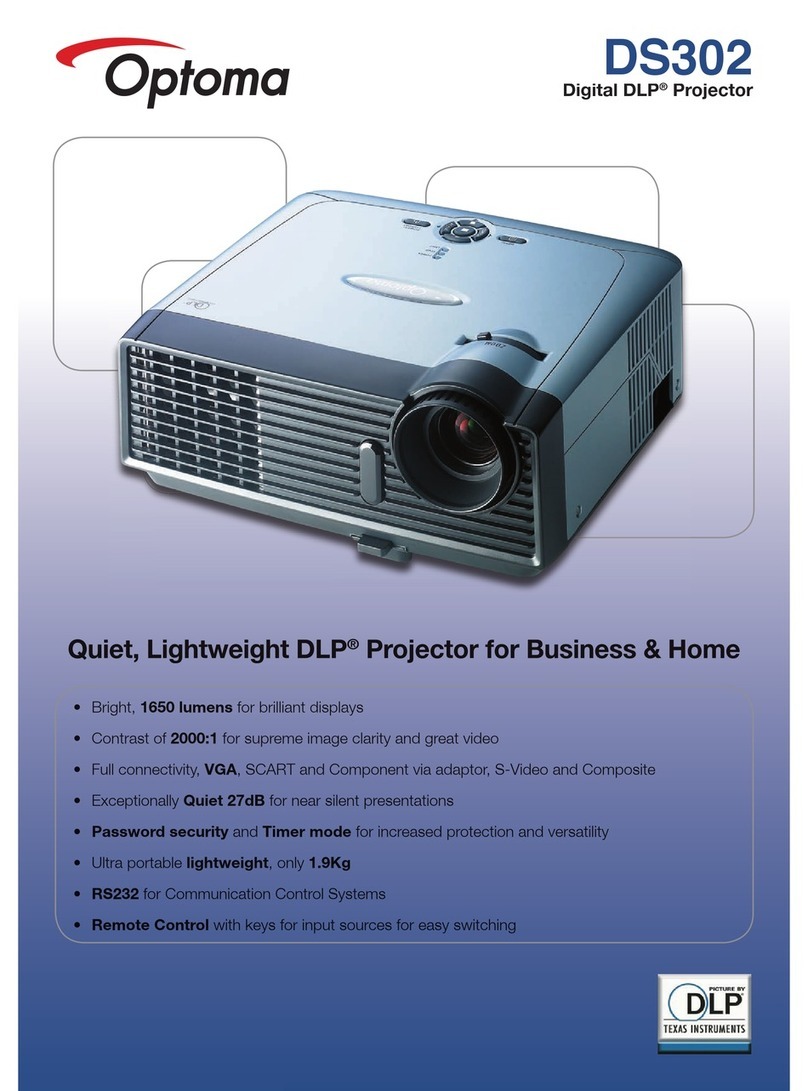

Optoma DS302 User manual
Optoma
Optoma Pico Pocket User manual
Optoma

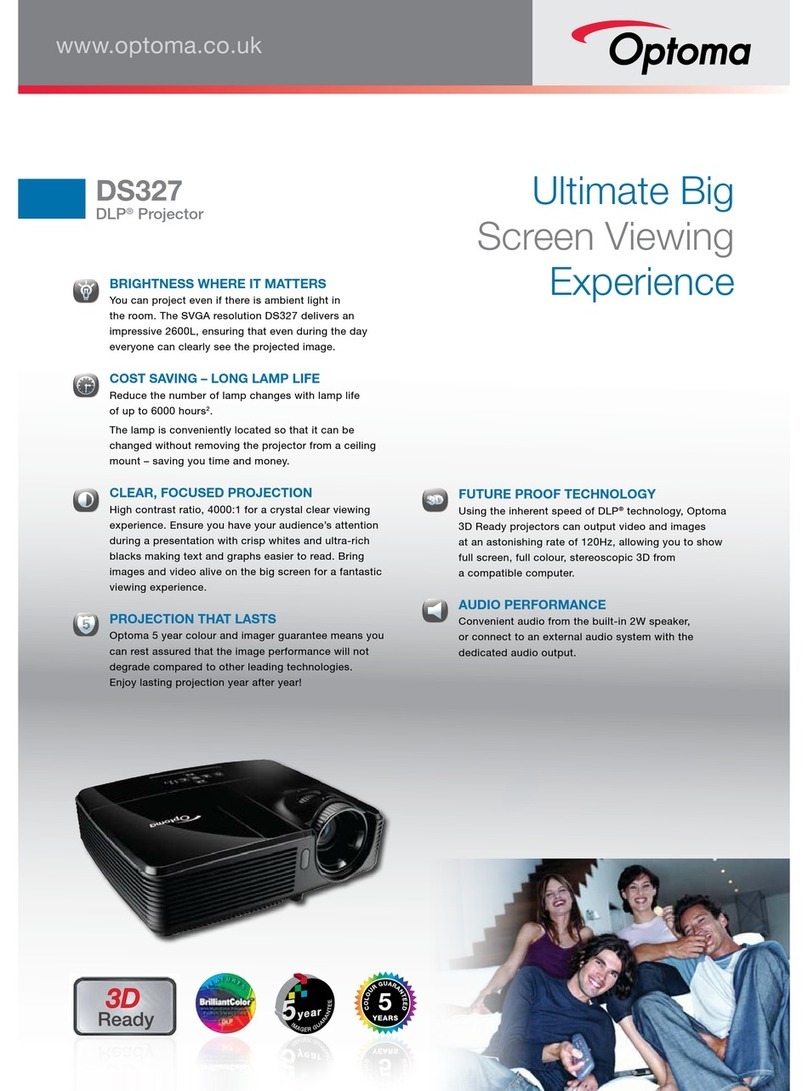

Optoma DS327 User manual
