SAFETY
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT
OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Important Safety Instruction
 Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air ow.
 Do not use the projector near water or moisture. To reduce the risk of re and/or electric shock, do not
expose the projector to rain or moisture.
 Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as
ampliers that emits heat.
 Clean only with dry cloth.
 Only use attachments/accessories specied by the manufacturer.
 Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
 Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
 See projector enclosure for safety related markings.
 The unit should only be repaired by appropriate service personnel.

English 5
Precautions
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
Warning
 Do not look into the projector’s lens when the lamp is on. The bright light may hurt your eyes.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
 To reduce the risk of re or electric shock, do not expose this projector to rain or moisture.
 Please do not open or disassemble the projector as this may cause electric shock.
 When replacing the lamp, please allow the unit to cool down. Follow instructions as described on page
64.
 This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows
warning messages.
 Reset the “Lamp Reset” function from the on-screen display “System / Lamp Setting” menu after
replacing the lamp module (refer to page 36).
Note: When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been
replaced. To replace the lamp, follow the procedures listed under “Replacing the lamp” on page 64.
 When switching the projector off, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
 Do not use lens cap when projector is in operation.
 When the lamp is approaching to the end of its life time, the message “Replacement suggested” will
show on the screen.
Please contact your local reseller or service center to change the lamp as soon as possible.
Do:
 Turn off and unplug the power plug from the AC outlet before cleaning the product.
 Use a soft dry cloth with mild detergent to clean the display housing.
 Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Do not:
 Block the slots and openings on the unit provided for ventilation.
 Use abrasive cleaners, waxes or solvents to clean the unit.
 Use under the following conditions:
± In extremely hot, cold or humid environments.
 Ensure that the ambient room temperature is within 5 - 40°C
 Relative Humidity is 10 - 85% (Max.), non-condensing
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.

English
6
Eye Safety Warnings
 Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much
as possible.
 When projector is used in a classroom, adequately supervise students when they are asked to point
out something on the screen.
 In order to minimize the lamp power, use room blinds to reduce ambient light levels.
Note: Keep this manual for future reference.

English 7
INTRODUCTION
Package overview

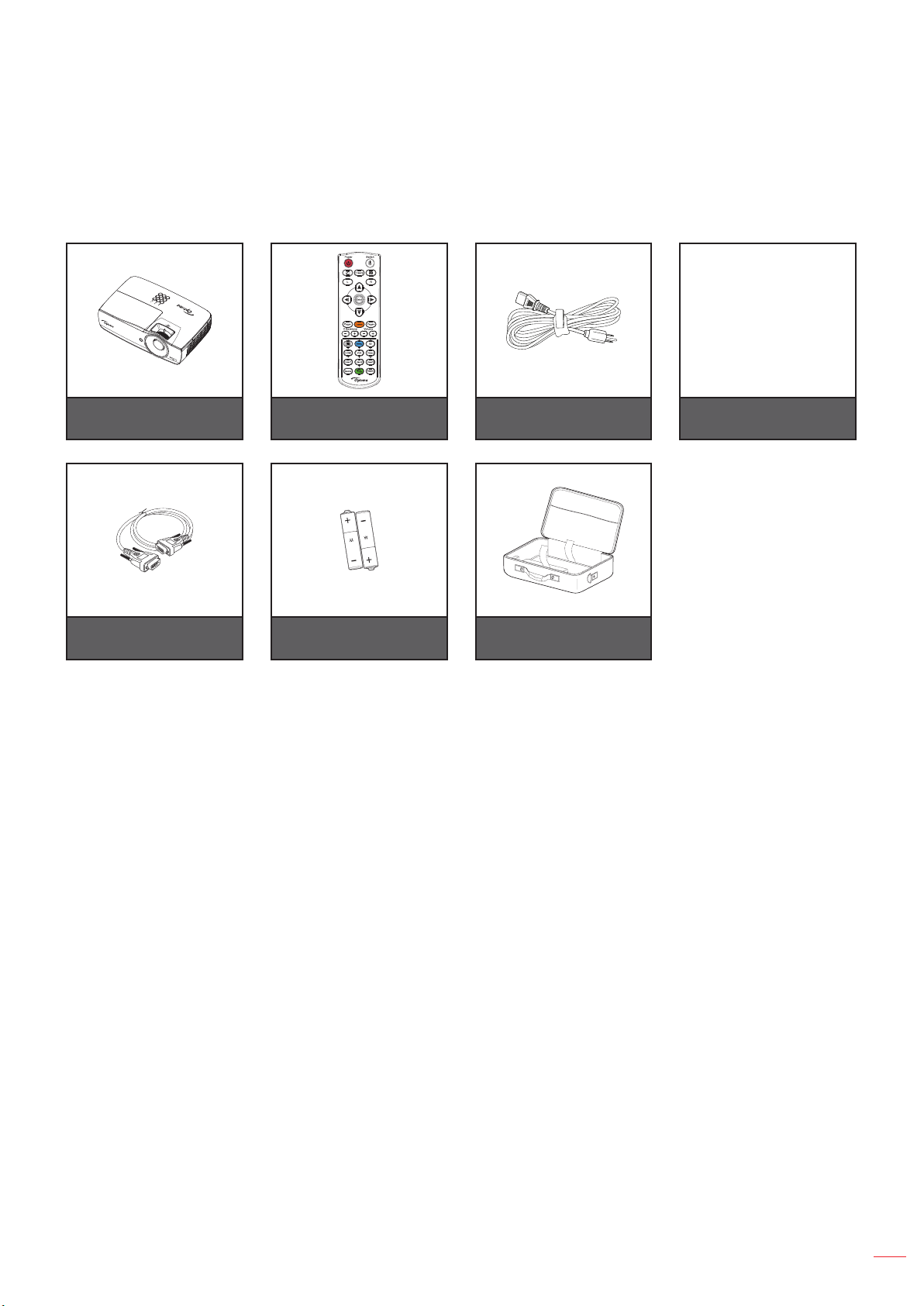

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please
contact Optoma customer service.

User’s Manual

Warranty Card

Basic User’s Manual
Projector with lens
cap Remote Control Power Cord 1.8m Documentation
15 pin D-sub VGA
Cable 2 x AAA Batteries Carrying Case
Note: Due to different applications in each Country, some regions may have different accessories.

English
8
INTRODUCTION
Product overview
Main unit
1
2
3
4
5
6
7
8
9
10
11
9
1
Note:
 Allow at least 50 cm clearance around the intake and exhaust vent.
 Allow distance 30 cm from ceiling.
 Ensure that the intake vents do not recycle hot air from the exhaust vent.
No Item No Item
1. Exhaust Vent 7. Zoom (Not available in 1080p short throw)
2. IR Receiver 8. Focus
3. Tilt-Adjustment Feet 9. Air Intake
4. LED Indicators 10. Lens
5. Function Keys 11. Connection Ports
6. Power Button

English 9
INTRODUCTION
Connection ports
No Item No Item
1. Power Socket 8. 12V OUT
2. HDMI1 9. USB
3. HDMI2 / (MHL support) 10. MOUSE / SERVICE
4. RS-232C 11. USB READER / DISPLAY
5. VGA-OUT / YPbPr 12. IR Receiver
6. VGA-IN / YPbPr 13. AUDIO IN
7. RJ-45 14. AUDIO OUT

English
10
INTRODUCTION

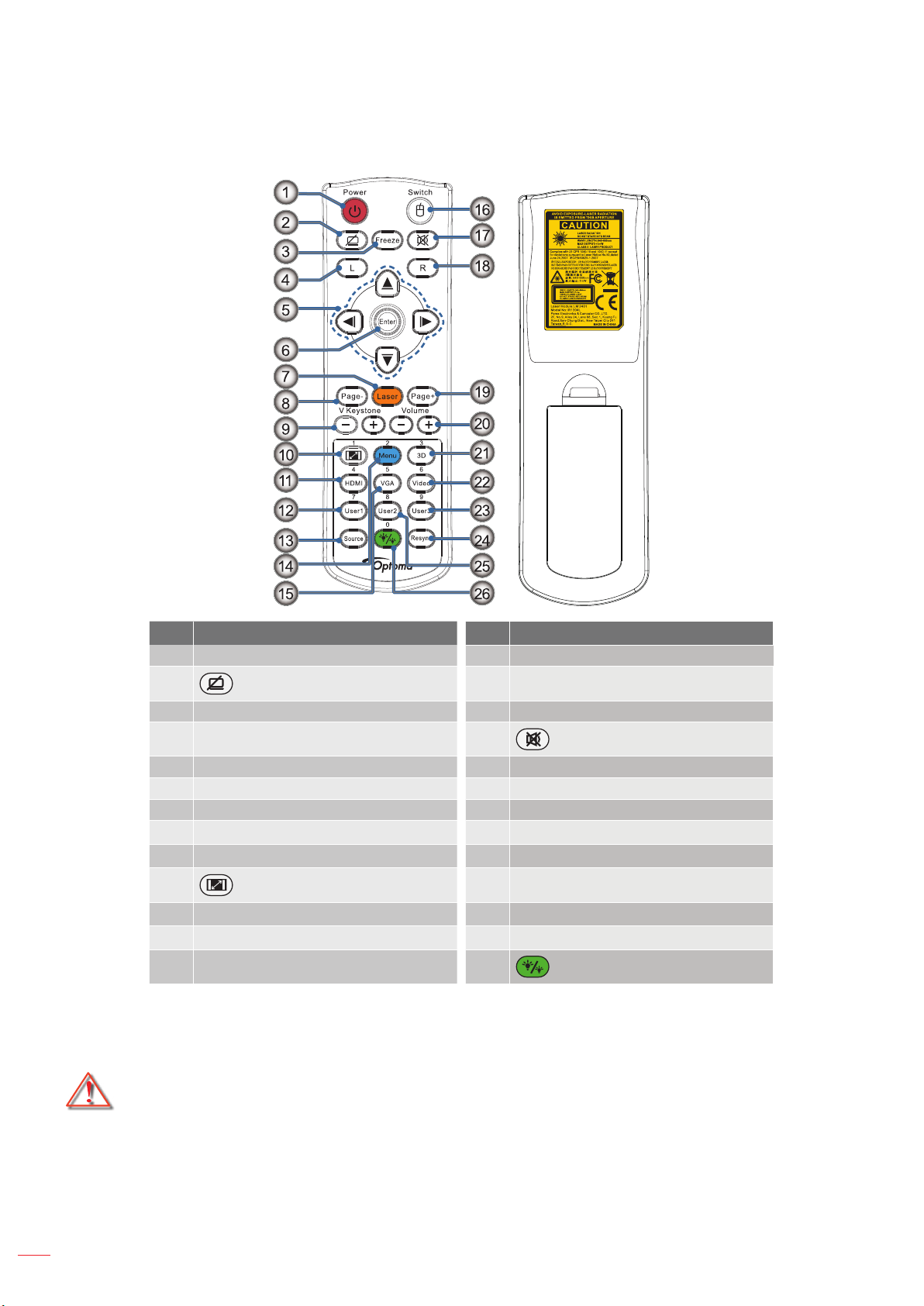

Remote control
No Item No Item
1. Power On/Off 14. Menu/2
2. 15. VGA/5
3. Freeze 16. Switch
4. USB mouse Left click 17.
5. Four Directional Select Keys 18. USB mouse Right click
6. Enter 19. Page+
7. Laser (DO NOT POINT IN EYES) 20. Volume +/-
8. Page- 21. 3D/3
9. V Keystone +/- 22. Video/6
10. /1(Number Button for password input) 23. User3/9
11. HDMI/4 24. Resync
12. User1/7 25. User2/8
13. Source 26. /0
CAUTION: Use of controls, adjustments or performance of procedures other than those specied herein may
result in hazardous laser light exposure. Complies with FDA performance standards for laser products except for
deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Warning:
 RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
 DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Note: Due to generic remote, function is model dependent.

English 11
INSTALLATION
Connecting the Projector
Connect to Notebook
No Item No Item
1. DVI/HDMI Cable (Optional Accessory) 4. Power Cord
2. HDMI Cable (Optional Accessory) 5. RS232 Cable (Optional Accessory)
3. VGA Input Cable 6. Audio Cable (Optional Accessory)
Note: Due to the difference in applications for each country, some regions may have different accessories.

English
12
INSTALLATION

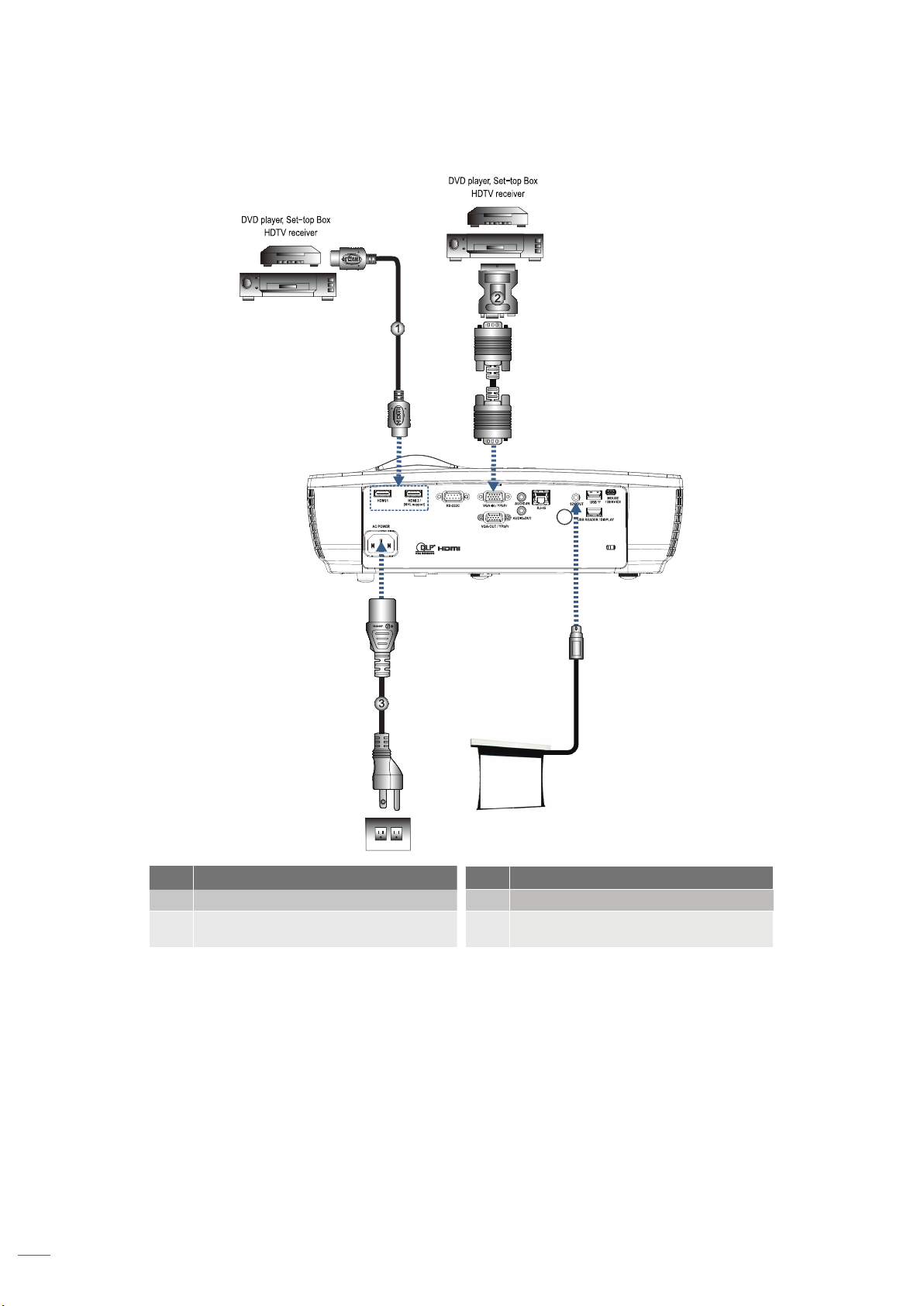

Connect to Video Sources
No Item No Item
1. HDMI Cable (Optional Accessory) 3. Power Cord
2. SCART RGB/S-Video Adapter (Optional
Accessory)
Note: Due to the difference in applications for each country, some regions may have different accessories.
Note: 12V OUT is a programmable trigger.

English 13
INSTALLATION
Powering On/Off the Projector
Powering On the Projector
1. Remove the lens cover.
2. Connect the power cord to the projector.
3. Turn On the connected devices.
Note: Turn on the projector rst and then select the signal sources.
4. Ensure the Power LED is steady red and then press the power button to turn On the projector.
The projector’s startup logo screen displays and connected devices are detected. If the connected
device is a laptop, press the appropriate keys on the computer keyboard to switch the display output to
the projector. (Check the user manual of the laptop to determine the appropriate Fn key combination to
change display output.)
See “Setup / Security” on page 38 if security lock is enabled.
Note: Due to the difference in applications for each country, some regions may have different accessories.
If more than one input device is connected, press (Source) button sequentially to switch between
devices.
For direct source selection, see page 23.
Note: 12V OUT is a programmable trigger.

English
14
INSTALLATION
Powering Off the Projector
1. Press the “ ” button on the remote control or (POWER) button on the panel of the projector to
turn off the projector. First push of button will display the following message on the screen.
Press the button again to conrm the shut down. If the button is not pressed, the message will
disappear in 5 seconds.
2. The Power LED ashes green (0.5 sec on, 0.5 sec off) and the fans will speed up during shut down
cooling cycle. The projector reaches stand-by mode as soon as the Power LED steady red.
If you wish to turn the projector back on, you must wait until the projector has completed the cooling
cycle and has entered standby mode. Once in standby mode, simply press (POWER) button on
the panel of the projector or “ ” on the remote control to restart the projector.
3. Disconnect the power cord from the electrical outlet and the projector only when the projector is in
stand-by mode.
Warning Indicator
 When the Lamp LED indicator lights red, the projector will automatically shut itself down. Please
contact your local reseller or service center. See page 62.
 When the Temp LED is on a steady (not ashing) red, the projector will automatically shut itself down.
Under normal conditions, the projector can be switched on again after it has cooled down. If the
problem persists, you should contact your local dealer or our service center. See page 62.
Note: Contact the nearest service center if the projector displays these symptoms. See page 73 for more
information.
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with tilt-adjuster feet for adjusting the image height.
To adjust the angle of the picture, turn the tilt-adjuster right or left until the desired angle has been achieved.
Note:
The projector table or stand should be level and sturdy.
Position the projector so that it is perpendicular to the screen.
For personal safety, please secure the cables properly.

English 15
INSTALLATION

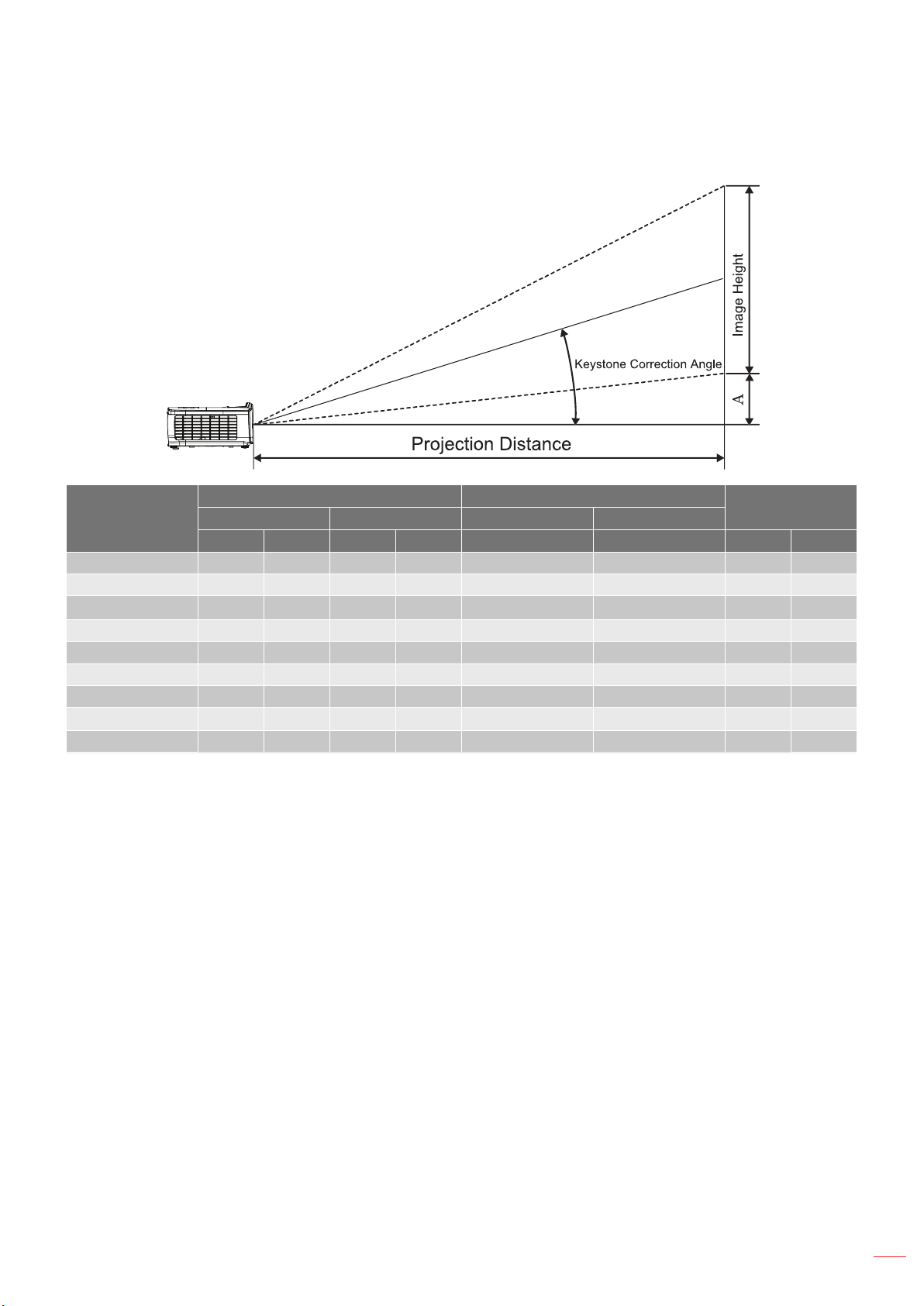

Adjusting Projection Image Size (1080P_1.2x)
Diagonal length
(inch) size of 16:9
Screen
Screen Size W X H (16:9) Projection Distance (D) Offset (A)
(m) (feet) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (feet)
30 0.66 0.37 2.18 1.23 0.81 0.97 2.66 3.19 0.06 0.18
40 0.89 0.50 2.91 1.63 1.08 1.30 3.54 4.25 0.07 0.24
60 1.33 0.75 4.36 2.45 1.62 1.94 5.32 6.38 0.11 0.37
80 1.77 1.00 5.81 3.27 2.16 2.59 7.09 8.50 0.15 0.49
100 2.21 1.25 7.26 4.09 2.70 3.24 8.86 10.63 0.19 0.61
120 2.66 1.49 8.72 4.90 3.24 3.89 10.63 12.75 0.22 0.73
140 3.10 1.74 10.17 5.72 3.78 4.53 12.41 14.88 0.26 0.85
160 3.54 1.99 11.62 6.54 4.32 5.18 14.18 17.00 0.30 0.97
190 4.21 2.37 13.80 7.76 5.13 6.15 16.84 20.19 0.35 1.16
230 5.09 2.86 16.71 9.40 6.21 7.45 20.38 24.44 0.43 1.40
280 6.20 3.49 20.34 11.44 7.56 9.07 24.81 29.75 0.52 1.71
300 6.64 3.74 21.79 12.26 8.10 9.72 26.58 31.88 0.56 1.83
Note: 300” (overdrive) for Asia.

English
16
INSTALLATION
Adjusting Projection Image Size (1080P_1.5x)
Diagonal length
(inch) size of 16:9
Screen
Screen Size W X H (16:9) Projection Distance (D) Offset (A)
(m) (feet) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (feet)
30 0.66 0.37 2.18 1.23 0.92 1.39 3.03 4.55 0.06 0.18
40 0.89 0.50 2.91 1.63 1.23 1.85 4.04 6.07 0.07 0.24
60 1.33 0.75 4.36 2.45 1.85 2.78 6.06 9.11 0.11 0.37
80 1.77 1.00 5.81 3.27 2.46 3.70 8.08 12.14 0.15 0.49
100 2.21 1.25 7.26 4.09 3.08 4.63 10.10 15.18 0.19 0.61
120 2.66 1.49 8.72 4.90 3.69 5.55 12.11 18.22 0.22 0.73
140 3.10 1.74 10.17 5.72 4.31 6.48 14.13 21.25 0.26 0.85
160 3.54 1.99 11.62 6.54 4.92 7.40 16.15 24.29 0.30 0.97
190 4.21 2.37 13.80 7.76 5.85 8.79 19.18 28.84 0.35 1.16
230 5.09 2.86 16.71 9.40 7.08 10.64 23.22 34.91 0.43 1.40
280 6.20 3.49 20.34 11.44 8.62 12.96 28.27 42.50 0.52 1.71
300 6.64 3.74 21.79 12.26 9.23 13.88 30.29 45.54 0.56 1.83

English 17
INSTALLATION
Adjusting Projection Image Size (1080P_ST)
Diagonal length
(inch) size of 16:9
Screen
Screen Size W X H (16:9) Projection Distance (D) Offset (A)
(m) (feet) (m) (feet)
Width Height Width Height ST ST (m) (feet)
30 0.66 0.37 2.18 1.23 0.33 1.09 0.06 0.18
40 0.89 0.50 2.91 1.63 0.44 1.45 0.07 0.24
60 1.33 0.75 4.36 2.45 0.66 2.18 0.11 0.37
80 1.77 1.00 5.81 3.27 0.89 2.91 0.15 0.49
100 2.21 1.25 7.26 4.09 1.11 3.63 0.19 0.61
120 2.66 1.49 8.72 4.90 1.33 4.36 0.22 0.73
140 3.10 1.74 10.17 5.72 1.55 5.08 0.26 0.85
150 3.31 1.86 10.89 6.12 1.66 5.45 0.28 0.91
152.7 3.37 1.89 11.08 6.23 1.68 5.54 0.29 0.95

English
18
INSTALLATION
Adjusting Projection Image Size (WUXGA)
Diagonal length
(inch) size of
16:10 Screen
Screen Size W X H (16:9) Projection Distance (D) Offset (A)
(m) (feet) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (feet)
30 0.65 0.40 2.12 1.32 0.90 1.35 2.95 4.43 0.03 0.11
40 0.86 0.54 2.83 1.77 1.20 1.80 3.93 5.91 0.05 0.15
60 1.29 0.81 4.24 2.65 1.80 2.70 5.89 8.86 0.07 0.22
80 1.72 1.08 5.65 3.53 2.40 3.60 7.86 11.82 0.09 0.30
100 2.15 1.35 7.07 4.42 2.99 4.50 9.82 14.77 0.11 0.37
120 2.58 1.62 8.48 5.30 3.59 5.40 11.79 17.72 0.14 0.45
140 3.02 1.88 9.89 6.18 4.19 6.30 13.75 20.68 0.16 0.52
160 3.45 2.15 11.31 7.07 4.79 7.20 15.72 23.63 0.18 0.60
190 4.09 2.56 13.43 8.39 5.69 8.55 18.66 28.06 0.22 0.71
230 4.95 3.10 16.25 10.16 6.89 10.35 22.59 33.97 0.26 0.86
280 6.03 3.77 19.79 12.37 8.38 12.60 27.50 41.35 0.32 1.04
300 6.46 4.04 21.20 13.25 8.98 13.51 29.47 44.31 0.34 1.12

English 19
INSTALLATION
Adjusting Projection Image Size (XGA)
Diagonal length
(inch) size of 4:3
Screen
Screen Size W X H (16:9) Projection Distance (D) Offset (A)
(m) (feet) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (feet)
30 0.61 0.46 2.00 1.50 0.98 1.17 3.20 3.84 0.06 0.21
40 0.81 0.61 2.67 2.00 1.30 1.56 4.27 5.12 0.08 0.28
60 1.22 0.91 4.00 3.00 1.95 2.34 6.40 7.68 0.13 0.42
80 1.63 1.22 5.33 4.00 2.60 3.12 8.53 10.24 0.17 0.56
100 2.03 1.52 6.67 5.00 3.25 3.90 10.67 12.80 0.21 0.70
120 2.44 1.83 8.00 6.00 3.90 4.68 12.80 15.36 0.25 0.83
140 2.84 2.13 9.33 7.00 4.55 5.46 14.93 17.92 0.30 0.97
160 3.25 2.44 10.67 8.00 5.20 6.24 17.07 20.48 0.34 1.11
190 3.86 2.90 12.67 9.50 6.18 7.41 20.27 24.32 0.40 1.32
230 4.67 3.51 15.33 11.50 7.48 8.97 24.53 29.44 0.49 1.60
280 5.69 4.27 18.67 14.00 9.10 10.92 29.87 35.84 0.59 1.95
300 6.10 4.57 20.00 15.00 9.75 11.70 32.00 38.40 0.64 2.09

English
20
INSTALLATION
Adjusting Projection Image Size (WXGA_1.2x)
Diagonal length
(inch) size of
16:10 Screen
Screen Size W X H (16:9) Projection Distance (D) Offset (A)
(m) (feet) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (feet)
30 0.65 0.40 2.12 1.32 0.83 0.99 2.71 3.26 0.05 0.15
40 0.86 0.54 2.83 1.77 1.10 1.32 3.62 4.34 0.06 0.20
60 1.29 0.81 4.24 2.65 1.65 1.99 5.43 6.51 0.09 0.30
80 1.72 1.08 5.65 3.53 2.21 2.65 7.24 8.68 0.12 0.40
100 2.15 1.35 7.07 4.42 2.76 3.31 9.05 10.85 0.15 0.50
120 2.58 1.62 8.48 5.30 3.31 3.97 10.85 13.03 0.18 0.60
140 3.02 1.88 9.89 6.18 3.86 4.63 12.66 15.20 0.21 0.70
160 3.45 2.15 11.31 7.07 4.41 5.29 14.47 17.37 0.24 0.80
190 4.09 2.56 13.43 8.39 5.24 6.29 17.19 20.62 0.29 0.95
230 4.95 3.10 16.25 10.16 6.34 7.61 20.80 24.97 0.35 1.15
280 6.03 3.77 19.79 12.37 7.72 9.26 25.33 30.39 0.43 1.40
300 6.46 4.04 21.20 13.25 8.27 9.93 27.14 32.56 0.46 1.50
