Optoma EW766W User manual

www.optoma.co.uk
EW766W
DLP®Projector
Widesceen
Installation...
Wireless
5
5
PureShift (V&H Shift) & 1.5x Zoom
9
16
16
16
16
6
6
6
:9
:9
:9
:9
:9
:9
:9
:9
:9
9
Widescreen presentations and
HD entertainment
Built-in wireless – cable free presenting
Bright projection – 4000 ANSI Lumens
Digital and Analogue connectivity includes:
HDMI, DVI-D, dual VGA
Low ownership costs – up to 4000hrs lamp life
Networking – RJ45 control and monitoring
Environmentally friendly design <1W standby mode
�
DLP®filter-free design – Virtually no maintenance
HD Ready
HD Ready

TRUE WXGA RESOLUTION
The EW766W is the perfect companion for widescreen laptops. Your
presentations will appear as sharp and detailed as they do on your
widescreen laptop in WXGA (1280 x 800). WXGA resolution gives
30% more pixels than XGA
XGA WXGA
CONTROL
The extensive RS232 command structure makes it simple and easy
to control the EW766W with any control system.
AMX Compatibility – Dynamic Discovery
Protocol is incorporated into the EW766W.
This feature allows for easy installation with
AMX control systems.

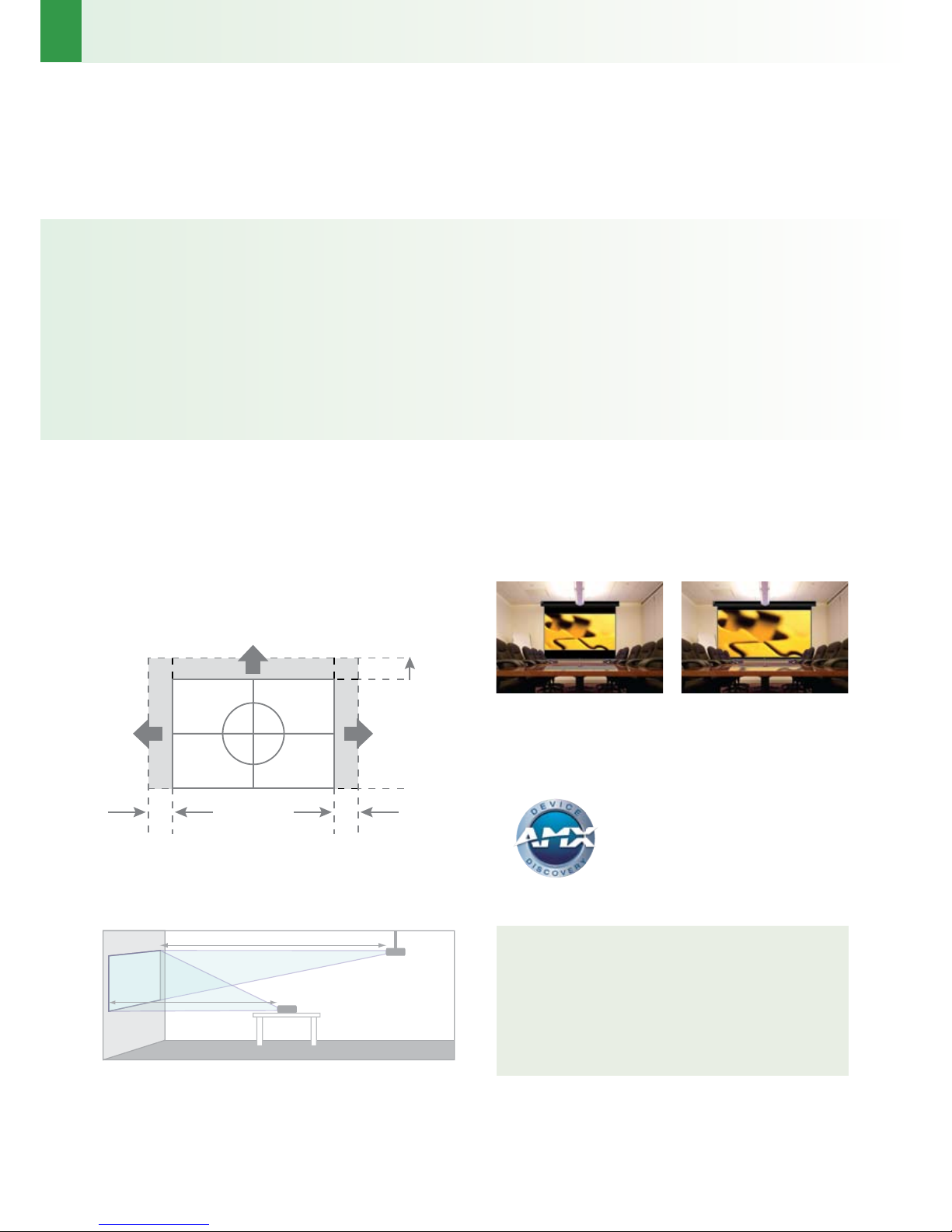

1.5X ZOOM AND PURESHIFT - EASY INSTALLATION
The EW766W can project a 100” diagonal image from any distance
between 3.4m and 5.2m. The PureShift system provides a lens shift
function that can be used to adjust the position of the projected image
either horizontally or vertically within the range detailed in diagrams.
When replacing existing projectors the 1.5x zoom and PureShift
system increases your installation flexibility.
25%
Max
30%
Max
30%
Max
5.2m
3.4m
100”
Screen
both diagrams for guide purposes only
Powerful Wireless installation projector - Widescreen
Widescreen, HD Ready. With built-in wireless, the EW766W with a brightness of 4000 ANSI Lumens is ideally
partnered with a widescreen notebook and HD sources to deliver bright widescreen images that can be viewed from
a great distance.
The introduction of PureShift technology gives your projector outstanding flexibility and with a 1.5x zoom makes the
EW766W an ideal replacement for existing ceiling mounted systems.
The environmentally friendly EW766W has energy saving features including <1W standby mode and auto power
off saving you both time and money. Long lamp-life of 4000hrs combined with our unique Optoma Colour guarantee
ensures hassle-free, long-lasting projection.
EW766W
FEATURES
Preset display modes
Easy to use remote with laser pointer, mouse control
and direct source selecting
Direct power on and Auto power off
Customised start-up logo

EW766W
PROJECTOR CONTROL AND MANAGEMENT
Built-in network (LAN) provides a host of features to control, monitor
and send information to a projector using a web browser. Using
a unique IP address, you can share and access a projector through
an existing network.
Control and manage up to 99 projectors individually
•
or combined (using a master PC/laptop) in a installation such
as a university or office.
99 Projectors
Internet and LAN access through RJ45 connection - single access•
point. It can also function as DHCP server for your network.
Network
(RJ45 LAN)
Preset the projectors to automatically turn on/off at specified•
times during the day or during the week.
Alert emails can be sent to a registered address to advise•
on issues such as a lamp replacement. IT managers can
be kept up to date 24/7 about the status of a projector on the
network. This reduces the cost of managing multiple projectors
in a building.
!
!
WIRELESS PRESENTING
Project presentations and video files cable-free with the wireless
features of the EW766W. Save time with simple switching between
multiple PC sources. Just download the software and begin
presenting instantly.
1 2 3
1 3
2 4
Secure wireless projection with WEP 64/128-bit and session login
security protection to prevent unauthorised access to information
on the wireless transmission.
Transfer and display presentation material or stream video
•
content (up to 720p).
Multiple display of up to 4 different images to one screen
•
Magnify and display with sound, streamed video from the internet•
Network
(RJ45 LAN)

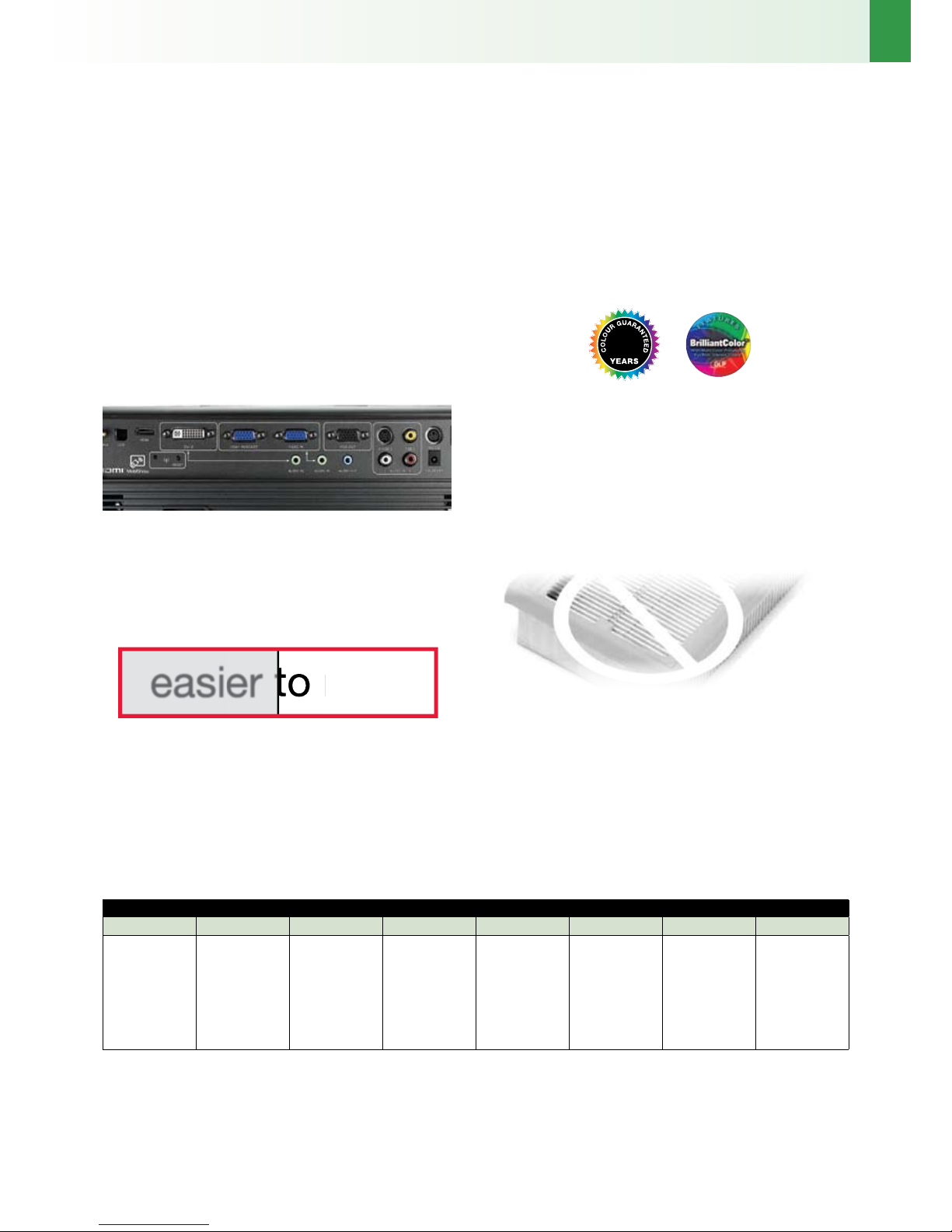

EXTENSIVE CONNECTIVITY
This native WXGA projector accepts a wide variety of computer and
video input signals. Connectivity includes: HDMI, dual VGA–SCART
and Component, S-Video, Composite, RS232 and RJ45.
Three selectable audio inputs for individual PC and video
connections enable the EW766W to function as an audio switcher
and volume controller, thereby eliminating complicated and costly
additional audio hardware and cabling.
CLEAR, FOCUSED IMAGES
Technology from Texas Instruments produces a stunning 2500:1
contrast ratio for pin sharp graphics and crystal clear text. Crisper
whites, ultra-rich blacks makes images come alive and text easier
to read - ideal for business and education presentations.
o read
500:1 contrast ratio 2500:1 contrast ratio
‡Simulated Image
AMAZING COLOURS
The EW766W incorporates BrilliantColor™ technology to produce
stunningly bright images with perfectly balanced life-like colours.
Preset display modes allow you to achieve a perfect image in a variety
of different environments.
COLOUR GUARANTEE
We are so confident that the EW766W image colour quality will
remain as good as the day you bought it that Optoma will guarantee
it for five years.
5
MAINTENANCE FREE = LOWER TOTAL COST
OF OWNERSHIP (TCO)
DLP® technology ensures lower cost of ownership, longer life and
improved reliability compared to other technologies.
The filter-free projector design means no more regular filter cleaning
or replacements, saving you time and money.
ENVIRONMENTALLY FRIENDLY
The EW766W incorporates energy saving features to reduce power
consumption and extend the lamp life.
The timer control functions can automatically switch the projector
off to standby mode <1W, conserving power and extending the
lamp life to an astonishing 4000hrs**.
EW766W
EW766W Projection Distance 1.2 - 10m (16:10 Aspect Ratio)
Projection Distance (m) Max. Horizontal
Image Size (m)
Min. Horizontal
Image Size (m) Max. Screen Height (m) Min. Screen Height (m) Max Diagonal Image Size (m)
Min Diagonal
Image Size (inch)
Max Diagonal
Image Size (inch)
1.20
2.00
2.50
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
0.76
1.27
1.59
1.91
2.55
3.18
3.82
4.46
5.10
5.73
6.37
0.50
0.84
1.05
1.26
1.67
2.09
2.51
2.93
3.35
3.77
4.18
0.48
0.80
1.00
1.19
1.59
1.99
2.39
2.79
3.18
3.58
3.98
0.31
0.52
0.65
0.78
1.05
1.31
1.57
1.83
2.09
2.35
2.62
0.90
1.50
1.88
2.25
3.00
3.76
4.51
5.26
6.01
6.76
7.51
23.31
38.85
48.56
58.28
77.70
97.13
116.55
135.98
155.40
174.83
194.26
35.49
59.14
73.93
88.71
118.29
147.86
177.43
207.00
236.57
266.14
295.71
For guide purposes only
EW766W is capable of 16:9 & 4:3 aspect ratio projection. When projecting a 16:9 & 4:3 image the image sizes, screen height and offset information will differ
from the above.

5 6
78
9
1
2
3
4
Optoma Europe Ltd.
42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ
www.optoma.co.uk
*Optoma guarantees that in normal use, Optoma DLP®colour quality will be indistinguishable from when new. Exclusions:(a) Guarantee is voided if the projector is subject to damage through misuse. (b) Guarantee may be void in industrial or commercial
entertainment environments where dust or smoke is excessive (c) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other faults. (d) Over time worn lamps within all projector types will show a slight colour
variance.**Typical lamp life achieved through testing.Will vary according to operational use and environment conditions.Copyright © 2012, Optoma Europe Ltd.All other product names and company names used herein are for identifications purposes only and
may be trademarks or registered trademarks of their respective owners. Errors and omissions excepted, all specifications are subject to change without notice. DLP®, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments.All images of
products are for representation purposes only.Whilst every care is taken to provide accurate images of our products, actual products may differ slightly. Some product images may have been digitally altered by us to add an Optoma logo to the front panel. Optoma
reserves the right to amend or alter actual product or product images without notice. Some images may be simulated.
EW766W
EW766W Remote Control
1Laser
2Remote Mouse
3Page Up/Down Control
4Help/Enter
5Vertical Keystone Correction
6Volume Control
7AV Mute
8Wireless
9Direct Input Source Selection
EW766W Connections
10 Wireless dongle
11 USB (Remote Mouse)
12 HDMI (audio supported)
13 DVI-D
14 VGA 1 - SCART & Component
15 VGA 2
16 VGA Out
17 S-Video
18 Composite Video
19 RS232 - 3 Pin
20 RJ45
21 Wireless reset
22 Audio In (DVI-D)
23 Audio In (VGA 1 & 2)
24 Audio Out
25 Audio In L&R (S-Video & Composite)
26 +12v Trigger
EASY TO USE REMOTE CONTROL
Easy to use remote
with buttons to
change the input
sources
EW766W SPECIFICATIONS
Brightness - BRIGHT mode 4000 ANSI Lumens
Contrast 2500:1
Native Resolution WXGA 1280 x 800
Compressed Resolution UXGA (1600 x 1200)
Noise Level 28dB
Keystone Correction ± 40° Vertical
PureShift Movement +25% Vertical, ±30% Horizontal (Max Movement)
Before installation please read EW766W install guide
Projection Lens F/2.45 ~ 2.9; f=22.18 ~ 33.27mm, 1.5x Manual Zoom
Throw Ratio 1.57 - 2.39:1 (Projection Distance:Image Width)
Projection Distance 1.2 - 10m
Image Size 0.59 – 7.51m (23.32” - 295.71”) Diagonal 16:10
Display Technology Single 0.65” WXGA DMD chip DLP® Technology
by Texas Instruments
Aspect Ratio 16:10 Native, 16:9, 4:3 Compatible
Lamp Life** 4000/3000 (STD/BRIGHT mode)
Weight 4.6 kg
Dimensions (W x D x H) 364 x 283 x 127 mm
Remote Control Full function remote with mouse control, laser pointer
and direct source selecting
INPUTS HDMI (HDCP) - audio supported
DVI-D (HDCP)
2 x 15 Pin D-Sub VGA (SCART & Component via adaptor)
S-Video 4 Pin Mini Din
Composite RCA
3 x 3.5mm Audio Mini Jack
USB (remote mouse)
CONTROL RS232 (3 Pin D-sub), RJ45 (LAN) & Wireless
OUTPUT 15 Pin D-Sub VGA (monitor loop-through)
3.5mm Audio Mini Jack
+12v Trigger
Audio 4W Speaker
On Screen Display 18 Languages: English, German, French, Italian, Spanish,
Portuguese, Polish, Dutch, Russian, Finnish, Swedish,
Greek, Norwegian, Danish, Hungarian, Czech,
Turkish & Arabic
Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
Uniformity 85%
Displayable Colours 134.2 Million
Horizontal Scan Rate 15 - 91.1kHz
Vertical Scan Rate 50 - 85Hz
Power Supply 100 - 240V, 50 - 60Hz
Power Consumption 233W BRIGHT mode < 1W Standby mode
207W STD mode < 1W Standby mode
Operating Conditions Operating: 5 - 40˚C, 85% Humidity (Max),
3000m Altitude (Max)
Security Kensington Lock Port, Password Protection
Standard Accessories Lens Cover, AC Power Cord, VGA Cable, RS232 Cable,
USB Cable, Full Function Remote, Batteries x 2, Quick
Start Guide, CD User Manual, Warranty Card, WEEE Card
RoHS Compliant
Lamp Warranty 6 months or 1000 hours - whichever comes sooner
Warranty Warranty may vary by country. Please see
www.optomaeurope.com or ask your local
supplier for details
Colour Guarantee* 5 Years Exceptional Connectivity/ Multiple Terminals
11 13 1614 15 17 1912 20
22 23 24 25 26
10 18
21
WIRELESS SPECIFICATIONS
Range (Typical) Up to 30m indoor, 50m outdoor without obstacle
Compliance IEEE 802.11b/g
Data transfer rate Up to 54 Mbps
Frequency 2.4GHZ
Display resolution SVGA (800 x 600), XGA (1024 x 768),
WXGA (1280 x 768)
Colour 24-bit colour depth
Operating temperature 0~45°C
Operating humidity ≤90%
Storage humidity ≤80%
SYSTEM REQUIREMENTS
Operating system Microsoft®Windows 2000, XP or Vista
CPU Intel Pentium III-800 MHZ (or greater)
RAM 256MB of RAM required, 512 MB or more recommended
WLAN adaptor A supported WLAN adapter for a WLAN connection
(Any NDIS-compliant 802.11b or 802.11g Wi-Fi device)
Other Minimum 10MB of available hard-Disk space
V2 - 25/05/12
