Opus Mongoose-Plus User manual

User Guide
- Plus

User Guide
2
Contents
Please Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Copyright &Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting to know the Mongoose-Plus®
Mongoose-Plus®
Mongoose-Plus®
. . . . . . . . . . . . . . . . . . . . 6
Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
J2534 Toolbox 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Maximum Voltage Per Product . . . . . . .
. .
17
Vehicle Connector Pin Assignments 18
Bluetooth Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Environmentals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
3
Please Note
Mongoose-Plus®interfaces have been carefully designed and tested
to comply with OBDII protocols. However, some vehicle models are
not in full compliance with these protocols for various reasons. In
addition, the computer control systems or sensors on any given
vehicle may be malfunctioning or out of specification.
While OPUS IVS™ testing and the experiences of thousands of
Mongoose-Plus®users have shown the unit to be safe and reliable,
there is an inherent risk in using any product that may potentially
aect the operation or drive-ability of your vehicle.
If you are concerned about the operation of your vehicle at any time
while using Mongoose-Plus®:
* Pull o the roadway immediately or as soon as it is safe to do so.
* Disconnect the Mongoose-Plus®from the OBDII port.
* Consult a licensed mechanic or automobile service center.
Please report any issues or concerns to our Technical Support
Department at [e-mail] (734) 222–5228 option 3.
We are open Monday–Friday,9:00am–5:30pm Eastern Time. We
maintain an active database of the feedback we receive, and your
comments can help us continuously improve the product.
Permission is granted to copy any or all portions of this manual,
provided that such copies are for use with Opus IVS™ product and that
©2021 Opus IVS™, (here-in referred to as Opus IVS™), remains on all
copies. The accompanying software, provided for use with the Opus IVS™
product, is also copyrighted. Permission is granted to copy this software
for back-up purposes only.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
4
Copyright & Trademarks
Copyright 1999–2022 Opus IVS™, All Rights Reserved.
Mongoose-Plus®, CarDAQ®, IMclean®, IMready®and J2534 ToolBox
are registered trademarks of All other
and brand names are the property of their respective owners,
trademarks
Limited Warranty
Opus IVS™guarantees that every Mongoose-Plus®is free from
physical defects in material and workmanship under normal use for
one year from the date of purchase.
In no event shall Opus IVS™liability exceed the price paid for the
product. Opus IVS™shall be exempt from all other claims whether
based upon direct, indirect, special, incidental, or consequential
damages resulting from the use of the product, its accompanying
software, or its documentation. Opus IVS™, makes no warranty or
Opus IVS™
representation, expressed, implied, or statutory, with respect to its
products or the contents or use of this documentation and all
accompanying software, and specifically disclaims its quality,
performance, merchantability, or fitness for any particular purpose.
Opus IVS™reserves the right to revise or update its products,
software, or documentation without obligation to notify any individual
or entity. Please direct all inquiries to:
Opus IVS™
3915 Research Park Dr
Suite A8
Ann Arbor, MI 48108
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
5
FCC Statement
The wireless module has been tested and found to comply with the
FCC Part 15 and ICRSS-210 rules. These limits are designed to
provide reasonable protection against harmful interference in
approved installations. This equipment generates,uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference may not occur in a particular installation. This device
complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received,including interference that may cause undesired operation.
Modifications or changes to this equipment not expressly approved
by the part responsible for compliance may render void the user’s
authority to operate this equipment.
Modular Approval, FCC and IC.
FCC ID X3ZBTMOD3
IC 8828A-MOD3
In accordance with FCC Part 15, the SPT2632C1A.AT2 is listed above
as a modular transmitter device.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
6
Introduction
Thank you for choosing the Mongoose-Plus®Mongoose-Plus® ! The will
allow you to re-flash modern vehicle controllers to stock as well as
perform dealer level diagnostics on select manufacturer’s vehicles.
The Mongoose-Plus®
is an SAE J2534-compliant device at a low cost.
It provides a direct connection to a laptop or desktop computer via
a USB connection. All of the electronics are contained in the OBDII
connector shell, making it a compact and rugged vehicle
communications tool. The Mongoose-Plus®is powered by the USB
connector, so there’s no need to re-start the Mongoose-Plus®if it is
unplugged from a vehicle.
Getting to know the Mongoose-Plus®
Wireless Connection
OBDII
Connector
LED Status
Indicators
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
7
Driver Installation
1. Go to or click this link to go to the OPUS IVS™ downloads page:
https://www.opusivs.com/support/downloads.
2. Click the Set-up link for the respective Mongoose-Plus®
to
be installed.
3. Click Run to install the software once the software has
downloaded to your PC.

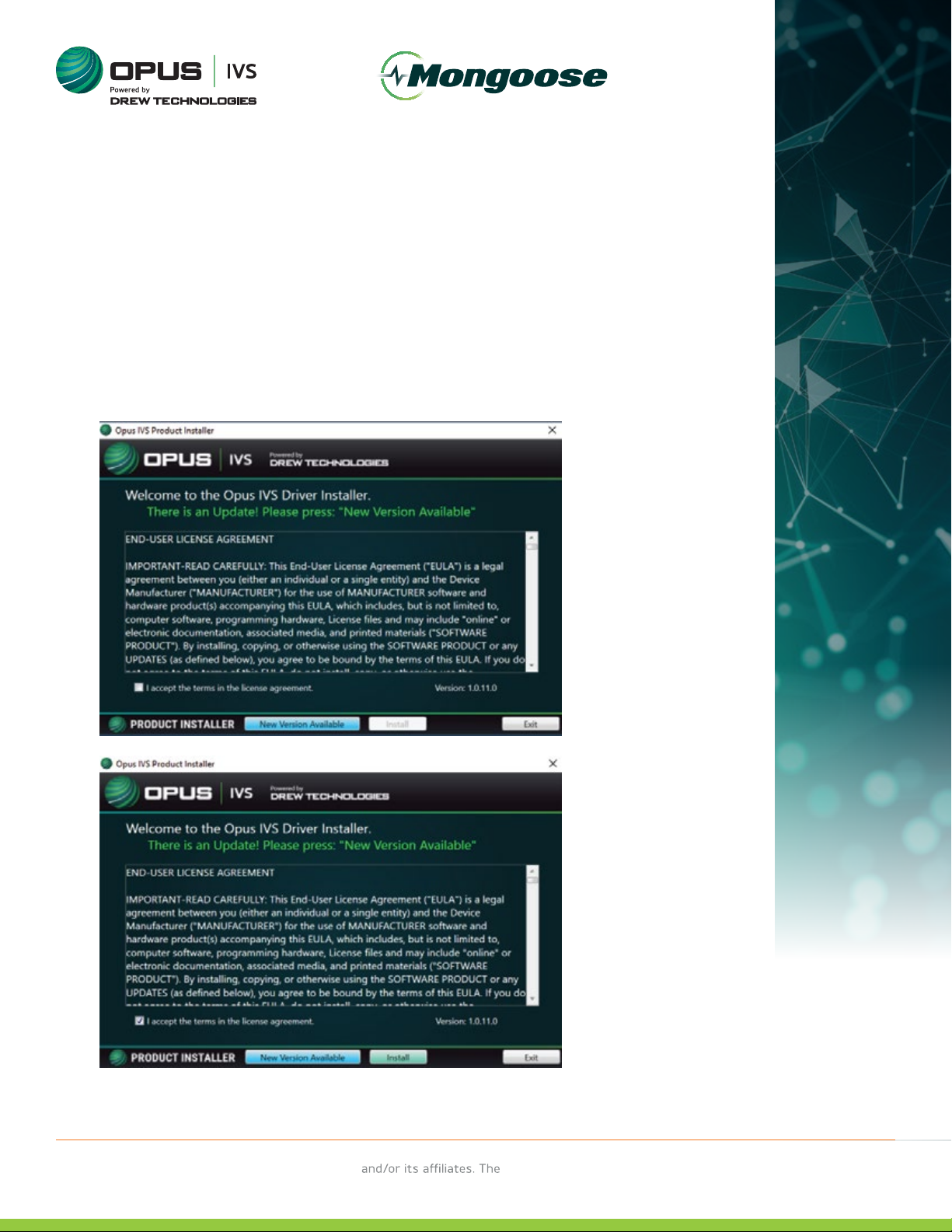

4. Upon receiving this screen, read, check the box next to
Accept then click Install.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
8
5. Installing…
6. Once the setup application has finished, connect the
Mongoose-Plus®to the PC. Once you have gotten a message
in the lower, right-hand corner of your screen that the
device has been installed, click on Activate My Device.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
9

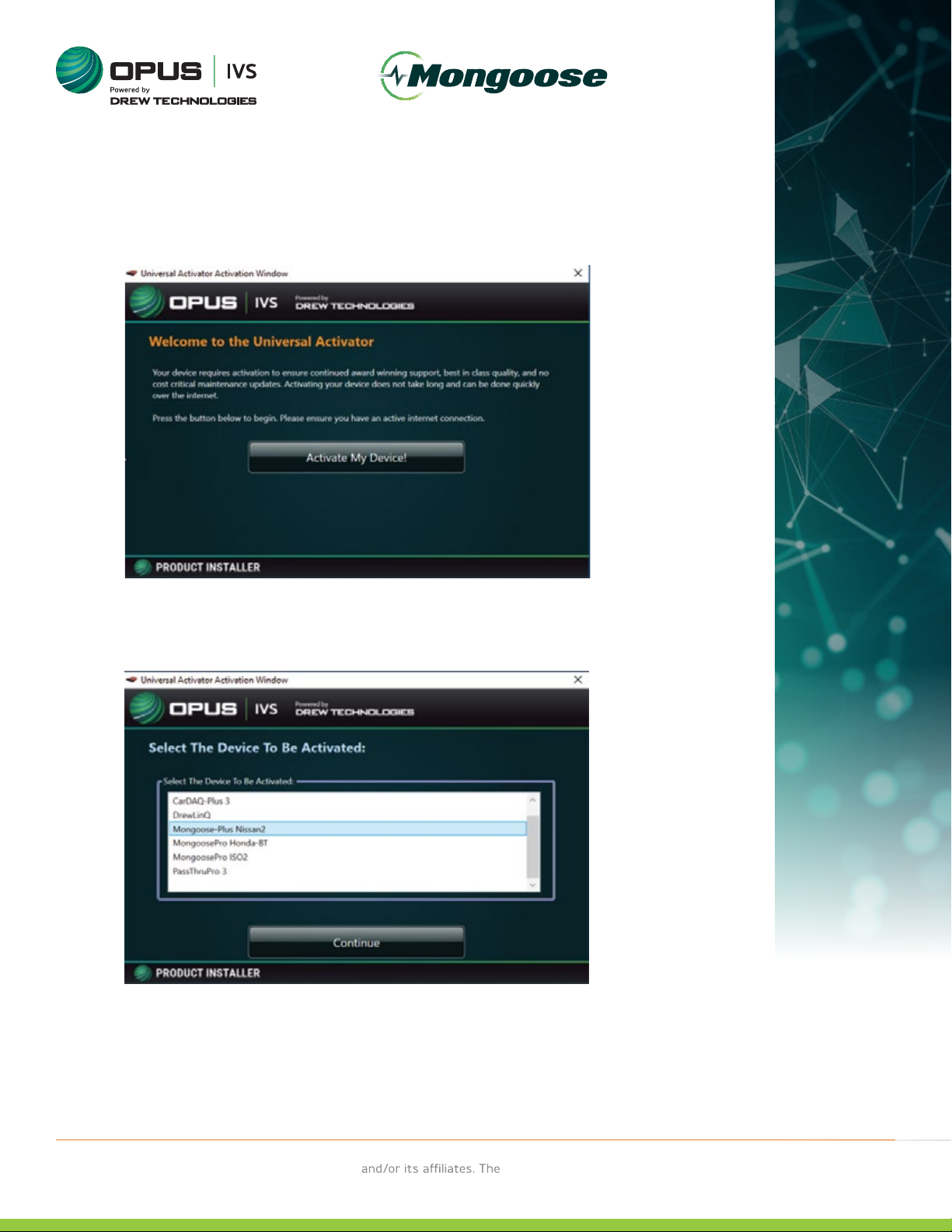

7. The Device Activator application will reopen after clicking
Activate My Device. Click the Activate My Device! button.
8. Select the interface device you want to activate and
click Continue.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
10
9. Enter the applicable information and click Continue.
10. Select your type of business and level of programming
experience, then select the OEM’s you are planning to
support. Click Continue.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
11
11. Leave the Mongoose-Plus® disconnected from the PC.
12. Plug your Mongoose-Plus® to the PC, and click OK.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
12
13. This is the screen you will see once your device activation
is successful.
Once product activation is performed successfully,
you can also install the device on other PC’s and not
have to perform the activation procedure again.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
13
J2534 Toolbox 3
The purpose of the J2534 Toolbox is to provide current, relative
information and assistance to the user. The information is provided
via various walk-through documents, OEM documentation, web-
links, quick-links, videos, basic diagnostic functions, connection
verification and much more. The J2534 Toolbox should be referred
to regularly as information is updated continually.

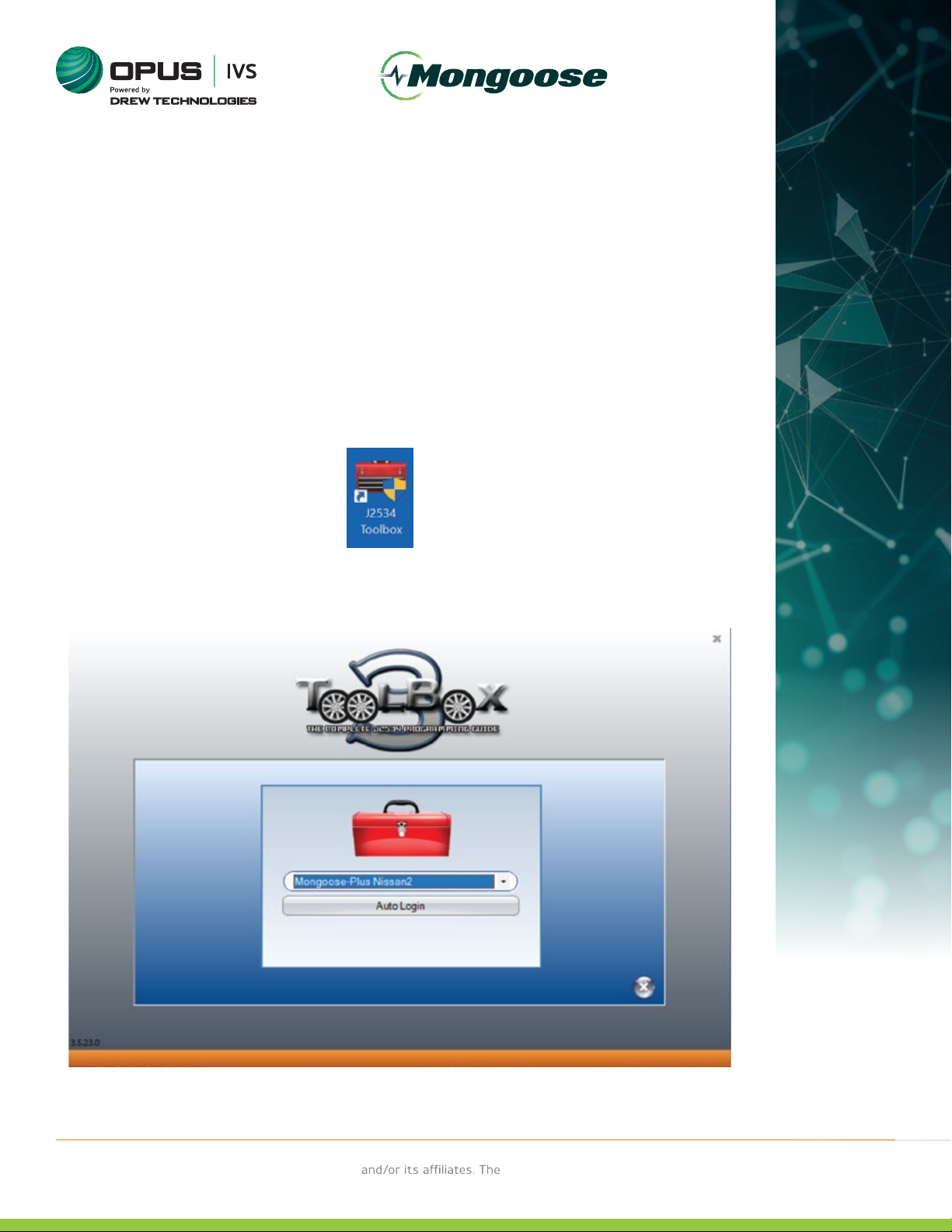

1. Locate and double-click the J2534 Toolbox Icon on
the desktop
2. Select your interface from the drop-down menu and
click Auto Login.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
14

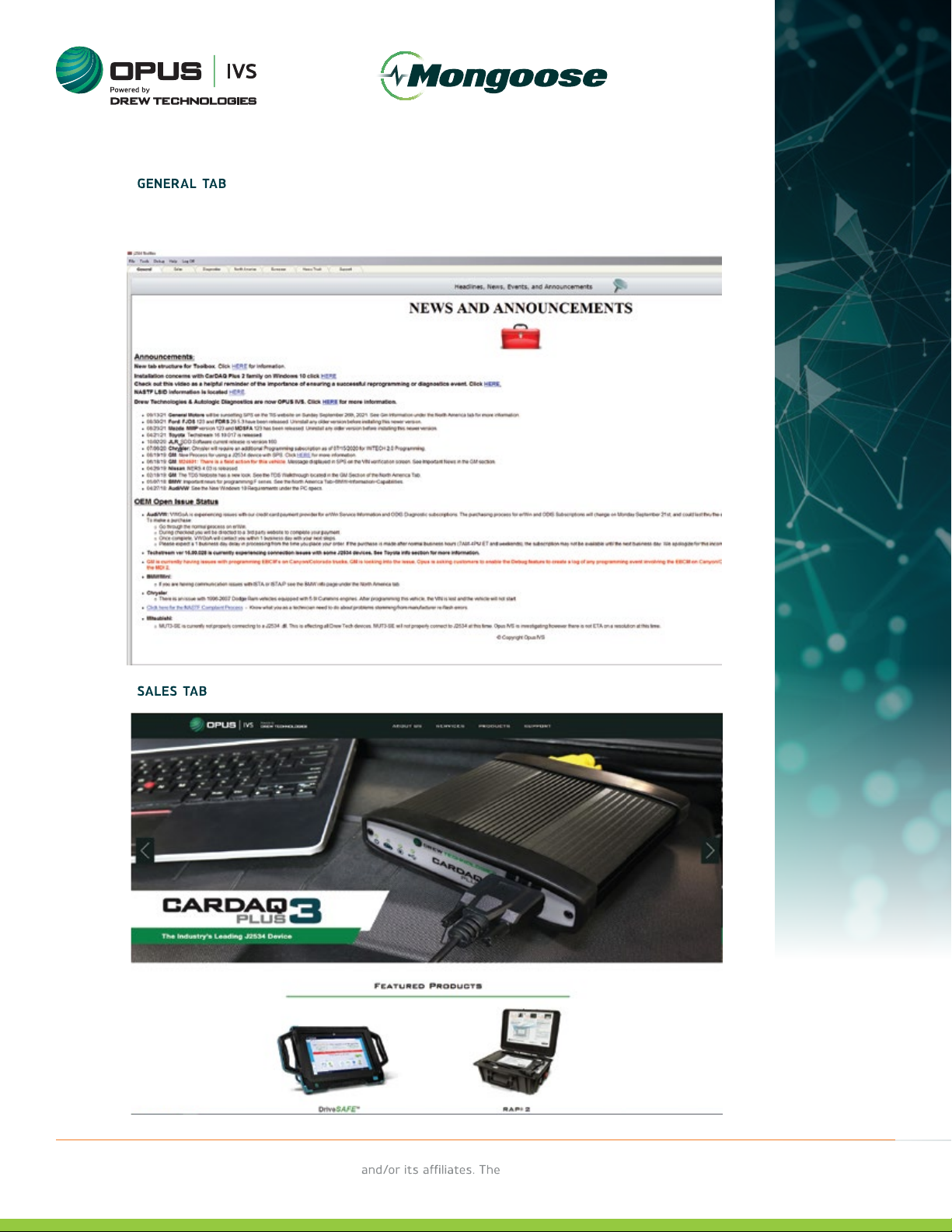

a. Contains important news, current OEM
concerns, training broadcast invitations and current
information you should review.
b. Connects you to the Opus IVS™ website.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
15
c. Contains relative links, some diagnostic
functions, information and videos about flashing and OEM’s
that currently provide diagnostics via J2534.
d. Contains the information pertaining to OEM
J2534 flashing including links, information, walk-throughs,
and some helper functions.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
16
e. Contains functions to check driver installation,
vehicle communication, updating the device, create debug
logs, contact Technical Support and other resources.
f. Contains general information, installation
and Using OEM J2534 Application Videos with
Drew Technologies products.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
17
Maximum Voltage Per Mongoose-Plus®Product
Product Max
VBatt
Min
VBatt
CAN
Min
VBatt
J1850
Min
VBatt
K–Line
Min
VBatt
SCI
Chrysler 32 N/A 9 6 10
Ford 32 N/A N/A 6
6
GM II 32 N/A 9 6
Honda 32 N/A N/A 6
ISO/CAN 32 6
6
Nissan 32 N/A
N/A N/A N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Toyota 2 32 N/A 9 6
VW 32 N/A
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
18
Mongoose-Plus®
Vehicle Connector Pin Assignments
- Plus
CAN-FD 1 (6&14)
CAN-FD 2 (3&11)
CAN-FD 2 (3&8)
CAN-FD 3 (12&13)
CAN-FD 3 (1&9)
CAN-FD ? (SW Pin 1)
VW2
SQ
0x018F
Feature
Product Code
USB ID
Honda2
SN
0x018C
ISO/CAN3
SP
0x018E
MFC3
SL
0x018A
Ford2
SM
0x018B
Nissan2
SO
0x018D
GM3
SR
0x191
Chrysler2
SS
0x192
J1850 (VPW) (Pin 2)
J1850 (PWM) (2&10)
ISO Serial K-line
(Pin 7)
ISO Serial K-line or
L line(Pin 15)
K line (pin 1)
K line (pins 3,6,7,8,
9,12,13,15)
DiagH(Pin 1)
DiagH(Pin 14)
GM UART (pins 1,9)
SCI (Pin 6,7,9,12,14,15)
STG(Pin 1)
STG(Pin 9)
STG(Pin 15)
VPP 5Volts(Pin 12)
VPP FEPS(Pin 13)
UART Echo Byte
TP 1.6 / 2.0
Measure V on pin 1
J2534-1 0500 support
Fault Tolerant CAN3
(1&9)
Fault Tolerant CAN1
(6&14)
Ethernet/NDIS (3&11)
ISO 13400-3 option 1
Ethernet/NDIS (1&9)
ISO 13400-3 option 2
Ethernet Activtion
(meas V on pin 8,pull
up 4.7k, 500 ohms)
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
19
Bluetooth Setup
Bluetooth is an option that can be purchased with some
Mongoose-Plus®versions. If you have purchased Bluetooth, your
Mongoose-Plus®will have a BT at the end of the model number.
Please note that does not recommend doing any
reprogramming over Bluetooth.
1. Make sure your Bluetooth dongle is installed by inserting
your Bluetooth dongle manufacturer media into your PC and
follow the installation directions.
2. To pair your Mongoose-Plus®BT, right click on the Bluetooth
iconin the System Tray.
3. Click on Add Device
Opus IVS™
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.

User Guide
20
4. Select your device from the available options, then click Next.
5. Enter the pairing code 2534 in the text box and click Next
pair the Mongoose-Plus®
.
6. Your Mongoose-Plus®has been successfully paired with
your PC.
Only have one ( 1 ) Mongoose-Plus® paired with your
PC to avoid erroneous test results. The Mongoose-Plus®
driver will inform if you have multiple devices paired
to your PC.
Technical Support
Please contact Opus IVS™for technical support at
[email protected]. or (734) 222–5228 option 3.
If technical support finds it necessary for the unit to be returned
for repair, you will be asked for your contact information and then
provided with a Return Merchandise Authorization number (RMA #).
Opus IVS™will use the RMA # to track the unit through the
repair process. Please write this number on the outside of your
shipping box so it can be routed to the correct department. If the
necessary repair is not covered by Opus IVS™’ warranty,
you will be contacted for payment arrangements.
- Plus
This document is copyrighted by Opus IVS™ Permission is granted to copy portions of this manual—in whole or in part—provided that such copies
are for use with the product provided by Opus IVS™ Opus IVS™ logo must appear on all copies as it appears in the original.
