ORANGE 105520-0-A User manual

Orange Outlet Manual

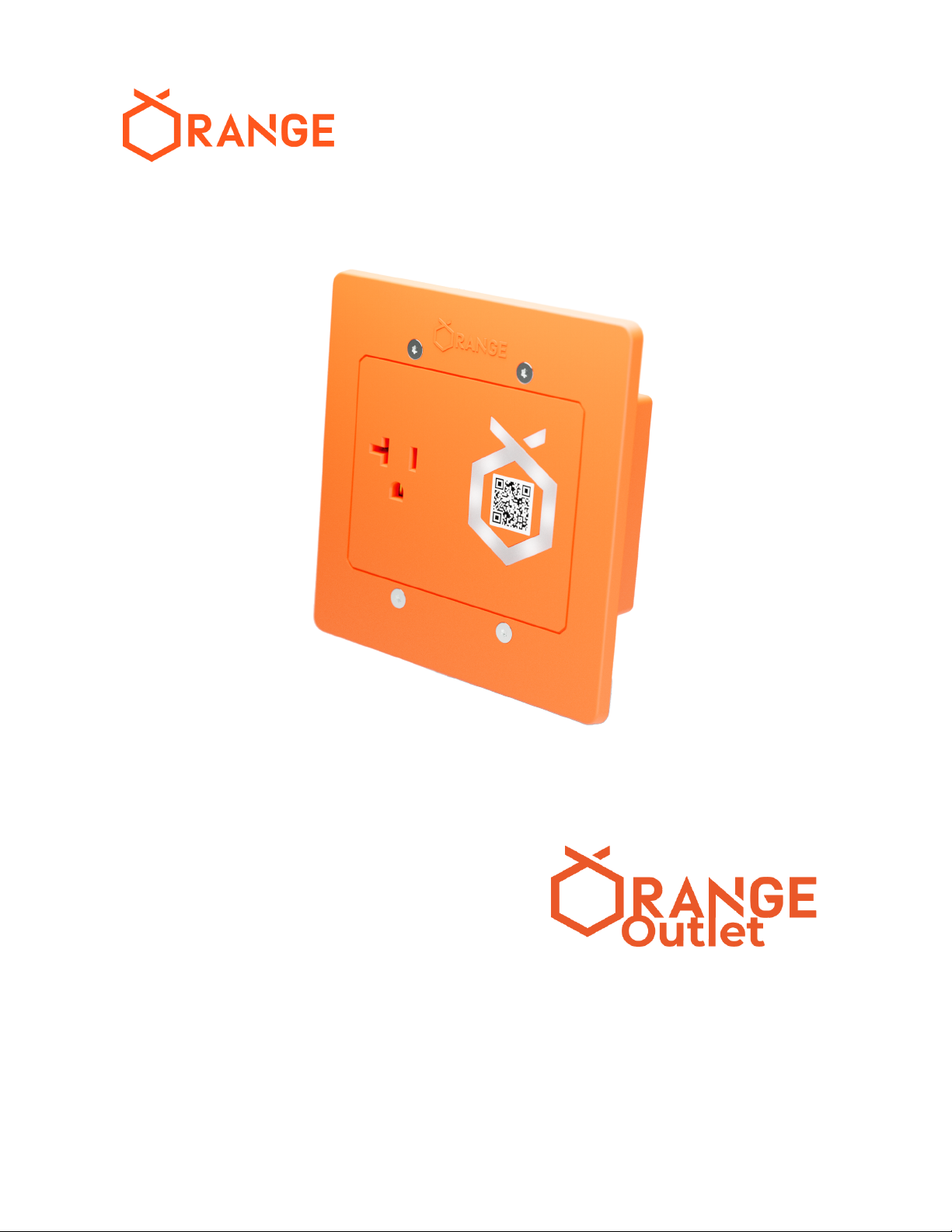

20 Amp Smart Electric Vehicle Charging Outlet

TABLE OF CONTENTS
Published Jul 5th, 2022
Revision 1.3
Part Numbers This User Manual Is Intended for:
105520-0-A, 105620-0-A, 115520-0-A, 115620-0-A
Important Safety Information
Product Overview
Product Specifications
Circuit breaker Rating / Maximum Output
Using Orange Outlet
Features
Connectivity
Power Outages
Firmware Updates
Orange Outlet External Components
Installation
Included in the Box
Installation Tools
Installation Considerations
Step 0: De Energized Circuit
Step 1: Preparing For Install
Step 2: Install Outlet Into 2 Gang Box

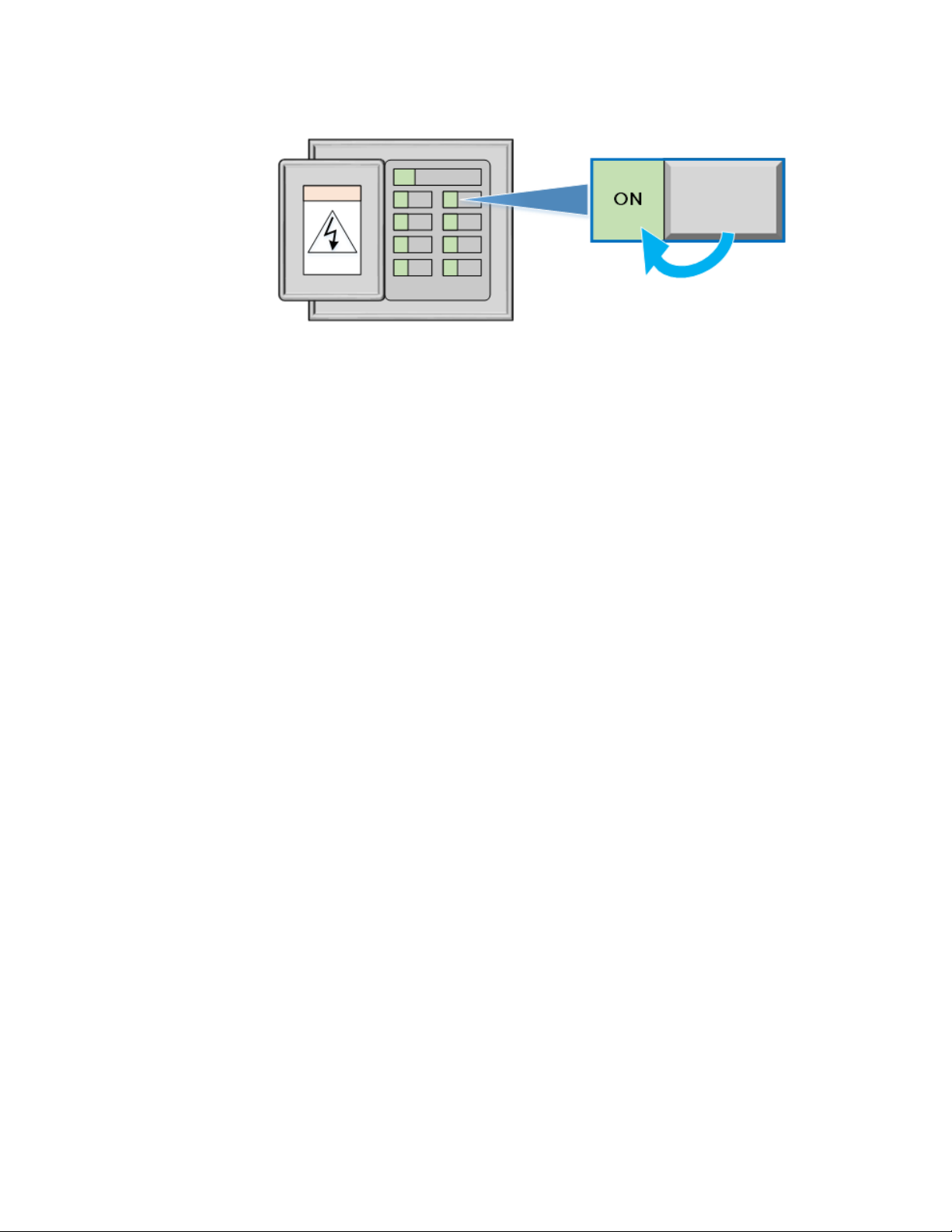

Step 3: Energise Outlet
Step 4: Setup Outlet to Property Owners Account

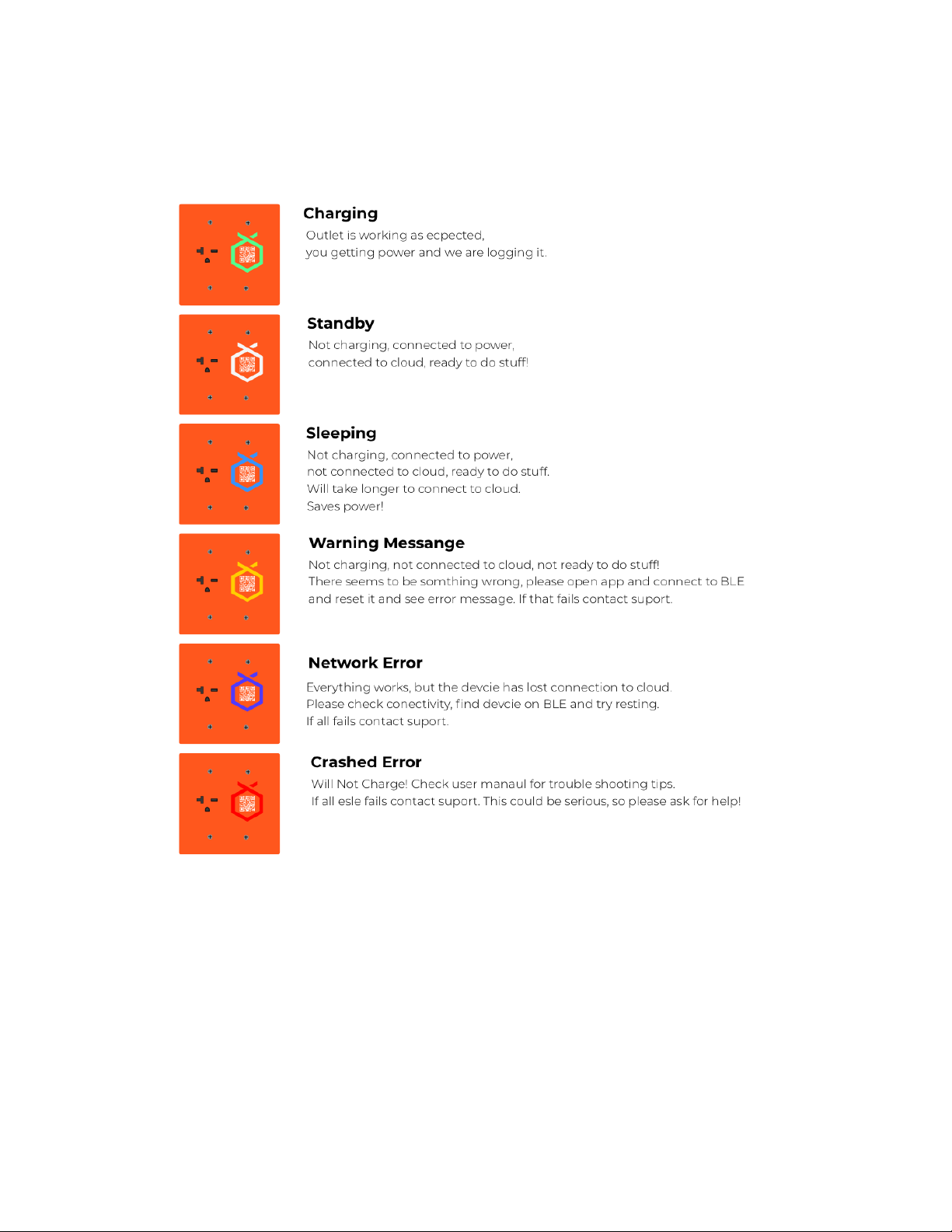

LED Status
Warranty
Limited Liability
THIS IS NOT A FINAL COPY
Copyrights Orange Charger Inc 2022

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this product. Save these instructions for future
reference. A PDF copy of these instructions can be found at the URL: (ADD LATER)
This manual contains important instructions for Orange Outlet that shall be followed
during installation, operation, and maintenance. Please review all warnings and
cautions before installing and using Orange Outlet.
WARNING: When using electric products, basic precautions should always be
followed, including the following.
INSTRUCTIONS RELATING TO THE RISK OF FIRE OR ELECTRIC SHOCK.
WARNING: Do not install or use Orange Outlet near flammable, explosive, harsh,
or combustible materials, chemicals, or vapors.
WARNING: Turn off power at the circuit breaker before installing or cleaning
Orange Outlet.
WARNINGS
WARNING: This product can expose you to one or more chemicals that are known
to the state of California to cause cancer.
WARNING: This product should be supervised when used around children.
WARNING: Orange Outlet must be grounded through a permanent wiring system
or an equipment-grounding conductor.
WARNING: Use the outlet only within specified operating parameters.
WARNING: Do not use Orange Outlet if it is defective, appears cracked, frayed,
broken, or otherwise damaged, or fails to operate.
WARNING: Do not attempt to disassemble, repair, tamper with, or modify Orange
Outlet. It is not user-serviceable. Contact Orange support for any repairs or
modifications.
Copyrights Orange Charger Inc 2022

WARNING: When transporting Orange Outlet, handle with care. Do not subject it to
strong forces, impacts, pulls, drag, or step on Orange Outlet to prevent damage to any
components.
WARNING: Do not touch Orange Outlet contact terminals with fingers, or sharp
metallic objects, such as wires, tools, or needles.
WARNING: Do not insert fingers or foreign objects into any part of Orange Outlet.
WARNING: Do not forcefully fold or apply pressure to Orange Outlet or damage it
with sharp objects.
WARNING: The use of the Orange Outlet may affect or impair the operation of any
medical or implantable electronic device, such as an implantable cardiac pacemaker or
an implantable cardioverter-defibrillator. Check with your electronic device
manufacturer concerning the effects that charging may have on such electronic devices
before using Orange Outlet.
WARNING: This product must be earthed. If it should malfunction or break down,
earthing provides a path of least resistance for electric current to reduce the risk of
electric shock.
WARNING: Improper connection of the equipment-earthing conductor is able to
result in a risk of electric shock. Check with a qualified electrician or serviceman if you
doubt whether the product is properly earthed.
Cautions
CAUTION: Do not use a private power generator as a power source of Orange
Outlet.
CAUTION: Incorrect installation and testing of Orange Outlet could potentially
damage the device and components. Any resulting damage is excluded from the
Orange Outlet Limited Warranty.
CAUTION: Do not operate Orange Outlet in temperature outside the operating
range of -22 ℉ to 122 ℉ (-30 ℃ to 50 ℃).
Copyrights Orange Charger Inc 2022

Part Number Covered in Manual
Network/Plug Style
NEMA 5-20
NEMA 6-20
WiFi
105620-0-A
105620-0-A
Cellular
115520-0-A
115620-0-A
Circuit Breaker Rating / Maximum Output
For the NEMA 5-20 Outlet PN: 105520-0-A or 115520-0-A
For maximum power output, install a standard single-pole 20 amp circuit breaker. If the
outlet is installed outside or outdoors use a standard single-pole 20 amp GFCI circuit
breaker.
For the NEMA 6-20 Outlet PN: 105620-0-A or 115620-0-A
For maximum power output, install a standard double pole 20 amp circuit breaker. If the
outlet is installed outside or outdoors use a standard double pole 20 amp GFCI circuit
breaker.
Copyrights Orange Charger Inc 2022

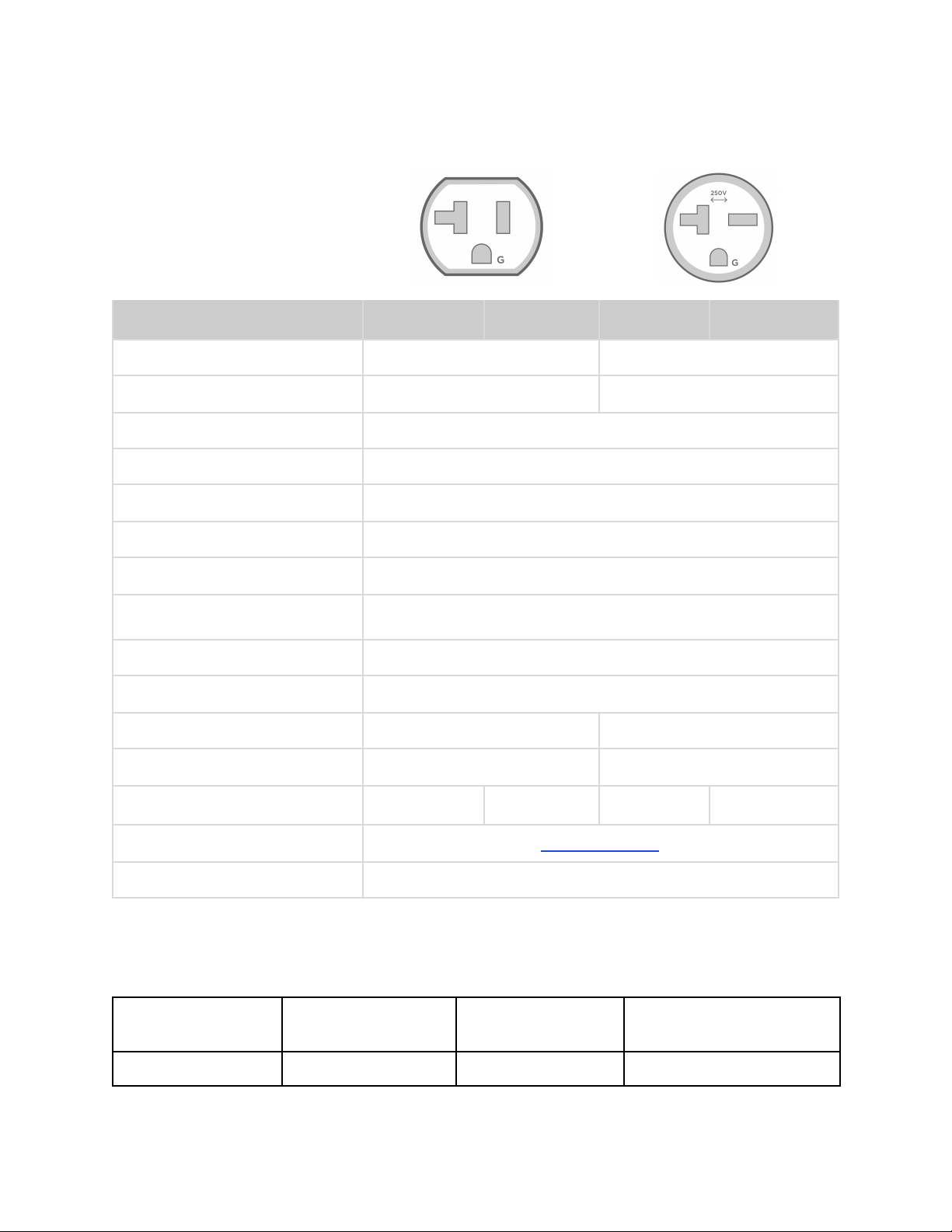

Product Specifications
Part Number
105520-0-A
115520-0-A
105620-0-A
115620-0-A
NEMA Configuration
NEMA 5-20
NEMA 6-20
Voltage (Voltage AC)
125
240
Frequency (Hz)
50 to 60Hz
Max Current (A)
20
Peak Overcurrent (A)
25 (100ns)
Over Voltage (Voltage AC)
264
Dimensions
125.5 x 125.5 x 37 mm (5.75 x 5.75 x 1.25 in) (LxWxH)
Temperature Range
Operating Environment: -20ºC to 50ºC
Humidity
0-90% relative humidity
Plastic
Polycarbonate, UL-94 V-0 Flame Rating
Max Wattage (kWh)
1.92
3.8
Wire Gauge (AWG / mm2)
12 / 2.05
12 / 2.05
Connectivity
WiFi
Cellular
WiFi
Cellular
Agency Approvals
Intertek UL-916
Warranty
3 Year
Circuit Breaker Rating / Maximum Output
For maximum power output, install a standard double pole 20 amp circuit breaker.
Voltage
Circuit breaker
(amps) - GFCI
Max output (amps)
Power output at 240 volts
(kW
240
20
16
3.84
Copyrights Orange Charger Inc 2022

120
20
16
1.92
Grounding Connections
Orange Outlet must have a ground path back to the main equipment earthing point on
site. Without a proper ground connection, the Orange Outlet will fault during a ground
assurance test. An equipment grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal in the wire box. Install a
ground (PE) wire sized according to the local electrical code.
Power Outages
If there is a power outage while Orange Outlet is charging a vehicle, charging will
automatically resume within 1 to 3 minutes after power restoration. The Outlet will
display a blue light on the Logo to indicate that it is communicating with the cloud and
waiting to resume charging. Alternatively, pressing the touch sensor on the logo for 5
seconds will cause the Outlet to restart.
Firmware Updates
Firmware updates will be automatically applied to the Orange Outlet to improve the user
experience and introduce new features. Orange outlet connector to Wi-Fi or Cellular
and uses a Bluetooth network when necessary to access the most recent firmware
update.

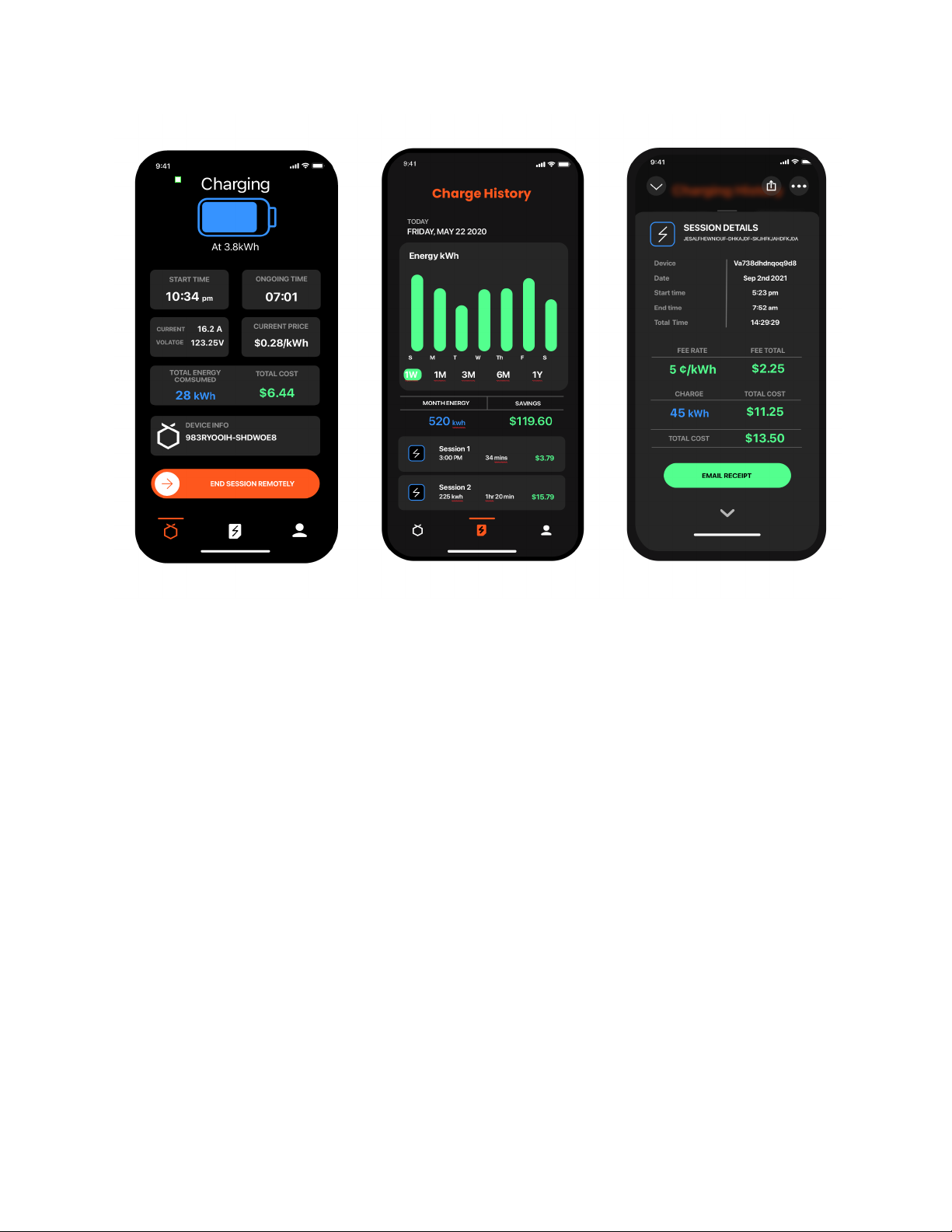

Using Orange Outlet
One uses Orange Outlet like any standard outlet, by plugging the EVSE equipment to
charge a vehicle into the outlet and using the mobile application to scan the QR code
and initiate a charge. (We will have a link here in the future to download the Mobile App
on all Major Platforms.)
Features
Access to convent low-cost electricity. Simple payment management and energy
tracking. Easy property management features to minimize operational costs for property
owners.
Copyrights Orange Charger Inc 2022

Connectivity
Orange Outlet comes in two connectivity options, Wifi or Cellular, in most cases we
recommend installing cellular connectivity devices if you are not the owner and operator
of an on-premise WiFi network with high reliability.
Limited LTE Access
In situations where LTE connectivity is limited, like underground parking garages
Orange Outlets have the ability to relay information on their own mesh-like local network
and find a unit that has the best connectivity to transmit data over.
Physical Dimensions
Copyrights Orange Charger Inc 2022

Installation
WARNING: Always de-energize the circuit you are working on before performing
any electrical work, installation, or maintenance.
In the Box
One Orange Outlet (x1)
12AWG WAGO Connectors (x3)
Cover Fasteners (x4)
Documentation Papers (Online)
SCAN QR CODE
Required Tools (Not INcluded)
T10 Torx Screwdriver or Bit
Smartphone With Orange Mobile App
Copyrights Orange Charger Inc 2022

Installation Considerations
● Outlet may be installed in most two gang electrical boxes made from non-metallic
materials.
● Ensure the outlet fits the electrical box being used, including sufficient depth for
the hookup wires (2.5” minimum depth recommended)
● Install requirements for indoor and outdoor are different:
○ Outdoor installations may require an in-use weather cover if they are
exposed to damp, wet or other exposed environments. Confirm
requirements with applicable codes before operation.
Installation Height
Install Height
● Maximum height (indoor and outdoor): 60 in (1.52 m)
● Recommended height: ~45 in (~1.15 m)
● Minimum outdoor height: 24 in (0.6 m)
● Minimum indoor height: 18 in (0.45 m)
Please follow all National Electric Code
(NEC) requirements for your local
electrical code and building codes. If
you don’t know your local codes, please
contact a certified C-10 electrician to
perform the installation.
Maximizing Signal Reception
For cellular and Wifi connections please
check the mobile app during installation
to see if its signal strength is above 30%
signal.
Signal reception is negatively affected
by metallic enclosures, ensure that a
non-metallic enclosure is used.
Install Clearance Requirements
Copyrights Orange Charger Inc 2022

Install the Orange Outlet in a location with ample clearance on all sides to allow for easy
access and possible additional cable management.
Recommend Minimum Outlet Clearance
Inches (in)
Millimeter (mm)
Front
24
609
Left Side
12
304
Right SIde
12
304
Top
12
304
Botton
24
609
INSTALLATION INSTRUCTIONS
STEP 0: WARNING: Always de-energize the circuit you are working on before
performing any electrical work, installation, or maintenance.
Step 1: Preparing For Install
Prepare a 2-gang electrical box with the correct wire based on the Outlet version you
are installing. Please See Tabel #129 for version wire colors and follow proper electrical
requirements.
Copyrights Orange Charger Inc 2022

Please make sure the electrical box meets all local electric codes for the 120V or 240V
receptacle. Always use 12AWG or larger wire sizes for all 3 conductors to Orange
Outlet.
Step 2: Install Outlet Into 2 Gang Box
You can find a list of tested and approved 2gang boxes and weather covers at
https://orangecharger.com/outlet-installation-instructions
Using the supplied WAGO connectors you can now connect the wires based on the
product type you are installing. All Orange Outlets have a black and green wire and for
120V versions a white wire or for 240V versions a red wire. Match those to the table
below.
Version
NEMA 5-20
NEMA 6-20
Black Wire
Live 1
Live 1
White Wire
Neutral
x
Red Wire
x
Live 2
Green Wire
Ground
Ground
Copyrights Orange Charger Inc 2022

Table #129
Once you have followed the instructions and stripped the proper length of wire as
marked on the side of the WAGO connector, and made sure all connections are correct
and secure you can push the Orange Outlet into the 2 Gang box.
Use the 4 screws provided to attach the Outlet to a 2 gang box, and make sure you
follow proper torque requirements.
Enclosure Thread Type
Fastener
Maximum Torque
(Nm)
Maximum Torque
(in-lb)
Unthreaded (common for
plastic)
6-19 Screws (T10 Torx
head, included)
0.9
8
Threaded
6-32 Screws (not included)
0.9
8
Copyrights Orange Charger Inc 2022

Copyrights Orange Charger Inc 2022

Outdoor Use Please Consult NEC Codes in Your Region.
Outdoor installations may require an in-use weather cover if they are exposed to damp,
wet, or other exposed environments. Confirm requirements with applicable codes
before operation.
Step 3: Energise Outlet
After completing the installation, you can return to the breaker panel to energize the
circuit breaker. If everything was connected property, you should know the LED ring
should turn on and breathe deep blue. This way takes 2-5 minutes for a cellular
connection to be made.
Copyrights Orange Charger Inc 2022

Step 4: Commission Software
Next, download the Model App to complete the setup of the outlet and connect the
payment service to your property.
Copyrights Orange Charger Inc 2022

LED Status
Copyrights Orange Charger Inc 2022

The Orange LED Logo gives useful information about the current state of any Orange O
No LEDs On, POWER ISSUE. Check breaker panels and make sure all circuits are
properly installed. Please contact Orange or a locally certified electrician if the breaker
is not the issue.
Copyrights Orange Charger Inc 2022

WARRANTY
Subject to the exclusions and limitations described below, the Orange Outlet Limited
Warranty covers the refund, repair, or replacement necessary to remedy any
manufacturing defects in an Orange Charger’s manufactured and supplied Outlet or that
occur under normal personal use for a period of 36 months, or a period of 36 months for
normal commercial use*. *For warranty claims specific to Orange Outlet, “commercial
use” means Outlets used for purposes other than charging at a residential home for
daily personal use, which includes, but is not limited to, charging at hotels, offices,
parking lots, and complexes (including apartment, condominiums and other multi-family
or unit dwellings), and retail and other locations that allow (including by being listed
online or publicly) for pay-for-use charging, or are located where users other than the
owner could reasonably obtain access to the Orange Outlet
This Orange Outlet Limited Warranty does not cover any damage or malfunction directly
or indirectly caused by, due to, or resulting from, normal wear or deterioration, abuse,
misuse, negligence, accident, lack of or improper installation, use, maintenance,
storage, or transport, including, but not limited to, any of the following:
Failure to follow the instructions, operation, maintenance, and warnings published in the
documentation supplied with your Orange Outlet;
External factors, including but not limited to, objects striking the Orange’s connector or,
faulty or damaged electrical wiring or connections, external electrical faults, junction
boxes, circuit breakers, receptacles or other power outlets, the environment or an act of
God, including, but not limited to, fire, earthquake, water, lightning, and other
environmental conditions;
General appearance or damage to the paint, including chips, scratches, dents, and
cracks;
Failure to contact Orange Charger upon discovery of a defect covered by this Orange
Outlet Limited Warranty;
Any repair, alteration, or modification to the Orange Outlet or any part, or the installation
or use of any parts or accessories, made by a person or facility not authorized or
certified to do so; and
lack of or improper installation, repair, or maintenance, including the use of non-genuine
Orange accessories or parts.
Copyrights Orange Charger Inc 2022

Although Orange Charger does not require you to perform all maintenance, service or
repairs with through an Orange repair facility, this Orange Outlet Limited Warranty may
be voided, or coverage may be excluded due to lack of or improper maintenance,
service, or repairs.
Orange authorized repair facilities have special training, expertise, tools, and supplies
concerning Orange products and, in certain cases, may employ the only persons, or be
the only facilities authorized or certified to work on Orange products. Orange strongly
recommends that you have all maintenance, service, and repairs done through an
Orange authorized repair facility in order to avoid voiding or having coverage excluded
under this Orange Outlet Limited Warranty.
LIMITS OF LIABILITY
This Orange Outlet Limited Warranty is the only express warranty made in connection
with your Orange Outlet. Implied and express warranties and conditions arising under
applicable local laws, federal statute or otherwise, in law or in equity, if any, including,
but not limited to, implied warranties and conditions of merchantability or merchantable
quality, fitness for a particular purpose, durability, or those arising by a course of dealing
or usage of trade, or any warranties against latent or hidden defects, are disclaimed to
the fullest extent allowable by your local law, or limited in duration to the term of this
Orange Outlet Limited Warranty. To the fullest extent allowable by your local law, the
performance of necessary repairs and/or replacement of new, reconditioned, or
remanufactured parts by Orange Charger for the covered defects is the exclusive
remedy under this Orange Outlet Limited Warranty or any implied warranties. To the
maximum extent permissible under your local law, liability is limited to the reasonable
price for repair or replacement of the applicable Orange Outlet, not to exceed the
manufacturer’s suggested retail price. The replacement may be made with parts of like
kind and quality, including non-original manufacturer’s parts, or reconditioned or
remanufactured parts, as necessary.
This Orange Outlet Limited Warranty covers only parts and factory labor necessary to
repair but does not include any on-site labor costs related to uninstalling, reinstalling, or
removing the repaired or replacement Outlet equipment. Parts repaired or replaced,
including replacement of an Orange Outlet, under this Orange Outlet Limited Warranty
are covered only until the applicable warranty period of this Orange Outlet Limited
Warranty ends, or as otherwise provided by applicable law. Under no circumstances will
the original warranty period be extended as a result of your Orange Outlet being
repaired or replaced.
Copyrights Orange Charger Inc 2022
