USER’SGUIDE
•IMPORTANT•
SAVE THIS BOOKLET!
COMMERCIAL
XL2070RHSM
HIGH SPEED UPRIGHT VACUUM
CLEANER WITH
CLEANING SYSTEM
®
SIMPLY AMAZING
®
Includes:
• Safety Warnings
• Warranty
• Operating Instructions
• Trouble Diagnosis
•Accessories
75628-03 REV B

2
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER
WARNING
To reduce the risk of fire,
electric shock, or injury:
IMPORTANT
SAFETY INSTRUCTIONS
• Do not leave appliance unattended when plugged in. Unplug
from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not operate the unit while in the upright and locked position.
• Do not let the unit run while in any one stationary position for any
period of time. Keep the unit moving while in operation.
• Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• Do not use with damaged cord or plug. If appliance is not
working as it should, has been dropped, damaged, left outdoors,
or dropped into water, return it to a service center or call
customer service at:
Commercial: 1-800-242-1378
Hospitality: 1-888-23-ORECK
Canada: 1-866-746-7325
• Do not pull or carry by cord, use cord as a handle, close door on
cord, or pull cord around sharp edges or corners. Keep cord
away from heated surfaces.
•Do not run appliance over cord.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
•Do not handle plug or appliance with wet hands.
•Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair and anything that may reduce
air flow.
•Keep hair, loose clothing, fingers and all parts of body away from
openings and moving parts.
• Do not use to pick up anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
• Do not use without filter bag assembly in place.
•Turn off all controls before unplugging.
•Use extra care when cleaning on stairs.
•Do not use to pick up flammable or combustible liquids, such as
gasoline or lighter fluid, or use in areas where they may be
present.
• Do not use appliance in an enclosed space where flammable,
explosive or toxic vapors are given off by oil base paint, paint
thinner, some mothproofing substances, or in an area where
flammable dust is present.
• Do not pick up toxic material such as chlorine bleach, drain
cleaner, gasoline, etc. with this appliance.
•Use caution when vacuuming over area rug edges and fringe.
SAVE THESE INSTRUCTIONS
For Commercial Use
Table of Contents
BEFORE OPERATING
CLEANER, READ ALL
INSTRUCTIONS IN THIS
MANUAL CAREFULLY.
Maintenance and Customer Service,
Accessories, Important Safety
Instructions . . . . . . . . . . . . . . . . . . . . page 2
Warranty,
Troubleshooting Guide . . . . . . . . . . . page 3
Assembly,
Operating Instructions . . . . . . . . . . . . page 4
Operating Instructions cont.,
To Replace Filter Dust Bag . . . . . . . . page 5

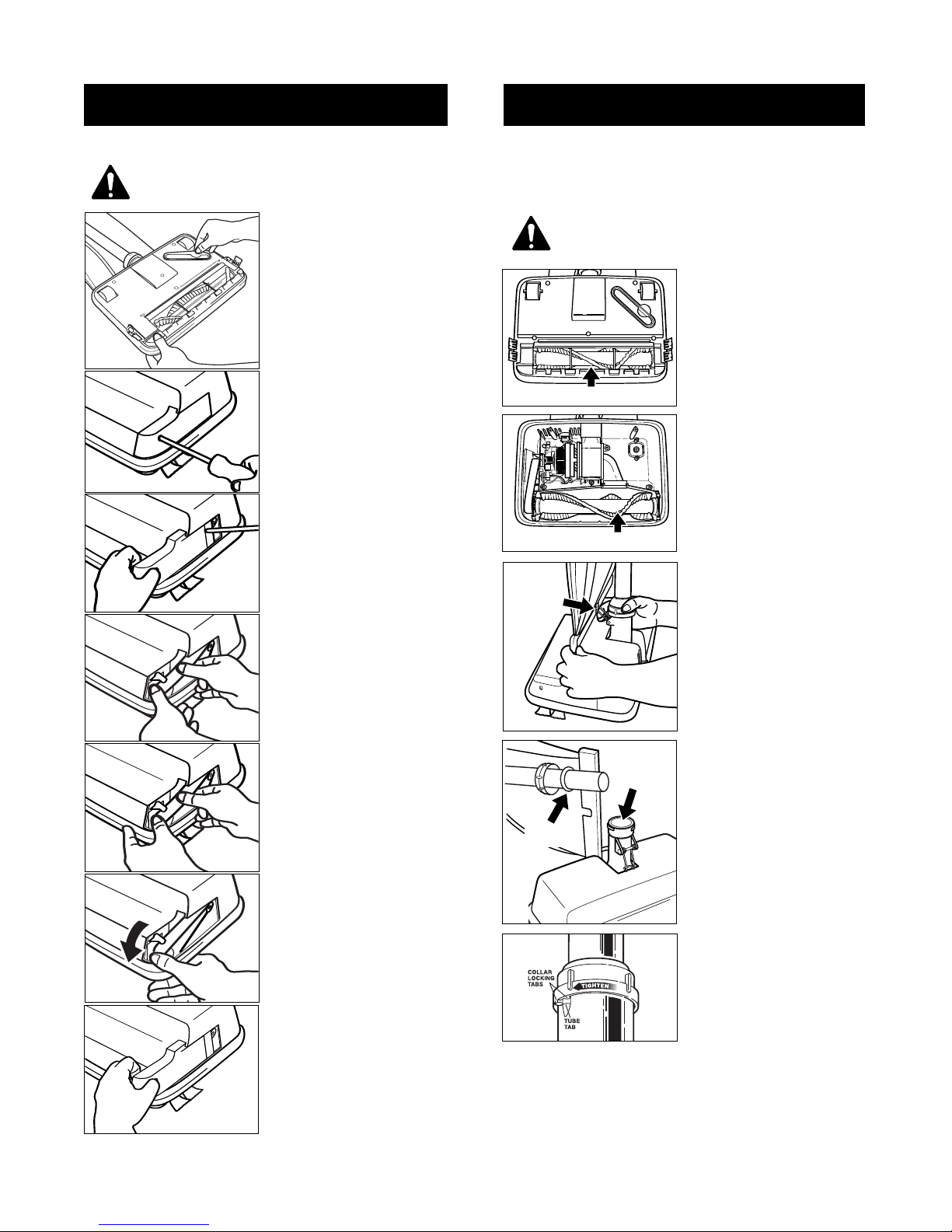

How to Replace a Worn Belt,
Stuffing or Blockage . . . . . . . . . . . . . page 6
Using an ORECK Fresh Air®Tab,
Grounding Instructions,
To Adjust or Replace Brush . . . . . . . . page 7
Your ORECK vacuum cleaner is a product of precise engineering.
The motor bearings are permanently lubricated and should not be
oiled. If you require additional information or have problems with
your ORECK appliance, you may call ORECK commercial customer
service at: Commercial 1-800-242-1378
Hospitality 1-888-23-ORECK
Canada 1-866-74-ORECK
Please specify the model number and serial/code number which
can be found on the data plate on the back of the vacuum.
Save your sales or purchase slip. Should your ORECK appliance
require warranty service in the U.S.A., present this slip to the
Authorized Service Center as your proof of purchase date or, in
Canada, call customer service.
Maintenance and
Customer Service
Accessories
Sold Separately
Commercial: 1-800-242-1378 Hospitality: 1-888-23-ORECK
Canada: 1-866-74-ORECK
ITEM PART #
1. Dust Bag, 25 Pack, Saniseal®
ACDS Hypo-Allergenic PK800025DW
Dust Bag, 25 Pack, Regular PK800025
2. Belts, 3 Pack 0300604
3. Oreck Fresh Air®Tabs AIRTABS

3
Warranty
ORECK MANUFACTURING COMPANY: (Oreck gives you the
following limited warranty for this product only if it was originally
purchased for use, not resale, from Oreck or an Oreck Authorized
Retail Dealer.)
Oreck will repair or replace, free of charge, to the original
purchaser, any part which is found to be defective in material or
workmanship within six (6) months of the date of purchase. This
limited warranty covers the revolving roller brush for thirty (30)
days for commercial use only.
This limited warranty does not cover the replacement of
expendable or consumable parts such as carbon motor brushes,
edge brushes, drive belts, bulbs, disposable bags and other parts
subject to normal wear unless they are defective in material or
workmanship.
This limited warranty does not apply to any part subjected to
accident, abuse, or alteration, misuse, damage caused by fire or
act of God, the use of voltages other than indicated on the serial
number plate of this product or service of this product by other than
Oreck or an Oreck Factory Authorized Service Center.
Oreck does not authorize any person or representative to assume
or grant any other warranty obligation with the sale of this
product.
Oreck’s limited warranty is valid only if you retain proof of
purchase from Oreck or an Oreck Authorized Retail Dealer for this
product. If you purchase this product from any other source, your
purchase is “AS IS,” which means Oreck grants you no warranty,
and that you, not Oreck, assume the entire risk of the quality and
performance of this product, including the entire cost of any
necessary servicing or repairs of any defects.
Oreck’s liability for damages to you for any costs whatsoever
arising out of this statement of limited warranty shall be limited to
the amount paid for this product at the time of original purchase,
and Oreck shall not be liable for any direct, indirect, consequential
or incidental damages arising out of the use or inability to use this
product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion
may not apply to you.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD, AND NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY
AFTER THIS PERIOD.
Some states do not allow limitations on the duration of implied
warranties, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
SAVE SERVICE CALLS...CHECK THESE FIRST:
•Is the disposable filter dust bag full?
• Are pores of filter dust bag clogged with powder or fine dust?
• Is anything clogging the revolving brush, lower tube, intake
opening, fan housing or connector assembly opening?
• Is the belt in place and turning the brush?
• Are the brush ends in the proper location?
•Does the brush turn freely? Are hair, string or rug fibers wound
around the brush?
Troubleshooting Guide
CLEANER
WILL NOT RUN
CLEANER
DOES NOT PICK UP
Not plugged in
properly.
No electricity in
wall outlet.
Filter bag is full.
Nozzle or intake
pivot clogged.
Belt is broken or
stretched.
Brush is worn.
Bag tube clogged.
Bag pores are
clogged with fine
dust.
Impeller fan is
broken.
Revolving brush is
not even at both
ends.
Be sure cleaner is
firmly plugged
into wall outlet.
Check electrical
source–fuse or
circuit breaker.
Replace filter bag.
See “To Replace
Paper Filter Dust
Bag.”
Clear obstruction.
Replace belt.
See “To Adjust or
Replace Brush”
Clear obstruction.
Change bag
Return to Service
Center for repair.
Check brush roll
end cards. Make
sure words “old”
or “new” match at
each end.
PROBLEM POSSIBLE SOURCE AREAS TO CHECK
Whenever calling, please be sure to have your model and
serial number from data plate.
CALL COMMERCIAL CUSTOMER SERVICE HOT LINE
Commercial: 1-800-242-1378
Hospitality: 1-888-23-ORECK
Canada: 1-866-746-7325
ALL OTHER SERVICING SHOULD BE DONE BY AN
ORECK AUTHORIZED SERVICE CENTER.
WARNING: Unplug cord from
electrical outlet before servicing.

4

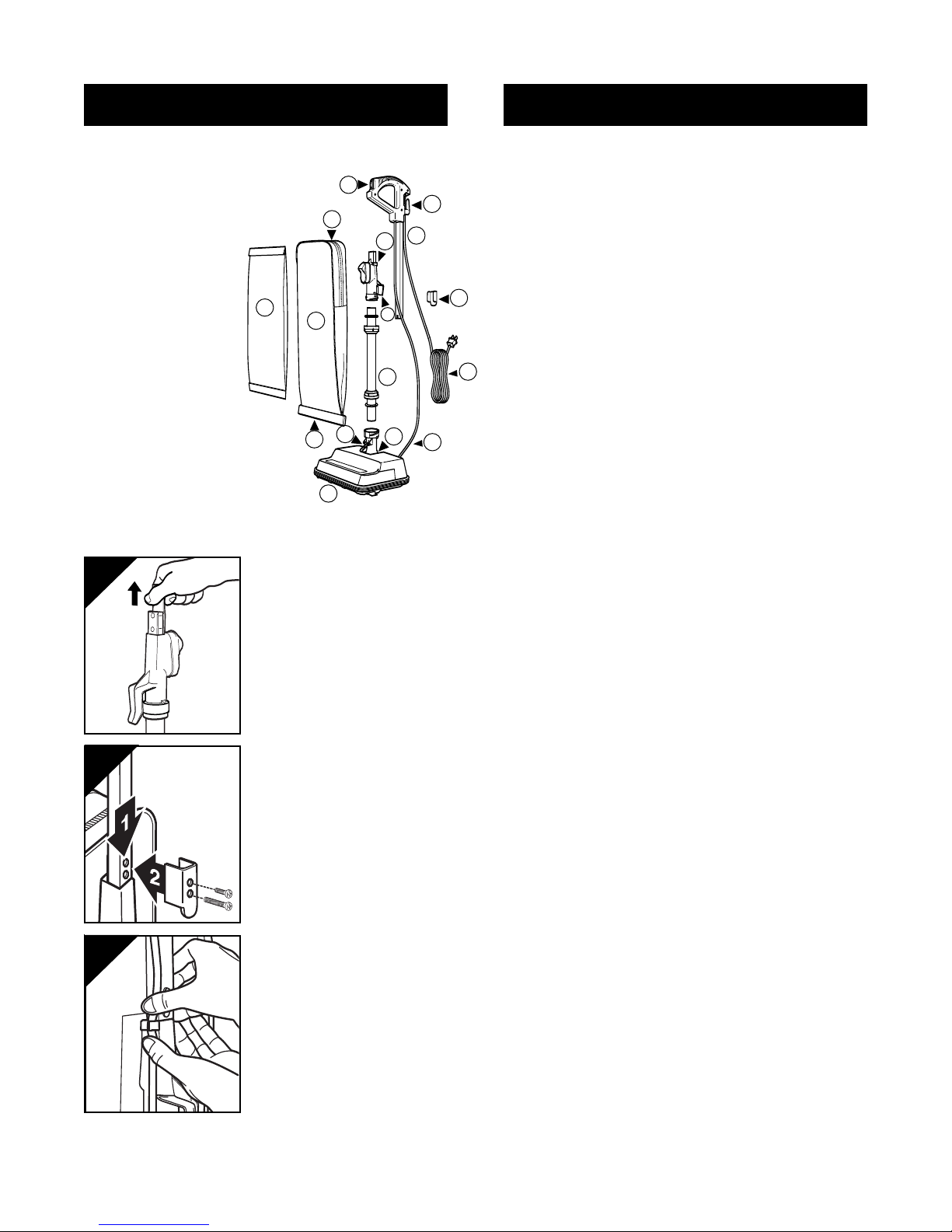

Operating Instructions
To Operate
Make sure disposable paper filter dust bag is in place. DO NOT
operate the cleaner without a paper filter dust bag. Plug the power
cord into an electrical outlet and press the On (l) - OFF (O) switch
on Helping Handle Assembly, or on top of base for Straight
Handle Models when ready to operate.
General Information
The performance of your new cleaner greatly depends upon care
and maintenance. The instructions in this manual will guide you in
performing basic care and maintenance. To obtain the most
satisfying years of service, read the instructions and keep them
handy for future reference.
Operating Recommendations
This new ORECK XL High-Speed Upright is one of the finest,
fastest, and strongest units in its class. You’ll love the way it
cleans, gets under things, and it’s SO lightweight and easy to
use.
The following are a few simple suggestions regarding its
operation:
1. When inserting a new disposable paper filter dust bag—
FIRST PUFF OUT and OPEN THE BAG.
2. When the disposable filter dust bag is full, REPLACE IT.
3. If at any time the machine does not pick up properly or
makes an unusual noise, STOP OPERATION and service.
4. Although your upright will pick up pins, paper clips, and
other small objects, it is recommended that these be
removed from the floor before you vacuum. Failure to do so
may result in permanent damage to the motor suction fan
and its housing.
5. WARNING: Do not use your vacuum cleaner on damp or
wet surfaces. This will cause damage to the vacuum cleaner
and is dangerous to the user. Damage caused by use on wet
or damp surfaces is not covered under warranty.
6. REPLACE THE BELT EVERY 6 MONTHS.
7. Change the disposable filter dust bag at least once a
month—even if it is not full! The collected dust in the dust
filter can cause odor, attract moisture, act as a breeding
area and can affect the efficiency of the cleaner.
8. DO NOT run the vacuum cleaner over the cord. The
revolving brush could damage the cord.
9. Use caution when vacuuming over area rug edges and
fringe.
Disposable Paper Filter Dust Bags
Disposable paper filter dust bags play a very important role in
the efficiency of your ORECK vacuum cleaner. The purpose of the
filter bag is to trap dirt, but at the same time it must be porous
enough to allow air to pass through. If the filter bag becomes
clogged, no air can pass through the cleaner and cleaning
cannot take place, regardless of the cleaner’s power.
To keep your cleaner operating at maximum efficiency, change
the dust bag frequently. DO NOT FILL ABOVE THE LINE
INDICATED ON THE DUST BAG.
Be sure the disposable paper filter dust bag is installed properly.
Assembly
1
2
3
4
9
10
1
1
14 15
12
13
5
6
7
8
To assist you in identifying
components of your vacuum,
the parts have been
numbered as follows :
1 Handle section, upper
2 Tube, lower
3 Power head
4 Outer bag
5 Paper filter dust bag
6 Power cord
7 Retaining spring
8 Bag tension bar
9 Zip fastener
10 On/off switch
11 Cord hook
12 Plastic loop/
cable clamp
13 Connector assembly
14 Fan housing
15 Cord assembly
16 Handle Brace
With ON/OFF switch facing the
front of the unit, slide upper
handle section over matching
section of the connector assembly.
Place brace against handle and
connector assembly aligning
screw holes. Insert short screw
into top hole and long screw into
the bottom hole then tighten firmly
until handle is no longer loose.
1
2
3
Upper
Handle
Connector
Assembly
Before assembling appliance,
remove two screws from the
connector assembly. Remove
cardboard insert by pulling
upward.
Attach cord to cord clip by
pressing cord above and below
clip ensuring the cord is fully
rested in clip.
16

5
All paper dust bags are not the same. Your ORECK disposable
dust bags have been designed to be used with the ORECK
cleaner. Using bags other than genuine ORECK disposable bags
will affect the cleaning ability of your cleaner and could cause
damage to it.
The Belt
The belt on your vacuum cleaner controls the speed of the
revolving brush and is very important for the effective operation
of the cleaner. If the belt becomes stretched or cut, it will cause
the revolving brush to stop completely or slow down. See
instructions in the manual for replacing belt.
An extra belt is stored in the baseplate of your cleaner. When
buying replacement belts, use ONLY ORECK genuine belts. Belts
other than ORECK belts will not operate the revolving brush
correctly and may create undue stress which will cause damage
to the motor and brush bearings. Using belts other than ORECK
belts will void the warranty.
Lubrication
The vacuum cleaner motor bearings are factory lubricated and
sealed. Further lubrication is not required.
General Cleaner Care At least once a month, check for and
remove excessive lint, string or hair
from the revolving brush.
Wipe the outside of the cleaner with
a damp cloth. Also, clean the
connector deflector assembly area,
base of cleaner and fan housing
area. If there is dust in the outer bag,
vacuum it or shake it out.
A little preventative maintenance will keep your cleaner looking
new and will ensure continued cleaning effectiveness.
CAUTION—Wood Floors, Soft (Vinyl, Asphalt Tile, etc.)
Floor Surfaces and Polished Floor Finishes
Use floor and floor finish manufacturer’s recommended methods
of cleaning. The metal strip on the base of the cleaner could be
damaged if used on concrete or abrasive surfaces, and,
therefore, cause damage to wood floors, soft (vinyl, asphalt tile,
etc.) floor surfaces and polished floor finishes. The roller brush
may also scuff very soft finishes. Do not operate the unit while in
the upright and locked position. Do not let the unit run while in
any one stationary position for any period of time. Keep the unit
moving while in operation.
To Replace Filter
Dust Bag
BAG INSTALLATION:
1. Hook bottom of bag collar
opening under lip “B” of
connector assembly. Pull up
on bag collar and snap over
lip “A” of connector.
2. Press on edges of bag collar
to insure bag is completely
installed.
IMPORTANT: Check to
make sure bag collar is
behind lips “A” and “B”. If it
is not, dust will leak into
outer bag. When filter bag is
in place, close outer bag
with zipper fastener.
WARNING: Unplug cord from
electrical outlet before servicing.
A
B

6
WARNING: Unplug cord from
electrical outlet before servicing.
Remove the replacement
belt from the storage
channel.
Remove the door by
removing the hold down
screw located on side of
power head.
Slide the door forward
by prying open with a
screwdriver or coin.
Remove the belt from the
brush roll pulley and the
motor drive shaft.
Loop the new belt over
the motor drive shaft.
Place the opposite end of
the belt on the brush roll
pulley.
Rotate the brush roll three
(3) complete revolutions to
ensure that no part of the
belt is overhanging the
end of the motor drive
shaft.
Replace the door by
sliding it into the groove
at the bottom of the
housing. Replace the
hold down screw.
WARNING: Unplug cord from electrical
outlet before servicing.
Stuffing or Blockage
Under certain conditions, it is possible to stuff or block the intake
tube and the lower tube assembly. If your vacuum cleaner does
not pick up properly, or makes unusual noise and the outer bag
does not fluff up or balloon open, follow the following steps:
How to Replace a Worn Belt
1. Check for blockage at the
mouth of the intake
opening. See illustration A.
If there is blockage, remove
it with long-nose pliers, a
screwdriver or coat hanger.
If you can not reach the
blockage, remove
baseplate. See illustration B.
2. If the blockage is not at the
base, remove lower tube.
See illustration C. Unhook
retainer spring, releasing
bottom of bag. Twist lower
collar counterclockwise to
slide up. Pull tube out of
base. Check for blockage. If
blockage is in the tube,
remove with a coat hanger.
3. If tube is not blocked, look
into fan housing. See illus-
tration D. Remove debris
with long-nose pliers, a
screwdriver or coat hanger.
4. To reassemble, check O-ring
on tube, and replace if
damaged. Vacuum will not
operate properly without the
tube O-ring. Slide O-ring to
approximately 2" from base
of tube. Replace tube by
first lining up slot at base of
tube with inner tab inside
fan housing. Then reinsert
tube and push down until
the tube is seated. Make
sure O-ring is in place
against fan housing
opening. Replace and
tighten collar until collar
locking tabs are locked in
place. See illustration E.
Make sure collar is not cross
threaded on housing.
Intake Opening
D
O-ring
Fan
Housing
E
Intake Opening
B
A
C
Retainer
Spring

IMPORTANT: On plush and new carpets, stuffing may occur
due to excessive fuzz and loose cuttings in the carpet.
Stuffing could occur for the first few cleanings until all the
loose material is removed. Due to the high efficiency of the
cleaner, many older carpets will cause stuffing when the
cleaner is first used on them.
NOTE: If the above actions do not correct the problem, contact
an ORECK authorized service center or call the commercial
customer service center.
Commercial: 1-800-242-1378
Hospitality: 1-888-23-ORECK Canada: 1-866-746-7325
Your ORECK XL vacuum cleaner has a
special Oreck Fresh Air®tab pocket.
This pocket is located inside the outer
bag in the area where the paper
disposable bag attaches to the intake
tube. Insert tablet in pocket.
Using an Oreck
Fresh Air Tab
5. Many times blockage occurs
due to a full dust bag
causing dirt to back down
the air flow system. When
that happens, the blockage
will be at the top of the
system, starting in the area
where the dust bag connects
to the connector assembly.
See illustration F.
WARNING: Unplug cord from
electrical outlet before servicing.
To determine if the brush is
worn, place a firm straight
edge across the nozzle
opening. If brush bristles
do not extend beyond
baseplate, brush should be
adjusted.
Remove the baseplate by
removing 5 screws. Then,
remove the belt and brush
roll from the housing.
Rotate both bearing
assemblies at ends of
brush roll to show “old”
and replace in the holding
channels in the housing.
NOTE: The bearing
assembly setting marked
“OLD” has a smooth side
on the end card. The one
marked “NEW” has a
notched side on the end
card. When rotating
bearings, make sure both
bearing assembly settings
are the same and face up
when replacing the brush
roll.
Reassemble the belt and
the baseplate and check
bristle height above
baseplate at each end of
brush.
If a previous adjustment
has already been made
and bristle height does not
extend above baseplate, a
new brush assembly
should be ordered.
IMPORTANT: Unless
the brush is worn,
as indicated above,
both bearings must
be in the “new”
position. When
rotating, both
bearings must be in
the “old” position.
Unmatched settings
will cause damage
to your machine.
To Adjust or Replace Brush
This appliance must be grounded. If it should malfunction or
break down, grounding provides a safe path of least resistance
for electrical current, reducing the risk of electric shock. The cord
for this appliance has an equipment-grounding conductor and a
grounding plug. It must only be plugged into an electrical outlet
that is properly installed and grounded in accordance with all
local codes and ordinances.
DANGER: Improper connection of the equipment-grounding
conductor can result in a risk of electrical shock. Check with a
qualified electrician or service person if you are in doubt as to
whether the outlet is grounded. If not, have a proper outlet
installed by a qualified electrician.
This appliance is for use on a nominal 120-volt circuit. It has a
grounding plug similar to the example shown. Make sure the
appliance is connected to an outlet with the same configuration
as the plug. No adapter should be used with this appliance.
Grounding Pin
Grounded Outlet
Grounding Instructions
®
Rotate and match
bearing assemblies
F
Connector
Deflector
Opening
7

75628-03 REV B ©2005 Oreck Holdings, LLC. All Rights Reserved.All word marks, logos, product configurations, and registered tradmarks are owned and
05/05 ECN# R-8018 used under the authority of Oreck Holdings, LLC. Printed in America
