Wireless Weather Station
Model: BAR816HG
USER MANUAL

EN
2
INTRODUCTION
Thank you for selecting the Oregon ScientificTM Wireless
Weather Station (BAR816HG). This powerful device
bundles time keeping, weather monitoring, indoor and
outdoor temperature and humidity readings, barometric
pressure trends and altitude adjustment, into a single
tool you can use from the convenience of your home.
In this box, you will find:
•Main unit
•Remote sensor (RTGR328N)
•Batteries
The main unit is compatible with the following
sensors:
THGR228N, THGR328N, THR228N, THR328N,
THWR288.
Additional sensors are sold separately. Please contact
your local retailer for more information.
Keep this manual handy as you use your new product.It
contains practical step-by-step instructions, as well as
technical specifications and warnings you should know.
NOTE

EN
3
1
4
2
5
6
78
9
3
10
PRODUCT OVERVIEW
FRONT VIEW
1. SNOOZE / LIGHT: Activate 8-minute snooze or
backlight
2. LCD display
3. Weather Forecast Area: Animated weather forecast
4. Temperature / Humidity Area: Readings and trend
lines; sensor channel number
5. Barometer Area: Barometric pressure readings and
trend lines
6. Clock / Alarm / Calendar Area: Radio-controlled
clock; alarms; calendar
7. MODE: Switch areas; change settings / display
/ :View alarm status; set alarm
8. :Increase setting; toggle between display modes
:Decrease setting; toggle between display modes
9. MEM: View current, maximum and minimum
temperature / humidity readings and historical
barometer readings
CH: Switch remote sensor display
10. Table stand

EN
4
1
2
3
45 6
7
BACK VIEW
1. Wall mount
2. Ventilation holes
3. Table stand
4. °C / °Fswitch
5. RESET button
6. mb / inHg switch
7. Battery compartment (cover off)

EN
5
TABLE STAND AND WALL MOUNT
To fix the table stand on to the base of the main unit:
To mount the unit on the wall:
Weather Forecast Area
1. Weather display
2. Low battery icon for main unit
1
2

EN
6
1
2
3
4
1
2
3
4
6
5
7
1
2
3
5
6
7
8
9
10
4
Temperature / Humidity Area
1. Selected Area icon
2. Temperature trend
3. Channel number (1-5) / reception status
4. Low battery icon for remote sensor
5. Humidity trend
6. MAX / MIN temperature
7. Temperature - °C / °F
8. MAX / MIN humidity
9. Humidity
10. Comfort levels
Barometer Area
1. Barometric pressure trend
2. Barometric pressure reading
3. Barometric pressure history
e.g., -1 means barometric pressure value one hour ago,
-2 means 2 hours ago etc
4. Barometric unit
Clock / Alarm / Calendar Area
1. Pre-Alarm / Alarm display or setting
2. Pre-Alarm is set
3. Channel with RF clock reception is locked
4. RF clock reception icon
5. Daily Alarm is set
6. Offset time-zone
7. Time / date / calendar

EN
7
1
2
3
1
4
5
6
7
2
3
REMOTE SENSOR (RTGR328N)
1. LCD display
2. LED status indicator
3. Ventilation duct
1. Signal reception
2. Channel number
3. Low battery icon
4. Time
5. Temp (°C or °F)
6. Humidity %
7. Temp / Humidity

EN
8
1
2
3
4
5
6
7
8
1. Wall mount
2. CHANNEL switch (1-5)
3. RESET
4. °C / °F
5. SEARCH
6. EU / UK radio signal format switch
7. Battery compartment
8. Fold-out stand
GETTING STARTED
BATTERIES
Batteries are supplied with this product:
•Main unit 3 x UM-3 (AA) 1.5V
•Remote unit 2 x UM-3 (AA) 1.5V
Insert batteries before first use, matching the polarity as
shown in the battery compartment. For best results,
install batteries in the remote sensor before the main
unit. Press RESET after each battery change.
To install the main unit batteries:
Do not use rechargeable batteries.
shows when batteries are low.
NOTE

EN
9
It is recommended that you use alkaline
batteries with this product for longer performance.
UNIT LOCATION
Main Weather Forecast Area
Remote Temperature / Humidity Area
CHANGE SETTINGS
1. Press MODE to switch between Areas. indicates
the selected Area.
2. Most Areas have alternate display options (for
example, Clock / Calendar). Press or to switch
options, or /to switch between clock and alarm.
3. Press and hold MODE for 2 seconds to enter setting
mode.
4. Press or to change settings.
5. Press MODE to confirm.
NOTE REMOTE SENSOR
This product is shipped with the RTGR328N Thermo /
Hygro Sensor. The main unit can collect data from up to
5 Thermo / Hygro Sensors. The main unit is compatible
with the following sensors:
THGR228N, THGR328N, THR228N, THR328N,
THWR288.
(Additional sensors are sold separately. Contact your
local retailer for more information.)
The RTGR328N Sensor collects temperature and
humidity readings, and signals from official time-keeping
organizations for the radio-controlled clock.
SET UP THERMO / HYGRO SENSOR (RTGR328N)
1. Open the battery compartment with a small Phillips
screwdriver.
2. Insert the batteries.
3. Set the channel and radio signal format. The switches
are located in the battery compartment.
SWITCH OPTION
Channel If you are using more than one
sensor, select a different channel
for each sensor.
Radio Signal EU (DCF) / UK (MSF)
Format

EN
10
1
2
4. Press RESET. Then set the temperature unit.
SWITCH OPTION
Temp °C / °F
5. Close the battery compartment.

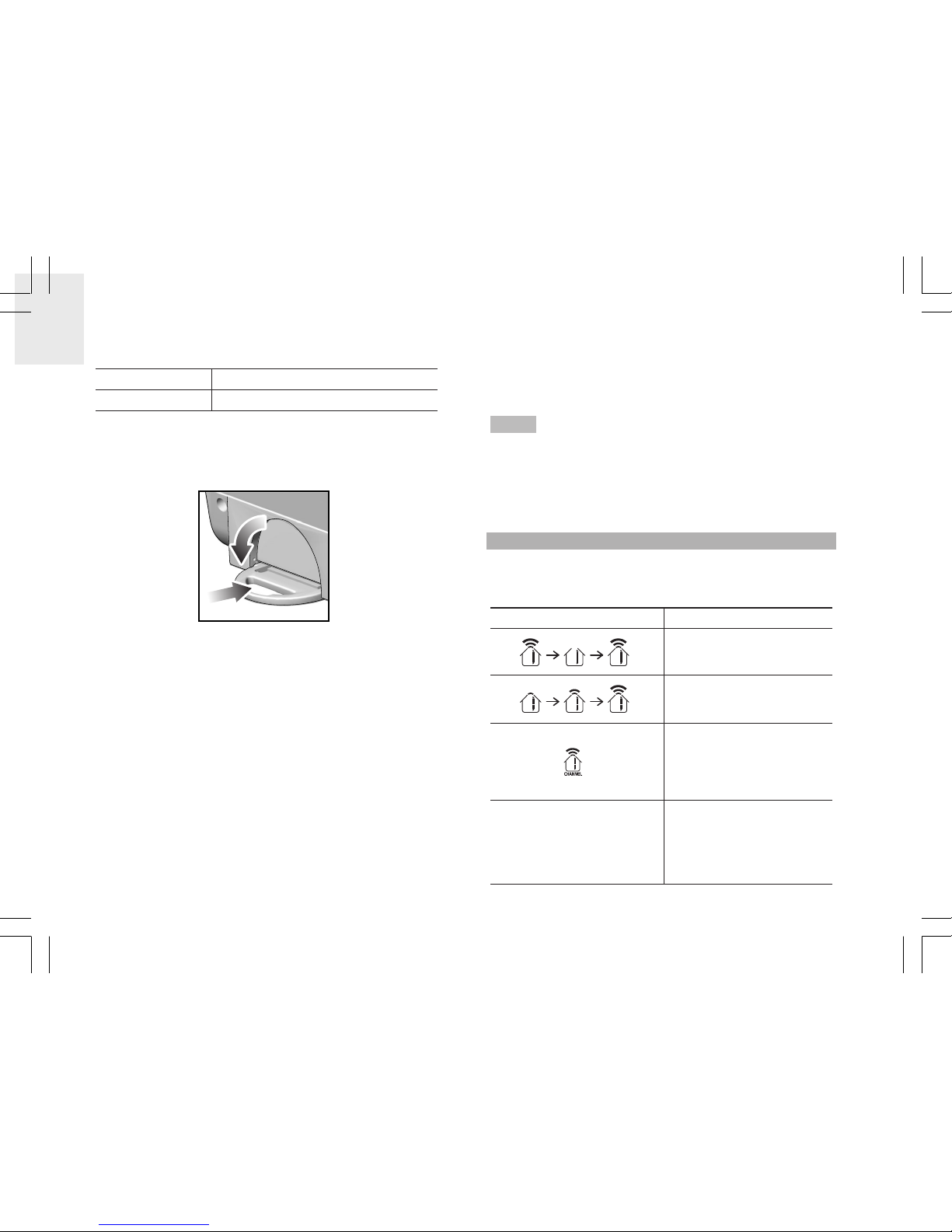

To fold out the stand:
For best results:
•Insert the batteries and select the unit, channel, and
radio signal format before you mount the sensor.
•Place the sensor out of direct sunlight and moisture.
•Do not place the sensor more than 70 metres (230
feet) from the main (indoor) unit.
•Position the sensor so that it faces the main (indoor)
unit, minimizing obstructions such as doors, walls,
and furniture.
•Place the sensor in a location with a clear view to
the sky, away from metallic or electronic objects.
•Position the sensor close to the main unit during cold
winter months as below-freezing temperatures may
affect battery performance and signal transmission.
The transmission range may vary and is subject
to the receiving range of the main unit.
You may need to experiment with various locations to
get the best results.
SENSOR DATA TRANSMISSION
Data is sent from the sensor(s) every 60 seconds. The
reception icon shown in the Temperature / Humidity Area
indicates the status.
NOTE ICON DESCRIPTION
Main unit is searching
for sensors.
At least 1 channel has
been found.
Sensor 1 is sending
data. (The number
shows which sensor is
selected.)
— shows in Temp / The selected sensor
Humidity Area cannot be found.
Search for the sensor
or check batteries.
NOTE
