Oregon Scientific TREVISO BAR986HGA User manual

TREVISO Sleek Weather Station
Model: BAR988HGA / BAR986HGA
USER MANUAL
BAR988HGA English Cover R5 9/18/04, 2:55 AM1

EN
1
CONTENTS
Introduction .............................................................. 3
Product Overview .................................................... 4
Front View .............................................................. 4
Back View .............................................................. 5
LCD Display ........................................................... 6
Remote Sensor (RTGR328NA) ............................. 9
Getting Started ....................................................... 10
Batteries ............................................................... 10
AC Adaptor (Main Unit) ........................................ 11
Change Settings .................................................. 11
Remote Sensor ....................................................... 11
Set Up Thermo / Hygro Sensor (RTGR328NA) ... 12
Sensor Data Transmission .................................. 13
Search for Sensor ................................................ 13
Clock and Calendar ............................................... 13
Atomic Clock ........................................................ 14
Turn Atomic Clock ON / OFF ............................... 14
Set Clock ............................................................. 15
Switch Clock Display ........................................... 15
Alarms ..................................................................... 15
Set Daily Alarm .................................................... 15
Set Pre-Alarm ...................................................... 16
Activate Alarm ...................................................... 16
Snooze ................................................................ 16
Barometer ............................................................... 16
View Barometer Area ........................................... 17
Select Measurement Unit .................................... 17
View Barometer History ....................................... 17
Bar Chart Display ................................................. 17
Set Altitude ........................................................... 17
Weather Forecast ................................................... 18
Weather Forecast Icons ....................................... 18
UV Measurement - Optional Sensor ..................... 18
New Additional UV Features ................................ 19
Temperature and Humidity .................................... 20
View Temperature and Humidity Area ................. 20
Select Measurement Unit .................................... 20
Select Sensor Channel ........................................ 20
Minimum / Maximum Records ............................. 20
Temperature and Humidity Trend ........................ 21
Comfort Zone ....................................................... 21
Heat Index ........................................................... 21
TREVISO Sleek Weather Station
Model: BAR988HGA / BAR986HGA
USER MANUAL
BAR988HGA English R5 9/18/04, 3:00 AM1

EN
2
Backlight ................................................................. 22
Reset System ......................................................... 22
Safety and Care ...................................................... 22
Warnings ................................................................. 22
Troubleshooting ..................................................... 23
Specifications ......................................................... 23
About Oregon Scientific ........................................ 25
FCC Statement ....................................................... 25
Declaration of Conformity .................................... 26
BAR988HGA English R5 9/18/04, 3:00 AM2

EN
3
NOTE
INTRODUCTION
Thank you for selecting the Oregon ScientificTM
BAR988HGA / BAR986HGA TREVISO Sleek Weather
Station. This powerful device bundles time keeping,
weather monitoring, indoor and outdoor temperature and
humidity readings, barometric trends and altitude
adjustment, into a single tool you can use from the
convenience of your home.
In this box, you will find:
•Main unit
•Remote sensor (RTGR328NA)
•Optional UV sensor (UVR138A)
•6V AC adapter
•Batteries
BAR988HGA --- BAR988HGA Main Unit + RTGR328NA
Remote Sensor
BAR986HGA --- BAR988HGA Main unit + RTGR328NA
Remote Sensor + UVR138A UV Sensor
The THGR328N (5-Channel) and THGR268
(3-Channel) remote sensors are also compatible with
this weather station. Additional sensors are sold
separately. Please contact your local retailer for more
information.
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well
as technical specifications and warnings you should
know.
BAR988HGA English R5 9/18/04, 3:00 AM3

EN
4
PRODUCT OVERVIEW
FRONT VIEW
1. LCD display
2. MODE: Change settings / display
3. MEMORY: View current, maximum and minimum
temperature / humidity / UV readings
4. HISTORY: View historical barometer and UV
readings
5. ALARM / : View alarm status; set alarm
6. SNOOZE / LIGHT: Activate 8-minute snooze or
backlight
7. SELECT: Switch Areas
8. CHANNEL: Switch remote sensor display
9. UP: Increase setting / activate atomic clock
10. DOWN: Decrease setting / deactivate atomic clock
2
1
7
8
9
10
3
4
5
6
BAR988HGA English R5 9/18/04, 3:00 AM4

EN
5
1. Ventilation holes
2. Battery compartment (bottom)
3. AC adaptor socket
4. °C / °F switch (in battery compartment)
5. RESET button (in battery compartment)
6. mb / inHg switch (in battery compartment)
You can adjust the angle of the clock display as
shown below:
BACK VIEW
2
1
3
4
5
6
BAR988HGA English R5 9/18/04, 3:00 AM5

EN
6

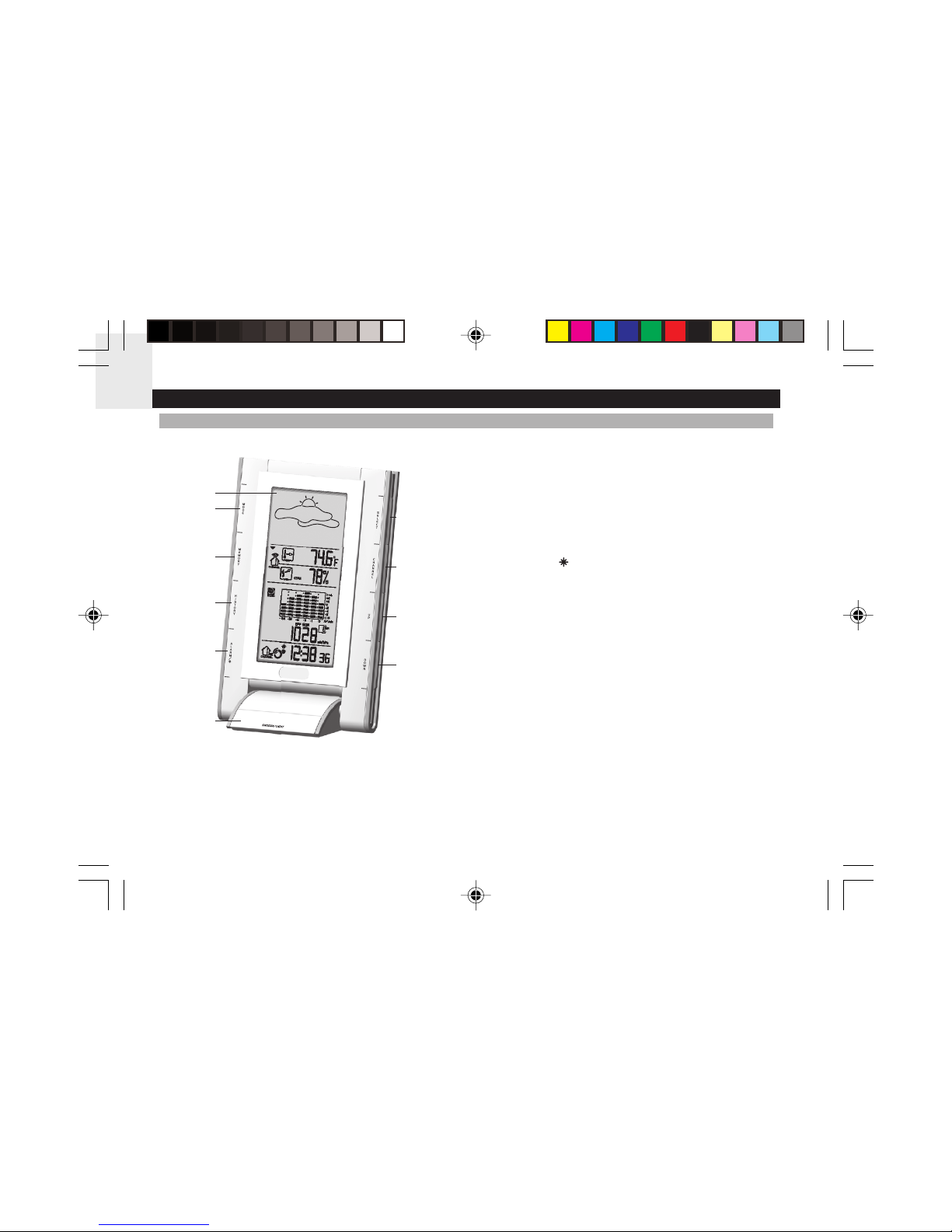

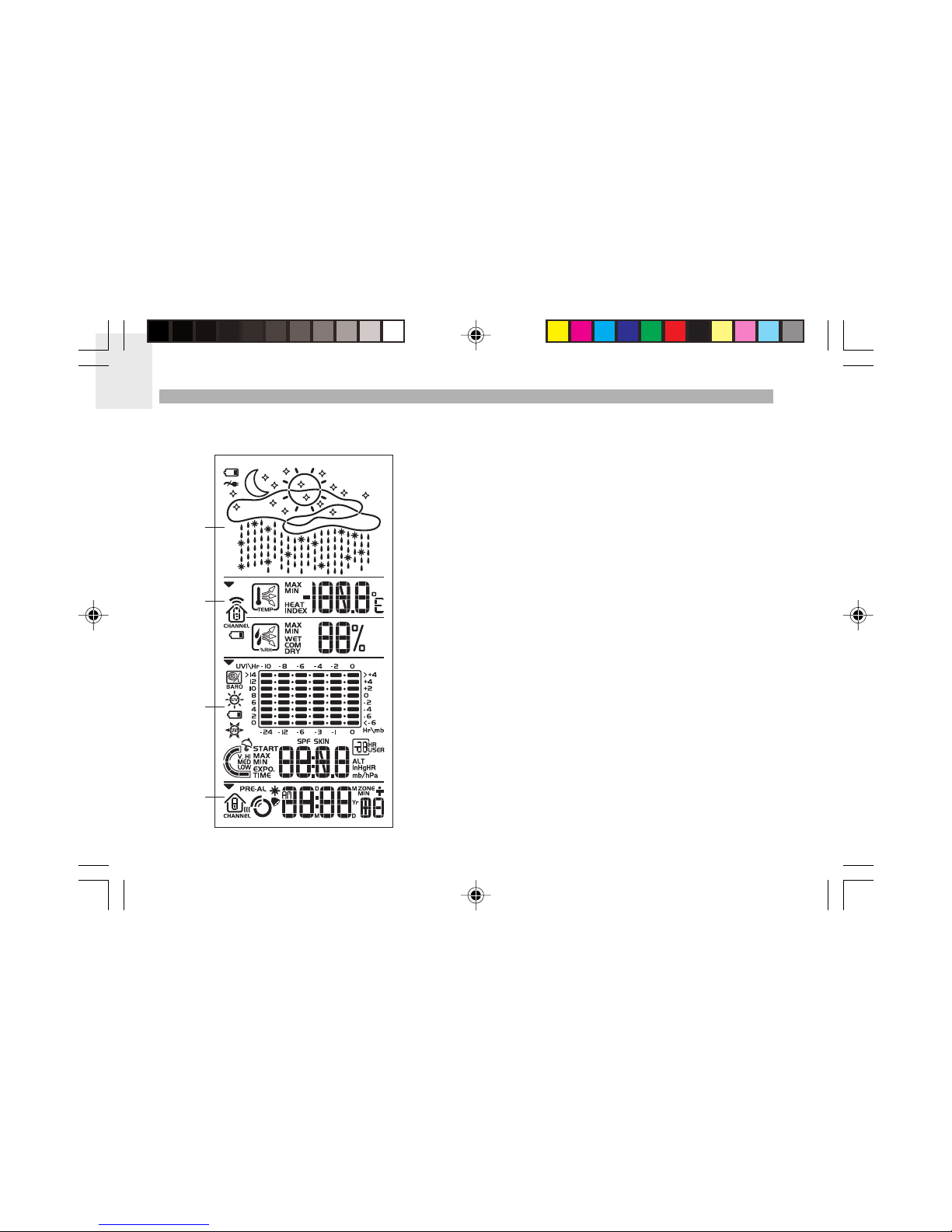

LCD DISPLAY
1. Weather Forecast Area: Animated weather forecast
2. Temperature / Humidity / Comfort Zone Area:
Readings and trend lines; comfort zone; sensor
channel number
3. UVI / Barometer Area: UV level and barometric
pressure bar chart; UV Index and barometric
readings
4. Clock / Alarm / Calendar Area: Atomic clock;
alarms; calendar
1
2
3
4
BAR988HGA English R5 9/18/04, 3:00 AM6

EN
7

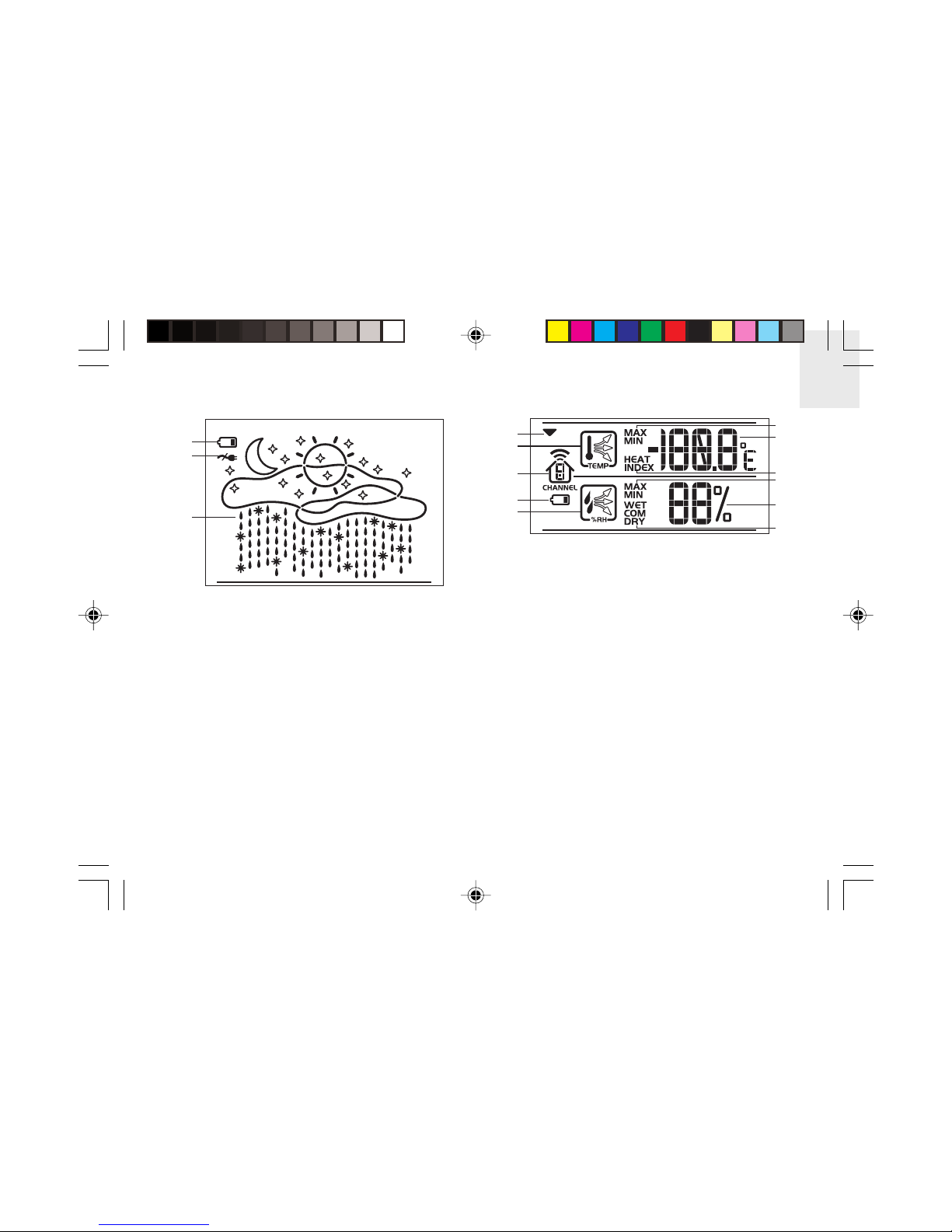

Weather Forecast Area
1. Low battery icon for main unit
2. AC adaptor icon - displays when unplugged
3. Weather display
1
2
3
Temperature / Humidity / Comfort Zone Area
1. Selected Area icon
2. Temperature trend
3. Channel number (1-5) / reception status
4. Low battery icon for remote sensor
5. Humidity trend
6. MAX / MIN temperature
7. Temperature - °C / °F
8. Heat Index
9. MAX / MIN humidity
10. Humidity
11. Comfort levels
7
8
10
6
9
11
2
1
5
3
4
BAR988HGA English R5 9/18/04, 3:00 AM7

EN
8

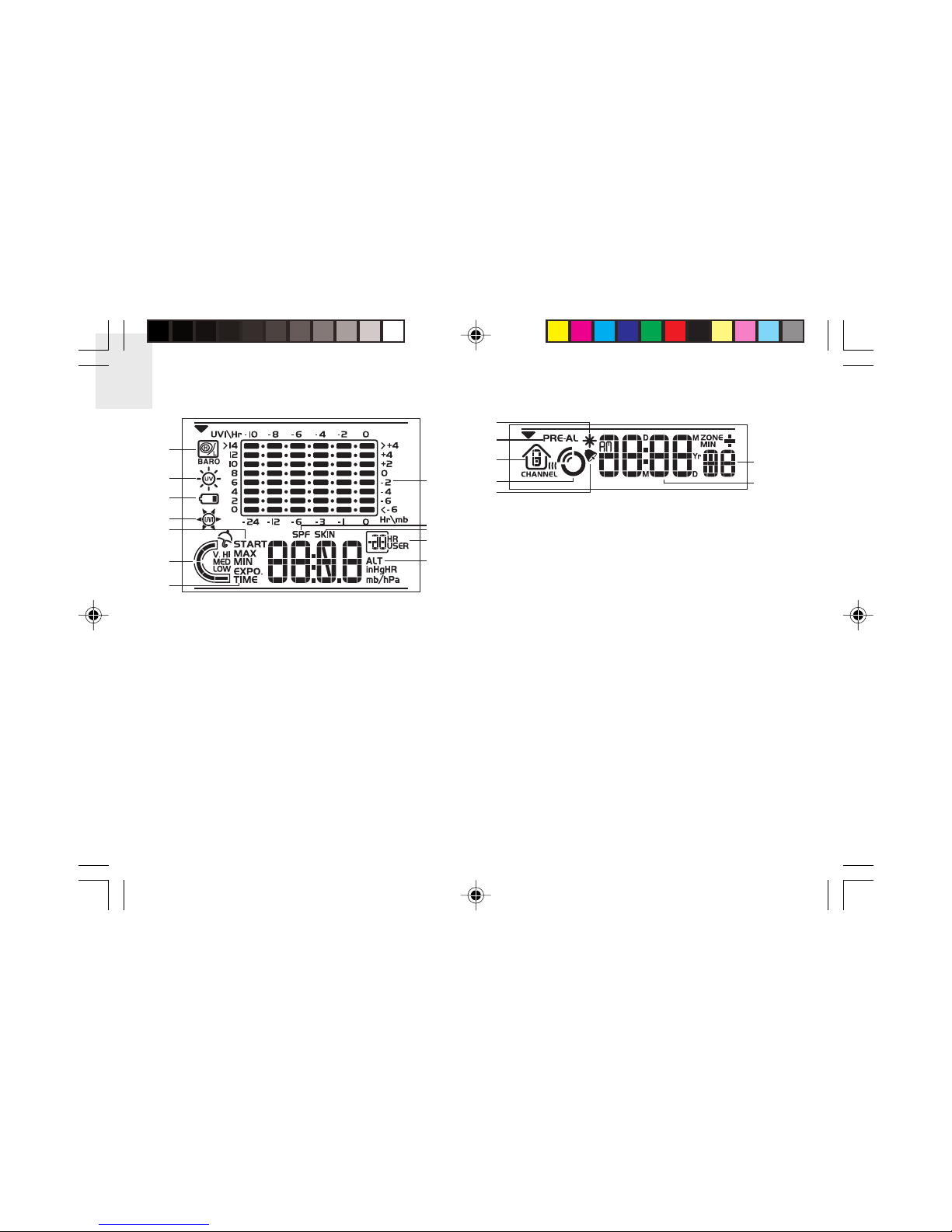

UVI / Barometer Area
1. Barometric pressure is showing
2. UV is showing
3. Low battery icon for UV sensor
4. UVI value is showing
5. UV exposure time countdown has started
6. UV index level
7. UV exposure time for user
8. Barometer / UV chart
9. SPF applied to user for UV exposure
10. User skin type for UV exposure
11. User no. (for UV Mode) or hour history for UV /
Barometric pressure reading
12. Altitude / barometric pressure / UVI reading
Clock / Alarm / Calendar Area
1. Pre-Alarm is set
2. Pre-Alarm display / Pre-Alarm setting
3. Channel with atomic clock reception is locked
4. Atomic clock reception icon
5. Daily Alarm is set
6. Offset time-zone
7. Time / date / calendar
11
9
10
8
12
1
2
4
3
6
7
5
6
7
3
2
1
5
4
BAR988HGA English R5 9/18/04, 3:00 AM8

EN
9
2
15
6
7
8
3
4
1
2
3

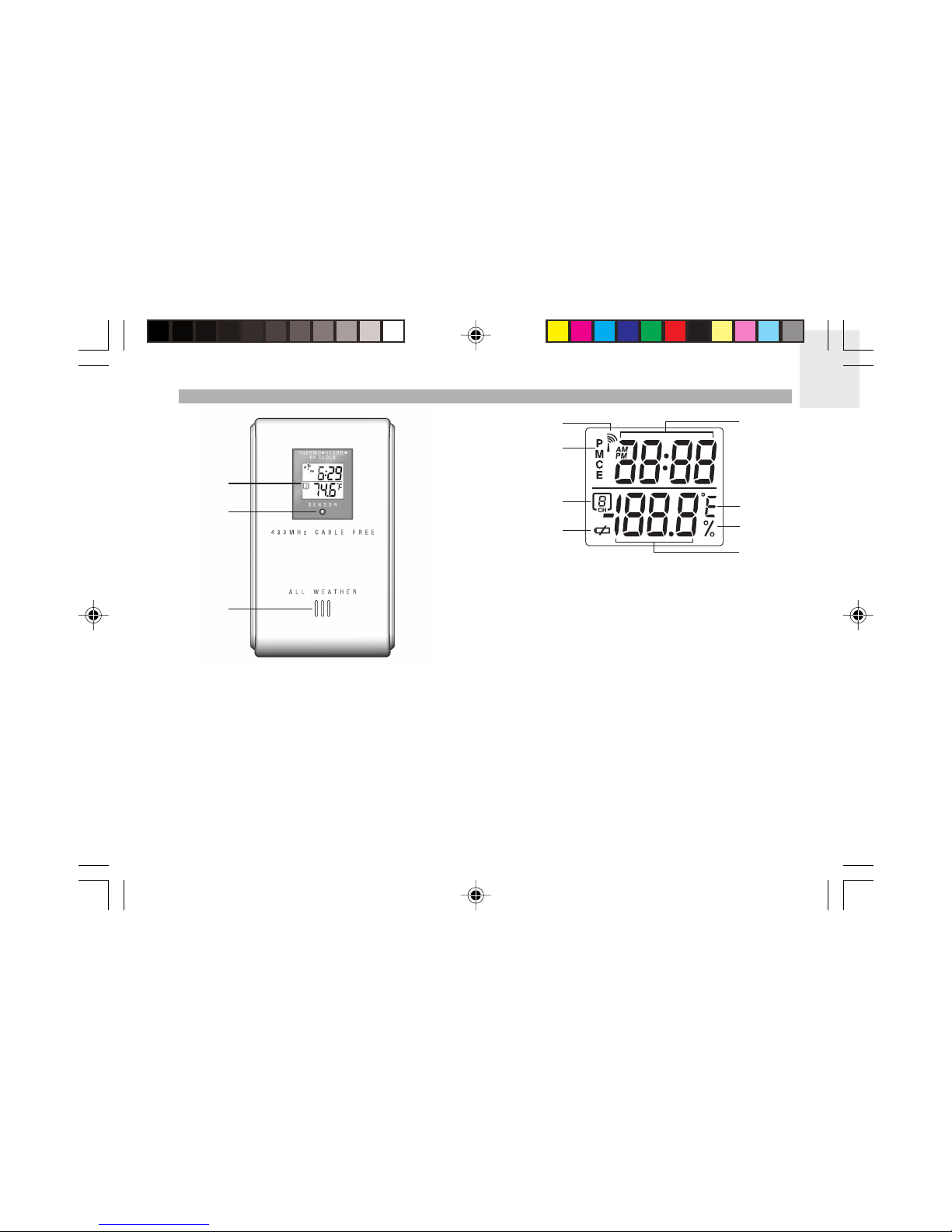

REMOTE SENSOR (RTGR328NA)
1. LCD display
2. LED status indicator
3. Ventilation duct
1. Signal reception
2. US time zone
3. Channel number
4. Low battery icon
5. Time
6. Temp (°C or °F)
7. Humidity %
8. Temp / Humidity
BAR988HGA English R5 9/18/04, 3:00 AM9

EN
10
GETTING STARTED
BATTERIES
Batteries are supplied with this product:
•Main unit 4 x UM-4 (AAA) 1.5V
•Remote unit 2 x UM-3 (AA) 1.5V
Insert batteries before first use, matching the polarity as
shown in the battery compartment. For best results,
install batteries in the remote sensor before the main
unit. Press RESET after each battery change.
To install the main unit batteries:
1. Wall mount
2. CHANNEL switch (1-5)
3. RESET
4. °C / °F
5. SEARCH
6. ZONE
7. Battery compartment
8. Fold-out stand
Do not use rechargeable batteries.
shows when batteries are low.
NOTE
1
2
3
4
5
6
7
8
BAR988HGA English R5 9/18/04, 3:00 AM10

EN
11
It is recommended that you use alkaline
batteries with this product for longer performance.
NOTE
UNIT LOCATION
Main Weather Forecast Area
Remote Temperature / Humidity Area
UV Sensor UVI / Barometric Pressure Area

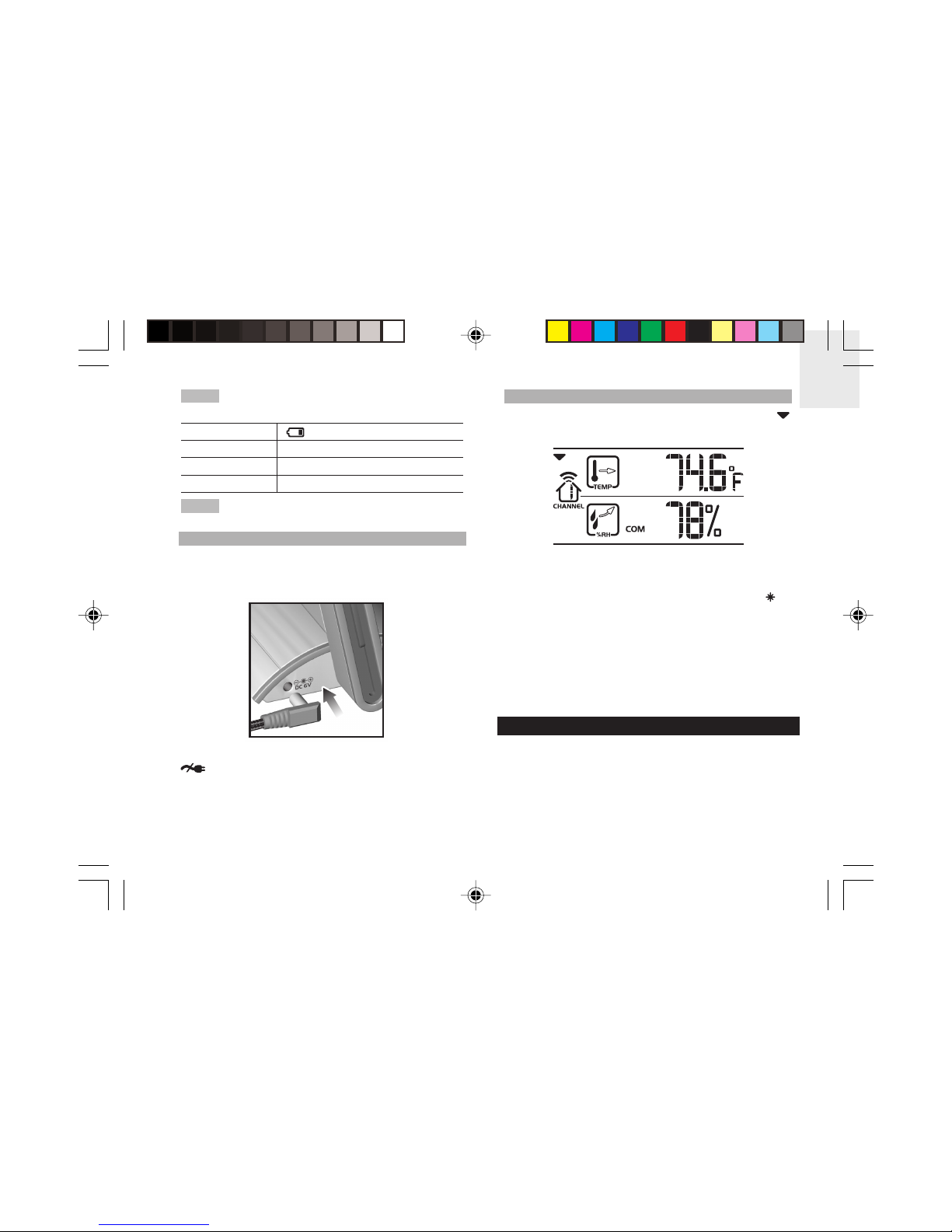

AC ADAPTOR (MAIN UNIT)
The batteries serve as a back-up power supply. For
continuous use, please install the AC adaptor at the base
of the unit:
shows in the Weather Forecast Area when the AC
adapter is not plugged in.
CHANGE SETTINGS
1. Press SELECT to switch between Areas.
indicates the selected Area.
2. Most Areas have alternate display options
(for example, Clock / Alarm or Barometer / UVI).
Press MODE to switch options, or ALARM / to
switch between clock and alarm.
3. Press and hold MODE for 2 seconds to enter setting
mode.
4. Press UP or DOWN to change settings.
5. Press MODE to confirm.
REMOTE SENSOR
This product is shipped with the RTGR328NA Thermo /
Hygro Sensor. The main unit can collect data from up to
6 sensors (5 Thermo / Hygro Sensors and 1 UV Sensor).
The THGR328N and THGR268 sensors are also
compatible with this weather station. (Additional sensors
are sold separately. Contact your local retailer for more
information.)
The UV Sensor is an optional item.NOTE
BAR988HGA English R5 9/18/04, 3:00 AM11

EN
12
SWITCH OPTION
Channel If you are using more than one
sensor, select a different channel
for each sensor.
4. Press RESET. Then set the temperature unit.
SWITCH OPTION
Temp °C / °F

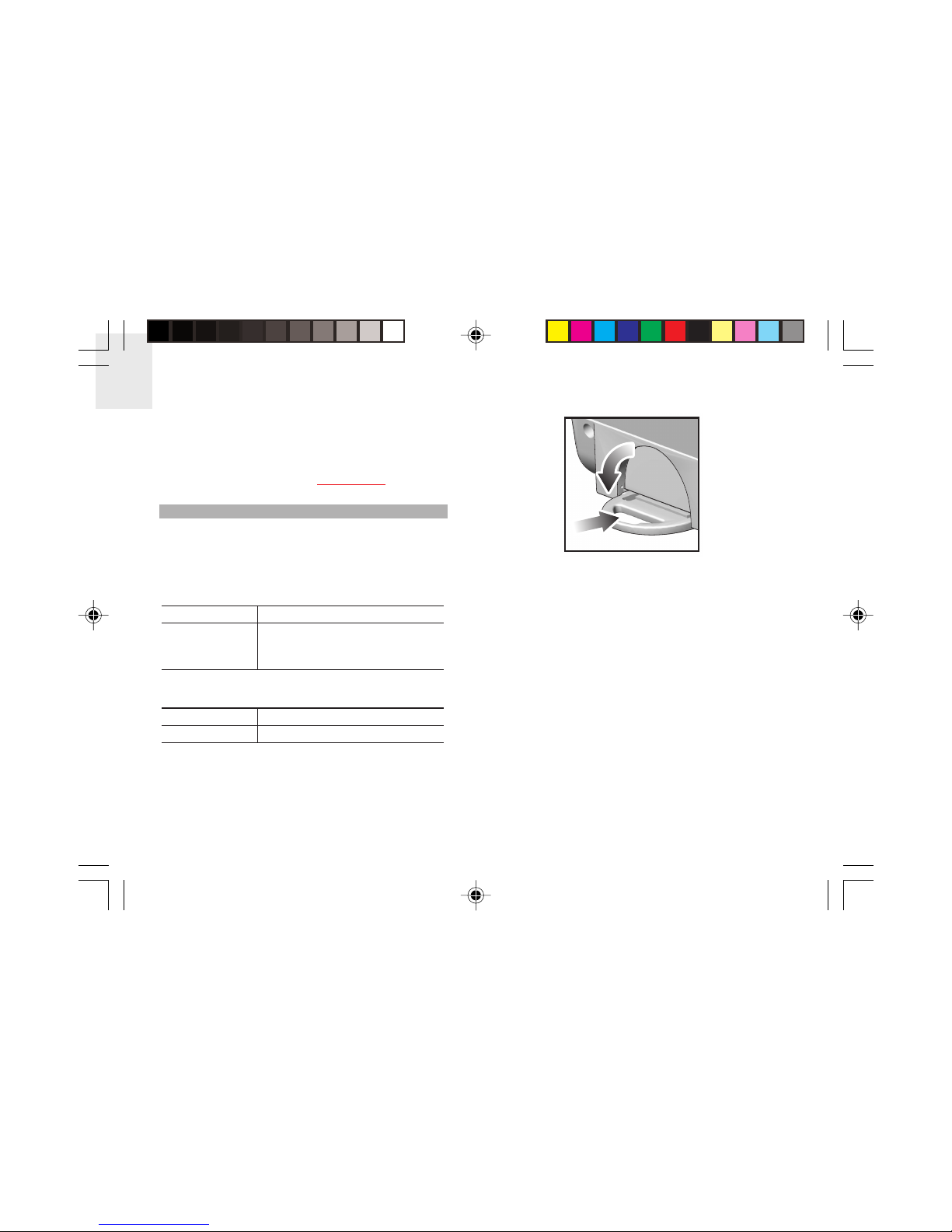

To fold out the stand:
1
2
For best results:
•Insert the batteries and select the unit, channel, and
US time zone before you mount the sensor.
•Place the sensor out of direct sunlight and moisture.
•Do not place the sensor more than 230 feet
(70 meters) from the main (indoor) unit.
•Position the sensor so that it faces the main (indoor)
unit, minimizing obstructions such as doors, walls,
and furniture.
•Place the sensor in a location with a clear view to
the sky, away from metallic or electronic objects.
•Position the sensor close to the main unit during cold
winter months as below-freezing temperatures may
affect battery performance and signal transmission.
The RTGR328NA Sensor collects and transmits
temperature and humidity information, along with time
and date information. Time and date information is
obtained by synchronizing with radio broadcasted atomic
clock information from the National Institute of Time
located in Boulder Colorado. For more information on
the Atomic Clock, please visit www.nist.gov
SET UP THERMO / HYGRO SENSOR (RTGR328N)
1. Open the battery compartment with a small Phillips
screwdriver.
2. Insert the batteries.
3. Set the channel and radio signal format. The switches
are located in the battery compartment.
5. Press ZONE to select the US time zone (P for Pacific,
M for Mountain, C for Central or E for Eastern).
6. Close the battery compartment.
BAR988HGA English R5 9/18/04, 3:00 AM12

EN
13
The transmission range may vary and is subject
to the receiving range of the main unit.
You may need to experiment with various locations to
get the best results.
SENSOR DATA TRANSMISSION
Data is sent from the sensor(s) every 60 Seconds. The
reception icon shown in the Temperature / Humidity Area
indicates the status.
NOTE SEARCH FOR SENSOR
To search for a Thermo / Hygro sensor, press SELECT
to navigate to the Temperature / Humidity Area. will
show next to the Area. Then, simultaneously press and
hold MEMORY and CHANNEL for 2 seconds.
To search for the UV sensor, press SELECT to navigate
to the UVI / Barometer Area. will show next to the
Area. Then, press and hold MEMORY and CHANNEL
for 2 seconds. (The UV sensor is an optional item.)
If the sensor is still not found, check the
batteries.
CLOCK AND CALENDAR
This product tracks the time and date based on US
atomic clock signals from the RTGR328NA remote
sensor, or manual settings that you enter.

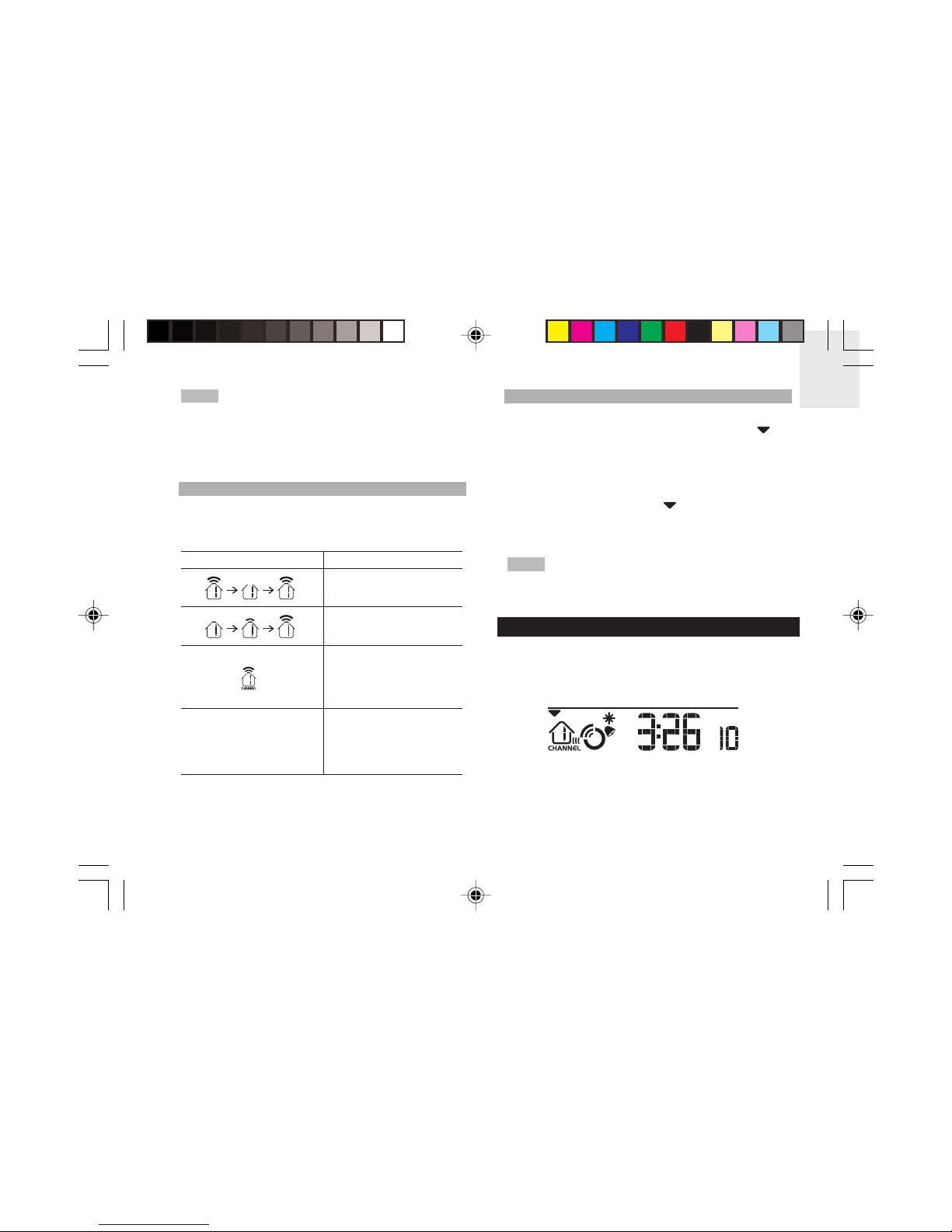

ICON DESCRIPTION
Main unit is searching
for sensors.
At least 1 channel has
been found.
Sensor 1 is sending
data. (The number
shows which sensor is
selected.)
--- shows in Temp /
Humidity Area
The selected sensor
cannot be found.
Search for the sensor
or check batteries.
NOTE
BAR988HGA English R5 9/18/04, 3:00 AM13

EN
14

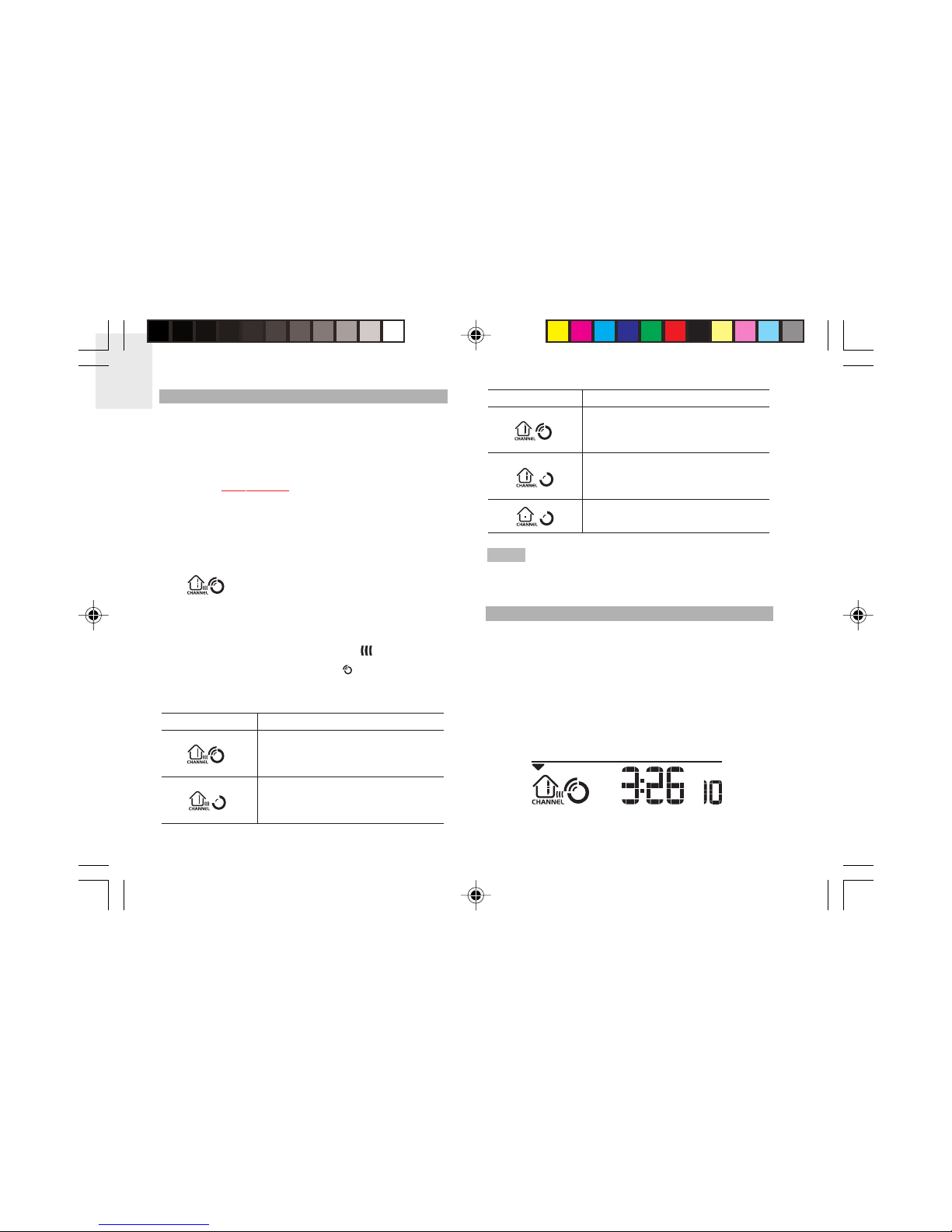

ATOMIC CLOCK
The RTGR368NA remote sensor collects time and
temperature information and transmits this back to the
main unit. The current time and date is received by radio
signal from the Atomic Clock broadcast located in Boulder,
Colorado. For more information on the Atomic Clock,
please visit www.nist.gov
Initial reception takes 2-10 minutes, and is initiated when
you first set up the unit, and whenever you press RESET.
Once complete, the reception icon will stop blinking.
The icon shown in the Clock Area indicates
2 factors:
•Connection between the main unit and the sensor
that collects atomic clock signals ( )
•Atomic clock signal reception ( )
How these signals work together:
To force a manual search for atomic clock
reception, press and hold SEARCH on the sensor
(RTGR328NA) for 2 seconds.
TURN ATOMIC CLOCK ON / OFF
If you wish to manually set the clock, you must first
disable the atomic clock feature. To do this, navigate to
the Clock / Alarm Area. Then, press and hold DOWN on
the main unit for 2 seconds. To enable it, navigate to the
Clock / Alarm Area, then press and hold UP for
2 seconds.
Atomic clock enabled:
ICON MEANING
The unit has contact with the
sensor and has synchronized the
time.
The unit has contact with the
sensor but the time has not been
synchronized.
ICON MEANING
The unit has lost contact with the
remote sensor but the time is
synchronized.
The unit has lost contact with the
remote sensor and the time is not
synchronized.
The unit cannot reach the remote
sensor.
NOTE
BAR988HGA English R5 9/18/04, 3:00 AM14

EN
15
Atomic clock disabled:
SET CLOCK
The BAR988HGA / BAR986HGA and the RTGR368NA
should automatically set and update the time, as
necessary. However, if you are too far away from an
Atomic Clock broadcast signal, or the product is unable
to synchronize with the broadcast due to interference,
you may need to set the clock manually.
1. Press SELECT to navigate to the Clock Area.
will show next to the Area.
2. Press and hold MODE for 2 seconds.
3. Select the time zone offset hour (+ / -23 hours),
12 / 24 hour format, hour, minute, year, date / month
format, month, date and display language.
4. Press UP or DOWN to change the setting.
5. Press MODE to confirm.
If no time zone hour offset is set, the time shown
will be Pacific Time. To change to another US time zone,
select an hour offset accordingly. The time zone options
and their related hour offset times are Pacific (-8),
Mountain (-7), Central (-6) and Eastern (-5).
NOTE
The language options are (E) English,
(F) French, (D) German, (I) Italian, and (S) Spanish. The
language you select determines the weekday display.
SWITCH CLOCK DISPLAY
Press SELECT to navigate to the Clock Area. will
show next to the Area.
Press MODE to toggle between:
•Clock with seconds
•Clock with day
•Clock with time-zone offset
•Calendar
ALARMS
This product has 2 alarms: The Daily Alarm and a
Pre-Alarm for snowy weather. The Daily Alarm can be
set to go off at the same time every day. The Pre-Alarm
sounds only when the Daily Alarm is activated and the
recorded temperature from Channel 1 Sensor falls to
35.6°F (2°C) or below.
SET DAILY ALARM
1. Press SELECT to navigate to the Clock Area.
will show next to the Area.
NOTE
BAR988HGA English R5 9/18/04, 3:00 AM15

EN
16
2. Press ALARM / to view the alarm. (AL will show
at the top.)
3. Press and hold ALARM / for 2 seconds.
4. Select the hour and minute. Press UP or DOWN to
change settings.
5. Press ALARM / to confirm.
6. The Daily Alarm icon will appear when the alarm
is set.
SET PRE-ALARM
The Pre-Alarm can be set to sound 15, 30, 45, or
60 minutes before the Daily Alarm. It will sound whenever
the recorded temperature from Channel 1 Sensor falls
to 35.6°F (2°C) or below.
For example, if you set the alarm to 7:00 AM, and the
Pre-Alarm to 45 minutes, the Pre-Alarm will sound at
6:15 AM provided the outdoor temperature at Channel
1 Sensor is 35.6°F (2°C) or below.
1. Set up and activate the Daily Alarm.
2. Press ALARM /
to switch to Pre-Alarm view.
(PRE-AL will show at the top.)
3. Press and hold ALARM / for 2 seconds.
4. Press UP or DOWN to select 15, 30, 45 or
60 minutes. This is the amount of time the Pre-Alarm
will sound BEFORE the Daily Alarm. The Pre-Alarm
is automatically activated when you select a time.
NOTE
5. Press ALARM / to confirm.
shows when the Pre-Alarm is set.
The Daily Alarm will NOT function until the next
day if the Pre-Alarm has been triggered. Also, if you
deactivate the Daily Alarm, the Pre-Alarm is
automatically deactivated.
ACTIVATE ALARM
Navigate to the Clock Area, then press ALARM / to
switch to Daily Alarm or Pre-Alarm view. To activate or
deactivate the alarm, press UP or DOWN.
When the alarm time is reached, the backlight will be on
for 8 seconds and crescendo alarm will sound for
2 minutes. Press any key (except snooze) to silence
the alarm. It will sound at the same time the next day.
SNOOZE
Press SNOOZE / LIGHT to temporarily disable the alarm
for 8 minutes. or will blink while snooze is on.
BAROMETER
This product tracks fluctuations in barometric pressure
to provide the weather forecast, and the current and past
24 hours barometric pressure history measurements are
recorded by the main (indoor) unit.
BAR988HGA English R5 9/18/04, 3:00 AM16

EN
17
VIEW BAROMETER AREA
Press SELECT to navigate to the Barometer Area.
If is NOT shown, press MODE.
Barometric data is shown in 2 areas at the bottom of the
display. The upper area shows a 24-hour bar chart.
The lower area shows current and historical readings.
SELECT MEASUREMENT UNIT
Slide the mb / inHg switch (in the clock battery
compartment), to change the display unit.
VIEW BAROMETER HISTORY
Navigate to the Barometer Area. Then press HISTORY
repeatedly to scroll through the measurements. The
number shown in the HR box indicates how long ago
each measurement was taken (e.g. 2 hours ago, 3 hours
ago, etc.).
BAR CHART DISPLAY
The bar chart visually shows atmospheric changes from
the current hour (0) to 24 hours prior (-24).
SET ALTITUDE
Set the altitude to match how far above or below sea
level you are living. This ensures that the barometric
pressure readings are accurate.
1. Navigate to the Barometer Area.
2. Press and hold HISTORY for 2 seconds.
BAR988HGA English R5 9/18/04, 3:00 AM17

EN
18
3. Press UP or DOWN to set the altitude in 33-foot
increments (-328 ft to 8202 ft).
4. Press HISTORY to confirm.
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
within a 19-31 mile (30-50 km) radius. The forecast is
based on barometric pressure trend readings.
The top area shows an animated icon indicating the
forecasted weather.

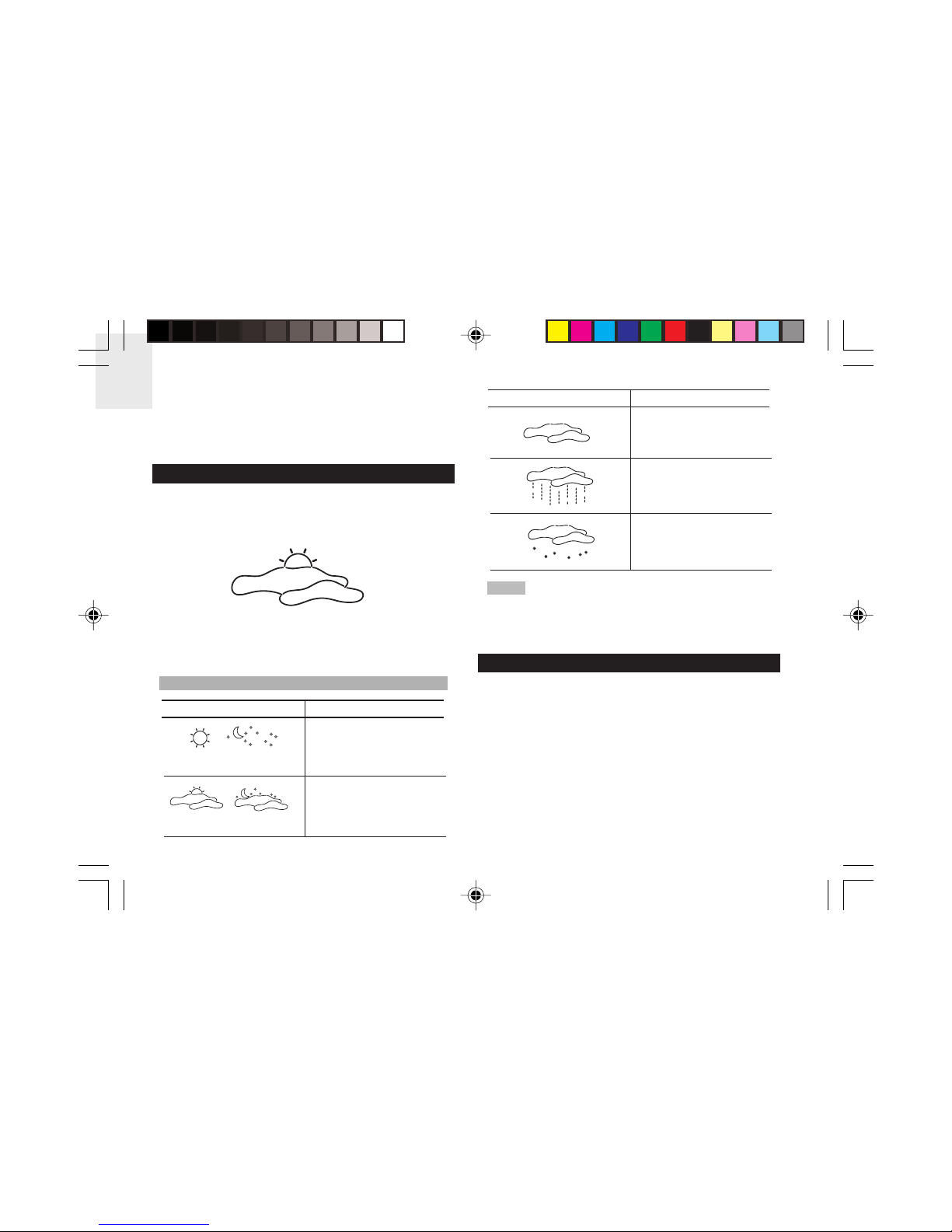

WEATHER FORECAST ICONS
The night time icon displays from 6 PM to 6 AM.
When the Channel 1 Sensor records a temperature of
35.6°F (2°C) or lower, the RAINY icon becomes SNOWY.
UV MEASUREMENT - OPTIONAL SENSOR
The UVR138A Ultra-Violet Radiation Sensor is included
with the BAR986HGA and is available as an optional
item for the BAR988HGA. The UV sensor gives you the
following information at your fingertips:
•10-hour Ultra-Violet Index (UVI) record.
•Automatic calculation of acceptable UV exposure
times based on pre-set user profiles (4 users
maximum).
•UVI Danger Alert when UV Index reaches unsafe
levels.
ICON DESCRIPTION
Clear
Day / Night
Partly cloudy
Day / Night
ICON DESCRIPTION
Cloudy
Rainy
Snowy
NOTE
BAR988HGA English R5 9/18/04, 3:00 AM18

EN
19

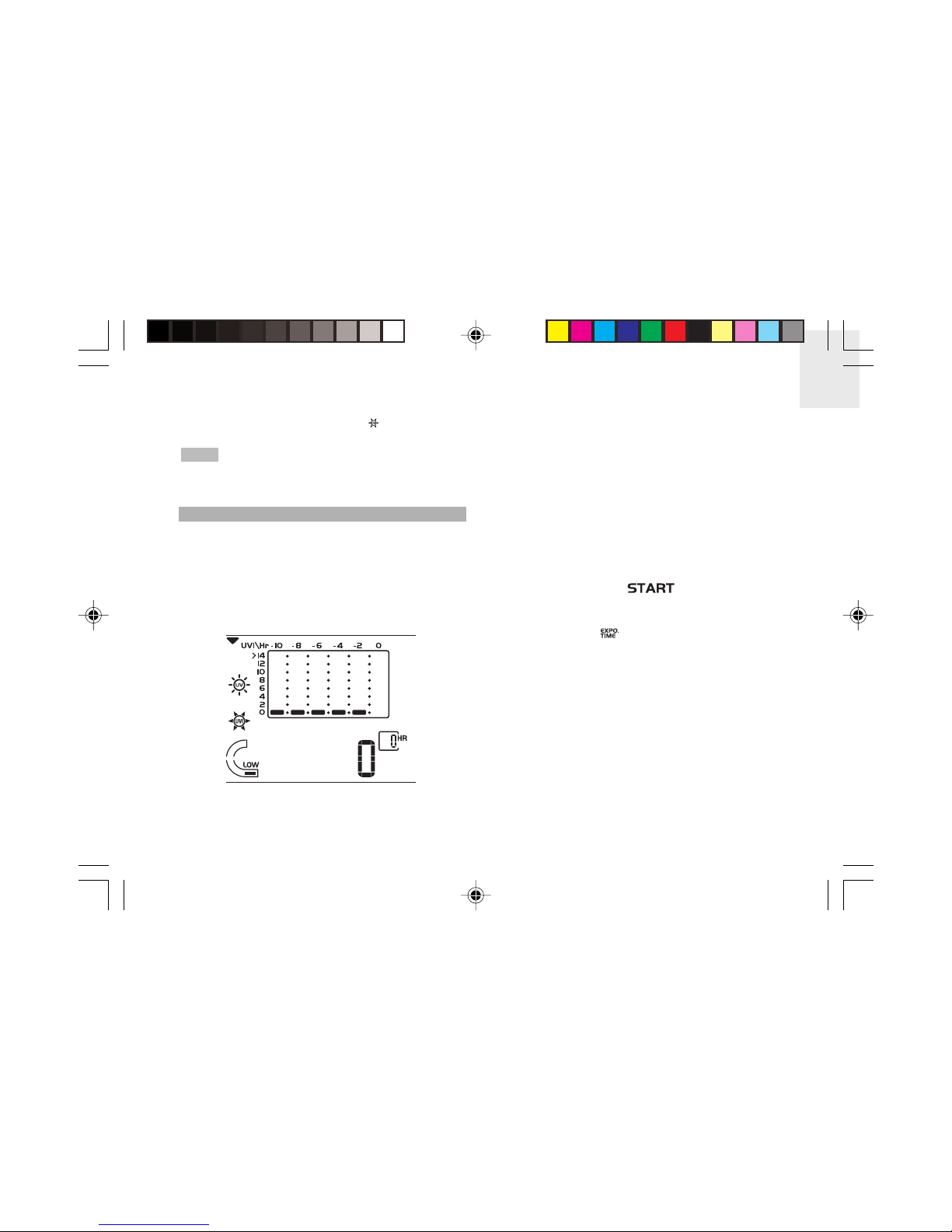

UV data is shown in the same area as the Barometer.
Press SELECT to navigate to the Barometer Area, then
press MODE to display the UV icon and data.
Refer to the UVR138A User Manual for more
information and see below to learn about the new
additional UV features.
NEW ADDITIONAL UV FEATURES
UV EXPOSURE TIME COUNTDOWN
To set the exposure time countdown you need set to the
Skin Type and Sun Protection Factor (SPF) as follows:
1. Press SELECT to navigate to the Barometer Area,
then press MODE to select the UV display.
NOTE
2. Press CHANNEL to select user 1-4.
3. Press and hold MODE for 2 seconds to enter the
Skin Type Setting Mode of the selected user.
4. Press UP or DOWN to choose 1 of the 4 skin type
settings. Then press MODE to confirm and enter the
SPF Set Up Mode.
5. Press UP or DOWN to increase or decrease the SPF
value. Then press MODE to confirm and enter the
UV Exposure Time Countdown Setting Mode.
6. Press UP or DOWN to enable or disable countdown.
Press MODE to exit the UV Exposure Time
Countdown Mode and start the exposure time
countdown. The remaining user UV exposure time
will display and the will flash.
7. When the countdown has reached "0", an alarm will
sound for 2 minutes. Press any button to turn the
alarm off. The icon will flash for 2 minutes even
if you have stopped the alarm sound.
MAXIMUM / MINIMUM MEMORY FOR UVI
To view the maximum and minimum memory for UVI:
1. Press SELECT to navigate to the Barometer Area.
2. Press MODE to select the UV display.
3. Press MEMORY to show maximum, minimum and
current UVI readings.
4. Press and hold MEMORY for 2 seconds to clear the
UVI memory.
BAR988HGA English R5 9/18/04, 3:00 AM19
