Origin Acoustics DSP3-700 User manual

Installation Manual
DSP3-700
DSP3-700
FOUNDATION COLLECTION™

Table of Contents
Introduction 1
Amplifier Presets 2
Specifications 4
What’s Included 5
Wire Recommendations 5
About the DSP3-700 6
Startup 6
Loading a DSP preset 8
Adjusting the Volume 9
Troubleshooting 10
Technical Assistance 11
Warranty 12
Return Process 13

1
FOUNDATION COLLECTION™ USER MANUAL
Thank you for purchasing the DSP3-700 amplifier. At Origin Acoustics, we take pride in
providing you with a high quality product. All of Origin Acoustics’ products are designed to
have excellent sound quality, longevity, and a simple installation process.
This instruction booklet covers the necessary information for a smooth installation,
including: the tools you will need, step-by-step instructions for installation, troubleshooting
tips for any errors that may occur, and all warranty information. If for any reason you
experience problems or if you have installation questions please call us at [phone].
Hours of operation are 8:00am to 5:00pm (Pacific Time), Monday through Friday.
Introduction

FOUNDATION COLLECTION™ USER MANUAL
2
Amplifier Presets
PRESET
NUMBER PRESET NAME SUB MODEL NUMBER
SAT MODEL
NUMBER SYSTEM DESCRIPTION
1DSP O None None
All DSP Bypassed, All inputs
and outputs linked, three mono
channels
20 LS44 None LS44 All three channels have the same
DSP tuned for LS44
30 LS64 None LS64 All three channels have the same
DSP tuned for LS64
40 OS55 None OS55 All three channels have the same
DSP tuned for OS55
50 OS57 None OS57 All three channels have the same
DSP tuned for OS57
60 OS65 None OS65 All three channels have the same
DSP tuned for OS65
70 OS67 None OS67 All three channels have the same
DSP tuned for OS67
88 LS44 OSUB8 LS44 Sub channel tuned for OSUB8, le
and right channels tuned for LS44
98 LS64 OSUB8 LS64 Sub channel tuned for OSUB8, le
and right channels tuned for LS64
10 8 SAT0 OSUB8 None All three channels tuned for OSUB8
(no satellites)
11 10LS44 OSUB10 LS44 Sub channel tuned for OSUB10, le
and right channels tuned for LS44
12 10LS64 OSUB10 LS64 Sub channel tuned for OSUB10, le
and right channels tuned for LS64
13 10SAT0 OSUB10 None All three channels tuned for
OSUB10 (no satellites)
14 12LS44 OSUB12 LS44 Sub channel tuned for OSUB12, le
and right channels tuned for LS44
15 12LS64 OSUB12 LS64 Sub channel tuned for OSUB12, le
and right channels tuned for LS64

3
FOUNDATION COLLECTION™ USER MANUAL
Amplifier Presets
PRESET
NUMBER PRESET NAME SUB MODEL NUMBER
SAT MODEL
NUMBER SYSTEM DESCRIPTION
16 12 SAT0 0SUB12 None All three channels tuned for OSUB12
(no satellites)
17 P LS44 OSUB10
Patio LS44 Sub channel tuned for OSUB10 Patio,
le and right channels tuned for LS44
18 P LS64 OSUB10
Patio LS64 Sub channel tuned for OSUB10 Patio,
le and right channels tuned for LS64
19 P OS55 OSUB10
Patio OS55 Sub channel tuned for OSUB10 Patio,
le and right channels tuned for OS55
20 P OS57 OSUB10
Patio OS57 Sub channel tuned for OSUB10 Patio,
le and right channels tuned for OS57
21 P OS65 OSUB10
Patio OS65 Sub channel tuned for OSUB10 Patio,
le and right channels tuned for OS65
22 P OS67 OSUB10
Patio OS67 Sub channel tuned for OSUB10 Patio,
le and right channels tuned for OS67
23 P SAT0 OSUB10
Patio None All three channels tuned for
OSUB 10 Patio (no satellites)
24 LSB64-D700-360 LSB64 LSB64
Sub channel turned for LSB64 Sub, le
and right channels tuned for LSB64
Sat (360° sound dispersion)
25 LSB64-D700-180 LSB64 LSB64
Sub channel turned for LSB64 Sub, le
and right channels tuned for LSB64
Sat (180° sound dispersion)
26 OSR65-D700 None OSR65 All three channels tuned for ORS65
27 OSR85-D700 None OSR85 All three channels tuned for ORS85
28
29
30

FOUNDATION COLLECTION™ USER MANUAL
4
Power & Amplifier Sections
*All product specifications are subject to change. Please refer to the dealer portal for the latest information.
MODEL DSP3-700
PART AMPD03X7000
# of Channels 3 Powered Out (L/R/S)
Analog Input 4 x RCA A/B Unbalanced Max Input 12dBu
Digital Input 1 Stereo Coaxial, 1 Stereo Optical
Dimensions 17 x 3  x 14”(433 x 88 x 357mm) (Without mounts)
19 x 3  x 14” (482 x 88 x 357mm) (With mounts)
Dynamic Power 700 Watts RMS / Channel, All Channels Driven into 4 Ohm / 70 V, 500 Watts
RMS/ Channel Driven into 8 Ohm x 3, Dynamic Power (Peak) 1 kW / Channel x 3
Power Supplies 1 Independent Switch Mode Power Supply
Output Circuitry Class D - Self-Oscillating PWM Topology; 400kHz Supplied by Independent
SMPS
THD @ Rated Power
4 ohm (1kHz 0.02% (1W), 0.05% (60W), 0.08% (100W)
Dynamic Range 118dB (A-Weighted, AES-17 Filter)
Feature 1 USB program interface
Feature 2 DSP 24/96 Sampling/Resolution
Presets Built in 64
Rack Space 2U
Protection Clip Limiting, Temperature, Over Current, DC, HF on outputs

5
FOUNDATION COLLECTION™ USER MANUAL
Amplifier USB Cord AC Cord
What’s Included
Wire Recommendations
For this setup, use a direct burial, multi-stranded wire designed for amplifier to
speakers connections. 70V systems greatly minimize the eect of speaker wire
(resistance) which allows you to use a lighter gauge wire. Refer to this chart to
select the minimum wire gauge ---Heavier gauge wire is always OK.
Wire Length
(Feet)
8 Ohm 70V
0-100 14 16
100+ 12 14
Recommended Gauge

FOUNDATION COLLECTION™ USER MANUAL
6
About the DSP3-700
Startup
DSP3-700
Power Amplifier
Aer the installation of the device is complete you will see the startup page on the
display. If the amplifier is in Standby mode, press and hold the Standby button for
a few seconds to exit the Standby Mode to the main page.
We have simplified set-up by limiting front panel adjustments to that of
loading internal presets and setting channel levels. All other DSP adjustments
require the use of the dedicated soware program. To download the dedicated
soware program refer to the DSP3-700 section under the electronics tab
at www.originacoustics.com
DSP3 amplifiers are highly flexible and intelligent digital audio 3 Channels Class D
power amplifiers. The DSP3-700 amplifier delivers up to a total of 2,100W@4 or
able to drive 70/100V constant voltage lines. All setup parameters for input/output
processes and DSP features are accessible by using the remote PC soware. Each
DSP3-700 comes preloaded with up to 64 DSP presets to optimize it for use with
all of Origin Acoustics’ speakers and subwoofers assuring peak performance.

7
FOUNDATION COLLECTION™ USER MANUAL

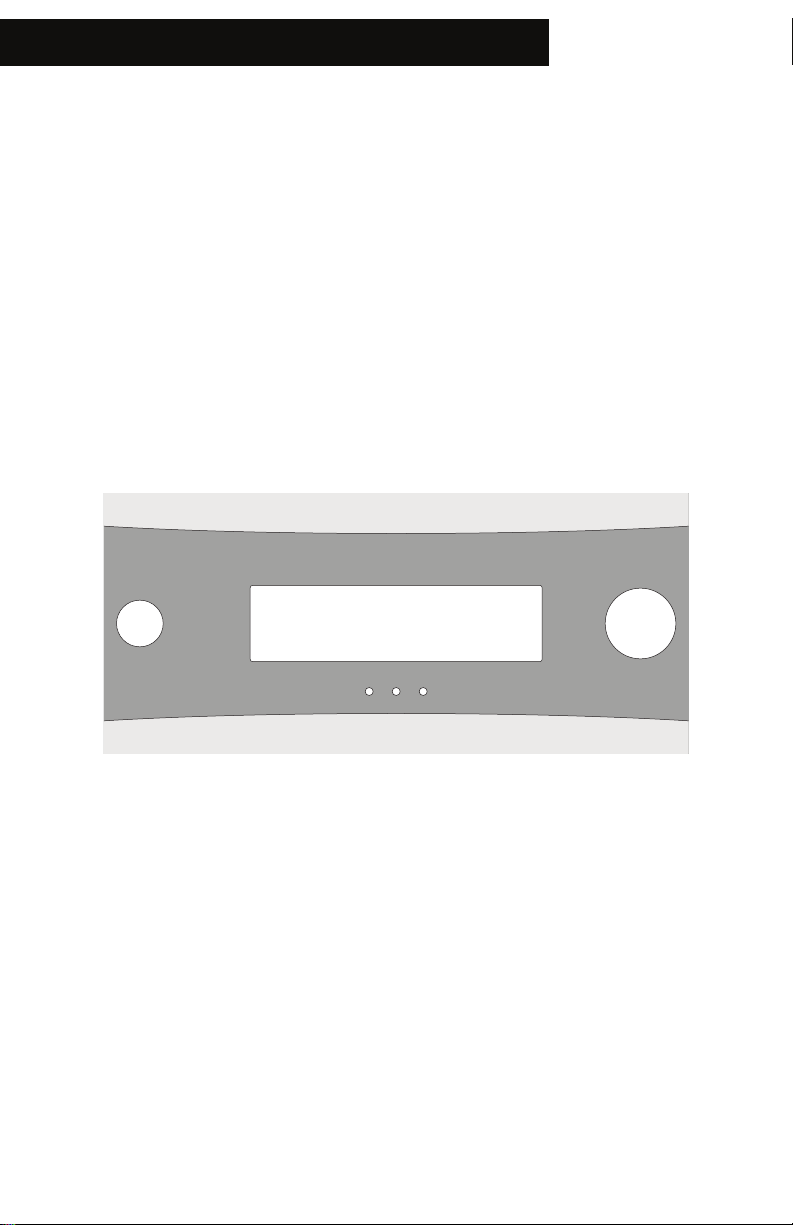

In order to access the menu, press the dial. Rotate the dial to select either “Load
Program,” “Change Volume” or “Exit Menu”
DSP3-700
Load Program
DSP3-700
Change Volume
DSP3-700
Exit Menu

FOUNDATION COLLECTION™ USER MANUAL
8

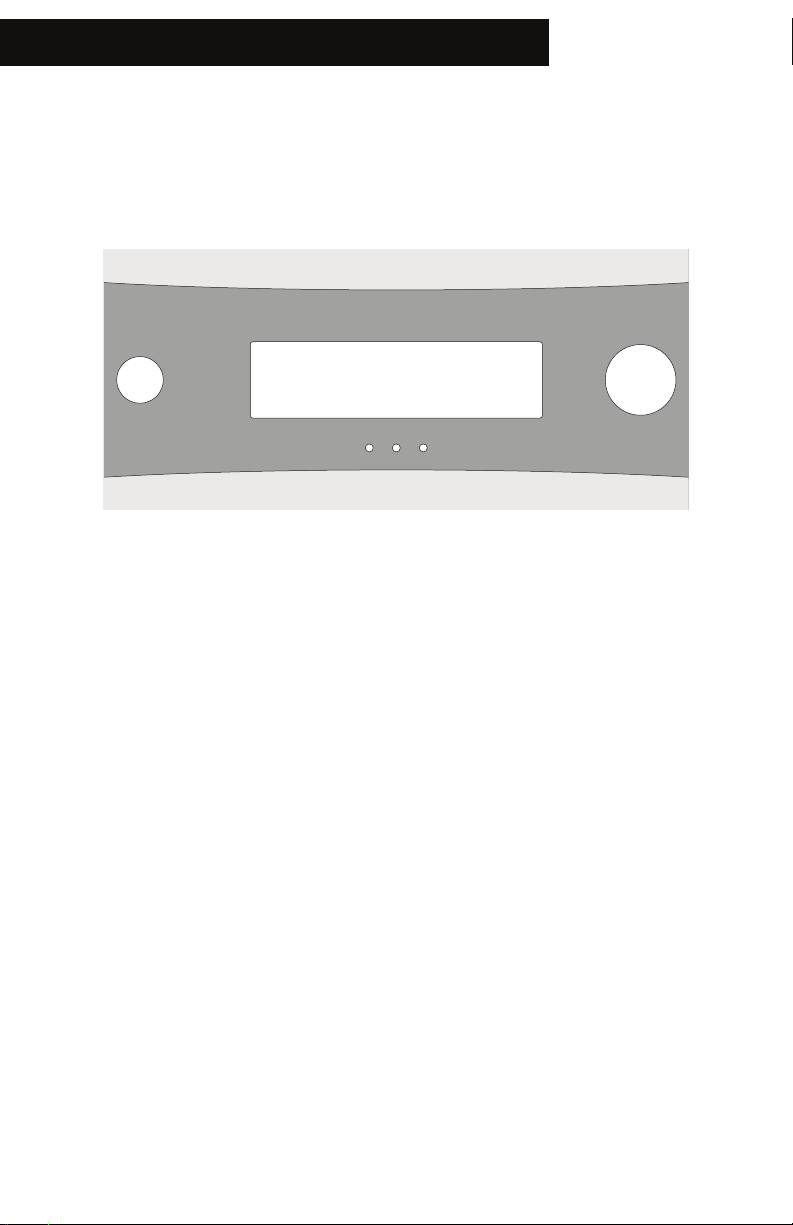

To change a program select the page “Load Program” and press the dial. The IP
address and the name of the preset of the device will appear on the display.
Loading a DSP Preset
IP 192.168.0.100
Preset: “Program Name”
Turn the dial to select your desired preset to match your Origin Acoustics Speakers.
If you are not sure which preset to use, refer to the “Amplifier Preset” section of this
manual. Once you have found the desired program number it will be blinking.
Press the dial to select the desired program to load, at which time it will stop
blinking. If the number is not blinking while selecting, the display will return to the
“Load Program” menu and you will need to restart the process.

9
FOUNDATION COLLECTION™ USER MANUAL
To change the volume, select the “Change Volume” page from the main page and
press the dial to select.
Adjusting the Volume
Output Left:
Level = 0.0dB
Once selected the volume level will appear on the display. Use the dial to change
the volume level (from -60dB to +12dB) and press the dial once again to confirm
the volume level selection. The display will start with the Le Output, then to the
Right Output, and lastly to the Sub Output. To return to the “Change Volume”
page, press the dial again. To exit the menu, select “Exit Menu” and press the dial.

FOUNDATION COLLECTION™ USER MANUAL
10
If you have a problem, try isolating it first. For example, if you’re playing a DVD
and there is no sound, try replacing the DVD with an MP3 player to see if you get
sound. If it does work, then the problem is with the television, DVD player, or the
cables connecting them. If it doesn’t work, the problem will be with the amplifier,
speakers, or those cables.
Troubleshooting
Problem Possible Cause
No Sound
The volume may be turned down or muted. Check the volume
settings on both the amplifier and the television/computer/CD
player/etc.
No Sound Make sure the proper source is selected on the amplifier or re-
ceiver.
No Sound
Check the cord connecting the amplifier with the source. The
cord may be damaged or plugged into the wrong input or out-
put.
No Sound
Check the wires connecting the amplifier with the speakers.
Make sure they’re connected properly and not damaged in any
way.
Poor Sound
Quality
If you hear something like static, or the sound is cutting in and
out, check the audio cables. If the problem increases when a
cable is being moved, then the cable is most likely faulty or not
connected properly.
Poor Sound
Quality
Today’s audio systems may have several places to adjust the
volume, for example your MP3 player may have a volume
control, and your amplifier may also have one. Check to be
certain that the volume isn’t turned up past 80% on any device.
Poor Sound
Quality
Try changing sources to be certain that the selection you’ve
chosen is a good quality recording.

11
FOUNDATION COLLECTION™ USER MANUAL
If you have any questions or concerns about installing or using this product, you
can reach us through one of the following methods:
Phone: [phone]
Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri
Email: [e-mail]
If you are having technical trouble, please include the model number and
briefly explain what steps you took to resolve the problem in your email, or
be prepared to answer these questions over the phone. If you are considering
returning the product, it’s required that you contact Origin Acoustics prior to any
return attempts. This way we can determine if the issue can be resolved without
returning the product, or if needed we can provide instructions and support for
the return process.
Technical Assistance

FOUNDATION COLLECTION™ USER MANUAL
12
Origin Acoustics warrants to the original retail purchaser only that this Origin
Acoustics product will be free from defects in materials and workmanship,
provided the speaker was purchased from an Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or replaced at
Origin Acoustics’ discretion. If the product must be replaced yet it is no longer
manufactured, it will be replaced with a model of equal to or greater value that is
the most similar to the original. If this is the case, installing the replacement model
may require mounting modifications; Origin Acoustics will not be responsible for
any such related costs.
2 Year Limited Warranty
This warranty may not be valid if the product was purchased through an
unauthorized dealer. This warranty only applies to the individual that made the
original purchase, and it cannot be applied to other purchases. The purchaser
must be prepared to provide proof of purchase (receipt). This warranty will not
be valid if the identifying number or serial number has been removed, defaced,
or altered.
Requirements & Warranty Coverage
*All warranties and warranty conditions are subject to change. Please refer to
www.originacoustics.com for the latest information.

13
FOUNDATION COLLECTION™ USER MANUAL
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by anyone other than
Origin Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of the unit
• Damage inflicted during the return shipment
Not Covered by Warranty
Before making any return attempts, it is required that you first contact Origin
Acoustics. Return product to Origin Acoustics or your dealer, either in person or by
mail. It’s preferable if the product is returned in the original packaging. If this isn’t
possible, the customer is responsible for insuring the shipment for the full value
of the product.
This warranty is in lieu of all other expressed or implied warranties. Some states
do not allow limitations on implied warranties, so this may not apply depending
on the customer’s location. (For more information, see Magnuson-Moss Warranty
Act.)
Return Process

6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461
©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
