Origin Acoustics REBR68 User manual

Installation Manual
REBR68
Reusable New Construction Bracket
REBR68

1
REBR68 Installation Manual
Table of Contents
Introduction 1
What’s Included 2
Tools & Items 2
About the Reusable Bracket 2
Installing the Wings 3
Placing the Bracket 3
Cutting the Hole 4
Uninstalling the Bracket 4
Technical Assistance 5
Thank you for purchasing the REBR68 Reusable New Construction Bracket. At
Origin Acoustics, we take pride in providing you with a high quality product. All of
Origin Acoustics’ speakers are designed to have excellent sound quality, longevity,
and a simple installation process.
Thisinstruction bookletcoversthenecessary informationforasmooth installation,
including: the tools you will need, step-by-step instructions for installation,
troubleshooting tips for any errors that may occur, and all warranty information.
If for any reason you experience problems or if you have installation questions
please call us at [phone]. Hours of operation are 8:00am to 5:00pm (Pacic
Time), Monday through Friday.
Introduction

32
REBR68 Installation Manual REBR68 Installation Manual
What’s Included
• Drywall Saw
• Measuring Tape
• Drill
• Screws
• Hammer
• Nails
Tools & Items
Our Reusable bracket REBR68 is designed to be used as a new construction
bracket for our Director 6” and 8” speakers. Additionally, the center plastic ring
can be removed once the sheet rock has been cut to accommodate our speaker.
With the plastic ring you can simply attach a new set of installation wings and
reuse the bracket for the next project you’re working on. This will save you time
and cost for your larger new home projects.
About the Reusable Bracket
Once desired speaker location is found,
locate desired wing positions on the
reusable bracket that coordinate with
the ceiling joists for a secure t. Line up
and place the four pins of the bracket
to the four holes of the wing. Attach
the wings by locking in place with the
included metal clips.
1. Installing the Wings
Wing Bracket
Place the bracket between ceiling
joists using the ruler marks for your
desired location. Either nail or staple
the bracket wings to the joists.
2. Placing the Bracket
Joist
Bracket
Wing
Bracket Wings (2)

54
REBR68 Installation Manual REBR68 Installation Manual

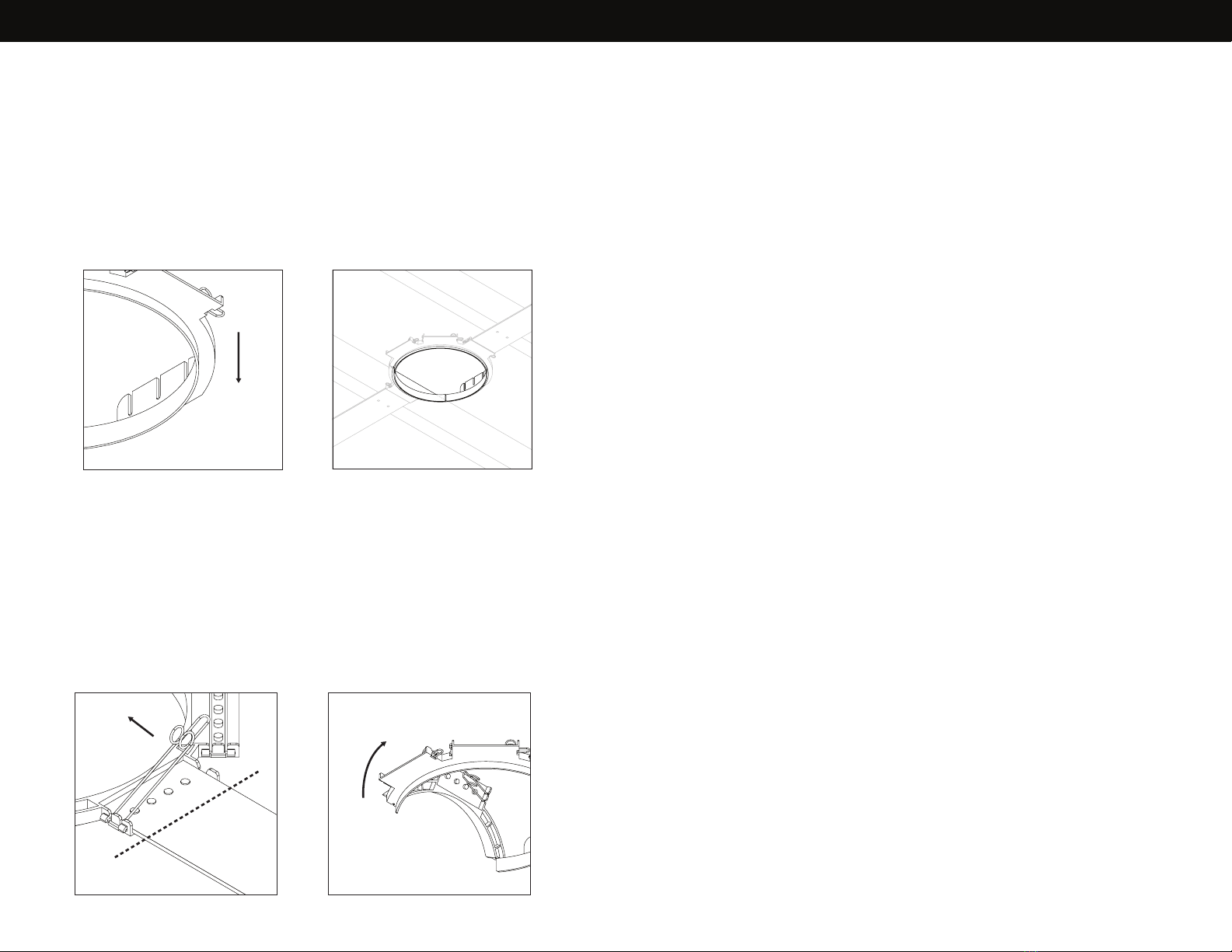

Make sure the “lip” of the bracket is facing down into the room. The “lip” allows
the bracket to act as a template for cutting the speaker cutout in the sheet rock.
Cut along the inside of the bracket hole where the hole should be. Use a keyhole
or drywall saw to cut the hole.
3. Cutting the Hole
Bracket
Bracket Lip
(Face Down)
Bracket
Unsnap
Bracket
Joint
To remove the bracket, squeeze the metal clips to loosen each wing. The wings
can be cut if needed. They will not be used again. Once the wings are detached,
unsnap the bracket at the joint to allow the bracket to bend for easy removal
through the cutout. The bracket can be used again by adding another pair of
REBRW20 wings.
4. Uninstalling the Bracket
Wing
Bracket
If you have any questions or concerns about installing or using this product, you
can reach us through one of the following methods:
Phone: [phone]
Hours of operation: 8:00am - 5:00pm (Pacic Time), Mon - Fri
Email: [e-mail]
If you are having technical trouble, please include the model number and
briey explain what steps you took to resolve the problem in your email, or
be prepared to answer these questions over the phone. If you are considering
returning the product, it’s required that you contact Origin Acoustics prior to any
return attempts. This way we can determine if the issue can be resolved without
returning the product, or if needed we can provide instructions and support for
the return process.
Technical Assistance
