Orion Control Systems OE326-23I-OR Quick start guide

VAV/Zone Controller
Package Technical Guide
www.orioncontrols.com

www.orioncontrols.com
AAON Controls
8500 NW River Park Drive · Parkville, MO 64152
Toll Free Phone: [phone]
PH: [phone] · FAX: [phone] ·
E-mail: [e-mail]
Visit our web site at www.orioncontrols.com
Windows® is a registered trademark of Microsoft
Corporation.
Form: OR-VAVZP-TGD-01C
All rights reserved.
© August 2018 WattMaster Controls, Inc.
AAON, Inc. assumes no responsibility for errors or
omissions in this document.
This document is subject to change without notice.

OVERVIEW....................................................................................................................................... 4
Features and Applications ........................................................................................................................................ 4
Parts and Descriptions ............................................................................................................................................. 6
VAV/Zone Controller, Actuator, and Expansion Module Dimensions ..................................................................... 10
Slaved Zone Damper Kit Dimensions .................................................................................................................... 11
Rectangular Damper Kit Dimensions ..................................................................................................................... 11
Round Damper Kit Dimensions .............................................................................................................................. 12
INSTALLATION AND WIRING ........................................................................................................13
Mounting and Installation ....................................................................................................................................... 13
Important Wiring Considerations ............................................................................................................................ 14
Device Transformer Sizing ..................................................................................................................................... 16
VAV/Zone Communications Wiring ........................................................................................................................ 17
VAV/Zone Controller Inputs and Outputs ............................................................................................................... 18
Expansion Module Outputs .................................................................................................................................... 19
VAV/Zone Controller Package Wiring .................................................................................................................... 20
Expansion Module Wiring ...................................................................................................................................... 21
Slaved Zone Wiring ................................................................................................................................................ 24
START-UP AND COMMISSIONING................................................................................................. 25
Addressing and Baud Rate .................................................................................................................................... 25
Initialization and Operator Interfaces ..................................................................................................................... 26
Confi guring the VAV/Zone Controller ..................................................................................................................... 27
SEQUENCE OF OPERATION..........................................................................................................29
Scheduling, Operation Modes, and Damper Positions .......................................................................................... 29
Occupied Mode ...................................................................................................................................................... 30
Unoccupied Mode .................................................................................................................................................. 32
Damper Control ...................................................................................................................................................... 34
Zoning .................................................................................................................................................................... 35
Alarms .................................................................................................................................................................... 36
Tenant Override Logs ............................................................................................................................................. 36
Trend Logs ........................................................................................................................................................... 37
Force Modes or Overrides ..................................................................................................................................... 37
TROUBLESHOOTING..................................................................................................................... 38
LED Troubleshooting ............................................................................................................................................. 38
Other Checks ......................................................................................................................................................... 39
Temperature Sensor Testing .................................................................................................................................. 41
APPENDIX - VAV/ZONE CONTROLLER SYSTEM ARCHITECTURE................................................ 43
Single Loop VAV/Zoning ........................................................................................................................................ 43
Multiple Loop VAV/Zoning ...................................................................................................................................... 43
Networked Single Loop System with MLPD5 ........................................................................................................ 44
Networked Single Loop System with MLPD5 and CommLink 5 ............................................................................ 45
Networked Multiple Loop System .......................................................................................................................... 46
INDEX ............................................................................................................................................ 47
TABLE OF CONTENTS

VAV/Zone Controller Overview
The OE326-23I-OR VAV/Zone Controller is designed for pres-
sure independent VAV Box and Zone Damper applications. It
is supplied with an integral Airfl ow Sensor and is mounted in a
plastic enclosure.
The OE326-23D-OR VAV/Zone Controller is designed for pres-
sure dependent VAV Box and Zone Damper applications and is
mounted in a plastic enclosure.
The OE326-23I-OR and OE326-23D-OR VAV/Zone Controllers
utilize terminal block connections for wiring. The 24 VAC power
is supplied from a transformer (by others) wired to the VAV/Zone
Controller using standard stranded wire and 2 position terminal
blocks. The communications wiring is connected between the
other VAV/Zone Controllers, CommLink 5, MiniLink PD5,
HVAC unit controller or other controllers on the local loop by
using 2 conductor 18 gauge twisted pair with shield wire which
is connected to the VAV/Zone Controllers via a standard 3 posi-
tion terminal block.
Both VAV/Zone Controllers are designed for use with an OE282-
01 Zone Damper Actuator. The VAV/Zone Controller connects
to the actuator via the modular cable that is included with the
actuator.
The VAV/Zone Controller can use a Standard Room Temperature
Sensor wired to the provided 3 position terminal block or an
E-BUS Digital Room Sensor connected via the integral E-BUS
cable connector or to the provided 4 position terminal block. The
VAV/Zone Controller also has a 2 position terminal block for
wiring a Discharge Temperature Sensor, if desired.
A relay output on the VAV/Zone Controller provides for one stage
of electric heat or an On/Off Hot Water Valve if the controlled
terminal unit is not a fan terminal unit.
An optional Expansion Module is available for applications us-
ing fan terminals and/or more than 1 stage of electric heat, SCR
electric heat, or modulating HW heat. The Expansion Module
connects to the VAV/Zone Controller by means of a prefabricated
E-BUS cable.
VAV/Zone Controller Package Features
VAV/Zone Controller Packages
The OE744-03-OR Pressure Independent VAV/Zone Controller
Package includes the OE326-23I-OR VAV/Zone Controller, the
OE282-01 Zone Damper Actuator with cable, and an Airfl ow
Sensor.
The OE742-03-OR Pressure Dependent VAV/Zone Controller
Package includes the OE326-23D-OR VAV/Zone Controller and
the OE282-01 Zone Damper Actuator with cable.
The VAV/Zone Controller packages are factory mounted on
WattMaster Controls Zone Dampers. Detailed mounting and
installation instructions are provided with each VAV/Zone Con-
troller package.
4VAV/Zone Controller Package
OVERVIEW

Parts and Descriptions
PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
OE742-03-OR Pressure Dependent VAV/Zone Controller
Package with Terminal Blocks
Includes: OE326-23D-OR Pressure Dependent. VAV/Zone
Controller with terminal blocks and OE282-01 Zone Damper
Actuator with 3 foot phone jack cable.
The Pressure Dependent VAV/Zone Controller with terminal
blocks is designed for pressure dependent VAV Box and Zone
Damper applications and is mounted in a plastic enclosure.
One stage of Auxiliary Heat is provided on the controller
The OE325-03 VAV/Zone Controller Expansion Module (sold
separately) is also available for applications using fan terminals
and/or more than 1 stage of electric heat, SCR electric heat, or
modulating HW heat.
Pages
10, 17, 20
OE744-03-OR Pressure Independent VAV/Zone Controller
Package with Terminal Blocks
Includes: OE326-23I-OR Pressure Independent. VAV/Zone
Controller with terminal blocks and airfl ow sensor and OE282-01
Zone Damper Actuator with 3 foot phone jack cable.
The Pressure Independent VAV/Zone Controller with terminal
blocks is designed for pressure independent VAV Box and Zone
Damper applications. It is supplied with an integral Airfl ow
Sensor and is mounted in a plastic enclosure. One stage of
Auxiliary Heat is provided on the controller.
The OE325-03 VAV/Zone Controller Expansion Module (sold
separately) is also available for applications using fan terminals
and/or more than 1 stage of electric heat, SCR electric heat, or
modulating HW heat.
Pages
10, 17, 20
OE326-23D-
OR
Pressure Dependent VAV/Zone Controller
with Terminal Blocks
Includes: OE326-23D-OR Pressure Dependent. VAV/Zone
Controller with terminal blocks mounted in a plastic enclosure. Pages
10, 17,
20
OE326-23I-OR Pressure Independent VAV/Zone Controller
with Terminal Blocks
Includes: OE326-23I-OR Pressure Independent. VAV/Zone
Controller with terminal blocks and airfl ow sensor mounted in a
plastic enclosure. Pages
10, 17,
20
GND TMP
SPACE
+
D1
R40
R37
D2
1002 1002 1002 1002 1002 1002 1002 1002
3650
1002 1002
3650
1002 1002
4751 4751
1002
10uF
.001uF
10uF
VAC~
VDC
VDE
OFF
3650 3650 3650 3650 3650
REV1
SWITCH OCC.
GND
BIN
POWER APP HB WDOG OS HB STAT 2 STAT 1
ACTUATOR
HEAT AUX COMM
ADDRESS
DUCT SENSOR
GND
+12V
-
DIGITAL
SENSOR SPACE
GND
ADJ
TMP
1
2 4 8
16
32
CW
CCW
ON
LOOP
BAUD
1
2
3.3V 5.0V AIRFLOWTP
GND
YS102588
SERIAL #
E-BUS
V4
V3
R60 R59 C34
TB1
R30 R29 R28
V2
TB6
TB5
P1
R5
TB4
TB3
SW1
R5
R5 R4 R4 R4 R4 R4
R37
R24 R21
R14 R13
R11
R10
R6
R5
R4
P3
D7
C25
C15
C5
C4
J1
R42
C29
D13
3650
D9
CUS
R
WattMasterLabel
#L102318
Rev.:01A
B
RELAY CONTACT RATINGIS 1 AMP MAX @ 24 VAC
AUXILIARY
HEAT
ACTUATOR
CONNECTOR
DIGITALSPACE
SENSOR
ANALOG
SPACESENSOR
GND
GND
+12 VDC
ADJ
TMP
HEAT COM
24 VACPOWER ONLY
WARNING!POLARITY
MUST BE OBSERVED
OR THE CONTROLLER
WILL BE DAMAGED
POWER
INPUT
E-BUS
CONNECTORS
GND
GND
SH
GND
BIN
TMP
R+
T-
24 VAC
DUCT
TEMP SENSOR
OCCUPIED
SWITCH
COMM
+
-
1
1 2
ADDRESS ON
2 4 8 16 32
BAUD
ADDRESS
SWITCH
www.wattmaster.com
OE326-23D-OR
P.D . V AV CONTROLLER
/ZONE
www.orioncontrols.com
GND TMP
SPACE
+
D1
R40
R37
D2
1002 1002 1002 1002 1002 1002 1002 1002
3650
1002 1002
3650
1002 1002
4751 4751
1002
10uF
.001uF
10uF
VAC~
VDC
VDE
OFF
3650 3650 3650 3650 3650
LO HI
REV1
LO
HI
SWITCH OCC.
GND
BIN
POWER APP HB WDOG OS HB STAT 2 STAT 1
ACTUATOR
HEAT AUX COMM
ADDRESS
DUCT SENSOR
GND
+12V
-
DIGITAL
SENSOR SPACE
GND
ADJ
TMP
1
2 4 8
16
32
CW
CCW
ON
LOOP
BAUD
1
2
3.3V 5.0V AIRFLOWTP
GND
YS102588
SERIAL #
E-BUS
V4
V3
R60 R59 C34
TB1
R30 R29 R28
V2
TB6
TB5
P1
R5
TB4
TB3
SW1
R5
R5 R4 R4 R4 R4 R4
R37
R24 R21
R14 R13
R11
R10
R6
R5
R4
P3
D7
C25
C15
C5
C4
J1
R42
C29
D13
3650
D9
RELAY CONTACT RATINGIS 1 AMP MAX @ 24 VAC
AUXILIARY
HEAT
ACTUATOR
CONNECTOR
DIGITALSPACE
SENSOR
ANALOG
SPACESENSOR
GND
GND
+12 VDC
ADJ
TMP
HEAT COM
24 VACPOWER ONLY
WARNING!POLARITY
MUST BE OBSERVED
OR THE CONTROLLER
WILL BE DAMAGED
POWER
INPUT
E-BUS
CONNECTORS
GND
GND
SH
GND
BIN
TMP
R+
T-
24 VAC
DUCT
TEMP SENSOR
OCCUPIED
SWITCH
COMM
+
-
1
1 2
ADDRESS ON
2 4 8 16 32
BAUD
ADDRESS
SWITCH
www.wattmaster.com
OE326-23I-OR
P.I. VAV CONTROLLER/ZONE
www.orioncontrols.com
WattMasterLabel
#L102317
Rev.:01A
B
CUS
R
GND TMP
SPACE
+
D1
R40
R37
D2
1002 1002 1002 1002 1002 1002 1002 1002
3650
1002 1002
3650
1002 1002
4751 4751
1002
10uF
.001uF
10uF
VAC ~
VDC
VDE
OFF
3650 3650 3650 3650 3650
REV 1
SWITCH OCC.
GND
BIN
POWER APP HB WDOG OS HB STAT 2 STAT 1
ACTUATOR
HEAT AUX COMM
ADDRESS
DUCT SENSOR
GND
+12V
-
DIGITAL
SENSOR SPACE
GND
ADJ
TMP
1
2 4 8
16
32
CW
CCW
ON
LOOP
BAUD
1
2
3.3V 5.0V AIRFLOWTP
GND
YS102588
SERIAL #
E-BUS
V4
V3
R60 R59 C34
TB1
R30 R29 R28
V2
TB6
TB5
P1
R5
TB4
TB3
SW1
R5
R5 R4 R4 R4 R4 R4
R37
R24 R21
R14 R13
R11
R10
R6
R5
R4
P3
D7
C25
C15
C5
C4
J1
R42
C29
D13
3650
D9
CUS
R
WattMaster Label
#L102318
Rev.: 01A
B
RELAY CONTACT RATING IS 1 AMP MAX @ 24 VAC
AUXILIARY
HEAT
ACTUATOR
CONNECTOR
DIGITAL SPACE
SENSOR
ANALOG
SPACE SENSOR
GND
GND
+12 VDC
ADJ
TMP
HEAT
COM
24 VAC POWER ONLY
WARNING! POLARITY
MUST BE OBSERVED
OR THE CONTROLLER
WILL BE DAMAGED
POWER
INPUT
E-BUS
CONNECTORS
GND
GND
SH
GND
BIN
TMP
R+
T-
24 VAC
DUCT
TEMP SENSOR
OCCUPIED
SWITCH
COMM
+
-
1
1 2
ADDRESS
ON
2
4
8
16
32
BAUD
ADDRESS
SWITCH
www.wattmaster.com
OE326-23D-OR
P. D . V AV CONTROLLER
/ZONE
www.orioncontrols.com
GND TMP
SPACE
+
D1
R40
R37
D2
1002 1002 1002 1002 1002 1002 1002 1002
3650
1002 1002
3650
1002 1002
4751 4751
1002
10uF
.001uF
10uF
VAC ~
VDC
VDE
OFF
3650 3650 3650 3650 3650
LO HI
REV 1
LO
HI
SWITCH OCC.
GND
BIN
POWER APP HB WDOG OS HB STAT 2 STAT 1
ACTUATOR
HEAT AUX COMM
ADDRESS
DUCT SENSOR
GND
+12V
-
DIGITAL
SENSOR SPACE
GND
ADJ
TMP
1
2 4 8
16
32
CW
CCW
ON
LOOP
BAUD
1
2
3.3V 5.0V AIRFLOWTP
GND
YS102588
SERIAL #
E-BUS
V4
V3
R60 R59 C34
TB1
R30 R29 R28
V2
TB6
TB5
P1
R5
TB4
TB3
SW1
R5
R5 R4 R4 R4 R4 R4
R37
R24 R21
R14 R13
R11
R10
R6
R5
R4
P3
D7
C25
C15
C5
C4
J1
R42
C29
D13
3650
D9
RELAY CONTACT RATING IS 1 AMP MAX @ 24 VAC
AUXILIARY
HEAT
ACTUATOR
CONNECTOR
DIGITAL SPACE
SENSOR
ANALOG
SPACE SENSOR
GND
GND
+12 VDC
ADJ
TMP
HEAT COM
24 VAC POWER ONLY
WARNING! POLARITY
MUST BE OBSERVED
OR THE CONTROLLER
WILL BE DAMAGED
POWER
INPUT
E-BUS
CONNECTORS
GND
GND
SH
GND
BIN
TMP
R+
T-
24 VAC
DUCT
TEMP SENSOR
OCCUPIED
SWITCH
COMM
+
-
1
1 2
ADDRESS ON
2 4 8 16 32
BAUD
ADDRESS
SWITCH
www.wattmaster.com
OE326-23I-OR
P.I. VAV CONTROLLER/ZONE
www.orioncontrols.com
WattMaster Label
#L102317
Rev.: 01A
B
CUS
R
5
VAV/Zone Controller Package
OVERVIEW

Parts and Descriptions
PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
OE325-03 VAV/Zone Controller Expansion Module
Includes: Expansion Module and 3 foot E-BUS modular cable. The
Expansion Module is used in conjunction with the OE326-23I-OR
and OE326-23D-OR VAV/Zone Controller and the OE742-03-OR and
OE744-03-OR VAV/Zone Controller Packages and allows Fan & Heat
control of terminal units, including series and parallel fan terminal units
with up to 3 stages of electric heat, SCR electric heat, or modulating
hot water heat. Provides 4 relay outputs for pilot duty switching control
(1 fan, 2 heat, and 1 auxiliary heat), and 1 Analog output for control of
a 0-10V modulating hot water valve or SCR controlled electric heating
coil.
Pages
10, 20-23
OE282-01 Zone Damper Actuator
Includes: OE282 Zone Damper Actuator & 3 foot phone jack cable
only. The OE282-01 Zone Damper Actuator is used to provide control
of air volume dampers in a VAV or Zoning system. The Actuator is a
shaft mounted, fl oating point control actuator with an included phone
jack cable. Actuators are 24VAC/24VDC with a 10K ohm feedback
signal for position monitoring. Wiring connection to the actuator is by
means of a modular phone cable connector located on the actuator
cover.
Pages
10, 20
OE282-03 Slaved Zone Damper Kit
Includes: OE282 Zone Damper Actuator, (2) PL101824 Slave Wiring
Interface Boards & modular cables for controller to actuator
connection. Used when a terminal unit is to be slaved with another
VAV/Zone Damper. Pages
11, 24
OE736-03-PT Pressure Dependent Rectangular Damper Kit with
Terminal Blocks
The Rectangular Damper Kit comes packaged with the OE742-03-OR
Pressure Dependent VAV/Zone Controller Package already mounted
in a metal enclosure.
The Rectangular Damper Kit is used in conjunction with rectangular
dampers for applications where rectangular dampers are specifi ed or
required because of space limitations or job requirements. The rect-
angular dampers may be purchased from WattMaster or you may get
them from the supplier of your choice. For proper control, WattMaster
recommends the use of low leakage opposed blade dampers.
Page 11
GND
AOUT
COMM
STAT
ALRM
PWR
COM
R2
R1
GND
P1
R17
R16
R15
R14
R13
R12
R11
R10
D8
D7
D6
D5
X1
U6
U5
U4
U3
U2
U1
TB2
TB1
R9
R8
R7 R6
R5
R4
R3
R2 R1
Q4
Q3
Q2
Q1
J1
D4
D3
D2
D1
C10
C9
C8
C7
C6
C5
C4
C3
C2
C1
BIN1
C11
D13
R18
R19
R20
TB3
U7
U8
YS102532
REV R1
WATTMASTER CONTROLS, INC
MADE IN USA
R4
R3
2015
SERIAL #
C
D14
C13
CUS
R
PL101824 Slave Wiring
Interface Board
PL101824 Slave Wiring
Interface Board
OE282 Damper Actuator
0.38”
5.70”
4.15”
3.00”
0.75”
(2) Modular Cables
18.0
6VAV/Zone Controller Package
OVERVIEW

PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
OE520-06-PT
OE520-08-PT
OE520-10-PT
OE520-12-PT
OE520-14-PT
OE520-16-PT
Pressure Dependent Round Damper with Terminal
Blocks
The OE520-XX-PT Round Pressure Dependent Zone Damper
Assembly with terminal block connectors consists of a round air
damper and the OE742-03-OR VAV/Zone Controller Package with
terminal block wiring connectors. An optional Expansion Module
(OE325-03) is available for control of reheat, auxiliary heat and/or
control of series or parallel fl ow fan terminal units.
Page 12
OE521-06-PT
OE521-08-PT
OE521-10-PT
OE521-12-PT
OE521-14-PT
OE521-16-PT
Pressure Independent Round Damper with
Terminal Blocks
The OE521-XX-PT Round Pressure Independent Zone Damper
Assembly with terminal block connectors consists of a round air
damper with air fl ow pickup cross and the OE744-03-OR VAV/Zone
Controller Package (including air fl ow sensor) with terminal block
connectors. An optional Expansion Module (OE325-03) is available for
control of reheat, auxiliary heat and/or control of series or parallel fl ow
fan terminal units.
Page 12
OE217-02 E-BUS Digital Room Sensor
LCD Display and keypad allow for setpoint adjustment, override, and
display of certain status and setpoints. The OE217-02 is used with the
VAV/Zone Controller for room air temperature sensing applications.
Typically hard wired to the VAV/Zone Controller or can use the optional
EBC E-BUS cables.
Page 20
EBC-1.5-F
EBC-3-F
EBC-10-F
EBC-25-F
EBC-37-F
EBC-50-F
EBC-75-F
EBC-100-F
EBC-150-F
EBC-250-F
EBC E-BUS Cable Assembly (Optional)
Includes: EBC E-BUS Cable Assembly. The EBC E-BUS Cables can
be used to connect the OE217-02 E-BUS Digital Room Sensor to
the VAV/Zone Controller if desired. Otherwise, the sensor can be
hard-wired to the VAV/Zone Controller. Diff erent lengths can be joined
together using an E-BUS adapter hub. The EBC E-BUS Cables are
available in 1.5, 3, 10, 15, 25, 50, 75, 100, 150 & 250 foot lengths.
Page
20
OE230
OE231
Duct Temperature Sensor - 6” Probe
Duct Temperature Sensor - 12" Probe
OE230 = 6″ probe length. OE231 = 12″ probe length. Used for return
or supply air temperature sensing applications. Includes: 10k Ohm
Duct Temperature Sensor, 2 wire only. Page 20
OE210
OE211
OE212
OE213
Standard Room Sensor - Plain, w/Override,
w/Slide Adjust, w/Override & Slide Adjust
For wall mounting. Connects to the VAV/Zone Controller using wiring
terminals.
TMP
GND
AUX
OUT
Page 20
Parts and Descriptions
Display Override
OVERRIDE ALARM
7
VAV/Zone Controller Package
OVERVIEW

Parts and Descriptions
PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
PL102681 VAV/Zone Controller Power/Comm Cable (PCC)
Modular Adapter
Includes: Modular Adapter. The PCC modular cabling is not included.
The PL102681 VAV/Zone Controller Modular Adapter is used to
provide two Modular PCC connections to the OE326-23I-OR and
OE326-23D-OR VAV/Zone Controllers and the OE742-03-OR and
OE744-03-OR VAV/Zone Controller Packages so that these controllers
can be used with PCC cables.
The VAV/Zone Controller Modular Adapter is only available as a fi eld-
installable kit. It plugs into the 3 pin Comm connector, and the 2 pin
24VAC power connector that is on the VAV/Zone Controller.
N/A
OE392-11 System Manager Touch Screen - Limited Access
The System Manager Touch Screen - Limited Access ( SMTS-L)
provides a direct, graphic-enhanced, menu-driven link. The SMTS-L
is an end-user interface only and allows the end user to view status
points, change Space Setpoints, and view certain alarms of most
controllers on the Orion Controls System. The SMTS-L is equipped
with a 4.3” 480 x 272 WQVGA RGB TFT LCD Touch Screen Display.
The System Manager TS-L is furnished with hardware for fl ush
mounting into hollow drywall or surface mounting on concrete brick or
plaster surfaces. Includes: SMTS-L with 12 ft. long pigtail cable
assembly.
See the
SMTS-L
Technical
Guide
OE391-12 Modular Service Tool SD
Includes: Modular Service Tool, power supply, communication cables,
4 Gigabyte SD card, and (4) AA batteries. Used to program and
monitor all Orion controllers.
See the
Unit
Controller
Operator
Interfaces
SD
Technical
Guide
OE392-12 Modular System Manager SD
Includes: Modular System Manager SD with 4 Gigabyte SD card and
12 ft. long pigtail cable assembly. Used to program and monitor all
Orion controllers. Designed for hollow core wall mounting. When
System Manager is to be mounted on a solid wall (concrete), you will
also need to order the solid wall mounting bracket below.
See the
Unit
Controller
Operator
Interfaces
SD
Technical
Guide
EB101505 Solid Wall Mounting Bracket for Modular System
Manager SD
Includes: 22 gauge galvanized sheet metal mounting bracket with
mounting holes and wire routing opening. Dimensions are 9.25″W x
8.00″H x 0.50″DP. The Wall Mounting Bracket provides wiring
clearance between the System Manager and the wall mounting
surface when the System Manager is to be mounted on a concrete or
other solid wall surface. Not for use with the System Manager TS-L.
N/A
8VAV/Zone Controller Package
OVERVIEW

Parts and Descriptions
PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
OE361-13 CommLink 5 Communications Interface
The CommLink 5 connects to your control system using a USB
computer connection to provide direct on-site communications with
the control system from a computer with the Prism 2 software installed.
For remote communications, see the OE415-02 IP Module Kit.
Includes: CommLink 5, 6 ft. long USB cable, and 120/24 VAC power sup-
ply. Required on all networked systems or if direct computer or remote
computer connection is required. Connects to your computer’s USB 1.1 or
2.1 port. Prism 2 computer software must be installed on the direct con-
nected or remote connected computer in order to
communicate with your system.
STATUS
See the
CommLink 5
Technical
Guide
OE415-02 IP Module Kit - Internet/LAN Connection
Used for Internet or Local Area Network communications with the control
system. Field installs by plugging into the CommLink 5 circuit board and
provides an addressable Ethernet connection to the controls system from
any computer connected to your building’s LAN. It can also be confi gured
to allow access to the control system from the Internet through your LAN
if your Ethernet fi rewall is confi gured for this option.
Includes: IP Link module, 10 ft. long Ethernet cable, and installation
instructions. Prism 2 computer software must be installed on the remote
computer in order to dial-up and communicate with the controls system.
See the
IP Module
Technical
Guide
OE364-23-OR MiniLink PD 5
Used with all Orion controllers to provide network communications,
zone voting, alarming, and tenant logging capabilities. A MiniLink Polling
Device is required on each loop of a Networked system. Includes:
MiniLink Polling Device.
PDDRV
LOOPDRV
NETDRV
PIC32 MLPD
YS102398 REV 3
NETWORK
LOCAL
PDCOMM
POWER
1
2
4
8
16
32
COMM
ADDRESS
ML
PD
MADE IN USA
SERIAL#
C22
C23
C30
C37
C40
J1
J3
R1
R2
R3
R4 R20
R21
R22
R23
R24
R25
R26
R27
R31
PDSTAT1
PDSTAT2 SW2
TB1
TB2
U8
U10
U12
D4
J6
J7J8
R43
R44
R46
C33
OFF
T
SH
R
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
1002
.1uF
.1uF
.1uF
.1uF
1002 1002
T
SH
R
C24
COMM
www.orioncontrols.com
WattMasterLabel
#LB102091-00
Rev.01B
OE364-23-OR
MINILINK PD 5
TT
T
LOCAL NETWORK
SH
24 VAC GND
SH
R
R
LOCAL LOOP
WIRE TERMINALS
NETWORK LOOP
WIRE TERMINALS
NETWORK LOOP
COMM CONNECTORS
ADDRESS DIP
SWITCH
POWER
TERMINALS
LOCAL LOOP
COMM
CONNECTOR
24 VACPOWER ONLY
WARNING!POLARITY MUST
BE OBSERVED OR THE
BOARD WILL BE DAMAGED
See the
Orion
MiniLink
PD 5
Technical
Guide
OE366 USB-Link 2 Kit
The USB-Link 2 is a pocket-sized communications interface used to
connect a laptop computer to your controls system for programming and
monitoring purposes, utilizing a modular cable to allow connection to the
service port connector on the controllers and a USB cable to connect to
a laptop computer.
Includes: USB-Link 2 for multiple or single loop systems, USB cable,
modular connection cable, two mini-DIN to terminal adapters, and
Prism 2 software.
STANDALONE
NETWORK
See the
USB-Link 2
Technical
Guide
OE508 Prism 2 Graphical Computer Software
Prism 2 provides standard, easy to understand status screens for each
type of Orion controllers installed. Prism 2 software has provisions for
custom screens which allow fl oor plans, equipment photos, or user-
defi ned summary screens to be implemented to meet their own individual
needs. All controlling setpoints, trend logs, and alarm conditions are
accessed in the Prism environment. Prism 2 can be confi gured for direct
on-site installation, remote modem connection, or TCP/IP Internet
connection to several installations.
Page
26
9
VAV/Zone Controller Package
OVERVIEW

VAV/Zone Controller, Actuator & Expansion Module Dimensions
5.82 .02
5.64
5.05
2.62
2.05
4.10
1.49
GND TMP
SPACE
+
D1
R40
R37
D2
1002 1002 1002 1002 1002 1002 1002 1002
3650
1002 1002
3650
1002 1002
4751 4751
1002
10uF
.001uF
10uF
VAC ~
VDC
VDE
OFF
3650 3650 3650 3650 3650
LO HI
REV 1
LO
HI
SWITCH OCC.
GND
BIN
POWER APP HB WDOG OS HB STAT 2 STAT 1
ACTUATOR
HEAT AUX COMM
ADDRESS
DUCT SENSOR
GND
+12V
-
DIGITAL
SENSOR SPACE
GND
ADJ
TMP
1
2 4 8
16
32
CW
CCW
ON
LOOP
BAUD
1
2
3.3V 5.0V AIRFLOW TP
GND
YS102588
SERIAL #
E-BUS
V4
V3
R60 R59 C34
TB1
R30 R29 R28
V2
TB6
TB5
P1
R5
TB4
TB3
SW1
R5
R5 R4 R4 R4 R4 R4
R37
R24 R21
R14 R13
R11
R10
R6
R5
R4
P3
D7
C25
C15
C5
C4
J1
R42
C29
D13
3650
D9
0.29
RELAY CONTACT RATING IS 1 AMP MAX @ 24 VAC
AUXILIARY
HEAT
ACTUATOR
CONNECTOR
DIGITAL SPACE
SENSOR
ANALOG
SPACE SENSOR
GND
GND
+12 VDC
ADJ
TMP
HEAT COM
24 VAC POWER ONLY
WARNING! POLARITY
MUST BE OBSERVED
OR THE CONTROLLER
WILL BE DAMAGED
POWER
INPUT
E-BUS
CONNECTORS
GND
GND
SH
GND
BIN
TMP
R+
T-
24 VAC
DUCT
TEMP SENSOR
OCCUPIED
SWITCH
COMM
+
-
1
1 2
ADDRESS ON
2 4 8 16 32
BAUD
ADDRESS
SWITCH
www.wattmaster.com
OE326-23I-OR
P.I. VAV CONTROLLER/ZONE
www.orioncontrols.com
WattMaster Label
#L102317
Rev.: 01A
B
2.05
CUS
R
Figure 1: VAV/Zone Controller Dimensions - OE326-23I-OR Shown
Figure 3: OE325-03 VAV/Zone Controller Expansion
Module Dimensions
1.35"
4
4
3
3
2
2
1
1
18.00"
E-BUS CABLE
SNAP TRACK
CHANNEL
PL102532 EXPANSION BOARD
GND AOUT
COMM STAT ALRM PWR
COM
R2 R1
GND
P1
R17 R16 R15 R14
R13
R12
R11
R10
D8 D7 D6 D5
X1
U6
U5
U4
U3
U2
U1
TB2
TB1
R9
R8 R7 R6
R5 R4 R3 R2 R1
Q4Q3Q2Q1
J1
D4D3D2D1
C10
C9
C8 C7
C6
C5C4
C3
C2
C1
BIN1
C11
D13
R18
R19
R20
TB3
U7
U8
YS102532
REV R1
WATTMASTER CONTROLS, INC
MADE IN USA
R4 R3
2015
SERIAL #
C
D14
C13
CUS
R
4.18"
4.34"
3.10"
Modular Cable
OE282 Damper Actuator
5.70”
0.75”
0.38”
Modular Jack
Connection
18.0
Figure 2: OE282-01 Zone Damper Actuator
Dimensions
10 VAV/Zone Controller Package
OVERVIEW

Figure 4: OE282-03 Slaved Zone Damper Kit
PL101824 Slave Wiring
Interface Board
PL101824 Slave Wiring
Interface Board
OE282 Damper Actuator
0.38”
5.70”
4.15”
3.00”
0.75”
(2) Modular Cables
18.0
Figure 5: OE736-03-PT P.D. Rectangular Damper Kit with Terminal Blocks
15.50
14.15
Dimensional Info
Component View
Damper
Actuator
Enclosure
Base
Enclosure
Cover
P.D. Zone
Controller
Slaved Zone Damper Kit & Rectangular Damper Kit Dimensions
11
VAV/Zone Controller Package
OVERVIEW

Round Damper Kit Dimensions
Figure 6: OE520-XX-PT P.D. Round Damper Kit
with Terminal Blocks
11.5”
12.0”
P.D. Zone
Controller Damper Actu
a
Control Base Cover
1/2” Foil Face
Insulation
Damper Housin
g
Damper Blade
And Shaft
11.5”
12.0”
1/2” Foil Face
Insulation
Damper Housing
Damper Blade
And Shaft
Air Flow
Pickup Cross
Control Base Cover
P.I. Zone
Controller Damper Actuat
o
Figure 7: OE521-XX-PT P.I. Round Damper Kit with
Terminal Blocks
12 VAV/Zone Controller Package
OVERVIEW

Mounting and Installation
Mounting & Installation
If you purchased the Round Zone Damper or Rectangular Zone
Damper Kits from WattMaster, the controller and actuator are
factory mounted and wired in the damper control enclosure. If
your VAV/Zone Controllers are pressure independent, an airfl ow
probe and pressure sensor will also be factory mounted and wired.
Most terminal unit manufacturers will off er the option of fac-
tory mounting the Orion controls in their terminal units for an
additional charge. An installation worksheet and instructions
are available for the Orion VAV/Zone Controller package which
can be shipped with the VAV/Zone control(s) to the terminal
unit manufacturer to simplify factory mounting and wiring of
the controller.
VAV/Zone Controller Package
NOTE: The VAV/Zone Controller defaults to Direct Acting,
which means that when looking at the damper shaft,
the damper rotates clockwise to open. If the damper
on the terminal unit is not installed for clockwise to
open operation, the WattMaster Zone Controller can
be confi gured for counterclockwise to open opera-
tion via the operator interface or through the Prism
software. It must be changed prior to system start-up
for the designated units for the zone damper to func-
tion properly. See your operator interface or Prism
manual for further information on reconfi guring for
reverse acting operation. Installation is the same as
for clockwise-to-open units except all references to
clockwise will now be counter-clockwise direction.
1. The terminal unit damper (by others) should be installed so the
damper shaft turns in a clockwise direction to open the damper.
This is the software default for the VAV/Zone Controller Pack-
age. If this is not possible, the Controller can be re-confi gured for
counter-clockwise-to-open operation using the Prism software.
See the note above for details. All installation instructions are
based on the clockwise-to-open default. Check the damper for
proper rotation and mark the end of the damper shaft to indicate
open and closed positions.
2. Loosen the (2) shaft mounting bracket nuts on the ends of the
damper actuator’s shaft mounting U-bolt and slide damper actua-
tor assembly over the terminal unit damper shaft. The actuator
may have to be rotated from position shown depending on the
terminal unit’s available mounting area and damper shaft loca-
tion and whether this is a left or right hand installation. Hand
tighten the U-bolt nuts until the damper shaft is loosely secured
to the shaft.
Space Temperature Sensors
The Space Temperature Sensors should be mounted in the space
served by the equipment the sensor is connected or hard wired
to. All Space Sensors should be mounted approximately 5 feet
above the fl oor and in an area that does not experience direct
sunlight or drafts in order to get accurate readings. Cabling or
wiring should be routed so the wire or cable is protected from
being pinched or punctured by building fasteners or materials.
Discharge Temperature Sensors
These sensors should be mounted in the supply air duct of the
equipment. The Discharge Temperature Sensor should be mount-
ed at least 10 feet away from any Heating or Cooling source and
be mounted 3 duct diameters from any elbow.
Cabling or wiring should be routed so the wire or cable is pro-
tected from being pinched or punctured by building fasteners
or materials.
NOTE: If this is a stand-alone damper, this sensor would be
mounted upstream of the damper to act as a Supply
Air Sensor.
3. After positioning the damper actuator over the damper shaft,
secure the damper actuator to the controller enclosure base using
the supplied L-bracket and 2 screws.
4 Turn the damper blade to its fully closed position. With the
manual override clutch button depressed, rotate the actuator
clamp to within approximately 1/16 inch to ⅛ inch distance be-
tween the actuator stop and the clamp, depending on the damper
seal design. Tighten the (2) shaft mounting bracket nuts on the
ends of the damper actuator’s shaft mounting U-bolt with an 8
mm wrench to 3-5 ft-lb of torque. On dampers with edge seals,
the actuator will compress the damper blade seal when reaching
the end position. Adjust the end stops, if required. Attach the
actuator cable between the actuator and controller.
13

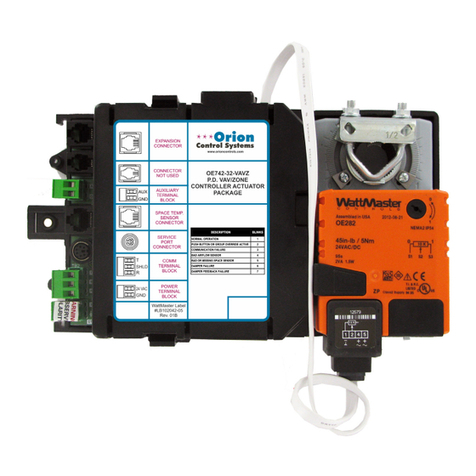

VAV/Zone Controller Package
INSTALLATION & WIRING

Important Wiring Considerations
General
Correct wiring of the VAV/Zone Controller is the most important
factor in the overall success of the controller installation process.
The VAV/Zone Controller wiring has been simplifi ed by the use
of modular connectors and prefabricated modular cables.
Voltage and Environment Requirements
The VAV/Zone Controller and expansion modules must be
connected to a 24 VAC power source of the proper size for the
calculated VA load requirements. All transformer sizing should
be based on the VA rating listed in Table 1.
Control
Device
Voltage
VA Load
Temperature
Humidity
(Non-
Condensing)
OE336-23I-OR &
OE336-23D-OR
VAV/Zone Controller
24VAC 6 -30°F to
150°F
0-90%
RH
OE282-01
Zone Damper Actuator 24VAC 3 -22°F to 122°F
5-95%
RH
OE325-03
VAV/Zone Controller
Expansion Module
24VAC 5 10°F to
149°F
0-90%
RH
OE282-03
Slaved Zone Damper Kit 24VAC 3 -22°F to 122°F
5-95%
RH
Table 1: Voltage and Environment Requirements
WARNING: When using a single transformer to power more
than one controller or expansion module, the
correct polarity must always be maintained be-
tween the boards. Failure to observe correct
polarity will result in damage to the VAV/Zone
Controller, actuator, and expansion module.
Important Wiring Considerations
Please carefully read and apply the following information when
wiring the VAV/Zone Controller Package. See Figure 10, page
20 for VAV/Zone Controller Package wiring and connections.
See Figure 9, page 17 for connecting and wiring multiple VAV/
Zone Controller Packages in a system.
1. Size and wire the transformer to be used for powering the
Non-Modular VAV/Zone Controller Package(s) per the
instructions. Failure to size the transformer and/or wire the
Non-Modular VAV/Zone Controller Package(s) correctly
may cause the VAV/Zone Controller Package to operate
erratically or not at all. See Figure 8, page 16 for wiring
and transformer sizing information.
2. All wiring is to be in accordance with local and national
electrical codes and specifi cations.
3. All 24 VAC wiring must be connected so that all ground
wires remain common. Failure to follow this procedure
can result in damage to the controller and connected
devices.
4. Minimum wire size for 24 VAC wiring should be
18-gauge.
5. Minimum wire size for all sensors should be 24-gauge.
Some sensors require 2-conductor wire and some require
3-or 4-conductor wire.
6. Minimum wire size for 24 VAC thermostat wiring should
be 22 gauge.
7. Be sure that all wiring connections are properly inserted
and tightened into the terminal blocks. Do not allow
wire strands to stick out and touch adjoining terminals
which could potentially cause a short circuit.
8. Do not pry on the connectors when connecting or
disconnecting the modular cables. Be sure to push in on
the connector release clip and then pull straight up.
9. When communication wiring is to be used to intercon-
nect VAV/Zone Controllers together or to connect to other
communication devices, all wiring must be plenum-
rated, minimum 18-gauge, 2-conductor, twisted pair with
shield. WattMaster can supply communication wire that
meets this specifi cation and is color coded for the
network or local loop. Please consult your WattMaster
distributor for information. If desired, Belden #82760 or
equivalent wire may also be used.
10. Before applying power to the VAV/Zone Controller,
be sure to recheck all wiring connections and
terminations thoroughly.
14 VAV/Zone Controller Package
INSTALLATION & WIRING

Wiring Checks
One of the most important checks to make before powering up
the system for the fi rst time is to confi rm proper voltage and
transformer sizing. Each VAV/Zone Controller Package requires
6 VA of power delivered to it at 24 VAC. See pages 20-21 of this
manual for complete wiring and transformer sizing information
for the VAV/Zone Controller.
Check all modular connectors to be sure they are completely
pushed and locked into their mating connectors. Confi rm that all
sensors required for your system are mounted in the appropriate
location and that the modular cables are plugged into the correct
connectors on the VAV/Zone Controller. Check the actuator cable
and be sure it is plugged in and secured to the modular connec-
tor on the actuator and the VAV/Zone Controller circuit board
modular connector. If using a Standard Room Sensor or terminal
connection for an E-BUS Digital Room Sensor, check to make
sure the wiring is correct. See Figure 10, page 20 in this manual
for wiring details. If attaching an E-BUS Sensor with an E-BUS
cable, make sure the E-BUS connector is connected to one end
of the E-BUS sensor cable and the other end is connected to the
E-BUS sensor connector on the VAV/Zone Controller. Be sure
any VAV/Zone Controller Expansion Modules connected to the
VAV/Zone Controller are also correctly wired per the VAV/Zone
Controller Expansion Module wiring instructions on pages 20
through 23 of this manual.
After all the above wiring checks are complete, apply power to
the transformer(s) that is connected to the VAV/Zone Controller.
Powering Up
When the Controller and Modules are fi rst powered up, the
POWER LED should light up and stay on continuously. If it does
not light up, check to be sure that you have 24 VAC connected to
the controller, that the wiring connections are tight, and that they
are wired for the correct polarity. The 24 VAC power must be
connected so that all ground wires remain common. If after mak-
ing all these checks, the POWER LED does not light up, please
contact WattMaster Controls Technical Support for assistance.
Power Wiring
One of the most important checks to make before powering up
the system for the fi rst time is to confi rm proper voltage and
transformer sizing for each controller. Each VAV/Zone Control-
ler requires 6 VA of power delivered to it at 24 VAC. You may
use separate transformers for each device (preferred) or power
several devices from a common transformer. If several devices
are to be powered from a single transformer, correct polarity
must be followed.
WARNING: Observe Polarity! All boards must be wired with
GND-to-GND and 24 VAC-to-24 VAC. Failure to
observe polarity will result in damage to one or
more of the boards.
Check all wiring leads at the terminal block for tightness. Be sure
that wire strands do not stick out and touch adjacent terminals.
Confi rm that all sensors required for your system are mounted
in the appropriate location and wired into the correct terminals
on the VAV/Zone Controller.
After all the above wiring checks are complete, apply power to
the VAV/Zone Controller.
Important Wiring Considerations
15
VAV/Zone Controller Package
INSTALLATION & WIRING

Device Transformer Sizing
24 VAC Power - Transformer & Wire Sizing Considerations for Devices Without Modular Connectors
120 / 24VAC
120 / 24VAC
Distance A to B cannot exceed 57.80 Ft. Distance from A to B cannot exceed 115.60 Ft.
Distance from A to C cannot exceed 115.60 Ft.
Distance from A to B cannot exceed 230.40 Ft.
Distance from A to C cannot exceed Ft.
Distance from A to D cannot exceed Ft.
Distance from A to E cannot exceed Ft.
230.40
230.40
230.40
120 / 24VAC
Some installers like to use one large 24 VAC transformer to power several devices. This is allowable as long as polarity is maintained to each device
on the transformer circuit.
Using
separate transformers also allows redundancy in case of a transformer failure. Instead of having 8 controllers inoperative because of a malfunctioning
transformer you have only 1 controller off line. If the installer does decide to use a large transformer to supply power to several devices, the following
transformer and wire sizing information is presented to help the installer correctly supply 24 VAC power to the devices.
Following is a typical example to help the installer to correctly evaluate transformer and wiring designs.
Each GPC-XP Controller requires 8 VA @ 24VAC power. In the examples below we have a total of 8 GPC-XP Controllers.
8 GPC-XP Controllers @ 8 VA each................ 8 x 8 VA = 64 VA.
The above calculation determines that our transformer will need to be sized for a minimum of 64 VA if we are to use one transformer to power all the
controllers.
Next we must determine the maximum length of run allowable for the wire gauge we wish to use in the installation. Each wire gauge below has a
voltage drop per foot value we use to calculate total voltage drop.
18ga wire.................................0.00054 = voltage drop per 1’ length of wire
16ga wire.................................0.00034 = voltage drop per 1’ length of wire
14ga wire.................................0.00021 = voltage drop per 1’ length of wire
For our example we will use 18 gauge wire. WattMaster recommends 18 gauge as a minimum wire size for all power wiring.
Next use the voltage drop per foot value for 18 gauge wire from the list above and multiply by the total VA load of the 8 controllers to be installed.
0.00054 (Voltage drop per foot for 18 gauge wire) x 64VA controller load = Volts/Ft.
WattMaster controllers will operate efficiently with a voltage drop no greater than 2 Volts. Divide the total allowable voltage drop of 2 Volts by the
number you arrived at above and you have the maximum number of feet you can run the 18 gauge wire with an 75 VA transformer with no more than a
2 Volt drop at the farthest controller from the transformer..
2 (Volts total allowable voltage drop)
= 57.80
0.0346 (Voltage drop per 1 ft. @ 64VA load)
Parallel circuiting of the wiring instead of wiring all 8 controllers in series allows for longer wire runs to be used with the same size wire (as shown in
our examples below).
Warning: If polarity is not maintained, severe damage to the devices may result. WattMaster Controls recommends
using a separate transformer for each device in order to eliminate the potential for damaging controllers due to incorrect polarity.
0.0346
feet
It is often necessary for the installer to calculate and weigh the cost and installation advantages and disadvantages of wire size,
transformer size, multiple transformers, circuiting, etc., when laying out an installation. No matter what layout scheme is decided upon, it is mandatory
that the farthest controller on the circuit is supplied with a minimum of 22 Volts.
A
A
A
BCDE
BBC
Figure 8: VAV/Zone Controller Package With Terminal Blocks Transformer Sizing
16 VAV/Zone Controller Package
INSTALLATION & WIRING

VAV/Zone Communications Wiring
Wire To The Next Zone
Controller On The Local
Communications Loop.
All Wiring To Be Connected
As Shown Below
Line Voltage
GND
24 VAC
R
SH
T
R
SH
T
R
SH
T
R
SH
T
Local Loop
Local Loop
Local Loop
Local Loop
VAV/Zone Controller
VAV/Zone Controller
VAV/Zone Controller
VAV/Zone Controller
VAV/Zone Controller
VAV/Zone Controller
VAV/Zone Controller
VAV/Zone Controller
Damper Actuator
Damper Actuator
Damper Actuator
Damper Actuator
Damper Actuator
Damper Actuator
Damper Actuator
Damper Actuator
Local Loop
GND TMP
SPACE
+
D1
R40
R37
D2
1002 1002 1002 1002 1002 1002 1002 1002
3650
1002 1002
3650
1002 1002
4751 4751
1002
10uF
.001uF
10uF
VAC~
VDC
VDE
OFF
3650 3650 3650 3650 3650
LO HI
REV 1
LO
HI
SWITCH OCC.
GND
BIN
POWER APP HB WDOG OS HB STAT 2 STAT 1
ACTUATOR
HEAT AUX COMM
ADDRESS
DUCT SENSOR
GND
+12V
-
DIGITAL
SENSOR SPACE
GND
ADJ
TMP
1
2 4 8
16
32
CW
CCW
ON
LOOP
BAUD
1
2
3.3V 5.0V AIRFLOWTP
GND
YS102588
SERIAL #
E-BUS
V4
V3
R60 R59 C34
TB1
R30 R29 R28
V2
TB6
TB5
P1
R5
TB4
TB3
SW1
R5
R5 R4 R4 R4 R4 R4
R37
R24 R21
R14 R13
R11
R10
R6
R5
R4
P3
D7
C25
C15
C5
C4
J1
R42
C29
D13
3650
D9
WattMas ter Label
#L 102202
Rev.:1 A
B
RELAY
CONTACT
RATINGI S 1
AMPM AX @
24 VAC
AUXILIARY
HEAT
ACTUATOR
CONNECTOR
DIGITAL SPACE
SENSOR
ANALOG
SPACE SENSOR
GND
GND
+12 VDC
ADJ
TMP
HEAT
COM
24 VACPOWER ONLY
WARNING!POLARITY
MUST BE OBSERVED
OR THE CONTROLLER
WILL BE DAMAGED
POWER
INPUT
E-BUS
CONNECTORS
GND GND
SH
GND
BIN
TMP
R+
T-
24 VAC
DUCT
TEMP SENSOR
OCCUPIED
SWITCH
COMM
+
-
1
1 2
ADDRESS ON
2 4 8 16 32
BAUD
ADDRESS
SWITCH
www.wattmaster.com
GND TMP
SPACE
+
D1
R40
R37
D2
1002 1002 1002 1002 1002 1002 1002 1002
3650
1002 1002
3650
1002 1002
4751 4751
1002
10uF
.001uF
10uF
VAC~
VDC
VDE
OFF
3650 3650 3650 3650 3650
LO HI
REV 1
LO
HI
SWITCH OCC.
GND
BIN
POWER APP HB WDOG OS HB STAT 2 STAT 1
ACTUATOR
HEAT AUX COMM
ADDRESS
DUCT SENSOR
GND
+12V
-
DIGITAL
SENSOR SPACE
GND
ADJ
TMP
1
2 4 8
16
32
CW
CCW
ON
LOOP
BAUD
1
2
3.3V 5.0V AIRFLOWTP
GND
YS102588
SERIAL #
E-BUS
V4
V3
R60 R59 C34
TB1
R30 R29 R28
V2
TB6
TB5
P1
R5
TB4
TB3
SW1
R5
R5 R4 R4 R4 R4 R4
R37
R24 R21
R14 R13
R11
R10
R6
R5
R4
P3
D7
C25
C15
C5
C4
J1
R42
C29
D13
3650
D9
WattMaster La bel
#L 102202
Rev.:1 A
B
RELAY
CONTACT
RATINGI S 1
AMPM AX @
24 VAC
AUXILIARY
HEAT
ACTUATOR
CONNECTOR
DIGITAL SPACE
SENSOR
ANALOG
SPACESENSOR
GND
GND
+12 VDC
ADJ
TMP
HEAT
COM
24 VACPOWER ONLY
WARNING!POLARITY
MUST BE OBSERVED
OR THE CONTROLLER
WILL BE DAMAGED
POWER
INPUT
E-BUS
CONNECTORS
GND GND
SH
GND
BIN
TMP
R+
T-
24 VAC
DUCT
