Orion OVC-024 User manual

V
VA AC CU UU UM M C CL LE EA AN NE ER R
Model: ORION OVC-024
ENGLISH GB
Please read it carefully before use and save it

http://www.orion.ua / [e-mail]
2
Dear Customer,
Thank you for buying ORION products! Welcome to use!
Please read this User’s Guide carefully before use and save it.
Best regards,
ORION ELECTRONICS Team
More details: http://www.orion.ua
Mail to us: [email protected]
I. Importance & Safety
●Your vacuum cleaner is an electric appliance: it should be operated under normal conditions.
Basic precautions should always be followed to reduce the risk of fire, electrical shock, and
injure to person, including the following:
●Material listed as following should not be sucked in, otherwise it may damage the appliance
(cause fire, or injure to persons).
1. Hot material, such as ashes, flaming cigarette.
2. Big piece of scraps, such as glass.
3. Poison material (impregnant, corrosive), erosive material (acid material, detergent).
4. Any flammable or volatile liquid as gasoline or alcohol goods.
●When not in used, cut off the power. Remove the plug from the wall socket before any
service like clean, check or repair. Never switch off the appliances by pulling the plug.
●Avoid to pull or fold the hose, otherwise may cause deformation or damage.
●Make sure the rated voltage is conform with the supplied power.
●Do not let the power cord go through sharp material to avoid damage.
●Do not immerse the appliance into water, or never put the appliance directly in sun or near
any heater or the like to avoid deforming of the plastic components or fire accident.
●Never move the appliances by pulling the power cord.
●Never let children play the appliance to avoid suddenness.
●Do not operate the vacuum cleaner if the appliance be drop down and operates abnormally
obviously or the power cord is damaged. You should take the appliance to the authorized
maintenance store if happen conditions listed above.
●Never operate the appliance when the inlet has been blocked to avoid heat or deforming of
the plastic component or damage of the motor. If the power cord is damaged, it should be
replaced by the manufacture or its service agent in order to avoid a hazard.

http://www.orion.ua / [e-mail]
3
II. Structure and Components
Structure figure
1. Double usage brush 2. Adjustable tube 3. Curved tube handle
4.Hose 5.Inhale plug 6. Front cover buckle
7. Front cover 8. Handle 9.Bigwheel
10. Wind outlet 11.HEPA 12.Filter rack
13.Filter piece 14.Small brush 15.Small Suction nozzle
16.Crevice nozzle

http://www.orion.ua / [e-mail]
4
Operation Guidance
After opening the front cover, check and make
sure the filter piece is installed in place.
Take out the Inhale plug by pressing the button
according to the direction indicated in the
figure at left side.
Open the front cover according to the direction
indicated in the figure at left side.
Insert the dust bag into the dust bag rack.
Refer to the figure at the left side.
Close the front cover.
●Note: Please check whether installed the dust
bag if you can't close the front cover.

http://www.orion.ua / [e-mail]
5
Plug the Inhale plug into the unit.
Set in the adjustable tube into the
curved tube and floor nozzle.
Make sure the connection is firm.
Adjust the tube to a proper length by
pushing the control button. And the
tube will be lock automatically after
releasing the button.
Startup and Speed Control
Plug in power cord, press the power switch to
startup the machine. Pushing inching switch to
control speed.
Dust full indicator
Referring to the left figure, the red indicator will
move into the middle of the window when the
dust bag is full of dust. Now you should switch off
the machine, pull out the power plug and rewind
the power cord. Then pick out the dust bug for
change or clean.
Combination floor nozzle
This double-duty brush can be use for cleaning
carpet, floor. Adjust the duty of the brush for bare
floor cleaning and carpet cleaning by press the
relative button. When the floor nozzle extends out
brush, it is for bare floor, if without, for carpet.

http://www.orion.ua / [e-mail]
6
Stop working of the machine
Press the power switch, pull out the plug from the
socket, rewind the power cord by pressing the
rewinder switch and hold the plug at the mean time to
avoid being injured.

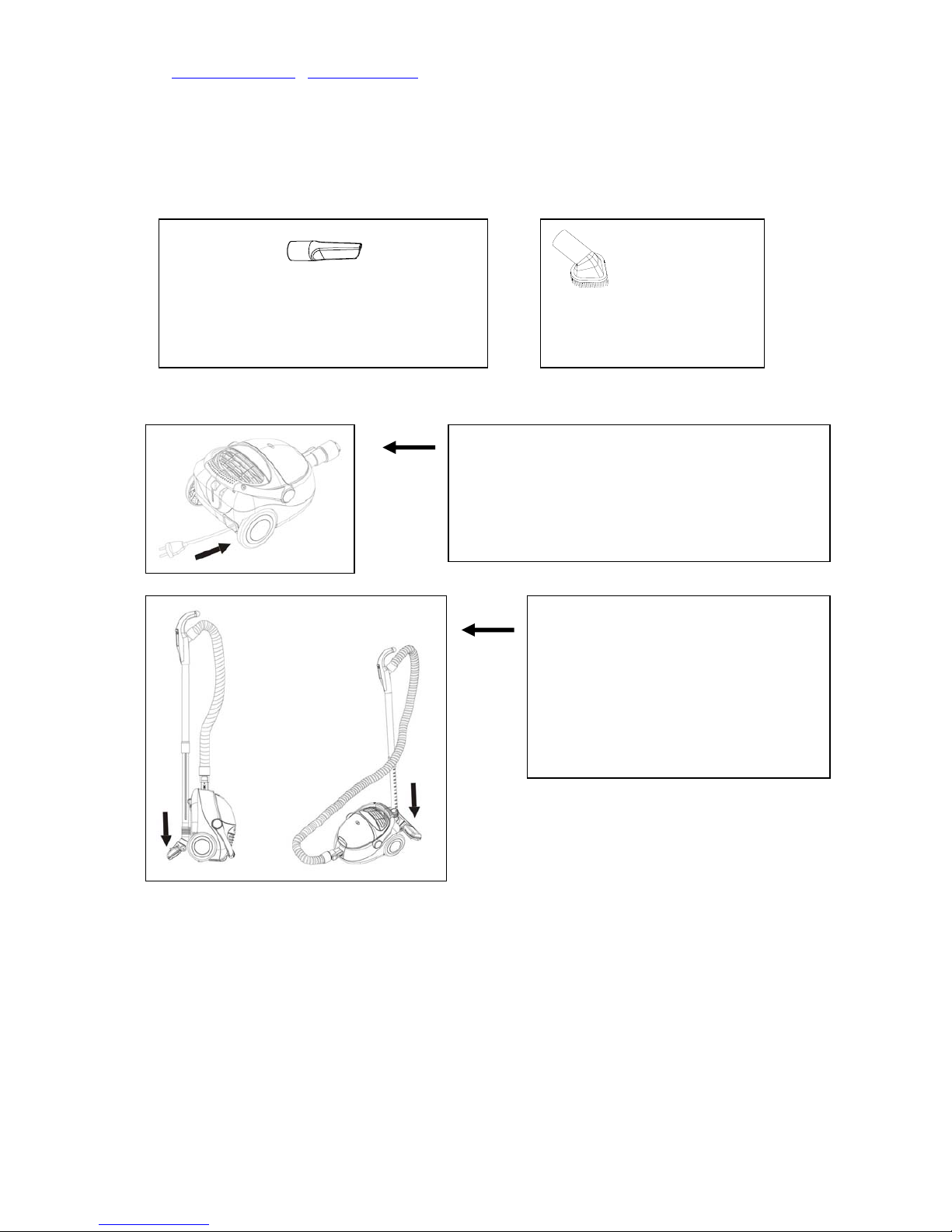

Use of accessories
When use the accessories in follow figure, take out the accessory and insert it into the
telescopic tube.
Combination nozzle is use for cleaning gap,
corner, baseboard and liner gap. The nozzle
head can be rotate to the mode of nozzle
and brush.
Use the small brush can
avoid to injuring surface of
furniture and carpet.
Disposal
Dispose the hose around the telescopic
tube, park the floor nozzle onto the rear
side or the bottom of the machine body
by a hook on the floor nozzle.
●Note: Avoid to putting the machine
under rain or sun.

http://www.orion.ua / [e-mail]
7
III. Dust Empty and Maintenance
A. Empty Dust
Open the front cover, take out the dust bag
referring to the left figure. Then put it into the
wastebin.
B. Maintenance
Take the filter rack apart from the machine according
to the direction indicated in the figure at left side.
Then take out the filter piece.
Take out the filter piece, cleaning in water and let it
dry naturally.
●Importance
1. The filter piece should be cleaned twice a year.
or if it is visibly dustied, clean it at once.
2. When operation, filter piece should be fit in.
3. Make sure it's dry before use. Check if the filter
piece is fitted inproperly or been damaged before use
the machine once.
Open the wind outlet: pick up the wind outlet by
pressing its buckle according to the direction
indicated in the figure at left side.
●Importance
1. The HEPAshould be cleaned twice a quarter. Or
if it is visibly dustied, clean it at once.
2. When operation, HEPA should be fit in.
3. Check if the filter piece is fitted inproperly or
been damaged before use the machine once.

http://www.orion.ua / [e-mail]
8
IV. Trouble Shooting
Note: Cut off power and pull out the plug before starting to get rid of troubles.
If the vacuum power decreasing, and sounds abnormally, stop vacuuming or motor
over heat.
Some vacuum components may be blocked.....dredge the blocked component.
Filter been blocked...........................................clean or replace.
If the trouble still exists, please contact our maintenance service department.
V. Technical Data Require
Model ORION OVC-024
Power Max.1600W
Suction Power 300W
Rated Voltage 230V~
Rated Frequency 50Hz
Noise 74db(A)
Dustbag volume 2,5L
Power cord length 5m
Net weight (without accessories) 4,5kg
Net weight (with accessories) 5,8kg
Gross weight (with accessories) 6,4kg
Body size 365x298x240mm
Box size 495x315x287mm
Approvals CE, GS, RoHS
Protection Class Class II Electric Appliance
Extra information on ORION company web-site www.orion.ua
We take your opinion and offers by E-mail [email protected]
