Orion OVC-026 User manual

V
VA AC CU UU UM M C CL LE EA AN NE ER R
Model: ORION OVC-026
ENGLISH GB
Please read it carefully before use and save it

http://www.orion.ua / [e-mail]
2
Dear Customer,
Thank you for buying ORION products! Welcome to use!
Please read this User’s Guide carefully before use and save it.
Best regards,
ORION ELECTRONICS Team
More details: http://www.orion.ua
Mail to us: [email protected]
I. Importance & Safety
●Your vacuum cleaner is an electric appliance: it should be operated under
normal conditions. Basic precautions should always be followed to reduce the
risk of fire, electrical shock, and injure to person, including the following:
●Material listed as following should not be sucked in, otherwise it may damage
the appliance (cause fire, or injure to persons).
1. Hot material, such as ashes, flaming cigarette.
2. Big piece of scraps, such as glass.
3. Poison material (impregnant, corrosive), erosive material (acid material,
detergent).
4. Any flammable or volatile liquid as gasoline or alcohol goods.
●When not in used, cut off the power. Remove the plug from the wall socket
before any service like clean, check or repair. Never switch off the appliances by
pulling the plug.
●Avoid to pull or fold the hose, otherwise may cause deformation or damage.
●Make sure the rated voltage is conform with the supplied power.
●Do not let the power cord go through sharp material to avoid damage.
●Do not immerse the appliance into water, or never put the appliance directly in
sun or near any heater or the like to avoid deforming of the plastic components
or fire accident.
●Never move the appliances by pulling the power cord.
●Never let children play the appliance to avoid suddenness.
●Do not operate the vacuum cleaner if the appliance be drop down and operates
abnormally obviously or the power cord is damaged. You should take the

http://www.orion.ua / [e-mail]
3
appliance to the authorized maintenance store if happen conditions listed above.
●Never operate the appliance when the inlet has been blocked to avoid heat or
deforming of the plastic component or damage of the motor. If the power cord is
damaged, it should be replaced by the manufacture or its service agent in order
to avoid a hazard.
II. Structure and Components

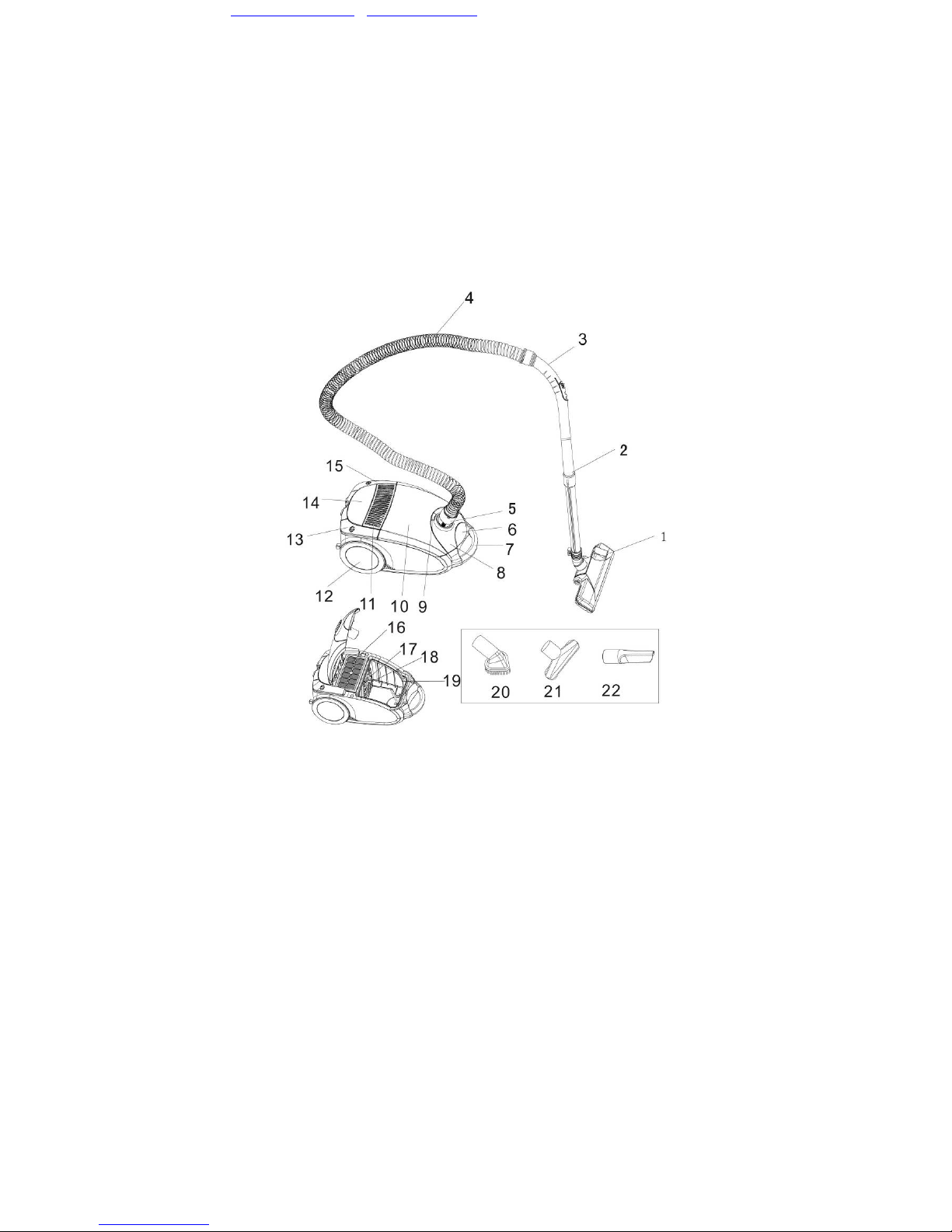

A. Structure figure
1. Floor nozzle 2. Adjustable Tube 3. Remote handle
4.Hose 5.Inhaleplug 6.Frontcoverbuckle
7.Handle 8.Frontcover 9. Inhale button

http://www.orion.ua / [e-mail]
4
10.Accessoriescover 11.Windoutlet 12.Bigwheel
13. Cord rewind button 14. Indicator screen 15. Power Switch
16.HEPA 17.Filter 18.Filterrack
19. Dust bag rack 20. Combined brush 21. Suction nozzle
22. Crevice nozzle
B. Operation Guidance

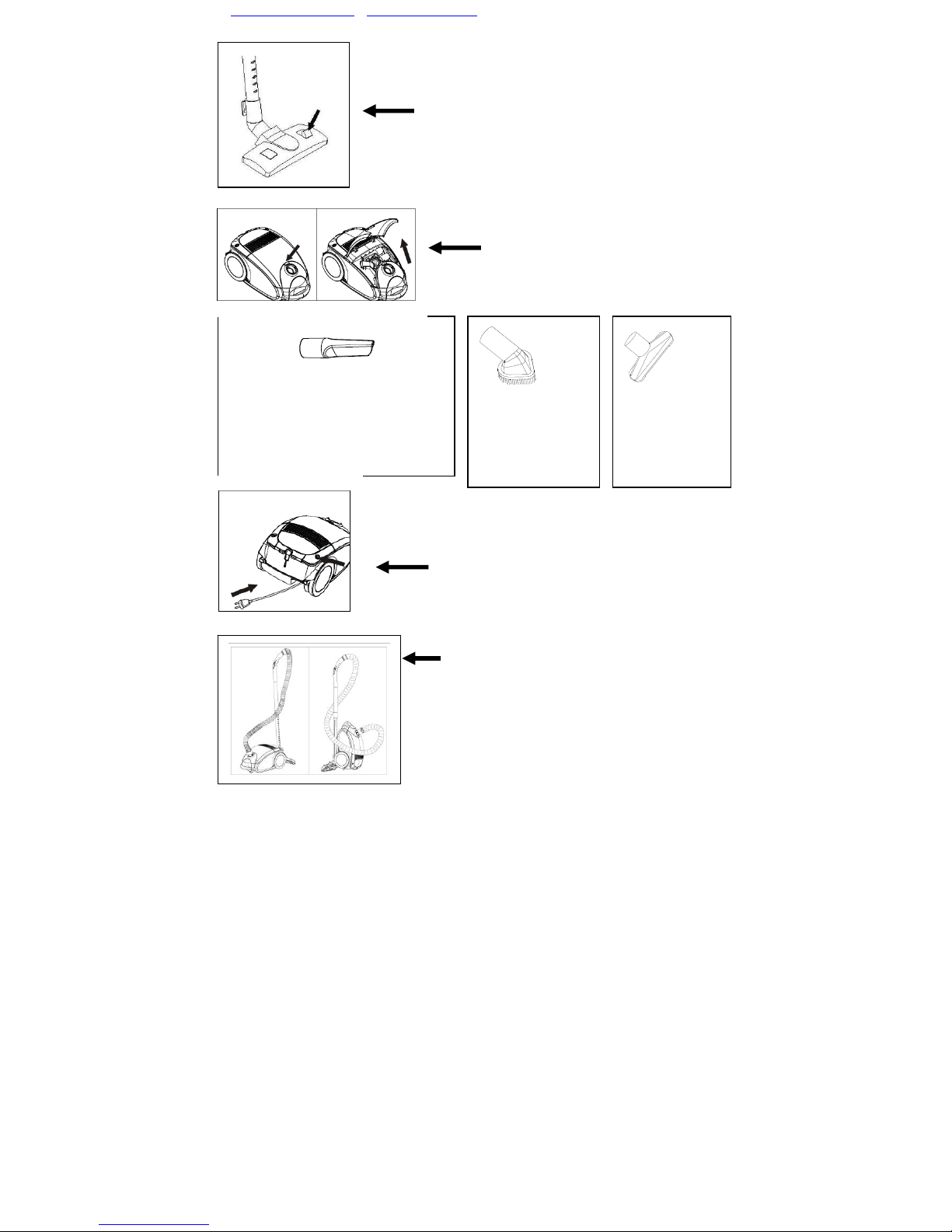

Take out the Inhale Plug by pressing the
button according to the direction indicated
in the figure at the left side.
Open the Rear cover according to the
direction indicated in the figure at left
side.
After opening the front cover, check the
HEPA and the filter to make sure they’re
installed properly.
Insert the dust bag into its rack according
to the direction indicated in the figure at
left side.
Close the front cover.

http://www.orion.ua / [e-mail]
5
Plug in the inhale
Plug into the unit.
Use of the Telescopic chrome
extension tube.
Adjust the tube to a proper length
by pressing the control button, the
tube will be lock automatically
after releasing the button.
Set in the adjustable tube into
the Curved Tube and make
sure the connection is firm.
III. Startup and Speed Control
Plug in power cord, press the power switch to
startup the machine. 4 steps of speed control
is available by pressing the speed control
button on the indicator. Corresponding amount
of lamps 1 get light, indicating different work
steps.
Note: When lamp 2 get light, stop machine and
change dust bag to avoid damaging the
machine.
Adjust the suction power
Adjust the suction power by pushing the
adjustment on the curved tube.

http://www.orion.ua / [e-mail]
6
Combination nozzle is use for cleaning
gap, corner, baseboard and liner gap.
The nozzle head can be rotate to the
mode of nozzle and brush.
Use the small brush
can avoid to injuring
surface of furniture
and carpet.
Use for place of
dustfull, but the
floor nozzle can
not reach to.
Combination floor nozzle
This double-duty brush can be use for cleaning
carpet and floor. Adjust the duty of the brush for
bare floor cleaning and carpet cleaning by press
the relative button. When the floor nozzle
extends out brush, it is for bare floor, if without,
for carpet.
Stop working of the machine
Press the power switch, pull out the plug from
the socket, rewind the power cord by pressing
the rewinder switch and hold the plug at the
mean time to avoid being injured.
Press the accessory cover and open
it. Take out the accessories. When
use, insert it into the telescopic
tube.
Disposal
Dispose the hose around the telescopic tube,
park the floor nozzle onto the rear or the
bottom of machine body by a hook on the
floor nozzle.
●Note: Avoid to putting the machine under
rain or sun.

http://www.orion.ua / [e-mail]
7
IV. Dust Empty and Maintenance

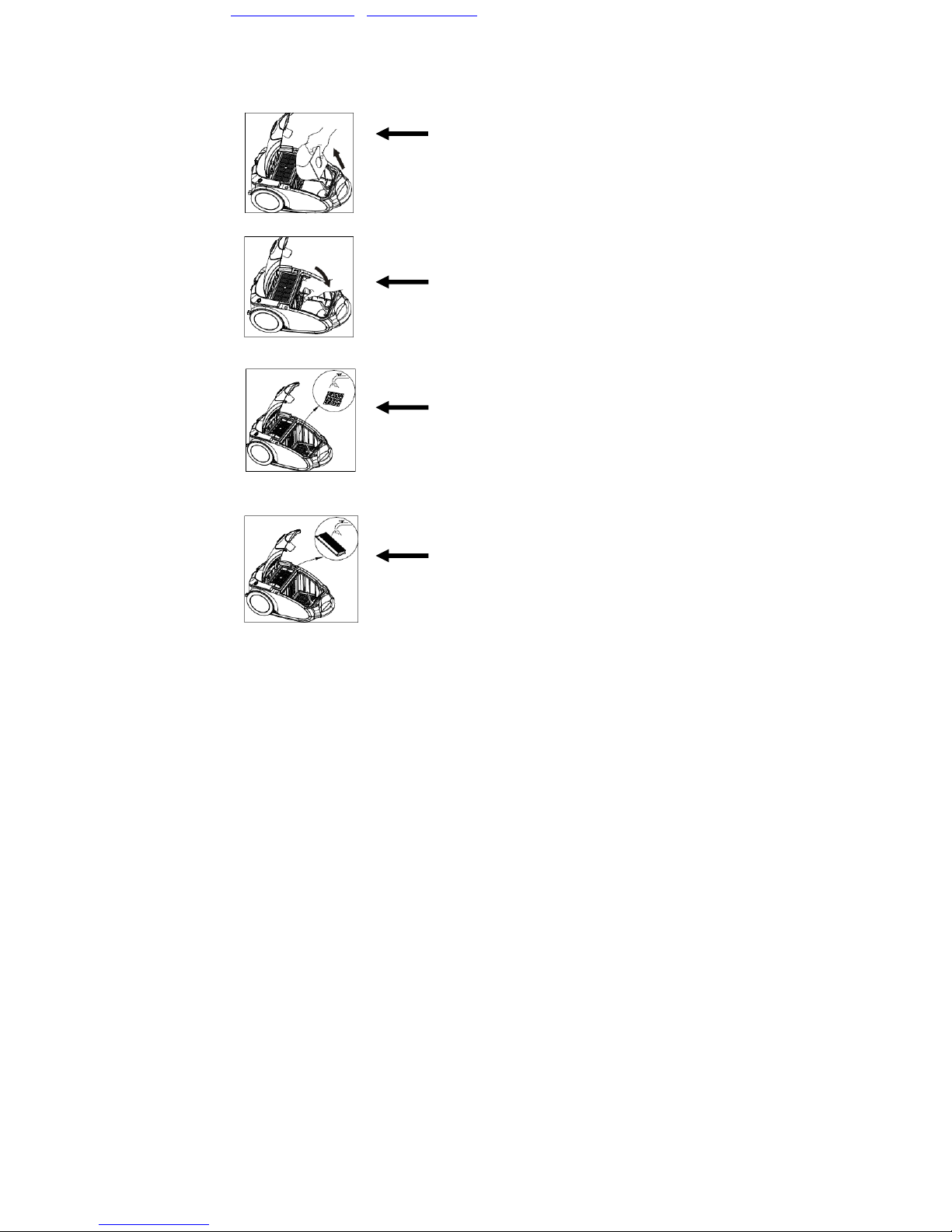

Open the front cover and take out the HEPA,
cleaning in water and let it dry naturally
●Note: HEPA should be cleaned at least
once a year.

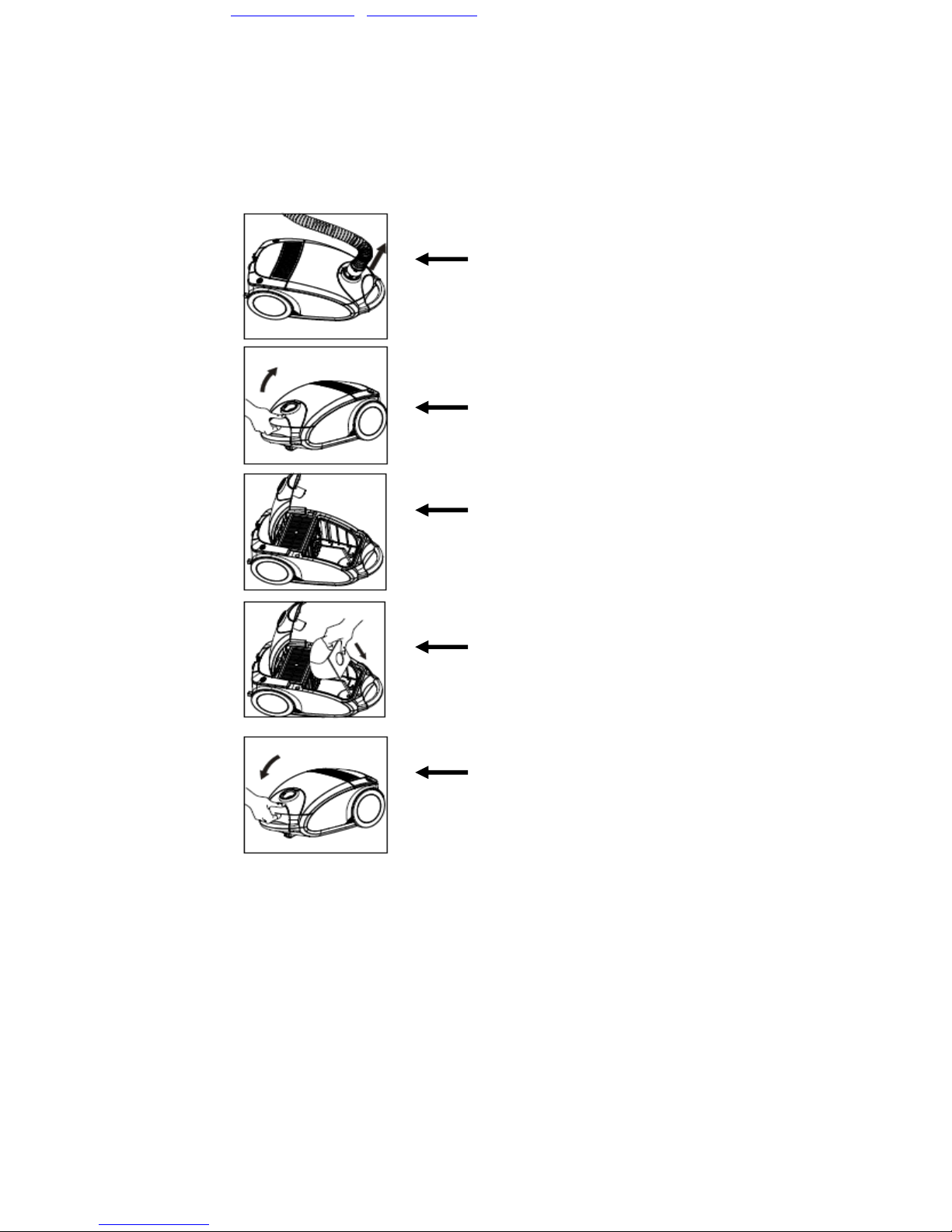

Take out the dust bag from the machine
according to the left figure. Pour out the
sewage into a dustbin.
Take out the filter, cleaning in water and let it
dry naturally.
●Importance:
1. The filter should be cleaned twice a year. Or
if it is visibly dustied, clean it at once.
2. When operation, dustbag should be fit in.
3. Check if the dust bag is fitted in properly or
been damaged before use the machine once.
Take the filtration rack apart from the machine
according to the direction indicated in the figure
at left side.
A. Empty Dust
B. Maintenance

http://www.orion.ua / [e-mail]
8
V. Trouble Shooting
Note: Cut off power and pull out the plug before starting to get rid
of troubles.
If the vacuum power decreasing, and sounds abnormally, stop vacuuming or
motor over heat:
Some vacuum components may be blocked….....dredge the blocked component.
Filter been blocked .......................................clean or replace.
If the trouble still exists, please contact maintenance service department.
VI. Technical Data Require
Model ORION OVC-026
Power Max.2000W
Suction Power 300W
Rated Voltage 230V~
Rated Frequency 50Hz
Noise ≤78db(A)
Dustbag volume 4,5L
Power cord length 5m
Net weight (without accessories) 5,2kg
Net weight (with accessories) 6,5kg
Gross weight (with accessories) 7,1kg
Body size 473x280x238mm
Box size 535x335x290mm
Approvals CE, GS, RoHS
Protection Class Class II Electric Appliance
Extra information on ORION company web-site www.orion.ua
We take your opinion and offers by E-mail [email protected]
