Orphek Amazonas 500 Installation and operating manual

Orphek Amazonas 500 Watts LED
Operational & Safety Guide
Orphek LED Lighting

Thank you for purchasing Orphek Amazonas 500 Watts LED!
In this booklet (manual) you are receiving both Safety and
Operational guides. Inside you will have not only detailed
information about our product but also all the information needed
to install, connect and maintain your Amazonas 500 Watts LED
unit.
We expect that you will use your system well for many years to
come and look forward to hearing from you about yoursuccess.
Please feel free to contact us at any time: [email protected].
ENJOY!
Orphek’s Commitment to the Environment:
Loving Nature as we do and being conscious about the environment,
we only develop products with significant positive impact in
everyone’s life. By simply producing an efficient LED lighting solution
Orphek is helping to reduce a great excess carbon dioxide, sulfur
oxide and nuclear waste emissions that are currently being released
into the atmosphere every day, leading to a cleaner world and one
that will last much longer. Our environmentally friendly lighting
solutions produce no radiant heat, and they will not raise the
aquarium temperature more than two degrees Celsius above the
room temperature! Soon you will find out that by using Orphek LED
lighting products, you will achieve more color and growth, with less
cooling and electricity than metal halides or any other traditional form
of lighting.
All that said, help us to protect our Nature by not printing this manual!
We suggest you save it in your computer instead. Trees are as much
important as marine creatures! And they help to balance the
temperature of Mother Earth!

Orphek Amazonas 500 Watts LED at glance
Table of contents
1 What are the features?
2 Check Orphek Amazonas 500 Watts LED versatility
3 What is in the box?
4 What are the dimensions?
5 What are the specifications?
6 Industrial Product Sketch

Orphek Amazonas 500 Watts LED at glance
By launching groundbreaking technologies Orphek gained
respect and recognition as a leader in Aquarium lighting
technology and innovation for reef aquariums lights. So we did it
again! Our newest AMAZONAS 500 Watts LED is totally
designed for commercial installations, zoos and public
aquariums growing SPS corals up to 20 foot deep.
By utilizing state of the art components combined with Orphek’s
unique ability to target the exact spectrum that photosynthetic life
requires, the Amazonas 500 Watts can deliver significant light
penetration and plenty of coverage, which allows for direct 1 to 1
replacement for large older technology inefficient 1,000 Watts
lighting systems, with two channel system offering greater
flexibility with DAY and MOON Light.
This guide does not substitute any electrical safety guide. It
intends only to deliver basic information on how to install your
purchased Orphek Amazonas 500 Watts LED.
All information in this safety guide may be subjected to change
without notice. Please be fully familiarized with the information
included in the Safety Guide and in this Operational Guide
before beginning installation or use of Orphek Amazonas 500
Watts LED. Orphek is not liable for any damages of any kind
resulting from the purchase, use, misuse, or inability of/to use the
product(s) or arising directly or indirectly from the use or loss of
use of the product(s), from the purchaser’s lack of knowledge or
comprehension, including incidental, special, consequential or
similar damages, or loss of anticipated profits or benefits. Also be
aware that Orphek is not liable for damages arising from any sort
(including negligence or gross negligence) on the part of the
purchaser or faults in this safety guide. If in doubt please contact
Orphek Customer Assistance Team!

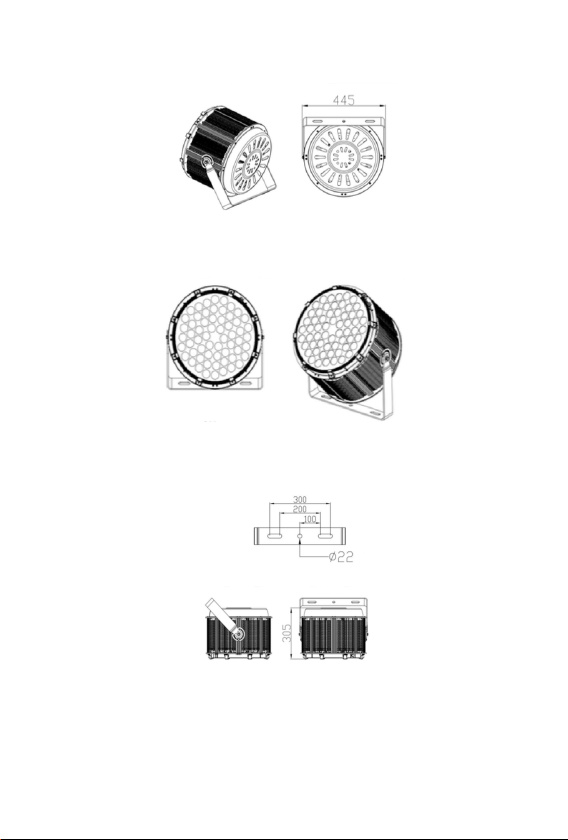

Industrial Product Sketch
Fig. 1 Base view
Fig. 2 Top view
Fig.3 Side view

What are the features?
1 240 flip chip 3 Watts LEDS –120 LEDs per channel
2 3 aluminum reflection cups: 15/36/60 degrees
3 Acrylic lens options: 5/12/24/36/60 degrees
4 No wire bonds for high reliability
5 High efficiency Mean Well driver
6 Low thermal resistance
Check Orphek Amazonas 500 Watts LED
versatility
1 Available in many Kelvin temperatures and custom
spectrums (white: 300k –18000K/ Blue: 450-460nm)
2 3 aluminum reflection cups
3 Acrylic lens options
4 Easy maintenance & washable
5 Both Indoor/outdoor use
6 Both day and moonlight option
7 Wide viewing angle provided by increased uniformity
8 Small source size for highest luminance & beam control
9 Allow for direct attach and reflow

What is in the box?
1 One Light Unit
2 One Power Cord (59”/ 1.5m)
3 One Power cord extension (118”/ 3m)
What are the dimensions?
Diameter: 17.5” (445mm)
Height: 12” (305mm)
What are the specifications?
Color/Materials
Light Unit Body Material: Black high quality aluminum Fin with
copper heatpipe/ tempered glass cover
Weight
Light Unit Weight: 33 lbs (15kg)
Power box Weight: 11 lbs (5kg)
Cords
Power extension cord with waterproof connector from Light
Unit to Power Box: total (118”/ 3m)
Power Cord: 59″(1.5 m)

Electrical
Mean Well Driver Model: 2X HLG –240H –36A
Input voltage: 100~240VAC / 227 VAC (for North America only)
Frequency: 47~63 Hz
Power consumption: 500 – 510 Watts
PF (power factor): 0.980
Input Current (Amps): 2.336
Input voltage: 200V
Output voltage: 36V
Electrical outlet: Region appropriate

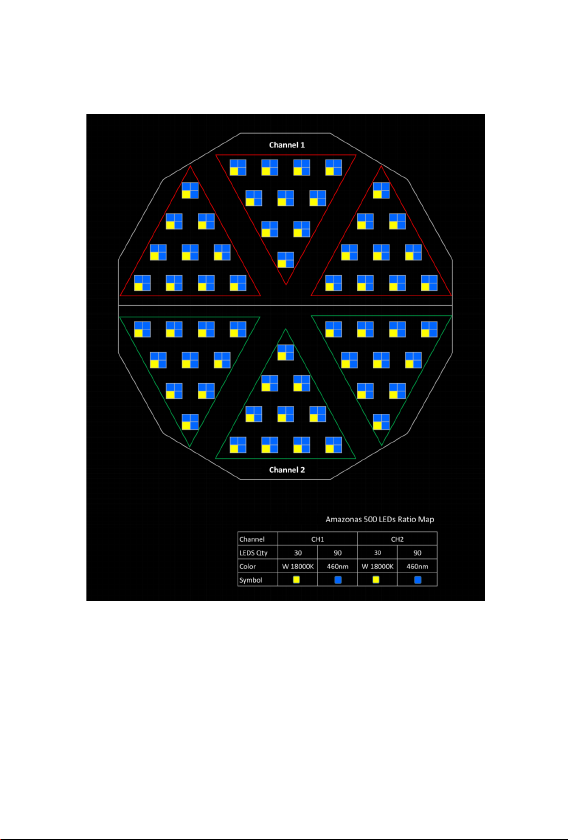

Orphek Amazonas500 Watts LED Ratio Map
Fig. 1
* The ratio seen in fig.1 is only used as 1 example of the LED
ratio offered by Orphek, not necessarily the one purchased.
Customers customizing their own have different ratio maps
with different spectrum results!

Orphek Amazonas 500 Watts LED Operational
Guide
Table of contents
Getting Started
Turning on the unit for the first time
Final Observations
Assistance & Warranty for your purchased
Orphek Amazonas 500 Watts LED

Getting Started
Turning on the unit for the first time
After carefully reading the safety guide and following its
procedures you are all set to switch on your unit for the first time.
Orphek Amazonas 500 Watts LED is a plug in, plug out unit, that
said all you need to do is to insert the electrical plug into the
socket to switch on your unit and unplug it to switch off.
In this link you will find all the information needed about the
driver:
Amazonas driver HLG-240H-SPEC
YOU ARE NOW READY FOR AN ORPHEK EXPERIENCE!
Final Observations
Orphek provides detailed information about all its products in our
website http://www.orphek.com
Also we have already published Orphek Amazonas 500 Watts
LED Thermal Report, IES Test Report, PAR measures, reviews
and nice photographs of this product.
If you have further interest in knowing more please enter to:
https://orphek.com/amazonas-500-watt-led-lighting/
For more info about our FlipChip:

Orphek Amazonas 500 With New HighTechnology FlipChip
LEDS PDF
Assistance & Warranty for your purchased
Orphek Amazonas 500 Watts LED
HOW DO I CONTACT ORPHEK TO ASK ABOUT MY
AMAZONAS 500 WATTS LED UNIT (S)?
It is very easy! Just email us at: [email protected]
Orphek is proud to be committed to customer assistance
excellence!
If you have any question regarding your Amazonas 500 Watts LED
unit (s), Orphek provides online Technical Support, answering to
inquires from all over the world. From technical details about the
product to installation, maintenance and troubleshooting of your
Orphek unit (s) we offer you full support. Our consultants,
representatives and all professionals involved in the company-
customer relationship understand the client’s priorities and are trained
to provide full support and personal/customized services from the first
contact. We are committed to reach successfully all our client’s
expectations.
I BOUGHT AN ORPHEK PRODUCT AND NOW I HAVE
QUESTIONS REGARDING MY UNIT (S). WHAT TO DO?
If you have any questions regarding installation, maintenance or
troubleshooting of your purchased Orphek unit, please notice that
Orphek has a standard assistance procedure that must be followed
by all clients who have purchased our products.
So, before contacting us be prepared to answer a few basic
questions about the product you have purchased.

FIRST WE NEED TO KNOW WHO YOU ARE!
Full name
Full address
Phone number for contact.
SECOND, WE NEED TO KNOW EVERYTHING ABOUT THE
PRODUCT YOU BOUGHT!
Date & place of purchase
Model and serial number of your Orphek Amazonas 500 Watts LED
unit
Proof of purchase
Copy of invoice
Proof of delivery in perfect conditions
Photos or video of the damage (good quality & focus)
Full description of the damage.
WHY DO I NEED TO SEND SO MUCH INFORMATION?
Because Orphek products are submitted to warranty policies like any
other product sold in any market any place in the world. Because
Orphek sells 1000s of units worldwide and we need to track yours in
order to help you!
WHY DO I NEED TO SEND YOU PHOTOS AND VIDEO OF THE
DAMAGE IF I AM TELING YOU MY UNIT HAS A DAMAGE?
The more information we have about your unit easier will be to
provide you assistance! Just like your doctor, we will listen to you, but
we will also want to come to our own conclusions according to our
technical expertise. According to our own experience over the years
providing support, sometimes clients do not exactly explain or tell us
what we need to know in order to help them. A picture usually worth
a 1000 words! Because we follow our warranty policies just like
everybody else should do!

WHEN I WILL RECEIVE THE SUPPORT I NEED?
Orphek offers technical support 24 hours a day, 365 days of the year.
All you need to do is contact us with the information requested above.
WHEN WILL ORPHEK NOT PROVIDE THE SUPPORT I NEED?
Orphek offers all its clients a proper channel to request assistance &
support. Only by contacting us through this channel you will receive
the support you need.
Orphek does not provide support for clients going to forums,
facebook pages, public chats, etc… to complain about a defective
product or lack of assistance. Unfortunately Orphek does not have a
team of social media assistants to follow all and every forum or social
media, website or app to try to find clients in need. We can and feel
obligated to help you only if you contacted us through the right
channel to ask for assistance.
Orphek clients are definitely our most important assets, therefore we
are 100% committed to their satisfaction. We invest in customer
assistance efficiency because our clients have real value!
I LIVE IN FIJI, DO I GET SUPPORT TOO?
Of course you do! Orphek sells its products worldwide. If you live in
Fiji or any other location in the world you are entitled and you will
receive support when needed.
If we have a local support in your region you will get local support. If
not, our Client Support & Assistance Center will be more than happy
to assist you at any time!
DO I HAVE WARRANTY?
All Orphek products are warranted for 01 year. During this period we
will repair or replace the defective unit or part at our option, providing
the following conditions have been met:
This limited warranty applies only to the original purchaser and is
not transferable from the original consumer purchaser. In the event of
a limited warranty claim, proof of purchase will be required. If you
have purchased your Orphek product from a dealer, local shop or
online shop, please contact them directly.

This warranty shall not apply:
1. To any damaged Orphek lighting product that has been subjected
to accident, misuse, neglect, alteration, improper use or application,
improper handling, improper transporting improper storage, improper
installation, improper testing or unauthorized repair, operation outside
recommended parameters (as described in the applicable product
manual, for example, damage from saltwater spray or heat), power
fluctuation or failure, subjection to abnormal physical or electrical
stress, use of incompatible products, non-approved power
supplies/connections, improper cleaning and use of incompatible
cleaning products, or similar circumstances;
2. To any Orphek lighting product that has been submerged to water;
or have any kind of water infiltration.
3. To cosmetic problems or defects that result from normal wear and
tear under ordinary use, and do not affect the performance or use of
the product; or
4. Acts of Nature.
This warranty applies only to a product that is manufactured by or for
Orphek and identified by the Orphek trade name or product
identification logo affixed to the product.
This warranty shall not apply if repairs have not been attempted by
anyone other than our Customer service staff or any authorized
agent or dealer, or under the instruction of our customer service staff.
Any attempts at self-repair shall void this limited warranty.
This warranty does not confer rights other than those expressly set
out above, and does not cover any claims for consequential loss or
damage. Orphek shall not be held liable for damage to any
aquarium, aquarium life forms, or any other personal objects due to
improper use of the device.

This limited warranty does not cover, damage to products incurred in
shipping of the product (s). Orphek has chosen carefully its
transportation & delivery partners, but sometimes damage may occur
for many reasons.In this case you should verify our shipping policies.
Orphek does not render services of installation of any of its products
therefore it will not be held responsible for damage of any kind or cost
resulted from installations.
Information necessary to claim your warranty:
If you have purchased your product directly from us, contact
[email protected] and provide the following information:
Product info: model and serial number, date of purchase, proof of
purchase, copy of invoice, proof of delivery in perfect conditions,
photos of the damage (good quality & focus), and full description of
the damage.
If you have purchased your product from a dealer, local store or
online shop –contact them directly for assistance.
PLEASE NOTICE!
ORPHEK HAS CHOSEN CAREFULLY ITS PARTNERS AND
RELIED IN THEIR PROFESSIONALISM TO PROVIDE THE BEST
CUSTOMER SERVICE THERE IS, BUT ORPHEK WILL NOT BE
RESPONSIBLE FOR MISINFORMATION RECEIVED BY
CLIENTS CONCERNING ITS PRODUCTS, IF GIVEN FROM A
THIRD PARTY (DEALERS, LOCAL SHOPS, ONLINE SHOPS). IF
THE DAMAGE RESULTED FROM THIS MISINFORMATION,
CONTACT THE SALESPERSON DIRECTLY.
ORPHEK PROVIDES CUSTOMIZATION LED RATIOSFOR ALL
ITS CLIENTS UPON REQUEST. ANY CUSTOMIZATION MADE
FOR THE CLIENT WITH CLIENT’S AUTHORIZATION WILL NOT
BE OBJECT OF ANY CLAIM ARISING FROM THE RESULTS OF

THE CUSTOMIZATION ITSELF. ANY CUSTOMIZATION
ADVISED BY ANY OTHER PARTY RATHER THAN ORPHEK’S
CEO WILL NOT BE OBJECT OF ANY KIND OF CLAIM ARISING
FROM THE RESULTS OF THE CUSTOMISATION ITSELF.
ORPHEK DISCLAIMS ALL OTHER WARRANTIES, WHETHER
ORAL OR WRITTEN, EXPRESS OR IMPLIED, TO THE FULLEST
EXTENT ALLOWED BY APPLICABLE LAW. NO IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR
MERCHANTABILITY SHALL APPLY EXCEPT AS REQUIRED BY
APPLICABLE LAW. ORPHEK DOES NOT AUTHORIZE ANY
PERSON OR BUSINESS ENTITY, INCLUDING ITS
AUTHORIZED DEALERS, TO CREATE FOR IT ANY
OBLIGATIONS, LIABILITIES, OR OTHER WARRANTIES IN
CONNECTION WITH THIS PRODUCT.
ALL WARRANTIES ARE VOID IF THERE IS DAMAGE TO THE
ORPHEK LIGHTING PRODUCT THAT IS NOT A RESULT OF A
DEFECT IN THE MATERIALS OR WORKMANSHIP. THE SOLE
AND EXCLUSIVE REMEDY FOR ALL CLAIMS THAT YOU MAY
HAVE ARISING OUT OF OR IN CONNECTION WITH YOUR USE
OF THIS PRODUCT, WHETHER MADE OR SUFFERED BY YOU
OR ANOTHER PERSON AND WHETHER BASED IN
CONTRACT OR TORT, SHALL BE REPAIR OR REPLACEMENT
OF THE PRODUCT. IN NO EVENT WILL ORPHEK BE LIABLE
TO YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT,
GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL,
EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE
USE OR INABILITY OF TO USE THE PRODUCT (INCLUDING,
WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS
PROFITS, BUSINESS INTERRUPTION, LOSS OF
INFORMATION OR ANY OTHER PECUNIARY LOSS, DAMAGE
TO YOUR AQUARIUM OR ANY AQUARIUM INHABITANTS), OR
FROM ANY BREACH OF WARRANTY, EVEN IF ORPHEK HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN
NO CASE SHALL ORPHEK LIABILITY EXCEED THE AMOUNT
YOU PAID FOR THE PRODUCT.

Damages outside the warranty claim period:
If you have purchased your Orphek product from a dealer, local shop
or online shop, please contact them directly and check how they can
help you.
If you have purchased your product directly from us, contact
[email protected] with the same information that should be
provided within the valid warranty period and we will be happy to try
to help you, by sending you a proposal of assistance price.
For full Orphek Warranty Policies please enter to:
https://orphek.com/contacts/warranty/
Orphek Amazonas 500 Watts LED Safety Guide
Table of contents
1 First observations
2 Warning
3 Reduce Electrical Shock Risk
4 Epilepsy & Photosensitivity
5 More Tips for Injury Prevention
6 Important
7 Safety Instructions for Installing your Amazonas 500
Watts LED
8 Safety Instructions for Storing your Amazonas 500 Watts
LED

9 Safety Instructions for Cleaning your Amazonas 500
Watts LED
10 How to clean your Orphek Amazonas 500 Watts LED
First Observations
1.Only authorized and qualified electrical workers should install,
repair or perform maintenance on electrical equipments. But if
you still opt to do it yourself: Check basic safety guides for
electrical works before you install any electrical device by
yourself (there are plenty of them available in the internet!).
2.Make sure you are following the safety procedures to avoid
shock or fire hazard. If you are not sure that you can install your
Orphek Amazonas 500 Watts LED by yourself bring a
professional with the correct skills to assist you or install the
unit(s) for you. 3. Do not install your unit(s) near children or
animals. Also place the contents of the package far from their
reach. 4. Do not install your unit(s)with the help of a child or any
person who does not have the basic skills and does not know
the basic safety procedures for installing electrical apparatus.
Warning
Electrical shock can cause death.
Electrical shock can often cause internal damage that may not
be immediately apparent.
Never look directly into the LEDs. It may cause damage to your
eyes!
Reduce Electrical Shock Risk

1. Do not work on electrical equipment in a wet area or when
touching an object that may provide a hazardous earth ground
path. 2. Do not immerse your Orphek Amazonas 500 Watts LED
in water. If the unit(s) falls into the water, don’t reach for it! First
unplug it and then retrieve it. If electrical components of the
unit(s) get wet, unplug the unit(s) immediately. 3. Never rely on
your memory, read our manual and the safety guide before you
start to install your Orphek Amazonas 500 Watts LED and have
it with you for reference during installation.
If you have any questions, or did not understand any information
of this guide please kindly contact Orphek Customer Assistance
Team.
Epilepsy & Photosensitivity
Exposure to lights at certain intensities or to certain visual
patterns can trigger seizures. This condition is known as
photosensitive epilepsy. Many people are unaware that they are
sensitive to flickering lights or to certain kinds of patterns until
they have a seizure. Check with your doctor if you are concerned
about light patterns triggering seizures. Although the exposure to
blue light is very important to human beings, some people might
have sensitive skin or eyes from it. Check with your doctor if you
are concerned about a possible sensitivity.
More Tips for Injury Prevention
1. Test if your electricity is operating correctly in the area installed
and switches it off before installing your Orphek Amazonas 500
Watts LED. 2. Ensure equipment, tools and equipment are in
good operating condition. 3. Never use equipment, tools or
equipments that are in disrepair or not properly maintained. 4.
Ensure electrical components (switches, resistors, capacitors,
inductors, transistors, etc.) are appropriate for the circuit or
apparatus. 5. Never overload circuits. 6. Never leave
unprotected systems unattended. 7. Never place containers of
liquid on electrical systems. 8. Ensure to turn off the power
supply first before disassembling the circuit. 9. Use only tools
and equipment with non-conducting handles when working on
