PILE DRIVER ON CRAWLER
USE AND
MAINTENANCE MANUAL
Manual code: 170310
Language: english
Edition: 01/2017
IVth Series
Translations of the original instructions in italian language
Serial number

SUMMARY
1 GENERAL INFORMATION..........................................................................................................................1
2 TECHNICAL INFORMATION .....................................................................................................................5
3 SAFETY INFORMATION .......................................................................................................................... 18
4 HANDLING AND TRANSPORTATION ................................................................................................. 21
5 ADJUSTMENT INFORMATION.............................................................................................................. 26
6 INFORMATION FOR USE ........................................................................................................................ 31
7 MAINTENANCE INFORMATION ........................................................................................................... 76
8 BREAKDOWN INFORMATION............................................................................................................... 85
9 INFORMATION CONCERNING REPLACEMENTS............................................................................. 86
A ENCLOSURES............................................................................................................................................. 91
ANALYTICAL INDEX
A
Accessories ....................................................................................................................................................... 16
Adjusting of“PROXIMITY device” that stops the hammer’s down stroke .................................. 27
Adjusting the“laser device” that stops the hammer’s down stroke............................................. 29
Adjusting track tension................................................................................................................................ 26
Advice for handling and transportation ................................................................................................ 21
Aim of the manual ............................................................................................................................................1
Analytical index.................................................................................................................................................III
Annexed documentation ...............................................................................................................................3
Assembly of pile driver on the crawler................................................................................................... 25
Automatic verticality system - instructions for use.......................................................................... 65
B
Blade raiser - instructions for assembly, use, and maintenance.................................................... 59
C
Checking and cleaning the supplementary air lter......................................................................... 79
Cleaning and lubrication of hammer lifting chain............................................................................. 83
Controls to run the machine ...................................................................................................................... 33
Core borer - instructions for assembly, use, and maintenance...................................................... 45
D
Dashboard controls (base version) .......................................................................................................... 32
Declaration of conformity........................................................................................................................... 12
Description of the controls ........................................................................................................................ 31
Disclaimer notice...............................................................................................................................................3
Drilling machine - instructions for assembly, use, and maintenance.......................................... 48
Drill - instructions for assembly, use, and maintenance................................................................... 54
E
Electric generator - use and maintenance procedures..................................................................... 58
Emergency stop.............................................................................................................................................. 75
Engine identication........................................................................................................................................3
Environmental operating limits ................................................................................................................ 11
Environmental protection precautions.................................................................................................. 20
F
Fire-prevention and rst aid measures................................................................................................... 20
G
Gas emissions .................................................................................................................................................. 11
General description..........................................................................................................................................5
General safety warnings .............................................................................................................................. 18
Glossary of terms...............................................................................................................................................4

Gripper for metal pile extraction - instructions for assembly, use, and maintenance .......... 43
H
Handling and transport safety precautions.......................................................................................... 19
Hose check........................................................................................................................................................ 81
Hydraulic oil level check .............................................................................................................................. 82
I
Information and safety signs.........................................................................................................................8
Intended uses .....................................................................................................................................................6
L
Lifting the machine ....................................................................................................................................... 22
Lifting the pile driver..................................................................................................................................... 23
Lifting the truck............................................................................................................................................... 22
Lighting - instructions for working at night or in poor visibility conditions............................. 73
Long out-of-use periods.............................................................................................................................. 74
Lubricant comparison table ....................................................................................................................... 84
Lubrication diagram...................................................................................................................................... 78
M
Machine cleaning........................................................................................................................................... 83
Magnets - instructions for assembly, use, and maintenance ......................................................... 69
Main parts ............................................................................................................................................................5
Maintenance register..................................................................................................................................127
Manufacturer and machine identication details.................................................................................2
N
Nut and bolt check ........................................................................................................................................ 79
Nuts and bolts tightening torques chart............................................................................................... 84
O
Operational stop............................................................................................................................................. 75
Operation controls......................................................................................................................................... 34
Operator training...............................................................................................................................................6
Overall dimensions........................................................................................................................................ 10
P
Pile driving procedure .................................................................................................................................. 40
Pointed bit - instructions for assembly, use, and maintenance..................................................... 62
Procedure for getting on and o the transport means.................................................................... 23
Procedure for use of the macro tilt .......................................................................................................... 42
R
Re-commissioning......................................................................................................................................... 74
Refuelling .......................................................................................................................................................... 74
Replacing hosing............................................................................................................................................ 88
Replacing supplementary air lter cartridges ..................................................................................... 87
Replacing the chain....................................................................................................................................... 89
Replacing the delivery line lter cartridge (high pressure)............................................................. 87
Replacing the discharge lter cartridge (low pressure) ................................................................... 86
Replacing the stroke plate .......................................................................................................................... 89
Replacing the track reduction gear oil ................................................................................................... 88
Residual risks.......................................................................................................................................................6
S
Safety advice concerning use.................................................................................................................... 31
Safety advice for maintenance.................................................................................................................. 76
Safety advice for the adjustments............................................................................................................ 26
Safety advice in case of faults .................................................................................................................... 85
Safety advice in case of replacements.................................................................................................... 86
Safety devices ....................................................................................................................................................7
Safety instructions for adjustment and maintenance ...................................................................... 19

Scrapping the machine................................................................................................................................ 90
Shifting on slopes procedure..................................................................................................................... 39
Shifting procedure......................................................................................................................................... 38
Sound emissions............................................................................................................................................. 10
Starting the engine........................................................................................................................................ 36
Starting the engine with the auxiliary battery .................................................................................... 37
Summary .............................................................................................................................................................III
Supplements.................................................................................................................................................... 17
System for adjusting/reducing the hammer drill frequency - instructions for use................ 67
System for measuring the distance between the piles - instructions for assembly, use,
and maintenance ........................................................................................................................................... 71
T
Technical assistance procedure....................................................................................................................3
Technical characteristics.................................................................................................................................9
Track gearmotor oil level check ................................................................................................................ 81
Track tension check ....................................................................................................................................... 82
Transportation procedure........................................................................................................................... 21
U
Unauthorised uses............................................................................................................................................6
Use and operation safety precautions.................................................................................................... 18
Use in cold environmental conditions.................................................................................................... 35
V
Versions.............................................................................................................................................................. 13
W
Warranty ...............................................................................................................................................................3

English language 1Use and maintenance
GENERAL INFORMATION 1
Aim of the manual
This manual, which is an integral part of the machine, has been prepared by the manufac-
turer to provide the operator with the necessary information and criteria for the use and
maintenance of the machine.
The original instructions are provided by the manufacturer in English. To meet legal or sales
requirements, the manufacturer may provide the instructions in other languages.
Certain illustrations in the manual show the machine with the safety devices and/or guards
removed only in order to make it easier to understand the operations to be performed. The
machine must never be used without the safety devices or guards tted.
The pictures may dier from the actual machine conguration, but this does not aect the
instructions.
The manufacturer reserves the right to make changes to the manual without prior notice,
with the exception of changes concerning the level of safety.
The manual must be kept, for future reference, until the machine is scrapped.
If the machine is sold, the seller is required to pass on the manual to the new owner.
In the case of discordant information between the machine manual and the attached man-
uals, the machine manual must be considered valid.
The symbols shown in this manual are designed to highlight the operations involving a
certain level of risk in safety terms or important information.
DANGER
This indicates information or procedures which, if not strictly followed, cause death
or serious personal injury.
WARNING
This shows information or procedures which, if not followed, may cause death or seri-
ous personal injury.
CAUTION
This shows information or procedures which, if not followed, may cause slight per-
sonal injury.
NOTICE
This shows information or procedures which are important to follow in order to pre-
vent malfunctions or physical damage.

UN21-0512AP
A
N
B
CD
EF
GH
LM
X
Y
W
Z
R
English language 2Use and maintenance
GENERAL INFORMATION 1
Manufacturer and machine identication details

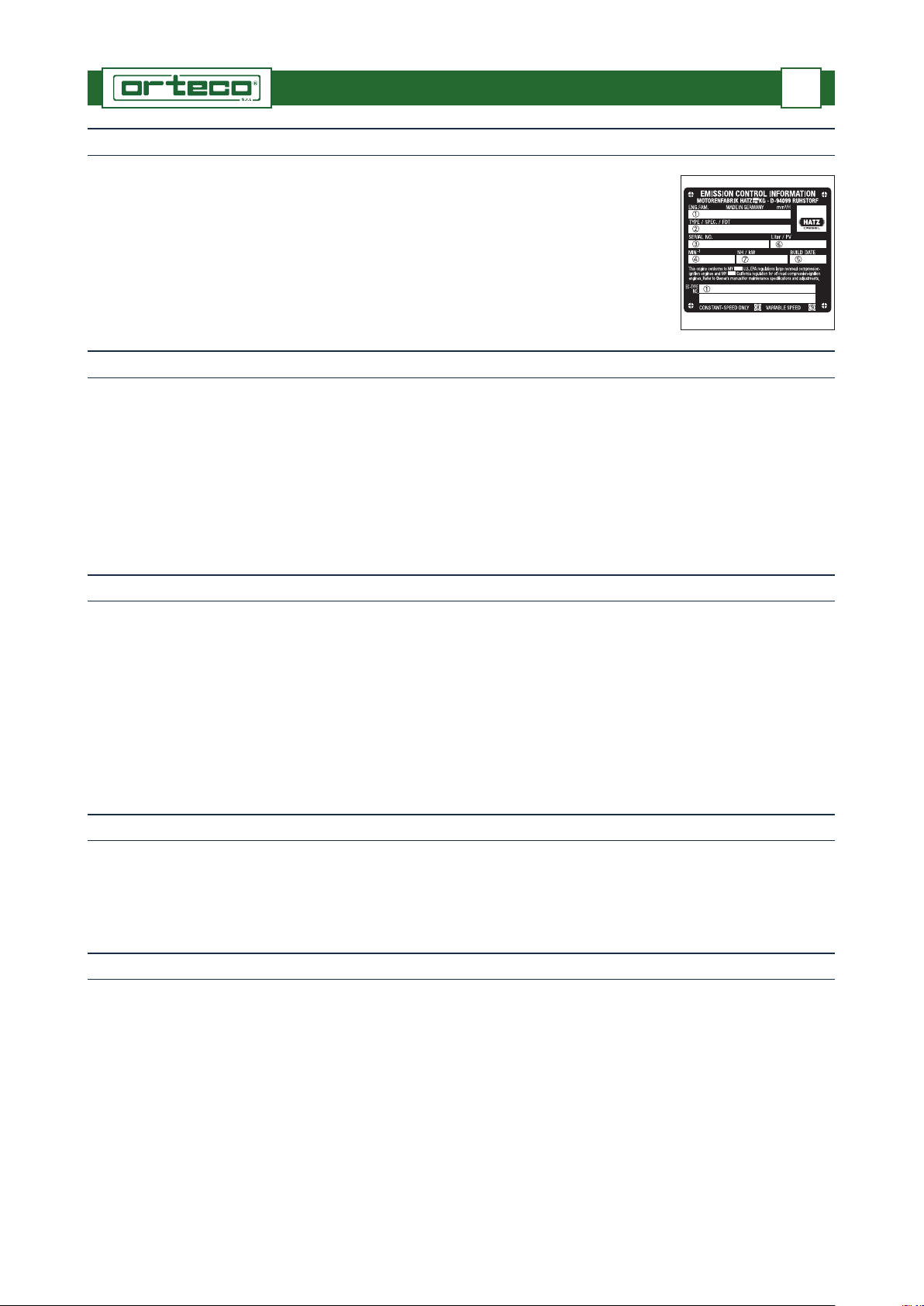

The picture shows the identication plate and the position of the serial numbers of the
units that make up the machine.
The plate contains all the information to identify the machine and the manufacturer.
Machine identication plate
A) Manufacturer’s details
B) Machine model
C) Type of machine
D) Serial number
E) Year of manufacture
F) Maximum pressure
G) Required oil ow
H) Engine power
L) Electric voltage
M) Overall weight
N) “CE” marking
R) Engine identication plate
Punching
The following serial numbers are punched on the machine.
W) Undercarriage serial number
X) Hydraulic hammer serial number
Y) Pile driver serial number
Z) Tracked truck serial number

UN21-0513AP
English language 3Use and maintenance
GENERAL INFORMATION 1
Engine identication
Engine identication data is shown on the identication plate applied to the engine.
For the meaning of the data contained on the plate see the engine manufacturer’s use and
maintenance manual.
Technical assistance procedure
For technical assistance (machine malfunction, failure, etc.) contact the nearest technical
assistance service or the manufacturer.
When requesting technical assistance, the data shown on the machine’s identication plate,
the work hours shown on the hour meter and the type of failure must be reported.
For motor technical assistance (engine malfunction, failure, etc.) contact the nearest techni-
cal assistance service of the engine manufacturer (see enclosed manual).
Disclaimer notice
The manufacturer cannot be held responsible for the following:
- use of the machine by untrained and/or unauthorised personnel;
- improper use of the machine;
- failure to carry out maintenance;
- unauthorised modications or repairs;
- use of non-original spare parts or parts not designed specically for the model con-
cerned.
Warranty
The warranty clauses are specied in the sales contract valid at the time of purchase of the
machine.
Annexed documentation
The following documentation is supplied to the Customer together with the use and main-
tenance manual.

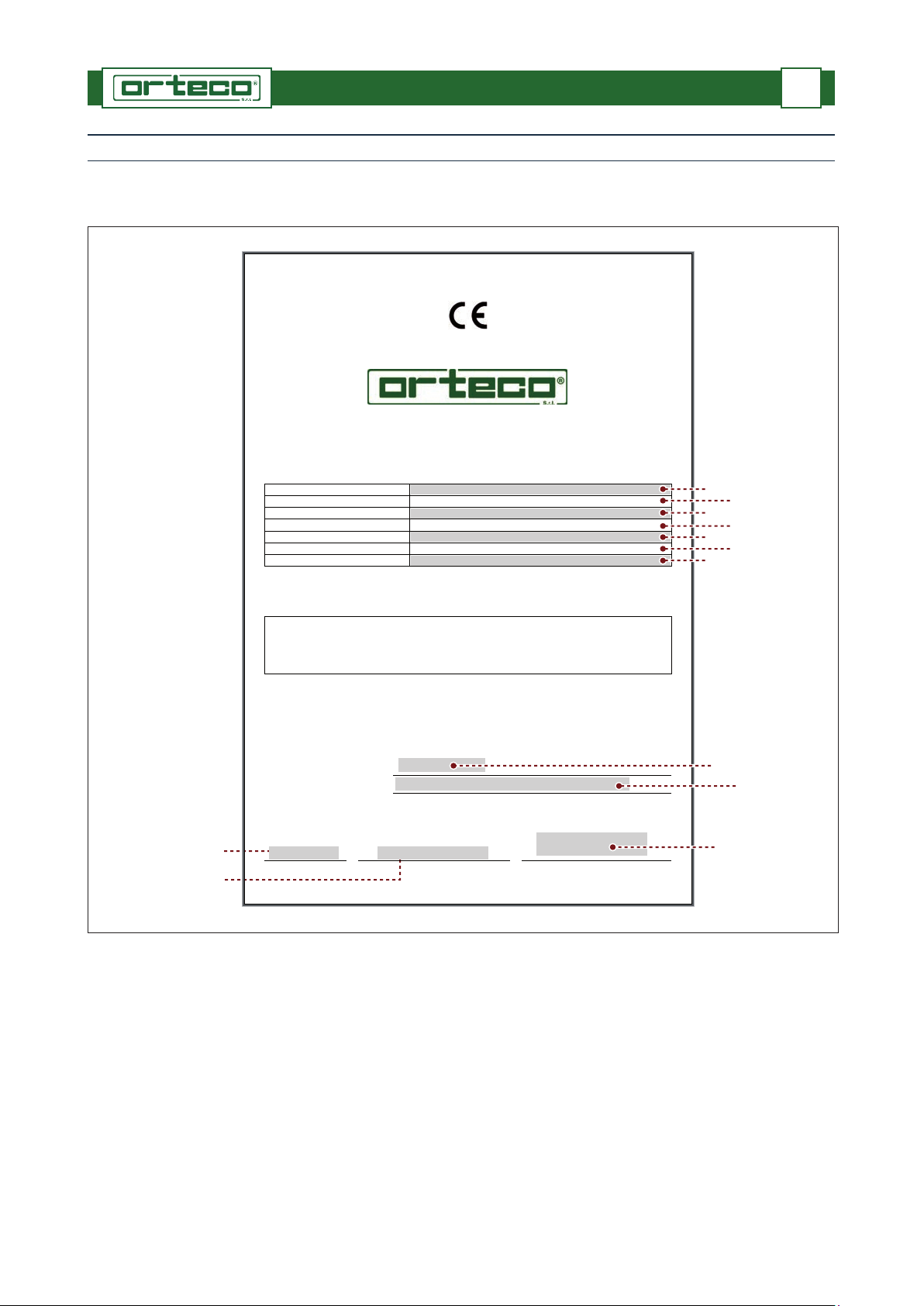

- “CE”declaration of conformity of the machine
- Engine maintenance booklet
- Safety data sheets for fuel and lubricants.

English language 4Use and maintenance
GENERAL INFORMATION 1
Glossary of terms
Version: type of machine that features technical and performance dierences with respect
to the standard model.
Accessory: unit that increases the machine’s functionality for specic operations.
The accessory must be requested by the customer when placing the order.
Supplement: component or unit that completes the machine, which is not included in the
standard model.
The supplement must requested by the customer when placing the order.
Routine maintenance: the set of interventions needed to guarantee the machine a long
working life, in good working order, and to ensure safety requirements are always met.
Special maintenance: set of operations that are carried out in case of a sudden failure to
restore the initial operating conditions.
Operator: trained person who has been authorised by the respective manager.
It is the operator's duty to ensure the operational tasks and daily routine maintenance out-
lined in this manual are carried out safely.
Maintenance engineer: trained person who has been authorised by the respective man-
ager.
It is the maintenance engineer's duty to ensure the routine maintenance work on the ma-
chine requiring specic technical skills is carried out safely.
The procedures to follow for such work are described in this manual.
Specialist technician: person appointed and authorised by the manufacturer or by the
agent thereof.
It is the specialist technician's duty to ensure work is carried out safely in terms of routine
and special maintenance work on the machine requiring specic technical skills or particu-
lar abilities.
The procedures to follow for such work are described in specic instructions.

UN21-0514AP
AC
B
H
D
G
F
L
E
M
M
English language 5Use and maintenance
TECHNICAL INFORMATION 2
General description
This machine has been designed and built to sink into the ground steel piles or wood piles
using a percussion hammer.
The machine is made up of a tracked truck for manoeuvres and a percussion hammer to
drive the pile into the ground.
The machine is manufactured in various versions where the main dierence is the percus-
sion power of the hammer; the machine is driven by hydraulic power generated by an en-
gine and a pump.
Other accessories can be installed on the machine to drill holes in conglomerates, in the
ground and in rocky ground.
One operator is sucient to operate the machine; said operator must have the necessary
requisites to use the machine in total safety.
Main parts
A) Pile driver base: it contains the slide for the transversal movement of the column.
B) Column: to position the hammer in the right position to drive the element into the
ground.
C) Percussion hammer: to sink the element into the ground.
D) Heat exchanger: to dissipate the excessive heat of the hydraulic oil.
E) Engine: to supply power to all main parts.
F) Fuel tank: to supply the engine.
G) Hydraulic oil tank: to supply the machine operations (shifting, lifting of hammer, etc.).
H) Track gearmotor: to move the left track.
L) Track gearmotor: to move the right track.
M) Tool box

English language 6Use and maintenance
TECHNICAL INFORMATION 2
Intended uses
This machine has been designed and built to sink metal piles for guard-rails, wood piles and
metal piles for photovoltaic systems.
Using special accessories approved by the manufacturer, it is possible to extract piles, make
holes and drill (see “Accessories”).
Any other use is considered improper and is therefore forbidden.
Unauthorised uses
The machine must be used in conformity with its technical characteristics; it is forbidden to
make modications or use the machine for improper uses.
It is prohibited to use of the machine in potentially explosive atmospheres.
It is prohibited to use the machine with equipment not approved by the manufacturer.
It is prohibited to use the machine to transport people.
It is prohibited to use the machine to lift people with the percussion hammer.
It is prohibited to use the machine to drive piles, make holes on manufactured goods or
drill the ground when the column is not perfectly vertical.
It is prohibited to drive the machine on the roads as it is not approved for road use.
It is prohibited to use the installed pile extraction clamp, corer and drill to drive piles.
It is prohibited to extract metal piles from concrete.
It is prohibited to activate the track movement or correct the position or tilt of the vertical
column during pile driving or extraction operations, when making holes on elements or
drilling the ground.
Operator training
The operator has the task of carrying out all the operations related to the use of the ma-
chine and ordinary maintenance operations in total safety.
Personnel authorised by the manufacturer must train the operator to transfer the knowl-
edge necessary to carry out the activity independently and without risks.
Residual risks
WARNING
Even if the safety regulations and information contained in this manual are respected
there are residual risks during the use of the machine; the main ones are described
below.
- Risk of crushing of lower limbs in tracks.
- Risk of crushing of upper limbs between the stroke plate and the pile to be driven.
- Thermal danger in case of contact with hot parts.
- Fuel leaking from the tank during machine use or during refuelling may lead to a
re risk.
- Risk of high-pressure spurts of uid. A pipe or hose breaking or high-pressure oil leak-
age may lead to injuries and skin infections.
- Risk of being run over. Due to the insucient visibility when the machine is reversed in
tight spaces with poor lighting there is the risk that objects, animals and people may be
run over.
- Risk of impact. The accidental and sudden lowering of the percussion hammer may seri-
ously injure the operator.

UN21-0515AP
F
B
G
H
A
D
D
E12
C
English language 7Use and maintenance
TECHNICAL INFORMATION 2
A) Emergency stop button: to stop the machine in the case of impending risk.
B) Lock valves: these are used to block the movement (extension/retraction) of the jack in
case of rupture of a pipe or drop in pressure. These valves are installed on the jacks (1)
and (2).
C) Maximum pressure valve: this limits maximum operating pressure to prevent over-
loading of the hydraulic system.
The valve installed on each hydraulic distributor is set and sealed by the manufacturer
during testing and must not be altered.
D) Safety guards: these protect the operator from accidental contact with moving tracks.
E) Rotating light: this signals the start up of the machine and is automatically activated in
the ignition phase.
F) Safety lock pin: this protects the operator from the accidental and sudden lowering of
the percussion hammer.
G) Rotating light (optional): signals the machine's reverse shift motion.
H) Buzzer (optional): signals with an intermittent sound the machine's reverse shift mo-
tion.
Safety devices
WARNING
On no account must you tamper with or by-pass the safety devices.
Keep all safety devices in good working order through regular maintenance.
The illustration shows the position of the safety devices on the machine.

UN21-0516AP
max
OIL
0000 036 144
LW A
LW A
4
6
16
7
7
9
5
3
10
23 HP
LP
24
18
9
8
1
21
7
9
8
8
9
2
9
9
2
15
22
15
3
54
6
16
12
20
8
1
11
19
7
9
17
E
M
E
R
G
E
N
Z
A
E
M
E
R
G
E
N
Z
A
max
OIL
24
26
81
27
25
14
English language 8Use and maintenance
TECHNICAL INFORMATION 2
Information and safety signs
WARNING
Always respect the safety instructions on the plates.
Check that the plates are always in place and legible; if they are not, replace them
with new ones, maintaining the original location on the machine.
The illustrations show the position of the safety and information signs on the machine. The
meaning of each sign is described below.
1) Risk of crushing of lower limbs in tracks.
2) Risk of limbs being crushed by the machine’s moving parts.
3) Ear defenders must be worn to protect the user's hearing from loud noises.
4) Safety helmets must be worn.
5) Personal protection equipment requirement: this sign shows the operator is required
to wear gloves.
6) Carefully read the instruction manual before operating the machine.

English language 9Use and maintenance
TECHNICAL INFORMATION 2
7) Attachment points of lifting hooks.
8) Operators and site assistants must keep a safe distance from the machine.
9) Greasing points.
10) Type of oil used for the hydraulic system.
11) Type of engine fuel.
12) Before starting the engine check that the emergency button is not pressed down.
14) This shows the sound pressure at the operator's work station.
15) This shows the machine's acoustic power level.
16) General hazard.
17) This shows the direction of movement and the relevant manoeuvres of the shifting
control levers.
18) This shows the direction of movement of the accelerator lever to increase or decrease
the number of revolutions of the engine.
19) This species the type of engine oil used.
20) This shows the fuel supply open/close turn valve.
21) This shows the battery cut-o device.
22) This shows the direction of movement and the relevant manoeuvres of the pile driver
control levers.
23) This shows the connection of the high pressure delivery hose.
24) This shows the connection of the low pressure draining hose.
25) This shows the maintenance instructions (see "General maintenance instructions" de-
scribed in the instruction manual provided with the engine).
26) This shows the emergency stop button.
27) This shows damage to the engine caused by insucient cooling.
Always start the engine with all the casings in place.
Technical characteristics
Machine model HD 800 HD 1000
Engine brand HATZ
Engine model 3L41C
Engine power kW 32,5
Engine speed rpm 2600
Hammer drill power J 830 1060
Stroke frequency strokes / minute 620 ÷ 1500 570 ÷ 1180
Working pressure MPa 18
Required oil ow l/min 95 110
Hydraulic oil tank capacity l 160
Fuel tank capacity l 60
Electrical system voltage VDC 12
Maximum longitudinal slope ° 8
Maximum transversal slope ° 8
Maximum wading depth mm 357
Maximum speed km/h 2,93 ÷ 5,52 3,39 ÷ 6,39
Maximum towable load kg 1350
Stroke plate weight kg 25 35
Crawler weight (without accessories) kg 2525
Pile-driver weight (without accessories) kg 1375 1525
Overall weight of machine (tracked truck and pile driver) (without
accessories) kg 3900 4050

UN21-0517AP
N
A
M
P
P
B
C
G (*)
H(*)
F(*)
Q
L2
L1
D(*)
E(*)
English language 10 Use and maintenance
TECHNICAL INFORMATION 2
Overall dimensions
The illustration shows the general dimensions of the machine when operating and when
resting.
(*) Dimensions of the machine without accessories or supplements.The dimension (G) cor-
responds to the maximum length of the pile to be driven into the ground.
Sound emissions
The sound level, measured in operating condition when driving metal piles, is shown in the
table.
The measurement has been carried out in compliance with the ISO 6395:1988, EN ISO
3744:1997, UNI EN ISO 11201:2010 standards using a ONO SOKKI phonometer model LA
4350.
Model A B C D E F * G * H * L1L2M N P Q
(mm) (°)
HD 800
2370 3355 1930 2570 3570 320 2830
4155
125 45
2800
2125 8 10
HD 1000 4265 2850
HD 800 HD 1000
Weighted acoustic power level (A) guaranteed (LwAG) dBA 126 126
Weighted acoustic power level (A) at the operator's workstation (LpAG) dBA 107 109

English language 11 Use and maintenance
TECHNICAL INFORMATION 2
The operator and nearby people must wear personal protective equipment (ear de-
fenders, ear plugs, etc.) to reduce the noise level received or eventually work shifts
that foresee interruptions must be programmed to reduce the exposure to noise.
Gas emissions
During operation and/or when standing still, the machine emits the toxic gases listed be-
low.
- Carbon monoxide generated by the exhaust of the engine.
- Hydrogen generated by the engine ignition battery.
- Inammable and explosive fumes produced by the engine fuel.
Environmental operating limits
The machine works correctly at a temperature between -20 and +40 °C, with 80% maxi-
mum relative humidity.

English language 12 Use and maintenance
TECHNICAL INFORMATION 2
A) General description
B) Function
C) Model / trade name
D) Type / trade name
E) Serial number
F) Year of manufacture
G) Hammer impact energy
H) Name of the legal person authorised to compile the technical le
L) Technical le storage area
M) Date of declaration
N) Place of issue of the declaration
P) Signature of the person authorised to write the conformity declaration
Declaration of conformity
The picture shows a copy of the “EC”declaration of conformity; the original is issued by the
manufacturer together with this manual.
UN21-0519AP_GB
M
N
D E C L A R A T I O N O F C O N F O R M I T Y
( A nnex I I A t o D i r e c t i v e 2 006/42 / C E )
The Manufacturer
Orteco S.r.l.
Via 2 Giugno, 19 - 40011 Anzola dell’Emilia (BO) – Italia
Tel. [phone] - Fax [phone]
of the Machine:
DESCRIPTION
FUNCTION
MODEL /COMMERCIAL NAME
TYPE /COMMERCIAL NAME
SERIAL NUMBER
YEAR OF MANUFACTURE
IMPACT ENERGY
declares, under its own responsibility, that the aforesaid machine complies with the
provisions of the following directives and subsequent amendments thereto:
2 006/ 42 / C E M a c h i n e r y D i r e c t i v e
2 014/ 30/ U E E l e c t r o m a g n e t i c C o m p a t i b i l i t y D i r e c t i v e
D . L g s . 2 62 / 2 002
2 000/ 14/ C E
N o i s e D i r e c t i v e , D e f i n i t i o n 42 , A n n e x I , A n n e x V p r o c e d u r e
M e a s u r e d s o u n d p o w e r l e v e l : d B ( A )
G u a r a n t e e d s o u n d p o w e r l e v e l :
d B ( A )
Standards applied:U N I E N I S O 12 100: 2 010
declares, furthermore, that the following party (based within the European
Union) is authorised to prepare the technical documentation file:
First name and
surname
Address
Date Place Signature
Legal Representative)
P
L
H
A
C
E
G
B
D
F

UN21-0520AP
A B C D
UN21-0521AP
A
2440
4765
E
English language 13 Use and maintenance
TECHNICAL INFORMATION 2
Versions
A) Additional extension skid: this is used to drive in piles or to use accessories at a dis-
tance from the side of the tracked crawler which is further than possible with the stand-
ard machine.
B) 4.5 m sliding vertical column: this is used to drive in piles or to use accessories which
are longer than the standard machine (up to 4500 mm).
C) Oversize xed vertical column: this is used to drive in piles or to use accessories which
are longer than the standard machine.
The manufacturer oers four dierent lengths: 3000 mm, 3500 mm, 3800 mm, and 4000
mm.
D) Macro tilt: this is used to drive in piles or to use accessories in perfectly vertical manner
when the ground is sloping and the standard machine cannot oset the slope with
hydraulic manoeuvres.
Horizontal additional extension skid
The machine is equipped with a counter-
weight (A) to prevent transverse overtur-
ning.
Do not use the machine without the
counterweight.
On sloping ground, do not exceed the
maximum longitudinal and transverse
slope limits stated in the "Specications".
The skid is extended using lever (E) (see
"Operating Controls").
Carry out scheduled maintenance as sta-
ted by the manufacturer (see "Scheduled
maintenance charts").
The chart shows the increase in weight.
Description Weight (kg)
Additional extension skid 170
Counterweight 142

UN21-0522AP
E
410 (*)
4510 (*)(**)
5835 (HD800) - 5945 (HD 1000) (*)
H
D
UN21-0523AP
A(*)
B(*) (**)
C(*)
E
D
English language 14 Use and maintenance
TECHNICAL INFORMATION 2
4,5 m sliding vertical column
The machine is equipped with a coun-
terweight (E) to prevent transverse over-
turning.
Do not use the machine without the
counterweight.
On sloping ground, do not exceed the
maximum longitudinal and transverse
slope limits stated in the "Specications".
D) Four-position lever (including two
permanent-contact positions): this
is used to raise and lower the hammer
drill (see "Operating Controls").
H) Lever: this is used to raise and lower
the entire column unit (see "Operat-
ing Controls").
Carry out scheduled maintenance as
stated by the manufacturer (see "Sched-
uled maintenance charts").
The chart shows the increase in weight.
(*) Dimensions of the machine without accessories or supplements.
(**) The dimension corresponds to the maximum length of the pile to be driven
into the ground.
Description Weight (kg)
Sliding column 320
Counterweight 142
Oversize xed vertical column
The machine is equipped with a coun-
terweight (E) to prevent transverse over-
turning.
Do not use the machine without the
counterweight.
On sloping ground, do not exceed the
maximum longitudinal and transverse
slope limits stated in the "Specications".
D) Four-position lever (including two
permanent-contact positions): this
is used to raise and lower the hammer
drill (see "Operating Controls").
Carry out scheduled maintenance as
stated by the manufacturer (see "Sched-
uled maintenance charts").
The chart shows the dimensions and the
increase in weight.
(*) Dimensions of the machine without accessories or supplements.
(**) The dimension corresponds to the maximum length of the pile to be driven
into the ground.
Model A
(mm)
B
(mm)
C(mm) Weight
(kg)
HD 800 HD 1000
3000 320 3030 4355 4465 175
3500 430 3530 4855 4965 215
3800 730 3830 5155 5265 215
4000 900 4000 5325 5435 220
Counterweight - - - - 142
