FORZA ECLIPSE 6
INSTALL GUIDE

FORZA ECLIPSE 6 INSTALL GUIDE
Safety Instructions Installation
Mounting Options
1. Please read the instructions carefully before installation and use. Keep the manual for future
reference.
2. When installing the speaker outside do not submerge or place them in direct contact with
water ( ponds, water features or fountains).
3. Handle with care, damage to the speaker may occur if dropped or mishandled - resulting in
loss of sound or poor sound quality.
4. Use only approved and certied wiring in your installation. Do not stretch or place the wire
where it may come in contact with sharp objects.
5. Never overdrive your speakers to the point of distortion and always reduce the volume level
prior to switching input sources (FM to CD etc...).
6. Prior to removing any cables ensure all power to your amplier and other components is
turned OFF.
7. Turn off the power to the speaker when unused for any long period of time.
The FORZA 6 Eclipse can be mounted in various ways shown below to suit your application
and installation needs.
Dig a hole 12” in diameter and 6” deep. (If installing with
optional stake, dig a hole 12” in diameter and 16” deep.)
Level the speaker in the hole then backll with clean sand
or soil being sure that the grill drain hole remains at least
1” above grade. Compact the sand/soil to make sure the
speaker will not shift or settle over time.
Note: Hard to dig areas may benet from a gas-powered
handheld 12” auger (may be rented locally).
Spacing Guidelines
Maximum distance between speakers: 20’
Minimum distance between speakers: 8’
Speaker Coverage Guidelines
Each Eclipse speaker can cover 50-150 sqft of listening
space.
Creating Listening Areas
For larger listening areas, surround the area with speakers
equal distance from the prime listening position,
crisscrossing or alternating the left and right channels.
For smaller listening areas, simply aim speakers in toward
the listening positions.
Speaker Placement:
Above Ground - Open area
Large and open sound stage with a clean and leaner
frequency balance.
Above Ground - Near a rear wall surface
Large and open sound stage with a clean and fuller
frequency balance.
Buried Vertical
Medium sound stage with a heavier bass balance.
Connect
Be sure to use the correct polarity between the amplier and
speaker to ensure proper sound quality and performance.
Positive to Positive & Negative to Negative
Tranformer settings are adjustable by aligning the pigtail
wire connector with the corresponding letter on the back
of the speaker. Use the white indicator line on the plug
to select the correct setting for your application. The
white line should be pointing at the desired setting when
plugged in. (see settings chart)
The example below shows the connector in the 8 Ohm
position. NOTE: the white indicator line is pointing at the
8 Ohm symbol on the back of the speaker.
Speaker Red - Positive
Speaker Back
Panel
Pigtail Wire
Connector
White
Indicator
Blue - Negative
Amplier
FORZA ECLIPSE 6 INSTALL GUIDE

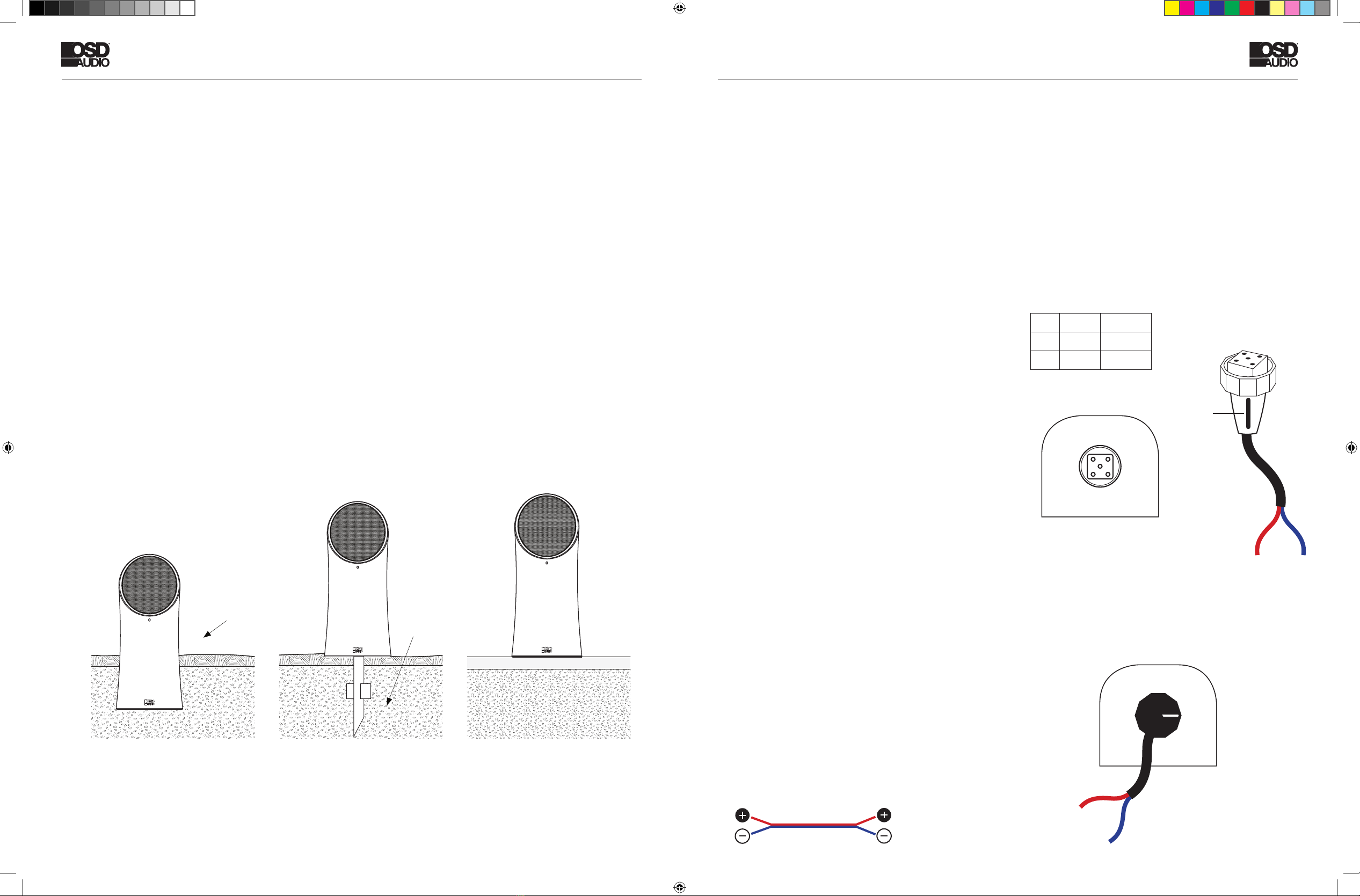

Direct Burial Partial Burial Hardscape/Deck
Direct Burial Transformer Settings
Example
Landscape
Stake
Drain Hole
at least 1”
above grade
Landscape
Stake &
Theft Guard
Landscape
Stake
Drain Hole
at least 1”
above grade Landscape
Stake &
Theft Guard
A
A
C
C
Settings Chart
B
B
8Ω
8Ω
100V 70V
AX 60W
B60W 30W
C30W 15W

FORZA ECLIPSE 6 INSTALL GUIDE
Specications
Warranty Information
All OSD AUDIO outdoor speakers have (1) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany
all claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either
parts or labor
OSD AUDIO may replace returned speakers with a product of equal value and performance. In such cases, some modications to the mounting may
be necessary and are not OSD AUDIO’s responsibility.
For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD
AUDIO. The unit must be returned to OSD AUDIO at the owner’s expense and with prior written permission. Accidental damage and shipping damage
are not considered defects, nor is damaged resulting from abuse or from servicing performed by an agency or person not specically authorized in
writing by OSD Audio
OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD
AUDIO product purchased from an unauthorized dealer or other source, including retailers, mail order dealers and online sellers will not be honored or
serviced under existing OSD AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO
shall void the warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be
made on the basis of the retail value of the parts and labor. To return for repairs, you must email customer service at [email protected] for a
Returned Merchandise Authorization (RMA) number then the unit must be shipped to OSD AUDIO at the owner’s expense, along with a note explaining
the nature of service required. Be sure to pack the product(s) in a corrugated container with at least 3 inches of resilient material to protect the unit from
damage in transit.
This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have
been altered or modied • Any product whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and
maintenance.
FORZA Eclipse 6 Manual 3/21
OSD Audio | Brea, CA |
Woofer 6.5” PP Cone W/ Santoprene Surround
Tweeter 1” Titanium Dome
Power 120 Watts Max
Freq Response 40 - 20kHz
Dispersion 120° @ -6dB
Sensitivity 89 dB
Transformer 100V- 60W/ 30W 70V- 60W/ 30W/ 15W
Impedance 8 Ohm
Dimensions (HxD) 22.5in x 9.6in
Weight 10.6 lbs
9.6”
22.5”
