OSD Audio Black BK-R62A User manual

BLACK SERIES INSTALL GUIDE
Preparation:
Installation:
Tools For Installation Speaker Wire Guide
Considerations
Cut Out
Placement
- Pencil
- Drill
- Tape Measure
- Wire Cutter
- Phillips Screwdriver
- Utility Knife
- Safety Eye Wear
- Gloves
- Sandpaper
- Where is the best place to install the speakers?
- Where do the speakers sound the best?
- Separate the speakers 6 - 10 feet apart.
- (For Ceiling LCR models only) Place speakers with the 15°
angled woofer pointed towards the main listening area.
- If you intend to paint the grilles, do so before installation.
NOTE: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw.
Trace along the included template. Cut along the traced line using a
drywall saw or rotary drill. Use a piece of sandpaper to sand down the
cut out edge for a smoother contour. (See Diagram 2.)
There are many options for proper speaker placement depending
upon speaker type and application. It’s important to carefully plan the
placement of your speakers, as installation requires that you cut a
hole in your wall or ceiling.
(See Diagram 1.) Typical speaker placement for a 5.1 and 7.1
speaker system.
18AWG minimum - for distances up to …………………. 10 ft
16AWG - from …………………………………..…... 10 to 50 ft
14AWG - from …………………………………...… 50 to 100 ft
TV
Diagram 2
Diagram 1
Black manual r9 Eds specs.indd 1 8/24/18 9:35 AM

BLACK SERIES INSTALL GUIDE

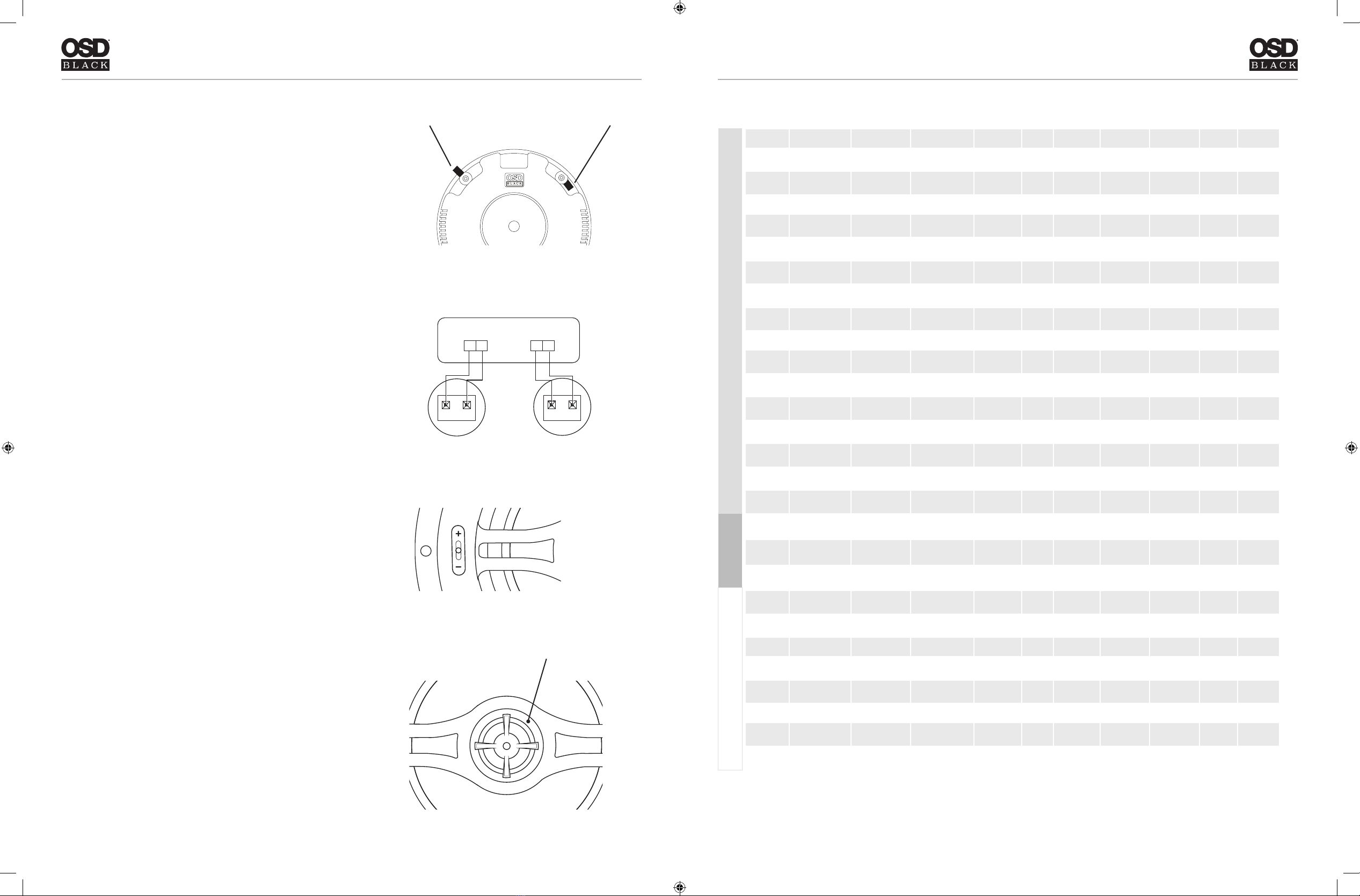

Mounting
Connection
Adjustment
Pivoting Tweeter
Tighten the mounting brackets by simply turning the screws on
the front of the speaker bafe slowly clockwise. The quick-turn
mounting system and frame will “sandwich” or clamp around the
dry-wall to hold the speaker securely in place once fully tightened
to the locked position.
(See Diagram 3.)
When connecting any speakers to the amplier or receiver, always
make sure the power is off. Locate the connection terminals on the
back of your receiver or amplier. Always make sure to connect au-
dio out from the back of your receiver or amplier to the speakers.
(See Diagram 4.)
NOTE: Not all Amplier/Receivers can safely play more than one
pair of speakers at once. Please refer to your owner’s manual for
impedance and wattage compatibility.
On select models ( *Performance, Reference ) of OSD Black
Series, a front mounted 3 position ±3dB treble contour switch can
be used to tailor high frequencies according to speaker placement
or the listeners preference.
(See Diagram 5.)
* Excludes Shallow Mount Series
Your Black series speaker comes from the factory with the
tweeter centered in the neutral position. This will provide the
smoothest response. However, select models come with a
pivoting tweeter so you can focus the sound directly towards the
listening area if needed. In order to do this, carefully press on the
edge of the tweeter bafe in the direction you wish to focus the
sound. (See Diagram 6.)
CAUTION: When adjusting the pivoting tweeter be sure not to
touch the dome as you may cause damage to the speaker.
SPECIFICATIONS
Left Out
Left Speaker
Rec/Amp
Right Out
Right Speaker
- -
+ +
--
++
Press Here to
Pivot Tweeter
Open PositionLocked Position
Diagram 3
Diagram 4
Diagram 5
Diagram 6
- IN +
Model Description Woofer Tweeter Freq
Response Power Sensitivity Impedance Dimension Depth Cut Out
R51 Ceiling Speaker
Acoustic
5.25” Poly W/
Rubber Surround
½” Pivoting
Silk Soft Dome 65-20K 75W 85dB 8 ohm 8.2” 3.81” 6.6”
R52 Ceiling Speaker
Performance
5.25” Graphite W/
Rubber Surround
¾” Pivoting
CatEye Parachute Silk
Soft Dome
55-20K 90W 85dB 8 ohm 8.2” 3.81” 6.6”
R53 Ceiling Speaker
Reference
5.25” Carbon Fiber
W/ TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
50-20K 100W 87dB 8 ohm 8.2” 3.81” 6.6”
R61 Ceiling Speaker
Acoustic
6.5” Poly W/ Rubber
Surround
½” Pivoting
Silk Soft Dome 55-20K 100W 86dB 8 ohm 9.3” 3.93” 7.8”
R62 Ceiling Speaker
Performance
6.5” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
40-20K 120W 87dB 8 ohm 9.3” 3.93” 7.8”
R63 Ceiling Speaker
Reference
6.5” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
38-20K 150W 89dB 8 ohm 9.3” 3.93” 7.8”
R62DT Stereo Ceiling
Speaker
Performance
6.5” Graphite W/
Rubber Surround
Dual ¾” Pivoting
CatEye Parachute Silk
Soft Dome
40-20K 120W 88dB 8 ohm 9.3” 3.93” 7.8”
R62A Angled Ceiling
Speaker
Performance
6.5” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
40-20K 120W 87dB 8 ohm 9.8” 4.72” 8.3”
R63A Angled Ceiling
Speaker
Reference
6.5” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
38-20K 150W 89dB 8 ohm 9.8” 4.72” 8.3”
R81 Ceiling Speaker
Acoustic
8” Poly W/
Rubber Surround
½” Pivoting
Silk Soft Dome 50-22K 120W 91dB 8 ohm 11” 4.33” 9.5”
R82 Ceiling Speaker
Performance
8” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
38-20K 150W 88dB 8 ohm 11” 4.33” 9.5”
R83 Ceiling Speaker
Reference
8” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
28-22K 175W 91dB 8 ohm 11” 4.33” 9.5”
R83DT Reference
Stereo Ceiling
Speaker
8” Carbon Fiber W/
TPR Surround
Dual ¾” Pivoting
Ceramic Coated
Aluminum Dome
40-20K 150W 86dB 8 ohm 11” 4.33” 9.5”
R82DT Performance
Stereo Ceiling
Speaker
8” Graphite W/
Rubber Surround
Dual ¾” Pivoting
CatEye Parachute Silk
Soft Dome
45-20K 150W 87dB 8 ohm 11” 4.33” 9.5”
R82A Performance
Angled Ceiling
Speaker
8” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
38-20K 150W 88dB 8 ohm 11” 5.4” 10”
R83A Reference
Angled Ceiling
Speaker
8” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
28-22K 175W 91dB 8 ohm 11” 5.4” 10”
R103 Reference
Ceiling Speaker
10” Carbon Fiber W/
TPR Surround
1” Pivoting Titanium
Dome W/ 2" Aluminum
Midrange
24-22K 200W 91dB 8 ohm 14.1” 6.18” 12.3”
R62 SM Performance Shallow
Mount Weather Resis-
tant Ceiling Speaker
6.5” PP Cone 1” PEI Dome 75-22K 60W 86 dB 8 ohm 9.3” 3.1” 7.7”
R82 SM Performance Shallow
Mount Weather Resis-
tant Ceiling Speaker
8” PP Cone 1” PEI Dome 70-20K 100W 88 dB 8 ohm 11” 3.1” 9.4”
R62SS Performance Super
Shallow Mount Ceiling
Speaker
6.5” Composite
Glass Fiber Cone 1” PEI Dome 55-22K 100W 88 dB 8 ohm 9.3” 2.12” 8.18”
T52LCR Reference
In-Wall LCR
Dual 5.25” Graphite
W/ Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
38-22K 150W 91dB 8 ohm 15.9” x 8.2” 3.14” 14.4” x 6.7”
T53LCR In-Wall LCR
Reference
Dual 5.25” Carbon
Fiber W/ TPR
Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
38-22K 150W 91dB 8 ohm 15.9” x 8.2” 3.14” 14.4” x 6.7”
T61 In-Wall Speaker
Acoustic
6.5” Poly W/ Rubber
Surround
½” Pivoting
Silk Soft Dome 65-20K 100W 89dB 8 ohm 12.4” x 9” 3.62” 10.8” x 7.4”
T62 In-Wall Speaker
Performance
6.5” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
55-22K 120W 87dB 8 ohm 12.4” x 9” 3.62” 10.8” x 7.4”
T63 In-Wall Speaker
Reference
6.5” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
38 -20K 150W 89dB 8 ohm 12.4” x 9” 3.62” 10.8” x 7.4”
T81 In-Wall Speaker
Acoustic
8” Poly W/ Rubber
Surround
½” Pivoting
Silk Soft Dome 50-20K 120W 89dB 8 ohm 14.4” x 10.4” 3.81” 12.9” × 8.8”
T82 In-Wall Speaker
Performance
8” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
38-22K 150W 88dB 8 ohm 14.4” x 10.4” 3.81” 12.9” × 8.8”
T83 In-Wall Speaker
Reference
8” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
28-22K 175W 91dB 8 ohm 14.4” x 10.4” 3.81” 12.9” × 8.8”
CEILING SPEAKERS
SHALLOW
MOUNT
IN-WALL SPEAKERS
NOTE: All specication and dimensions are subject to change without notice.
Black manual r9 Eds specs.indd 2-3 8/24/18 9:35 AM

All Optimal Speaker Design speaker products have Limited Lifetime Warranty against defects in materials and workmanship. Proof
of purchase must accompany all claims. During the warranty period Optimal Speaker Design will replace any defective part and
correct any defect in workmanship without charge for either parts or labor Optimal Speaker Design may replace returned speakers
with a product of equal value and performance. In such cases, some modication to the mounting may be necessary and are not
Optimal Speaker Designs responsibility.
For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be
performed by Optimal Speaker Design. The unit must be returned to Optimal Speaker Design at the owner’s expense and with
prior written permission. Accidental damage and shipping damage are not considered defects, nor is damaged resulting from
abuse or from servicing performed by an agency or person not specically authorized in writing by Optimal Speaker Design
Optimal Speaker Design sells products only through authorized dealers and distributors to ensure that customers obtain proper
support and service. Any Optimal Speaker Design product purchased from an unauthorized dealer or other source, including
retailers, mail over dealers and on-line sellers will not be honored or serviced under existing Optimal Speaker Design warranty
policy. Any sale of product by an unauthorized source or other manner not authorized by Optimal Speaker Design shall void the
warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases,
repairs will be made on the basis of the retail value of the parts and labor. To return for repairs, you must email customer service
at [email protected] for a Returned Merchandise Authorization (RMA) number# then the unit must be shipped to
Optimal Speaker Design at the owner’s expense, along with a note explaining the nature of service required. Be sure to pack the
speaker(s) in a corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit.
This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) •
Any products that have been altered or modied • Any product whose identifying number of decal, serial #, etc. has been altered,
defaced or removed • Normal wear and maintenance.
WARRANTY
Black Manual rev. 8/18
