OSTO SYK-608-2 User manual

Contents
Security Summary
Product Features
Accessories
Installaon and use
Product Descripon
Maintenance
Troubleshoong
Warranty Card
Security summary
To prevent power failure or malfunction of the oxygen concentrator. Oxygen users and patients
with urgency must be equipped with other alternative oxygen supply devices (such as oxygen
cylinders, oxygen bags, etc.). The device is suitable for oxygen supplementation, regardless of
life support or life extension! Warnings showed here is for properly and safely use of the
product, avoiding harm or damage to users or others.
Before installaon
To prevent damage during the transportation process, the oxygen concentrator must be placed
vertically and must not be inverted.
If the power supply voltage is unstable and exceeds 110 ±10%, please install a voltage regulator
before using.
Use a safety-qualified socket and a safety-certified wiring board.
The case can’t be disassembled by the Personnel without authorization from the company
How to place
Choose the most convenient room for your indoor oxygen concentrator. So It can be easily
moved from one room to another.
Do not place the oxygen concentrator in an environment where the airflow is blocked. The
oxygen concentrator should be placed in a ventilated place and protected from direct sunlight.
Distance from all sides to the wall ,Furniture or the similar items should be more than 20cm. To
avoid stacks of carpets, heaters, electric heaters or air ventilators, Do not place the oxygen
concentrator in a narrow range.
Oxygen concentrator must not be placed in the following environment: near heat sources and
sources of light, humidity, unobstructed, smog and pollution, too high or too low temperature.
Oxygen concentrator should be kept away from contaminants or smog.
Do not place debris and water oil containers on the top of the oxygen concentrator.
Do not place any debris on the bottom of the oxygen concentrator, and it is forbidden to place
the machine on a soft surface (such as a bed or a sofa) that will cause tilting or sinking, Prevent
shut-off or oxygen concentration decline from over temperature caused by blockage of inlet and
outlet .
Fire warning or explosion
Oxygen concentrator should be kept away from flammable and explosive occasions.
Oxygen is a combustion-supporting gas. Do not smoke while using, and keep away from
other combustible sources such as matches and cigarettes. Textiles and other materials that are
normally incombustible are susceptible to ignition and intense combustion in oxygen-enriched
air. Neglect of the warning may cause serious fire, property damage, and personal injury or
death.
The use of oxygen therapy requires special care to reduce the risk of fire. Some materials will
burn in the air. Other materials do not burn in the air but are easily ignited and burnt quickly in
oxygen-rich occasions. Considering From the safety point, it is necessary to keep the flammable
source away from the product and it is better to take it out of the room when the product is in use.
Oils, greases, or greasy substances contacting with oxygen under a certain pressure will
cause self-ignition and Fierce burn produce spontaneous combustion and violent combustion.
These materials must be kept away from oxygen concentrator, piping, connectors, and all other
oxygen devices.
There is Electric shock danger ,so it is not allowed to disassemble the machine. The
machine should be repaired by qualified maintenance personnel.
Please read the following content carefully before operating the product.
Warning and aenon
Legend
Warning
Caution
Content
Indicates that casualties may occur when used incorrectly
Indicates that personal injury or damage to the item may occur during incorrect use.
The mark indicates mandatory (things that must be observed). Specific mandatory
content in Or nearby by text or picture. The Left picture indicates "general coercion"
The mark indicates prohibition (things that are not allowed). Specific prohibited content in
Or the attachment is represented by text or a picture. The left picture indicates "general prohibition"
Important informaon
1
3
4
4
7
10
12
12
Page 2 of 13Page 1 of 13

Product Features
Summary
Application: The product is designed according to the standard of household appliances,
which can be used for home supplementation.
Health function: By oxygen inhalation, the body's oxygen supply can be improved to achieve
oxygen-reinforcing health care. Applicable to middle-aged and elderly people, poor physique,
pregnant women, students and other people with different degrees of physiological hypoxia, can
also eliminate fatigue after physical or mental energy consumption, restore physical function.
Working principle
The machine is powered by AC 110V, the air is the raw material, and use the French original
imported molecular sieve. The high-purity oxygen is obtained by the Pressure Swing Adsorption
(PSA) method at normal temperature.
Functional Characteristics
Intelligent control: LED screen, timing function, convenient to use, easy to operate.
Overheat protection: The pure oil-free compressor is equipped with a thermal protector. When
the working temperature of the compressor is too high, it will automatically stop working to give
better safety of the compressor and the whole machine.
Negative oxygen ion: Oxygen production simultaneously releases healthy negative ions,
which can improve ventilation better and enhance oxygen absorption rate. Complementing the
oxygen-producing function, it can enhance the immunity of the body, improve brain vitality and
cardiopulmonary function, and improve the quality of sleep.
Normal Operating condition
Ambient temperature range: 0℃~40℃
Relative humidity range: ≤80%
Atmospheric pressure range: 86kps~106kpa
When the temperature is lower than 0 ℃, the equipment should be placed in the normal working
environment for more than 4 hours before use.
Main technical indicaon
Model number: SYK-608-2
oxygen concentrator method: Pressure Swing Adsorption
Inhaling way: Ear hook oxygen inhalation、Nasal oxygen inhalation
Input: 150W
Rated Voltage: AC 110V/60Hz
Rated Current:1.2 A
concentration: 30%-90% (Adjustable)
Oxygen flow: 2-10L/Min
Oxygen pressure: 0.03-0.06L/MPa
Carbon Dioxide: Qualified according to the prescribed method
Carbon monoxide:Qualified according to the prescribed method
pH value: Qualified according to the prescribed method
Shape discrimination: Colorless gas, Odorless tasteless, combustion-supporting
Operating noise: ＜45dB
Product size: 315x213x309mm
Net weight: 6.5kg
Electrical Classification: Ⅱclass B
Display control: LED screen, Intelligent chip control, wireless remote control
Accessories:
①Earhook oxygen inhaler ②remote control ③Warranty Card(In the manual)
④Oxygen tube ⑤Nasal oxygen inhaler ⑥Power line ⑦Manual
Installment and use
Parts diagram and funcon introducon
SYK-608 Humidification cup diagram
MAX
Oxygen outlet Water filling nozzle
Max water level
Inlet interface
Water tank front Water tank back
Note: The humidifier can only be the original manufacturer humidifier, other models cannot
be used.
Page 4 of 13Page 3 of 13

Preparaon for oxygen-inhalaon
Connect the Earhook oxygen inhaler to the machine, and align the oxygen nozzle to the
nostril (as below).
Connection diagram of Earhook oxygen inhaler and oxygen concentrator.
Wearing method of earhook oxygen inhaler and nasal oxygen inhaler.
Note: The above methods are only for reference, you can use them in the most comfortable way
according to your personal body posture and living habits.
-Plug in the power cord: make sure the power switch of the oxygen concentrator is off, then
connect the power cord plug to the safety ground socket that has a power output.
-Do not use the extended cord
Do not bend the oxygen tube when the machine is working, it will cause the oxygen tube to
fall off. If this happens, please re-install the oxygen tube to the interface, and the airflow will
return to normal.
SYK-608-2 Exterior structure
MAX
Operaon view
Handle
LCD display
Touch buttons
Base
supporter
Switch
Oxygen outlet
Humidification
panel
Panel
Power socket
Input air cover
Input air filter
Input air
window
Fuse
Power switch
Timing Hr Min
O2
Flow
O2
Purity
L/min Hrs
Total
Anion
Clean Filter Smart Alarm
Oxygen outlet
Oxygen tube Earhook oxygen
inhaler
Correct wearing way of earhook oxygen inhaler
Correct wearing way of nasal
oxygen inhaler
Page 6 of 13Page 5 of 13

①ON/OFF
Connect the power cord plug to the socket, Turn on the power switch at the back of the machine
and the machine will beep a sound.
②Oxygen production
Under the power-on state, touch the "on/off" button lightly and the oxygen concentrator starts to
work. The machine will beep a sound.
(3) O2 Flow
Touch the "O2 Flow" button and adjust to the required flow. The oxygen concentration
corresponding to the flow rate is displayed on the display screen. The default start-up flow of this
machine is 2L. The flow of this machine can be adjusted by 2L/3L/4L/5L/7L/9L/10L seven-speed
cycle.
(4) Tim +
Each time you touch the "tim + " button. Press the “tim +” button once to count in 1 hour
increments, and the maximum timing is 5 hours.
(5) Tim –
Each time you touch the "tim - " button. Press the “tim -” button once to count down in one hour.
When the timer is set or reduced to "-", it indicates the continuous running state of the machine.
(6) Anion
Touch the "Anion" key to turn on and off the negative ion work.
(7) Smart Alarm
Touch the "Smart Alarm" button and broadcast the assistance-Seeking information continuously
until the function is turned off manually.
(8) Child lock
Gently touch the "Child lock" button, the Child lock opens then other buttons can not work until
closing the Child lock.
Product Descripon
Operang guide
Timing Hr Min
O2
Flow
O2
Purity
L/min Hrs
Total
Anion
Clean Filter Smart Alarm

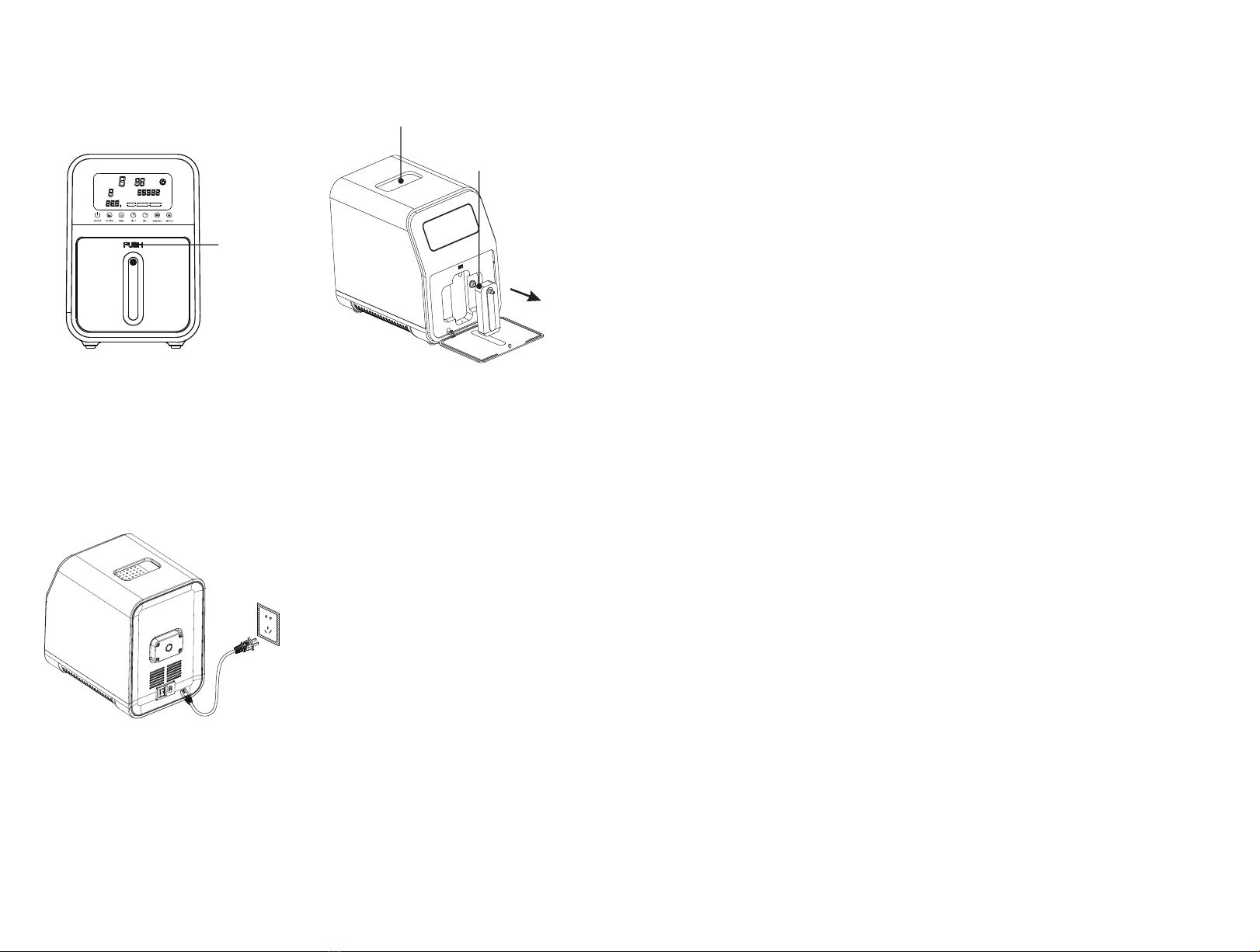

1. Position as shown is panel switch, press
down to open panel.
Panel switch
2. Remove the humidification cup along the
arrow direction, pull out the silicone plug at
the Water filling nozzle, and add cold
purified water, which can not exceed the
maximum water level. Tighten the silicone
plug on the nozzle, then return the
humidification cup to the machine, press
tightly and cover the panel.
Water filling nozzle
Atomization port
(2) Oxygen-inhalation operation
3. Connect the power cord plug to a socket
with power output.
(1) Preparation
Page 8 of 13Page 7 of 13

Maintenance
Routine maintenance
The whole machine looks smooth and shiny, please avoid sharp scratches;
Please unplug the power supply after the timer and air supply are turned off;
The filter cotton behind the main machine should be replaced in time, If the filter cotton is
clogged with dirt, it will affect the oxygen production effect of this product.
Note: Please do not disassemble the machine personally ,in order to avoid unnecessary
damage inside the machine, Before cleaning and maintenance, the oxygen concentrator must
be disconnected from the power supply.
Management in Long-term idle
Remove the humidification cup, pour off the water in the cup, then dry and return it to the main
unit；
Turn on the machine and let the oxygen concentrator work for 25 minutes, then wait for natural
cooling；
Turn off the power and put the oxygen concentrator back in the box；
Put the oxygen inhaler, oxygen pipe and remote control accessories inside the plastic bag and
seal them with tape；
Note that the battery can not be installed in the remote control during storage ,to prevent the
battery from leaking and damaging the remote control.
Remote control
The use of atomizer
Child Lock
Anion
Smart Alarm
ON/OFF
O2Flow
Tim+
Tim-
Signal transmitting port
Battery Cover
(Suitable for model with atomization function)
1 The atomization tube is
inserted into the bottom
of the atomizing cup
2 Put the cup cover and
unscrew the spray to
spray medicine (Note:
liquid limit)
3 note that the liquid not
excessive
4 port interface with nozzle
atomization
5 Unscrew the screws and
put the atomizing nozzle
interface, after re twisting
Be careful:
1 if the atomization process feel some of the mouth of the
mouth, please get out of the mouth and the inhaled.
2 to atomization of solid drugs, please first powder after
grinding powder to add pure water and then atomization.
6 atomizing tube on
the other end of the
atomization nozzle
7 open the machine,
you can see the mist
out of mouth, mouth to
live
Take out the five part of the atomization, and connect the five parts of the atomization in
order.
Add the proper amount of liquid to the atomizing cup (please follow the doctor's advice), and
must not exceed the maximum scale of the atomization cup.
Before the start, counter clockwise rotation under cover atomization atomization end host
port.
Before starting, the two ends of the pipe are respectively connected to the atomizing cup and
the main engine atomizing port.
Open host power switch, you can start atomization treatment.
The liquid atomization after extubation under atomization at the mouth closed, oxygen
machine.
After the shutdown, the atomized cover clockwise into the mouth and tighten the atomization.
If you need to re open the oxygen, oxygen making machine.
◆
◆
◆
◆
◆
◆
◆
Page 10 of 13Page 9 of 13

Component maintenance
Maintenance of the humidification cup: In order to ensure the cleanness of the humidification
cup, only can sue pure water or cold boiled water, and should be replaced every day. The
humidification cup is recommended to be cleaned once a week.
Maintenance of oxygen pipe and oxygen inhaler: It is recommended to clean once a week,
and the use of the oxygen tube should not exceed half a year.
Maintenance of air filter cotton: The main function of air filter cotton is to filter and absorb dust
and impurities in the air. After a long time, it will form an air intake blockage and affect the
oxygen production effect of the oxygen concentrator: when the machine works continuously for
200 hours, “Clean Filter” will be displayed on the screen, please replace the filter in time. The
words “Clean Filter” will continuously display for 1 hour.

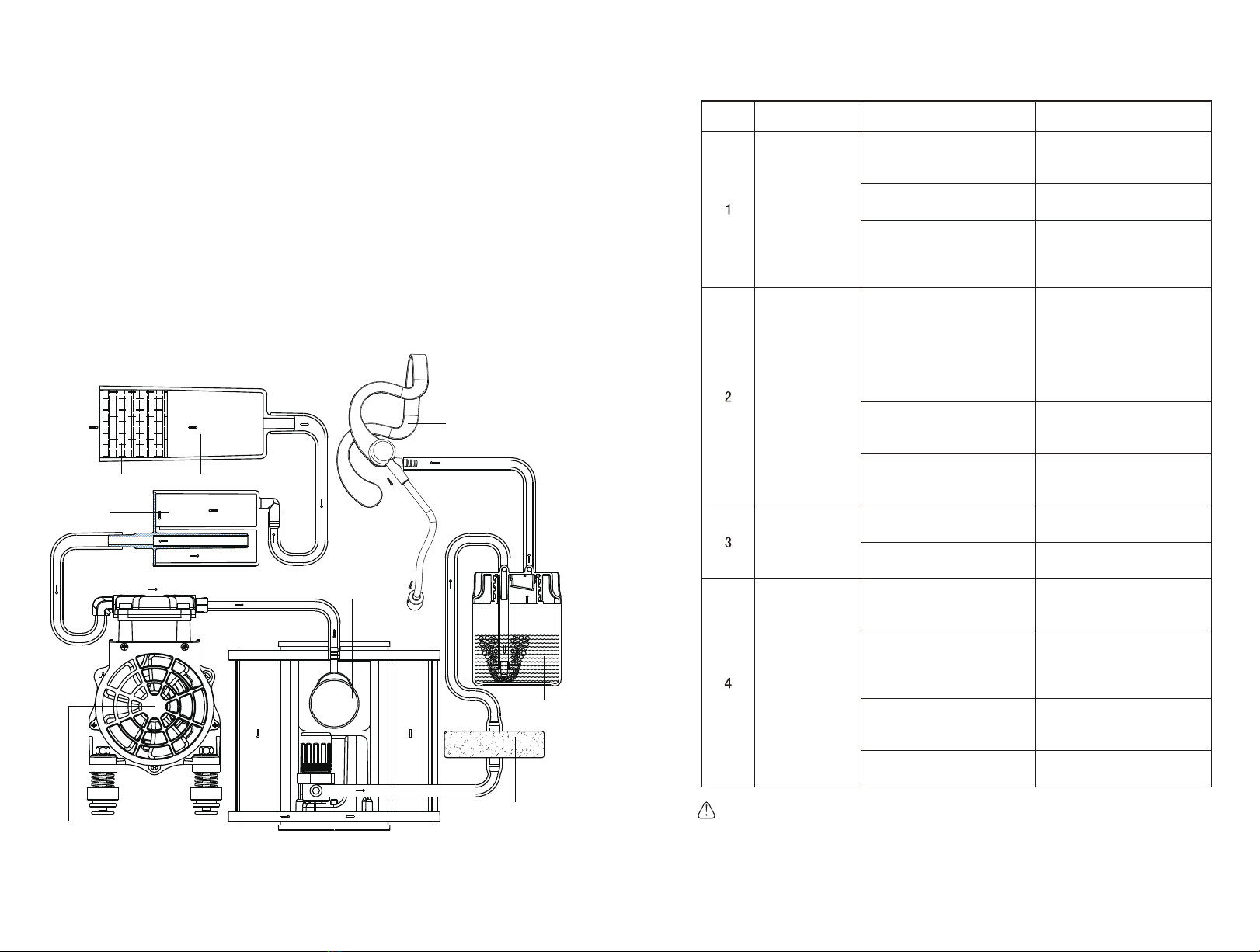

Working principle
Air
Primary filter Secondary filter
Tertiary filter
compressor
Earhook oxygen inhaler
Molecular integrator
Humidification
cup
Bacterial filter
Troubleshoong
Number Common
troubleshooting
The oxygen concentrator
is not working properly
and the power indicator
is not on.
The screen display is
normal, the oxygen
machine does not
emit a normal start
sound
Display normally and
can hear the sound
of normal working.
possible reason
The power cord is not connected to
the power socket
Check if the plug on the power
socket is connected properly.
The power cord is not connected to
the oxygen concentrator or the
power cord is broken.
Oxygen concentrator overheat
protection
Oxygen concentrator computer
board crash
Compressor malfunction
Check the bottom strap
Inlet window filter cotton is too dirty,
blocked
Output hose bent and blocked
Humidification cup is not tight
Internal failure of the oxygen
concentrator
The silencer is not installed correctly
Unplug and reinsert the power
socket or replace a power cord
Turn off, restart after 5 minutes.
Cut the strap and remove it
Reinstall correctly after disassembly
Remove and re-install
Cut off the power switch, Replacement
filter cotton
Contact the distributor or
manufacturer of the home oxygen
concentrator
Cut off the power switch, Replace
the output hose or unfold the
curved hose
Contact the distributor or manufacturer
of the home oxygen concentrator
Make sure that the oxygen
concentrator is placed away from
curtains, heaters, heaters and
fireplaces. And confirm that there is
at least 20 cm clearance between
all sides of the machine and the
wall or other objects.
Power socket is out of power Replace the socket with power
Solution
Loud noise
Note：If The above methods can’t solve the faultiest. Please contact the supplier or
manufacturer. No one can access or change the internal structure and program of the
machine without the manufacturer’s authorization.
Page 11 of 13 Page 12 of 13

1) In order to protect the rights of consumers, our company can provide one-year warranty
service. We can give free maintenance services due to product quality problems in the warranty
period. If the product exceeds warranty period, the company will charge appropriate cost
according to the replacement parts.
2) Maintenance should be with a receipt and warranty card,in order to determine the warranty
period.
3) If there is no receipt, due to self-demolition or artificial damage to the product, its
maintenance costs and parts costs should be borne by the customer.
4) Warranty Card:
Warranty Card
Page 13 of 13
