OTE TETRA PUMA T3 Product information sheet

P/N 779-0405/01 P/N 779-0405/01
Emergency speech call
— Press the Emergency Key to send an emergency call
request.
— Press the PTT button to speak.
External speech call
— Select the gateway and dial the external subscriber identifier
— Press .
Closing speech call
— Press .
Receiving a call
— Press or the PTT button to answer the incoming call.
Fast menu access
—allows the «Send Status» menu access.
—allows the «Phone Book» menu access.
PUMA T3
HANDPORTABLE RADIO
Short User's Guide
Before using the equipment, read all the
instructions contained in the manual and, with
special care, those relative to safety.
WARNING
GROUP
SELECTOR
VOLUME
CONTROL
DISPLAY
LOUDSPEAKER
(Earphone mode)
EMERGENCY
KEY
GREEN LED
"G" KEY
PTT
PUSHBUTTON
RED LED
ON/OFF and
OFF HOOK KEY
ON HOOK
KEY
SCROLLING
MENU KEY
OPTIONS
SELECTION
KEYS
KEYPAD
MICROPHONE
LOUDSPEAKER

P/N 779-0405/01 P/N 779-0405/01
Signal level
Trunked Mode, searching network (flashing)
Direct Mode with DM-GATE device presence detected
D
Direct Mode
R
RepeaterMode
+
G
GatewayMode
F
Fall-backMode
D
Direct Mode with DM-REP device presence detected
Encryption enable
No read messages, full queue (flashing)
Full queue, each message is read
+
P
Data connection active
Earphone active
Loudspeaker active
KeypadDTMFOFF
Keypad locked
Battery level indication
S
Group scanning enable
Group selecting, alternatively at
S
Group selector 16 settings selector: it enables the selection of any
rotary knob: one of the 16 preset group. The group call is
activated by the PTT pressing
VolumeControl: Provides control of the audio output to the internal
speaker and headphone socket
RedLED It is lit while the radio is transmitting; blinking in Tx
Inhibit mode
GreenLED It is lit while the radio is receiving
Display: Backlighted, 36 alphanumeric characters
Scrollingmenu
Options selection
Options selection
“On hook” key to accept/make a call; if pressed in idle
status accesses the calls list
On/Off+Off Hook key, during a call cuts off the
connection; pressed for a few seconds turns off the
terminal
DescriptionIndication
DescriptionIndication

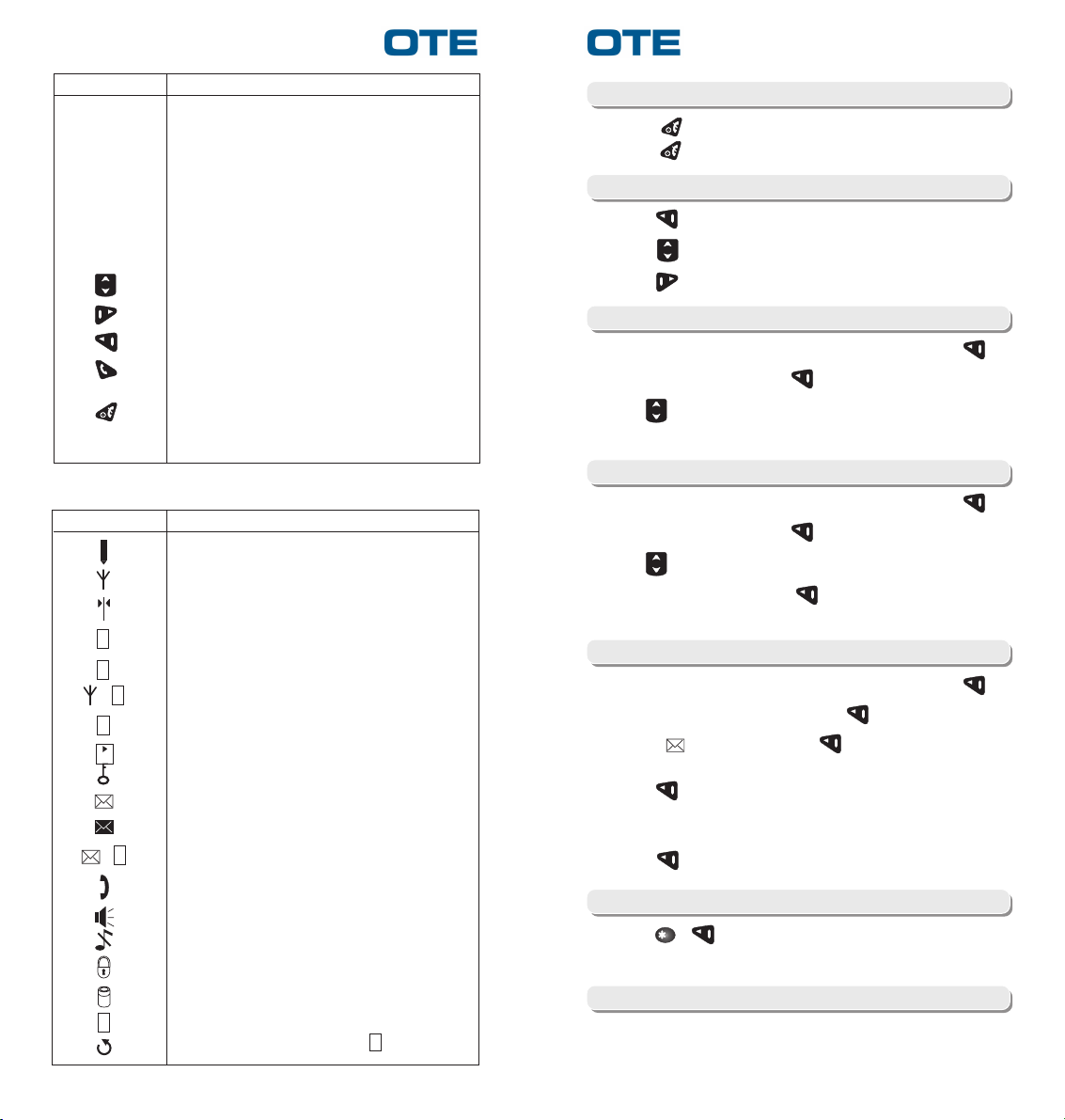

DISPLAYED SYMBOLS
Turning on/off the equipment
— Press to switch on the equipment.
— Press for several seconds in order to switch off the radio.
Main menu
— Press to enter main Menu.
— Press to switch among Menu options.
— Press to return to the upper Menu level.
Reading received messages
— From the main Menu select "Messages" and press .
— Select "In Box" and press .
— Use to scroll messages.
— Select the message to read.
Deleting a received message
— From the main Menu select "Messages" and press .
— Select "In Box" and press .
— Use to scroll messages.
— Select the message, press and select "Delete" to delete
it.
Sending a text message
— From the main Menu select "Messages" and press .
— Select "Text Message" and press .
— Select " <New>" and press .
— Edit the message using the alphanumeric keyboard then
press .
— Select "Send" and enter the identifier number of the radio to be
called.
— Press to send the message.
Lock/Unlock keypad
— Press e to lock the keypad; to unlock it press any key
and follow display instruction.
Making a call by GSRK
— Select a group with the Group Selector Rotary Knob.
— Press the PTT button to speak.
