OTO Photonics SH2400 User manual

OTO Photonics SSSSHSH2400 User Manual
1
SH2400-503 Rev. 1
SH2400 User Manual
Description
SH2400 is a lightweight, portable, and easy-to-operate light meter
with a 4.3-inch colored touch screen and simple interface keep up with
the times. This product has basic features for fast and easy
measurements for illumination/luminance applications.
Measuring Capabilities: Peak Wavelength, Illuminance/luminance,
Irradiance per wavelength, Color Temperature, CIE x, CIE y, CIE u,
CIE v, CIE 1931, CIE 1976, and CRI.
Six kinds of display mode: INFO, CRI, CIE 1931, CIE 1976,
SPECTRUM, and DATA.
All-in-one light meter: no other equipment is necessary. (e.g. PC
or power supply etc.)
Can be used with the SpectraSmart (OTO software) to interface
with PCs.
※You have to buy additional parts (such as a cosine corrector or a
fiber-collimator) and do standard illuminance/luminance calibrations for ensuring
“Illuminance/luminance” and “Irradiance” values correctly.

OTO Photonics SSSSHSH2400 User Manual
2
SH2400-503 Rev. 1
Index
Overview
1.1 Specifications …………………………………………………………………….P3
1.2 Features …………………………………………………………………………….P3
Interface Introduction
2.1 Product Description ………………………………………………………….. P4
2.2 Getting Start …………………………………………………………………….. P5
2.3 Additional Setup and Notes ………………………………………………. P11

OTO Photonics SSSSHSH2400 User Manual
3
SH2400-503 Rev. 1
1Overview
1.1 Specifications
1.2 Features
Items
SH2400
Spectro-module
UM2280-V2
Display
4.3 inch Colored Touch Screen
Dimensions
138mm (L) X 80mm (W) X 27mm (H)
Battery
Rechargeable Li-ion Battery (3000mAh)
Storage
SD(Secure Digital) Card (FAT16/32 type)
Display Mode
INFO/ CRI / CIE 1931 / CIE 1976 / SPECTRUM / DATA
Measuring
Capabilities
Peak Wavelength, Illuminance/luminance,
Irradiance/Radiance, Color Temperature, CIE x, CIE y, CIE u,
CIE v, CIE 1931, CIE 1976, and CRI
Language
English / Traditional Chinese / Simplified Chinese
6

OTO Photonics SSSSHSH2400 User Manual
4
SH2400-503 Rev. 1
2Interface Introduction
2.1 Product Description
Fig.1 SH2400 Front view
Fig.2 SH2400 Back view

OTO Photonics SSSSHSH2400 User Manual
5
SH2400-503 Rev. 1
Operating Description
“Power”：Power key-> Turn on / Turn off the system.
Press Power button once to screen off immediately.
Press again to recall the screen on.
“Measure”：Start a measurement.
If necessary, force a shutdown by pressing Power & Measure
buttons simultaneously for ten seconds.
“Setting”：Set the configurations for measuring parameters.
“Display mode”：
INFO/CRI/CIE1931/CIE1976/SPECTRUM/DATA -> Change
display screen for different measuring results.
“Save”：Save current measure result to SD card.
Fig.3: SH2400 Front view

OTO Photonics SSSSHSH2400 User Manual
6
SH2400-503 Rev. 1
2.2 Getting Start
Power ON / Power OFF
Power ON: Press the “Power”button for 3 sec to turn on
SH2400. An OtO splash screen will display. (Fig.4)
After splash screen, the first screen will display the “INFO.”
menu page. (Fig.5)
Power OFF: Press the “Power”button for 3 sec again; SH2400
will be turned off.
Fig.4 Power ON Screen Fig5: Default screen (INFO.)
Note: Depends on users’ application, SH2400 could be configured as
Luminance meter, Illuminance meter or luminous flux spectrometer
(factory default). User must do the customized luminance or illuminance
calibration and update the intensity table to make the measurement
corresponding to user interface displayed.
Take a Measurement
Press the “Measure” button to measure the light source.
It will take about 3 seconds to measure the light source.
Press “Display mode”buttons on the right to see different
display results.

OTO Photonics SSSSHSH2400 User Manual
7
SH2400-503 Rev. 1
Display Mode
Mode
Purpose
Measure result
Figure
INFO.
(default)
Luminance
CCT, Luminance (Lv), Luminance radiance (Le),
and Peak wavelength (Peak).
Fig.6a
Illuminance
CCT, Illuminance (Ev), Irridiance (Ee) and Peak
wavelength (Peak).
Fig.6b
Luminous
Flux
CCT, Lumious flux (Φv), Radiant flux (Φe) and
Peak wavelength (Peak).
Fig.6c
CRI
Luminance
Lv, CCT, CRI value (Ra), and histogram of CRI
results (R1~15 and Ra).
Fig.7a
Illuminance
CRI value (Ra), and histogram of CRI results
(R1~15 and Ra).
Fig.7b
Luminous
Flux
Same to Illuminance.
NA
CIE 1931
Luminance
Lv, CCT, (x, y) coordinate value and cross-mark
on CIE1931 spot chart.
Fig.8a
Illuminance
(x, y) coordinate value and cross-mark on
CIE1931 spot chart.
Fig.8b
Luminous
Flux
Same to Illuminance.
NA
CIE 1976
Luminance
Lv, CCT, (u, v) coordinate value and cross-mark
on CIE1976 spot chart.
Fig.9a
Illuminance
(u, v) coordinate value and cross-mark on
CIE1976 spot chart.
Fig.9b
Luminous
Flux
Same to Illuminance.
NA
SPECTRUM
Luminance
Lv, CCT, Peak wavelength (PEAK), and spectrum
waveform.
Fig.10a
Illuminance
Peak wavelength (PEAK), and spectrum
waveform.
Fig.10b
Luminous
Flux
Same to Illuminance.
NA

OTO Photonics SSSSHSH2400 User Manual
8
SH2400-503 Rev. 1
DATA
Luminance
Wavelength (nm) and intensity (uW/nm or
count) values.
Fig. 11
Illuminance
The same.
NA
Luminous
Flux
The same.
NA
Fig.6a: INFO. (Luminance) Fig.6b: INFO. (Illuminance)
Fig.6c: INFO. (Luminous flux) Fig.7a: CRI (Luminance)
Note: Lv/Le, Ev/Ee and Φv/Φe were displayed in scientific notation (ex:
1.00E-03). It allows user to switch to decimal digital point (0.0001) by
touch the measurement area.

OTO Photonics SSSSHSH2400 User Manual
9
SH2400-503 Rev. 1
Fig.7b: CRI (Illuminance) Fig.8a: CIE1931 (Luminance)
Fig.8b: CIE1931 (Illuminance) Fig.9a CIE1976 (Luminance)
Fig.9b CIE1976 (Illuminance) Fig.10a Spectrum (Luminance)

OTO Photonics SSSSHSH2400 User Manual
10
SH2400-503 Rev. 1

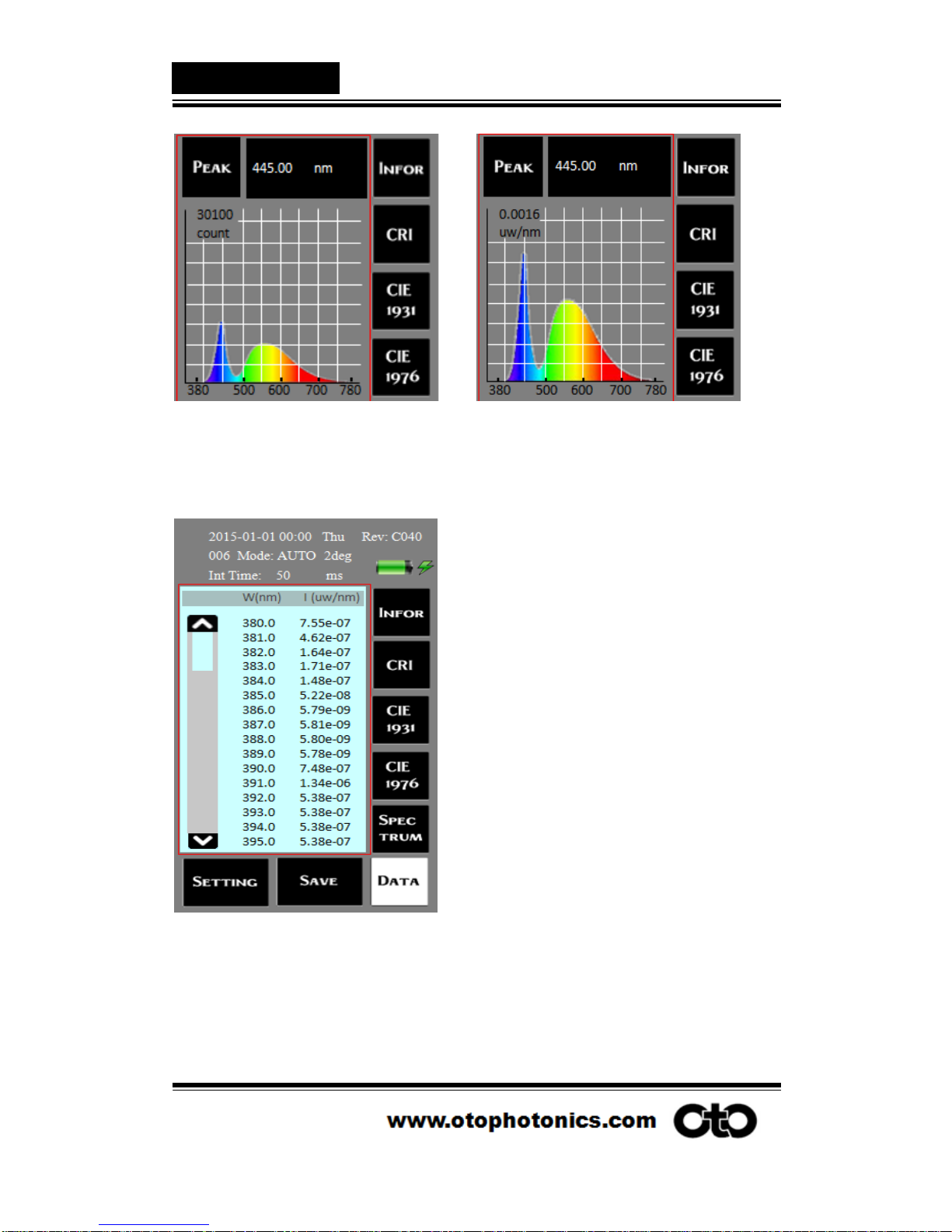

Fig.10b Spectrum (Illuminance) Fig.10c Spectrum (absolute intensity)
Touch top-left side unit area of plot area will switch the spectrum
waveform from/to intensity (count) to/from absolute intensity (uW/nm).
Fig.11 Data
The DATA page presents the spectrum waveform in data format.
Click up and down arrow to scroll text box which shows the intensity
(I. uw/nm or count) corresponds to each wavelength (W. nm).

OTO Photonics SSSSHSH2400 User Manual
11
SH2400-503 Rev. 1
2.3 Additional Setup and Notes
Save a measurement data
Save: Save out current measurement data on SD card (only
support for FAT16/32 type)
It is written to “Spectrasmart PC software format” (.sps).
User could read the .sps file in any Text Editor tool, like excel,
WordPad …etc.
Description of “SaveOut”page conditions:
Message
Figure
Description
Saving
While recording data, please
do not remove the SD card or
power down the machine.
Save fail
Cannot record the data.
Please check the SD card
status.

OTO Photonics SSSSHSH2400 User Manual
12
SH2400-503 Rev. 1
File saving format and rule
While pressing ”Save”button to save current measurement
data on the SD card with “.SPS”files in Text Format. And system
will construct specified folder and the rule of file naming is
shown as below:
Memory card is New formatted or Never Use on SH
series system:
System will automatically construct the “SPECXXX”
folder and in which XXX.sps files are generated while
saving process. The XXX is 3 digits index assigned by
system started from 000 to 999. Current system defines
maximum 1000 folders (000-999) can be saved and each
folder allows maximum 1000 (000-999) files index. The
number of file index will increase 1 every time when user
executes saving file request. And if the file index reaches
to 999, system will generate a new folder by increasing 1
on folder index name.
Memory card Has Been Used to save files on SH series
System:
System will search the card disk while saving request; it
will find out the largest folder index. Then check the
folder’s .sps file index number. If the file index < 999, it
will save the current .sps file with the new index increase
1. For example, if the last file index is 015, the new saving
files will be 016.sps. But if the file index in this folder has
reached 999, it will construct a new folder with folder
index increase 1 and save file index from 000 in new
folder.
Note. If the disk contains too many dummy files, it will make the
searching process slow.

OTO Photonics SSSSHSH2400 User Manual
13
SH2400-503 Rev. 1

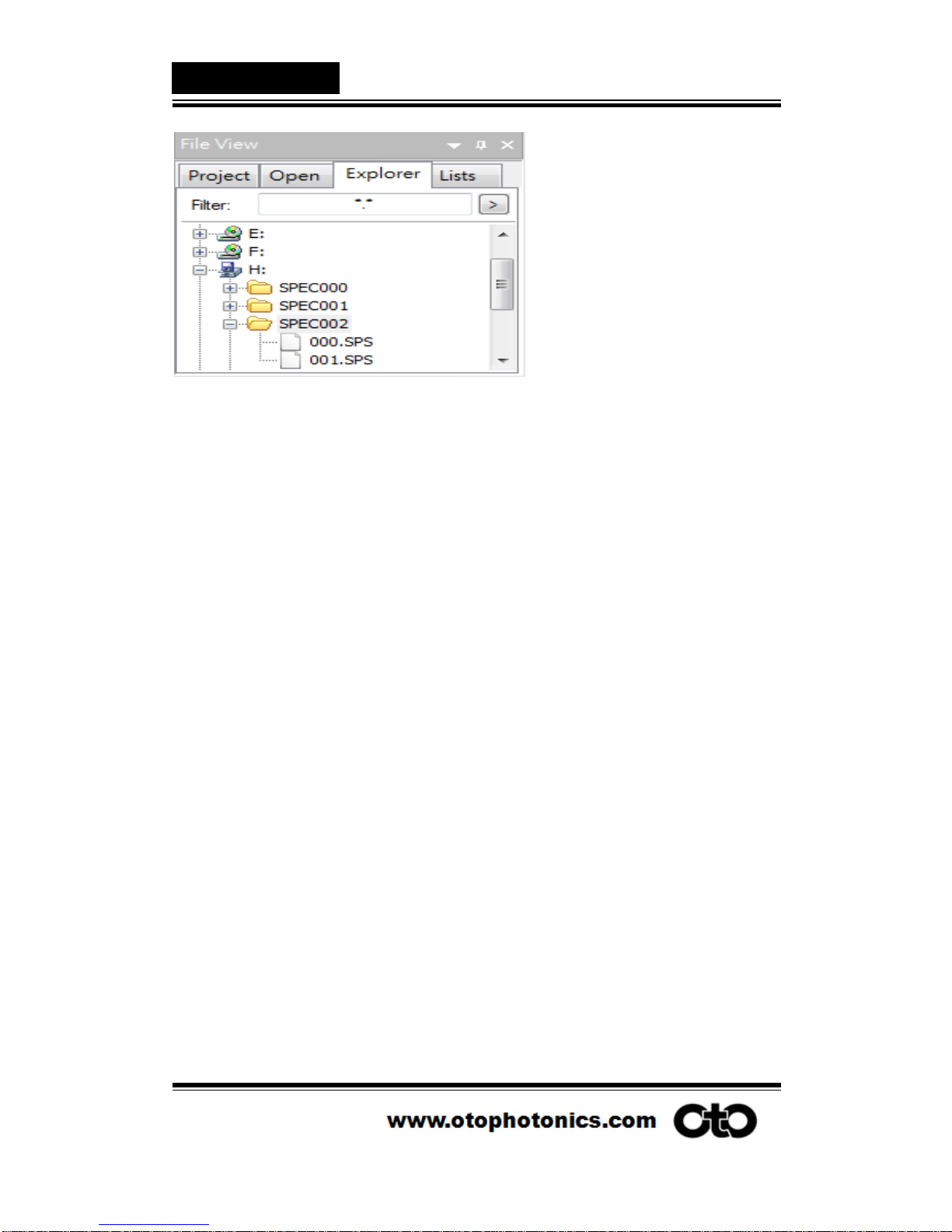

Fig.12: example of file saving structure
“.SPS”text file and sample format:
This file is a text format but specified for OtO software
“SpectraSmart”saving/loading. The “SpectraSmart”tool saves
measurement data to in “.SPS”format. It also allows user to
load the saved “.SPS”file back and it draws, calculates the
spectrum and color info. SH2400 saves the same format “.SPS”
file to “Spectrasmart”, so the “.SPS”file could be loaded by
software “Spectrasmart”on PC side. The file contains only
spectrometer setting info and raw data of spectrum. The sample
template is shown as below.
//*******************************************//
SpectraSmart Spectrum 0.0.0.0
--------- Device Information -----------
Saving Time : 2015/01/01 08:30:55
Spectro-Module Model Name : UM1000S3-V2
Spectro-Module Serial Number : OS361HC56002176
Wavelength Start : 340
Wavelength End : 850
Spectrum Unit : Absolute Count(uW/nm)
-----------Spectrum Setting ------------
Integration Time : 1 ms
Average : 1
Boxcar : 0
Background removal : enabled

OTO Photonics SSSSHSH2400 User Manual
14
SH2400-503 Rev. 1
linearity correction : enabled
Intensity correction : enabled
savitzky-golay : disabled
---------------Measuremnet--------------------
Type : Absolute Emission
Observer : 2 degree
Illuminate : A
Luminance: 6.5088E-03 cd/m2
Radiance: 4.9968E-05 uW/m2*sr
Peak Wavelength: 671.90 nm
CIE1931(x,y): (0.2947,0.3584)
CIE1976(u,v): (0.1756,0.4806)
X : 5.3517e-03
Y : 6.5088e-03
Z : 6.2983e-03
CIE_x : 0.2947
CIE_y : 0.3584
CIE_z : 0.3468
CRI_R1 : 0.35
CRI_R2 : 1.50
CRI_R3 : 0.90
CRI_R4 : 1.61
CRI_R5 : 1.73
CRI_R6 : 0.49
CRI_R7 : 1.59
CRI_R8 : 0.00
CRI_R9 : 0.00
CRI_R10 : 0.00
CRI_R11 : 1.88
CRI_R12 : 0.00
CRI_R13 : 0.26
CRI_R14 : 31.68
CRI_R15 : 0.01
CRI_RA : 1.02
CCT : 7146.66
DominantWavelength(nm) : 489.27

OTO Photonics SSSSHSH2400 User Manual
15
SH2400-503 Rev. 1
Purity : 0.3833
CIE1976u : 0.1756
CIE1976v : 0.4806
CIE1976w : 0.3437
---------------BEGIN--------------------
Wavelength Intensity(uW/nm)
340.00 0.0000E+00
340.50 0.0000E+00
341.00 0.0000E+00
341.50 0.0000E+00
…
…
…
848.50 2.5163E-05
849.00 2.5289E-05
849.50 2.5480E-05
850.00 2.5673E-05
//*******************************************//

OTO Photonics SSSSHSH2400 User Manual
16
SH2400-503 Rev. 1
System Setting
Press the “SETTING”button into setting page. (Fig. 13)
There are two pages with twelve systemic settings:
Setting Page-1:
“AUTO INT. TIME” (Default: On)
“POWERSAVE” (Default: Off)
“CONTINUEMODE” (Default: Off)
“SCREEN REVERSE 180°” (Default: Off)
“LANGUAGE” (Default: English)
“OBSERVERS & ILLUMINANTS” (Default: 2∘/
Illuminant A)
Setting Page-2:
“DATETIME”(Default: 2015/01/01/00:00:00)
“TOUCHCALIBRATE”(Default: NONE)
“LOWLIGHTMODE”(Default: OFF)
“BACKLIGHTADJUST”(Default: Level 5)
“ALARMBEEP”(Default: OFF)
“FACTORYDEFAULT ”(Default: NONE)
Three confirmable buttons:
“DONE” –Confirm and save current settings, then
back to measure page.
“RETURN” –Discard previous un-confirmed
selections, then back to measure page.
“ ” –Switch setting pages.
Fig. 13 Setting Pages

OTO Photonics SSSSHSH2400 User Manual
17
SH2400-503 Rev. 1
Parameter adjust of Sub-page settings:
Settings
Parameter adjust
Figure
AUTO INT. TIME
•Default: ON --> Automatically adjust the
integration time to get the best signal of a
measurement. (1ms~3sec) In the low light
mode, it allows up to 60 sec depends on setting.
(refer to LowLightMode)
• OFF --> Manually adjust the integration time
from 1 ms to 60 sec.
Fig.14
POWER SAVE
•Default: Off
• On --> Manually adjust the time for shutting
down LCD backlight from 30 sec to 300 sec
(Interval: 30 sec).
• You can touch the screen to wake up the
system during the LCD backlight off time.
•After backlight off 180 sec without recall, the
system will all shut-down automatically.
Fig.15
CONTINUE MODE
•Default: Off --> Single measurement.
• On --> Press “MEASURE” button to start
continuous measurement until press
“CONTINUE” (MEASURE) button again to stop.
•When this mode on (measuring), pressing
Setting, Save or Data will stop the continuous
measurement.
Fig.16
SCREEN REVERSE 180°
•Default: OFF
• On --> All the display and touch operation will
upside down.
Fig.17
LANGUAGE
•Default: English
• Language Support: English, Traditional Chinese
and Simplify Chinese.
NA
OBSERVERS &
ILLUMINANTS
•Default: 2∘/ Illuminant A
• Observer Support: 2∘or 10∘
• Illuminant Support: ‘A’, ‘B’, ‘C’, ‘D50’, ‘D55’,
‘D65’, ‘D75’, ‘E’ and ‘F1’ ~ ‘F12’.
Fig. 18

OTO Photonics SSSSHSH2400 User Manual
18
SH2400-503 Rev. 1
DATE TIME
• Default: 2015/01/01 00:00:00
• Setting Range: Year: 2015 ~ 2030; Month:
01~12; Day: 01~31; Hour: 00~23; Minute:
00~59; Second: 00~59.
Fig. 19
TOUCH CALIBRATE
• Default: a factory default has built in.
• 3 points calibration for user re-calibration.
NA
LOW LIGHT MODE
• Default: Off --> Auto integration time search
maximum is 3 sec.
• On --> Low light mode, maximum auto
integration time configurable from 3sec to
60sec.
Fig. 20
BACKLIGHTADJUST
• Default: Level 5.
• Adjustable 5->4->3->2->1 repeat.
NA
ALARMBEEP
• Default: Off
• On --> Hot key "measure" with a "beep" tone.
NA
FACTORYDEFAULT
• Set to make all items restore to default setting
(Except DATE TIME).
• Set "Done" to confirm and "Return" to discard.
NA
AUO INT TIME (On) AUTO INT TIME (Off)
Fig. 14 AUTO INT. TIME

OTO Photonics SSSSHSH2400 User Manual
19
SH2400-503 Rev. 1
POEWR SAVE (Off) POWER SAVE (On)
Fig. 15 POWER SAVE
CONTINUE (On) CONTINUE (Off)
Fig. 16 CONTINUEMODE

OTO Photonics SSSSHSH2400 User Manual
20
SH2400-503 Rev. 1
SCREEN REVERSE 180°(Off) SCREEN REVERSE 180°(On)
Fig. 17 SCREEN REVERSE 180°
Fig. 18 OBSERVERS & ILLUMINANTS
