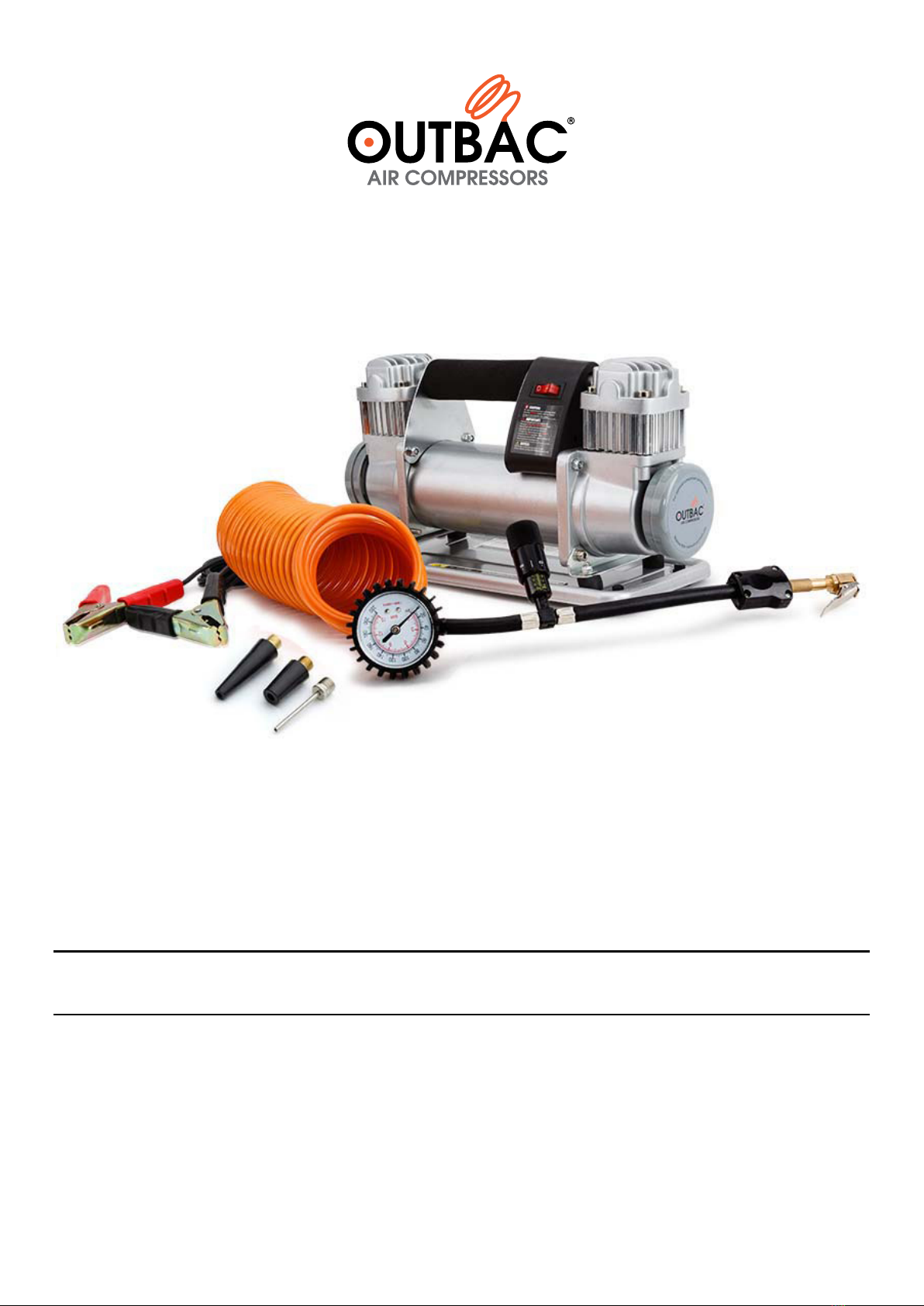

Outbac Otb600 User manual

Portable Air Compressor

User Manual

[Revision 4.0 October 2018]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description and packaging.

Portable Air Compressor

Table of Contents

Safety................................................................................................................................................................ 1

Included Items................................................................................................................................................. 2

Operation ......................................................................................................................................................... 3

Inflation.....................................................................................................................................................................3

Deflation ...................................................................................................................................................................4

Maintenance .................................................................................................................................................... 5

Specifications.................................................................................................................................................. 5

Portable Air Compressor

Safety

•Always inflate tyres to manufacturer's recommended tyre pressure. Exercise extreme caution when driving with

aired tyres. Re-inflate tyres before high-speed roadway travel.

•Never exceed 20mph when driving with partially inflated tyres.

•Never make sharp turns while driving with reduced tyre pressure.

•Re-inflate tyres before high speed travelling onto roadways.

•Use a heat-resistant, minimum 200 PSI rated working pressure extension hose. Do not use aftermarket hoses

with less than 200 PSI working pressure. Some aftermarket hoses may not be suitable for use with this Air

Compressor due to heat and pressure typically generated by this type of Air Compressor.

•Use of close-ended tyre chuck will cause excessive pressure built-up if tyre chuck is not attached to tyre valve

stem while Air Compressor is in operation. Always use an Open-Ended tyre chuck such as the tyre chuck

equipped on the Deflator Coil Hose for tyre inflation.

To reduce risk of electrical shock or electrocution:

•Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and

repairs.

•Do not use this product in or area where it can fall or be pulled into water or other liquids.

•Do not reach for this product if it has fallen into liquid. Use this air compressor with 12V DC systems only.

•This product should never be left unattended during use.

To prevent injuries:

•Never allow children to operate this air compressor.

•Close supervision is necessary when this air compressor is being used near children.

•This air compressor will become very hot during and immediately after use. Do not touch any part of this air

compressor with bare hands, other than the ON/OFF switch, during and immediately after usage.

•Do not use this product near flames or explosive atmospheres or where aerosol product are being used.

•Do not operate this product where oxygen is being administered.

•Do not pump anything other than atmospheric air.

•Never use this product while sleepy or drowsy.

•Do not use any tools or attachments without first determining maximum air pressure for that tool or attachment.

•Never point any air nozzle or air sprayer toward another person or any part of the body.

•This air compressor is equipped with automatic reset thermal protector, and can automatically restart after the

thermal protector resets. Always cut off power source when thermal protector becomes activated.

•Wear safety glass or goggles when operating this product.

•Use only in well ventilated areas.

•Never touch the Air Compressor or fittings connected to the Air Compressor, other than the On/Off switch, with

your bare hands during or immediately after usage. Leader hose and fittings on extension hose will become very

HOT during and after use. If necessary, wear heat-resistant gloves to remove extension hose from the leader

hose.

OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC

Portable Air Compressor

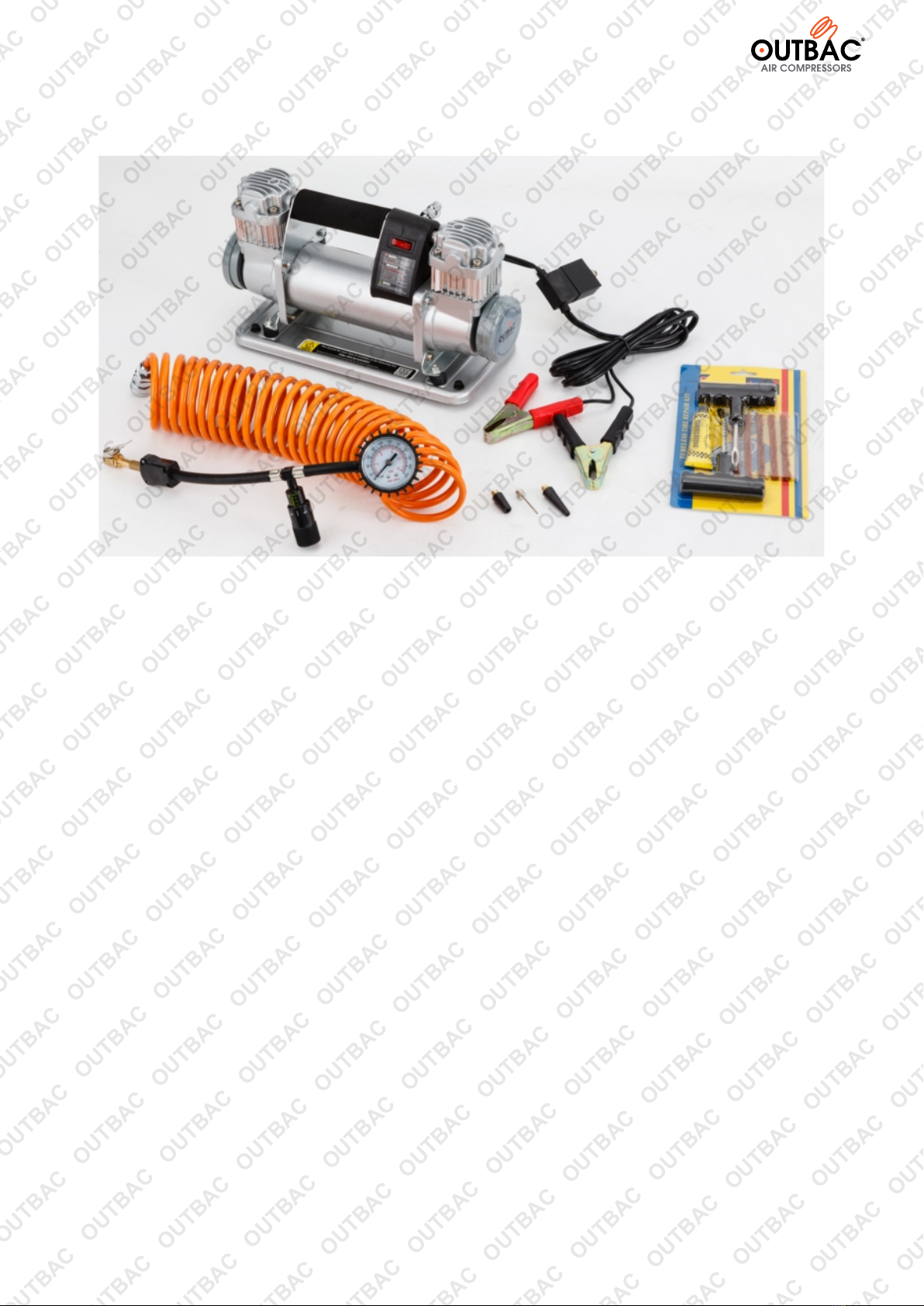

Included Items

1x Air Compressor

1x Battery Clamps (with re-settable fuse)

1x Hose (with pressure & deflation gauge)

3x Hose tips

1x Fix Kit

OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC

Portable Air Compressor

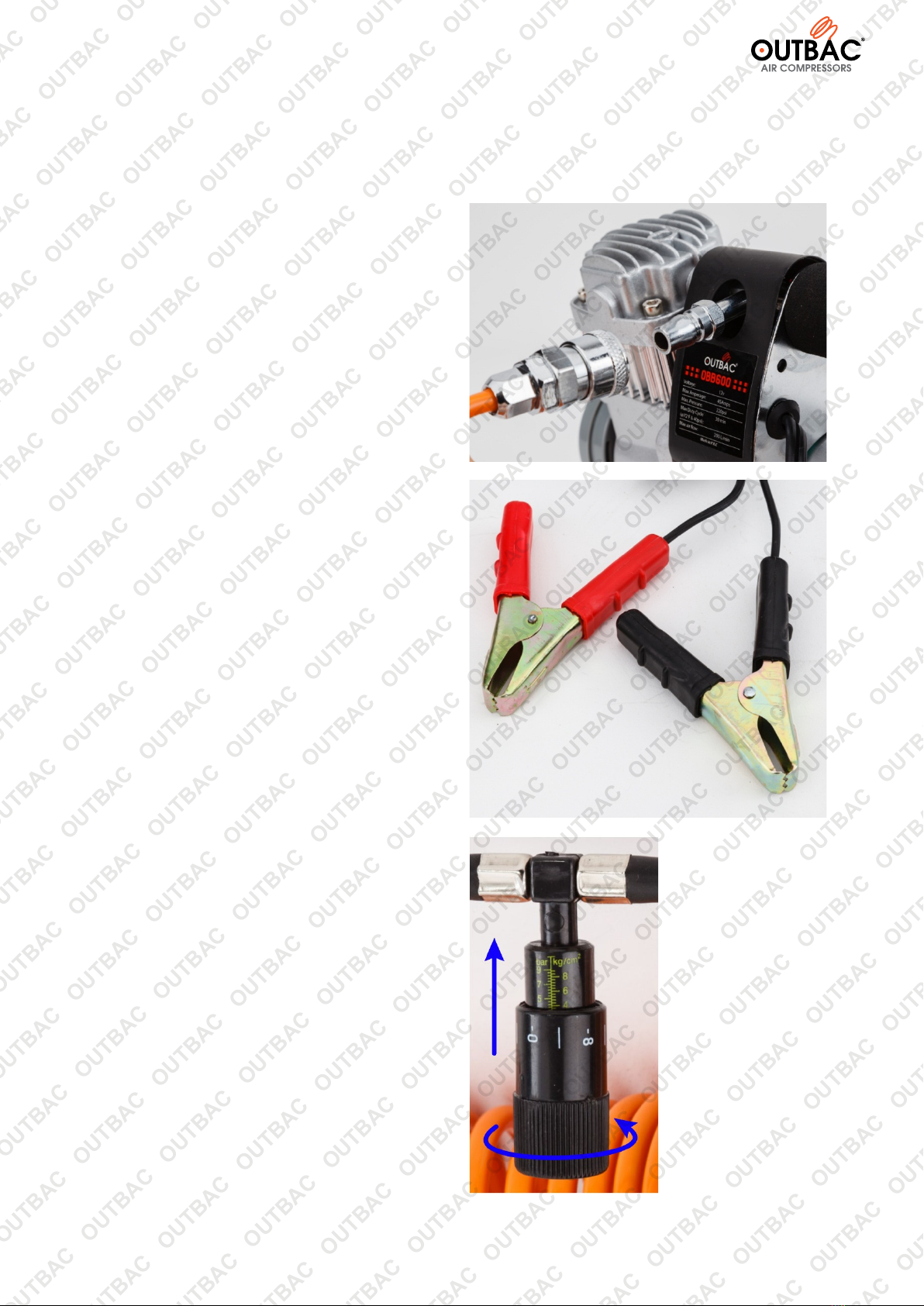

Operation

Inflation

1. Connect hose to air compressor.

2. Connect battery clamps to battery - Ensuring red is

connected to positive and black is connected to negative.

3. Rotate dial all the way to the top.

OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC

Portable Air Compressor

4. Attach air outlet to tyre valve.

5. Turn on and release when reached wanted pressure.

6. Turn off and disconnect battery clamps.

Deflation

Use this feature when using on soft surfaces such as sand. The battery clamps or air compressor are not needed for

this function – only the orange hose is.

1. Rotate dial to desired pressure.

OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC

Portable Air Compressor

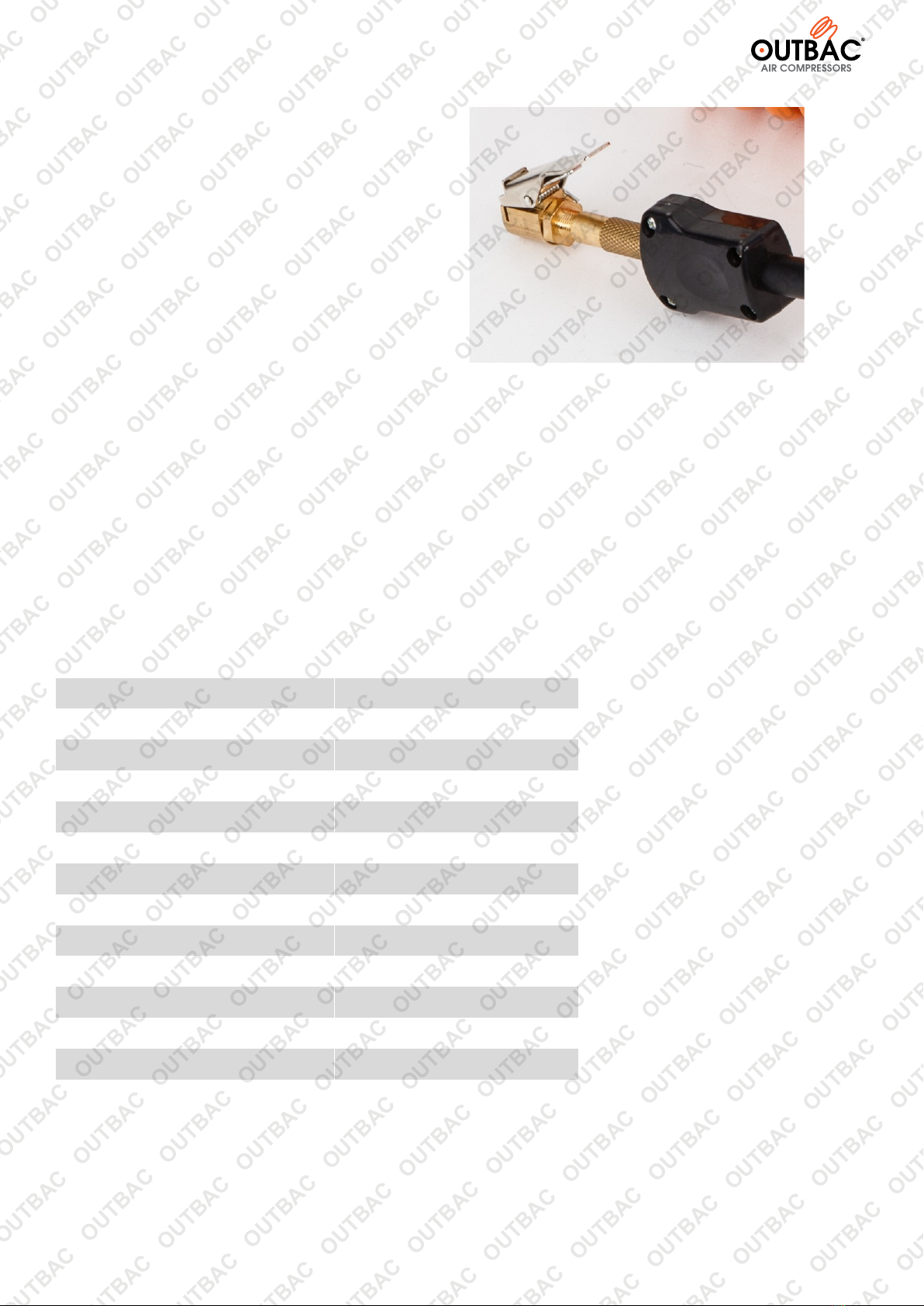

2. Attach to tyre valve.

3. The silver pin will spring out and stop releasing air. The

hose can now be removed from the tyre valve.

Maintenance

Almost all mechanical devices have some form of duty cycle. The duty cycle is the amount of time it needs resting in

between usage. This item has a duty cycle of 5 minutes usage time to 5 minutes resting time. For efficient product life

and maintenance, please adhere to these times.

Specifications

Model OTB600

Motor type Permanent Magnetic

Maximum air flow 200 L/min

Voltage range 12-13.8 V

Maximum amperage draw 30A

Working pressure 10BAR/150PSI

Maximum restart pressure 220 PSI

Maximum ambient temp 60°C

Min. ambient temp -55°C

Recommended duty cycle 30 min @ 2.8 BAR (40psi) @ 24°C

Hose fittings 1/4" NPT

Hose Length 6m

Auto reset thermal protection Yes

Connection Type Quick release

OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC OUTBAC
