Outdoor Lifestyles TWILIGHT-II-MOD User manual

1
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
Model: • DO NOT storeorusegasolineorotherflam-
mablevaporsandliquidsin thevicinityof this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,service agency, or the
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
Owner’s Manual
Care and Operation
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
TWILIGHT-II-MOD
NOTICE: DO NOT discard this manual!
This appliance may be installed as an OEM installation in
manufacturedhome (USA only)ormobilehome and mustbe
installed in accordance with the manufacturer’s instructions
andthemanufacturedhomeconstructionandsafetystandard,
Title 24 CFR, Part 3280 or Standard for Installation in Mobile
Homes, CAN/CSA Z240MH, in Canada.
Thisapplianceisonlyforuse with thetype(s)of gas indicated
on the rating plate.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
SeeTableofContentsforlocationofadditionalCommonwealth
of Massachusetts requirements.

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/132

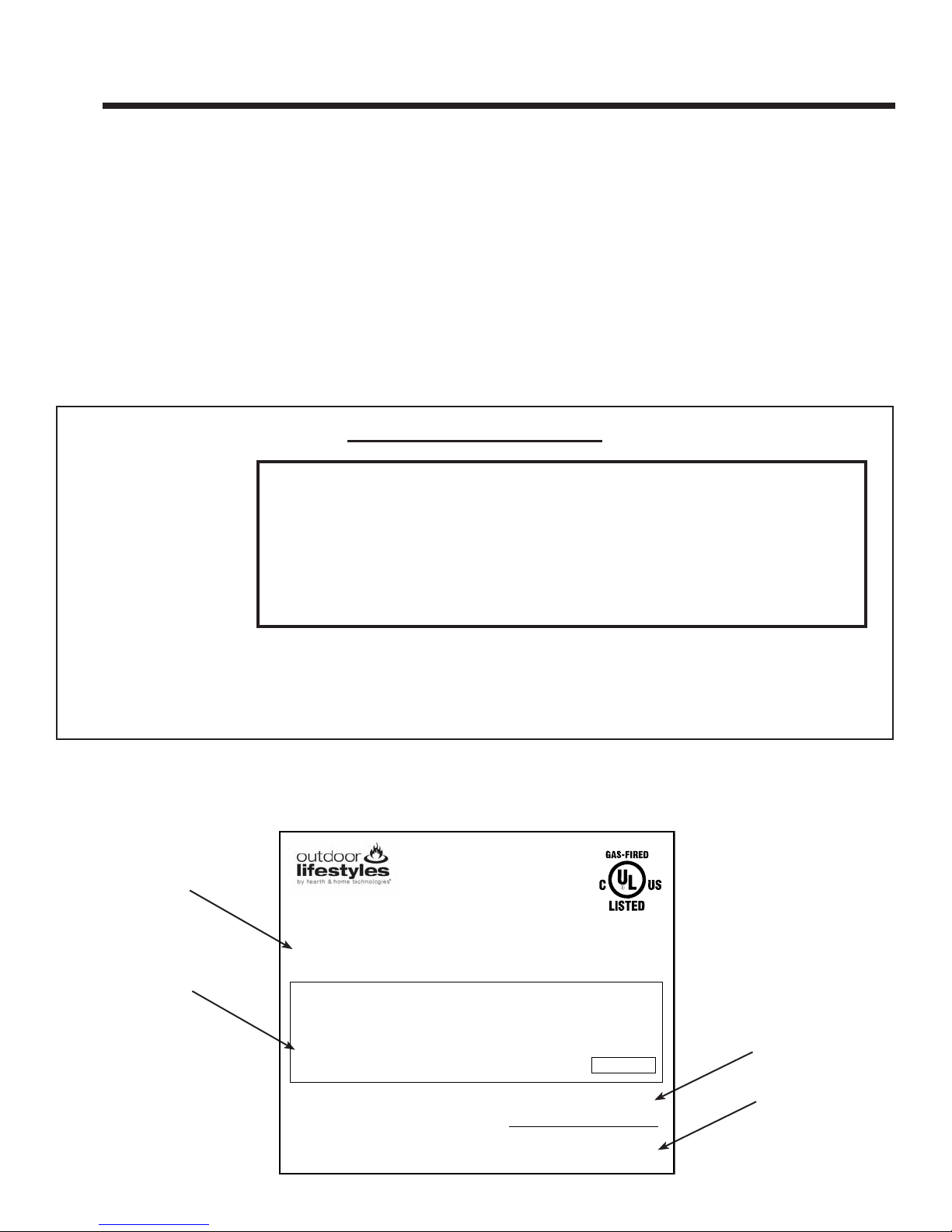

Listing Label Information/Location The model information regarding your specific fireplace can be found on
the rating plate usually located in the control area of the fireplace.
Read this manual before operating this appliance.
Please retain this Owner’s Manual for future reference.
Read the Installation Manual before making any installation or finishing changes.
1
1 Welcome
Brand: ________________________________________________ Model Name: ___________________________
Serial Number:__________________________________________ Date Installed: __________________________
Appliance Information:
Local Dealer Information
DEALER: Fill in
your name, address,
phone and email
information here and
appliance information
below.
Dealer Name: ________________________________________________________
Address:____________________________________________________________
____________________________________________________________
Phone: _____________________________________________________________
Email: _____________________________________________________________
Gas and Electric
Information
Serial Number
Type of Gas
Model Number
doit
NotNot forfor useuse withwith solidsolid fuel.fuel.
((NeNe doit paspas entreentre utiliseutilise avecavec unun combustiblecombustible solide).solide).
ThisThis applianceappliance mustmust bebe installedinstalled inin accordanceaccordance withwith locallocal codes,codes, ifif any;any; ififnot,not, followfollow ANSIANSI Z223.1Z223.1
inin thetheUSAUSAororCAN/CGACAN/CGAB149B149installationinstallationcodes.codes.(Installer(Installerl’appareill’appareilselonselonleslescodescodesououreglementsreglements
locauxlocaux ou,ou, enen l’absencel’absence dede telstels reglements,reglements, selonselon lesles codescodes d’installationd’installation CAN/CGA-B149.)CAN/CGA-B149.)
TypeType ofof GasGas (Sorte(Sorte DeDe Gaz)Gaz)::
NNAATURALTURAL GASGAS
MADEMADE ININ USAUSA
MinimumMinimum PermissiblePermissible GasGas SupplySupply forfor PurposesPurposes ofof InputInput Adjustment.Adjustment.
ApprovedApprovedMinimumMinimum(De(DeGaz)Gaz)AcceptableAcceptable 0.00.0 inin w.c.w.c. (Po.(Po.Col.Col.d’eau)d’eau)
MaximumMaximumPressurePressure(Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po.Col.Col.d’eau)d’eau)
MaximumMaximumManifoldManifoldPressurePressure(Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po.Col.Col.d’eau)d’eau)
MinimumMinimumManifoldManifold PressurePressure(Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po.Col.Col.d’eau)d’eau)
Model:Model:
(Modele):(Modele):
SerialSerial
(Serie):(Serie):
ANSIANSI Z21XX-XXXXZ21XX-XXXX ·· CSACSA 2.XX-MXX2.XX-MXX ·· UL307BUL307B
XXXXXXXXXXXXXXXX
ININCANADACANADA
ALTITUDE:ALTITUDE: 0-00000-0000 FT.FT. 0000-0000FT.0000-0000FT.
MAX.MAX.INPUTINPUTBTUH:BTUH: 00,00000,000 00,00000,000
MIN.MIN.INPUTINPUTBTUH:BTUH: 00,00000,000 00,00000,000
ORIFICEORIFICESIZE:SIZE: #XXXXX#XXXXX #XXXXX#XXXXX XXXXXXXXXXXXXXXX
TotalTotal ElectricalElectrical Requirements:Requirements: 000Vac,000Vac, 00Hz.,00Hz., lessless thanthan 0000 AmperesAmperes
Heat & Glo, a brand of Hearth & Home Technologies, Inc.
7571 215th Street West, Lakeville, MN 55044
A. Congratulations
Congratulations on selecting an Outdoor LifeStyles gas
fireplace,an elegantandclean alternativeto woodburning
fireplaces. The Outdoor LifeStyles gas fireplace you have
selected is designed to provide the utmost in safety,
reliability, and efficiency.
As the owner of a new fireplace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Outdoor LifeStyles gas fireplace will give you
yearsof durableuseandtrouble-freeenjoyment.Welcome
to the Hearth & Home Technologies family of fireplace
products!

3
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
1 Welcome
A. Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
B. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Product Specific Information
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
B. Glass Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
C. Thermal Performance Data . . . . . . . . . . . . . . . . . . . . . . . . 6
D. Air Infiltration, Water Resistance and Structural Tests . . . 6
E. BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Important Safety and Operating Information
A. Appliance Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
B. General Operating Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 8
C. Fuel Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
D. Before Lighting Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . 8
E. Lighting Instructions (IPI) . . . . . . . . . . . . . . . . . . . . . . . . . . 9
F. Appliance Break-In. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
G. Heat Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
H. Detailed Component Operating Instructions . . . . . . . . . . 10
4 Maintenance and Service
A. Maintenance: Frequency and Tasks . . . . . . . . . . . . . . . . 11
B. Maintenance Tasks: Homeowner . . . . . . . . . . . . . . . . . . 11
C. Maintenance Tasks: Qualified Service Technician . . . . . 14
5 Troubleshooting and Frequently Asked Questions
A. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 15
B. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Reference Materials
A. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
B. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
C. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
= Contains updated information.

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/134
B. Limited Lifetime Warranty
Outdoor Lifestyles by Hearth & Home Technologies, Inc.™
Limited Warranty
Hearth & Home Technologies, Inc. (“HHT”) extends the following warranty for all Outdoor Lifestyles by
HHT™ brand products (“Products”) that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking
ownership of the Product at the site of installation within one year following the date of original purchase,
that the Product will be free from defects in materials and workmanship at the time of manufacture. After
installation, if covered components manufactured by HHT are found to be defective in materials or
workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered
components. This warranty is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
The warranty period runs for one year, beginning on the earlier of: (i) the date of invoice for the Product;
(ii) in the case of new home construction, the date of first occupancy of the residence or six months after
the date of sale of the Product by an HHT authorized dealer, whichever occurs first; or (iii) the date 24
months following the date of Product shipment from HHT, regardless of the invoice or occupancy date.
WARRANTY CONDITIONS:
• This warranty only covers Products that are purchased through an HHT authorized dealer or
distributor. A list of HHT authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the Product remains at the site of original installation.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide
necessary parts, contact the nearest HHT authorized dealer or supplier.Additional service fees
may apply if you are seeking warranty service from a dealer other than the dealer from whom
you originally purchased the Product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel
and shipping charges for parts are not covered by this warranty.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use.As a heating appliance, some changes in
color of interior and exterior surface finishes may occur; this is not a flaw and not covered under
warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse,
scratches, melted items, or other external sources and residues left on surfaces from the use of
abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty
period. These parts include: paint, firebricks, grates, flame guides and the discoloration of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are
normal and complaints related to this noise are not covered by this warranty.
Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 1

5
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
B. Limited Lifetime Warranty (continued)
• Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with
the installation instructions, operating instructions, and listing agent identification label furnished
with the Product; (2) failure to install the Product in accordance with local building codes; (3)
shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with
damaged, corroded or failed components, accident, or incorrectly performed repairs; (5) inad-
equate ventilation, negative pressure or environmental conditions, including, without limitation:
hail, snow, ice, fallen branches, flooding, water damage and fading of color; (6) use of fuels other
than those specified in the operating instructions; (7) installation or use of components not
supplied with the Product or any other components not expressly authorized and approved by
HHT; (8) modification of the Product not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the Product.
• Non-HHT venting components, hearth components or other accessories used in conjunction with
the Product.
• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is
installed.
• The Product’s capability to heat the desired space. Information is provided to assist the consumer
and the dealer in selecting the proper appliance for the application. Consideration must be given
to the Product’s location and configuration and environmental conditions.
This warranty is void if:
• The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine,
or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or
tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes and
cracking or spalling of refractory or cementitious materials.
• The Product is subjected to prolonged periods of dampness, condensation, ice or snow.
• There is any damage to the Product or other components due to water or weather damage which
is the result of, but not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive
remedy for and will constitute HHT’s sole obligation under this warranty, under any other warranty
(express or implied), or in contract, tort or otherwise; provided, however, that if HHT is unable to provide
repair or replacement in an expedient and cost effective manner, HHT may discharge all such obligations
by refunding the purchase price of the Product. No employee, agent, dealer, or other person is authorized
to give any warranty on behalf of HHT. TO THE EXTENTALLOWED BY LAW, HHT MAKES NO OTHER
WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. HHT WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGESARISING OUT OF DEFECTS IN OR USE OF THE PRODUCTS. Some
states do not allow exclusions or limitation of incidental or consequential damages, so these limitations
may not apply to you. This warranty gives you specific rights; you also may have other rights, which vary
from state to state. The duration of any implied warranty is limited to the duration of the warranty period
specified herein.
Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 2

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/136
2
2 Product Specific Information
B. Glass Specifications
Tempered Glass (Interior Glass)
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous lo-
cations such as bathtub enclosures as defined by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certified to the re-
quirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certification Council SGCC# 1595 and
1597. Architectural Testing, Inc. Reports 02-31919.01
and 02-31917.01).
This statement is in compliance with CPSC 16 CFR Sec-
tion 1201.5 “Certification and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certificate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
Ceramic Glass (Exterior Glass)
This appliance is equipped with 5 mm ceramic glass. Re-
place glass only with 5 mm ceramic glass. Please contact
your dealer for replacement glass.
This product is listed to ANSI standards for “Vented Gas
Appliance Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
A. Appliance Certification
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
E. BTU Specifications
MODEL: TWILIGHT-II-MOD
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Gas Appliance
STANDARD: ANSI Z21.50-2007/CSA 2.22-2007, Addenda
ANSI Z21.50a-2008/CSA 2.22a-2008, and
Addenda ANSI Z21.50b-2009/CSA 2.22b-2009 D. Air Infiltration, Water Resistance and
Structural Tests
The Hearth & Home Technologies TWILIGHT-II-MOD In-
door/Outdoor Appliance unit was tested to the following
ASTM standards at the Stork Twin City Testing labora-
tory.
Airinfiltrationtest ASTM:E283-(04).The samplewastest-
ed at 1.57 psf (equivalent to a 25-mph windload). Water
resistance test ASTM:E331-00. The test specimen was
tested at the requested test pressures of 8.0 & 25.0 psf.
Structural test ASTM:E330-02. The unit was tested to a
design pressure of 50-psf, a test pressure of 75-psf.
Test Results
C. Thermal Performance Data
Model: TWILIGHT-II-MOD
Sound Transmission
Class (STC) Thermal Resistance (R Value) Thermal Conductivity (K Value)
27 0.8hr-sq ft-ºF/BTU 1.25 BTU-in/hr-sq ft-ºF
Model
U.S. (0-2000 FT) or
Canada (2000-4500 FT)
Input
BTU/h Orifice Size (DMS)
TWILIGHT-II-MOD
(NG) US 38,000 32
CAN 34,200 33
TWILIGHT-II-MOD
(LP) US 36,000 50
CAN 33,300 51
Model Air Infiltration
(ASTM E283) Water Resistance (ASTM E331) Structural Load (ASTM E330)
TWILIGHT-II-
MOD
Indoor/Outdoor 0.07CFM/ft2 No leakage
@ 8psf & 25psf No Blowout @ 75psf

7
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
WARNING! DO NOT operate fireplace before read-
ing and understanding operating instructions. Failure
to operate fireplace according to operating instructions
could cause fire or injury.
If you expect that small children or vulnerable adults may
come into contact with this fireplace, the following precau-
tions are recommended:
• Install a physical barrier such as:
- A decorative firescreen.
- Adjustable safety gate.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Never leave children alone near a hot fireplace,whether
operating or cooling down.
• Teach children to NEVER touch the fireplace.
• Consider not using the fireplace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/safety-information.
To prevent unintended operation when not using your fire-
place for an extended period of time (summer months,
vacations, trips, etc):
A. Appliance Safety
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Remove batteries from remote controls.
• Turn off wall controls.
• Unplug3volt adapterplug(IPI) andremovebatteries on
IPI models.
3
3 Important Safety and Operating Information
Clear Space
WARNING! DO NOT place combustible objects in front
of the fireplace or block louvers. High temperatures may
start a fire. See Figure 3.1.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.

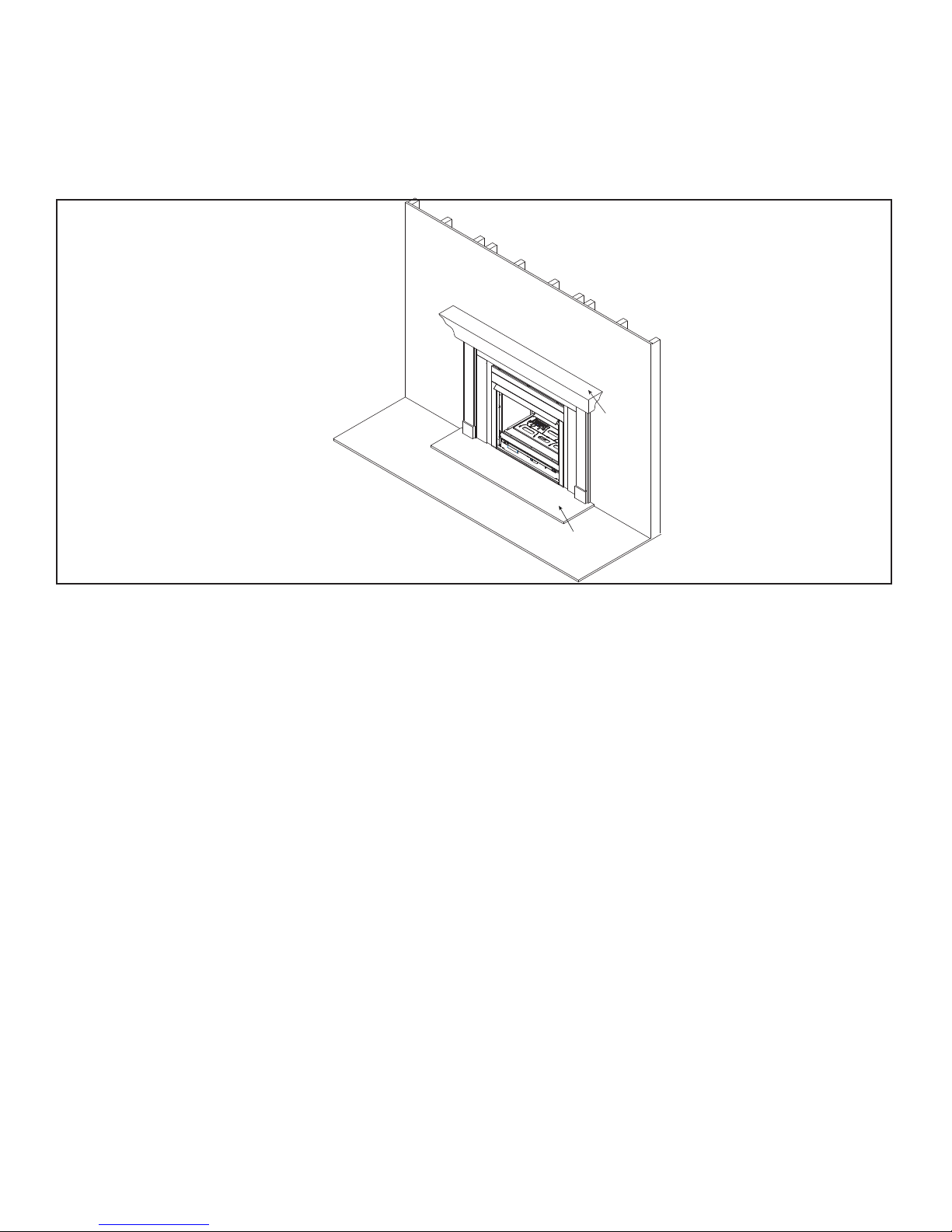

Figure 3.1 Clear Space
Over Firing
The appliance is considered to be over firing if the flames
arecontacting thetop ofthefirebox. Callaqualifiedservice
technician to service the appliance
WARNING! Choking Hazard! Keep glass rock media
out of reach of children.
CLEAR SPACE
3 FT. IN FRONT OF FIREPLACE
EXTERIOR AND INTERIOR
NOTE: INTERIOR VIEW

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/138
Figure 3.2 General Operating Parts
B. General Operating Parts
C. Fuel Specifications
WARNING! Risk of Fire or Explosion! Appliance must
be set up for compatible gas type!
• This appliance is designed to operate on either natural
gas or propane. Make sure the appliance is compatible
with gas type selected for installation site.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specified
and approved parts.
Figure 3.2 references the general operating parts of the
appliance and the section of this manual in which they are
discussed.
DECORATIVE DOORS
(NOT SHOWN)
SECTION 6.A
FIXED GLASS ASSEMBLY
(NOT SHOWN)
SECTION 4.B
MANTEL
HEARTH EXTENSION
(not required)
Interior or Exterior
FAN KIT
SECTION 6.A
CLEAR SPACE
SECTION 3.A
NOTE: INTERIOR VIEW
D. Before Lighting Fireplace
Before operating this fireplace for the first time, have a
qualified service technician:
• Verify all shipping materials have been removed from
inside and/or underneath the firebox.
• Review proper placement of logs, ember material and/
or other decorative materials.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensurethatthe glassis sealedand intheproper position
and that the integral barrier is in place.
WARNING! Risk of Fire or Asphyxiation! DO NOT op-
erate fireplace with fixed glass assembly removed.

9
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
E. Lighting Instructions (IPI)
The IPI system may be operated with two D-cell batteries. When using batteries, unplug the transformer. To prolong battery
life, remove them when using the transformer.
1. This appliance is equipped with an ignition
device which automatically lights the burner.
DO NOT try to light the burner by hand.
2. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the floor. If
you smell gas, STOP! Follow “B” in the Safety
Information located on the left side of this la-
bel. If you do not smell gas, go to next step.
3. To light the burner:
Equipped with wall switch: Turn ON/OFF switch
to ON.
Equipped with remote or wall control: Press
ON or FLAME button.
Equipped with thermostat: Set temperature to
desired setting.
4. If the appliance does not light after three tries,
call your service technician or gas supplier.
LIGHTING
INSTRUCTIONS (IPI)
TO TURN OFF
GAS TO APPLIANCE
1. Equipped with wall switch: Turn ON/OFF switch
to OFF.
Equipped with remote or wall control: Press
OFF button.
Equipped with thermostat: Set temperature to
lowest setting.
2. Service technician should turn off electric
power to the control when performing service.
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING:Ifyoudonot followtheseinstructionsexactly,afireor explosion
may result causing property damage, personal injury or loss of life.
CAUTION:
NOT FOR USE
WITH SOLID FUEL
WARNING:
593-913G
GAS
VALVE
For additional information on operating your
Hearth & Home Technologies fireplace, please refer to www.fireplaces.com.
A. This appliance is equipped with an
intermittent pilot ignition (IPI) device
which automatically lights the burn-
er. DO NOT try to light the burner by
hand.
B. BEFORELIGHTING,smellallaround
the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
• DO NOT try to light any appliance.
• DO NOT touch any electric switch; do
not use any phone in your building.
DO NOT CONNECT LINE VOLT-
AGE (110/120 VAC OR 220/240
VAC) TO THE CONTROL VALVE.
Improper installation, adjustment, al-
teration, service or maintenance can
cause injury or property damage. Re-
fer to the owner’s information manual
provided with this appliance.
This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and main-
tained in accordance with the manufac-
turer’s instructions, this product could
expose you to substances in fuel or
fuel combustion which are known to the
StateofCaliforniato causecancer,birth
defects, or other reproductive harm.
Keep burner and control compartment
clean. See installation and operating
instructions accompanying appliance.
Hot while in operation. DO NOT touch.
Keepchildren,clothing,furniture,gaso-
lineandother liquids having flammable
vapors away.
DO NOT operate the appliance with
fixedglass assembly removed, cracked
or broken. Replacement of the fixed
glass assembly should be done by a
licensed or qualified service person.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
C. DO NOT use this appliance if any
part has been under water. Imme-
diately call a qualified service tech-
nician to inspect the appliance and
to replace any part of the control
system and any gas control which
has been under water.
For use with natural gas and propane.
A conversion kit, as supplied by the
manufacturer, shall be used to convert
this appliance to the alternate fuel.
Also Certified for Installation in a
Bedroom or a Bedsitting Room.
For assistance or additional informa-
tion, consult a qualified installer, ser-
vice agency or the gas supplier.
Final inspection by

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/1310
F. Appliance Break-In
Initial Break-in Procedure
• The fireplace should be run three to four hours
continuously on high.
• Turn the fireplace off and allow it to completely cool.
• Remove fixed glass assembly. See Section 5.A.
• Clean fixed glass assembly. See Section 4.
• Replace the fixed glass assembly and run continuously
on high an additional 12 hours.
This cures the materials used to manufacture the fire-
place.
NOTICE! Open windows for air circulation during fire-
place break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
IntelliFire™ Ignition System
IntelliFire™, an ignition system exclusively featured in
Heatilator, Heat & Glo & Quadra-Fire products, is an
energy-saving pilot ignition system for gas fireplaces and
inserts. It provides an ignition flame only when needed
and has a battery backup system that supplies power to
spark the ignition flame in the event of a power outage.
Intellifire™is an intermittent pilot ignition, which is an
electronic system. The term Intermittent is used because
the pilot burner flame is only present when the main
burner is operating. When the main burner is off the pilot
is also off.
NOTICE: Batteries should not be placed in the battery
packwhile usingthe transformer.Remove batteriesbefore
using the transformer, and unplug the transformer before
installing the batteries. Battery polarity must be correct or
module damage will occur.
Appliance ON/OFF:
If an optional remote control or wall control is installed,
it should be used to control the ON/OFF function of the
appliance. Follow instructions included with the installed
control.
To operate the appliance without a wall control or remote
control, use the ON/OFF switch located inside the control
cavity of the appliance. See Figure 3.4.
Access to the ON/OFF switch may vary depending on the
choice of decorative front. In some cases a louver may
need to be opened. In other cases, the decorative front
may need to be removed.
CAUTION! Risk of Electric Shock! Avoid touching wires
and electrical components in appliance control cavity.
ON/OFF
SWITCH
Figure 3.4. ON/OFF Switch Location
H. Detailed Component Operating
Instructions
G. Heat Management
Burn Rate
The TWILIGHT-II-MOD has a constant burn rate which is
controlled by the gas valve. Therefore the flame height is
not adjustable.
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
6 in.
18 in.
24 in.
30 in.
36 in.
48 in.
TO CEILING
42 in.
12 in.
200°F
APPLIANCE FRONT
FIREPLACE
OPENING
180°F
160°F
150°F
140°F
130°F
120°F
Figure 3.3. Maximum Interior Wall Surface Temperatures Above
Appliance

11
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
4
4 Maintenance and Service
Task Frequency To be completed by
Glass Cleaning Seasonally
Homeowner
Doors/Fronts/
Surrounds Annually
Remote Control Seasonally
Exhaust
Termination Seasonally
Gasket Seal
and Glass
Inspection Annually
Qualified Service
Technician
Firebox
Inspection Annually
Control
Compartment &
Firebox Top Annually
Glass Rock
Media Annually
Burner Ignition
& Operation Annually
When properly maintained, your fireplace will give you
many years of trouble-free service. We recommend an-
nual service by a qualified service technician.
Any safety screen or guard removed for servicing must be
replaced prior to operating the fireplace.
A. Maintenance: Frequency and Tasks
The matrix below is an overview of maintenance tasks to
be performed on the appliance. Sections B and C give
details and instructions needed to assist the appropriate
person in performing the tasks.
Glass Cleaning
Frequency: Seasonally
By: Homeowner
Tools Needed: Protective gloves, glass cleaner, drop
cloth and a stable work surface.
CAUTION! Handle fixed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
•Preparea workarea largeenough toaccommodate fixed
glass assembly and door frame by placing a drop cloth
on a flat, stable surface.
Note: Fixed glass assembly and gasketing may have res-
idue that can stain carpeting or floor surfaces.
•Remove door or decorative front from fireplace and set
aside on work surface.
WARNING! Risk of Asphyxiation! Handle fixed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT operatefireplacewith glassremoved,cracked,
broken or scratched.
• Replace as a complete assembly.
• Remove fixed glass assembly from appliance. See
instructions below for removing and replacing interior
and exterior glass assemblies.
• Clean glass with a non-abrasive commercially available
cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Carefully set fixed glass assembly in place on fireplace.
Hold glass in place with one hand and secure glass
latches with the other hand.
• Reinstall door or decorative front.
Removing Fixed Glass Assembly- Interior
• Loosen two wing nuts on bottom glass retainer bracket.
• Loosen and remove two wing nuts on top glass retainer
bracket. Removeglassretainer bracket. SeeFigure 4.1
• Lift glass assembly off of glass retainer bracket.
Replacing Fixed Glass Assembly - Interior
• Positionglassassemblyonbottomglassretainer bracket.
Tighten wing nuts on bottom glass retainer bracket.
• Positiontop ofglass assembly, positiontop glassretainer
bracket and secure with two wing nuts.
B. Maintenance Tasks: Homeowner
Installation and repair should be done by a qualified service
technician only. The fireplace should be inspected before
use and at least annually by a professional service person.
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
More frequent cleaning may be required due to lint from
carpeting or other factors. Control compartment, burner
and circulating air passageway of the fireplace must be
kept clean.
CAUTION! Risk of Burns! The fireplace should be
turned off and cooled before servicing.

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/1312
4.1 Glass Assembly - Interior Side
GLASS RETAINER BRACKET
GLASS RETAINER BRACKET
WING NUT ON THREADED STUD
WING NUT ON THREADED STUD
Removing Fixed Glass Assembly- Exterior
• Remove vanity panel from appliance to expose glass
latches.
• Pullglass latchoutto release. Graspglass assembly on
sidesandpull bottom towardyou. Slide glass assembly
down and out from under glass retainer.
Replacing Fixed Glass Assembly - Exterior
• Slide top of glass assembly into position under glass
retainer. Position bottom of glass assembly and secure
latches.
• Replace vanity panel.
GLASS LATCH
GLASS LATCH
4.4 Glass Latch Detail - Exterior Side
WING NUT LOCATIONS
4.2 Glass Assembly Detail - Interior Side
GLASS LATCHES
GLASS RETAINER
4.3 Glass Latch Locations - Exterior Side

13
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
Doors, Surrounds, Fronts
Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface
• Assess condition of screen and replace as necessary.
• Inspect for scratches, dents or other damage and repair
as necessary.
•Check that louvers are not blocked.
•Vacuum and dust surfaces.
Remote Control
Frequency: Seasonally
By: Homeowner
Tools needed: Replacement batteries and remote con-
trol instructions.
• Locate remote control transmitter and receiver.
• Verify operation of remote. Refer to remote control
operation instructions for proper calibration and setup
procedure.
• Place batteries as needed in remote transmitters and
battery-powered receivers.
• Place remote control out of reach of children.
If not using your fireplace for an extended period of time
(summer months, vacations/trips, etc), to prevent unin-
tended operation:
• Remove batteries from remote controls.
• Unplug 3 volt adapter plug on IPI models.
Exhaust Termination
Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• Inspect exhaust termination for blockage or obstruction
such plants, bird nests, leaves, snow, debris, etc.
• Verifyexhausttermination clearanceto subsequentcon-
struction (building additions, decks, fences, or sheds).
See Section 6.

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/1314

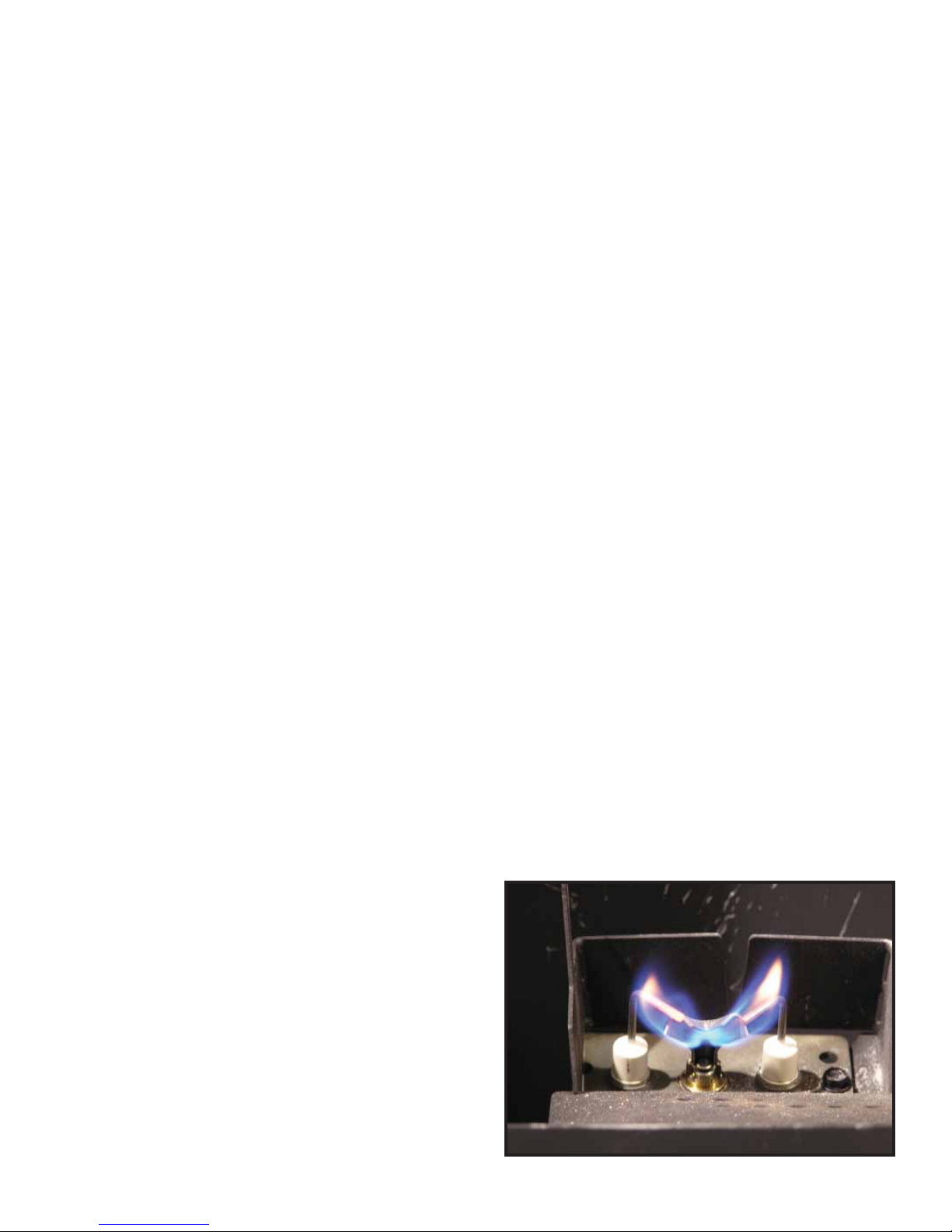

Figure 4.1 IPI Pilot Flame Pattern
C. Maintenance Tasks: Qualified Service
Technician
The following tasks must be performed by a qualified ser-
vice technician.
Gasket Seal and Glass Assembly Inspection
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, drop cloth and a stable
work surface.
• Inspect gasket seal and its condition.
• Inspectfixed glassassembly forscratches andnicks that
can lead to breakage when exposed to heat.
• Confirm there is no damage to glass or glass frame.
Replace as necessary.
• Verify that fixed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.
Firebox
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace fireplace if firebox has been perforated.
Control Compartment and Firebox Top
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust
cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Usecautionwhen cleaning these areas. Screwtips that
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.
Glass Rock Media Maintenance
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, container, mild dish
soap, cloth or rag
• The glass rock media will loose its luster over time. This
is normal wear for this application. The appearance
of the media can be restored by periodic cleaning. It
is recommended that the glass rock media be rinsed
thoroughly with water to remove dust and debris. An
easymethod tocleantheglassrockmediaistoplace the
contentsof thebag intoacontainerofwater andmild dish
soap. Rinse thoroughly with clean water. Drain water
from container and allow the glass rock media to dry
thoroughly before installing into the fireplace. Reinstall
glass rock media into appliance using the instructions in
the appliance installation manual.
Burner Ignition and Operation
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, flashlight, voltmeter, indexed drill bit set, and a
manometer.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Cleanoff burnertop,inspect forplugged ports, corrosion
or deterioration. Replace burner if necessary.
• Verifybatterieshavebeen removedfrom batteryback-up
IPI systems to prevent premature battery failure or
leaking.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay.
• Inspect for lifting or other flame problems.
• Verify air shutter setting is correct. See Installation
Manual for required air shutter setting. Verify air shutter
is clear of dust and debris.
• Inspect orifice for soot, dirt and corrosion. Verify orifice
size is correct. See Service Parts List for proper orifice
sizing.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Inspect pilot flame pattern and strength. See Figure 4.1
for proper pilot flame pattern. Clean or replace orifice
spud as necessary.
• Inspect IPI flame sensing rod for soot, corrosion and
deterioration. Polish with fine steel wool or replace as
required.
• Verify that there is not a short in flame sense circuit by
checkingcontinuitybetween pilothoodand flame sense
rod. Replace pilot as necessary.

15
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
5
5 Troubleshooting and Frequently Asked Questions
A. Frequently Asked Questions
ISSUE SOLUTIONS
Condensation on the glass This is a result of gas combustion and temperature variations. As the fireplace warms, this
condensation will disappear.
Blue flames This is a result of normal operation and the flames will begin to yellow as the fireplace is al-
lowed to burn for 20 to 40 minutes.
Odor from fireplace
When first operated, this fireplace may release an odor for the first several hours. This is
caused by the curing of materials from manufacturing. Odor may also be released from finish-
ing materials and adhesives used near the fireplace. These circumstances may require ad-
ditional curing related to the installation environment.
Film on the glass This is a normal result of the curing process of the paint. Glass should be cleaned within 3 to
4 hours of initial burning.A non-abrasive cleaner such as gas appliance glass cleaner may be
necessary. See your dealer.
Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or
longevity of the fireplace.
Glass Rock Media Kit
There may be some “cracking” noise coming from the fireplace during the first few heating
and cooling cycles. This noise is associated with settling rock and some minor cracking of
larger pieces of rock. This will lessen over time as the glass rock is conditioned to the heat-
ing and cooling temperature changes.
It is expected that a few small pieces (approximately 10 pieces) of rock may fall through the
base pan and come to rest on the fireplace bottom. This has no affect on fireplace perfor-
mance.
Glass Rock Media Color Change It is normal for the glass rock media to change color slightly over the lifetime of the
appliance.
Is it normal to see the pilot flame burn
continually?
In an intermittent pilot ignition system (IPI), the pilot flame should turn off when appliance is
turned off. Some optional control systems available with IPI models may allow pilot flame to
remain lit.

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/1316
With proper installation, operation, and maintenance your gas appliance will provide years of trouble-free service. If you do
experience a problem, this troubleshooting guide will assist a qualified service technician in the diagnosis of a problem and
the corrective action to be taken. This troubleshooting guide can only be used by a qualified service technician. Contact
your dealer to arrange a service call by a qualified service technician.
B. Troubleshooting
Symptom Possible Cause Corrective Action
1. Pilot won’t light.
The ignitor/module
makes noise, but no
spark.
A. Incorrect wiring. Verify “S” wire (white) for sensor and “I” wire (orange) for ignitor are
connected to correct terminals on module and pilot assembly.
B. Loose connections or electrical
shorts in the wiring. Verify no loose connections or electrical shorts in wiring from mod- ule to pilot assembly. Verify connections underneath pilot assem-
bly are tight; also verify connections are not grounding out to metal
chassis, pilot burner, pilot enclosure, mesh screen if present, or any
other metal object.
C. Ignitor gap is too large. Verify gap of igniter to right side of pilot hood. The gap should be
approximately .17 in. or 1/8 in. (3 mm).
D. Module. Turn ON/OFF rocker switch or wall switch to OFF position. Remove
ignitor wire “I” from module. Place a grounded wire about 3/16 in. (5
mm) away from “I” terminal on module. Place ON/OFF rocker switch
or wall switch in ON position. If there is no spark at “I” terminal module
must be replaced. If there is a spark at “I” terminal, module is fine.
Inspect pilot assembly for shorted sparker wire or cracked insulator
around electrode. Replace pilot if necessary.
2. Pilot won’t light,
there is no noise or
spark.
A. No power or transformer installed
incorrectly. Verify that transformer is installed and plugged into module. Check voltage of transformer under load at spade connection on module
with ON/OFF switch in ON position. Acceptable readings of a good
transformer are between 3.2 and 2.8 volts AC.
B. A shorted or loose connection in
wiring configuration or wiring har-
ness.
Remove and reinstall the wiring harness that plugs into module.
Verify there is a tight fit. Verify pilot assembly wiring to module. Re-
move and verify continuity of each wire in wiring harness. Replace
any damaged components.
C. Improper wall switch wiring. Verify that 110-120 VAC power is “ON” to junction box.
D. Module not grounded. Verify black ground wire from module wire harness is grounded to
metal chassis of appliance.
E. Module. Turn ON/OFF rocker switch or wall switch to OFF position. Remove
ignitor wire “I” from module. Place ON/OFF rocker switch or wall
switch in ON position. If there is no spark at “I” terminal module
must be replaced. If there is a spark at “I” terminal, module is fine.
Inspect pilot assembly for shorted sparker wire or cracked insulator
around electrode.
3. Pilot sparks, but
Pilot will not light. A. Gas supply. Verify that incoming gas line ball valve is “open”. Verify that inlet pressure reading is within acceptable limits.
B. Ignitor gap is too large. Verify gap of igniter to right side of pilot hood. The gap should be
approximately .17 in. or 1/8 in. (3 mm).
C. Module is not grounded. Verify module is securely grounded to metal chassis of appliance.
D. Module voltage output / Valve/Pilot
solenoid ohms readings. Verify battery voltage is at least 2.7 volts. Replace batteries if volt- age is below 2.7.

17
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13
Troubleshooting - (continued)
Symptom Possible Cause Corrective Action
4. Pilot lights but contin-
ues to spark, and main
burner will not ignite.
(If the pilot continues
to spark after the
pilot flame has been lit,
flame rectification has
not occurred.)
A. A shorted or loose connection in flame
sensing rod. Verify all connections to wiring diagram in manual. Verify connections underneath pilot assembly are tight. Verify con-
nections are not grounding out to metal chassis, pilot burn-
er, pilot enclosure or screen if present, or any other metal
object.
B. Poor flame rectification or contaminated
flame sensing rod. With fixed glass assembly in place, verify that flame is en- gulfing flame sensing rod on left side of pilot hood. Flame
sensing rod should glow shortly after ignition. Verify cor-
rect pilot orifice is installed and gas inlet is set to pressure
specifications. Polish flame sensing rod with fine steel wool
to remove any contaminants that may have accumulated on
flame sensing rod.
C. Module is not grounded. Verify module is securely grounded to metal chassis of ap-
pliance. Verify that wire harness is firmly connected to the
module.
D. Damaged pilot assembly or contami-
nated flame sensing rod. Verify that ceramic insulator around the flame sensing rod is not cracked, damaged, or loose. Verify connection from
flame sensing rod to white sensor wire. Polish flame sens-
ing rod with fine steel wool to remove any contaminants
that may have accumulated on flame sensing rod. Verify
continuity with a multimeter with ohms set at lowest range.
Replace pilot if any damage is detected.
E. Module. Turn ON/OFF rocker switch or wall switch to OFF position.
Remove ignitor wire “I” from module. Place ON/OFF rocker
switch or wall switch in ON position. If there is no spark at “I”
terminal module must be replaced. If there is a spark at “I”
terminal, module is fine.

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/1318
6
6 Reference Materials
A. Accessories
Install approved accessories per instructions included
with accessories. Contact your dealer for a list of ap-
proved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
Once installed, operate per instructions included with ac-
cessories.
Fan Kit (optional)
If desired, a fan kit may be added. Contact your dealer to
order the correct fan kit.
Remote Controls, Wall Controls and Wall
Switches
Follow the instructions supplied with the control installed
to operate your fireplace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
Decorative Doors and Fronts
WARNING! Risk of Fire! Install ONLY doors or fronts
approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause fireplace to overheat.
This fireplace has been supplied with an integral
barrier to prevent direct contact with the fixed glass
panel. DO NOT operate the fireplace with the barrier
removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
Formoreinformation refertothe instructionssupplied with
your decorative door or front.

19
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/13

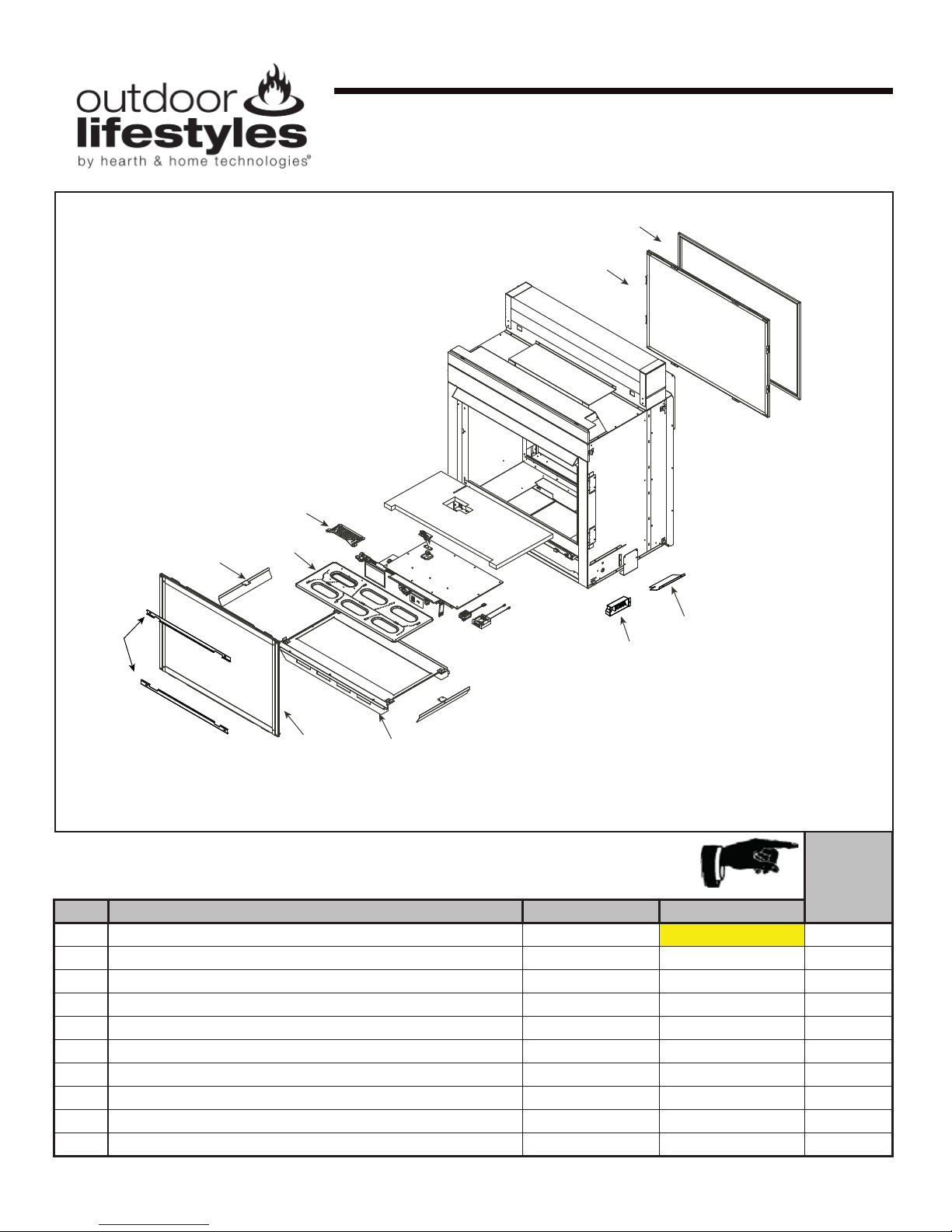

Service Parts TWILIGHT-II-MOD
Beginning Manufacturing Date: July 2012
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer. Stocked
in Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1Mesh Assembly MESH-TWI-EXT Y
2 Outdoor Glass Assembly GLA-OUTDOOR2
3Pilot Shield 2290-109
4 Burner Assembly 2290-007 Y
5Firebox Bracket Qty 2 req 2290-123
6 Glass Clip Qty 2 req 2087-121
7Indoor Glass Assembly GLA-6TROC Y
8 Base Pan Assembly 2290-015
9Junction Box 4021-013 Y
9 Junction Box Shield 2087-149
Additional service part numbers appear on following page. 9/12
36” Indoor/Outdoor
See-thru Gas Fireplace
2
1
3
4
6
5
78
10
9
B. Service Parts

Outdoor Lifestyles by Hearth & Home Technologies, Inc. • Twilight-II-Mod Owner’s Manual • 2290-971 • 1/1320
Service Parts TWILIGHT-II-MOD
Beginning Manufacturing Date: July 2012
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer. Stocked
in Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
11.1 Pilot Assembly NG 2090-012 Y
Pilot Assembly LP 2090-013 Y
Pilot Tube 446-301 Y
11.2 12" Flex Tube Assembly 383-302A Y
11.3 Valve Plate Gasket 2087-112
11.4 Valve L Bracket 674-168
11.5 Valve Bracket 2087-117
11.6 Valve Assembly Bracket 2087-116
11.7 Flex Ball Valve Assembly 302-320A Y
11.8 ON/OFF Rocker Switch Assembly 060-521A Y
11.9 Valve NG 593-500 Y
Valve LP 593-501 Y
11.10 Wire Assembly 593-590A Y
11.11 Control Module 593-592 Y
11.12 Battery Pack 593-594A Y
11.13 Power Supply 593-593A Y
11.14 3-Hole Grommet 2118-420
Burner Orifice (NG) (#32C) 582-832 Y
Burner Orifice (LP) (#50C) 582-850 Y
Additional service part numbers appear on following page.
11.1
11.2
11.3
11.4
11.5
11.14
11.6
11.7
11.8
11.9 11.10
11.11
11.12
11.13
#11 Valve Assembly
