Outdoor Lifestyles ODSP-18LP User manual

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 1
Models:
ODSP-18LP, ODSP-24LP
Outdoor Hearth Kits
Installation
Instructions
Check with your local building code agency before you begin installation to ensure compliance with local codes, including
the need for permits and follow-up inspections. If you encounter any problems regarding code approvals, or if you need
clarification of any of the instructions contained here, contact the Technical Services Dept., Hearth & Home Technologies
Inc., www.hearthnhome.com.
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating
and maintenance
instructions included.
• Leave this manual with
party responsible for
use and operation.
• Read, understand
and follow these
instructions for safe
installation and
operation.
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
-Do
not try to light any appliance.
- Donottouchanyelectricalswitch.Donot
use any phone in your building.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
- Ifyoucannotreachyourgassupplier,call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
WARNING HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot during
operation and cool down.
Installation and service of this
appliance should be performed by
qualifiedpersonnel.Hearth&Home
TechnologiessuggestsNFIcertified
or factory-trained professionals, or
technicians super-
vised by an NFI
certified profes-
sional.
In the Commonwealth of Massachusetts:
• This appliance must be installed by a licensed plumber
or gas fitter.
• The chimney flue damper, when used with gas logs, will
be welded open or completely removed.
• A CO detector shall be installed in the room where the
appliance is installed.

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
2
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
Congratulations on selecting a Outdoor Lifestyles by Hearth & Home Technologies gas log set—an elegant and clean alter-
native to burning wood. The Hearth & Home Technologies gas log set you have selected is designed to provide the utmost
in safety, reliability, and efficiency.
As the owner of this new gas log set, you’ll want to read and carefully follow all of the instructions contained in this owner’s
manual. Pay special attention to all cautions and warnings.
This owner’s manual should be retained for future reference. We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual, unless noted otherwise, applies to all models and gas control systems.
Your new gas log set will give you years of durable use and trouble-free enjoyment. Welcome to the Hearth & Home Tech-
nologies family of appliance products!
Listing Label Information/Location
The model information regarding your specific gas log set can be found on the rating plate.
Congratulations

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 3
Table of Contents
1 Listing and Code Approvals
A. Appliance Certification.........................4
B. Table 1.....................................4
2 Getting Started
A. SizeofFirebox...............................5
B. Tools and Supplies Needed.....................5
C. Inspect the Appliance and Components . ..........5
D. Components of the Gas Hearth Kit . ..............6
3 Appliance Preparation
A. Gas Supply Connection........................7
B. Convert to Left Side Gas Piping. . . . . . . . . . . . . . . . . .7
C. GasPressure................................8
4 Installation Instructions
A. Install the Damper Stop ........................9
B. Install the Burner/Pan Assembly . ................9
C. Install the Grate . .............................9
D. PlaceLavaRock.............................9
E. Install the Logs..............................10
F. Adjust the Pilot Flame . .......................10
G. Inspect the Venting System....................11
5 Operating Instructions
A. Lighting Instructions..........................12
B. GlassDoors................................13
C. Important Safeguards . .......................13
6 Maintaining and Servicing the Appliance
A. Servicing Your Appliance......................14
B. Cleaning Your Appliance ......................14
C. Annual Inspection . ..........................14
D. Troubleshooting.............................15
7 Reference Materials

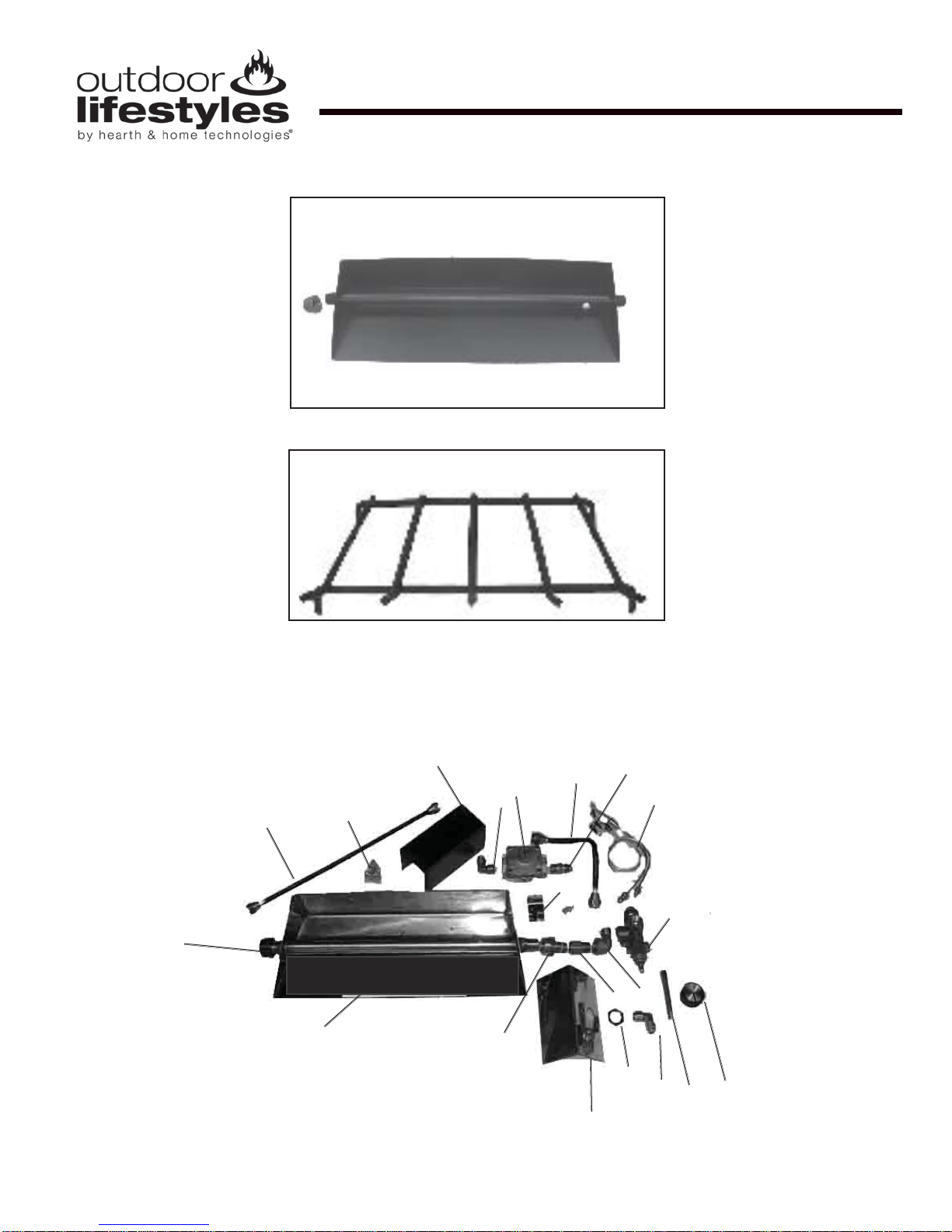

A. ServiceParts...............................18
B. Optional Components . .......................19
C. Warranty ...............................20,21
D. Contact Information ..........................22

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
4
1Listing and Code Approvals
A. Appliance Certification
The Outdoor Lifestyles by Hearth & Home Technologies
Burner/Hearth Kits have been tested and listed for outdoor
use inthe U.S. inaccordancewith ANSI Z21.60b-2012 (Gas
Log Set). In Canada the Gas Log Hearth Kits have been
tested and approved in accordance with CSA 2.26b-2012.
They have been listed by PFS Test Labs for installation and
operation in the United States and Canada as described in
theseInstallationandOperatingInstructions.Allcomponents
are UL, OMNI, or CSA safety certified.
Check with your local building code agency prior to installing
this appliance to ensure compliance with local codes,
including the need for permits and follow-up inspections.
In the absence of local codes, comply with the National
Fuel Gas Code, ANSI Z223.1-Latest Edition in the U.S.;
in Canada, the CAN/CGA B149 Installation Codes. If any
assistance is required during installation, please contact
your local dealer or visit the Technical Services Department
at www.hearthnhome.com.
This burner assembly is intended to be used with HHT
Outdoor Lifestyles by Hearth & Home Technologies Fireside
Realwood log set.
B. Table 1
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualified installer, service agency or the gas
supplier.
WARNING
Fire Risk
Exhaust Fumes Risk
• DoNOTusethisapplianceasa“vent-free
heater.
The flue must be permanently open. Refer
to Table 1.
WARNING
Product ODSP18LP ODSP24LP
Inlet BTU Nat.
LP 55,000 61,000
Manifold Pressure IN.
WC/ KPa Nat.
LP 11.0 / 0.057 11.0 / 0.057
Max. Inlet Pressure
IN. WC / KPa Nat.
LP 13.0 / 0.068 13.0 / 0.068
Min. Inlet Pressure IN.
WC / KPa Nat.
LP 11.0 / 0.057 11.0 / 0.057
Orifice Size
In. / mm Nat.
LP (#42) .0935 (#42) .0935
Minimum Fireplace
Opening Size
In. / cm
Front 28 / 71.1 34 / 86.4
Rear 16 / 40.6 18 / 45.7
Depth 14 / 35.6 16 / 40.6
Height 16 / 40.6 18 / 45.7
Min. Vent Opening in
Square In. / cm 39 / 251.6 48 / 309.7

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 5

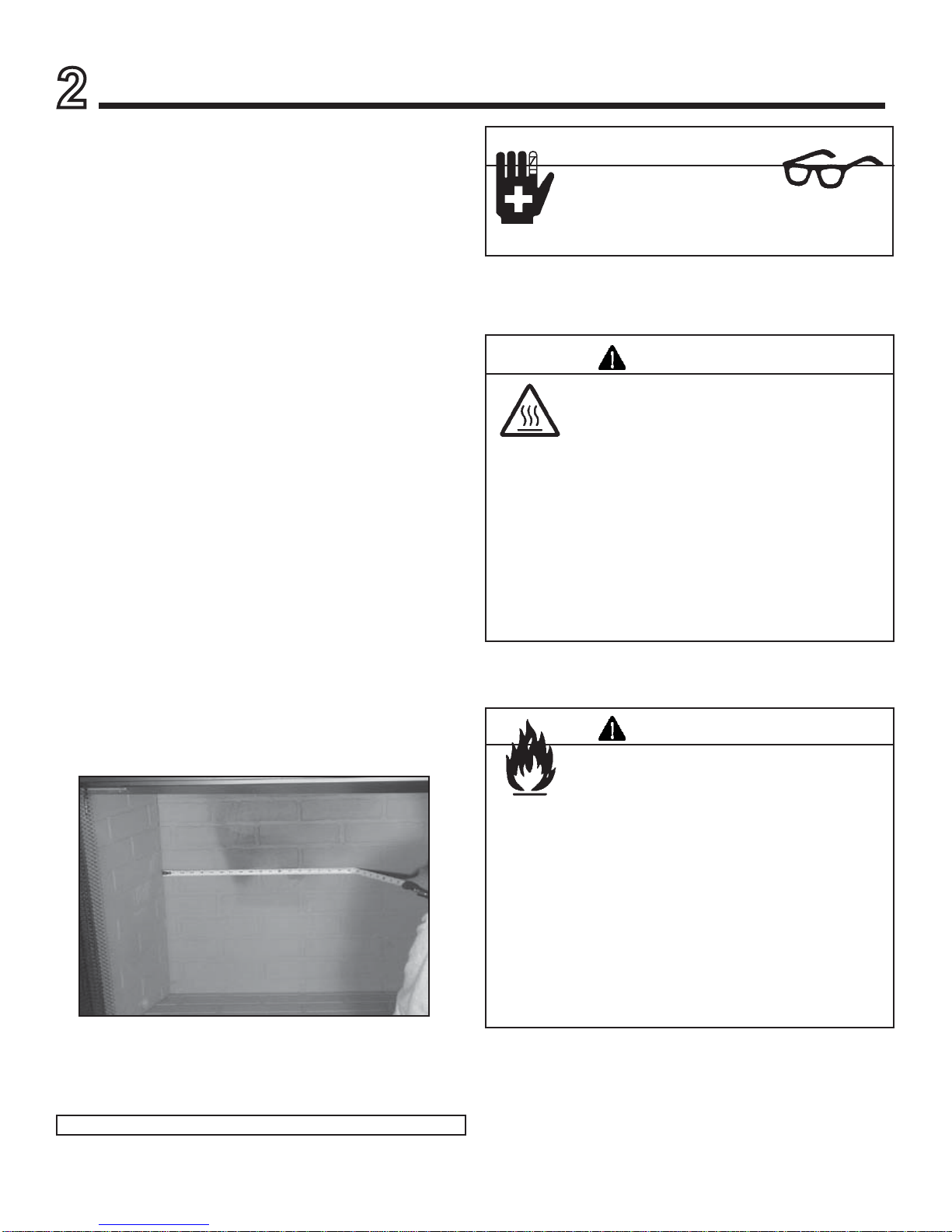

2Getting Started
A.Size of Firebox
See Table 1 in Section 1.B.
Asphyxiation Risk
This appliance produces carbon monoxide
(CO).
• Thefreeopeningareas(insquareinches)
of the chimney damper as shown in the
tables must be met.
• User must make sure damper is locked
open.
• The installer is responsible to ensure
proper ventilation of flue gases before
appliance is used.
Fire needs to draft properly for safe
operation.
WARNING
B.Tools and Supplies Needed
Tools and supplies normally required for installation:
Pliers
Phillips screwdriver
Tape measure
Crescent wrenches
Gas shutoff valve
Non-corrosive leak check solution
3/4 in. wrench, 7/16 in. wrench
C.Inspect the Appliance and Components
• Remove the contents from the carton. Attached to the
burnerare tagsidentifying themanufacturer name,serial
number, model number (including gas log size), BTU
ratings, gas type, etc.
• Review the attached tags before proceeding. Ensure
that all minimum fireplace dimension requirements are
achieved using Table 1 in Section 1.B. See Figure 2.1.
Ensure the gas type provided in the fireplace coincide
with the gas type marked on the tag.
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
CAUTION
Figure 2.1 Measure Firebox
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Installation and use of any damaged appliance or
vent system component.
• Modification of the appliance or vent system.
• InstallationotherthanasinstructedbyHearth&Home
Technologies.
• Improper positioning of the gas logs or the glass
door.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
6
D. Components of the Gas Hearth Kit
The Outdoor Lifestyles by Hearth & Home Technologies
Burner/Hearth Kit consists of the following:
• Burner/Pan Assembly
• Grate Assembly
• Lava Rock
• Damper Stop
• Extended Handle
• Fireside Realwood Log Set: FRW118 & FRW124 (sold
separately)
Keep appliance dry.
• Mold or rust may cause
odors.
• Water may damage controls.
WARNING
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
WARNING
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING
Shock Risk
Fire Risk
Use ONLY optional accessories approved
for this appliance.
• Using non-listed accessories voids
warranty.
• Using non-listed accessories may result
in a safety hazard.
• Only Hearth & Home Technologies
approved accessories may be used
safely.
WARNING

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 7

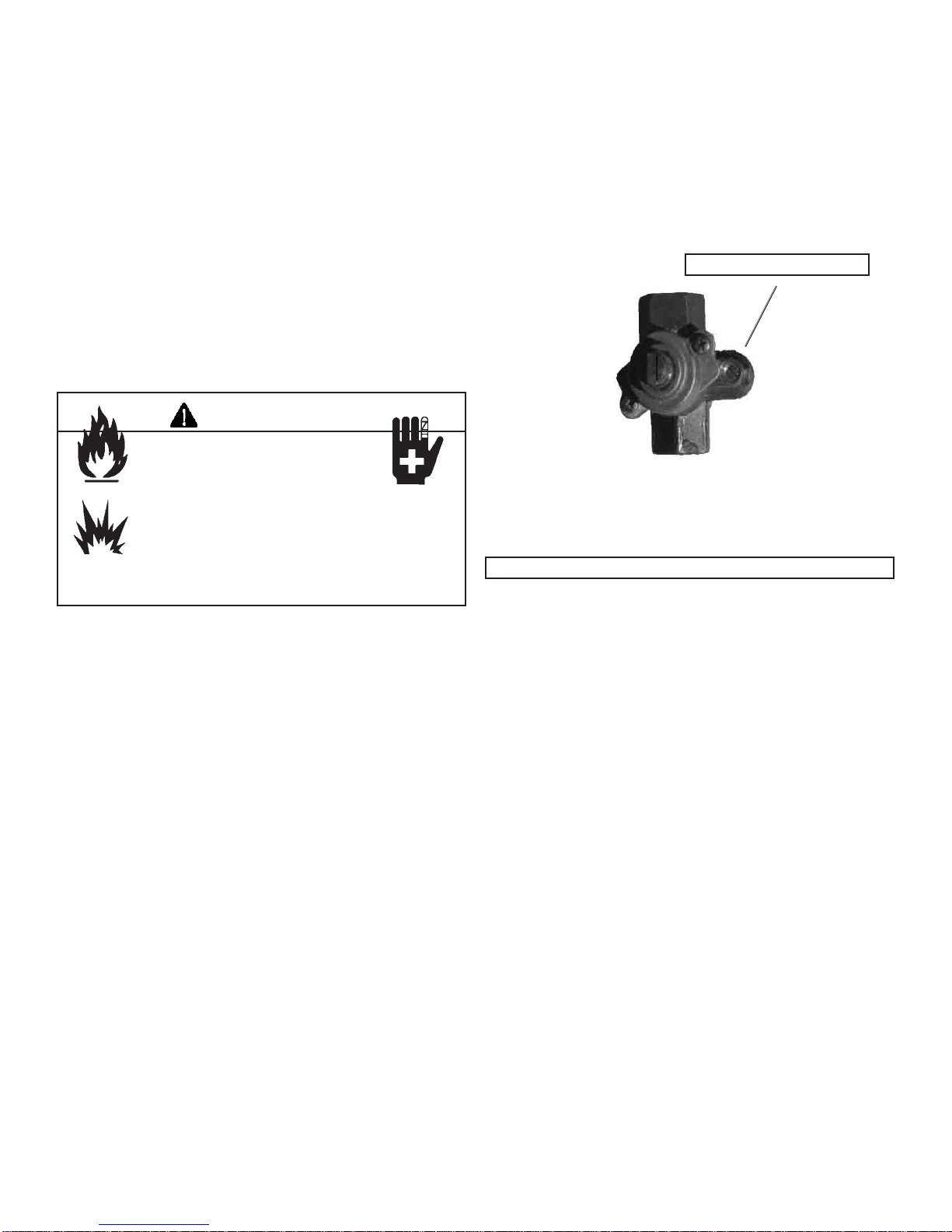

A. Gas Supply Connection
A 3/8 in. flared fitting has been installed on the gas valve
inlet at the factory. Ensure fittings are of the appropriate size
and type on the gas line connection. If the tubing has to be
cut to length be sure to use the proper cutting and flaring
tool. Also, be careful not to crimp the tubing while bending. If
the tubing becomes crimped, do not use for installation.
Fire Risk
Explosion Risk
Verify inlet pressures.
• High pressure may cause overfire
condition.
• Low pressure may cause explosion.
Install regulator upstream of valve if line
pressure is greater than 1/2 psig.
WARNING
3Appliance Preparation
B. Convert to Left Side Gas Piping
• Remove black cap from left side.
• Remove two pilot head screws.
• Remove two pilot bracket screws.
• Detach thermocouple and pilot from control valve.
• Remove the control valve from the right side of the burner
pan and replace on left, upside down.
Note: Prior to installing, use Teflon tape or Joint compound
on the male threads.
• Reinstall pilot bracket on left side of burner.
• Reinstall pilot assembly to pilot bracket.
• Reattach pilot tube and thermocouple to control valve.
• Reinstall black cap removed from left side of burner to
right side.
• Install valve shield.
Note: An individual manual shutoff valve (not supplied) is
requiredwhen installingthis appliance.The manualshutoff
valve must be located in an easily accessible area, no more
than 6 feet from the appliance.
Note: Have the gas supply line installed in accordance
with local building codes, if any. If not, follow ANSI 223.1.
Installation shouldbe donebya qualified installerapproved
and/orlicensed as requiredbythelocality.(Inthe Common-
wealthof Massachusetts installation mustbe performed by
a licensed plumber or gas fitter.)
Note: A listed (and Commonwealth of Massachusetts
approved) 1/2 in. (13 mm) T-handle manual shut-off valve
and flexible gas connector are connected to the 1/2 in.
(13 mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
WARNING
Gas Leak Risk
• Support control when attaching pipe to
prevent bending gas line.
WARNING
Fire Risk
Explosion Risk
• Gas build-up during line purge may
ignite.
• Purge should be performed by qualified
technician.
• Ensure adequate ventilation.
• Ensuretherearenoignition sources such
as sparks or open flames.
Fire Risk
Explosion Risk
Personal Injury Risk
An explosion could occur if a connection is
made directly to an unregulated propane (LP)
tank.
WARNING
Joint compound ot Teflon tape must be used on all threaded
male connections to ensure a tight seal.

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
8
C. Gas Pressure
Proper input pressures are required for optimum appliance
performance. Gas line sizing requirements need to be made
following NFPA51.
Fire Risk
Explosion Risk
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressuretestinggaslineat test pressures
above 1/2 psig.
• Closethe manual shutoffvalveBEFORE
pressuretestinggaslineat test pressures
equal to or less than 1/2 psig.
WARNING
High Altitude Derate
Inthe USA,inputBTUshall be derated4%(oneorificesize)
per1000feetforaltitudesabove2000feet.InCanada, input
BTU shall be derated 10% (two orifice sizes) at altitudes
from 2000-4500 feet.
• GasSupply Pressure:Minimum inletgas supplypressure
must be 11 in. W.C. for LP gas for the purpose of input
adjustment. Maximum inlet gas pressure must not
exceed 13 in. W.C. for LP gas. The gas line supplying the
appliancemustbe sufficient sizeto furnishthe appropriate
supply pressure to the appliance while operating in the
“High” setting. (Minimum line ID of 1/2 in. required if the
line is longer than 20 ft.
• Gas Line Pressure Test: Perform pressure test according
tostate and localcode (ifpressure exceeds1/2 in.psi [3.5
kPa]) before appliance is connected. Be sure to release
air pressure from the gas line before connection is made
tothe appliance.Excessive pressurewill damage thegas
control and may cause a gas leak.
• Gas Leak Test: Make sure the gas connections are tight.
Turn on the gas and coat each joint with a non-corrosive
gas leak check solution. Air bubbles will form indicating
any leaks. DO NOT USE A FLAME OR ANY TYPE OF
IGNITION SOURCE TO CHECK FOR LEAKS. All leaks
must be corrected before proceeding with installation.
• Theappliancemust only be installedin a solid-fuelburning
fireplace with the flue damper clamped open.
• The minimum permanent free opening (in square inches)
thatmust beprovided bythefireplace chimneyor damper
to vent the flue gases is provided in Table 1. If the free
openingis smallerthan the specifiedarea, do notuse this
appliance.
• The damper must be removed or fixed in a manner in
which will secure it open. Some jurisdictions require the
damper to be removed or permanently welded fully open.
Check with state and local codes.
• Be sure that the chimney is completely unobstructed to
ensure proper ventilation of flue gases including carbon
monoxide (CO). CO (a poisonous gas) is tasteless,
odorless, colorless and undetectable without proper
equipment.
WARNING
CHECK FOR GAS LEAKS
Fire Risk
Explosion Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• Afterthe gasline installationis complete,
all connections must be tightened and
checked for leaks with a commercially
available, non-corrosive leak check
solution.Besuretorinse off all leakcheck
solution following testing.
Fittingsandconnections may haveloosened
during shipping and handling.
WARNING
Fire Risk
Explosion Risk
Do NOT change the valve settings.
• This valve has been preset at the
factory.
• Changingvalve settings mayresult infire
hazard or bodily injury.
Shock Risk
Explosion Risk
Do NOT wire 110V to valve.
WARNING • Prevent accidental appliance operation when not
attended.
• Unplug or remove batteries from remote control if
absentorifappliance will notbeused for an extended
period of time.
• Property damage possible from elevated
temperatures.
CAUTION

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 9
4Installation Instructions
A. Install the Damper Stop
• Open the damper to the fully open position and secure it
open with the stop as shown in Figure 4.1.
• If the damper stop doesn’t fit your application, use a
permanent means that will keep the damper open at
least to the minimum vent opening as outlined in Table 1,
Section 1.B.
B. Install the Stainless Burner/Pan Assembly
The burner/pan assembly is shipped ready for right-hand
gas connection. See Section 3.B. for left-hand connection.
• Remove the existing cap or gas jet assembly from the
gas stub in your fireplace. Clean the threads using a wire
brush or steel wool. Apply Teflon tape or joint compound
to the steel fitting and attach the provided brass adapter
to the stub.
• Place the burner/pan assembly in the fireplace. The pan
should be centered both front to back and side to side.
• Bendtheprovidedgasconnector to facilitate itsinstallation
between the burner and the gas stub.
• Attach one end of the gas connector to the brass elbow
or safety pilot fitting. Attach the other end to the brass
adapter at the gas tube.
C. Install the Stainless Grate
• The grate should be centered over the burner pan, side
to side. If the grate sits toward the front of the burner pan,
the flames will be larger coming through the logs. If the
grate sits toward the back of the burner pan, the ember
bed will be more prominent. Refer to Figure 4.2.
Figure 4.2 Center Grate Over Burner Pan
D. Placement of Lava Rock
• Pour the lava rock into the burner pan. Lava rock should
follow the slope of pan, covering it and the burner tube
completely.
Note: Use caution so Lava rock does not get into the air
mixer on LP models.
• Allow the Lava rock to spill out the front of the pan and
over the sides onto the fireplace floor.
Important: Cover the pilot assembly to protect it before
installing the Lava rock.
Air Mixer

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
10
Fire Risk
Explosion Risk
Personal Injury Risk
Failure to position the parts in accordance
with the diagrams provided with the log
packages or failure to use only parts
approved with this appliance may result in
property damage or personal injury.
WARNING
case of an uneven flame pattern it may be necessary to
adjust the materials in the pans (using an object such as
a screwdriver) to achieve the desired effect.
E. Install the Logs
F. Adjust the Pilot Flame
The pilot flame should be a soft blue color and should sur-
round the last 1/2 in. of the thermocouple tip. The pilot ad-
justment screw is located on pilot valve beside control knob.
Refer to Figure 4.3. If pilot flame must be adjusted, use a
standard slotted screwdriver to turn screw clockwise to re-
duce flame or counterclockwise to increase flame.
• Inspect the pilot burner to ensure it is clear of any
Lava rock.
• The gas burns at the point of the least resistance. In
• Install the logs using the installation instructions included
with them.
* Discard the Ember screen supplied with the Real Wood
log set. This screen is for use on indoor log sets only.
• Lightthe burner asoutlined inthe operatingsection. Allow
the flame pattern to stabilize. If you are satisfied with the
flame pattern go to the next step. If you want more or less
flame around the front log, turn off the gas and move the
grate backward or forward.
• Once you are satisfied, turn on the gas and go on to the
next step.
• Arrange the top logs as shown in your log set up
instructions. Light the burner as outlined in the operating
instructions and allow the flame to stabilize.
• Spread additional lava rock around the outside of the
burner pan on the floor of the fireplace. If possible, cover
the gas connector with the cinders. DO NOT cover any
part of the pilot assembly.
Figure 4.3 Pilot Adjustment Screw
Pilot Adjustment Screw

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 11
G.Inspect the Venting System
The fireplace venting system is designed and constructed to
develop a positive flow adequate to remove flue gases to the
outside atmosphere. See fireplace installation instructions.
A spillage test must be made before the installed
appliance is left with the consumer
•Close all doors and windows in the home.
•Light the log set.
•After three minutes, test with a smoke match, smoke
candle,stick incense orcigarette one inchbelow thetop of
theopening (lintel)moving acrossthefull width.If spillage
(smoke drawn into the room) occurs, it will most likely be
near the top, outside corners.
Possible Cures if Spilling Occurs
•The damper should be fully open.
• The fireplace opening needs to be reduced by adding a
drop panel across the top under the lintel.
• Theair supply fromoutdoors needs tobe increased.Open
the outside air kit if the appliance is so equipped, or crack
open a door or window.
•If necessary, seek expert advice. Do not operate this
appliance.
Cleaning
Periodic examination and cleaning of the venting system
of the fireplace should be done before initial use and at
least annually by a qualified agency.
Fire Risk
Explosion Risk
Inspect external vent cap regularly.
• Ensure no debris blocks cap.
• Combustible materials blocking cap may
ignite.
• Restricted air flow affects burner
operation.
WARNING

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
12
5Operating Instructions
A. Lighting Instructions
• Safety Pilot Valve (STANDING PILOT VALVE)
WARNING: IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR
LOSS OF LIFE.
A. This appliance has a pilot that must be lighted by hand. When lighting the pilot, follow these
instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch: do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone. Follow gas supplier’s
instructions.
If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control handle. Never use tools. If the
handle will not push in or turn by hand, do not try to repair it. Call a qualified service
technician. Force or attempted repair may result in fire or explosion.
D. Do no use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any part of
the gas control that has been under water.
1. STOP! Read the safety information listed above.
2. Turn gas control handle clockwise to the “OFF” position.
3. Wait 5 minutes to clear out any gas. Then smell for gas, including near the floor. If you smell
gas, STOP!. Follow “B” in the safety information above. If you do not smell gas go on to next step.
4. Locate pilot (mounted on the right side of the top burner pan).
5. Turn control handle counterclockwise to the “PILOT” position.
6. Place a lit match at the pilot burner and simultaneously push in on the control handle.
This should ignite the pilot.
7. Once the pilot lights, continue to depress the control handle for 1 minute.
8. After 1 minute slowly release control handle and it will pop back out. Pilot should remain lit.
If it goes out, repeat steps 1 through 7.
If the handle does not pop out when released, stop immediately and call your
service technician or gas supplier.
If the pilot will not stay lit after serveral tries, turn the gas control handle to the “OFF”
position and call your service technician or gas supplier.
9. Turn gas control handle counterclockwise to the “ON” position.
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN GAS OFF TO APPLIANCE
Turn gas control handle clockwise to the “OFF” position. Do not force.

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 13
B. Glass Doors
If your fireplace is equipped with glass doors:
• Glass doors should be in fully open position when
appliance is operating.
• Operating in the closed position will block the radiant
heat output and may cause incomplete combustion of
the gas and will cause the gas valve to overheat and be
damaged.
C. Important Safeguards
• Other Fuels
- Althoughyourgaslogsetisveryrealisticinappearance,
it is not a real woodburning fire and must not be used
for burning any fuel other than natural or propane
gas.
- To avoid irreparable damage to the appliance and/or
personalinjury,wood, matches, paper,garbage orany
other material must not be placed or thrown on top of
the logs.
• Appliance Safety
-To avoid personal injury, do not touch hot surfaces
when the appliance is operating.
-Alwaysensurethat the fireplacescreen is closedwhen
the appliance is operating.
- Close supervision is necessary when the appliance is
being used near children.
• Do not remove any of the attached metal plates, which
contain important safety and operating information.
• Keep the appliance area clear and free of all combustible
materials, gasoline and other flammable vapors and
liquids.
• Aqualifiedservicetechnicianmustperforminstallation
andrepair.Theapplianceshouldbeinspectedandcleaned
annually by a qualified service technician. More frequent
cleaning may be required due to excessive lint, dust, pet
hair, etc. It is imperative that the control compartments,
burners and air passageways are unobstructed during
operation.
- Review proper placement of logs and lava rock.
- Check the wiring.
- Ensure there are no gas leaks.
- Ensurethe flow ofcombustion andventilation airis not
obstructed (front grilles and vent caps).
• Before installing into a solid fuel burning fireplace, the
chimney and firebox should be inspected and cleaned to
remove soot, creosote, ashes, paint, bird nests etc.
• Annual examination of the chimney must be performed
by a qualified agency to ensure proper ventilation of flue
gases created by this appliance.
• Have the chimney and adjacent structure inspected
and cleaned by qualified professionals. Hearth & Home
TechnologiesrecommendsthatNFIcertifiedprofessionals,
ortechniciansunderthedirectionofcertifiedprofessionals,
conduct a minimum of an NFPA 211 Level 2 inspection
of the chimney.
• Replacecomponent parts ofthechimney and fireplaceas
specified by the professionals.
• Ensure all joints are properly engaged and the chimmney
is properly secured.
• Do not allow fans to blow directly into the fireplace. Avoid
any drafts that alter burner flame pattern.
• Do not use a blower insert, heat exchanger insert or other
accessories not approved for use with this appliance.
Solid fuels shall not be burned in a fireplace where a
decorative appliance is installed.
• Ifglass doorsare present,theglass doors must be fully
opened while appliance is in operation.
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
WARNING
Fire Risk
High Temperatures
Keep combustible household items away
from appliance.
DoNOT obstruct combustionand ventilation
air.
• Do NOT place combustible items on top
of or in front of appliance.
• Keep furniture, draperies away from
appliance.
WARNING
Fire Risk
Explosion Risk
Donotclosetheglassdoorsduringappliance
operation.
• Could cause incomplete combustion of
the gas.
WARNING
• Glassdoorsmaybeclosed when the hearthkitis not being
used.

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
14
6Maintaining and Servicing the Appliance
A. Servicing Your Appliance
B. Cleaning Your Appliance
Your gas logs require little care. Keep the burner assembly,
logs and burner area surrounding the logs clean by
vacuuming or brushing with a dry paint brush at least twice
a year.
• The logs become fragile after burning. Take care in
handling.
• Always turn off the gas to the pilot before cleaning. For
relighting, refer to lighting instructions located Section 5
of these instructions.
• Alwayskeeptheapplianceclearandfreefromcombustible
materials, gasoline, and other flammable vapors and
liquids.
• Never obstruct the flow of combustion and ventilation air.
Keep the front of the appliance clear of all obstacles and
materials.
• Leave clearance of at least 36 in. from the front of the
fireplace.
• The air mixer should not be blocked.
• Logs can get very hot. Handle only when they are
cool.
CAUTION
Risk of injury or property damage
Before servicing:
• Turn off gas.
• Turn off electricity to appliance.
• Disable remote control, if one is present.
• Ensure appliance is completely cooled.
After Servicing:
• Replace any screen or barrier that was removed.
• Reseal and reinstall any venting removed for
servicing.
WARNING
C. Annual Inspection
Annual inspection by qualified technician
recommended.
Check:
• Condition of doors, surrounds and fronts.
• Obstructions of combustion and ventilation
air.
• Condition of logs.
• Condition of firebox.
• Gas connections and fittings.
• Obstructions of termination cap.
Clean:
• Glass.
• Logs.
• Burner, burner ports.
Risk of:
•Fire
• Delayed ignition or explosion
• Exposure to combustion fumes
• Odors
WARNING
• Repair and replacement work should be done by a
qualified service technician.
• Alwaysshutoffthegassupplyandmakesuretheappliance
is cool before beginning any service operation.
• Always check for gas leaks after servicing.
• Always check for proper venting.

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 15
D. Troubleshooting
With proper installation and maintenance, your new decorative gas appliance should provide years of trouble-free service.
If you do experience a problem, refer to the troubleshooting guide below. This guide will assist you or a qualified service
technician in the diagnosis of problems and the corrective action to be taken.
Symptoms Possible Causes Corrective Action
1. A match will not light the
pilot. A. Main gas shutoff valve is closed 1. Make sure that the shutoff valve located on the incoming gas line is open.
B. There is air in the gas line. 1. Light a match. Turn the valve knob to the “PILOT”
position and depress. Keep the match near the pilot
burner until it lights.
C. The valve knob is in the
“OFF” position. 1. Turn the valve knob to the “PILOT” position and depress. Keep the match near the pilot burner until it
lights.
D. The pilot orifice is plugged,
not allowing gas to flow. 1. This repair requires tools and some degree of experience. Call a qualified service technician.
E. There is no gas supply to
the fireplace. 1. Check the plumbing to ensure the fireplace has been hooked up the gas supply line.
2. The propane tank is empty.
2. The pilot lights, but
will not stay lit after
carefully following lighting
instructions.
A. The thermocouple is too
tight or too loose. 1. The thermocouple must be attached to the valve finger-tight plus a 1/8 turn with a wrench.
B. There is a weak pilot
flame. 1. The pilot flame must engulf the thermocouple. Clean and/or adjust the pilot for maximum flame
impingement on the thermocouple.
C. Defective thermocouple 1. Check the thermocouple with a millivolt meter as
follows: Disconnect the thermocouple from the valve
and connect the red lead of the meter to the silver end
of the thermocouple. Connect the black lead of the
meter to the copper tubing of the thermocouple. Light
the pilot and keep the knob depressed while taking
readings. The meter readings should be greater than
14 mV. If not, replace the thermocouple.
3. The pilot is on, but there is
no gas to the main burner;
the valve knob is on.
A. A blockage is preventing
gas flow. 1. Inspect the burner orifice for obstruction. Call a qualified service technician.
B. Defective valve. 1. Replace the gas valve. Call a qualified service
technician.

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
16
Exploded Parts Diagram
ODSP-18LP and ODSP-24LP
Service Parts
OUTDOOR LIFESTYLES BY HEARTH & HOME TECHNOLOGIES HEARTH KITS
Beginning Manufacturing Date: ??
Ending Manufacturing Date: Active
1 - Stainless Burner Pan Assembly
18 in. and 24 in..
2 - Stainless Grate Assembly
18 in., and 24 in.
3 - Hearth Kit Assemblies
1
3
4
11 5
10
9
8
6
12
14
15
16
17
18
19
22
20
17
21

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 17
Service Parts List
OUTDOOR LIFESTYLES BY HEARTH & HOME TECHNOLOGIES HEARTH KITS
# Description of Part 18LP 24LP Qty.
1 Stainless Burner Pan Assembly BPA-700-18SS BPA700-24SS 1
2 Stainless Grate Assembly GR-112-20S GR600-24S 1
3 Valve 07-1025 07-1025 1
4 End Cap 10-1053 10-1053 1
5 *Pilot Assy - LP E61L503B1 E61L503B1 1
5*Thermocouple 07-1009 07-1009 1
6 Orifice AM-2-42 AM-2-42 1
7 Brass Elbow (1/2” 3/8” Flare) 10-1037 10-1037 1
8 Damper Stop Assembly 10-1065 10-1065 1
9 Control Knob Extension AT40-026 AT40-026 1
10 Control Knob 07-1030 07-1030 1
11 Regulator 08-1030 08-1030 1
12 Valve Heat Shield MT-700-HSSS MT-700-HSSS 1
13 Lava Rock F-Lava-5 F-Lava-5 2
14 Regulator Heat Shield MT-700-RC MT-700-RC 1
15 Connector Tube (18 inch) FT-18 FT-18 1
16 Regulator Connector Tube (9 inch) FT-9 FT-9 1
17 Brass Elbow (3/8” to 3/8” Flare) 11-1300 11-1300 2
18 Brass 3/8” ST Elbow 01-1157DG 01-1157DG 1
19 Brass Adaptor (3/8”M to 3/8”F) 07-1001 07-1001 1
20 Pilot Bracket MT-700-PBSS MT-700-PBSS 1
21 Brass Connector (3/8” to 3/8” Flare) 01-1004 01-1004 1
22 Locking Nut 07-1018 07-1018 1
Hearth Kit Install 4004-315 4004-315 1
* Stock to Depot

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
18
B. Optional Components
Available for All Models
GLHE-PACKAGE Gas Log Hearth Enhancement Kit (2 Pine Cones, 2 Wood Chips, 3 Acorns)
CKIT-150-NG Conversion Kit - from LP to NG
FSP-10-SS Conversion Kit - from NG to LP (Specify burner size when ordering)

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013 19
Hearth & Home Technologies, Inc., on behalf of its hearth brands (“HHT”), extends the following warranty for HHT gas,
wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance
will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered components
manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period. HHT
will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its obliga-
tions under such warranties by replacing the product itself or refunding the verified purchase price of the product itself. The
maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty is subject
to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
Warranty coverage begins on the date of installation. In the case of new home construction, warranty coverage begins on
the first date of first occupancy of the dwelling or six months after the sale of the product by an independent, authorized
HHT dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date
of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for parts and labor
for covered components is produced in the following table. The term “Limited Lifetime” in the table below is defined as: 20
years from the beginning date of warranty coverage for gas appliances and 10 years from the beginning date of warranty
coverage for wood, pellet, and coal appliances. These time periods reflect the minimum expected useful lives of the des-
ignated components under normal operation conditions.
Hearth & Home Technologies, Inc.
LIMITED LIFETIME WARRANTY

• Outdoor Lifestyles by Hearth & Home Technologies Burner/Hearth Kits • 4004-315 Rev D • 5/2013
20
