Outland Living 420 Series User manual

FMI BRANDS INC.
101 – 3570 194 Street, Surrey, BC, Canada V3Z 1A5 | Email: [e-mail]
USA, Canada Toll Free: 1-888-514-1663 | Tel: [phone]
Hours of Operation: 8:30AM - 4:00PM (Pacific Time) | Customer Service in English only
D.510.000.V2 (English)® Outland Living and the Outland Flame are registered trademarks of FMI Brands Inc.
APPLIANCE MODELS ACCEPTABLE TO BE USED WITH THIS KIT
NGCK-AT 510 (AUTO IGNITION + THERMOCOUPLE MODELS)
TICK SERIES NAME MODEL NUMBERS SERIES NUMBERS
OUTLAND FIRE TABLE FMPPC2E-420 420
WARNING:
This conversion kit shall be installed by a qualified service
agency in accordance with the manufacturer’s Instructions
and all applicable codes and requirements of the Authority
Having Jurisdiction. If the information in these instructions
is not followed exactly, a fire, explosion or production of
carbon monoxide may result causing property damage,
personal injury or loss of life. The qualified service agency
is responsible for the proper installation of this kit. The
installation is not proper and complete until the operation
of the converted appliance is checked as specified in the
manufacturer’s instructions supplied with the kit.
FIRE TABLE
PROPANE TO NATURAL GAS APPLIANCE
CONVERSION KIT
NGCK-AT #510 • AUTO IGNITION + THERMOCOUPLE • INPUT RATING: 50,000 Btu/h

Natural Gas Conversion Kit
En-2 NATURAL GAS CONVERSION KIT - OUTLAND LIVING®FIRE TABLE - FMPPC2E-420
CONTENTS
1. Natural Gas Conversion Kit Manual
2. Natural Gas Valve (marked with Yellow Cap)
3. Heat Shrink Tubing (70mm)
4. Low Pressure Natural Gas Hose with Quick Disconnect Inlet Fitting
and 5/8”-18UNF Outlet Connector; MAX. WP 1/2 PSI; 3/8” diameter,
12ft length (marked with Yellow Cap)
5. Quick Disconnect for Gas Hose with 3/8”-18 NPT Inlet Connector;
MAX. WP 1/2 PSI (marked with Yellow Cap)
6. Marking and Warning Label (Side/Tag 1):
Conversion Statement Label
7. Marking and Warning Label (Side/Tag 2):
Conversion Identification Label
8. Marking and Warning Label - Hang Strap
TABLE DE FEU OUTLAND FMPPC2E-420 420
510
510
510
50,000
0.25
3.5 mm
50 000
0,25
ENSEMBL E DE CONVERSI ON AU GAZ NATURE L OUTLAND
Distr ibué par : FMI BR ANDS INC
101 – 3570 Rue 19 4, Surrey (C.- B.)
Canada V 3Z 1A5 • 1. 888.514.1663
510
3,5 mm
OUTL AND NATURAL GA S CONVERSIO N KIT
Distr ibuted by: FM I BRANDS INC
101 – 3570 194 St reet, Surre y,B C
Canada V 3Z 1A5 • 1. 888.514.1663
NGCK-TAG2-510_V1
NGCK-TAG1-510_V1
OUTLAND FIRE TABLE FMPPC2E-420 420
TAG 1, SIDE 1 • ÉTIQUETTE 1 / CÔTÉ 1 TAG 2, SIDE 1 • ÉTIQUETTE 2 / CÔTÉ 1
TAG 1, SIDE 2 • ÉTIQUETTE 1 / CÔTÉ 2 TAG 2, SIDE 2 • ÉTIQUETTE 2 / CÔTÉ 2
2.5 in x 4 in (63.5 mm x 101.6 mm)
TABLE DE FEU OUTLAND FMPPC2E-420 420
510
510
510
50,000
0.25
3.5 mm
50 000
0,25
ENSEMBL E DE CONVERSI ON AU GAZ NATURE L OUTLAND
Distr ibué par : FMI BR ANDS INC
101 – 3570 Rue 194 , Surrey (C.- B.)
Canada V 3Z 1A5 • 1. 888.514.1663
510
3,5 mm
OUTL AND NATURAL GA S CONVERSIO N KIT
Distr ibuted by: FM I BRANDS INC
101 – 3570 194 St reet, Surre y,B C
Canada V 3Z 1A5 • 1. 888.514.1663
NGCK-TAG2-510_V1
NGCK-TAG1-510_V1
OUTLAND FIRE TABLE FMPPC2E-420 420
TAG 1, SIDE 1 • ÉTIQUETTE 1 / CÔTÉ 1 TAG 2, SIDE 1 • ÉTIQUETTE 2 / CÔTÉ 1
TAG 1, SIDE 2 • ÉTIQUETTE 1 / CÔTÉ 2 TAG 2, SIDE 2 • ÉTIQUETTE 2 / CÔTÉ 2
2.5 in x 4 in (63.5 mm x 101.6 mm)

1-888-514-1663 | WWW.OUTLANDLIVING.COM En-3
REQUIRED TOOLS (Not Included):
• Philips Screwdriver #2 (medium)
• Adjustable Wrench
• Utility Knife
• Lighter Wand
• Soap Water Spray Bottle
CAUTION:
The gas supply shall be shut off prior to disconnecting the
electrical power, before proceeding with the conversion.
NATURAL GAS CONVERSION KIT – CONVERSION INSTRUCTIONS
WARNING:
Your natural gas conversion kit comes with a quick-disconnect
(part 5) which should be installed by a professional certified
natural gas fitter. Once the quick-disconnect is properly
installed, proceed to the next step.
NATURAL GAS CONVERSION KIT RATINGS
GAS ORIFICE SIZE*
*Injector size marked clearly
on the gas valve orifice.
3.5 mm
MANIFOLD PRESSURE 7 in WC
INLET PRESSURE 0.25 PSIG
INPUT RATING 50,000 Btu/h
Tested by CSA International
ANS Z21.97-2017/CSA 2.41-2017 Outdoor Decorative Gas Appliances
OUTLAND PROPANE TO NATURAL GAS APPLIANCE
CONVERSION KIT MANUAL
OUTLAND PART NUMBER: 510
NOTE: This assembly
instruction manual is for
OUTLAND Fire Table model
FMPPC2E-420 only.

Natural Gas Conversion Kit
En-4 NATURAL GAS CONVERSION KIT - OUTLAND LIVING®FIRE TABLE - FMPPC2E-420
GLASS ROCKS
NOT SHOWN SIDE PANEL
FINGER
LIFTS
OFF
STEP 1
a. Ensure the fire table gas control knob is in the OFF position.
b. Remove side panel.
STEP 2
a. Close the valve on the LP (propane) cylinder.
b. Disconnect and remove the LP cylinder from the fire table.
CLOSE VALVE ON LP
(PROPANE) CYLINDER
DISCONNECT AND REMOVE
LP CYLINDER FROM FIRE TABLE

1-888-514-1663 | WWW.OUTLANDLIVING.COM En-5
DISCONNECT
THE IGNITER
CABLE
DISCONNECT
THE
THERMOCOUPLE
GROUND WIRE
DISCONNECT THE
THERMOCOUPLE
CABLE
REMOVE THE
PROPANE HOSE
STEP 4
Remove the (4x) screws holding the gas valve mounting bracket in place.
Remove the gas valve mounting bracket assembly.
SCREW #1
SCREW #2
SCREW #3
SCREW #4
STEP 3
a. Disconnect the igniter cable. Slide protective cap back to expose the cable connection.
Grasp the cable at the base and pull firmly.
b. Disconnect the thermocouple cable. Grasp the cable at the base and pull firmly.
c. Disconnect the thermocouple ground
wire. Remove the screw to release the
wire.
d. Locate the black OUTLAND heat shrink
tubing on the gas hose coupling and
**carefully** remove it using a utility
knife.
e. Remove the propane hose. Uncouple it
from the gas appliance valve assembly
using a wrench (not provided).

Natural Gas Conversion Kit
En-6 NATURAL GAS CONVERSION KIT - OUTLAND LIVING®FIRE TABLE - FMPPC2E-420

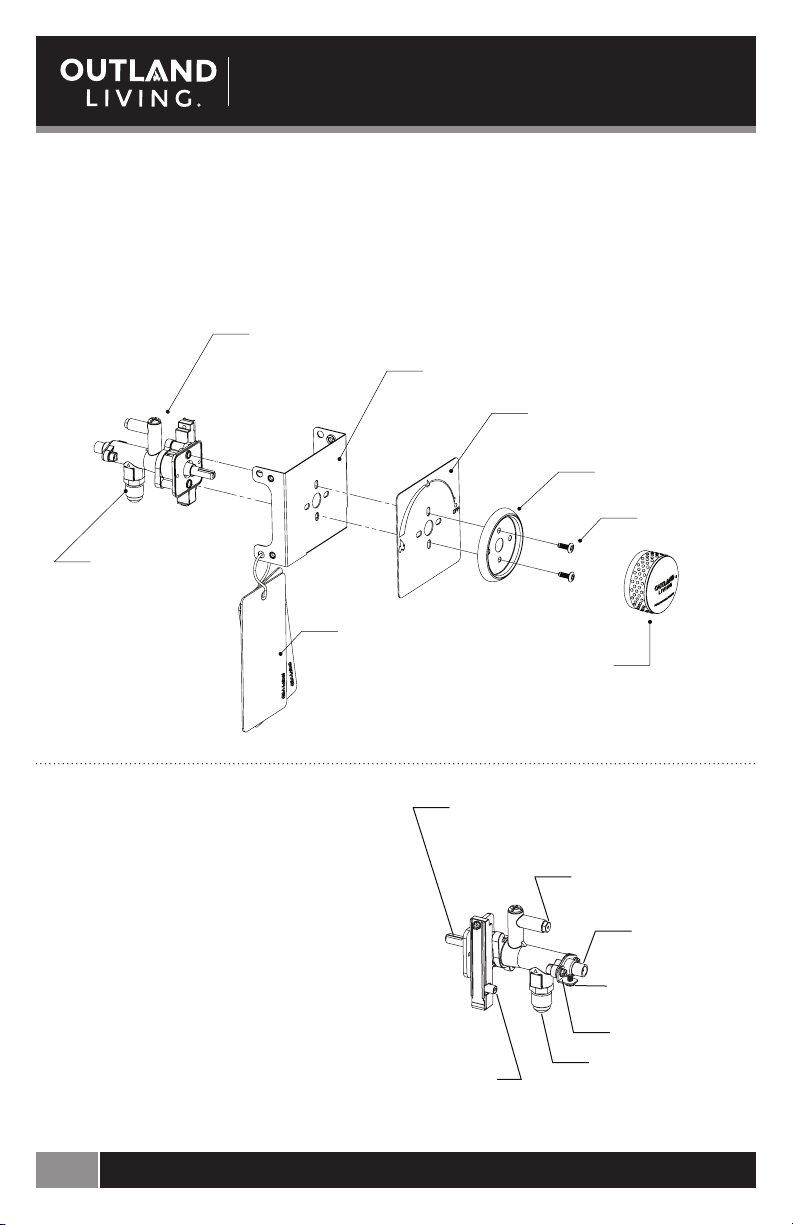

STEP 5
Disassemble the propane gas valve.
Remove the gas control knob by gripping firmly and pulling straight out. Remove the two
screws located next to the exposed valve stem. This will release the base ring, faceplate, and the
propane gas valve, which you can set aside. Label and save this propane valve for converting
back to propane if required.
BASE RING
FACEPLATE
MOUNTING BRACKET
PROPANE GAS VALVE
GAS HOSE
COUPLING
(2X) SCREWS
GAS KNOB
CSA TAGS
THERMOCOUPLE
SOCKET
GAS ORIFICE
VALVE STEM
IGNITER GAS HOSE
COUPLING
GROUND TERMINAL
GROUND TERMINAL
SCREW
STEP 6
Assemble the natural gas valve (part 2).
a. Take the new NATURAL GAS valve (marked
with Yellow Cap) and insert the stem through
the mounting bracket, faceplate, and gas knob
base ring ensuring the coupling is facing down.
b. Align the openings of the gas valve, mounting
bracket, faceplate, and gas knob base ring and
insert the two screws.
c. Attach the gas knob by aligning the flat side
keyway to the flat side of the gas valve stem
and firmly press-fitting.

1-888-514-1663 | WWW.OUTLANDLIVING.COM En-7
STEP 6 (continued)
Assemble the natural gas valve (part 2). Note: Ensure the arrow on the knob
aligns with the OFF indicator on the
valve cover when the valve is set in
the closed position. To check, push
and turn the knob clockwise until it
stops. The arrow on the knob should
be aligned with the OFF indicator on
the valve cover at this point.
OFF
STEP 7
Slide the heat shrink tubing (part 3) over the burner venturi tube.
STEP 8
Mount the new natural gas bracket assembly.
Use the same 4x screws which held the propane gas valve assembly.
Important: Ensure the gas valve orifice is aligned to sit inside the burner venturi tube.
NATURAL
GAS VALVE
GAS HOSE COUPLING
(ENSURE COUPLING
FACES DOWN)
BURNER VENTURI TUBE
GAS VALVE ORIFICE
NATURAL GAS VALVE
HEAT SHRINK TUBING

En-8 NATURAL GAS CONVERSION KIT - OUTLAND LIVING®FIRE TABLE - FMPPC2E-420
Natural Gas Conversion Kit

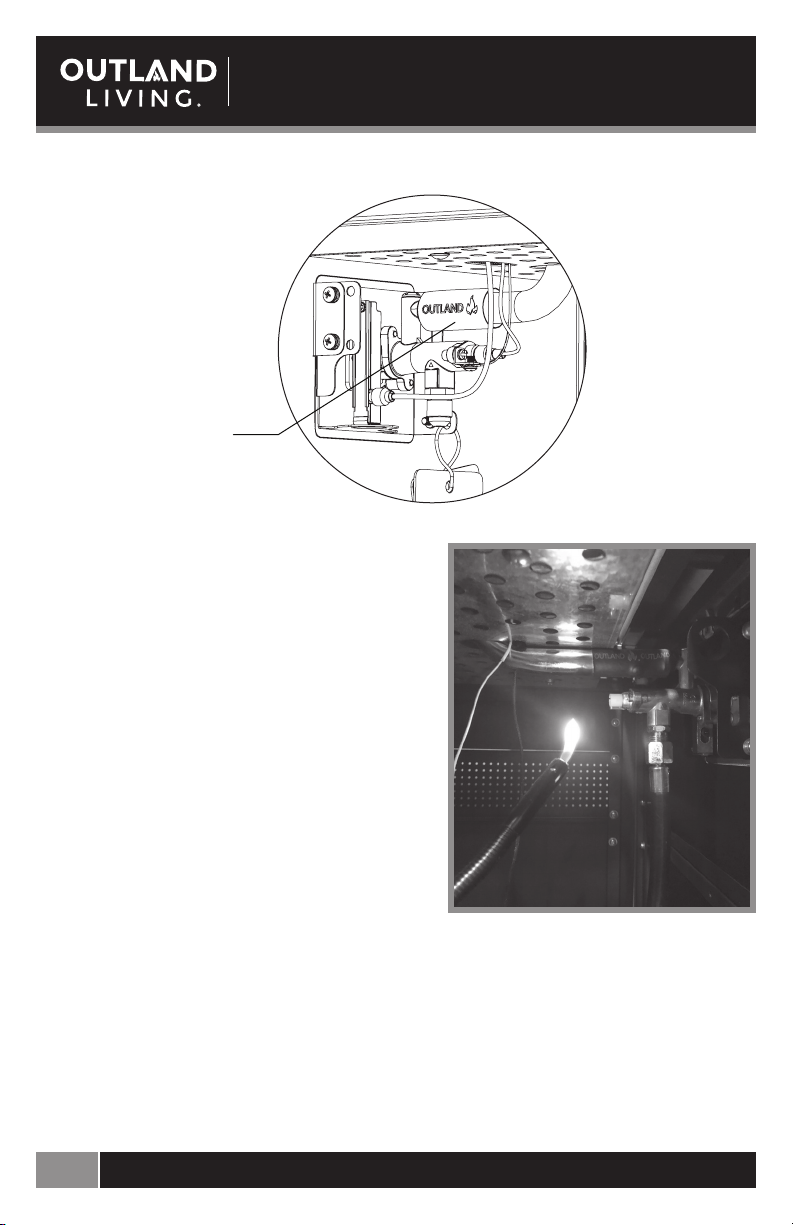

Position the heat shrink tubing so that it generously
overlaps the connection where the gas valve orifice
enters the burner venturi tube and extends past the
air inlet holes in the burner tube.
*** For the best looking decorative flame quality it
is important to ensure all the air gaps and air inlet
holes are completely covered.***
Use a lighter wand, or lit match, to apply flame heat
close to and directly underneath and around the
heat shrink tubing. Don’t burn a single spot too long.
Have a steady hand and use a slow back and forth
motion with the flame. Ensure the heat shrink tubing
cinches snugly over the entire circumference and
no visible gaps in the ends remain. The heat shrink
tubing must set firmly around the parts, forming a
good seal, so no air gets in.
TIP: Once you have positioned the heat shrink tubing in place, you do not need to hold on to it
during the heat application. The flame will naturally shrink and contract the heat shrink tubing,
conforming to the parts underneath and sealing off the air holes.
Oh Darn it!
If, for some reason, after applying the heat shrink tubing, there are visible gaps or exposed air
holes around the venturi connection area, we suggest you use common high heat electrical tape
to close those gaps.
STEP 9
Apply the heat shrink tubing (part 3).
APPLY THE HEAT
SHRINK TUBING

1-888-514-1663 | WWW.OUTLANDLIVING.COM En-9
STEP 11
a. Connect the igniter cable to
the gas valve.
b. Connect the round
thermocouple cable to the
thermocouple socket.
c. Attach the thermocouple
ground wire connection to the
gas valve ground terminal.
Use the screw provided on
the gas valve. Ensure the
connection is firmly set under
the screw.
STEP 10
Attach the natural gas hose (part 4).
If the natural gas hose is not preassembled to
the natural gas valve, remove the yellow cap
and attach the natural gas hose to the gas valve
coupling. Use a wrench to firmly tighten.
WARNING:
Pay attention not to cross thread the
coupling during tightening. Do not over
tighten. (Max torque: 33.9 N/M)
ATTACH THE
NATURAL GAS HOSE
CONNECT THE
IGNITER CABLE
CONNECT THE
THERMOCOUPLE
CABLE
CONNECT THE
THERMOCOUPLE
GROUND WIRE

Natural Gas Conversion Kit
En -10 NATURAL GAS CONVERSION KIT - OUTLAND LIVING®FIRE TABLE - FMPPC2E-420
STEP 12
Test the Igniter to verify the correct
installation and ensure proper spark.
Locate the igniter and the thermocouple
inside the burner tray (under protective
shield). Ensure igniter cover is not
covered by glass rocks. This helps air
circulate.
Turn the gas knob until it clicks. A
small spark ignition should be visible
at the tip of the igniter. If the spark is
not working clean dust from igniter tip
and thermocouple post. Try again. If
still not working you have not installed
the igniter cable correctly. Reattach the
igniter cable. Retest. Repeat process
until you verify the spark works.
STEP 13
Install the supplied Quick-Disconnect
(part 5). The quick-disconnect should be
installed by a professional certified natural
gas fitter. Once the quick-disconnect is
properly installed, proceed to the next step.
Quick-DisconnectQuick-Disconnect
for Gas Hosefor Gas Hose
with 3/8”-18 NPTwith 3/8”-18 NPT
Inlet ConnectorInlet Connector
(part 5)(part 5)
3/8” Diameter,3/8” Diameter,
Low PressureLow Pressure
(.5 PSIG) NG/LP(.5 PSIG) NG/LP
Gas Hose withGas Hose with
Quick-DisconnectQuick-Disconnect
Inlet FittingInlet Fitting
STEP 14
Confirm that
the control
knob on the
fire table is
in the OFF
position.
STEP 15
Confirm that
the valve on
your natural
gas box gas
supply is
closed OFF.
OFFOFF
ENSURE IGNITER AND THERMOCOUPLE (UNDER
IGNITER COVER) ARE FREE FROM DUST AND NOT
BLOCKED BY GLASS ROCKS
OFF
