Oval SU1308 User manual


MODEL SU308
Ins. No. E-73-2-E
PULSE DISTRIBUTOR
Every OVAL product is fabricated and shipped from our factory under stringent quality control
program. In order to maintain its design performance throughout the life of this distributor, this
manual o󱐯ers the operator the necessary installation, operation and maintenance information.
Be well familiar with these instructions before you place the distributor in service and keep
this manual for your quick reference. It is suggested that you also familiarize yourself with the
instruction manuals

E-73-2-E
2
1.GENERAL .......................................................................................................................................................3
2. FEATURES ...................................................................................................................................................3
3. INSTALLATION ..........................................................................................................................................3
4. WIRING ..........................................................................................................................................................4
5. OVERALL BLOCK DIAGRAM ...............................................................................................................4
6. PREPARATION AND OPERATION ...................................................................................................5
7. QUICK TROUBLESHOOTING ..............................................................................................................5
8. INDIVIDUAL JUMPER SETTING .......................................................................................................6
8.1 ENCLOSURE REMOVAL ..................................................................................................................... 6
9. GENERAL SPECIFICATIONS ..............................................................................................................7
10. PRODUCT CODE EXPLANATION ..................................................................................................8
CONVENTIONS
Shown in this manual are the signal words NOTE, CAUTION and
WARNING, as described in the examples below:
NOTE: Notes are separated from the general text to bring
the user's attention to important information.
CAUTION: Caution statements signal the user about hazards
or unsafe practices which could result in minor
personal injury or product or property damage.
WARNING: Warning statements signal the user about hazards
or unsafe practices which could result in severe
personal injury or death.
CONTENTS

E-73-2-E
3
(1) Mechanical vibration, shock and corrosive
gases least exist.
(2) Air is dry and temperature at room temperature
and stable.
NOTE: Although the manufacturer guarantees
stated performance at ambient temperatures
from -10 to +50℃ , it is recommended that the
instrument be placed in service in a room
temperature environment.
(3) Potential sources of inductive interference,
such as electromagnetic contactors, are locat-
ed su󱐰ciently away.
(4) A lightening arrestor is provided if incoming
signals are subject to potential influence of
lightening.
1. GENERAL
This distributor accepts a train of incoming pulses from the owmeter of most kinds, or other sig-
nal generating sources, shapes its wave form and, with desired pulse width, furnishes three sets
of mutually isolated outputs, isolated also from the input.
2. FEATURES
(1) Compactly built plug-in design. Easy to use and maintain.
(2) Provides a power supply to the pulse generator and preamplier (converter) of a variety of
owmeters.
(3) A free type power supply accepts 85-265VAC power source (or 20 to 30V DC in the DC version).
3. INSTALLATION
Installation Location
Select an installation location where
➡
(5) In an application where two or more distributors are to be installed side by side, a su󱐰cient
working space is secured behind the instrument to facilitate wiring and maintenance (see Fig. 3.1).
(6) For use in an environment where noise level is high, we recommend to use commercially
available noise lters, isolation transformers, or similar devices.
Dimensions in millimeters
2-M4 Mounting Hole
Fig. 3.1 Socket Mounting Centers
min.140
40 ± 0.240 ± 0.2 min.
20
Fig. 3.2 Distributor Outline Dimensions Fig. 3.3 Socket Outline Dimensions
Lock Lever
Terminal Screw: 11-M3.5 × 7

E-73-2-E

J2
J1 J4
J3
OPEN:0.3to12ms
CLOSE:5to250ms
1
2
P1
Pulsewidthadjust
(MM:Pulsewidthadjustcircuit)
1:1waveshape
circuit
MM
DCpowertopulsegenerator
DCpowertothelogics
2,3,4
11,1
FLOWIN
POWER
5,6
7, 8
9,10
OUT1
OUT2
OUT3
TP2
TP1
1
2
OPEN:One-shot
CLOSE:Uppercutoff
Generatorselect
circuit
Powersupply
circuit
4. WIRING
(1) Separate eld wiring from other power lines
or power circuits to minimize the possibility
of inductive interference.
(2) Terminal arrangement is shown in Fig. 4.1.
(3) M3.5 ×7 screws are used for terminals.
Ensure good electrical connections.
(4) Upon completion of wiring connections,
install the distributor body into the socket.
Then engage the locking levers on the
socket assembly with the distributor body.
(5) For incoming signal cables from the owme-
ter or other signal sources, cables recom-
mended for the instrument of interest must
be used. Transmission length also depends
on the specication of that instrument.
For other signal cables, electrostati-
cal l y - shielded, polyethylene-insulated,
vinyl-sheathed control cables (CEVS 1.25
to 2.00mm2, 2- or 3-conductor), or equiv-
alent, must be used. With a conductor area
2 mm2, the maximum transmission length is
one kilometer.
CAUTION
Make electrical connections upon conrmation of validity of owmeter (pulse gen-
erator) and receiving instrument combination by their model No., serial No., etc.
● Description of Individual Circuits (by block)
●
Pulse generator select circuit
………Selects the acceptable signal type of pulse generator and shapes the waveform.
●
Power supply circuit……………Furnishes power of required voltage to individual circuits.
●
Pulse width adjust circuit ……Selects the “ON” duration of output pulse signals OUT 1, 2, and 3.
●
1:1 waveshaping circuit………Adjusts the ON/OFF ratio of output signals OUT 1, 2, and 3 to 1:1.
5. OVERALL BLOCK DIAGRAM
Fig. 5.1
Fig. 4.1 Terminal Identication
Wiring Connections
● FLOW IN terminals
2-wire sig. 3-wire sig.
● OUT1, OUT2, OUT3
Polarity observation
is not required.

E-73-2-E

PowerIndicatorLED(red)
PL1 P1
0VA
0VB
CLK
TP2 TP1
J1
12J5
1J42
J2
J3
Selectorboard
455901□0□
Powersupplyboard
455004□01
Distributorboard
455004603

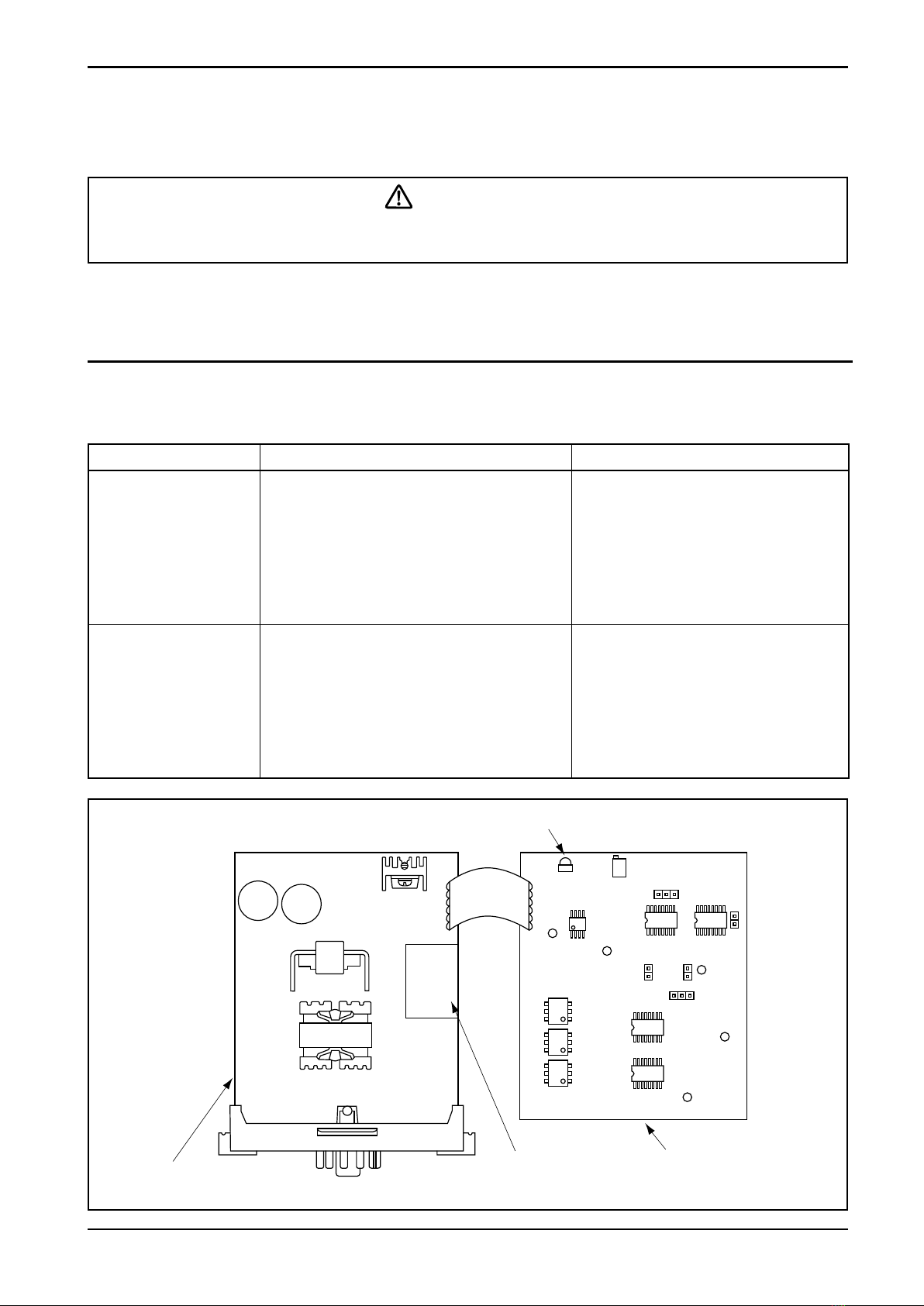

◆InternalComponentLocations
Symptom Check Possible Causes
Power indicator lamp
(LED) fails to come on.
1. Inspect the power supply board.
Is power source type (AC/DC) in
conformity with the power supply
board?
2. Make sure of power source voltage. Is
an 85 to 246VDC (50/60Hz) power or
20 to 30V dc power Impressed across
terminals 11 (+) and 1 ( − )?
1. Power supply board is improper.
2. Line voltage is improper.
3. A fault In the internal power
board.
No pulse output. 1. Input signal line correctly wired?
2. Input signal coming in?
3. Pulse generator valid on the pulse
generator select board ?
1. Input wiring is incorrect.
2. Pulse generator is at fault.
3. Pulse generator select board is
incorrect.
4. Power supply board or pulse
generator select board or
distributor board in the internal
assembly is at fault.
6. PREPARATION AND OPERATION
(1) Ensure that the pulse distributor and related equipment are correctly installed and wired with
no place left unnished.
(2) Supply power to this instrument and make sure to see that the power indicator (red LED)
comes on.
(3) Initiate operation by allowing the uid to run.
Make sure to see that the power terminals are connected to a power source of the
rated voltage. Applying a power of incorrect voltage could ruin your instrument.
7. QUICK TROUBLESHOOTING
● If the trouble is suspected to be internal to the distributor, seek our service.
Fig. 7.1
WARNING

E-73-2-E

Jumper Input pulse mode (pulse generator)
J1 Voltage pulse (Code 3 only): 2 Others: 1
● Output Setting: Establish output mode.
Jumper
Output mode
One-shot output Upper cuto󱐯 output Duty sync with input
1:1 output
J2 OPEN CLOSE OPEN
J4 ２ ２ １
J5 OPEN CLOSE
● Output Pulse Width Setting and Adjustment:
Jumper Pulse width adjust range (adjustable with P1) Location
J3 OPEN：0.3 to 12ms CLOSE：5.0 to 250ms TP1and 0VB
(If output mode is “Duty sync with Input 1:1 ”, it adjustment is correct at 1 ms. )
8. INDIVIDUAL JUMPER SETTING
● Input Setting: Establish input pulse mode.
Establish parameters such as “ON” width or cuto󱐯 width of output pulse signal.

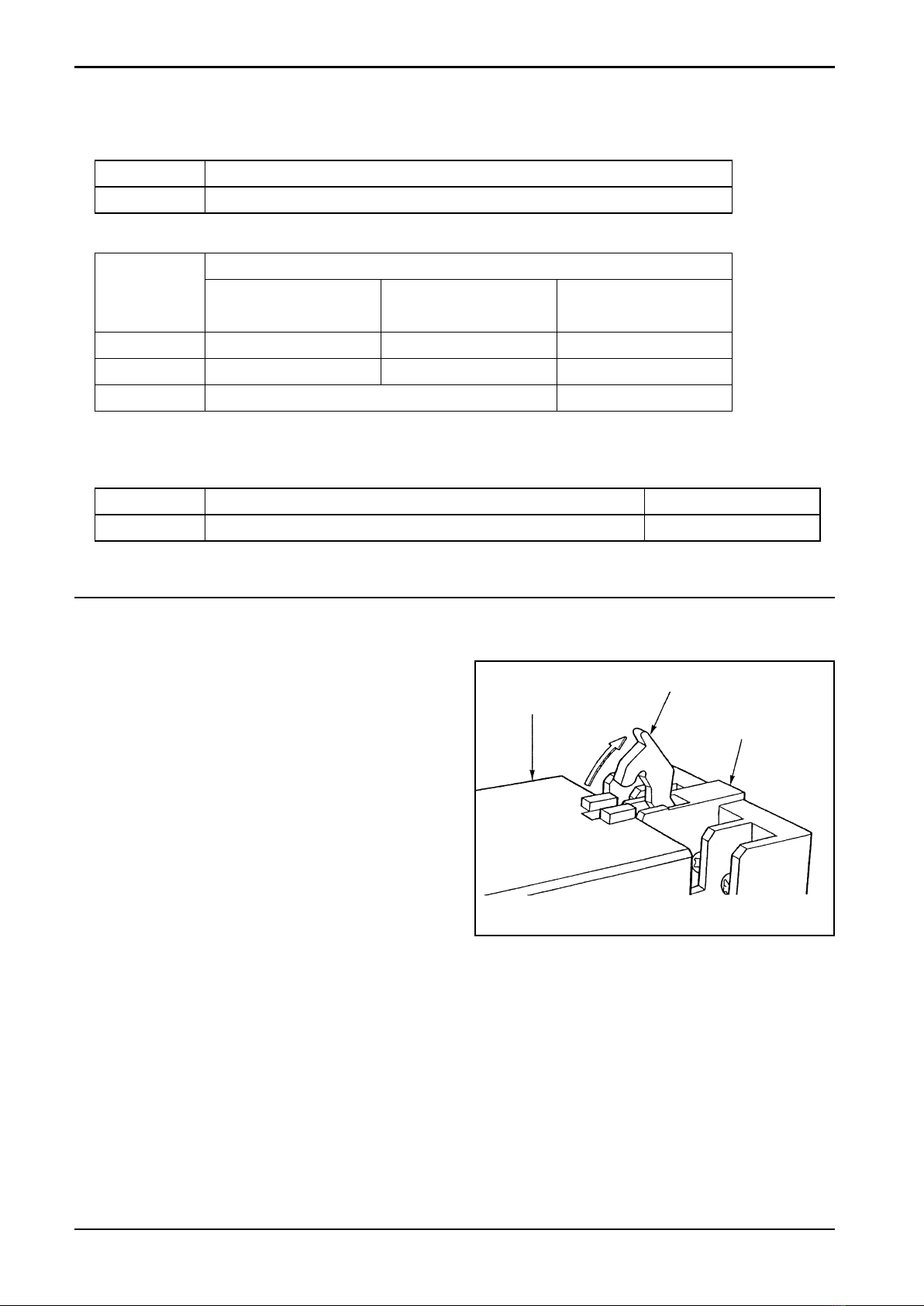

8.1 Enclosure Removal
(1) Unlatch the locks of socket assembly,
separate the distributor body and remove
the enclosure (see Fig. 8.1).
(2) Referring to the pictorial drawing showing
component locations (Fig. 7.1) on page 5,
make adjustments required.
Enclosure
Lock Lever
Surface Mount
Socket
Fig. 8.1

E-73-2-E
7
Item Description
Input signal
Pulse Type Companion Pulse
Generator
Power to Pulse
Generator
8V 2-wire current pulse OPTO 01, 02 8.5VDC
Current
capacity
40mA max.
approx.
(Shortcircuit
protection
circuit
provided)
Contact-closure pulse PG20 13.5VDC
2-wire, 12VDC 3-wire
voltage pulse PG30, NPG60A（F） 13.5VDC
24VDC 2-wire current pulse
(4/20mADC) PA14, 15, 25, NPG60A（E） 24.0VDC
12VDC 2-wire current pulse PG30S 13.5VDC
Open collector pulse
FLOWPET-EG, NPG60A (E3),
MOS-FET 13.5VDC
32VDC 3-wire open
collector pulse PA11 32.0VDC
Frequency response 500Hz Max. (50Hz max. with PG20)
Signal Open MOS-FET, 3 outputs
Capacity 230VAC/340VDC 0.2A
Resistance during ON: 16 Ω max. Leakage current during OFF: 1 μ A max.
Output pulse
width
One-shot 1ms, 50ms
Upper cuto󱐯 in width of pulses sync with input 10ms, 100ms
Duty sync with input 1:1
(Corresponds to output frequency range 4 to 200Hz. Below 4Hz,
100ms one-shot)
Power source 85 to 264VAC 50/60Hz or 20 to 30VDC
Power consumption 8VA approx.
Ambient temperature － 10 to ＋ 50℃
Insulation resistance Across power terminals tied together and output terminals tied together:
10M Ω min. (500VDC insulation resistance tester)
Withstanding voltage Across power terminals tied together and output terminals tied together:
1500VAC for one minute. With DC power: 1000VAC for one minute
Mounting Plug-in type
Enclosure Plastic molding, black
Weight 0.5 kilogram approx.
Accessory furnished 11-pin surface mount socket, quantity one
9. GENERAL SPECIFICATIONS
Output signal

E-73-2-E
10. PRODUCT CODE EXPLANATION
Item Product Code Description
①②③④⑤⑥ － ⑦ ⑧ ⑨ ⑩⑪⑫
Model Ｓ Ｕ １ ３ ０ ８ － Pulse Distributor
Power ６ 20 to 30VDC
７ 85 to 264VAC 50/60Hz
Flow Input
１ 8VDC 2-wire current pulse
２ Contact-closure pulse
３2-wire voltage pulse and 12VDC 3-wire voltage
pulse
４ 24VDC 2-wire current pulse (4/20mADC)
５ 12VDC 2-wire current pulse
６ Open collector pulse
８ 32VDC 3-wire open collector pulse
９ Other than above
Output Pulse Width
１ Pulse width 1ms
２ Pulse width 50ms
３Sync with input
Upper cuto󱐯 in width of pulses 10ms
４Sync with input
Upper cuto󱐯 in width of pulses 100ms
５Sync with input
Duty 1:1 output (Response 200Hz max.)
９ Other than above
０００ Always“000”
Allspecificationsaresubjecttochangewithoutnoticeforimprovement.
OVAL Corporation
Head Office: 10-8, Kamiochiai 3-chome, Shinjuku-ku, Tokyo, Japan
Phone. [phone] Fax. [phone]
2011.01 Revised
2009.12 Revised
2006.03 Revised△
2004.08 Released
