AirLiveEtherWe‐1000UUser’sManual
1


Safety Instructions
Always read the safety instructions carefully
Keep this User’s Manual for future reference
Keep this equipment away from humidity
If any of the following situation arises, get the equipment checked by a service technician:
•The equipment has been exposed to moisture.
•The equipment has been dropped and damaged.
•The equipment has obvious sign of breakage.
•The equipment has not been working well or you cannot get it work according to User’s
Manual.

Copyright Statement
No part of this publication may be reproduced in any form by any means without the prior written permission.
Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their
respective companies.
Disclaimer
Information in this document is subject to change without notice. The manufacturer does not make any
representations or warranties (implied or otherwise) regarding the accuracy and completeness of this
document and shall in no event be liable for any loss of profit or any commercial damage, including but not
limited to special, incidental, consequential, or other damage.
All trademarks, trade names and copyrights are properties of their respective owners.








AirLiveEtherWe‐1000UUser’sManual
2

Table of Content
Chapter 1: Introduction..................................................................3
1-1Features.........................................................................................................................3
1-2Package Contents.......................................................................................................3
1-3System Requirements................................................................................................3
1-4LED Status....................................................................................................................4
Chapter 2: Installation....................................................................5
2-1On Wii (Game station)................................................................................................5
2-2On Windows 2000/XP/Vista......................................................................................5
2-3Verifying the Driver Installation on Windows......................................................6
2-4On MAC OS X 10.x......................................................................................................7
Chapter 3: Specification ..............................................................11
Chapter 4: Regulatory Compliance.............................................12






















AirLiveEtherWe‐1000UUser’sManual
3

Chapter 1: Introduction
TheUSB2.0EthernetAdapterallowsyourcomputerinstantlyconnecttoa10/100MbpsnetworkthroughsimplyaUSB
port;nohassletoopenupyourcomputercaseasisrequiredforaninternalcardnow!It’salsoanidealUSB‐to‐LAN
alternativeforgamingconsolethatneedsnetworkaccessinanenvironmentlackingwirelesscapability.Compared
withUSB1.1standardwhichoffers12Mbpsspeed,theadapter’scompliancewithUSB2.0(480Mbps)ensurestrue
10/100Mbpsnetworkspeedwithoutanycompromise.Furthermore,theadapterisincompactsizeandisUSB
bus‐powered;itrequiresnoexternalpoweradapter,sothatyoucanuseitwithoutcrowdingyourworkspaceatall.


1-1 Features
Compliant with USB 2.0 and USB 1.1 specifications
Compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards
Supports both full-duplex and half-duplex operations
Supports suspend mode and remote wakeup via link-up and magic packet
Powered by USB port. No external power adapter required
Equips with diagnostic LEDs
Plug & Play installation
1-2 Package Contents
Before installation, please check the items of the package. The package should contain the following items:
USB2.0 Ethernet Adapter x1
Driver CD x1
Quick Installation Guide x1
1-3 System Requirements
IBM compatible Pentium-233MHz or faster PC or Mac
64 MB RAM or more
One available USB port
Windows®2000, XP, Vista 32/64-bit; Mac OS X 10.x

AirLiveEtherWe‐1000UUser’sManual
4

1-4 LED Status
LED Color Description
Power Green On for connection to a 100Mbps network.
Off for connection to a 10Mbps or not connected.
Link Green LAN activity. Blinking when there is data flow between LAN and the
host computer.

AirLiveEtherWe‐1000UUser’sManual
5

Chapter 2: Installation
2-1 On Wii (Game station)
1. JustconnecttheEtherWe‐1000UtoafreeUSBportoftheWii(GameStation)andthe
defaultsettingisDHCPclientmode.
2. ItcanbemodifyviaWii’sconfiguration,pleaseseethedetailonWii’smanual.
2-2 On Windows 2000/XP/Vista
Caution: DO NOT connect the Ethernet adapter to your computer before you install the provided driver. You
will be instructed to do so later.

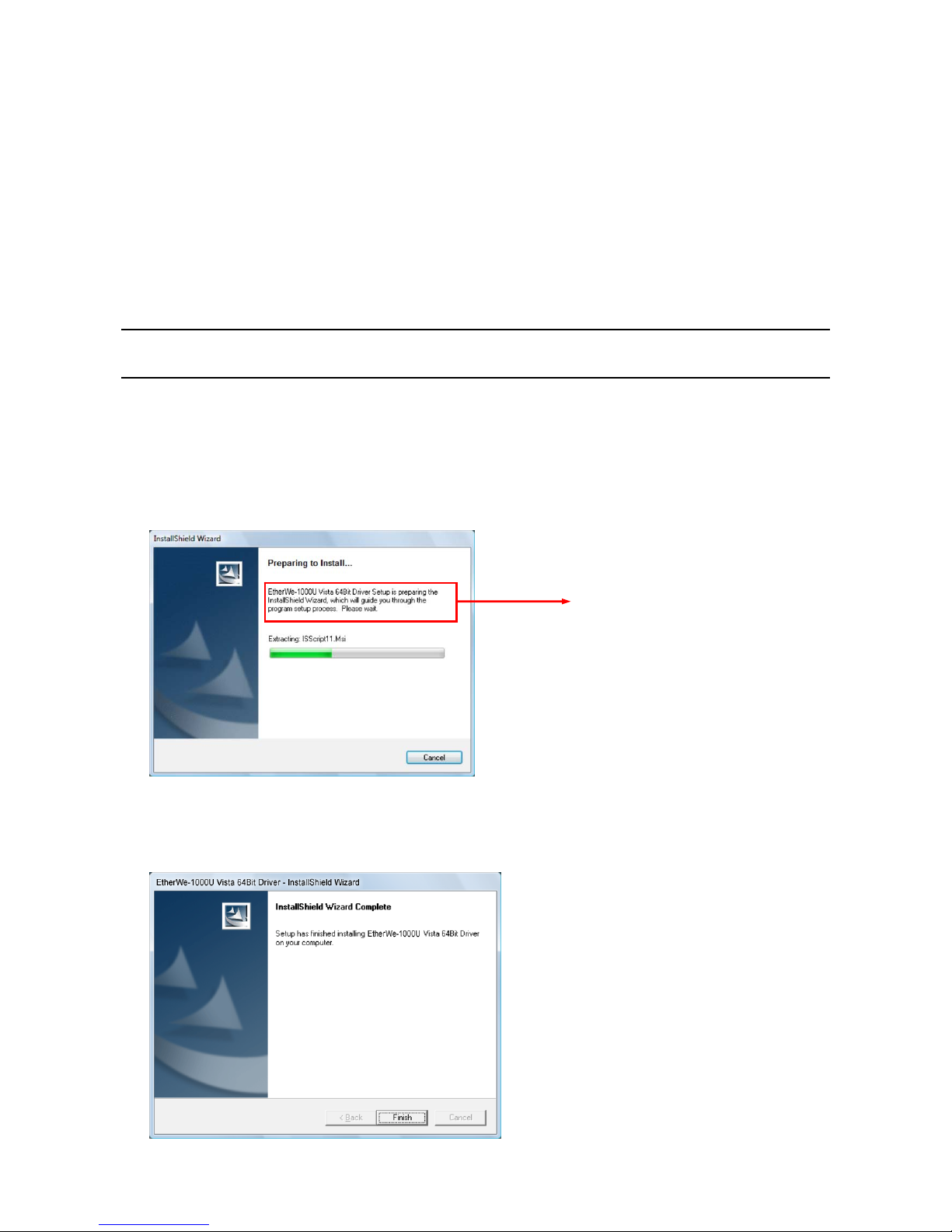

1. Insert the provided CD into your disc drive. Then locate and double-click the setup.exe file under
x:\Driver\Windows where x is your disc drive letter.
On Windows Vista, click Allow at the User Account Control screen.
2. Wait a while for the program to install the driver.
3.
When the installation is done, click Finish. (On Windows 2000, you will need to restart your computer as
prompted.)
Actual strings depend on your
operation system. These screen
shots are from Windows Vista
and might vary slightly for each
operation system.

AirLiveEtherWe‐1000UUser’sManual
6

4. Connect the Ethernet adapter’s USB end to a free USB port of your computer.
Then a pop-up message will appear in the notification area indicating the installation is complete.
Now the installation is complete. You can connect the adapter to a network device by an Ethernet cable:
1. Connect an Ethernet cable to the Ethernet port on the adapter.
2. Connect the other end of the Ethernet cable to your network hub, switch or router.
The Link LED should light up green to indicate a proper physical connection between the adapter and the
network. If the Link LED doesn’t light up, please verify the cable connections between all the network devices.
2-3 Verifying the Driver Installation on Windows
Once you finish the installation, you can open Windows Device Manager to verify if your Ethernet adapter is
properly installed. To access the Device Manager:
On Windows Vista: Right-click Computer on the desktop and click Properties >
Device Manager.
On Windows XP/2000: Right-click My Computer on the desktop and click
Properties > (Hardware) > Device Manager.
In the Network adapters group, an item named EtherWe-1000U USB2.0 to Fast Ethernet Adapter should
be displayed.
If there is a question or exclamation mark next to that item, then the driver is not properly installed. Please
delete the item, select the Delete the driver software for this device option (if provided), unplug the adapter
from your computer and then repeat the installation steps.






AirLiveEtherWe‐1000UUser’sManual
7

2-4 On MAC OS X 10.x

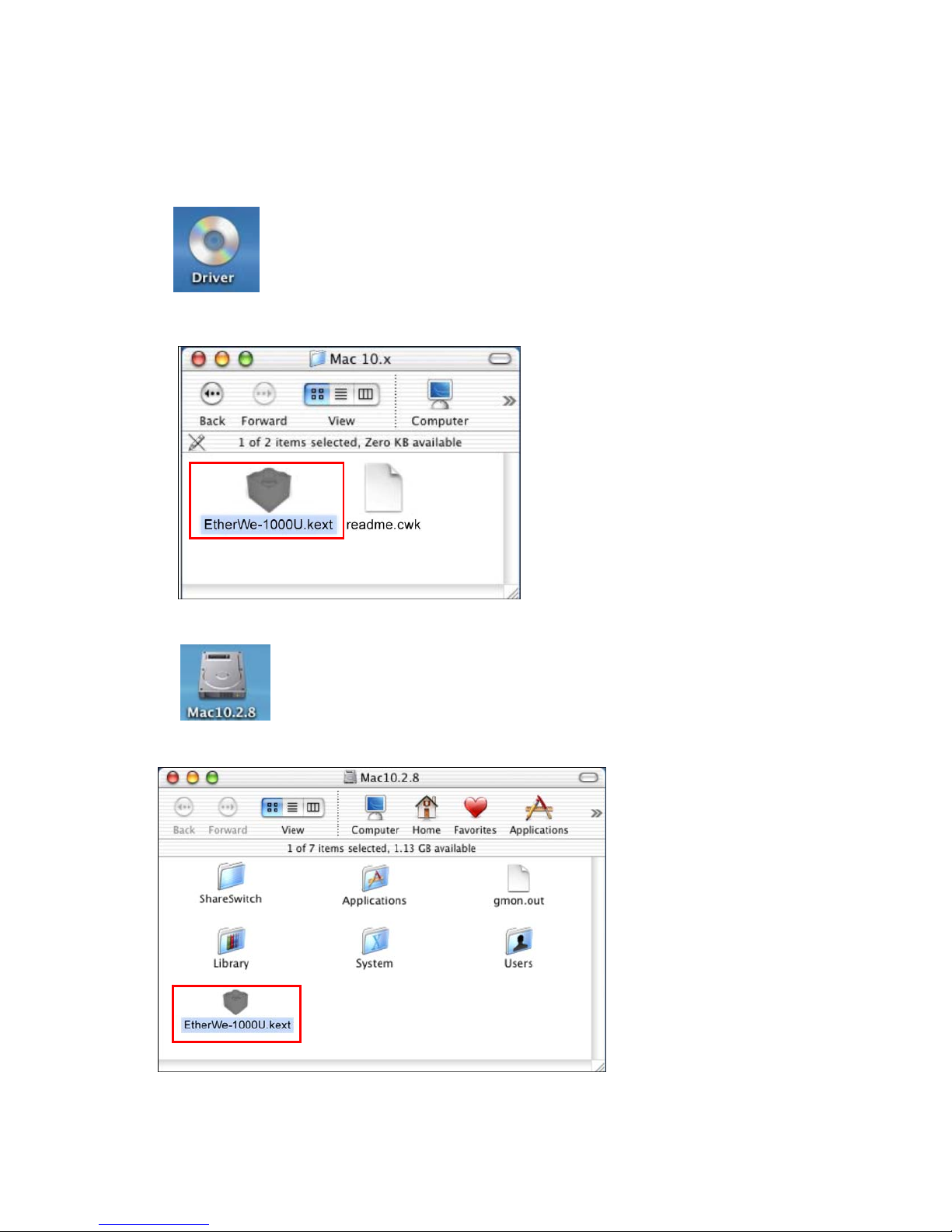

1. Insert the provided driver CD into your CD-ROM drive. Double-click the CD and
navigate to the directory of \Driver\Mac10.x.
2. In the directory of Mac10.x, select and copy the folder named EtherWe-1000U.kext.
3. On the desktop, double-click the start-up drive.
4. Paste the EtherWe-1000U.kext to the root directory of the disk.

AirLiveEtherWe‐1000UUser’sManual
8

5. Open the terminal application by clicking Go > Application > Utilities > Terminal.
6. If there is one old driver in the Extensions directory, please remove it first by executing the command:
sudo rm –R /System/Library/Extensions/EtherWe-1000U.kext
You will need to enter your password as prompted.
7. Paste the driver to the Extensions folder by the command line below:
sudo cp –R //EtherWe-1000U.kext /System/Library/Extensions/EtherWe-1000U.kext

AirLiveEtherWe‐1000UUser’sManual
9

To verify the installation, you can go to /System/Library/Extensions to check if EtherWe-1000U.kext is
present.
8. Connect the Ethernet adapter to a free USB port.
9. Reboot your Mac.
10. Start System Preferences and select Network.
11. You will find that a new Ethernet network interface is available. It’s usually named Ethernet Adapter
(en1) or Ethernet Adapter (en2).

AirLiveEtherWe‐1000UUser’sManual
10

Now you are ready to configure the network settings for network access.
You must use the command line to install the driver as instructed above.
Simply copy and paste EtherWe-1000U.kext to the Extensions folder
will lead to an improper installation as the warning message below:
Now the installation is complete. You can connect the adapter to a network device by an
Ethernet cable:
1. Connect an Ethernet cable to the Ethernet port on the adapter.
2. Connect the other end of the Ethernet cable to your network hub, switch or
router.
The Link LED should light up green to indicate a proper physical connection between the
adapter and the network. If the Link LED doesn’t light up, please verify the cable
connections between all the network devices.


AirLiveEtherWe‐1000UUser’sManual
11

Chapter 3: Specification
Items Descriptions
Network Standards IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-T
Data Transfer Rates Ethernet: 10Mbps/20Mbps (Half/Full Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex)
Data Bus USB 2.0 (1.1 compliant)
LED Indicators Power, Link
Power Consumption 850mW
Power Management Suspend mode, hibernation mode
Network Interface Female RJ45 jack
RAM Embedded 20KB SRAM for RX packet buffering and 20KB
SRAM for TX packet buffering
Operating System Support Windows 2000, XP, Vista 32/64-bit; Mac OS X 10.x
Dimensions 72 x 52x 26 mm (L x W x H)
Weight 58g
Operating Temperature 0℃to 70℃
Certifications FCC, CE
*Specificationissubjecttochangewithoutfurthernotice.











AirLiveEtherWe‐1000UUser’sManual
12

Chapter 4: Regulatory Compliance
FCC Conditions
This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received. Including interference that may cause undesired
operation.

CE
This equipment is in compliance with the requirements of the following regulations: EN 55 022: CLASS B
WEEE Information
For EU (European Union) member users:
According to the WEEE (Waste electrical and electronic equipment) Directive, do not dispose of this product
as household waste or commercial waste. Waste electrical and electronic equipment should be appropriately
collected and recycled as required by practices established for your country. For information on recycling of
this product, please contact your local authorities, your household waste disposal service or the shop where
you purchased the product.
   
