Ovislink OV-N9900T User manual

DTV Converter Box
USER’SMANUAL
1
The lightning flash with ar
rowhead symbol, within
an equilateral triangle, is
intended to alert the user to the pres-
ence of uninsulated “dangerous volt-
age”within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk to persons.
The exclamation point,
within an equilateral
triangle, is intended to
alert the user to the presence of im-
portant operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
WARNING/CAUTION
Please be aware that new software may
change the functionality of the STB.
The photo and the function explanation
involved in this specification is for
reference only. If there is any mistake,
please refer to the entity.
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
NOTICE
This device complies with Part15 of
the FCC Rules. Operation is subject
to the following two condition: (1)this
device may not cause harmful
interference,and (2) this device must
accept any interference received,in-
cluding interference that may cause
undesired operation.
FCC

2 DTV Converter Box
USER’SMANUAL
Be sure to read this
user’s manual before
starting your operation.
Never open the cover.
Don’t touch the inside
of the unit,otherwise it
may cause possible
electric shock.
If the receiver is not in
use for long periods,
always unplug the re-
ceiver from its power
source.Don’t use
damaged power cord.
Do not touch the power
with wet hand. Take off
the power cord from
the outlet if there’s liq-
uid flowing into the
unit,otherwise,it may
cause fire or electric
shock.
Place the unit in a well
ventilated and no heat
environment.
Install the unit
horizontally. Unbal-
anced installation may
cause the unit to be
damaged by itself.
When the location of
the unit will move from
heat area to cold area,
turn off the power for
at least 1-2 hrs before
you restart the receiver.
Install the unit in a
place with:
good ventilation
suitable temperature
no direct sunrays
low humidity
low vibration influence
Do not put heavy ob-
jects on the unit.
SAFETYINSTRUCTIONS
Please read these safety instructions through carefully, before operating the receiver.
Please observe all warnings and instructions on the equipment and contained in
these operating instructions.

DTV Converter Box
USER’SMANUAL
3
Table of Contents
SAFETY INSTRUCTIONS 2
GENERAL INFORMATION 4
1. Main Features 4
2. Unpacking 4
OVERVIEW OF THE EQUIPMENT 5
1. Front Panel 5
2. Rear Panel 6
3. Remote Control Unit 7
4. Installation of STB 8
4.1 Connect RCA Support with TV 8
4.2 Connect RF Support with TV 8
FIRST STEPS 9
MENU INFORMATION 9
ON SCREEN MENUS SELECTION 10
1. Main Menu 10
2. Channel 11
1.1 Channel Scan 11
1.2 Channel Add 12
1.3 Channel Edit 12
1.4 Manual Scan 13
1.5 Output Channel 13
2. OPTION 14
2.1 Clock 14
2.2 Aspect Ratio 14
2.3 Language 15
2.4 Audio Language 15
2.5 Caption Select 15
2.6 DCC Setup 16
2.7 Sleep Mode 16
3. LOCK 17
3.1 Lock System 17
3.2 Set Password 17
3.3 Block Channel 18
3.4 TV Rating-Children 18
3.5 TV Rating-General 19
3.6 Movie Rating 20
3.7 Downloadable RRT 20
TECHNICALSPECIFICATION 21
TROUBLE SHOOTING 21

4 DTV Converter Box
USER’SMANUAL
2. Unpacking
Unpack the receiver and check to
make sure that all of the following
items are included in the packaging.
1 x Remote Control Unit
1 x User’s Manual
1 x Digital Terrestrial
Receiver
Incorporating the highly integrated
single chip, the receiver is a cost-
effective and high performance digi-
tal ATSC converter box. The receiver
provides FTA (Free-To-Air) channels
with user-friendly OSD (On Screen
Display)
1. Main Features
Fully ATSC / MPEG -2 HD
compliant
Receives HD ATSC Terres-
trial broadcast Channels 2-69
Decodes all 18 ATSC DTV
standard formats
256 colors on screen display
(OSD) supported
7 days Electronic Program
Guide (EPG)
Teletext output through VBI
and OSD
GENERALINFORMATION
Multi-language OSD (English,
French, Spanish)
Multi-language audio supported
Multi-language Subtitle output
supported
EIA 608 Closed Caption
Parent control (V-chip)

DTV Converter Box
USER’SMANUAL
5
OVERVIEW OF THE EQUIPMENT

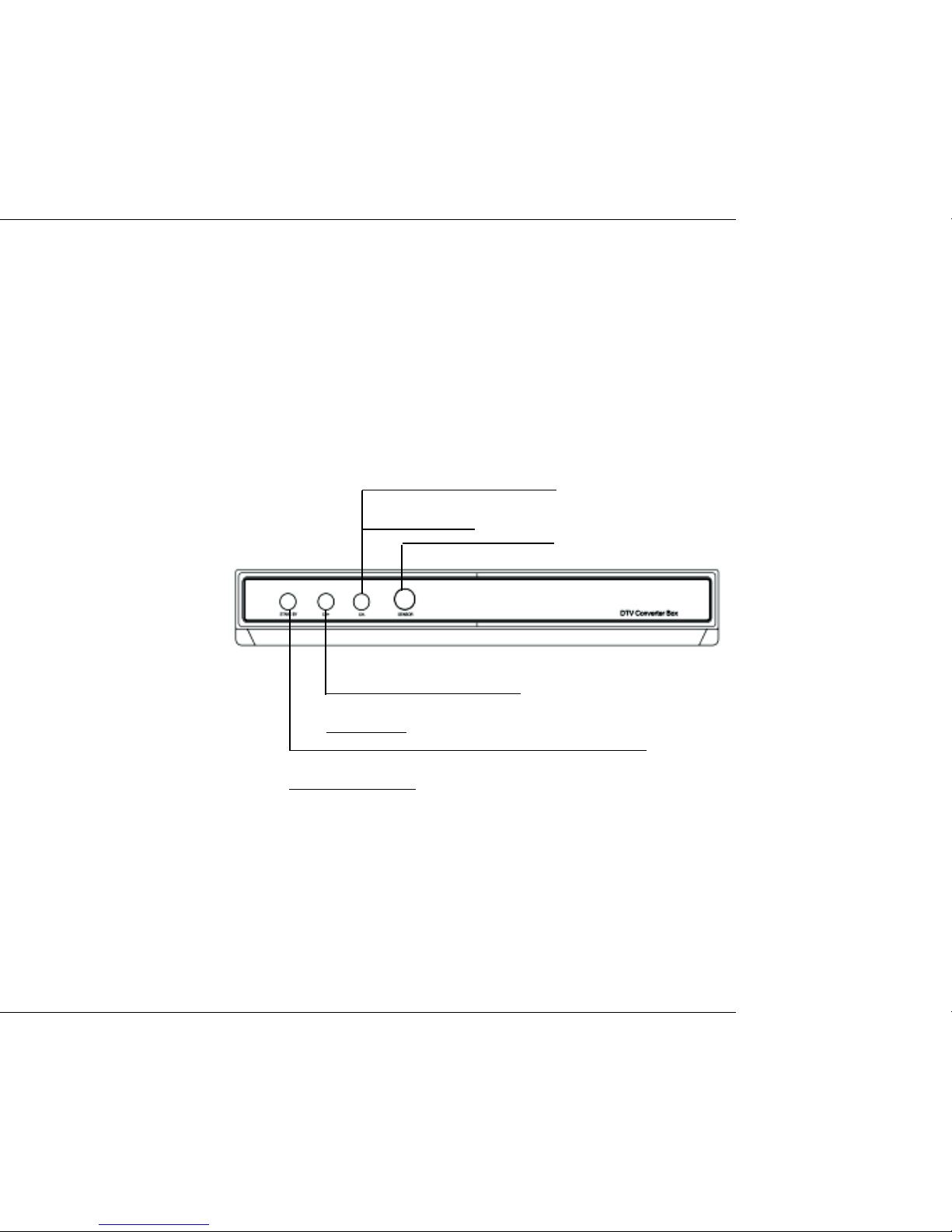

1. Front Panel
Remote Control Sensor
press this button, move to the
next channel
press this button, move to the
previous channel
press this button, the receiver will between operation
and standby modes

6 DTV Converter Box
USER’SMANUAL

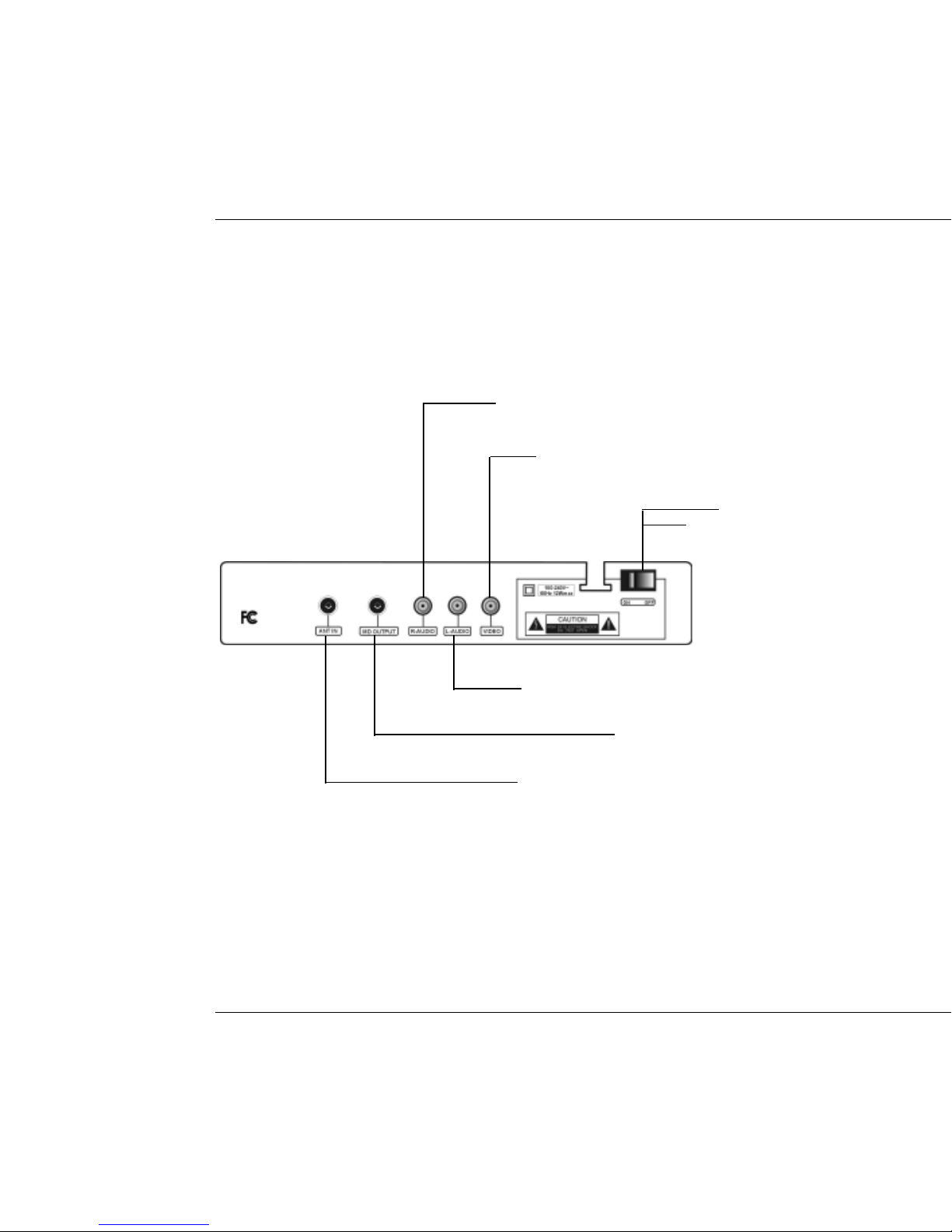

2. Rear Panel
Main power
switch
UHF RF output to TV set’s antenna in
VIDEO
Right audio
Left audio
Connect to terrestrial antenna

DTV Converter Box
USER’SMANUAL
7

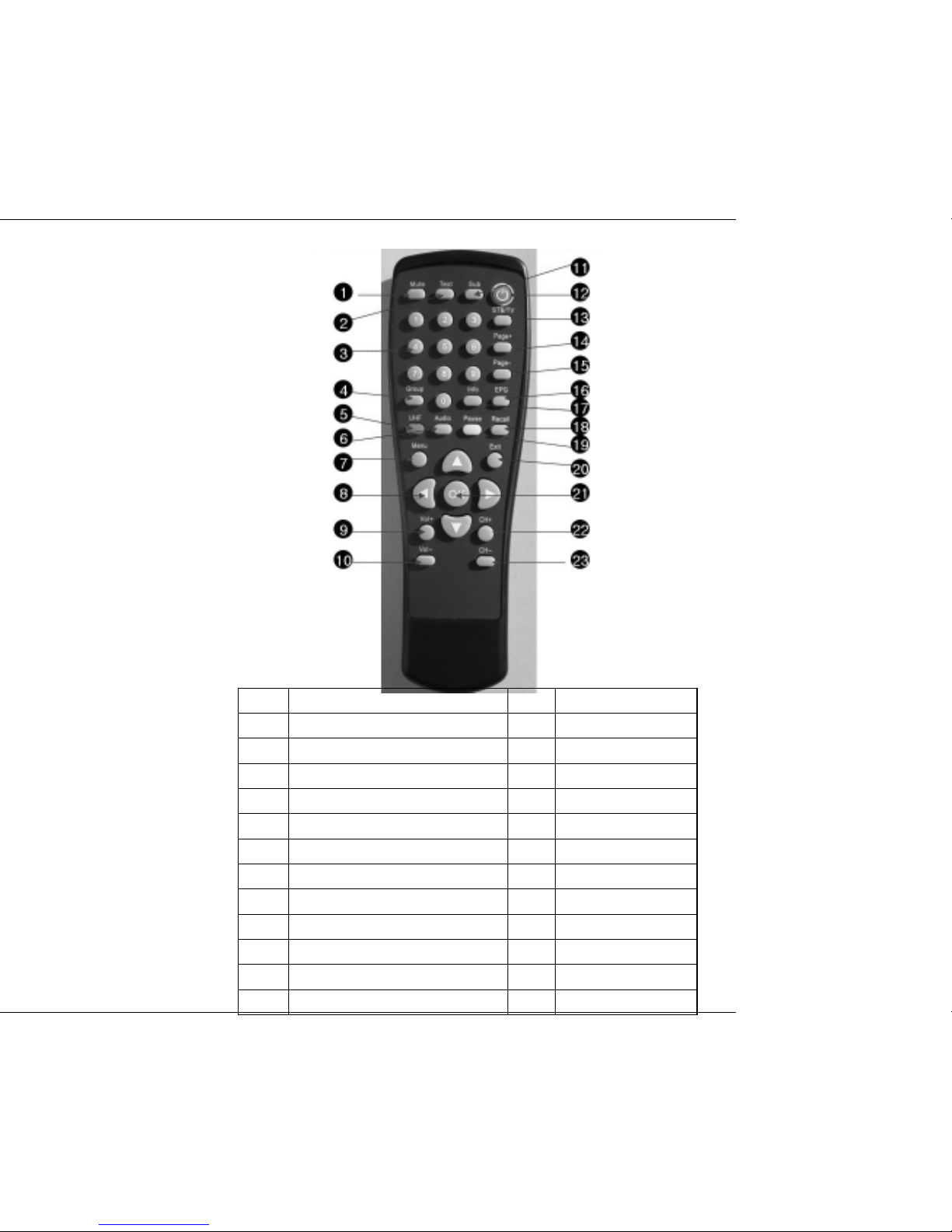

3. Remote Control Unit
Function Function
1 MUTE 13 Signal Strength
2 CC 14 Page+
3 Numeric Key 15 Page-
4 Reserved for future use 16 GUIDE
5 Sleep Mode 17 INFO
6 AUDIO 18 Flash Back
7 MENU 19 RATIO
8 ARROW 20 EXIT
9 VOL+ 21 OK
10 VOL- 22 CH+/Page+
11 DASH(-) 23 CH-/Page-
12 STANDBY

8 DTV Converter Box
USER’SMANUAL

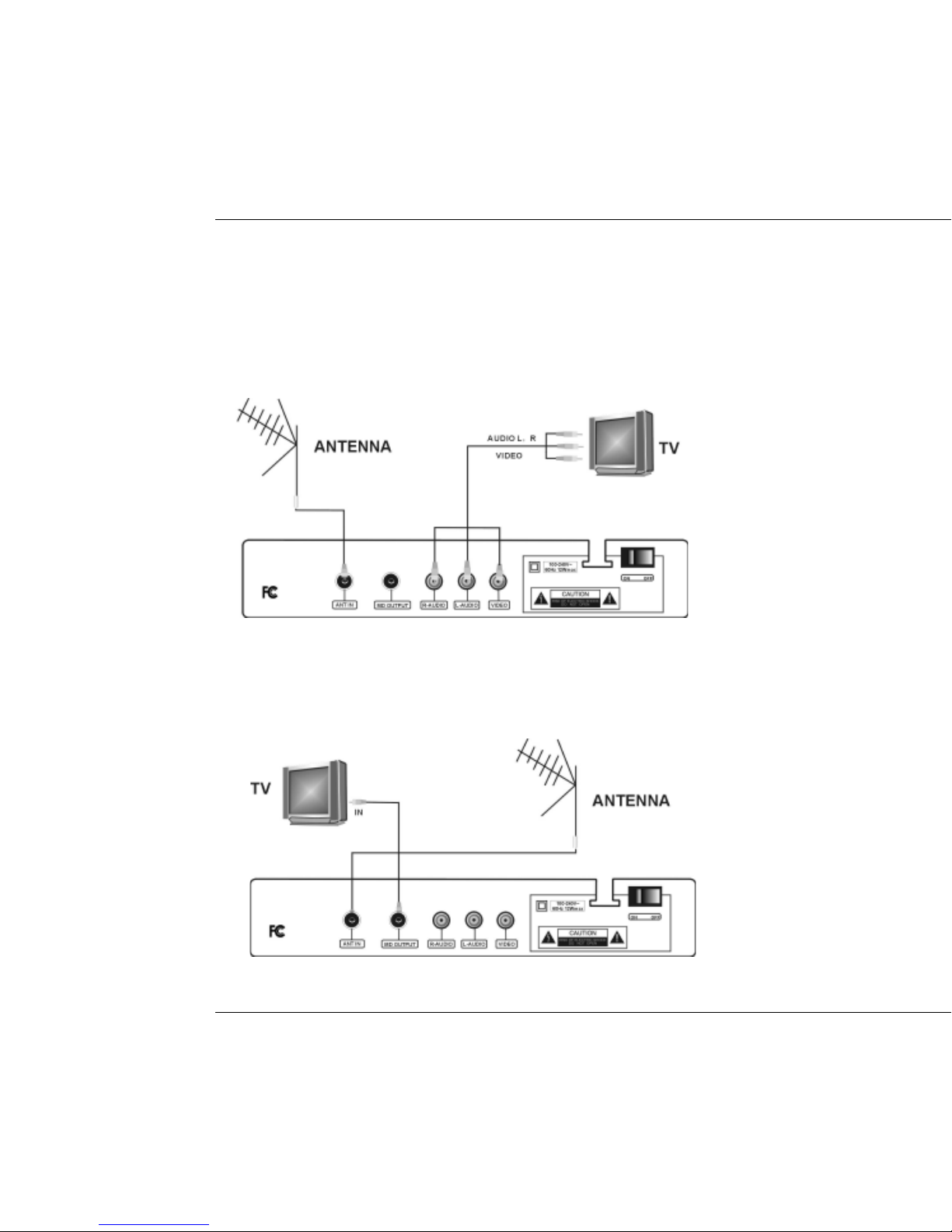

4. Installation of STB
This section explains the installation of the STB. If you need any assistance for
specific equipment connection, please contact your local dealer.
4.1 Connect the RCA Support to TV
4.2 Connect the RF Support to TV

DTV Converter Box
USER’SMANUAL
9
FIRST STEPS
Connect the receiver to power source by inserting the receiver’s plug in the power
socket, and turn on the main power switch on the real panel.
the receiver starts up in Standby mode,and the current time will be shown on the
display .
Connect the auxiliary devices with power sources, and turn them on.
Select the AV channel on the TV set.
The receiver is equiped with pre-programmed TV channels and can be used
immediately. To see if there are any new channels, then activate the channel search.
CAUTION !
Before connect the receiver to power source,check to make sure all of the devices
(including antena)are well connected.
MENUINFORMATION
The user interface has various ways to navigate through the menu and functions.
Some of the keys on the remote control unit provide direct access to functions, such
as EPG, MENU,OK key and colored keys. Other keys are multi-functional ,since their
functions will change according to the different mode you are in.
Unless otherwise specified; this note explains the way you can operate the pages of
the user menu.
1. Press the keys to move the cursor left or right, from one line to another line.
2. Press the keys to move the cursor up or down in the sub-menu.
3. Press the OK key to enter the sub-menu.
4. Press the EXIT key to escape from the current menu, and return to view mode.
5. In a sub-menu:
-Press OK key to confirm your selection;
-The green or white bar indicates the active selection

10 DTV Converter Box
USER’SMANUAL
ON SCREEN MENUS SELECTION
1. Main Menu
Pressing the MENU key will display the Main Menu. This menu provides three options.
CHANNEL
OPTION
LOCK
Channel searching:
search the desired channels for play.
set up the receiver’s parameter of the
video & audio frequency,language and
subtitle.
set up the parental lock and its password.

DTV Converter Box
USER’SMANUAL
11

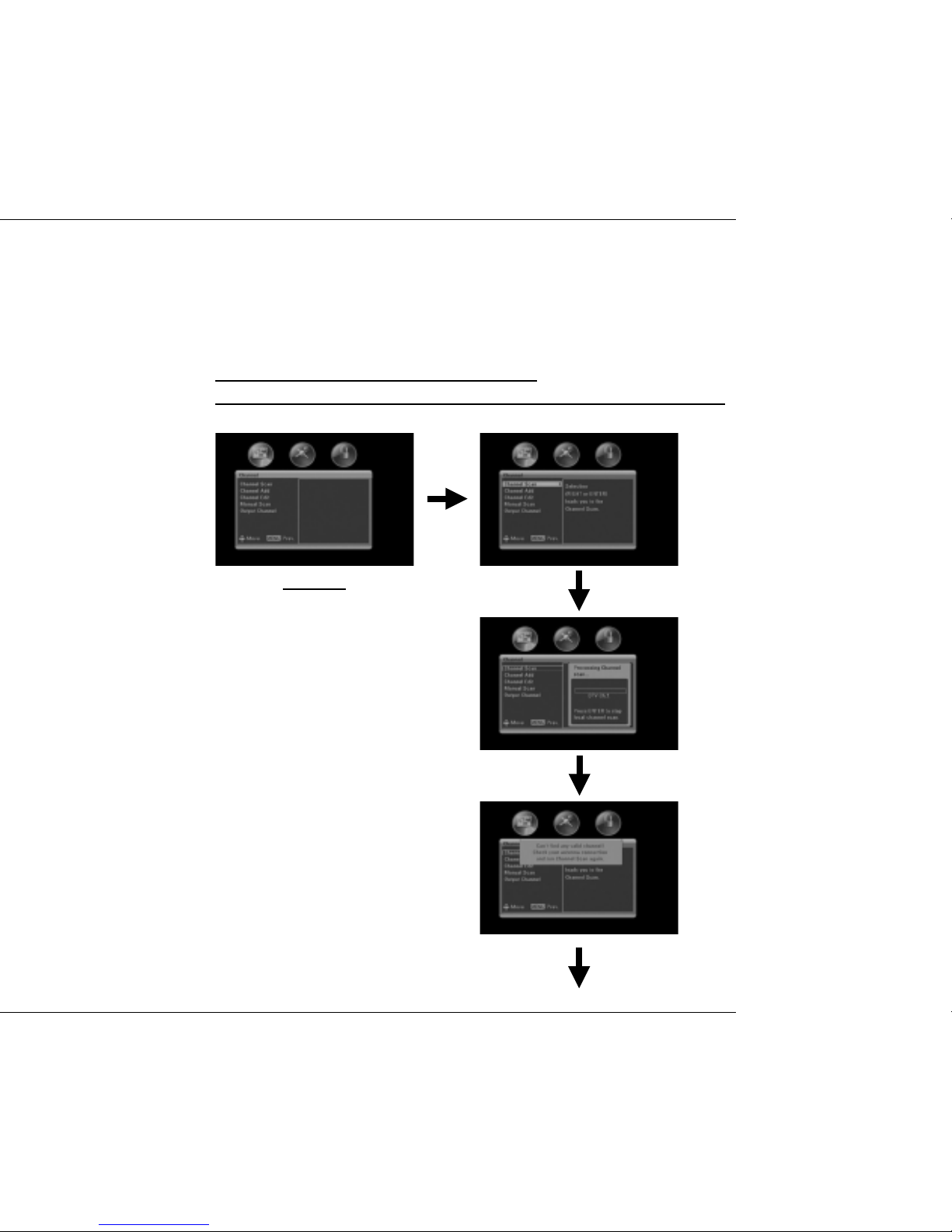

2. Channel
1.1 Channel Scan
From here, press OK key to scan the channels.
During the searching process, OK key is used to cancel the whole process.
CHANNEL Channel Scan 1
Channel Scan 2
Channel Scan 3
Channel scan 1:
Auto-searching can search through
all of the exsited channels.
Channel scan 2:
The guage shows the speed of auto-
searching process.
Channel scan 3:
Finish the channel searching by showing
a dialog box.

12 DTV Converter Box
USER’SMANUAL

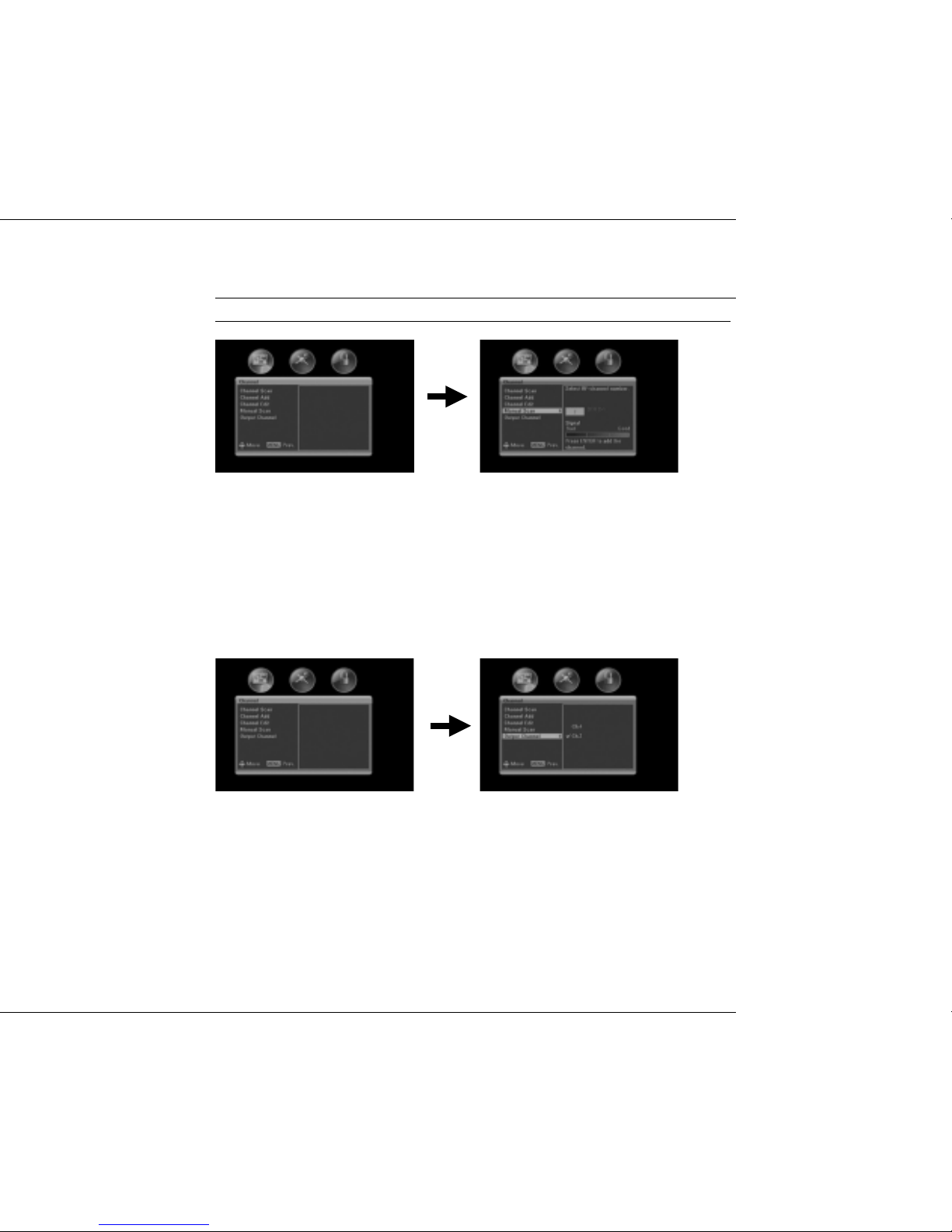

1.2 Channel Addition
key or OK key to lead you to the channel add.
1.3 Channel Edit
Press OK to delete or add the selected channel.
Channel additon:
Channel addition has the same function
as auto-searching in increasing the
channels.
New channels will be reserved after
addition.
Channel edit is used to edit the selected channels, also can rename these channels.

DTV Converter Box
USER’SMANUAL
13
1.4 Manual Scan
In this mode, only one RF channel can be searched. You can use the function
to scan the desired channels. Press keys to select the RF-channel number.
1.5 Output Channel
Manual scan, users can add channels according to the related frequency index.

14 DTV Converter Box
USER’SMANUAL

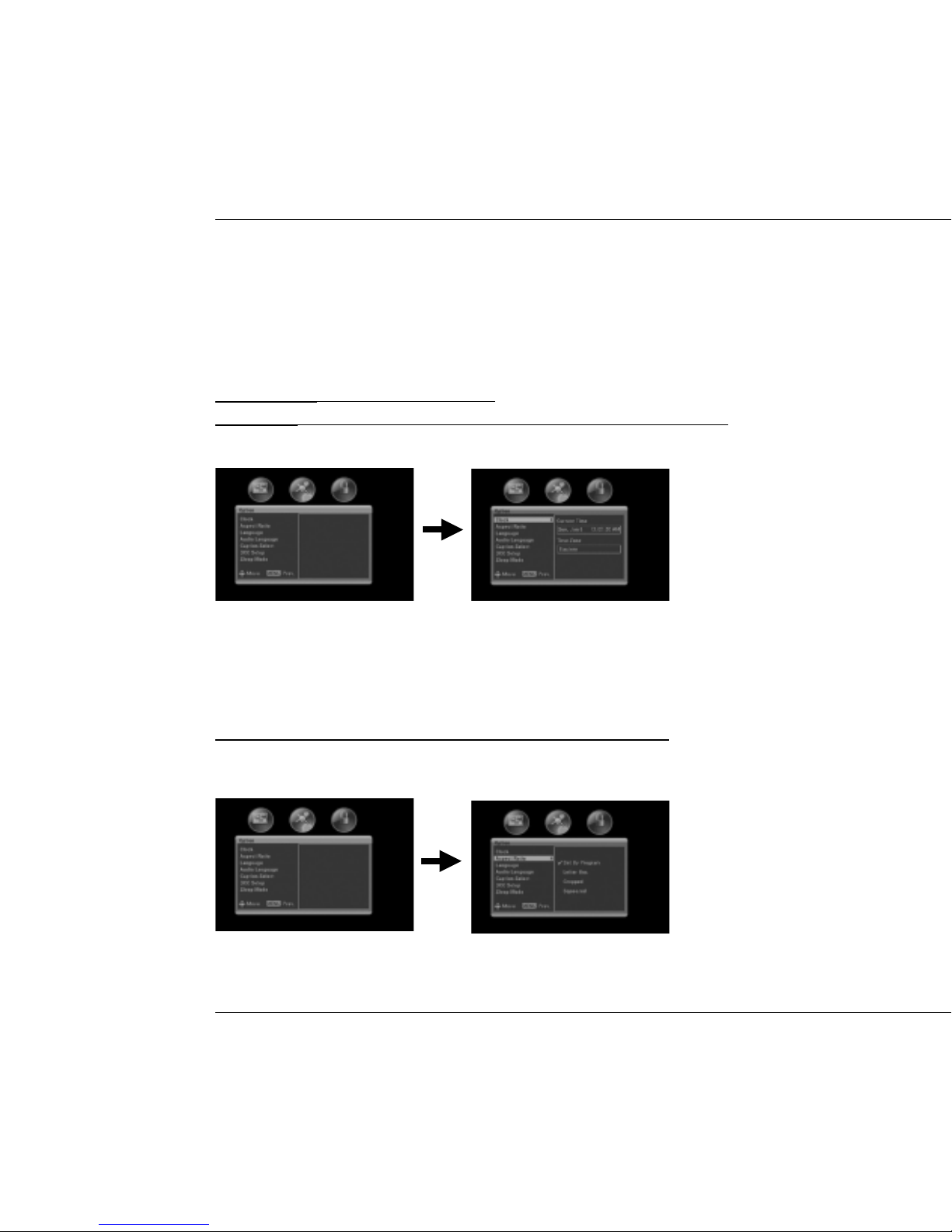

2. OPTION
2.1 Clock
Current Time: Displays the current time.
Time Zone: Select proper option according to the time zone you have been.

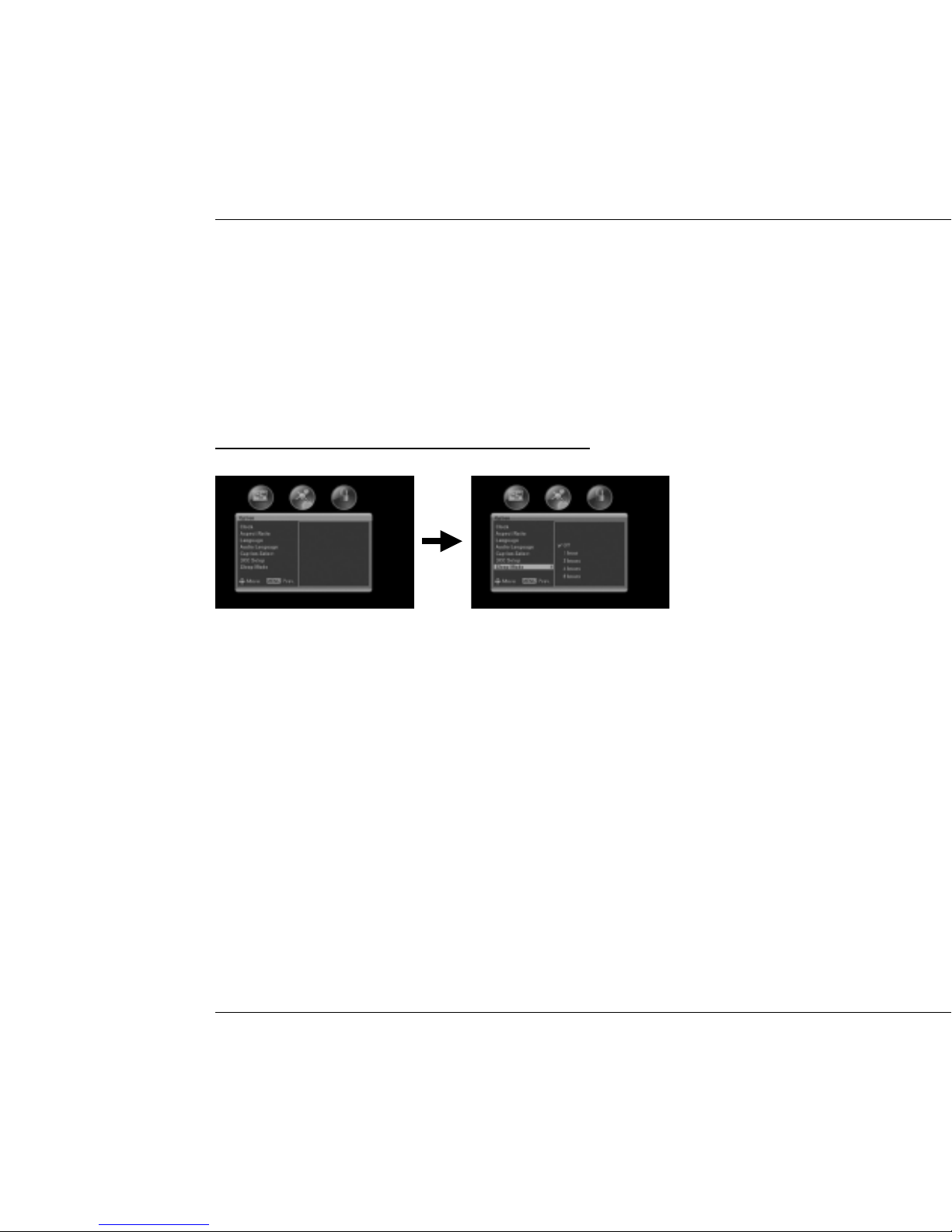

2.2 Aspect Ratio
This option allows you to select the aspect ratio of the video output.
Setup to select user’s local time zone.
Setup the proportion of the display (Main screen).

DTV Converter Box
USER’SMANUAL
15
2.3 Language
2.4 Audio Language
This option allows you to select your first and second choice of the audio
language.
2.5 Caption Select
Select the desired option for caption.
Select the desired language for main menu.
Options available:English,Spanish,French.
Select the language of audio frequency if multi-language options are availabel.
Set up the caption of the programs.

16 DTV Converter Box
USER’SMANUAL
2.7 Sleep Mode
Sets the time after which the receiver switches itself off.
Select the time interval,and set up auto-turnoff when no operation being taken
for a long periods.
2.6 DCC Setup

DTV Converter Box
USER’SMANUAL
17

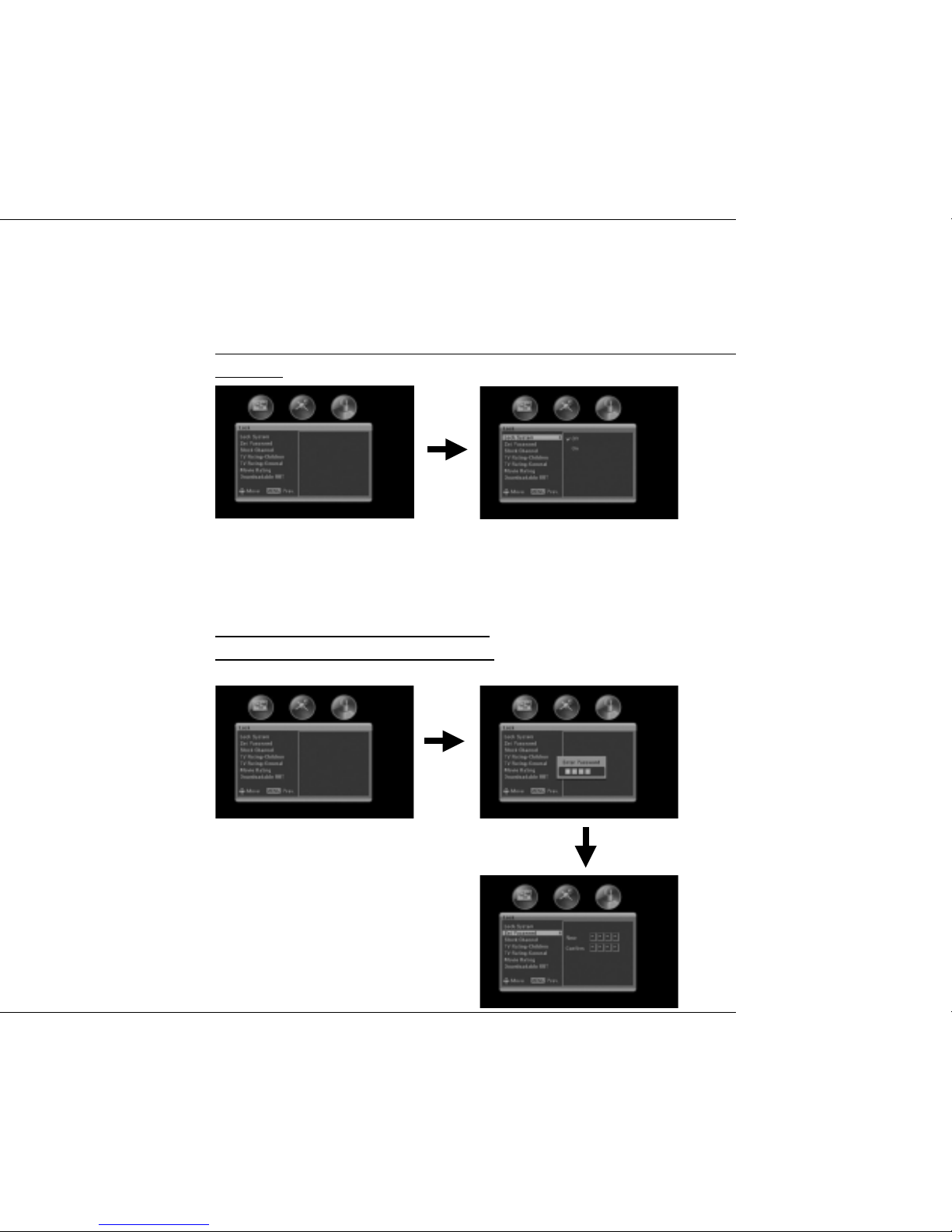

3. LOCK
3.1 Lock System
Select On or Off. If On is selected, a password is needed before you entering
the menu.
3.2 Set Password
Enter a new password at the “New” item.
Enter the new password again to confirm.
Parental lock, used to open/close the the menu.
Set up the password of parental lock,
the defaut password is: 0000

18 DTV Converter Box
USER’SMANUAL
3.3 Block Channel
Select the channels which you tend to lock, then press OK to confirm.
3.4 TV Rating-Children
This function can help to prevent children from watching illegal channels.
Age: TV-Y, TV-Y7 and Blocking Off.
Fantasy Violence: Select TV-Y7 or Blocking Off.
Fantasy Violence Age

DTV Converter Box
USER’SMANUAL
19
3.5 TV Rating-General
Age: TV-G, TV-PG, TV-14, TV-MA and Blocking Off.
Dialogue: TV-PG, TV-14, TV-MA and Blocking Off.
Language: TV-PG, TV-14, TV-MA and Blocking Off.
Sex: TV-PG, TV-14, TV-MA and Blocking Off.
Violence: TV-PG, TV-14, TV-MA and Blocking Off.

20 DTV Converter Box
USER’SMANUAL
3.6 Movie Rating
G:General audiences.
PG: Parental guidance suggested.
PG-13: Parents strongly cautioned.
R: Restricted.
NC-17: No one 17 and under admitted.
x:Adult only
3.7 Downloadable RRT(Region Rating Table)
