OWA Mycare MP50 User manual

Attention:
Please read these installation,
operating instructions and safety
information carefully before
installing and putting the unit into
service.
These must always be handed to
the owner/user.
Installation and
operating instructions
OWA
Mycare MP50
Point-of-use water filter
Language: English
Valid for: China

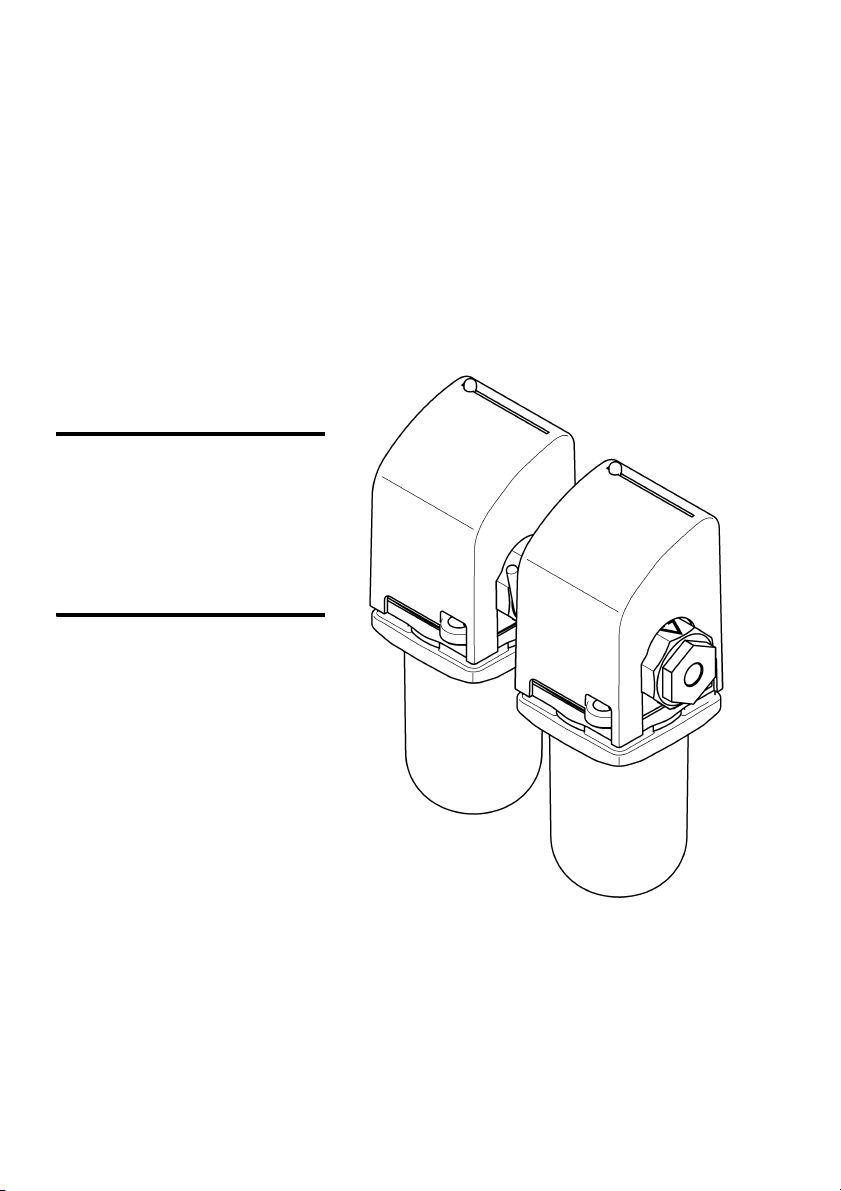

Fig.: Mycare MP 50

Mycare MP 502
Corporate head office
OWA GmbH
Postfach/P.O. Box 100831
D-73708 Esslingen
Germany
E-mail: [email protected]
www.owa-world.com
Trademarks:
Trademarks used in this document are protected
and registered trademarks of the respective
holder.
© OWA GmbH
D-73708 Esslingen
All rights reserved.
Reprints – even of extracts – are only permitted
with special written approval.
Dear customer,
we would like to thank you for choosing
this point-of-use water filter.
The product you have purchased is a
point-of-use water filter developed using
state of the art technology.
This point-of-use water filter is suitable
for use in COLD water, drinking applica-
tions, up to a maximum water tempera-
ture of 30 °C (86 °F).
The point-of-use water filter operates on
the basis of a 2-stage function principle.
1st stage - activated carbon block:
Physical impurities, chlorine, organic
compounds are removed from the
water.
2nd stage - micro-filtration:
The 0.2 micron fine pores of the hollow
fibre membrane reliably removes
numerous bacteria, micro organisms,
fungi, parasites and fine particles
with diameters larger than the pores
themselves.
The Mycare has been developed
using leading edge and state-of-the-art
technologies; each unit has been
thoroughly inspected prior to packaging
and delivery.
If you encounter any deficiency, defects
or installation problems, please contact
our local customer service department
(see back page).

3Mycare MP 50
Before you begin:
– Inspect carton and product carefully
and thoroughly for defects or shipping
damage.
– Use this product in accordance with
all the respective local regulations,
codes and safety practices.
– Do not install this product in applica-
tions were the ambient temperature is
below 5 °C (41 °F).
– Do not install this product closer than
13 feet (4 m) of plumbing piping
between the filter inlet and the inlet of
any water heater. Water heaters can
and will transmit heat back through
its respective plumbing.
Always ensure that this product is
installed so that that the water tempe-
rature never exceeds a maximum of
30 °C (86 °F) for all applications. If in
doubt, always check with local plum-
bing and building authorities prior to
installation.
– Do not install in applications where
exposed to direct sun radiation/sun
light.
–
Do not expose this product to solvents
or cleaners containing alcohol or
petroleum products.
– Do not install this product near acid
or acid fumes.
– All plumbing MUST conform to local
codes.
– All plumbing must be properly sup-
ported with no stress to be put on
product or piping.
– Turn off the main water supply.

Mycare MP 504
About this instruction manual
Table of contents
1. About this instruction manual.......... 4
1.1Symbols used................................. 5
1.2 Safety indications and dangers due
to non-compliance.......................... 5
1.3 Units used ...................................... 5
2. Intended use...................................... 6
2.1 Water pressure............................... 7
2.2 Information on hazard risks............ 7
3. Product description........................... 8
3.1 Intended purpose ........................... 8
4. Installation ......................................... 8
4.1 General .......................................... 8
4.2 Installation and initial putting into
service of the point-of-use water filter
10
5. Service.............................................. 12
5.1 Commissioning............................. 12
5.2 Functional description.................. 12
5.3 Modifications / changes /
spare parts ................................... 12
5.4Shut down .................................... 13
5.5 Replacing the cartridges.............. 13
6. Trouble shooting chart................... 15
7. Maintenance..................................... 16
7.1 Cleaning ....................................... 16
8. Warranty and services .................... 16
9. Data sheet ........................................ 17
9.1 Type ............................................. 17
9.2 Technical data ............................. 17
9.3 Installation dimensions ................ 17

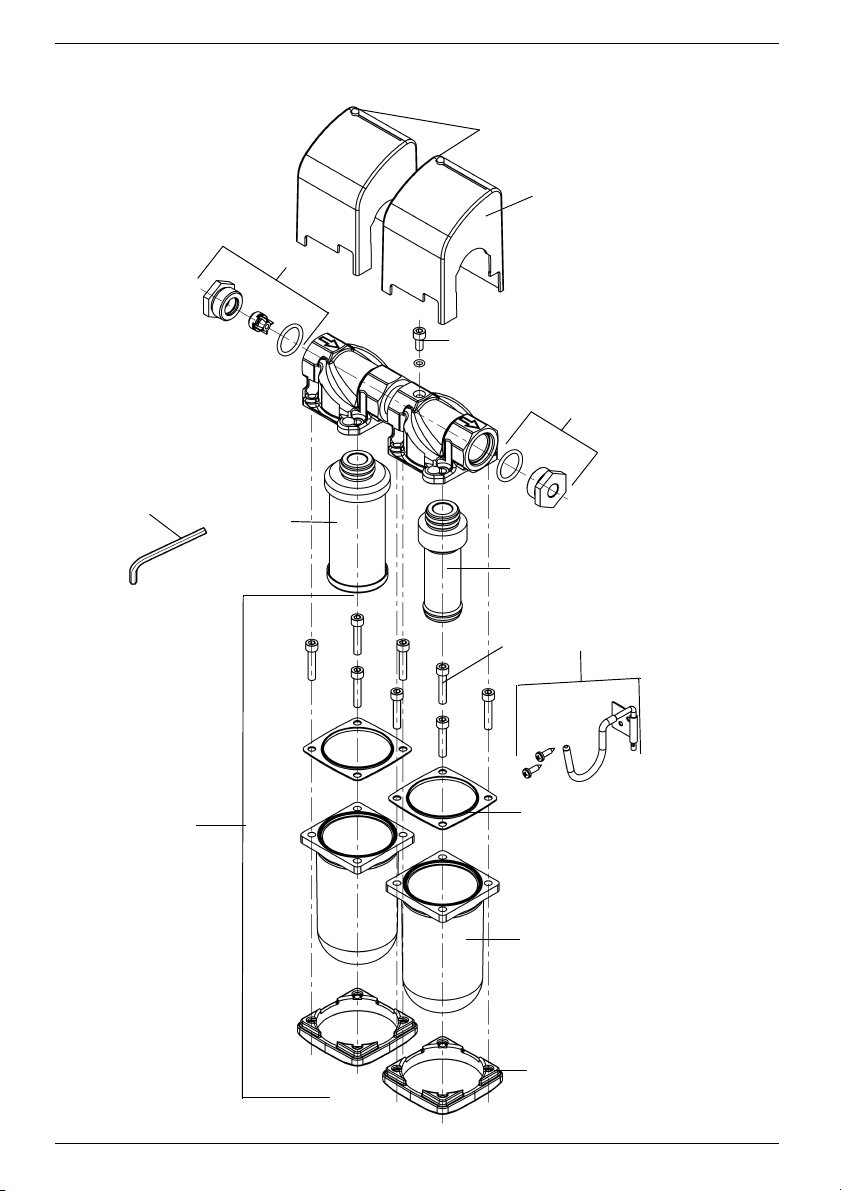

10. Spare parts MP 50 .......................... 18
11. Customer service ............................ 20
1. About this instruction
manual
ATTENTION
(see chapter “Safety indications and
dangers due to non-compliance”)
The instruction manual must be perma-
nently available at the point of use of the
Mycare filter.
The instruction manual contains important
information on the Mycare , so that it
can be used in a safe, economical and
appropriate manner.
It contains fundamental information, which
must be observed during installation, opera-
tion and maintenance. Strict observance of
this information helps to avoid danger,
reduce repair costs and increases the relia-
bility and working life of this filter.
The instruction manual must be read and
used by each person entrusted with carrying
out the working life of this filter, for example:
– installation
– operation
–maintenance
(servicing, inspection, repair)
Installation and maintenance may only be
carried out by personnel authorized to do so
by the manufacturer, who are able to
complete the work stipulated in this installa-
tion and operating manual and in accord-
ance with the legal requirements valid in the
country of use.
In addition to the instructions contained in
this manual, all valid regulations covering
health and safety as well as all plumbing
guidelines and codes valid in the country of
use are to be adhered to at all times.
This instruction manual must, therefore,
always be read by the installer and the
skilled personnel/user responsible, before
the installation, prior to putting the unit into
service or before performing any mainte-
nance on this unit.

5Mycare MP 50
About this instruction manual
In addition to the general safety notes
outlined in the chapter “Intended use”,
please reference the special safety notes
which have been outlined in all the chap-
ters provided in this manual.
1.1 Symbols used
The safety notes contained in this instruction
manual are labelled with the following
symbols:
Notes that are directly attached to the built in
rotary flange or the Mycare filter, e.g.
– flow direction (see fig.1)
– unit labelling
– cleaning advice
must be adhered to and kept fully legible.
1.2 Safety indications and dangers
due to non-compliance
Non-compliance with the general danger
symbols given in this manual may result in
the following risks among others:
– failure of important functions of this filter,
– danger to persons due to electrical and
mechanical effects,
– danger both to persons and the environ-
ment due to leaks.
Refrain from any action which may involve
danger to health or safety.
Non-compliance with this instruction manual
and the safety information contained in it,
can not only result in the risk of personal
injury but can also harm the environment
and the Mycare filter itself.
1.3 Units used
With reference to the International System
of Units (SI= System International), the
following units are used:
ATTENTION
Notes on
existing dangers
Tips for use and other
informations

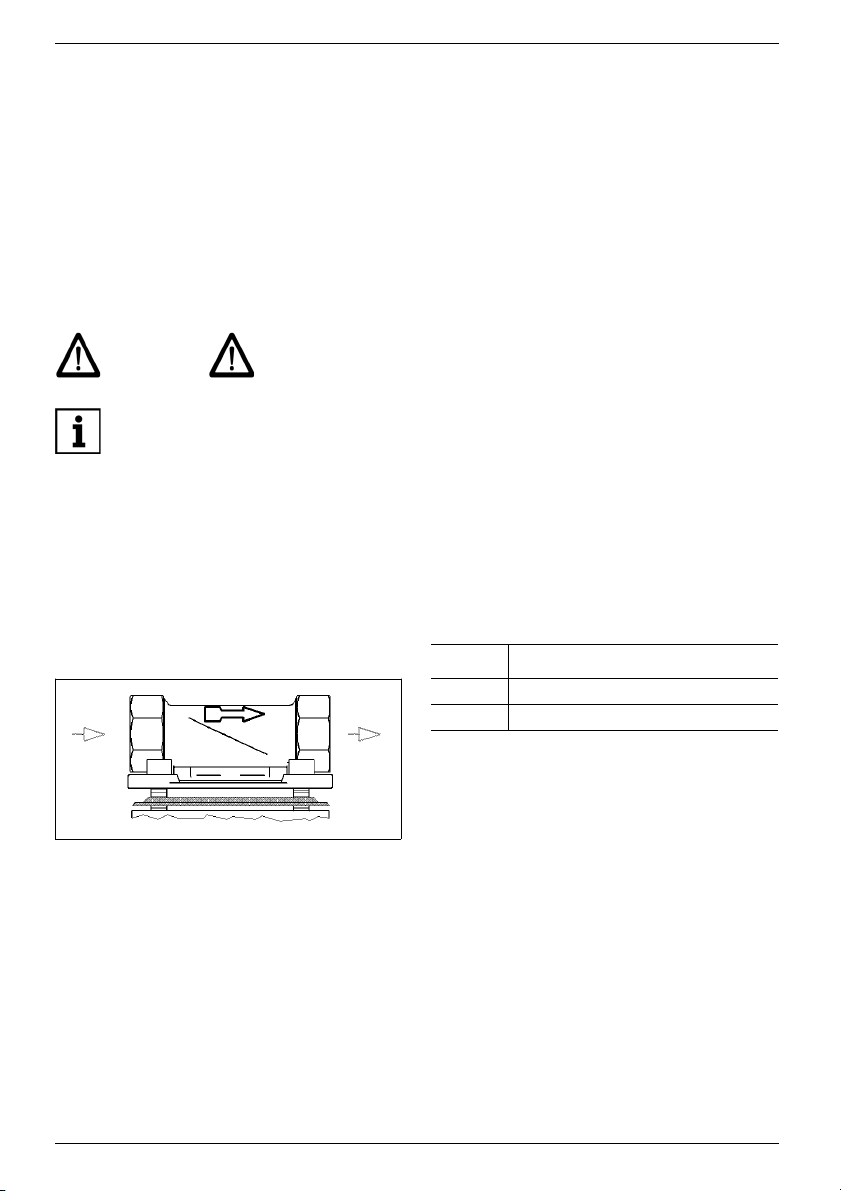

Fig. 1: Built-in rotary flange
Units Conversion
°F °F = 9/5 °C + 32
psi 1 psi = 6.9 kPa = 0.069 bar

Mycare MP 506
Intended use
2. Intended use
The water to be filtered must be of
drinking water quality!
Do not use with water that is microbio-
logically unsafe or of unknown quality
without adequate disinfection before or
after the system.
Systems certified for cyst reduction may be
used on disinfected waters that may contain
filterable cysts.
It is absolutely essential that the local distri-
butor be consulted before using this filter on
water of a different quality, respectively water
containing additives.
This Mycare water filter is suitable for
use in cold drinking water applications up to
a maximum water temperature of 30 °C
(86 °F).
The installation and operation of the
Mycare water filter is to be carriedout
in accordance with all rules and regulations
relevant and valid in the country of operation.
In addition to this, all valid regulations
governing health and safety in the country of
use are to be adhered to at all times.
The Mycare water filter may be used
only as described in these operating instruc-
tions, any further application is to be
deemed non-compliant with the safety
requirements indicated herein which may
result in a higher hazard risk to persons and
property.
The manufacturer / supplier cannot be held
liable for any damages resulting from such
use. Such usage is carried out at the user's
full risk. The intended use also includes the
observance of the operating instructions.
Please consult with our customer service
department before using this water filter for
any applications other than the ones stipu-
lated in this manual.
The Mycare water filter may only be
used in a technically correct condition, free
from defects and in accordance with health
and safety regulations!
Any functional defects are to be reported
immediately!

7Mycare MP 50
Intended use
2.1 Water pressure
The water pressure has to be between
103 kPa (15 psi) and 345 kPa (50 psi).
The water pressure must not fall below
103 kPa (15 psi) as otherwise the operation
can be impaired!
Failure to carry out regular maintenance
may result in a decrease in water pressure
and impair the filter function.
ATTENTION
(see chapter “Safety indications and
dangers due to non-compliance”)

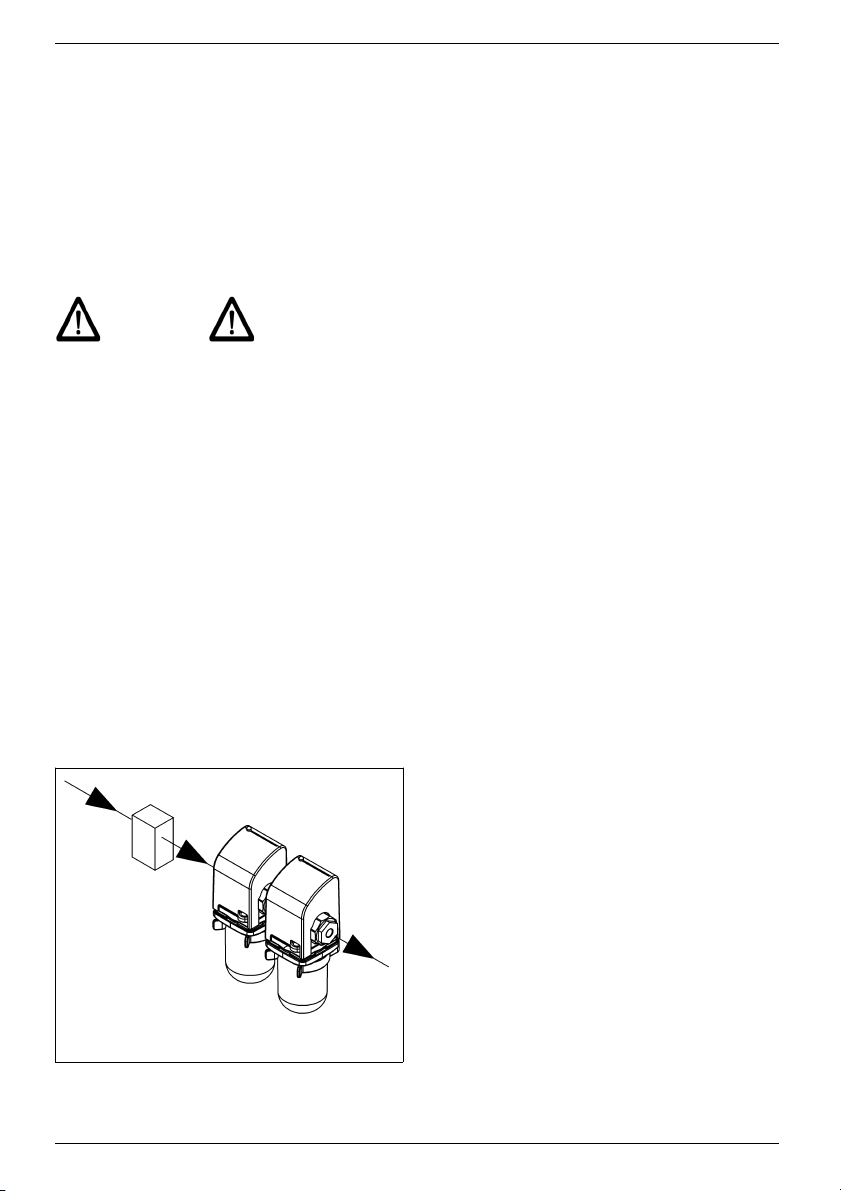

At a water pressure higher than 414 kPa
(60 psi), a pressure reducer must be fitted
upstream the Mycare water filter (see
fig. 2).
In most modern installations, despite normal
system pressure conditions, peak pressures
of up to over 3000 kPa (435 psi) frequently
occur.
This will lead to damages!
The optimum static and operating pressure
range for the Mycare water filter is
between 103 kPa (15psi) to 345 kPa
(50 psi). Under these pressure ranges the
Mycare MP 50 water filter works most
effectively.
2.2 Information on hazard risks
2.2.1 Electrical equipment /
installations
Electrical devices / equipment that are not
splash-water proof and are situated in the
direct vicinity of the Mycare water filter
may be damaged by water escaping from
the Mycare water filter, causedas a
result of the device being operated impro-
perly. In addition, short circuits may occur if
such electrical devices / equipment are / is
connected to the electrical power supply.
This may result in the risk of danger of elec-
tric shock to persons.
Therefore all the electrical devices / equip-
ment situated in the direct vicinity should be
splash-water proof, respectively comply with
the statutory requirements for wet areas
(NEMA type 12/IP44).
Fig. 2: Pressure reducer upstream the
point-of-use water filter
1 = pressure reducer
1

Mycare MP 508
Product description
3. Product description
3.1 Intended purpose
This Mycare water filter is suitable for
the use in cold drinking water supply, up to a
water temperature of maximum 30 °C
(86 °F).
ATTENTION
(see chapter “Safety indications and
dangers due to non-compliance”)
Concerning use restrictions, see chapter
“Units used”.
4. Installation
4.1 General
ATTENTION
(see chapter “Safety indications and
dangers due to non-compliance”)
The installation may only be carried out by
qualified personnel.
The chapter “Units used” has to be observed
at all times!
For ease of operation and maintenance the
dimensions indicated should be adhered to
at all times (see chapter “Installation dimen-
sions”).
Appropriate point of installation:
The Mycare water filteris intended
to be installed in the direct vicinity (as
close as possible) to the point of use (see
fig. 4).
ATTENTION
The water supply is to be turned off / shut off
before installation and may only be reopened
once installation is fully completed. Failure to
do so, may result in water damage.
If the water filter hasn't been used or put into
service for a long period of time, then the
stagnant water in the unit should be
removed. Open the faucet and let the water
run for approximately five minutes.
When installing, all piping, filter and parts
have to be mounted and secured. Due to
non-observance, its function can be compro-
mised.
When installing and replacing the
cartridge, pay attention to cleanliness.
Through dirt on your hands, during the
installation and during the replacement of
parts, bacterial impurities can arise in the
drinking water. Always ensure that your
hands, tools and plumbing parts are clean
and sterile, never touch or handle filter
cartridges without clean and sterile latex
gloves.
Fig. 4: Mycare water filter
under-sink installation

9Mycare MP 50
Installation
4.1.1 Requirements: point of use
The room where the unit is installed must
be dry and frost free!
Unauthorized persons must not have
access to the Mycare water filter!
ATTENTION
(see chapter “Safety indications and
dangers due to non-compliance”)
The ambient temperature must not exceed
30 °C (86 °F)!
Do not connect to the hot water system!
The Mycare water filter should not be
exposed to direct sunlight.
The Mycare water filter can be installed
in all standard commercial drinking water
pipes. Please shut down the incoming water
supply before Installation is started.
Pay attention to the flow direction (see fig. 5) !
4.1.2 Wall-mounted installation
There has to be enough space for the wall-
mounted installation (see chapter “Installa-
tion dimensions”). Use the enclosed specifi-
cation sheet with bracket dimensions as a
mounting aid.
Mount both wall brackets with the aid of the
screws and inserts provided.
Installation should take account of the fact
that the unit should be easily accessible for
cartridge changes.
Fig. 5: Flow direction

Mycare MP 5001
Installation
4.2 Installation and initial putting
into service of the point-of-use
water filter
1First install the enclosed micro-filtration
cartridge into the Mycare ( see
chapter “Replacing the cartridges”, from
step 3).
2Snap the Mycare water filter into
the wall-mounting brackets.
Pay attention to the flow direction
(see fig. 6)!
3Connect the Mycare water filter
with approved and appropriate tubing,
piping or hoses to the shut-off valve, as
well as to the faucet.
4Open the cold water shut-off valve and
the faucet carefully so that the air can
escape from the system.
5Slightly unscrew the bleed screw
because the microfiltration cartridge
must also be vented.
6Re-tighten the bleed screw once all the
air has been vented (see fig. 7).
7Keep on flushing with at least 3 liters of
water (i. e. 10 minutes at rated flow) or
until the effluent is clear.
8Turn the faucet off.
9Set up the indicator for the next filter ch-
ange.
Move the indicator button on the flange
cover to the next filter change require-
ment (filter change every 3 months at the
latest).
The Mycare water filter is now ready for
use!

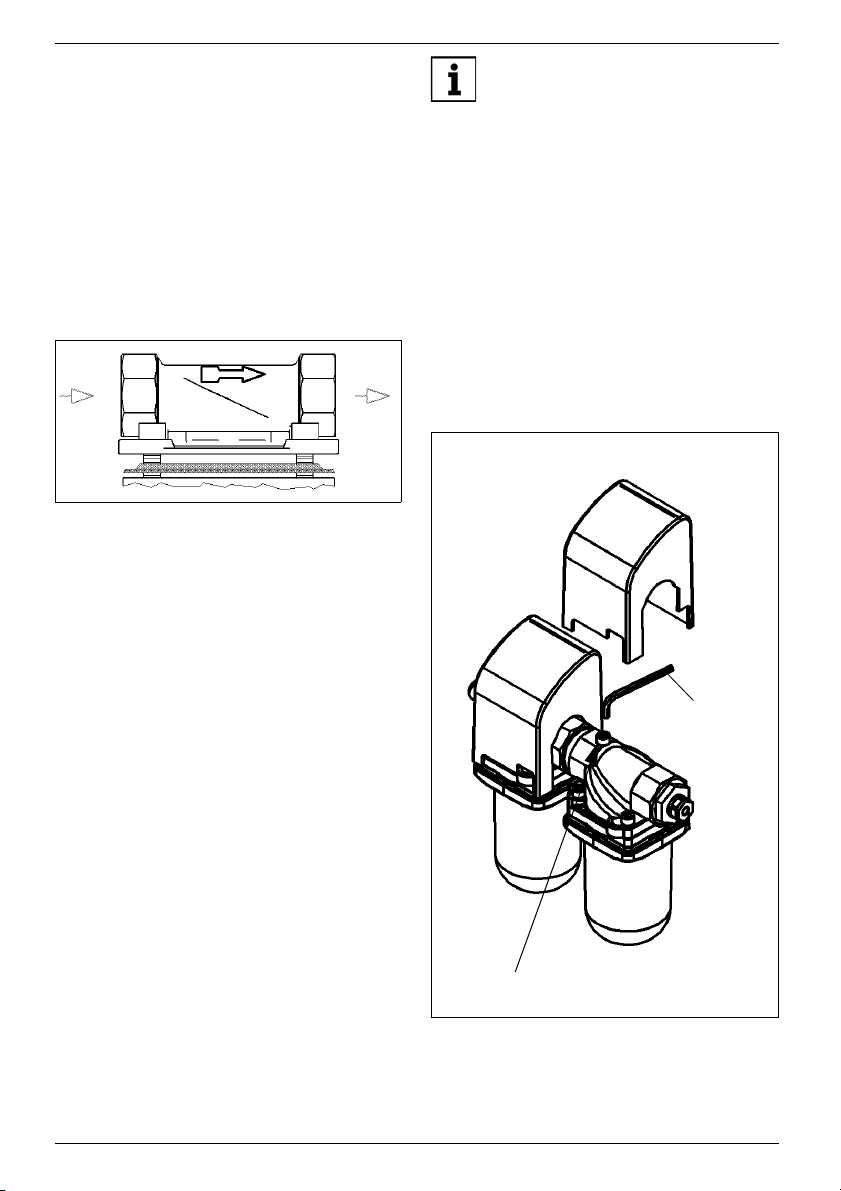

Fig. 6: Flow direction
Particles of activated carbon may
become dislodged from the car-
tridge during flushing.
This has no bearing on the filter
function and only underlines the
efficiency of the cartridge type
used.
Should these particles prove to be
an optical disturbance, please
simply rinse the activated carbon
block filter cartridge for a few
minutes before installing the mi-
cro-filter cartridge at the next re-
quired cartridge change.
Fig. 7: Bleed screw
Bleed screw under the
flange cover
Allen key SW 5

11Mycare MP 50
Installation
.
Fig. 8: Installation
cold water
tubing
tubing
water filter
wall-mounting
water filter shut-off valve
shut-off valve
brackets
Shut-off valves and
tubing by others

Mycare MP 5021
Service
5. Service
ATTENTION
(see chapter “Safety indications and dan-
gers due to non-compliance”)
Always observe the chapter “Units used”!
5.1 Commissioning
Before starting up (initial putting into service
or start-up after cartridge change or mainte-
nance work ) the Mycare water filter
must be filled with water and vented!
1
Open the cold water shut-off valve and
the faucet carefully so that the air can
escape from the system.
2 Slightly unscrew the bleed screw
because the microfiltration cartridge
must also be vented.
3Re-tighten the bleed screw once all the
air has been vented (see fig. 7).
4Keep on flushing with at least 3 liters of
water (i. e. 10 minutes at rated flow) or
until the effluent is clear.
5Turn the faucet off.
6
Set up the indicator for the next filter ch-
ange.
Move the indicator button on the flange
cover to the next filter change require-
ment (filter change every 2 - 6 months at
the latest).
7 Check for leaks both immediately after
start-up and a few hours later.
5.2 Functional description
The Mycare water filter:
– improves the water taste.
– removes bacteria, fungi, parasites,
insecticides, herbicides, phenols,
chlorine, etc. from the water supply.
– is easy to install.
– is easy to change out cartridges.
– is easy to use.
5.3 Modifications / changes /
spare parts
ATTENTION
(see chapter “Safety indications and dan-
gers due to non-compliance”)
Only original spare parts are to be used!
For safety reasons, unauthorized modifica-
tions and changes to the unit are not
allowed! These may impair the function of
the Mycare water filter , cause leaks
and in extreme cases cause the water filter
to burst.

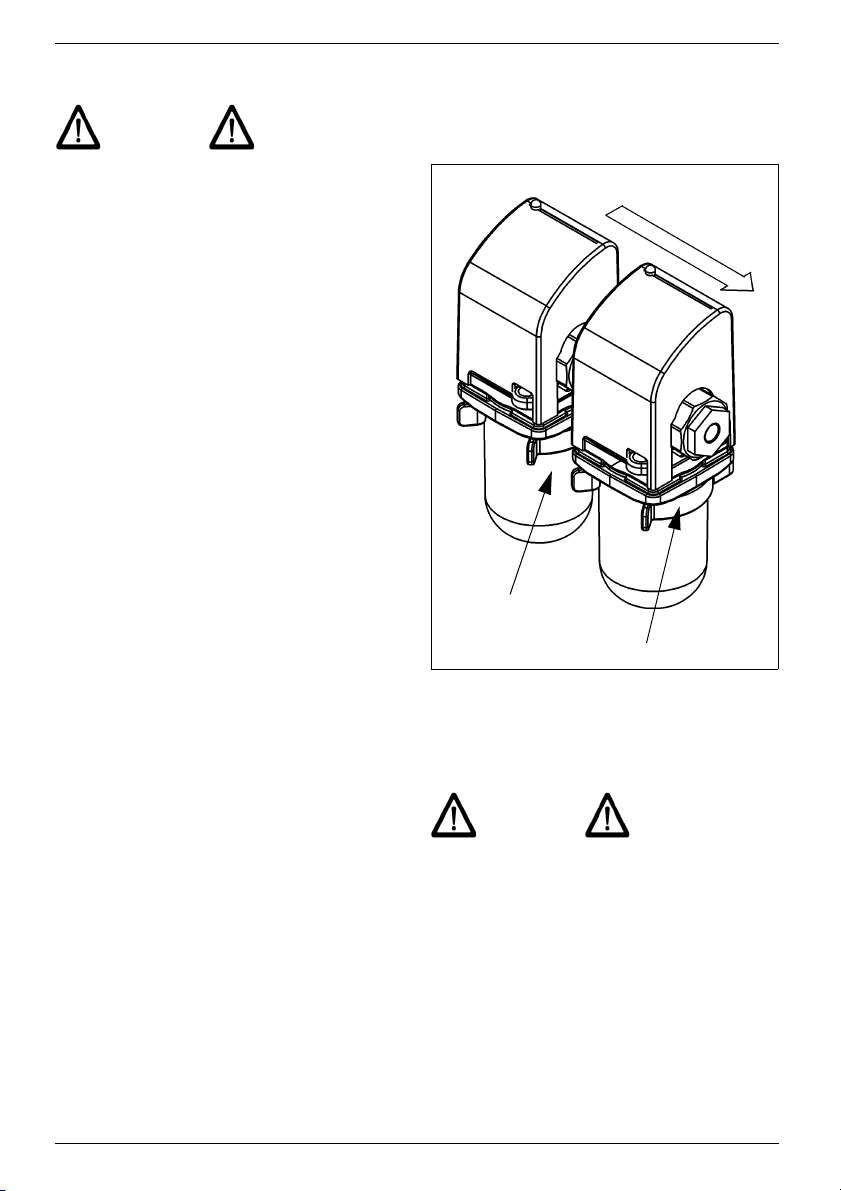

Fig. 9: Functional description
activated carbon block
filter cartridge
micro-filter cartridge
Flowdirection

31Mycare MP 50
Service
5.4 Shut down
ATTENTION
(see chapter “Safety indications and dan-
gers due to non-compliance”)
Please consult the chapter “Units used”
before attempting to open or take-apart the
filter.
5.5 Replacing the cartridges
1Close the cold water supply shut-off
valve or the water filter shut-off valve.
2
Open the faucet to remove the water
pressure.
3Remove the Mycare water filter :
Press the clamping ring of the tubing
adapter back and remove the tubing
from the unit. Remove the water filter
from the wall-mounting.
4Remove the flange cover upward (see
fig. 11).
5Use an allen key to loosen all four bolt
head screws.
6Turn the filter housing to the left up to the
limit stop and pull off downward.
7 Only every 2 years:Remove and
replace the profiled flange seal.
The profiled side of the seal must be
pointing towards the flange (see fig. 10).
Failure to do so can lead to leakage and
water damage.
8
Remove the used replacement cartridge.
9Clean the seat of the cartridge in the
housing using the disinfectant cloth
provided.
IMPORTANT: Do not touch any plastic
parts, especially the inside of the filter
housing, or the cartridge, with your bare
hands.
10 Insert the new replacement cartridge in
the built-in rotary flange and press in up
to the limit stop.
11 Insert the filter housing into the bayonet
opening of the built-in rotary flange, turn
to the right up to the limit stop.
12 Use an allen key to tighten all four bolt
head screws
13 Replace flange cover.
14 Insert the Mycare water filter into
the wall-mouting brackets and connect
the tubing and adapters.
15 Open the cold water shut-off valve or the
water filter shut-off valve and follow the
the steps in the section “Commissioning”.
Always keep the filter elements in the
following order inflow direction:
1. activated carbon block filter cartridge
2. micro-filter cartridge!
Fig. 10: Built-in rotary flange
profiled flange seal
Select the tightening torque (approx
4Nm) so that the seal closes and
the water filter is not damaged or
stressed/distorted!
Particles of activated carbon may
become dislodged from the cartrid-
ge during flushing.
This has no bearing on the filter
function and only underlines the
efficiency of the cartridge type
used.
Should these particles prove to be
an optical disturbance, please
sim
ply rinse the activated carbon
block
filter cartridge for a few
minutes before installing the mi-
cro-filtration cartridge at the next
required cartridge change.

Mycare MP 5041
Service
Fig. 11: Replacing the cartridges
flange cover
built-in rotary flange
replacement cartridge
(micro-filtration)
filter housing complete
Allen key SW 5
used cartridge
(micro-filtration)
used cartridge
(activated carbon)
bleed screw
filter-change indicator
bolt head screw
profiled flange seal

51Mycare MP 50
Trouble shooting chart
6. Trouble shooting chart
Error Cause Remedy
Water has an
unpleasant
smell or is disc-
oloured.
The Mycare
water filter has been
un-used for too long
a period of time.
For hygienic reasons let the water run for
approximately 10 minutes. If the condition does
not improve, the cartridge must be replaced.
Water flow rate
and pressure
decreased!
The cartridge is
clogged.
Replace the cartridge.
Premature cartridge replacement is necessary
when the water contains a large amount of
physical impurities or in a case of high water
consumption (see chapter “Replacing the
cartridges”).
Leaks in the
Mycare
water filter!
The profiled flange
seal is missing,
assembled wrongly
or needs to be
replaced (every 2
years).
Check if the profiled flange seal is missing,
assembled wrongly or needs to be replaced.
The profiled side of the seal must be pointing
towards the flange!
Mycare water
filter has been
exposed to higher
temperatures or
solvents.
Inform the fitter or nearest customer service
centre.
Black activated
carbon particles
on the micro-
filtration
cartidge.
Particles of acti-
vated carbon may
become dislodged
from the cartridge
during installation.
This has no bearing on the filter function and
only underlines the efficiency of the cartridge
type used.
Should these particles prove to be an optical
disturbance, please simply rinse the activated
carbon block filter cartridge for a few minutes
before installing the micro-filtration cartridge at
the next cartridge change.

Mycare MP 5061
Maintenance
7. Maintenance
ATTENTION
(see chapter “Safety indications and dan-
gers due to non-compliance”)
Always observe the chapter “Units used”!
7.1 Cleaning
ATTENTION
(see chapter “Safety indications and dan-
gers due to non-compliance”)
Only use clear, clean drinking water to
clean the housing!
Domestic all-purpose cleaners and glass
cleaners can contain up to 25 % solvents or
alcohol (spiritus) which may damage the
unit.
8. Warranty and services
All products are supplied in accordance with
the legal requirements of warranty
legislation in their country of use.
Please note, that failure to regularly main-
tain your unit and/or replace cartridges and
other consumables on this unit where
required for safe operation, may result in a
loss or reduction of warranty coverage.
We strongly recommends, that the user
signs a maintenance contract with his local,
qualified service agent.
For reasons of domestic hygiene, please
ensure your faucet is cleaned regularly
using disinfectant!

71Mycare MP 50
Data sheet
9. Data sheet
9.1 Type
Mycare water filter
Model MP 50
9.2 Technical data
9.3 Installation dimensions
Water temperature 1 - 30 °C
(34 - 86 °F)
5.9-5.5:aera-Hp
Water pressure min. 103 kPa (15 psi)
Water pressure max. 345 kPa (50 psi)
Cartridge replacement interval
3 months
nim/l2etarwolF
(0.53 US gpm)
Total capacity per filter
cartridgeMF: 2000 l1)
(528 US gal)
AC: 2000 l1)
(528 US gal)
Effective filter value 0.2 micron
(0.0002 mm)
1) depend on water quality
Fig. 12: Installation dimensions
Model A B C D
MP 50 201 mm
(8 inch)
81 mm
(3.1 inch)
77 NPT
(3 inch)
146 mm
(5.3 inch)

Mycare MP 5081
Spare parts MP 50
10. Spare parts MP 50
10
1
2
4
3
B
5
6
7
8
C
A
A
9

91Mycare MP 50
Spare parts MP 50
Replacement interval: ****** 4 - 6 months depending on water quality and water consumption
Spare parts list MP 50
Item
Designation
(Recommended average replacement interval for
wearing parts)
Piece(s) Order no.
A Spare parts set “Reducer” ¾" AG - ¼" IG 1 2110040
B Spare parts set “Filter hood” (consisting of pos. 5, 6, 7, 8) 1 2110102
C Spare parts set
“ Wall-mounting bracket” 1 2110065
2MP 50revocegnalF1
1wercsdaeh-tloB2
3Replacement cartridge activated carbon
block ****** 1MP 50 C
4 Replacement cartridge micro-filter ****** 1 MP 50 H
5 Bolt-head screwM6x30 2
2laesegnalfdeliforP6
2gnisuohretliF7
2
egnalF8
15WSyeknellA9
2nottubrotacidnI01

Mycare MP 5002
Customer service
11. Customer service
All illustrations, dimensions and information for the different models are those valid on the date of prin-
ting. All rights are reserved for modifications as a result of technical progress or further developments.
Claims with regard to models or products are excluded.
9990112 • 2015/02
OWA GmbH
Postfach/P.O. Box 100831
D-73708 Esslingen
Germany
Telephone : [phone]
[phone]:xaF
e-mail: [email protected]
www.owa-world.com
Installed by:
www.owa-world.com
Made in Germany by OWA
